light GMC JIMMY 1997 User Guide

4LO: This setting also engages your front axle to give
you extra traction. You may never need 4LO. It sends
the maximum power to all
four wheels. You might
choose 4LO
if you were driving off-road in sand, mud
or deep snow and climbing or descending steep hills.
Indicator lights
in the switches show you which setting
you are
in. The indicator lights will come on briefly when
you turn on
the ignition and one will stay on. If the lights
do not come
on, you should take your vehicle in for
service.
An indicator light will flash while shifting. It will
remain illuminated when the shift is completed.
Shifting from 2HI to 4HI
Press and release the 4HI switch. This can be done at
any speed. and the front axle will lock automatically.
Shifting from 4HI to 2HI
Press and release the 2HI switch. This can be done at
any speed. and the. front axle will unlock automatically.
Shifting from 2HI or 4HI to 4LO
To
shift from 2HI or .CHI to 4LO. the vehicle must be
stopped or moving less than
3 rnph (4.8 k~nh) with the
transmission
in NEUTRAL (N) in vehicles equipped with an
automatic transmission or the clutch pedal engaged
in
vehicles equipped with a manual transmission. The
preferred method for shifting into 4LO is to have your
vehicle moving
1 to 2 mph (I .6 to 3.2 kmh). Press
and release
the 4LO switch. You must wait for the
4LO indicator light to stop flashing and remain
illuminated before shifting your transmission into
gear or releasing
the clutch pedal.
If the 4L0 switch is pressed when your vehicle is
in
gear and/or moving, the 4LO indicator light will flash
for
30 seconds and not complete the shift unless your
vehicle is moving slower than
3 tnph (4.8 km/h) and
the transmission
is in NEUTRAL (N) or the clutch
pedal engaged.
On automatic transmission equipped vehicles,
if your
transfer case does
not shift into 4LO. your transmission
indicator switch may reyuire adjustment. With
your
transmission in NEUTRAL (N)! press and release the
4L0 switch. While the 4LO indicator light is flashing.
shift yo~lr transmission into PARK (P). Wait unlil the
4L0 indicator light remains illuminated before shifting
your trrmstnission
into gear. This will get you into 4LO.
but you should take
your vehicle in for service to restore
normal operation.

Shifting from 4LO to 4HI or 2HI
To shift from 4LO to 4HI or 2H1, your vehicle must be
stopped or moving
less than 3 mph (4.8 kndh) with the
transnJission
in NEUTRAL (N) or the clutch pedal
engaged. The preferred method for shifting out of
4LO is to have your vehicle moving
1 to 2 mph (1.6 to
3.2 kdh). Press and release the 4HI switch. You must
wait for the
4HI indicator light to stop flashing and
remain illuminated before shifting your transmission
into gear
or releasing the clutch pedal.
If the 4Hi switch is pressed when your vehicle is in gear
and/or moving. the 4HI indicator light
will flash for
30 seconds but not complete the shift unless the
vehicle is moving slower than
3 nlph (4.8 km/h) and
the transmission is in NEUTRAL (N) or the clutch
pedal engaged.
On automatic transmission equipped vehicles. if your
transfer case does not
shift into 4H1, your transmission
indicator switch
may require adjustment. With your
transmission
in NEUTRAL (N), press and release the
4HI switch. While the 4HI indicator light is flashing,
shift your transmission into PARK
(P). Wait until the
4HI indicator light remains illuminated before shifting
your transmission into gear. This
will get you into 4H1,
but you should take your vehicle in for service to restore
norrnal operation.
2-2s

Parking Brake
To set the parking brake. hold the regular brake pedal
down with your right foot. Push down the parking brake
pedal with your left
foot. If the ignition is on, the brake
system warning light
will come on.
To
release the parking brake hold the regular brake
pedal
down.
NOTICE:
Driving with the parking brake on can cause
your rear brakes to overheat. You
may have to
replace them, and you could also damage other
parts
of your vehicle.
If you are towing a trailer and you must park on a hill,
see "Towing a Trailer" in the Index. That section shows
what to
do first to keep the trailer from moving.
2-29

Windows
Manual Windows
Turn the hand crank on each door to raise or lower your
manual side door windows.
Power Windows (If Equipped)
If you have the optional power windows, the controls
are on each
of the side doors. Your power windows will
only work when the ignition has been turned to
RUN.
The driver’s door has a switch for the passenger
windows as well.
Press the side
of the switch with the down arrow to
lower the window.
Press the side
of the switch with the up arrow to raise
the window.
Express-Down Window
The driver’s window switch has an express-down feature
that allows you
to lower it without holding the window
switch. Hold the driver’s window switch down for more
than a half a second to activate the express-down feature.
Lightly tap the switch to open the window slightly. The
express-down feature can
be interrupted at any time by
pressing the up arrow end of the switch.
2-36

Windshield Wipers
You control the windshield
wipers
by turning the band
with the wiper symbol
on it.
For a single wiping cycle. turn the band to MIST. Hold
it there until the wipers start. then let go. The wipers will
stop after one wipe. If you want Inore wipes, hold the
band on
MIST longer.
You can set the wiper speed I‘or a long or short delay
between wipes. This can be very
LIS~~LII in light rain or
snow. Turn the band to choose the delay time. The
closer to
LOW, the shorter the delay.
Be sure to ciear ice and snow from the wiper blades
before using them. If they’re frozen to the windshield,
carefully loosen or thaw them.
If your blades do become
worn or datnaged.
set new blades or blade inserts.
Windshield Washer
At the top of the multifunction lever there’s a paddle
marked with the windshield washer
symbol and PUSH.
To spray washer fluid on the windshield, press the
paddle. The wipers
will clear the window and then
either stop or return to your preset speed.
I
I
A C iTJTION:
In freezing weather, don’t use your washer until
the windshield is warmed. Otherwise the washer
fluid can
form ice an the windshield, blocking
your vision.
2-40

Lamps On Reminder
A reminder tone will sound when your headlamps or
parking lamps are turned
on and your ignition is in OFF,
LOCK or ACCESSORY. To turn the tone off, press the
OFF switch.
Daytime Running Lamps
Daytime Running Lamps (DRL) can make it easier for
others to see the front of your vehicle during the day.
DRL can be helpful in many different driving
conditions, but
they can be especially helpful in the
short periods after dawn and before sunset.
The DRL system will make your headlamps come on at
reduced brightness when:
the ignition is on,
the headlamp switch is off and
the parking brake is released. When
the DRL are
on. only your headlamps will be on.
The taillamps, sidemarker and other lamps won't be on.
The instrument panel won't be
lit up either.
When
it begins to get dark, your DRL indicator light is a
reminder to turn your headlamp switch on. The other
lamps that come on
with your headlamps will also
come on.
When you
turn the headlamp switch off, the regular
lamps will
go off, and your headlamps will change to
the reduced brightness
of DRL.
To idle your vehicle with the DRL off, set the parking
brake. The DRL
will stay off until you release the
parking brake.
As with any vehicle, you should turn on the regular
headlamp system when you need it.
2-46

Fog Lamps (If Equipped)
Use your fog lamps for better vision in foggy or misty
conditions. Your parking lamps or low-beam headlamps
must be
on for your fog lamps to work.
The
fog lamp switch is on the instrument panel under
the lamps switches. Press the side
of the switch with the
fog lamp symbol to turn the fog lamps on. Press OFF to
turn them off. A light will glow in the switch when the
fog lamps are on. Remember,
fog lamps alone will not
give off as much
light
as your headlamps. Never use your fog lamps in
the dark without turning on your headlamps.
Fog lamps will go off whenever your high-beam
headlamps
come on. When the high beams go off,
the fog lamps will come on again.
Interior Lamps
Brightness Control
Turn the switch next to the headlamp switch up to
make your instrument panel and transfer case lights
brighter. Turn the switch
all the way up to turn on the
interior lamps.
Front Reading Lamps (If Equipped)
Press the button near each lamp on the overhead console
to
turn the reading lamps on and off. The lamps can be
swiveled
to point in the desired direction.
If you have the rniniconsole, press the lens on each
reading lamp
to turn it on or off.
2-47

Front Map Lamps (If Equipped)
If your vehicle has optional front rmp lamps, they
are located on the inside rearview mirror. They
will
automatically come on for approximately 20 seconds
when either front door is opened or unlocked with
the
Keyless Entry System, if so equipped, or until the
ignition key is turned to RUN or ACCESSORY. The
lamps
will also stay on for approxinlately 15 seconds
after you exit the vehicle.
They
will also stay on for I5 seconds when the INT
LIGHTS switch on the instrument panel is turned on
then off, while the ignition is off.
You can also turn the lamps on and off by pressing the
switch near each lamp.
Dome Lamps
The rear dome lamp has a switch that lets you turn it on
from the rear of the vehicle.
Press the side
of the switch with the lamp symbol to turn
on the front and rear dome lamps. Pressing the other side
of the swirch
will turn the cargo area dome lamp off,
even when the endgate or liftgate and doors are open.
2-48

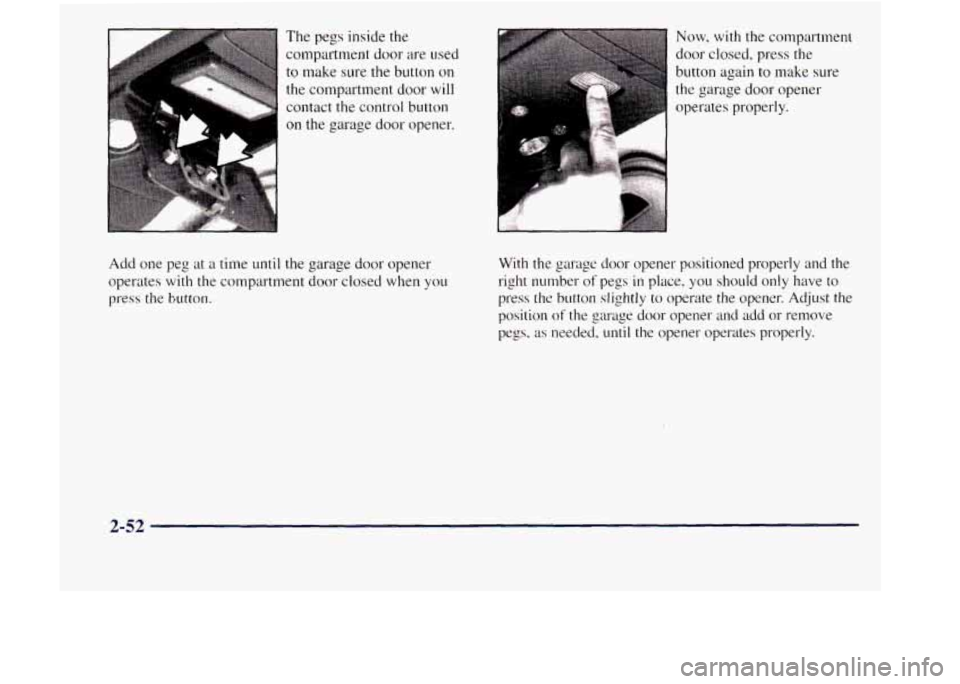

The pegs inside the
compartment door are used
to make sure the button on
the compartment door will
contact the control button
on the garage door opener.
Add one peg at
a time until the garage door opener
operates
with the compartment door closed when you
press the
button.
Now, with the compartment
door closed, press the
button again
to make sure
the garage door opener
operates properly.
With the garage door opener pos' - loned properly and the
right number
of pegs in place, you should only have to
press the button slightly to operate the opener. Adjust the
position
of the garage door opener and add or remove
pegs,
as needed, until the opener operates properly.
-
2-52

If your vehicle has the center armrest compartment, lift
the cover to expose the storage area which includes slots
for cassettes and a coinholder.
A storage compartment under your radio may be used to
hold small items.
Convenience Net (If Equipped)
You may have a convenience net in the rear of your vehicle to
help keep
small items, like gloves and light clothing in place
during sharp turns or quick stops
and starts.
The net is not designed to retain these items during
off-road
use. The net is not for larger. heavier items.
The convenience net
is anchored to the end, crate door.
Attach the upper
loops to the retainers on either side of
the endgate opening (the label should be in the upper
passenger side corner, visible from
the rear of’ vehicle).
Attach the lower
hooks to the rear cargo tie downs on
the fl oor.
2-57
