Page 21 of 388

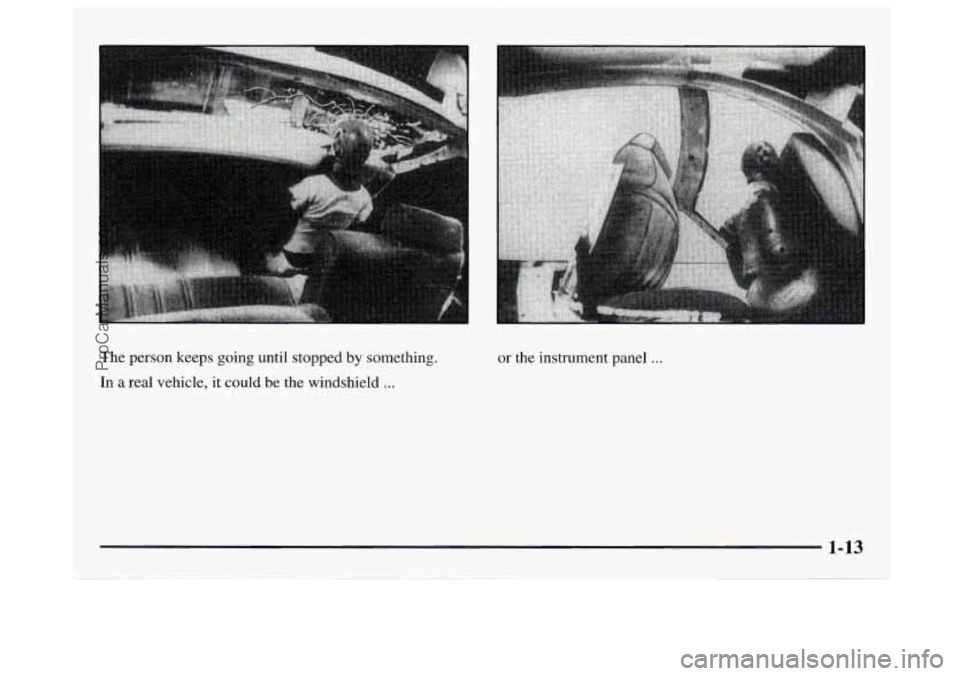

The person keeps going until stopped by something.
In a real vehicle, it could be the windshield ...
or the instrument panel ...
1-13
ProCarManuals.com
Page 22 of 388
I ..

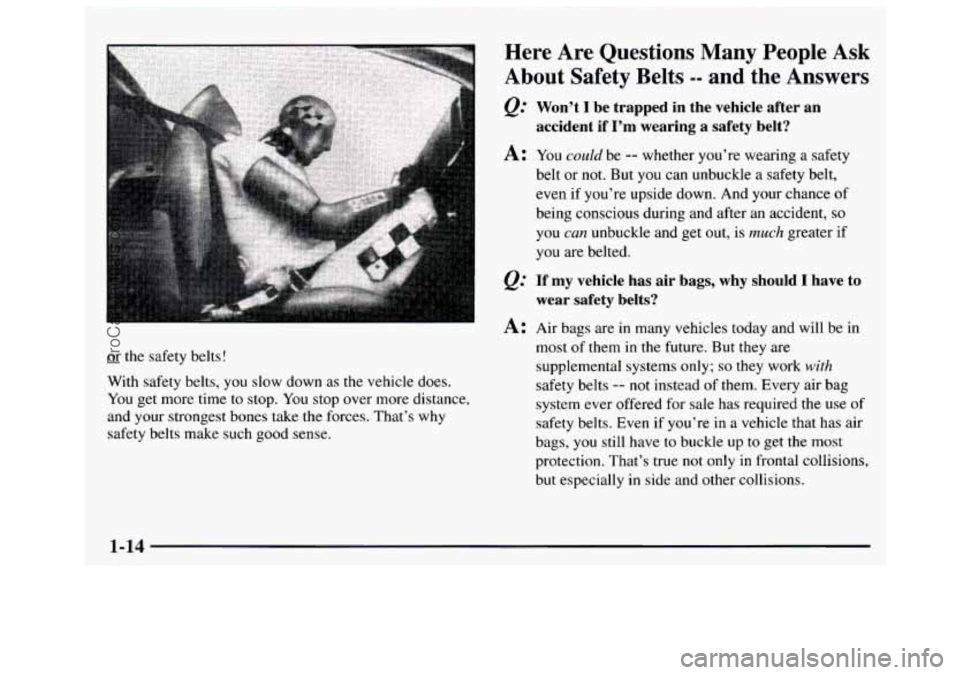

or the safety belts!
With safety belts, you slow down as
the vehicle does.
You get more
time to stop. You stop over more distance,
and your strongest bones take the forces. That’s
why
safety belts make such good sense.
Here Are Questions Many People Ask
About Safety Belts -- and the Answers
Q: Won’t I be trapped in the vehicle after an
accident if I’m wearing a safety belt?
A: You could be -- whether you’re wearing a safety
belt or not.
But you can unbuckle a safety belt,
even if you’re upside down. And your chance
of
being conscious during and after an accident, so
you can unbuckle and get out, is much greater if
you are belted.
If my vehicle has air bags, why should I have to
wear safety belts?
A: Air bags are in many vehicles today and will be in
most of them in the future. But they are
supplemental systems only;
so they work with
safety belts -- not instead of them. Every air bag
system ever offered for sale has required the use of
safety belts. Even if you’re
in a vehicle that has air
bags, you still have to buckle up to get the
most
protection. That’s true not only in frontal collisions,
but especially in side and other collisions.
1-14
ProCarManuals.com
Page 23 of 388

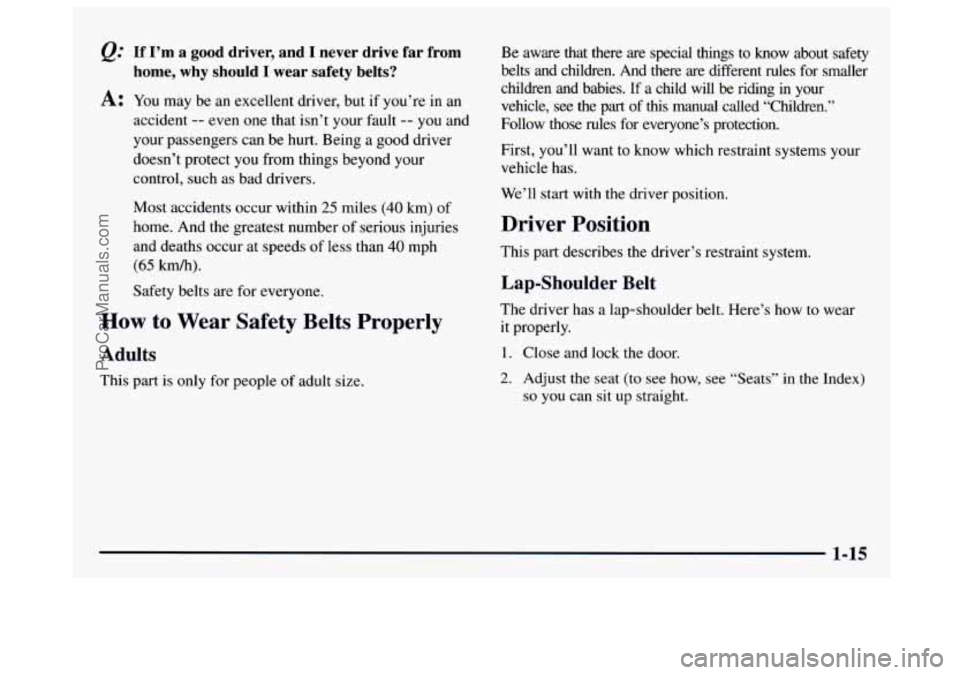

@ If I’m a good driver, and I never drive far from
home,
why should I wear safety belts?
A: You may be an excellent driver, but if you’re in an
accident
-- even one that isn’t your fault -- you and
your passengers can be hurt. Being
a good driver
doesn’t protect you from things beyond your
control, such as bad drivers.
Most accidents occur within
25 miles (40 km) of
home. And the greatest number of serious injuries
and deaths occur
at speeds of less than 40 mph
(65 km/h).
Safety belts are for everyone.
How to Wear Safety Belts Properly
Adults
This part is only for people of adult size. Be aware that there are special things to know about safety
belts and children. And there are different rules for smaller
children and babies.
If a child will be riding in your
vehicle,
see the part of this manual called “Children.”
Follow those rules for everyone’s protection.
First, you’ll want to know which restraint systems your
vehicle has.
We’ll start with the driver position.
Driver Position
This part describes the driver’s restraint system.
Lap-Shoulder Belt
The driver has a lap-shoulder belt. Here’s how to wear
it properly.
1. Close and lock the door.
2. Adjust the seat (to see how, see “Seats” in the Index)
so you can sit up straight.
ProCarManuals.com
Page 24 of 388

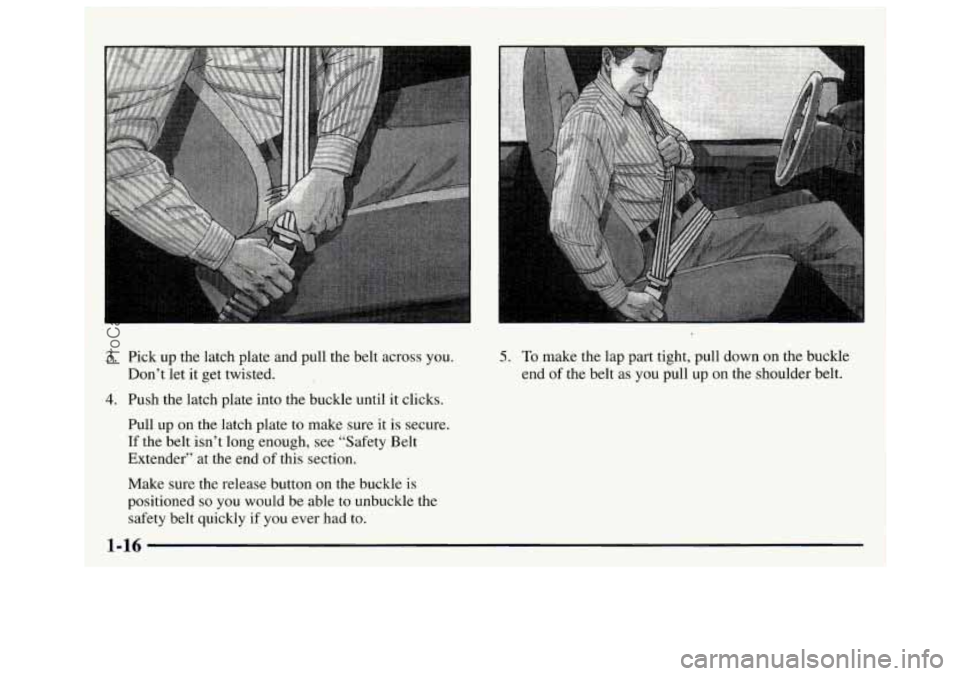

3. Pick up the latch plate and pull the belt across you.
Don’t let
it get twisted.
4. Push the latch plate into the buckle until it clicks.
Pull up on the latch plate to make sure it is secure.
If the belt isn’t long enough, see “Safety Belt
Extender” at the end of this section.
Make sure the release button
on the buckle is
positioned so you would be able to unbuckle the
safety belt quickly
if you ever had to.
5. To make the lap part tight, pull down on the buckle
end of the belt
as you pull up on the shoulder belt.
I 1-16
ProCarManuals.com
Page 25 of 388

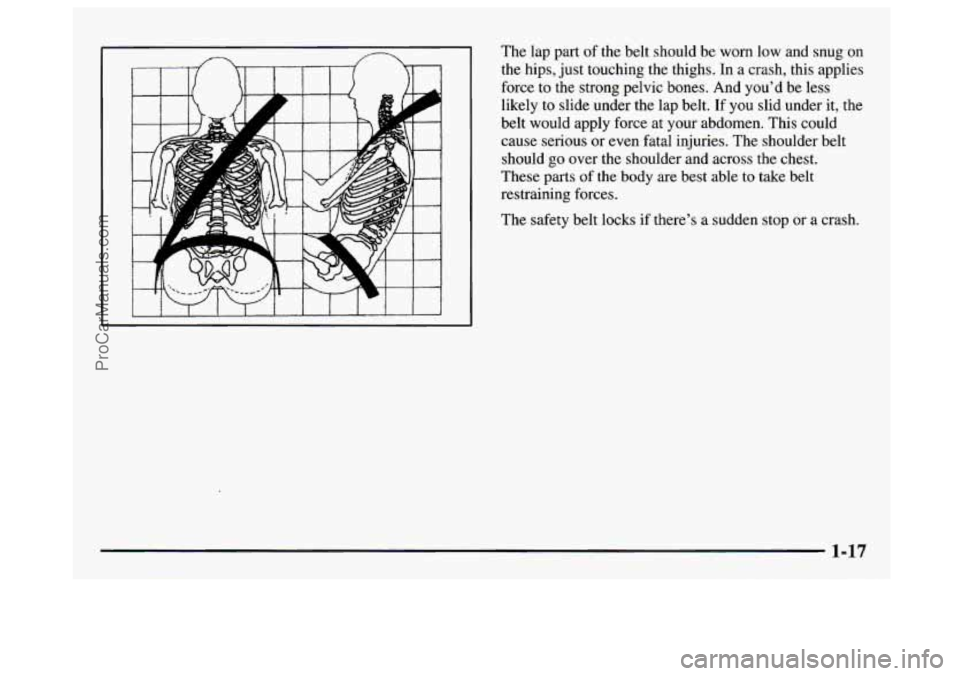

The lap part of the belt should be worn low and snug on
the hips, just touching the thighs. In a crash, this applies
force to the strong pelvic bones. And you’d be less
likely to slide under the lap belt.
If you slid under it, the
belt would apply force at your abdomen. This could
cause serious or even fatal injuries. The shoulder belt
should go over the shoulder and across the chest.
These parts
of the body are best able to take belt
restraining forces.
The safety belt locks if there’s a sudden stop or a crash.
1-17
ProCarManuals.com
Page 26 of 388

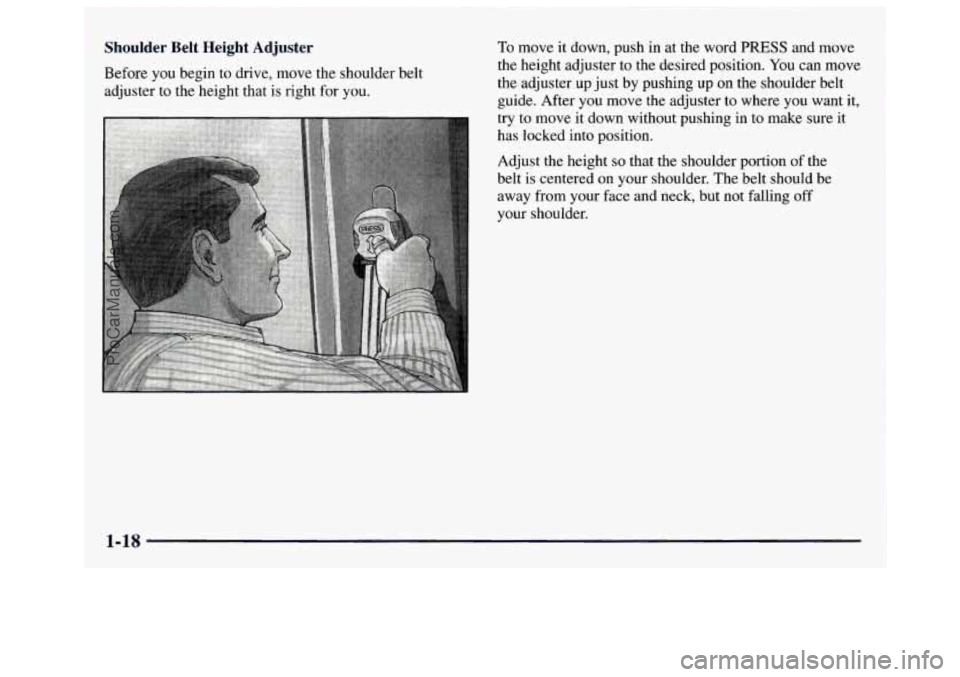

Shoulder Belt Height Adjuster
Before you begin to drive, move the shoulder belt
adjuster to the height that is right for
you.
To move it down, push in at the word PRESS and move
the height adjuster to the desired position. You can move
the adjuster up just by pushing up on the shoulder belt
guide. After you move the adjuster to where you want
it,
try to move it down without pushing in to make sure it
has locked into position.
Adjust the height
so that the shoulder portion of the
belt is centered on your shoulder. The belt should be
away from your face and neck, but not falling
off
your shoulder.
1-18
ProCarManuals.com
Page 27 of 388

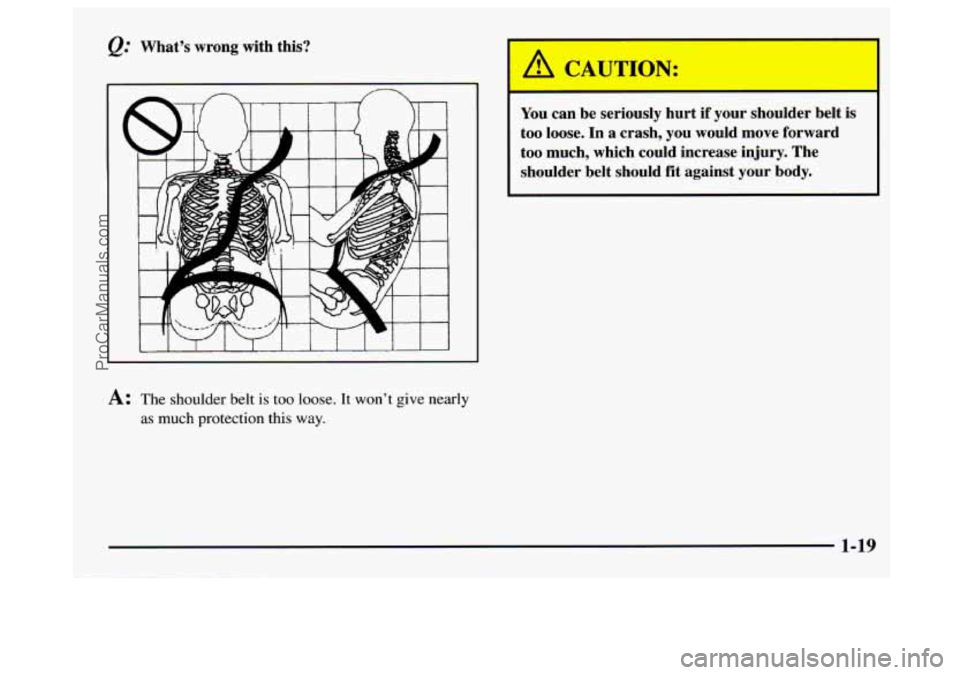

@ What’s wrong with this? You can be seriously hurt if your shoulder belt
is
too loose. In a crash, you would move forward
too much, which could increase injury. The
shoulder belt should fit against your body.
A: The shoulder belt is too loose. It won’t give nearly
as much protection this way.
1-19
ProCarManuals.com
Page 28 of 388

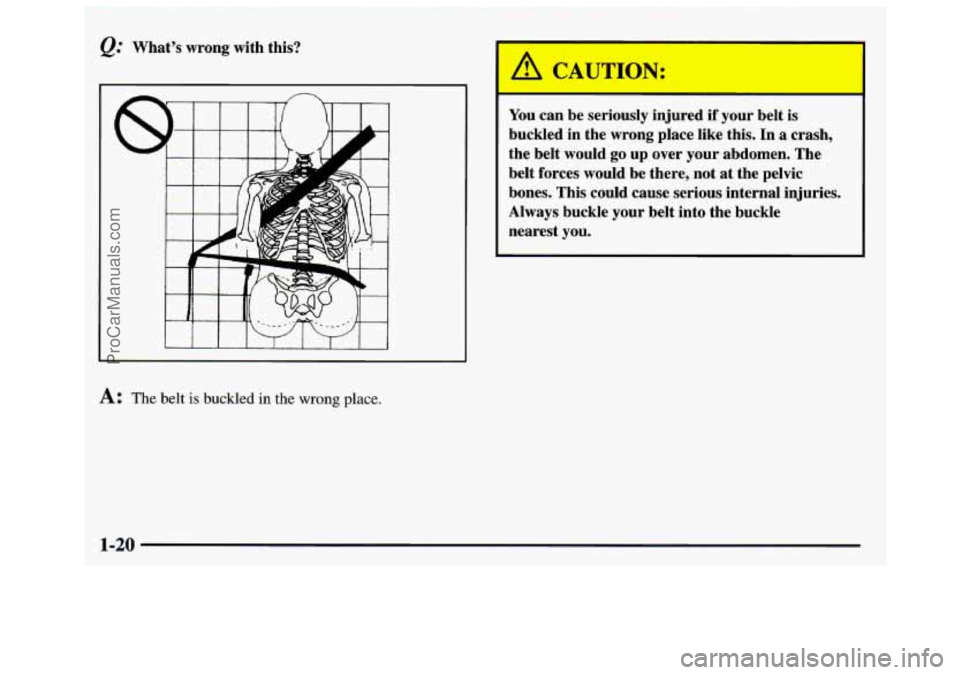

You can be seriously injured if your belt is
buckled in the wrong place like this. In
a crash,
the belt would go up over your abdomen. The
belt forces would be there, not at the pelvic
bones. This could cause serious internal injuries.
Always buckle your belt into the buckle
nearest you.
A: The belt is buckled in the wrong place.
1-20
ProCarManuals.com
Page 29 of 388

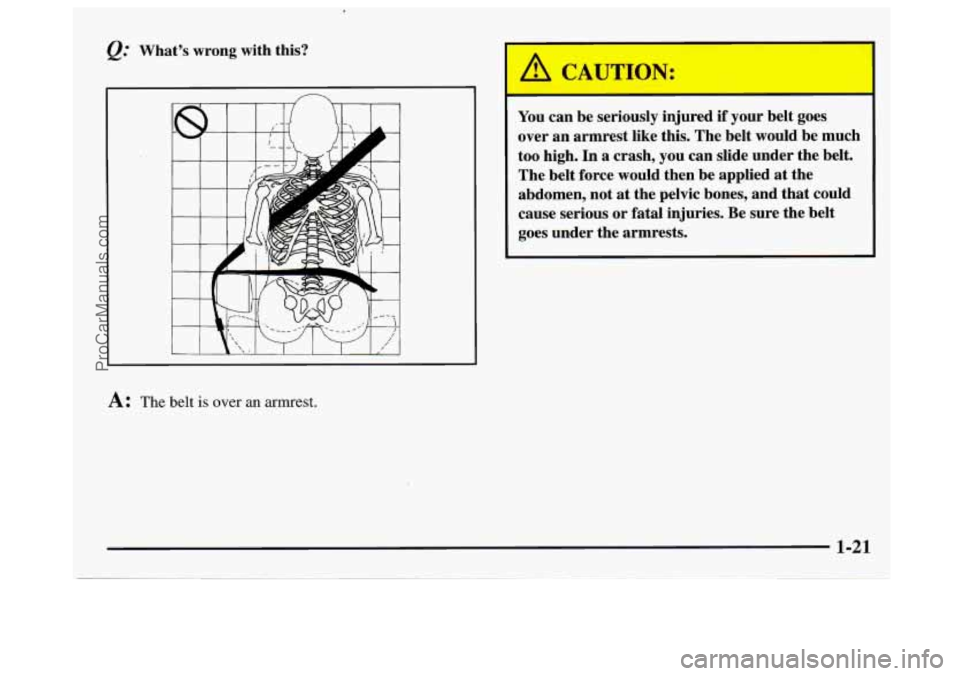

What’s wrong with this?
,----. 1
I
A CI TJTION:
You can be seriously injured if your belt goes
over an armrest like this. The belt would be much
too high. In a crash, you can slide under the belt.
The belt force would then be applied
at the
abdomen, not
at the pelvic bones, and that could
cause serious or fatal injuries. Be sure the belt
goes under the armrests.
A: The belt is over an armrest.
1-21
ProCarManuals.com
Page 30 of 388
I

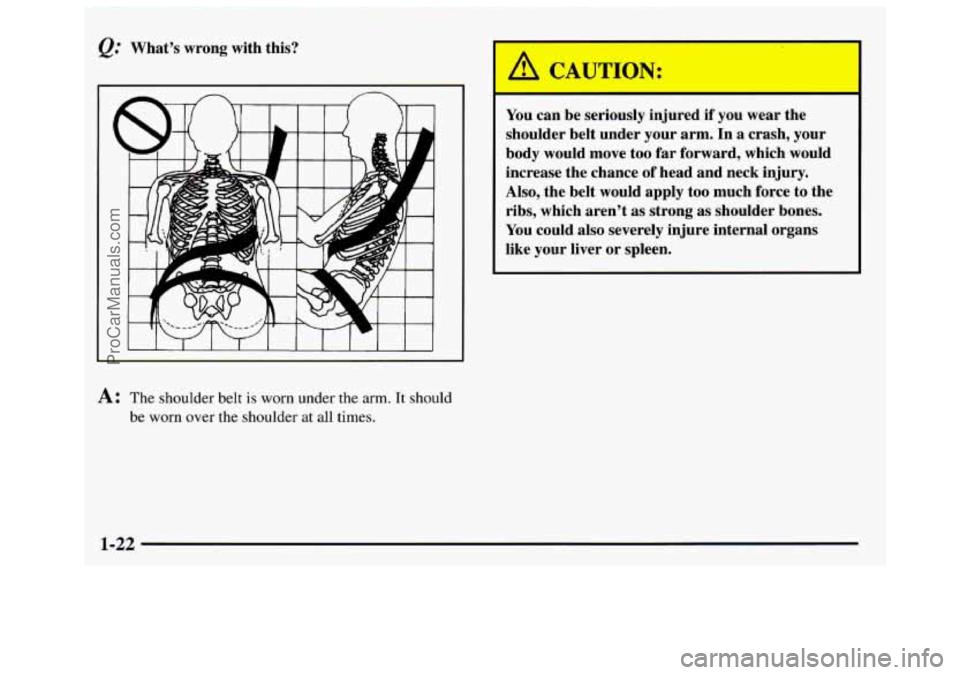

@ What’s wrong with this?
A: The shoulder belt is worn under the arm. It should
be worn over the shoulder at all times.
You can be seriously injured if you wear the
shoulder belt under your arm. In a crash, your
body would move too far forward, which would
increase the chance of head and neck injury.
Also, the belt would apply
too much force to the
ribs, which aren’t as strong as shoulder bones.
You could also severely injure internal organs
like your liver
or spleen.
1-22
