Page 11 of 388

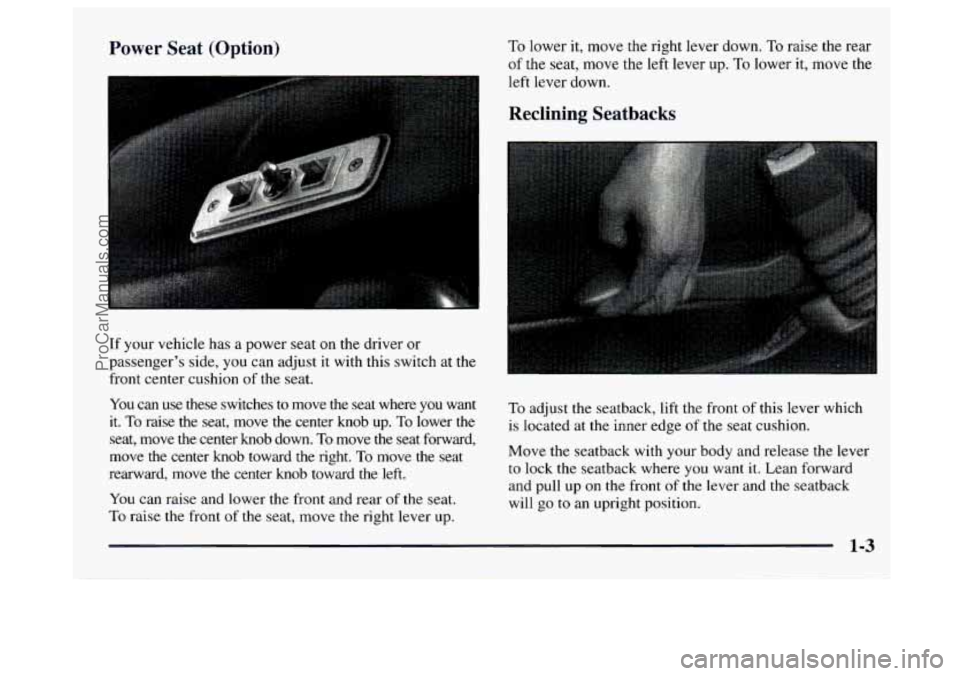

Power Seat (Option) To lower it, move the right lever down. To raise the rear
of the seat, move the left lever up.
To lower it, move the
I left lever down.
I Reclining Seatbacks
If your vehicle
has a power seat on the driver or
passenger’s side, you can adjust
it with this switch at the
front center cushion of
the seat.
You can use these switches
to move the seat where you want
it.
To raise the seat, move the center knob up. To lower the
seat, move the center knob down.
To move the seat forward,
move the center knob toward the right.
To move the seat
rearward, move the center
knob toward the left.
You can raise and lower the front and rear of the seat.
To raise the front of the seat, move the right lever up.
To adjust the seatback, lift the front of this lever which
is located at the inner edge of the seat cushion.
Move the seatback with your body and release the lever
to lock the seatback where you want it. Lean forward
and pull up
on the front of the lever and the seatback
will go
to an upright position.
1-3
ProCarManuals.com
Page 12 of 388

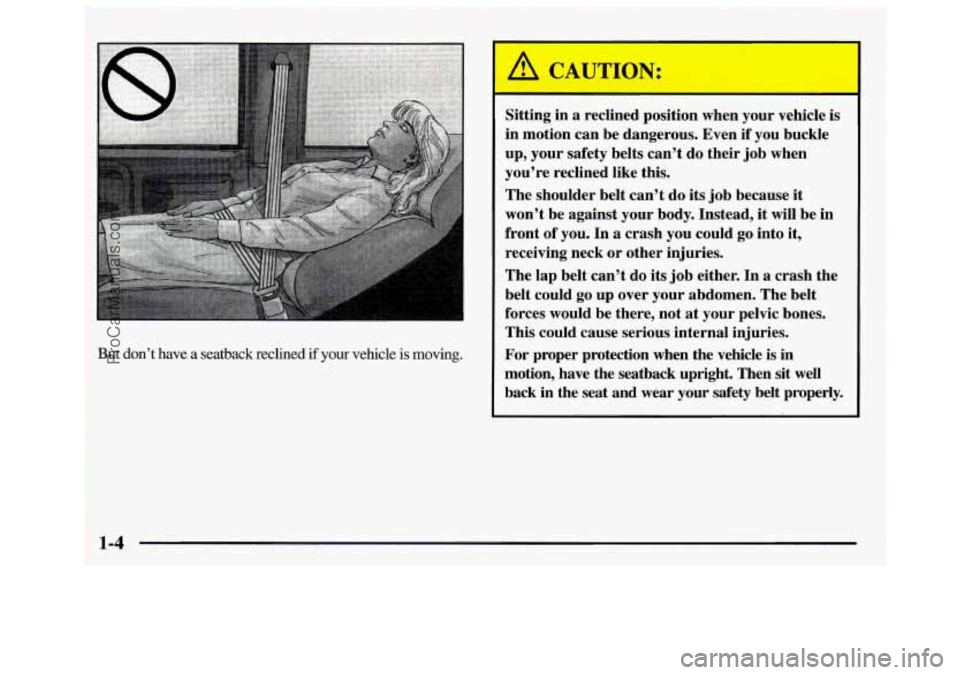

But don’t have a seatback reclined if your vehicle is moving.
~___
Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even
if you buckle
up, your safety belts can’t do their job when
you’re reclined like this.
The shoulder belt can’t do its job because
it
won’t be against your body. Instead, it will be in
front of you. In a crash you could go into it,
receiving neck or other injuries.
The lap belt can’t do its job either. In
a crash the
belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit well
back
in the seat and wear your safety belt properly.
1-4
ProCarManuals.com
Page 13 of 388

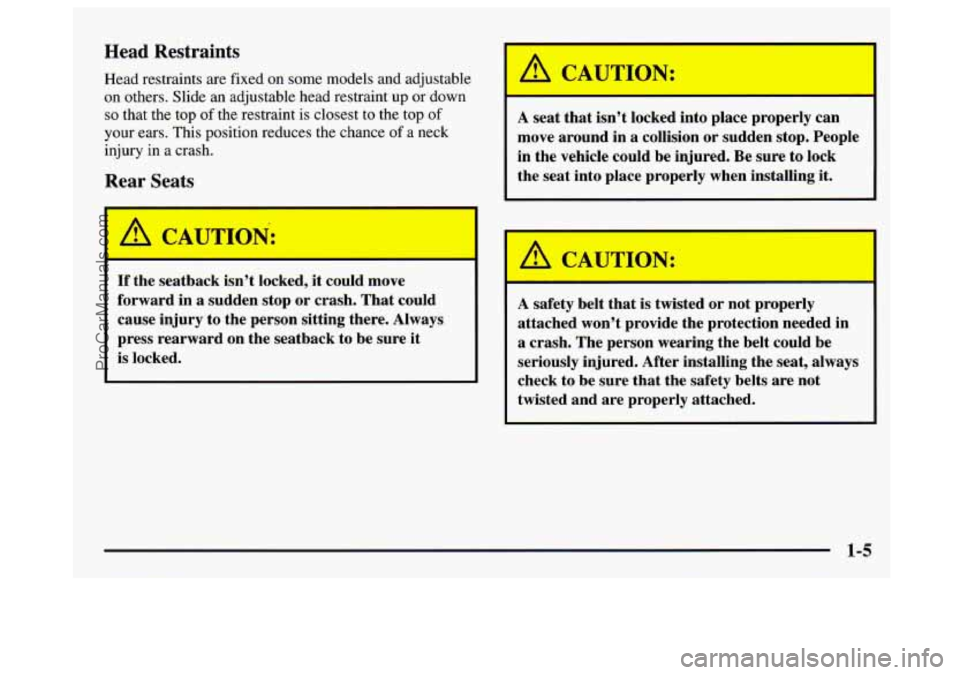

Head Restraints
Head restraints are fixed on some models and adjustable
on others. Slide an adjustable head restraint up or down
so that the top of the restraint is closest to the top of
your ears. This position reduces the chance of a neck
injury
in a crash.
Rear Seats
A CAUTION’:
-
If the seatback isn’t locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.
CI 7TION:
A seat that isn’t locked into place properly can
move around in
a collision or sudden stop. People
in the vehicle could be injured. Be sure to lock
the seat into place properly when installing it.
A CAUTION:
I
~- -
A safety belt that is twisted or not properly
attached won’t provide the protection needed in
a crash. The person wearing the belt could be
seriously injured. After installing the
seat, always
check to be sure that the safety belts are not
twisted and are properly attached.
1-5
ProCarManuals.com

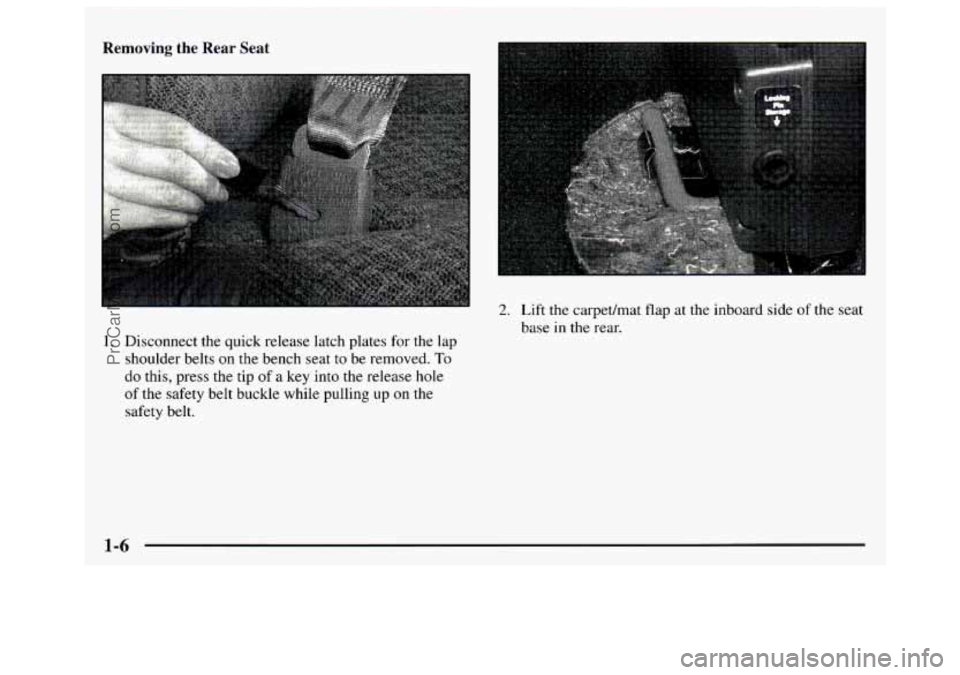

Page 14 of 388
Removing the Rear Seat
2. Lift the carpedmat flap at the inboard side of the seat
base
in the rear.
1. Disconnect the quick release latch plates for the lap
shoulder belts on the bench seat
to be removed. To
do this, press the tip of a key into the release hole
of the safety belt buckle while pulling up on the
safety belt.
1-6
ProCarManuals.com

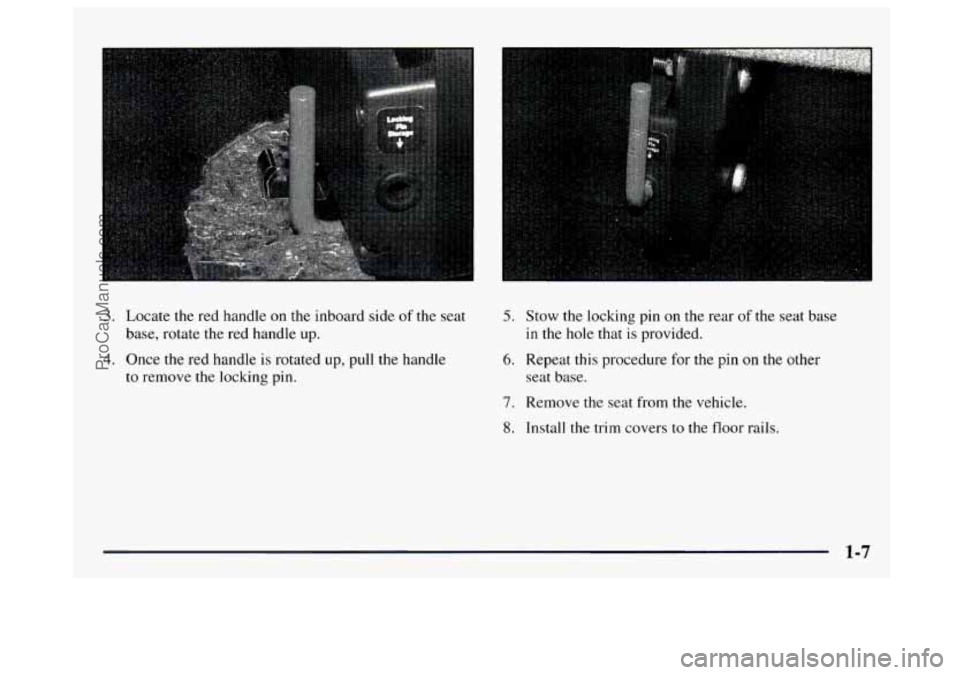

Page 15 of 388
3. Locate the red handle on the inboard side of the seat
base, rotate the red handle up.
4. Once the red handle is rotated up, pull the handle
to remove the locking pin.
5. Stow the locking pin on the rear of the seat base
in the hole that is provided.
6. Repeat this procedure for the pin on the other
seat base.
7. Remove the seat from the vehicle.
8. Install the trim covers to the floor rails.
1-7
ProCarManuals.com
Page 16 of 388
I

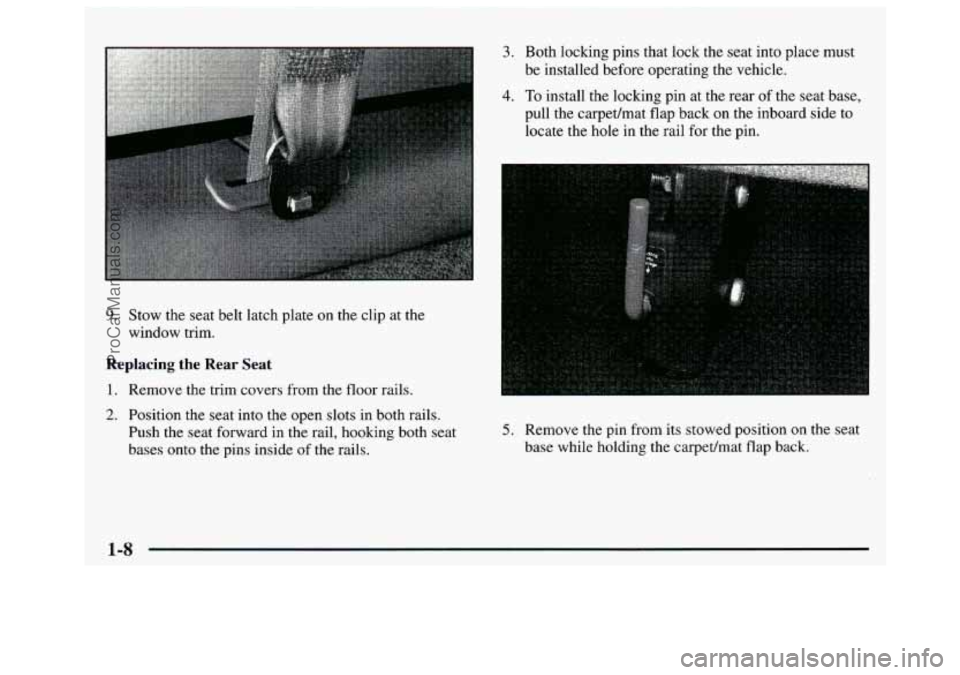

9. Stow the seat belt latch plate on the clip at the
window trim.
Replacing the Rear Seat
1. Remove the trim covers from the floor rails.
2. Position the seat into the open slots in both rails.
Push the seat forward in the rail, hooking both seat
bases onto the pins inside of
the rails.
3. Both locking pins that lock the seat into place must
be installed before operating the vehicle.
4. To install the locking pin at the rear of the seat base,
pull the carpedmat flap back
on the inboard side to
locate the hole in the rail for the pin.
5. Remove the pin from its stowed position on the seat
base while holding the carpet/mat flap back.
1-8
ProCarManuals.com
Page 17 of 388

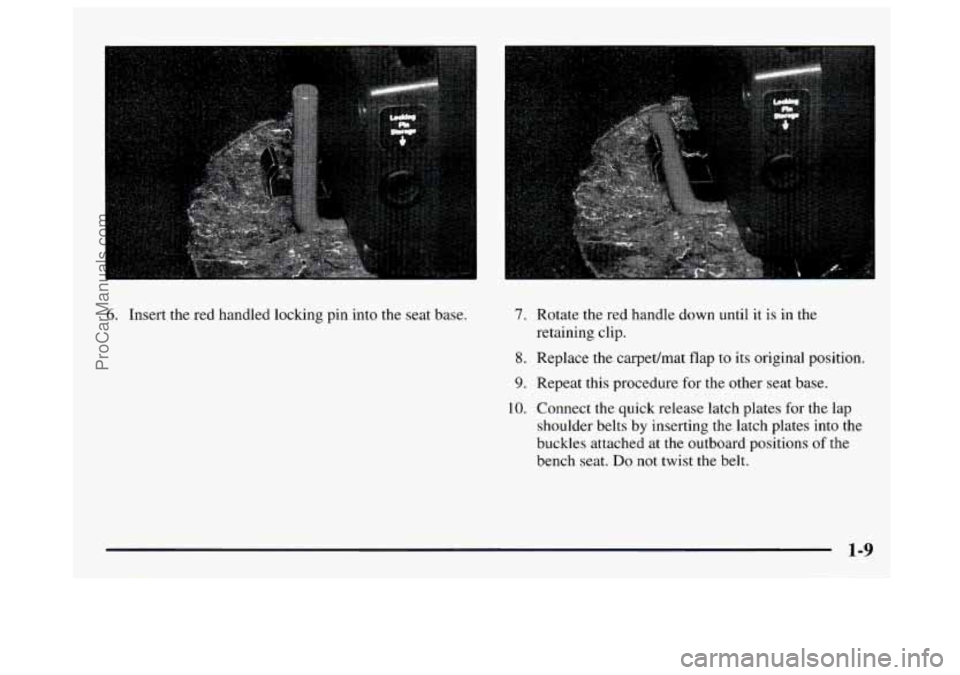

6. Insert the red handled locking pin into the seat base. 7. Rotate the red handle down until it is in the
retaining clip.
8. Replace the carpet/mat flap to its original position.
9. Repeat this procedure for the other seat base.
10. Connect the quick release latch plates for the lap
shoulder belts by inserting the latch plates into the
buckles attached at the outboard positions
of the
bench seat.
Do not twist the belt.
1-9
ProCarManuals.com
Page 18 of 388

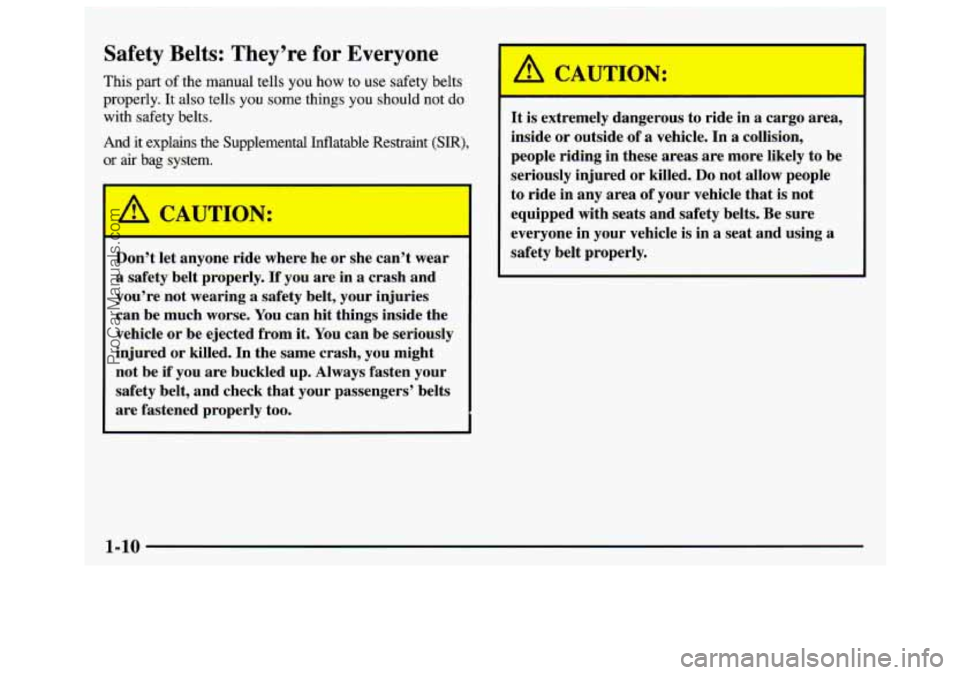

Safety Belts: They’re for Everyone
This part of the manual tells you how to use safety belts
properly. It also tells
you some things you should not do
with safety belts.
And it explains
the Supplemental Inflatable Restraint (SIR),
or air bag system.
A CAUTION:
Don’t let anyone ride where he or she can’t wear
a safety belt properly. If you are in a crash and
you’re not wearing a safety belt, your injuries
can be much worse.
You can hit things inside the
vehicle or be ejected from it.
You can be seriously
injured or killed. In the same crash, you might
not be
if you are buckled up. Always fasten your
safety belt, and check that your passengers’ belts
are fastened properly too.
I
A CAUTION:
It is extremely dangerous to ride in a ca -0 area,
inside or outside of a vehicle. In a collision,
people riding in these areas are more likely
to be
seriously injured
or killed. Do not allow people
to ride in any area of your vehicle that is not
equipped with seats and safety belts.
Be sure
everyone in your vehicle is in a seat and using
a
safety belt properly.
1-10
ProCarManuals.com
Page 19 of 388

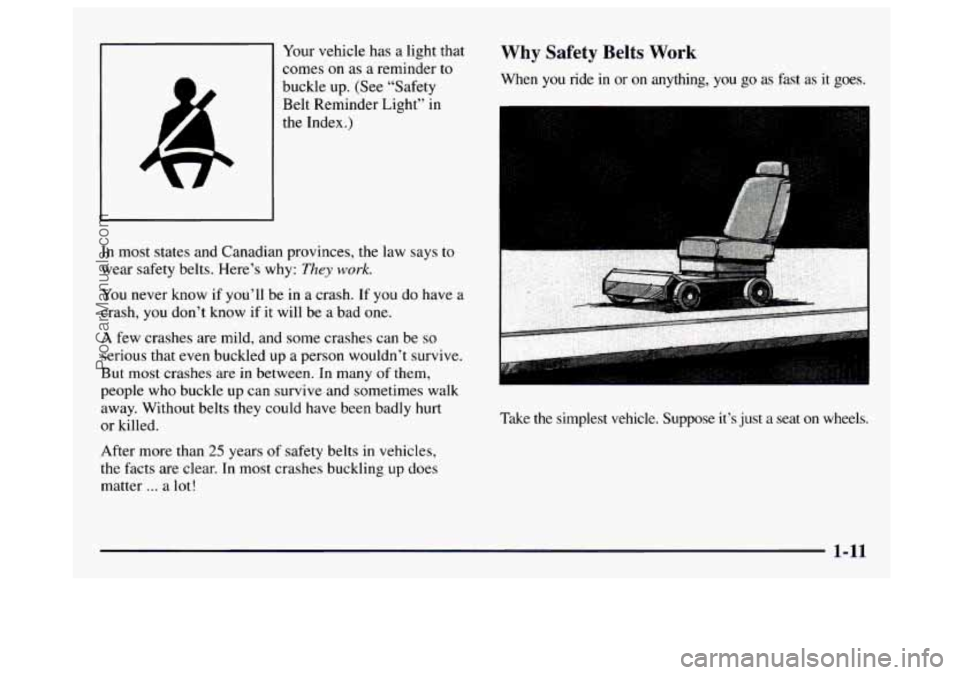

Your vehicle has a light that
comes
on as a reminder to
buckle up. (See “Safety
Belt Reminder Light” in
the Index.)
In most states and Canadian provinces, the law says
to
wear safety belts. Here’s why: They work.
You never know if you’ll be in a crash. If you do have a
crash, you don’t know if it will be a bad one.
A few crashes are mild, and some crashes can be so
serious that even buckled up a person wouldn’t survive.
But most crashes
are in between. In many of them,
people who buckle up can survive and sometimes walk
away. Without belts they could have been badly
hurt
or killed.
After more than
25 years of safety belts in vehicles,
the facts are clear.
In most crashes buckling up does
matter
... a lot!
Why Safety Belts Work
When you ride in or on anything, you go as fast as it goes.
~
~~
Take the simplest vehicle. Suppose it’s just a seat on wheels.
1-11
ProCarManuals.com
Page 20 of 388

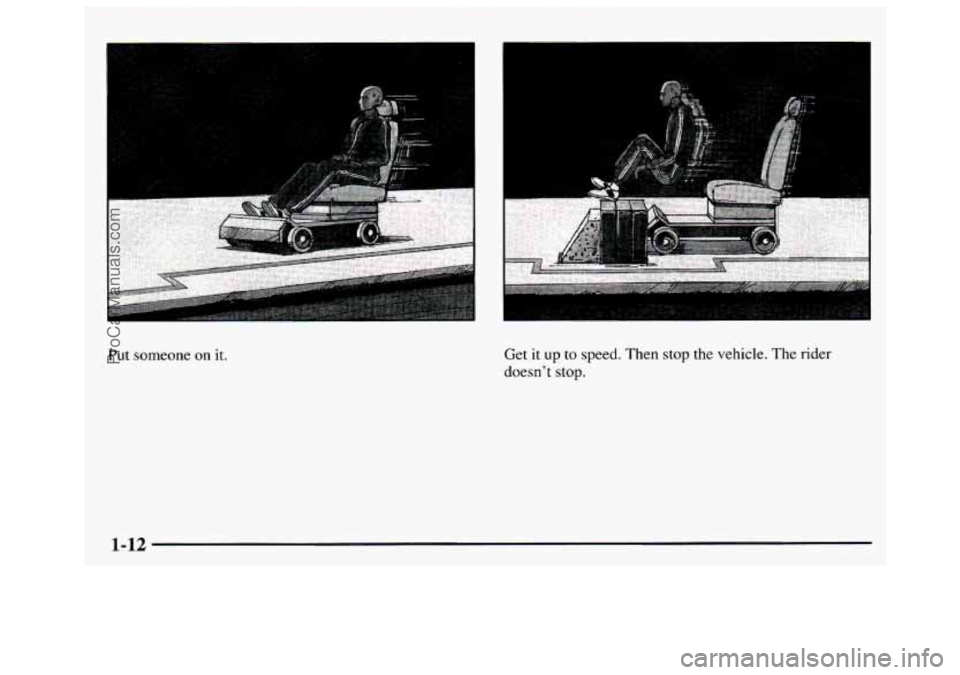

Put someone on it. Get it up to speed. Then
stop the vehicle. The rider
doesn't stop.
1-12
