GMC SAVANA 1998 Owners Manual

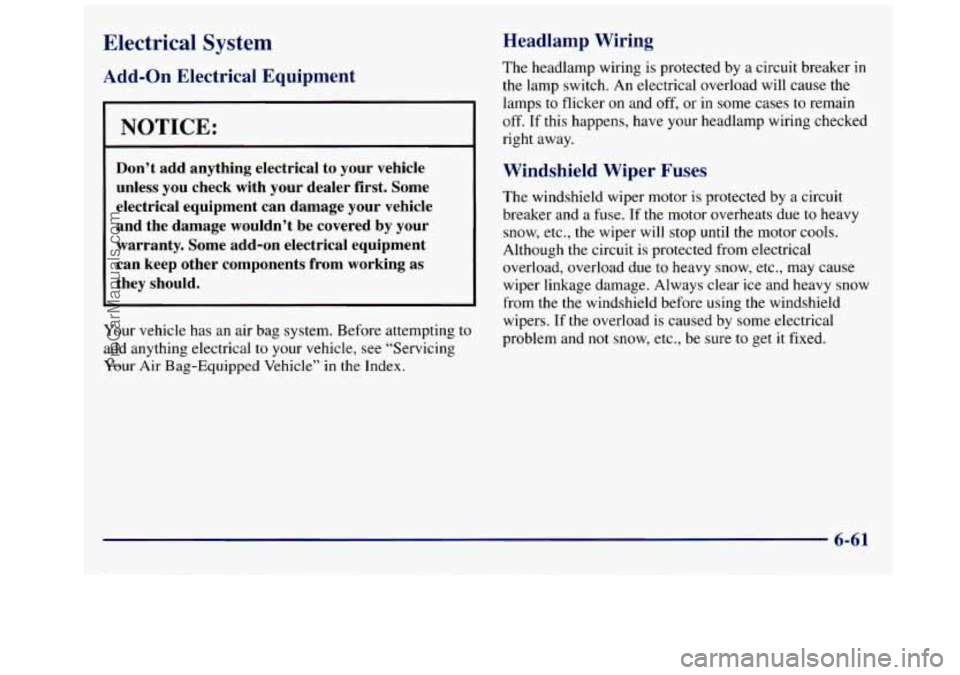

Electrical System
Add-on Electrical Equipment
I NOTICE:
~
Don’t add anything electrical to your vehicle
unless you check with your dealer first. Some
electrical equipment can damage your vehicle
and the damage wouldn’t be covered by your
warranty. Some add-on electrical equipment
can keep other components from working as
they should.
Your vehicle has an air bag system. Before attempting to
add anything electrical
to your vehicle, see “Servicing
Your Air Bag-Equipped Vehicle” in the Index.
Headlamp Wiring
The headlamp wiring is protected by a circuit breaker in
the lamp switch. An electrical overload will cause the
lamps to flicker
on and off, or in some cases to remain
off. If this happens, have your headlamp wiring checked
right away.
Windshield Wiper Fuses
The windshield wiper motor is protected by a circuit
breaker and a fuse. If
the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools.
Although the circuit is protected from electrical
overload, overload due to heavy snow, etc., may cause
wiper linkage damage. Always clear ice and heavy snow
from the the windshield before using the windshield
wipers. If the overload is caused
by some electrical
problem and not
snow, etc., be sure to get it fixed.
6-61
ProCarManuals.com

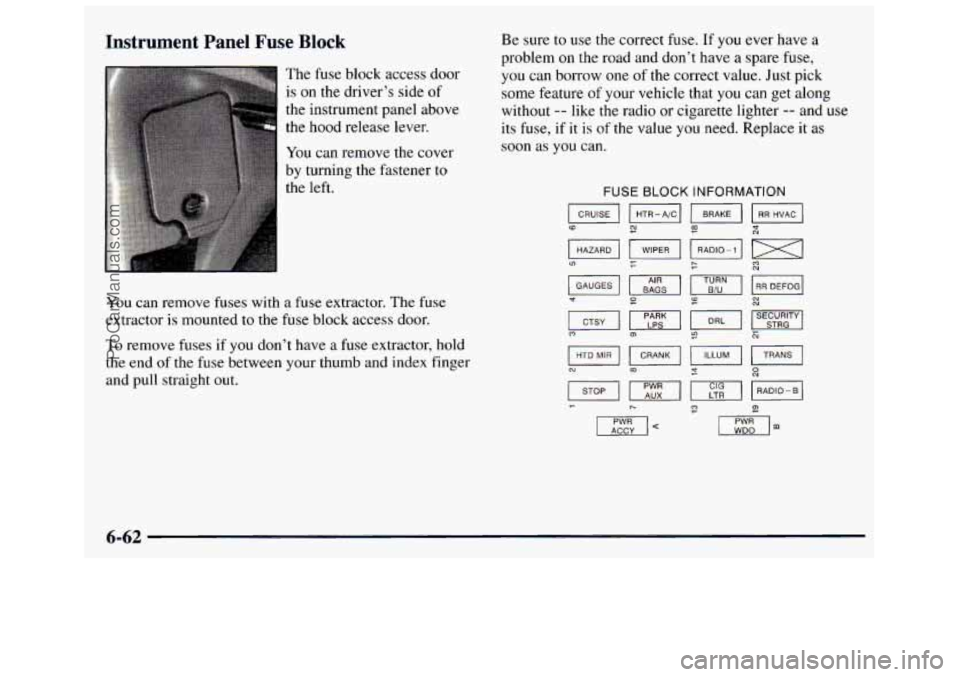

Instrument Panel Fuse Block
The fuse block access door
is
on the driver's side of
the instrument panel above
the hood release lever.
You can remove the cover
by turning the fastener to
the left.
You can remove fuses with
a fuse extractor. The fuse
extractor is mounted
to the fuse block access door.
To remove fuses if you don't have a fuse extractor, hold
the end
of the fuse between your thumb and index finger
and pull straight out. Be
sure
to use the correct fuse. If you ever have a
problem
on the road and don't have a spare fuse,
you can borrow
one of the correct value. Just pick
some feature
of your vehicle that you can get along
without
-- like the radio or cigarette lighter -- and use
its fuse, if
it is of the value you need. Replace it as
soon as
you can.
FUSE BLOCK INFORMATION
6-62
ProCarManuals.com

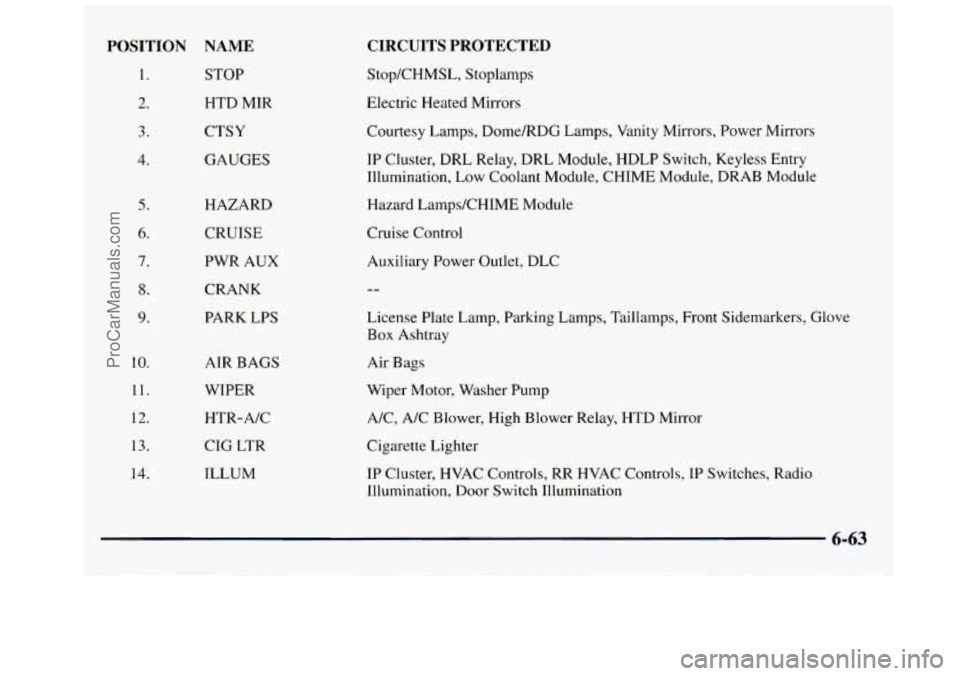

POSITION NAME
1. STOP
2. HTD MIR
3. CTSY
4. GAUGES
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
HAZARD
CRUISE
PWR AUX
CRANK
PARK LPS
AIR BAGS
WIPER
HTR-A/C
CIG LTR
ILLUM
CIRCUITS PROTECTED
StopKHMSL, Stoplamps
Electric Heated Mirrors
Courtesy Lamps, Dome/RDG Lamps, Vanity Mirrors, Power Mirrors
IP Cluster, DRL Relay, DRL Module, HDLP Switch, Keyless Entry
Illumination, Low Coolant Module, CHIME Module, DRAB Module
Hazard LampdCHIME Module
Cruise Control
Auxiliary Power Outlet, DLC
License Plate Lamp, Parking Lamps, Taillamps, Front Sidemarkers, Glove
Box Ashtray
Air Bags
Wiper Motor, Washer Pump
A/C, A/C Blower, High Blower Relay, HTD Mirror
Cigarette Lighter
IP Cluster, HVAC Controls, RR HVAC Controls, IP Switches, Radio
Illumination, Door Switch Illumination
6-63
ProCarManuals.com

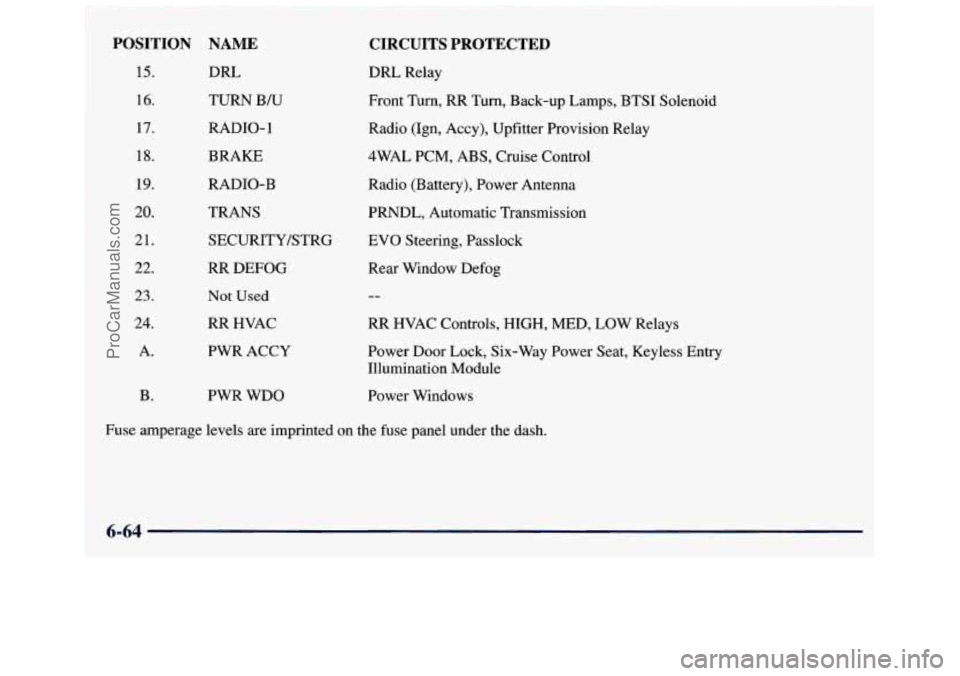

POSITION
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
A. B.
NAME
DRL TURN
B/U
RADIO- 1
BRAKE
RADIO-B
TRANS SECURITY/STRG
RR DEFOG
Not Used
RR HVAC
PWR ACCY
CIRCUITS PROTECTED
DRL Relay
Front Turn,
RR Turn, Back-up Lamps, BTSI Solenoid
Radio (Ign, Accy), Upfitter Provision Relay
4WAL PCM, ABS, Cruise Control
Radio (Battery), Power Antenna
PRNDL, Automatic Transmission
EVO Steering, Passlock
Rear Window Defog
--
RR HVAC Controls, HIGH, MED, LOW Relays
Power Door Lock, Six-Way Power Seat, Keyless Entry
Illumination Module
PWR WDO Power Windows
~ Fuse amperage levels are imprinted on the fuse panel under the dash.
' 6-64
ProCarManuals.com

Engine Compartment Fuse Relay Center
The fuse block is on the driver’s side of the engine
compartment at the rear.
NAME
BLOWER
ABS
CIRCUITS PROTECTED
Front Blower Motor
Electronic Brake Control Module
NAME
IGN-B
IGN-A
BATT
LIGHTING
CIRCUITS PROTECTED
Ignition Switch
Starter Relay, Ignition Switch
Instrument Panel Fuse Block
Instrument Panel Fuse Block,
Headlamp Switch
RR BLOWER Rear Auxiliary Blower Motor Relays
ENG-I
AIC
SPARE
AUX A
AUX B
RH-HDLP
Heated 02 Sensors, Mass Air Flow
Sensor, EGR Valve Solenoid, Evap
Canister Purge Valve, Crankshaft
Position Sensor, Secondary Air
Injection Relay (Diesel), Water in
Fuel Sensor (Diesel), Fuel Heater
(Diesel), Glowplug Relay (Diesel),
Wastegate Solenoid (Diesel)
Air Conditioning Clutch Relay
Spare Fuses
Upfitter Provisions
Upfitter Provisions Right-hand Headlamp (Export only)
6-65
ProCarManuals.com

NAME
RH-HIBM
ECM-I
HORN
LH-HDLP
LH-HIBM
FUEL SOL
IGN-E
ECM-B
CIRCUITS PROTECTED
Right-hand High-beam Headlamp
(Export only)
Ignition Coil, Camshaft Position
Sensor,
VCM, Fuel Injectors, Coil
Driver
Horn Relay, Underhood Lamp( s)
Left-hand Headlamp (Export
only)
Left-hand High-beam Headlamp
(Export only)
PCM,
Fuel Solenoid Driver, Engine
Shutoff Solenoid
Air Conditioning Clutch Relay
Fuel Pump Relay, VCM, PCM, Fuel
Pump and Engine Oil Pressure
Switch
Replacement Bulbs
LAMP OR BULB
Sealed Beam Headlamps
Composite Low-Beam
Headlamps
Composite High-Beam
Headlamps
Front Sidemarker Lamp
Front Parking and Turn Lamp
Rear Parking Lamp
Rear Stop and Turn Lamp
Back- up Lamp
Back-up Lamp
Rear Parking, Stop, and
Turn Lamp
CHMSL
License Plate Lamp
Underhood Lamp
Reel Lamp
Reading Lamps
Sunshade Vanity Mirror
QTY NUMBER
2 H6054
2 6052
2
2
4
2
1
1
1
6
4
9005
194
2357NA
3057
3057
3156
1156 1157
92
1
194
232
232
211-2
74
6-66
ProCarManuals.com

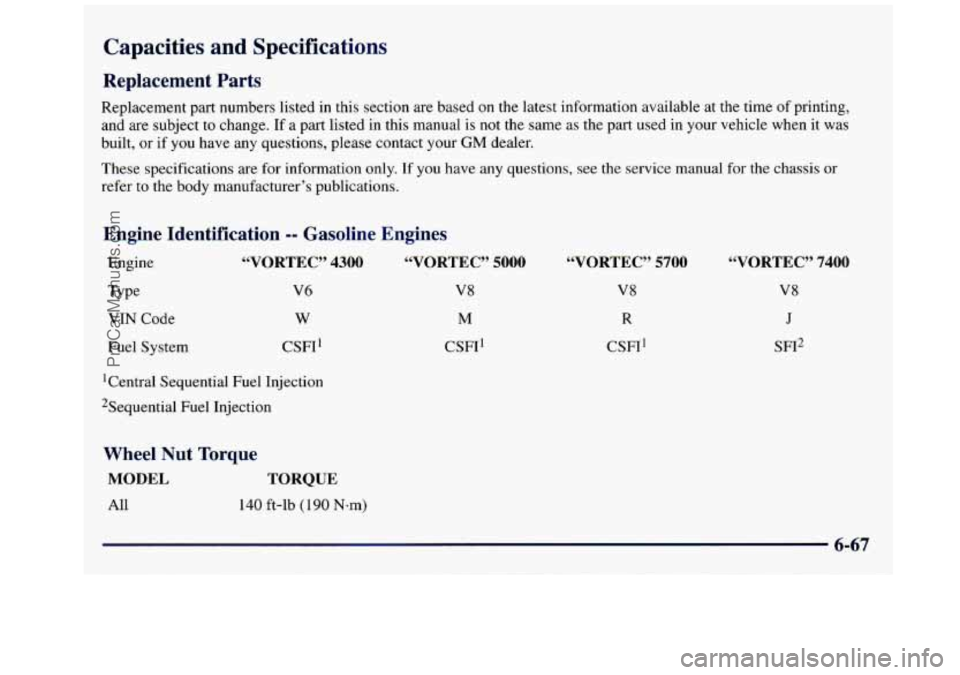

Capacities and Specifications
Replacement Parts
Replacement part numbers listed in this section are based on the latest information available at the time of printing,
and are subject to change. If a part listed in this manual
is not the same as the part used in your vehicle when it was
built, or if you have any questions, please contact your
GM dealer.
These specifications are for information only.
If you have any questions, see the service manual for the chassis or
refer to the body manufacturer’s publications.
Engine Identification -- Gasoline Engines
Engine “VORTEC” 4300 “VORTEC” 5000
Type V6 V8
VIN Code w M
Fuel System CSFI~ CSFI~
*Central Sequential Fuel Injection
2Sequential
Fuel Injection
“VORTEC” 5700
V8
R
CSFI~
“VORTEC” 7400
V8
J
SFI~
Wheel Nut Torque
MODEL TORQUE
All 140 ft-lb (190 N-m)
ProCarManuals.com

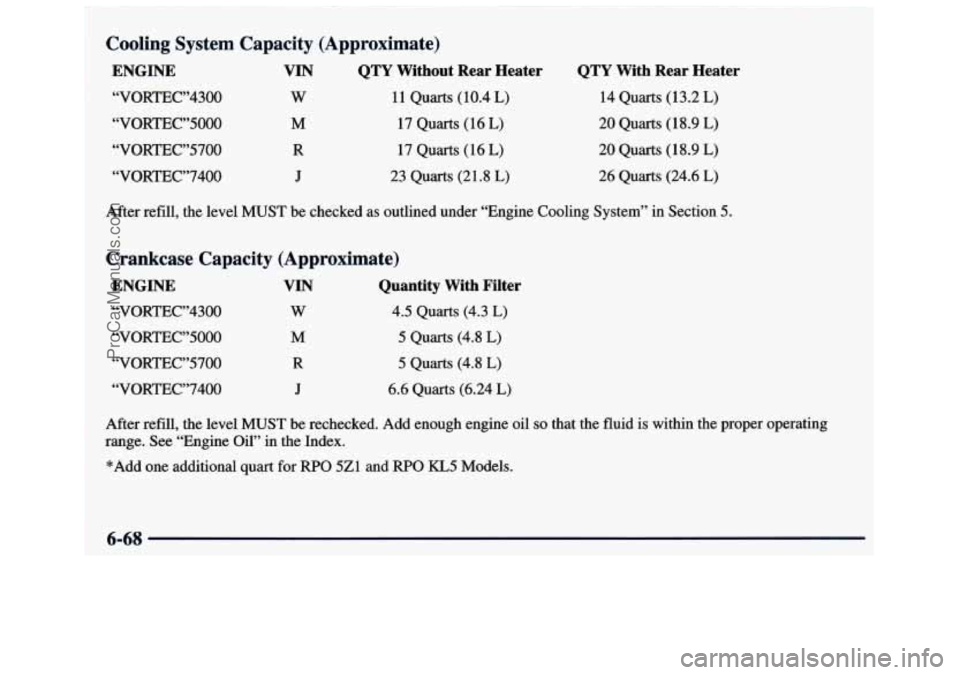

Cooling System Capacity (Approximate)
ENGINE VIN QTY Without Rear Heater
“VORTEC”4300 W 11 Quarts (10.4 L)
“VORTEC”5000 M 17 Quarts (16 L)
“VORTEC”5700 R 17 Quarts (16 L)
“VORTEC”7400 J 23 Quarts (21.8 L)
QTY With Rear Heater
14 Quarts (13.2 L)
20 Quarts (18.9 L)
20 Quarts (18.9 L)
26 Quarts (24.6 L)
After refill, the level MUST be checked as outlined under “Engine Cooling System” in Section 5.
Crankcase Capacity (Approximate)
ENGINE VIN Quantity With Filter
“VORTEC”4300 W 4.5 Quarts (4.3 L)
“VORTEC”5000 M 5 Quarts (4.8 L)
“VORTEC”5700 R 5 Quarts (4.8 L)
“VORTEC”7400 J 6.6 Quarts (6.24 L)
After refill, the level MUST be rechecked. Add enough engine oil so that the fluid is within the proper operating
range. See “Engine Oil” in the Index.
*Add one additional quart for
RPO 5Z1 and RPO KL5 Models.
ProCarManuals.com

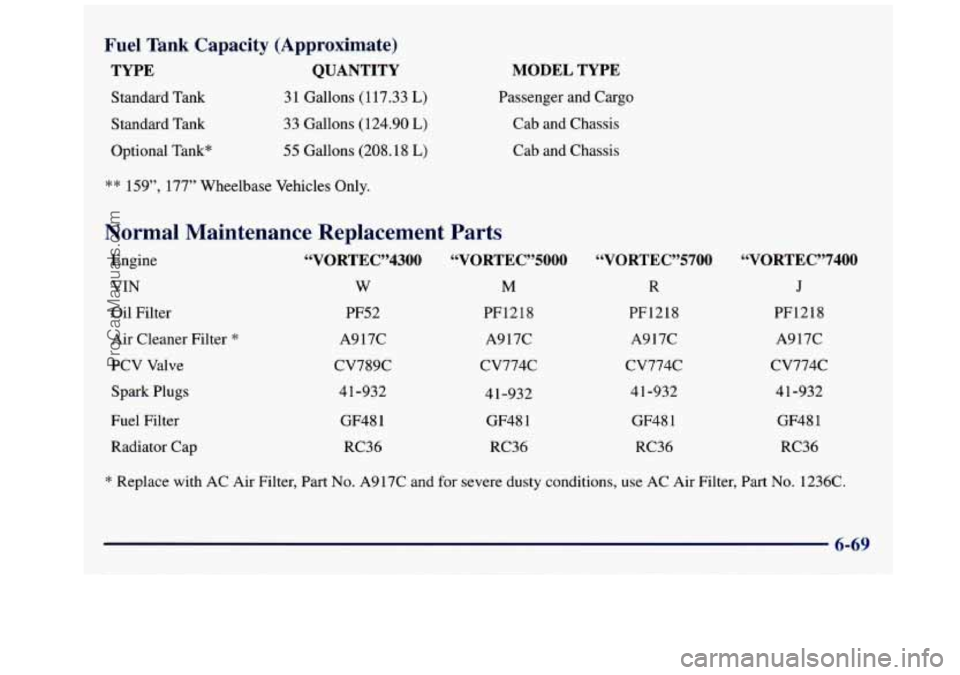

Fuel Tank Capacity (Approximate)
TYPE QUANTITY
Standard Tank 3 1 Gallons (117.33 L)
Standard Tank 33 Gallons (124.90 L)
Optional Tank* 55 Gallons (208.18 L)
** 159”, 177” Wheelbase Vehicles Only.
MODEL TYPE
Passenger and Cargo
Cab and Chassis
Cab and Chassis
Normal Maintenance Replacement Parts
Engine “VORTEC”4300 “VORTEC”5000
VIN W M
Oil Filter PF52 PF1218
Air Cleaner Filter
* A917C A917C
PCV Valve CV789C cv774c
Spark Plugs 41-932 4 1-932
Fuel Filter GF48 1 GF48 1
Radiator Cap
RC36 RC36
“VORTEC”5700
R
PF1218
A917C
cv774c 4 1-932
GF48 1
RC36
“VORTEC”7400
J
PF1218 A917C
cv774c 4 1-932
GF48
1
RC36
* Replace with AC Air Filter, Part No. A917C and for severe dusty conditions, use AC Air Filter, Part No. 1236C.
6-69
ProCarManuals.com

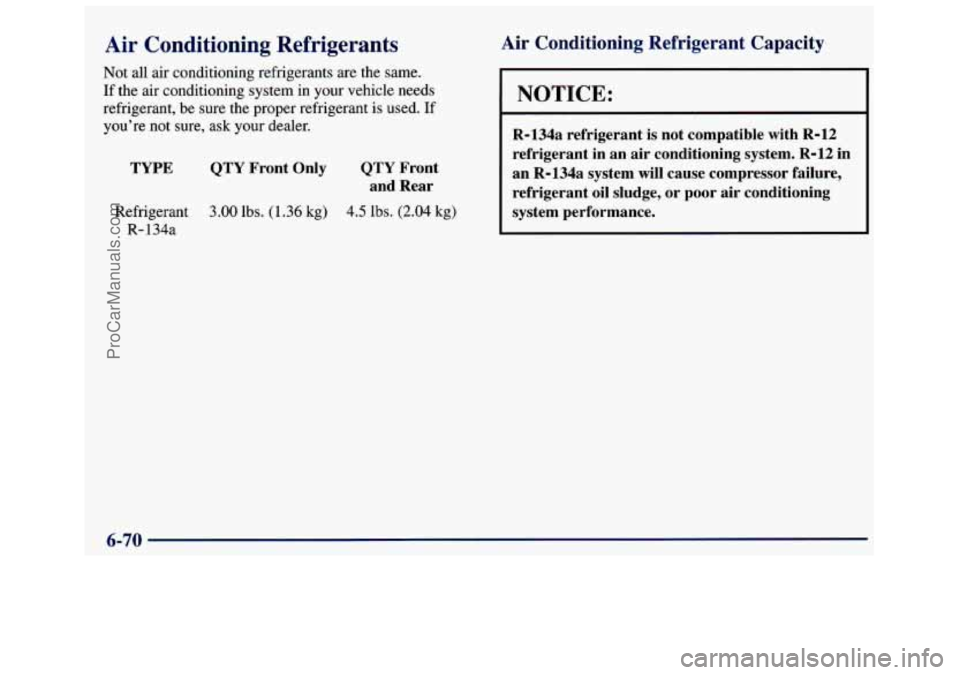

Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant, be swe the proper refrigerant is used.
If
you’re not sure, ask your dealer.
TYPE QTY Front Only QTY Front
and Rear
Refrigerant 3.00 lbs. (1.36 kg) 4.5 lbs. (2.04 kg)
R- 134a
Air Conditioning Refrigerant Capacity
NOTICE:
R-134a refrigerant is not compatible with R-12
refrigerant in an air conditioning system. R-12 in
an R-134a system will cause compressor failure,
refrigerant oil sludge, or poor air conditioning
system performance.
6-70
