GMC SAVANA 1999 Owner's Manual

yellowblue
4-29
Run your engine only as long as you must. This saves
fuel. When you run the engine, make it go a little faster
than just idle. That is, push the accelerator slightly. This
uses less fuel for the heat that you get and it keeps the
battery charged. You will need a well
-charged battery to
restart the vehicle, and possibly for signaling later on
with your headlamps. Let the heater run for a while.
If you have a diesel engine, you may have to run it at a
higher speed to get enough heat. Then, shut the engine
off and close the window almost all the way to preserve
the heat. Start the engine again and repeat this only
when you feel really uncomfortable from the cold. But
do it as little as possible. Preserve the fuel as long as you
can. To help keep warm, you can get out of the vehicle
and do some fairly vigorous exercises every half hour or
so until help comes.
Recreational Vehicle Towing
Your vehicle was not designed to be towed with all four
wheels on the ground. If your vehicle must be towed,
see ªTowing Your Vehicleº in the Index.
NOTICE:
Towing your vehicle with all four wheels on the
ground will damage drivetrain components.

yellowblue
4-30
Loading Your VehicleThe Certification/Tire label in your vehicle will look
similar to this example.
The Certification/Tire label is found on the rear edge
of the driver's door. The label shows the size of your
original tires and the inflation pressures needed to
obtain the gross weight capacity of your vehicle.
This is called the Gross Vehicle Weight Rating
(GVWR). The GVWR includes the weight of the
vehicle, all occupants, fuel, cargo and tongue weight,
if pulling a trailer.
The Certification/Tire label also tells you the maximum
weights for the front and rear axles, called the Gross
Axle Weight Rating (GAWR). To find out the actual
loads on your front and rear axles, you need to go to a
weigh station and weigh your vehicle. Your dealer can
help you with this. Be sure to spread out your load
equally on both sides of the center line.
Never exceed the GVWR for your vehicle, or GAWR
for either the front or rear axle.
And, if you do have a heavy load, you should spread
it out.

yellowblue

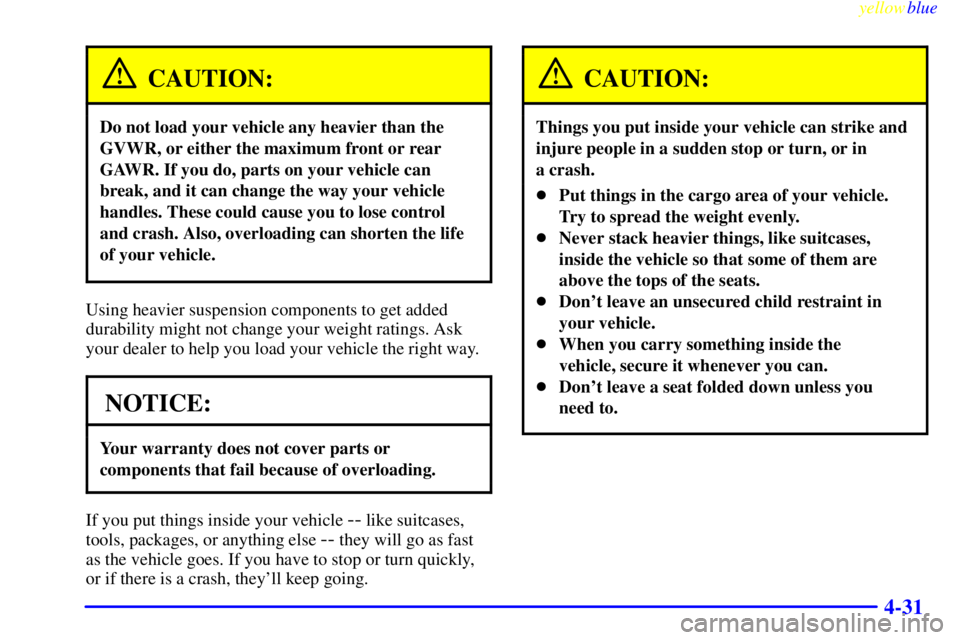

4-31
CAUTION:
Do not load your vehicle any heavier than the
GVWR, or either the maximum front or rear
GAWR. If you do, parts on your vehicle can
break, and it can change the way your vehicle
handles. These could cause you to lose control
and crash. Also, overloading can shorten the life
of your vehicle.
Using heavier suspension components to get added
durability might not change your weight ratings. Ask
your dealer to help you load your vehicle the right way.
NOTICE:
Your warranty does not cover parts or
components that fail because of overloading.
If you put things inside your vehicle -- like suitcases,
tools, packages, or anything else
-- they will go as fast
as the vehicle goes. If you have to stop or turn quickly,
or if there is a crash, they'll keep going.
CAUTION:
Things you put inside your vehicle can strike and
injure people in a sudden stop or turn, or in
a crash.

Put things in the cargo area of your vehicle.
Try to spread the weight evenly.

Never stack heavier things, like suitcases,
inside the vehicle so that some of them are
above the tops of the seats.

Don't leave an unsecured child restraint in
your vehicle.

When you carry something inside the
vehicle, secure it whenever you can.

Don't leave a seat folded down unless you
need to.

yellowblue
4-32 Payload
The Payload Capacity is shown on the Certification/Tire
label. This is the maximum load capacity that your
vehicle can carry. Be sure to include the weight of the
people inside as part of your load. If you added any
accessories or equipment after your vehicle left the
factory, remember to subtract the weight of these things
from the payload. Your dealer can help you with this.
Trailering Package
If your vehicle is equipped with the trailering package,
there is also a load rating which includes the weight of
the vehicle and the trailer it tows. This rating is called
the Gross Combination Weight Rating (GCWR).
When you weigh your trailer, be sure to include the
weight of everything you put in it. And, remember to
figure the weight of the people inside the vehicle as part
of your load.
Your dealer can help you determine your GCWR.
Add-On Equipment
When you carry removable items, you may need to put a
limit on how many people you carry inside your vehicle.
Be sure to weigh your vehicle before you buy and install
the new equipment.

yellowblue

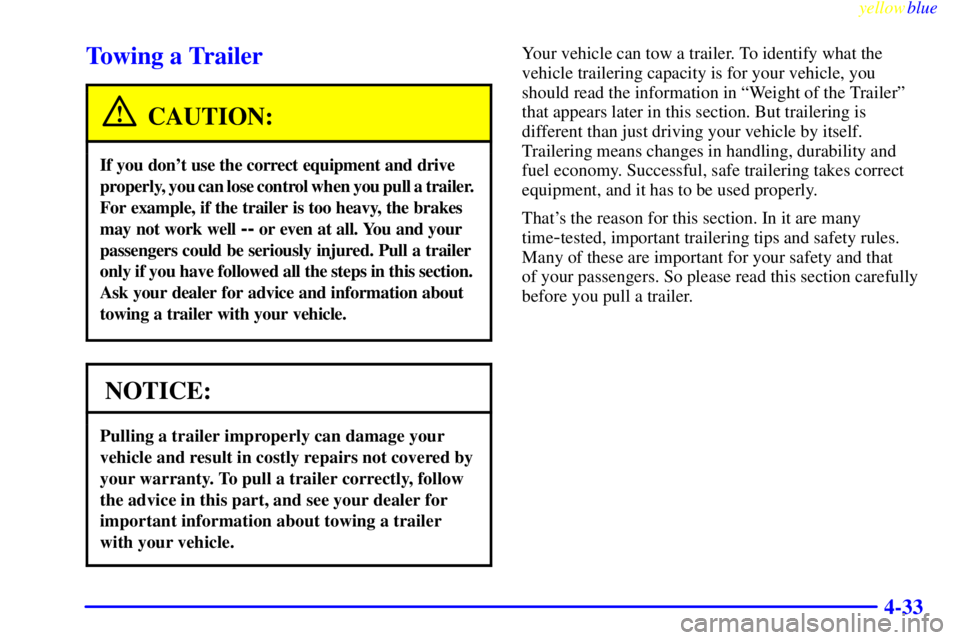

4-33
Towing a Trailer
CAUTION:
If you don't use the correct equipment and drive
properly, you can lose control when you pull a trailer.
For example, if the trailer is too heavy, the brakes
may not work well
-- or even at all. You and your
passengers could be seriously injured. Pull a trailer
only if you have followed all the steps in this section.
Ask your dealer for advice and information about
towing a trailer with your vehicle.
NOTICE:
Pulling a trailer improperly can damage your
vehicle and result in costly repairs not covered by
your warranty. To pull a trailer correctly, follow
the advice in this part, and see your dealer for
important information about towing a trailer
with your vehicle.
Your vehicle can tow a trailer. To identify what the
vehicle trailering capacity is for your vehicle, you
should read the information in ªWeight of the Trailerº
that appears later in this section. But trailering is
different than just driving your vehicle by itself.
Trailering means changes in handling, durability and
fuel economy. Successful, safe trailering takes correct
equipment, and it has to be used properly.
That's the reason for this section. In it are many
time
-tested, important trailering tips and safety rules.
Many of these are important for your safety and that
of your passengers. So please read this section carefully
before you pull a trailer.

yellowblue
4-34 If You Do Decide To Pull A Trailer
If you do, here are some important points:

There are many different laws, including speed limit
restrictions, having to do with trailering. Make sure
your rig will be legal, not only where you live but
also where you'll be driving. A good source for this
information can be state or provincial police.

Consider using a sway control if your trailer will
weigh 4,000 lbs. (1 800 kg) or less. You should
always use a sway control if your trailer will weigh
more than 4,000 lbs. (1 800 kg). You can ask a
hitch dealer about sway controls.

Don't tow a trailer at all during the first 500 miles
(800 km) your new vehicle is driven. Your engine,
axle or other parts could be damaged.

Then, during the first 500 miles (800 km) that you
tow a trailer, don't drive over 50 mph (80 km/h) and
don't make starts at full throttle. This helps your
engine and other parts of your vehicle wear in at the
heavier loads.

You should use THIRD (3) (or, as you need to,
a lower gear) when towing a trailer. Operating your
vehicle in THIRD (3) when towing a trailer will
minimize heat buildup and extend the life of your
transmission. See ªTow/Haul Modeº in the Index.Three important considerations have to do with weight:

the weight of the trailer,

the weight of the trailer tongue

and the weight on your vehicle's tires.
Weight of the Trailer
How heavy can a trailer safely be?
It depends on how you plan to use your rig. For example,
speed, altitude, road grades, outside temperature and
how much your vehicle is used to pull a trailer are all
important. And, it can also depend on any special
equipment that you have on your vehicle.
The following chart shows how much your trailer can
weigh, based upon your vehicle model and options.

yellowblue
4-35
Model EngineAxle
RatioMax. Trailer Weight
(lbs.) (kg)
G1500 4.3L 3.42 4,000 (1816)
3.73 4,500 (2043)
5.0L 3.42 5,000 (2270)
5.7L 3.42 5,500 (2497)
3.73 6,500 (2951)
G2500 4.3L 3.42 4,000 (1816)
4.10 4,000 (1816)
5.0L 3.42 5,000 (2270)
5.7L 3.42 5,500 (2497)
3.73 5,500 (2497)
4.10 7,000 (3178)
6.5L 3.73 8,000 (3632)
4.10 8,000 (3632)
G3500 5.7L 3.73 5,500 (2497)
4.10 7,000 (3178)
6.5L 3.73 7,500 (3405)
4.10 7,500 (3405)
7.4L 3.42 6,500 (2951)
3.73 8,000 (3632)
4.10 10,000 (4540)Maximum trailer weight is calculated assuming the
driver and one passenger are in the tow vehicle and it
has all the required trailering equipment. The weight of
additional optional equipment, passengers and cargo in
the tow vehicle must be subtracted from the maximum
trailer weight.
You can ask your dealer for our trailering information or
advice, or you can write us at the address listed in your
Warranty and Owner Assistance Information Booklet.
In Canada, write to:
General Motors of Canada Limited
Customer Communication Centre
1908 Colonel Sam Drive
Oshawa, Ontario L1H 8P7
Weight of the Trailer Tongue
The tongue load (A) of any trailer is an important
weight to measure because it affects the total or gross
weight of your vehicle. The Gross Vehicle Weight
(GVW) includes the curb weight of the vehicle, any
cargo you may carry in it, and the people who will be
riding in the vehicle. And if you will tow a trailer, you
must add the tongue load to the GVW because your
vehicle will be carrying that weight, too. See ªLoading
Your Vehicleº in the Index for more information about
your vehicle's maximum load capacity.

yellowblue
4-36
If you're using your platform hitch as a weight-carrying
hitch, the trailer tongue (A) should weigh 10 percent of
the total loaded trailer weight (B). If you're using your
platform hitch as a weight
-distributing hitch, the trailer
tongue (A) should weigh 12 percent of the total loaded
trailer weight (B).
After you've loaded your trailer, weigh the trailer and
then the tongue, separately, to see if the weights are
proper. If they aren't, you may be able to get them right
simply by moving some items around in the trailer.
Total Weight on Your Vehicle's Tires
Be sure your vehicle's tires are inflated to the upper
limit for cold tires. You'll find these numbers on the
Certification label at the rear edge of the driver's door or
see ªTire Loadingº in the Index. Then be sure you
don't go over the GVW limit for your vehicle, including
the weight of the trailer tongue.
Hitches
It's important to have the correct hitch equipment.
Crosswinds, large trucks going by and rough roads are
a few reasons why you'll need the right hitch. Here are
some rules to follow:

The bumpers on your vehicle are not intended
for hitches. Do not attach rental hitches or other
bumper
-type hitches to them. Use only a
frame
-mounted hitch that does not attach to the
bumper. Do not use a ball hitch, because it could
pull the bumper loose.

yellowblue
4-37

If you'll be pulling a trailer that, when loaded, will
weigh more than 4,000 lbs. (1 800 kg), be sure to use
a properly mounted, weight
-distributing hitch and
sway control of the proper size. This equipment is
very important for proper vehicle loading and good
handling when you're driving.

Will you have to make any holes in the body of your
vehicle when you install a trailer hitch?
If you're using the wiring provided by the
factory
-installed hitch, you should not need to make
any holes in the body of your vehicle. However, if
you have an aftermarket hitch installed, you may
need to make holes in the body.
If you do, then be sure to seal the holes later when
you remove the hitch. If you don't seal them, deadly
carbon monoxide (CO) from your exhaust can get
into your vehicle (see ªCarbon Monoxideº in the
Index). Dirt and water can, too.
Safety Chains
You should always attach chains between your vehicle
and your trailer. Cross the safety chains under the tongue
of the trailer to help prevent the tongue from contacting
the road if it becomes separated from the hitch.
Instructions about safety chains may be provided by the
hitch manufacturer or by the trailer manufacturer.
Follow the manufacturer's recommendation for
attaching safety chains and do not attach them to the
bumper. Always leave just enough slack so you can turn
with your rig. Never allow safety chains to drag on
the ground.

yellowblue
4-38 Trailer Brakes
If your trailer weighs more than 1,000 lbs. (450 kg)
loaded, then it needs its own brakes
-- and they must be
adequate. Be sure to read and follow the instructions for
the trailer brakes so you'll be able to install, adjust and
maintain them properly.
Your trailer brake system can tap into your vehicle's
hydraulic brake system, except:

Don't tap into your vehicle's brake system if the
trailer's brake system will use more than 0.02 cubic
inch (0.3 cc) of fluid from your vehicle's master
cylinder. If it does, both braking systems won't work
well. You could even lose your brakes.

Will the trailer parts take 3,000 psi (20 650 kPa) of
pressure? If not, the trailer brake system must not be
used with your vehicle.

If everything checks out this far, then make the brake
fluid tap at the port on the master cylinder that sends
fluid to the rear brakes. But don't use copper tubing
for this. If you do, it will bend and finally break off.
Use steel brake tubing.
Driving with a Trailer
CAUTION:
If you have a rear-most window open and you
pull a trailer with your vehicle, carbon monoxide
(CO) could come into your vehicle. You can't see
or smell CO. It can cause unconsciousness or
death. (See ªEngine Exhaustº in the Index.)
To maximize your safety when towing a trailer:

Have your exhaust system inspected for
leaks, and make necessary repairs before
starting on your trip.

Keep the rear
-most windows closed.

If exhaust does come into your vehicle
through a window in the rear or another
opening, drive with your front, main
heating or cooling system on and with the
fan on any speed. This will bring fresh,
outside air into your vehicle. Do not use
because it only recirculates the air inside
your vehicle. (See ªComfort Controlsº in
the Index.)
