Rear Seats
Rear Seat Operation
Removing the Rear Seat
1. Disconnect the quick
release latch plates
for the lap shoulder
belts on the bench seat
to be removed. To do
this, press the tip of a
key into the release
hole of the safety belt
buckle while pulling up
on the safety belt.
There are two pins located on the inboard sides of
the rear seats. If the vehicle has floor mats, the
pins will be located under a flap that has been cut
into the mat. The driver’s side pin will have a black
cap with an “L” marked on it and will look like this:
1-5
2003 - Savana OM
Page 12 of 392
•The passenger’s side pin will have a white cap
with an“R”marked on it and will look like this:
2. Pull the pin handle up which will loosen the pin
from the retaining clip.
3. Once the black or white pin is disengaged, pull the
pin completely out.4. Repeat this procedure for the pin on the other
seat base.
5. Pull the seat rearward about two inches (5 cm) and
then lift the seat from thefloor rails.
6. Remove the seat from the vehicle.
7. For thefirst rear seat,
stow the safety belt latch
by attaching the clip
on the safety belt latch to
the trim just inside the
side door. For the
remaining rear seats,
stow the safety belt latch
plate on the clip at the
window trim.
1-6
2003 - Savana OM
Page 13 of 392
Replacing the Rear Seats
{CAUTION:
A seat that isn’t locked into place properly can
move around in a collision or sudden stop.
People in the vehicle could be injured.
Be sure to lock the seat into place properly
when installing it.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted won’t provide the
protection needed in a crash. The person
wearing the belt could be seriously injured.
After raising the rear seatback, always check
to be sure that the safety belts are properly
routed and attached, and are not twisted.1. Position the seat into the open slots in both rails.
Push the seat forward in the rail, hooking both
seat bases onto the pins inside of the rails.
2. To install the locking pins at the rear of the seat
base, locate the hole in the rail for the pin. It is
found on the inboard side of the seat. If the vehicle
hasfloor mats, pull theflap that has been cut
into the mat.
3. Insert the black or white locking pin into the seat
base. Possible slight seat pushing may be needed
to line up the pin with the base. Remember,
each pin has its own side. The pin with the white
handle marked“R”must be installed on the
passenger’s side and the pin with the black handle
marked“L”on the driver’s side.
4. Push the pin with the white handle marked“R”
down until it is in the retaining clip.
1-7
2003 - Savana OM
Page 14 of 392
5. Push the pin with the black handle marked“R”
down until it is in the retaining clip.6. If the vehicle has afloor mat, put theflap back to
its original position.
7. Repeat this procedure for the other seat base.
8. Connect the quick-release latch plates for the
lap-shoulder belts by inserting the latch plates
into the buckles attached at the outboard positions
of the bench seat. Do not twist the belt.
9. Check that both locking pins are locked into place
before operating the vehicle.
1-8
2003 - Savana OM
Page 15 of 392
Safety Belts
Safety Belts: They Are for Everyone
This part of the manual tells you how to use safety
belts properly. It also tells you some things you should
not do with safety belts.
{CAUTION:
Don’t let anyone ride where he or she can’t
wear a safety belt properly. If you are in a
crash and you’re not wearing a safety belt,
your injuries can be much worse. You can hit
things inside the vehicle or be ejected from it.
You can be seriously injured or killed. In the
same crash, you might not be, if you are
buckled up. Always fasten your safety belt,
and check that your passengers’ belts are
fastened properly too.
{CAUTION:
It is extremely dangerous to ride in a cargo
area, inside or outside of a vehicle. In a
collision, people riding in these areas are more
likely to be seriously injured or killed. Do not
allowpeople to ride in any area of your vehicle
that is not equipped with seats and safety
belts. Be sure everyone in your vehicle is in a
seat and using a safety belt properly.
Your vehicle has a light
that comes on as a
reminder to buckle up.
SeeSafety Belt Reminder
Light on page 3-26.
1-9
2003 - Savana OM
Page 16 of 392
In most states and in all Canadian provinces, the law
says to wear safety belts. Here’s why:They work.
You never know if you’ll be in a crash. If you do have a
crash, you don’t know if it will be a bad one.
A few crashes are mild, and some crashes can be so
serious that even buckled up, a person wouldn’t survive.
But most crashes are in between. In many of them,
people who buckle up can survive and sometimes walk
away. Without belts they could have been badly hurt
or killed.
After more than 30 years of safety belts in vehicles,
the facts are clear. In most crashes buckling up
does matter... a lot!Why Safety Belts Work
When you ride in or on anything, you go as fast as
it goes.

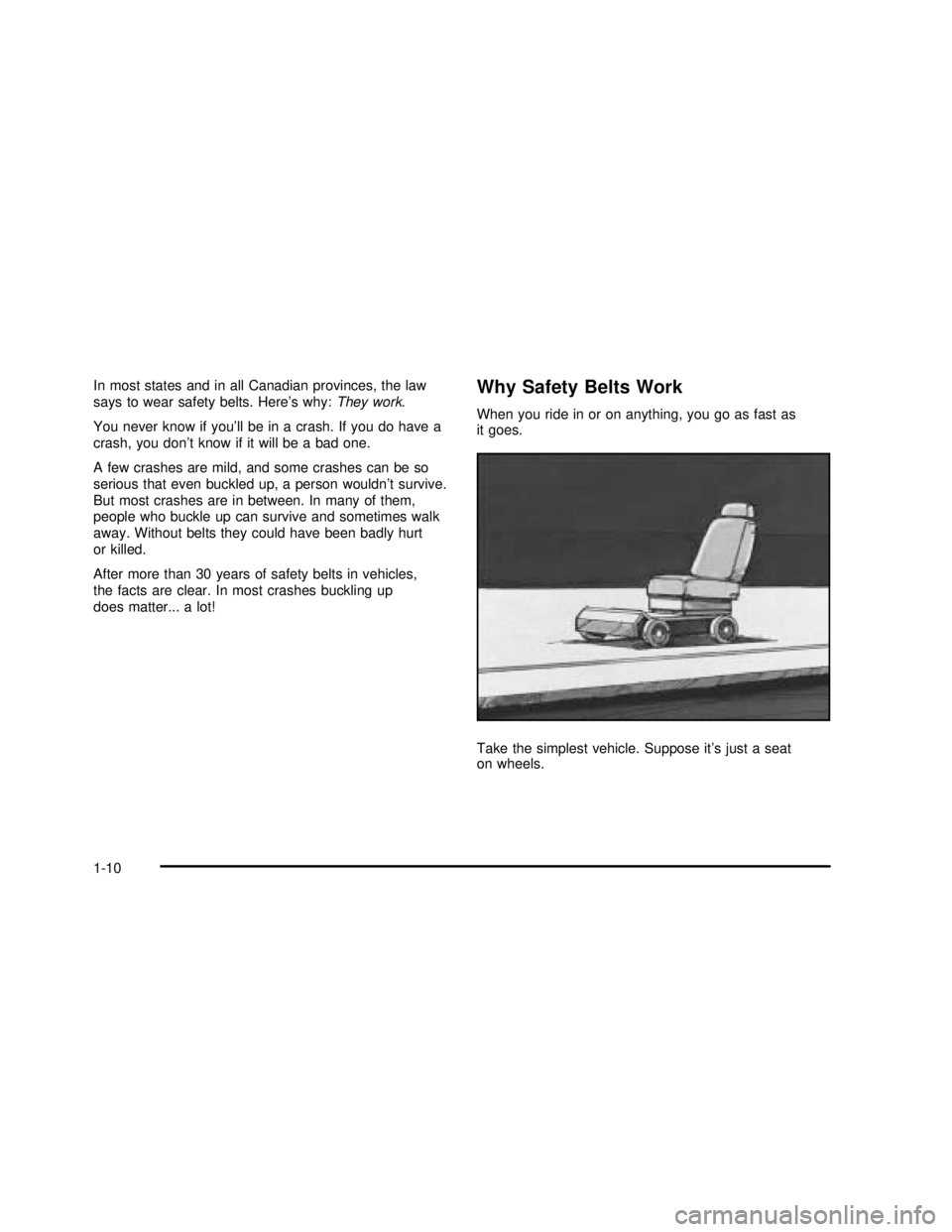

Take the simplest vehicle. Suppose it’s just a seat
on wheels.
1-10
2003 - Savana OM
Page 17 of 392

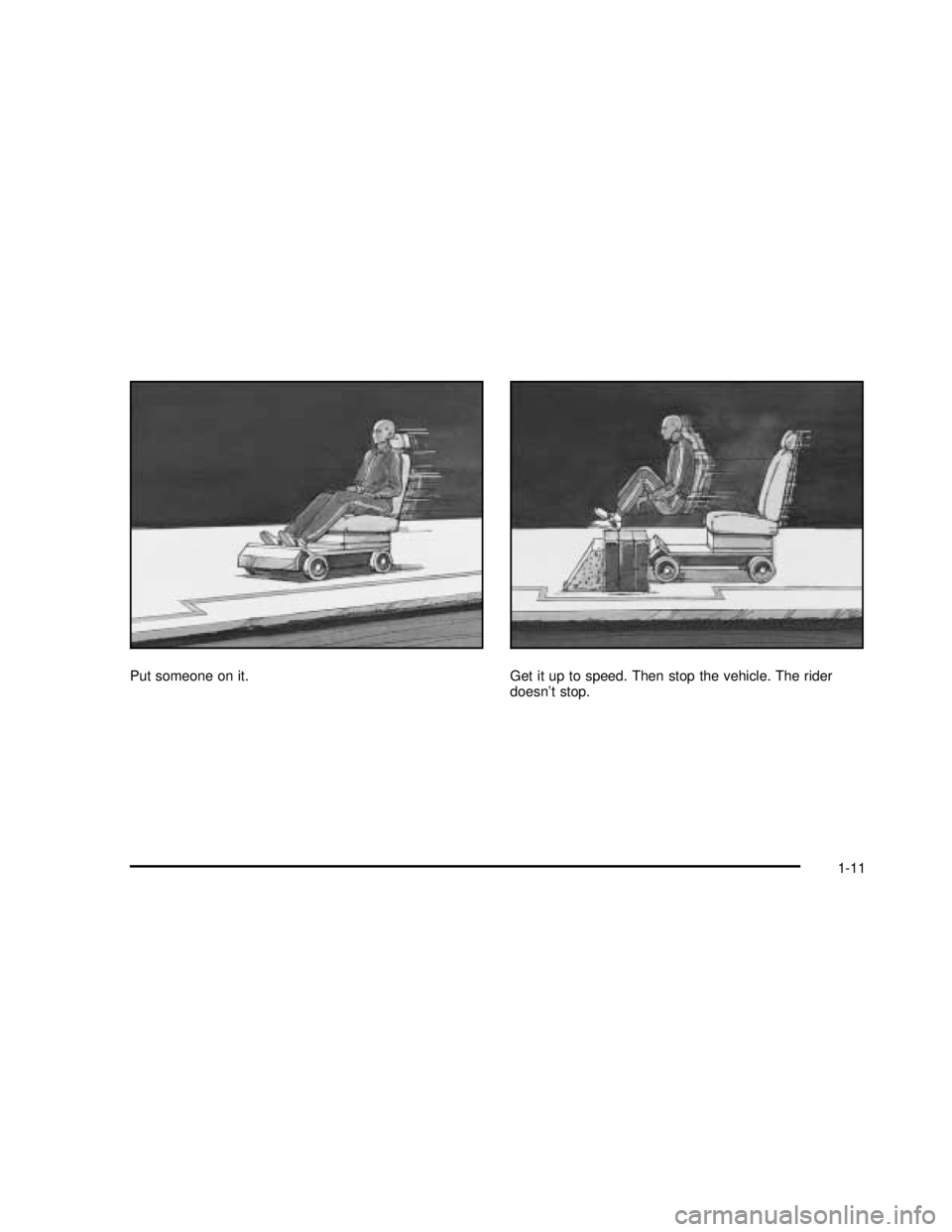

Put someone on it. Get it up to speed. Then stop the vehicle. The rider
doesn’t stop.
1-11
2003 - Savana OM
Page 18 of 392

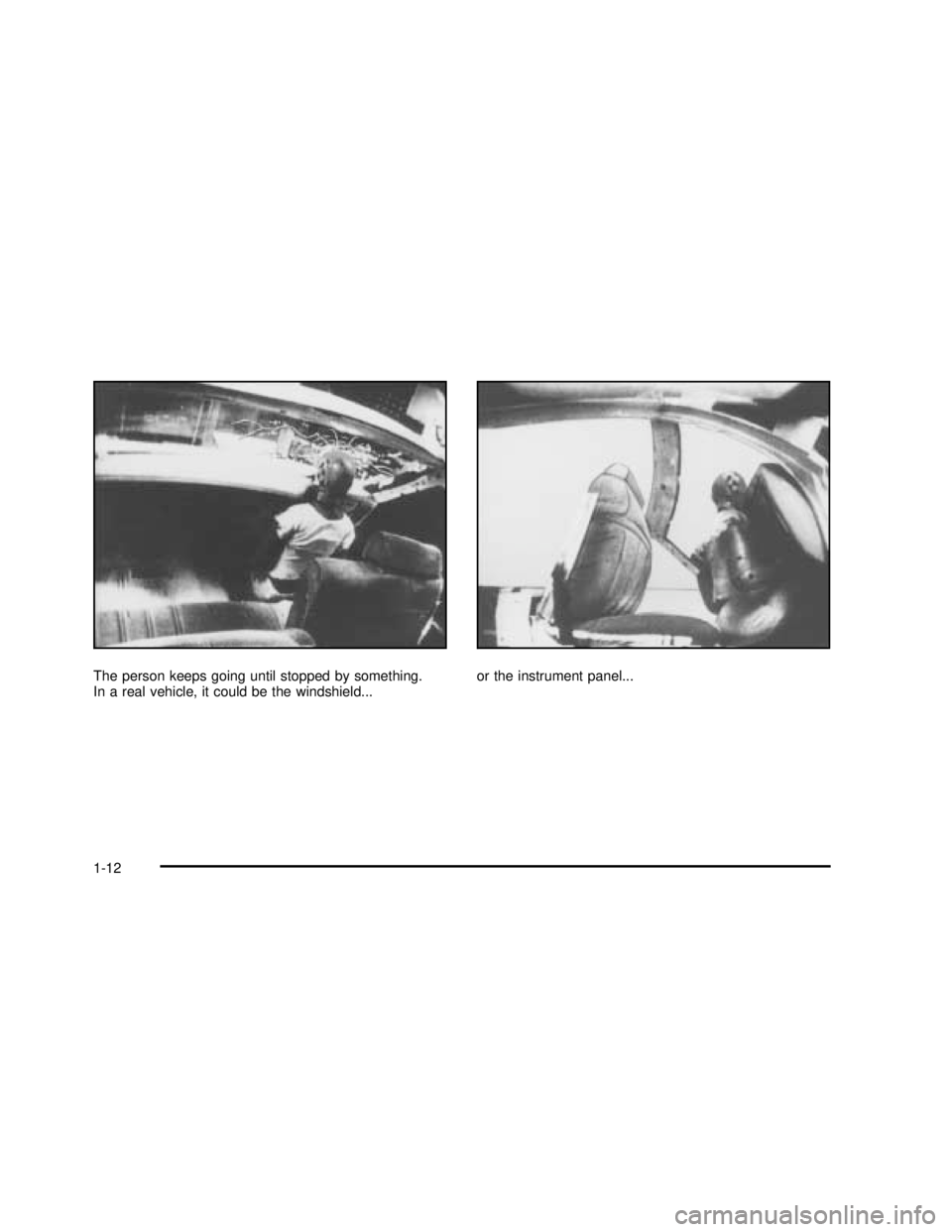

The person keeps going until stopped by something.
In a real vehicle, it could be the windshield...or the instrument panel...
1-12
2003 - Savana OM
Page 19 of 392

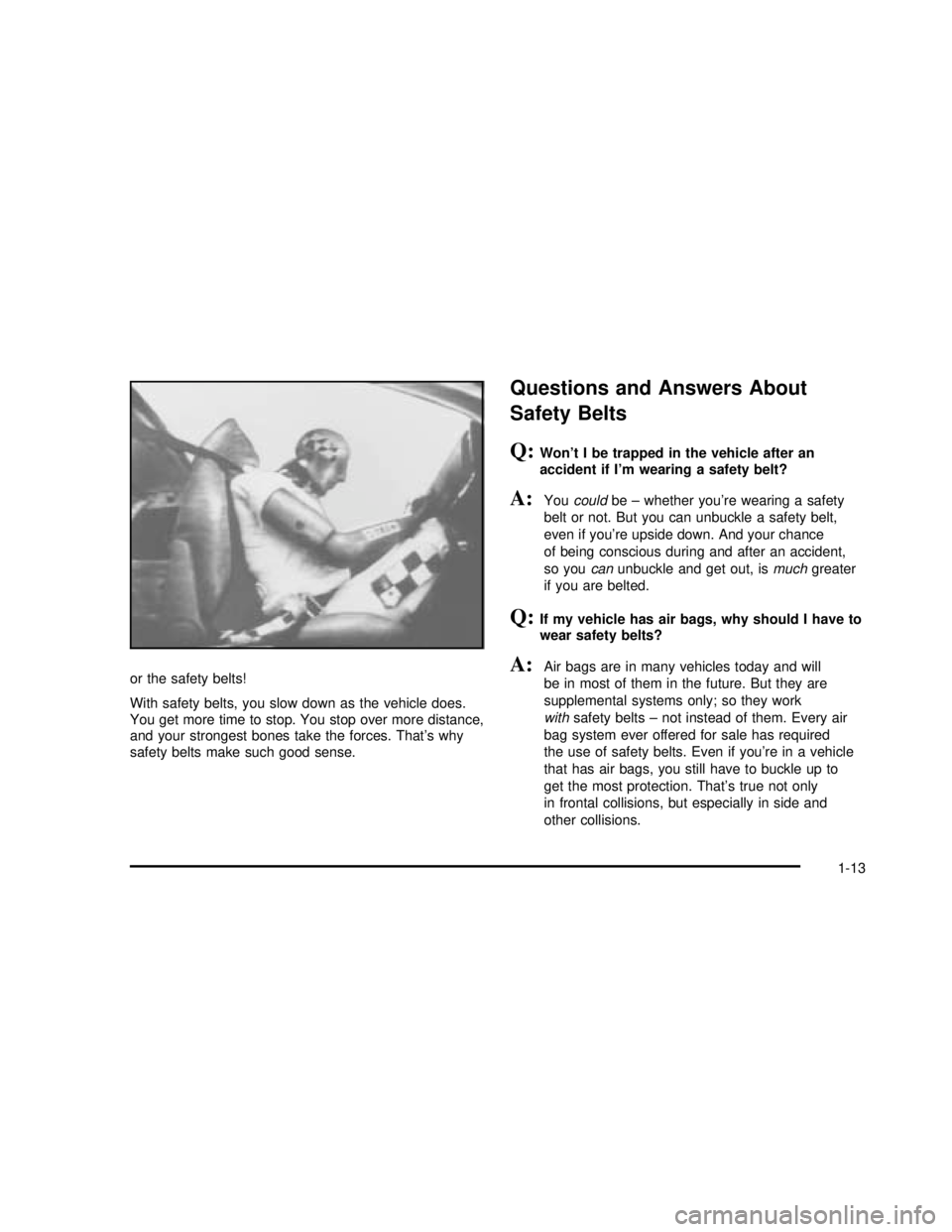

or the safety belts!
With safety belts, you slow down as the vehicle does.
You get more time to stop. You stop over more distance,
and your strongest bones take the forces. That’swhy
safety belts make such good sense.
Questions and Answers About
Safety Belts
Q:Won’t I be trapped in the vehicle after an
accident if I’m wearing a safety belt?
A:Youcouldbe–whether you’re wearing a safety
belt or not. But you can unbuckle a safety belt,
even if you’re upside down. And your chance
of being conscious during and after an accident,
so youcanunbuckle and get out, ismuchgreater
if you are belted.
Q:If my vehicle has air bags, why should I have to
wear safety belts?
A:Air bags are in many vehicles today and will
be in most of them in the future. But they are
supplemental systems only; so they work
withsafety belts–not instead of them. Every air
bag system ever offered for sale has required
the use of safety belts. Even if you’re in a vehicle
that has air bags, you still have to buckle up to
get the most protection. That’s true not only
in frontal collisions, but especially in side and
other collisions.
1-13
2003 - Savana OM
Page 20 of 392
Q:If I’m a good driver, and I never drive far from
home, why should I wear safety belts?
A:You may be an excellent driver, but if you’re in an
accident–even one that isn’t your fault–you and
your passengers can be hurt. Being a good
driver doesn’t protect you from things beyond
your control, such as bad drivers.
Most accidents occur within 25 miles (40 km)
of home. And the greatest number of serious
injuries and deaths occur at speeds of less than
40 mph (65 km/h).
Safety belts are for everyone.
Howto Wear Safety Belts Properly
This part is only for people of adult size.
Be aware that there are special things to know about
safety belts and children. And there are different
rules for smaller children and babies. If a child will be
riding in your vehicle, seeOlder Children on page 1-33
orInfants and Young Children on page 1-36. Follow
those rules for everyone’s protection.
First, you’ll want to know which restraint systems your
vehicle has.
We’ll start with the driver position.
Driver Position
This part describes the driver’s restraint system.
Lap-Shoulder Belt
The driver has a lap-shoulder belt. Here’s how to
wear it properly.
1. Close and lock the door.
2. Adjust the seat so you can sit up straight.
To see how, see“Seats”in the Index.
