158 Driving and Operating

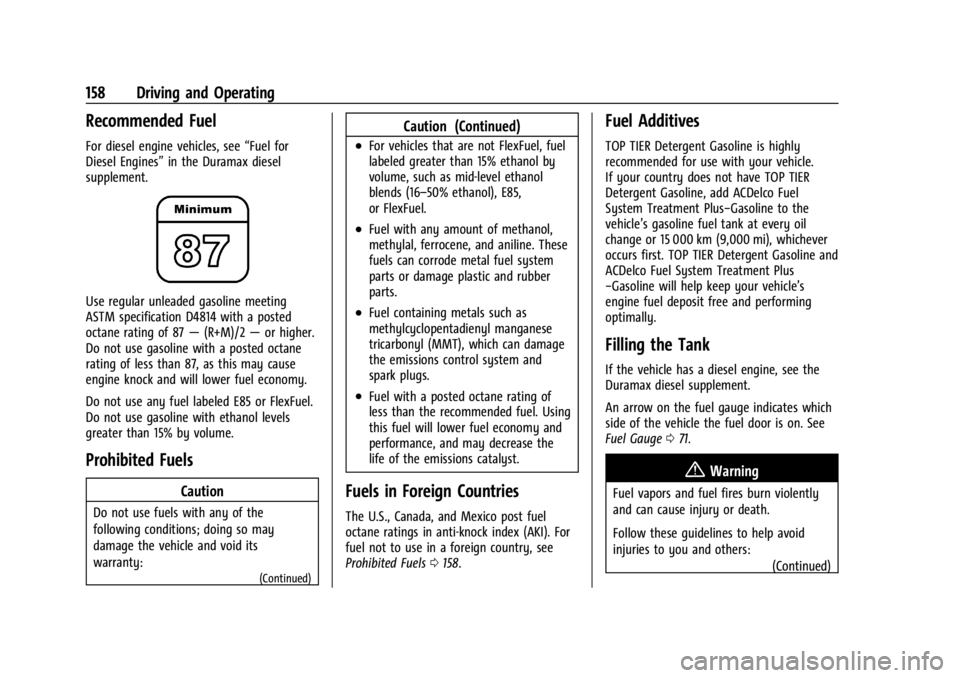

Recommended Fuel
For diesel engine vehicles, see“Fuel for
Diesel Engines” in the Duramax diesel
supplement.
Use regular unleaded gasoline meeting
ASTM specification D4814 with a posted
octane rating of 87 —(R+M)/2 —or higher.
Do not use gasoline with a posted octane
rating of less than 87, as this may cause
engine knock and will lower fuel economy.
Do not use any fuel labeled E85 or FlexFuel.
Do not use gasoline with ethanol levels
greater than 15% by volume.
Prohibited Fuels
Caution
Do not use fuels with any of the
following conditions; doing so may
damage the vehicle and void its
warranty:
(Continued)
Caution (Continued)
.For vehicles that are not FlexFuel, fuel
labeled greater than 15% ethanol by
volume, such as mid-level ethanol
blends (16–50% ethanol), E85,
or FlexFuel.
.Fuel with any amount of methanol,
methylal, ferrocene, and aniline. These
fuels can corrode metal fuel system
parts or damage plastic and rubber
parts.
.Fuel containing metals such as
methylcyclopentadienyl manganese
tricarbonyl (MMT), which can damage
the emissions control system and
spark plugs.
.Fuel with a posted octane rating of
less than the recommended fuel. Using
this fuel will lower fuel economy and
performance, and may decrease the
life of the emissions catalyst.
Fuels in Foreign Countries
The U.S., Canada, and Mexico post fuel
octane ratings in anti-knock index (AKI). For
fuel not to use in a foreign country, see
Prohibited Fuels 0158.
Fuel Additives
TOP TIER Detergent Gasoline is highly
recommended for use with your vehicle.
If your country does not have TOP TIER
Detergent Gasoline, add ACDelco Fuel
System Treatment Plus−Gasoline to the
vehicle’s gasoline fuel tank at every oil
change or 15 000 km (9,000 mi), whichever
occurs first. TOP TIER Detergent Gasoline and
ACDelco Fuel System Treatment Plus
−Gasoline will help keep your vehicle’s
engine fuel deposit free and performing
optimally.
Filling the Tank
If the vehicle has a diesel engine, see the
Duramax diesel supplement.
An arrow on the fuel gauge indicates which
side of the vehicle the fuel door is on. See
Fuel Gauge 071.
{Warning
Fuel vapors and fuel fires burn violently
and can cause injury or death.
Follow these guidelines to help avoid
injuries to you and others:
(Continued)

GMC Savana Owner Manual (GMNA-Localizing-U.S./Canada-14583543) -
2021 - crc - 7/10/20
Vehicle Care 185

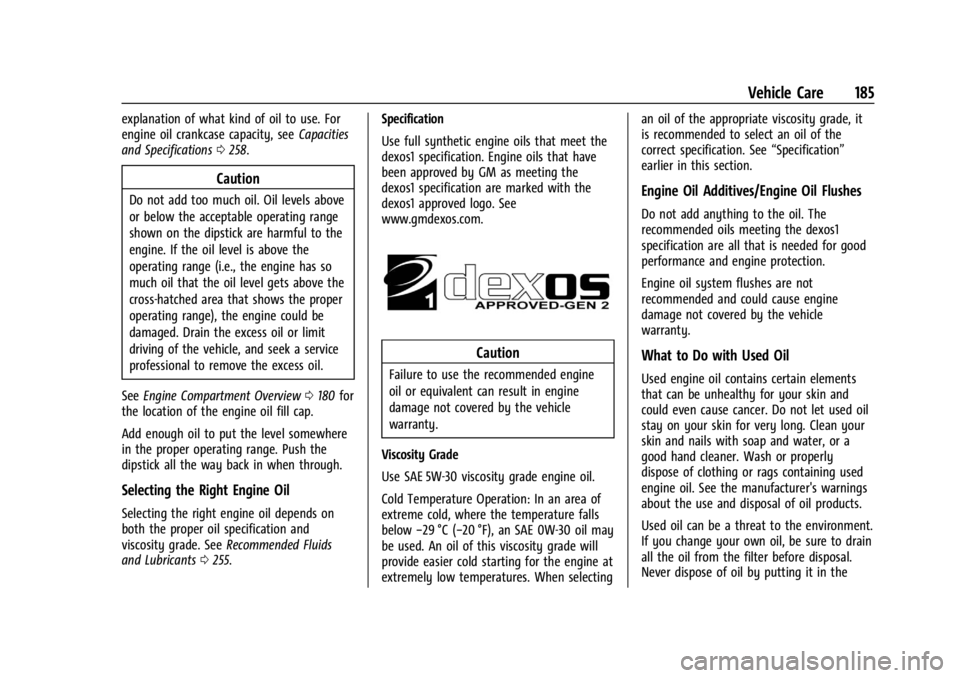

explanation of what kind of oil to use. For
engine oil crankcase capacity, seeCapacities
and Specifications 0258.
Caution
Do not add too much oil. Oil levels above
or below the acceptable operating range
shown on the dipstick are harmful to the
engine. If the oil level is above the
operating range (i.e., the engine has so
much oil that the oil level gets above the
cross-hatched area that shows the proper
operating range), the engine could be
damaged. Drain the excess oil or limit
driving of the vehicle, and seek a service
professional to remove the excess oil.
See Engine Compartment Overview 0180 for
the location of the engine oil fill cap.
Add enough oil to put the level somewhere
in the proper operating range. Push the
dipstick all the way back in when through.
Selecting the Right Engine Oil
Selecting the right engine oil depends on
both the proper oil specification and
viscosity grade. See Recommended Fluids
and Lubricants 0255. Specification
Use full synthetic engine oils that meet the
dexos1 specification. Engine oils that have
been approved by GM as meeting the
dexos1 specification are marked with the
dexos1 approved logo. See
www.gmdexos.com.
Caution
Failure to use the recommended engine
oil or equivalent can result in engine
damage not covered by the vehicle
warranty.
Viscosity Grade
Use SAE 5W-30 viscosity grade engine oil.
Cold Temperature Operation: In an area of
extreme cold, where the temperature falls
below −29 °C (−20 °F), an SAE 0W-30 oil may
be used. An oil of this viscosity grade will
provide easier cold starting for the engine at
extremely low temperatures. When selecting an oil of the appropriate viscosity grade, it
is recommended to select an oil of the
correct specification. See
“Specification”
earlier in this section.
Engine Oil Additives/Engine Oil Flushes
Do not add anything to the oil. The
recommended oils meeting the dexos1
specification are all that is needed for good
performance and engine protection.
Engine oil system flushes are not
recommended and could cause engine
damage not covered by the vehicle
warranty.
What to Do with Used Oil
Used engine oil contains certain elements
that can be unhealthy for your skin and
could even cause cancer. Do not let used oil
stay on your skin for very long. Clean your
skin and nails with soap and water, or a
good hand cleaner. Wash or properly
dispose of clothing or rags containing used
engine oil. See the manufacturer's warnings
about the use and disposal of oil products.
Used oil can be a threat to the environment.
If you change your own oil, be sure to drain
all the oil from the filter before disposal.
Never dispose of oil by putting it in the

GMC Savana Owner Manual (GMNA-Localizing-U.S./Canada-14583543) -
2021 - crc - 7/10/20
284 Index
Engine (cont'd)Cooling System . . . . . . . . . . . . . . . . . . . . . . . . . 191
Drive Belt Routing . . . . . . . . . . . . . . . . . . . . . 261
Exhaust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Oil Life System . . . . . . . . . . . . . . . . . . . . . . . . 186
Oil Pressure Gauge . . . . . . . . . . . . . . . . . . . . . 72
Oil Pressure Light . . . . . . . . . . . . . . . . . . . . . . . 80
Overheating . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Power Messages . . . . . . . . . . . . . . . . . . . . . . . . 85
Running While Parked . . . . . . . . . . . . . . . . . . 141
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Enhanced Technology Glass . . . . . . . . . . . . . . . . 21
Entry Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Equipment, Towing . . . . . . . . . . . . . . . . . . . . . . . 172
Event Data Recorders . . . . . . . . . . . . . . . . . . . . 272
Exit Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Extender, Seat Belt . . . . . . . . . . . . . . . . . . . . . . . .35
Exterior Lamp Controls . . . . . . . . . . . . . . . . . . . . 90
Exterior Lamps Off Reminder . . . . . . . . . . . . . 90
Exterior Lighting Battery Saver . . . . . . . . . . . 95
F
Fan Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Fast Idle System . . . . . . . . . . . . . . . . . . . . . . . . . .138 Filter,
Engine Air Cleaner . . . . . . . . . . . . . . . . . . . . . 189
Fixed Mast Antenna . . . . . . . . . . . . . . . . . . . . . 103
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91
Flashers, Hazard Warning . . . . . . . . . . . . . . . . . 92
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226 Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Floor Mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
Fluid Automatic Transmission . . . . . . . . . . 186, 189
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Power Steering . . . . . . . . . . . . . . . . . . . . . . . . 196
Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Folding Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Forward Collision Alert (FCA) System . . . . .154
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
Front Seats Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Front Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Front Turn Signal Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . 202
Fuel Additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Economy, Driving for Better . . . . . . . . . . . 126
Filling a Portable Fuel Container . . . . . . . 160
Filling the Tank . . . . . . . . . . . . . . . . . . . . . . . . 158
Foreign Countries . . . . . . . . . . . . . . . . . . . . . . 158 Fuel (cont'd)
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Low Fuel Warning Light . . . . . . . . . . . . . . . . 80
Prohibited Fuels . . . . . . . . . . . . . . . . . . . . . . . 158
Recommended . . . . . . . . . . . . . . . . . . . . . . . . . 158
Top Tier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Full-Size Spare Tire . . . . . . . . . . . . . . . . . . . . . . . 235
Fuses
Engine Compartment Fuse Block . . . . . . . 206
Floor Console Fuse Block . . . . . . . . . . . . . . . 209
Fuses and Circuit Breakers . . . . . . . . . . . . . 205
G
GaugesEngine Coolant Temperature . . . . . . . . . . . . 73
Engine Oil Pressure . . . . . . . . . . . . . . . . . . . . . 72
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Voltmeter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Warning Lights and Indicators . . . . . . . . . . 70
General Information Service and Maintenance . . . . . . . . . . . . . . 248
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
