Page 301 of 404

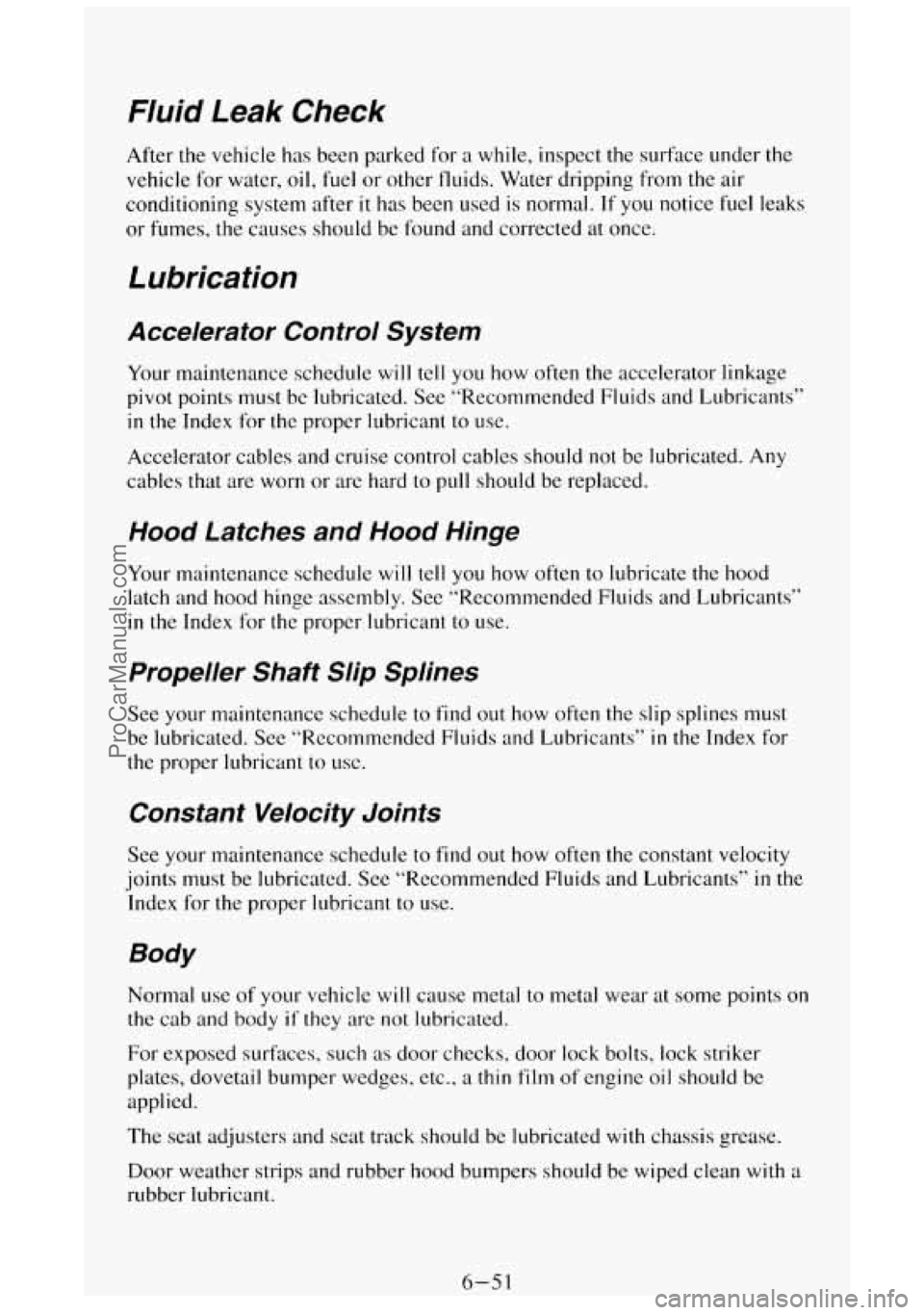

GMC SIERRA 1994  Owners Manual Fluid  Leak Check
After the vehicle has  been parked  for  a while, inspect the  surface under the
vehicle  for water,  oil, fuel  or  other  fluids.  Water dripping  from the  air
conditioning
sy

Page 302 of 404

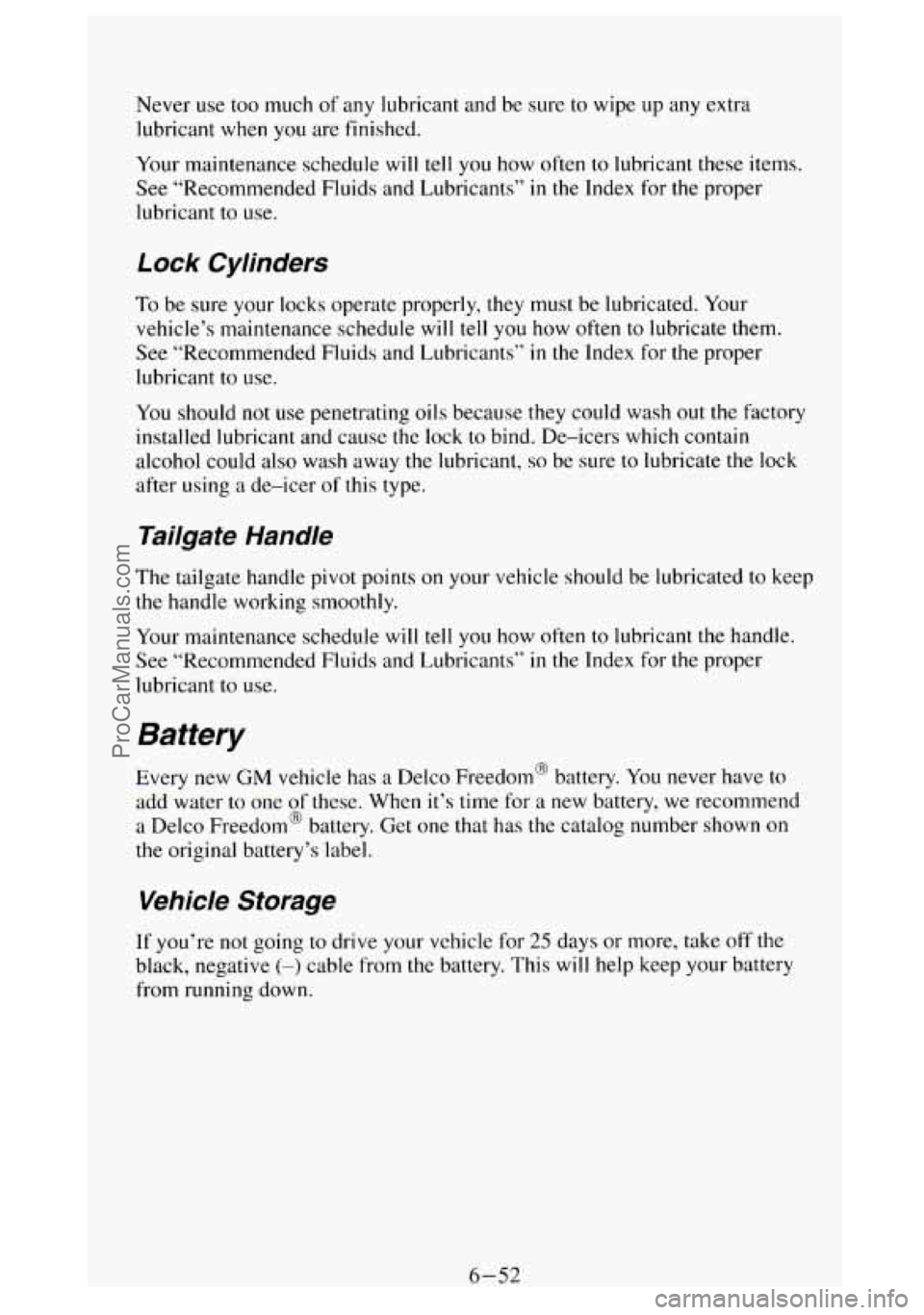

GMC SIERRA 1994  Owners Manual Never  use  too much of any lubricant and  be sure  to  wipe up any  extra
lubricant  when
you are  finished.
Your  maintenance  schedule
will tell  you how often to lubricant these  items.
See

Page 303 of 404

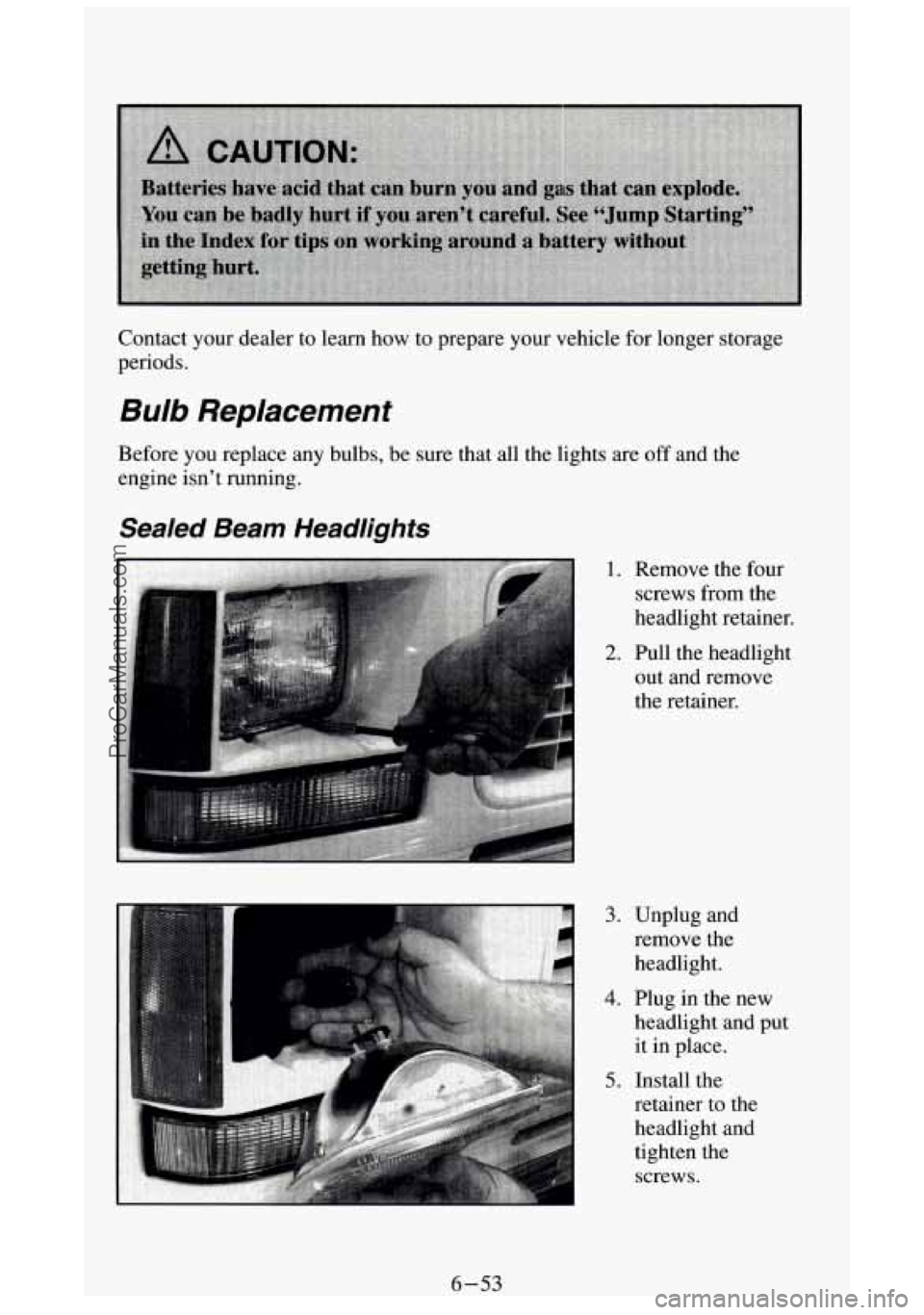

GMC SIERRA 1994  Owners Manual Contact  your  dealer  to  learn  how  to  prepare  your  vehicle for longer  storage
periods.
Bulb Replacement
Before  you  replace  any  bulbs,  be  sure  that  all  the  lights  are\
 off and  t

Page 304 of 404

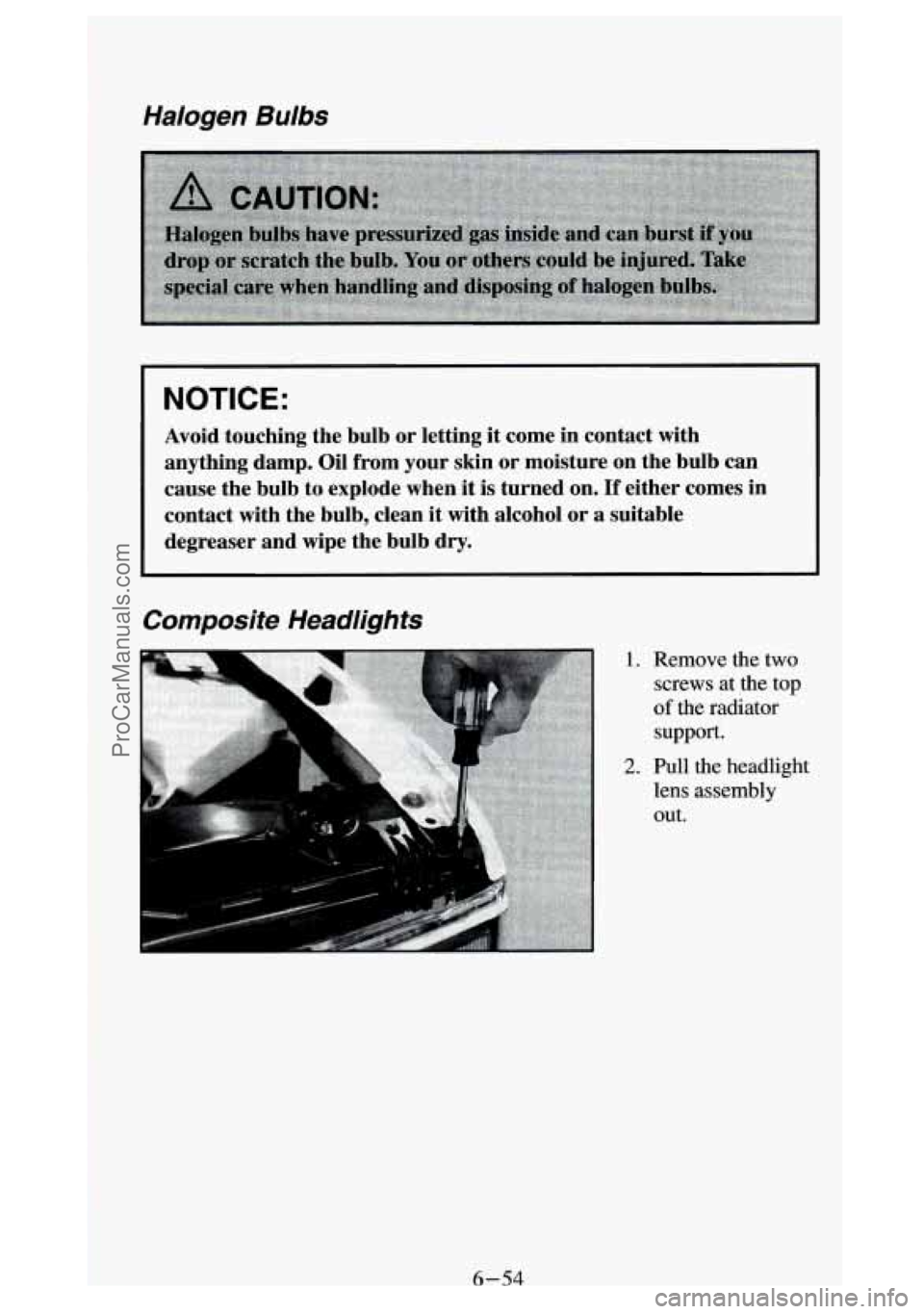

GMC SIERRA 1994  Owners Manual Halogen  Bulbs
NOTICE:
Avoid touching  the bulb or letting it come  in contact  with
anything  damp.  Oil  from your skin  or moisture  on  the bulb can
cause  the bulb  to explode  when  it is  t

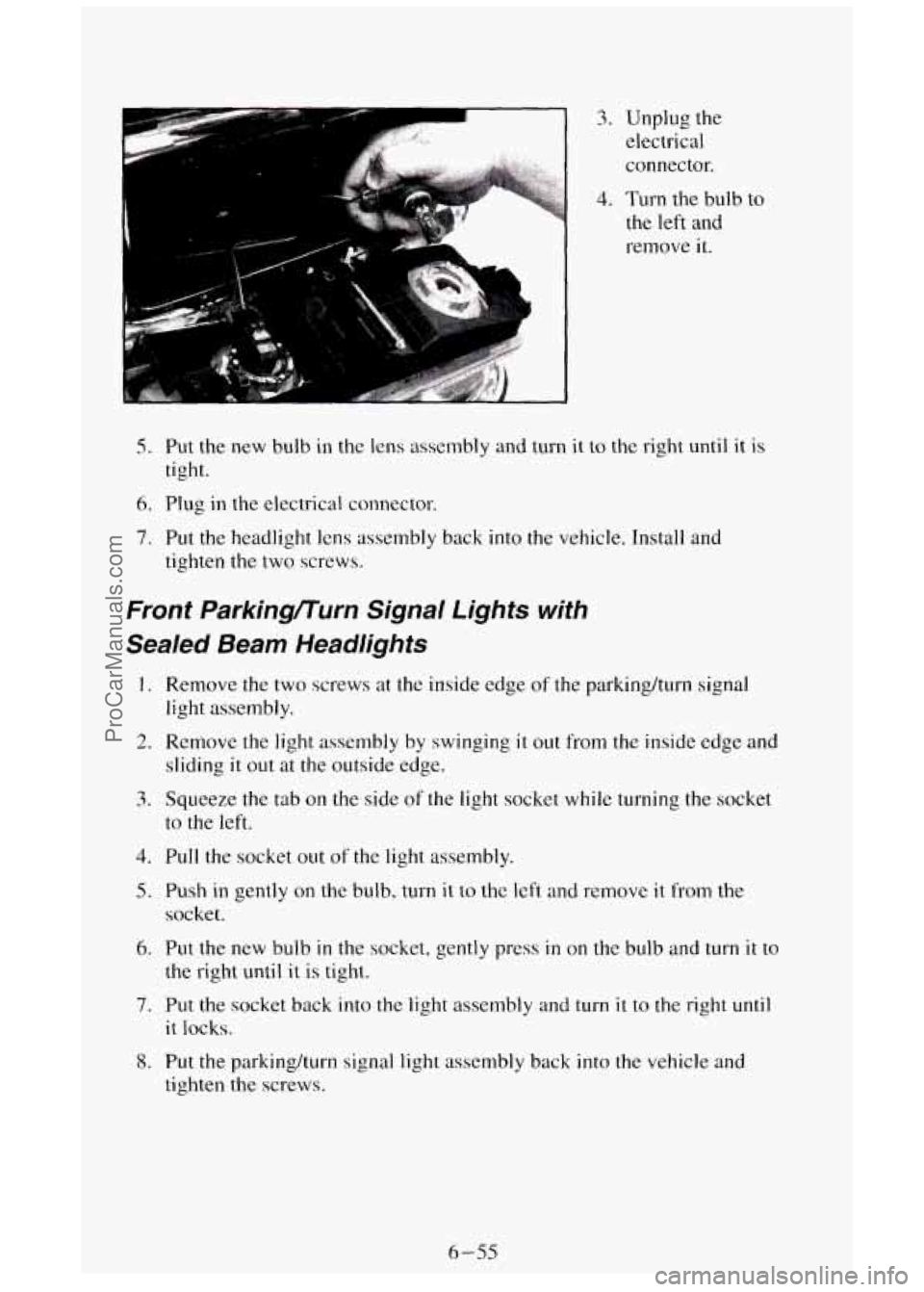

Page 305 of 404

GMC SIERRA 1994  Owners Manual 3. Unplug the
electrical
connector.
4. Turn  the  bulb  to
the  left  and
i
remove it.
5. Put the new  bulb  in the lens assembly  and turn it to the right  until it is
tight.
6. Plug in the

Page 306 of 404

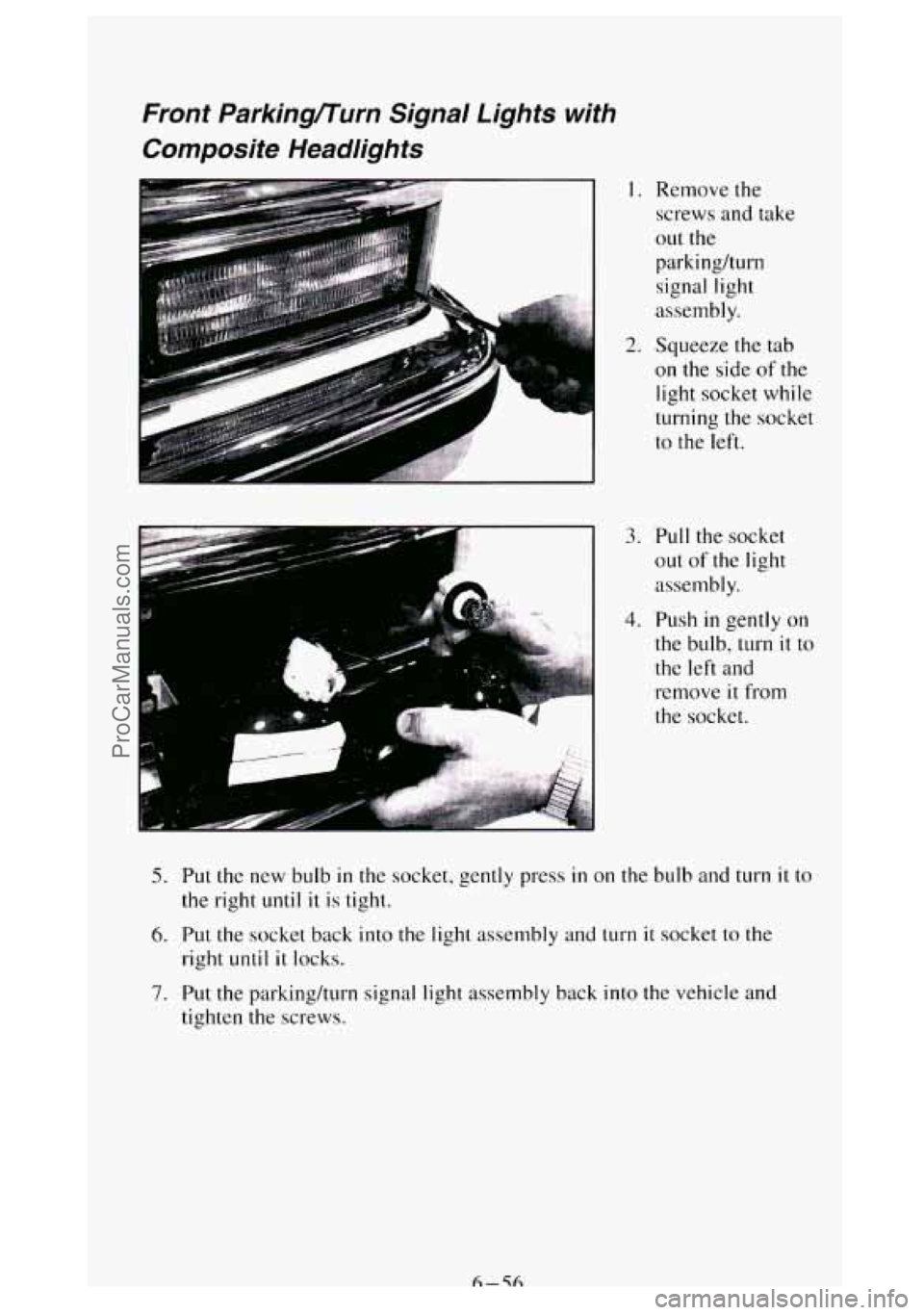

GMC SIERRA 1994  Owners Manual Front Parkingnurn  Signal Lights  with
Composite  Headlights
-7
I. Remove the
screws and take
out the  parkinghurn
signal light
assembly.
2. Squeeze  the tab
on the  side of the
light  socke

Page 307 of 404

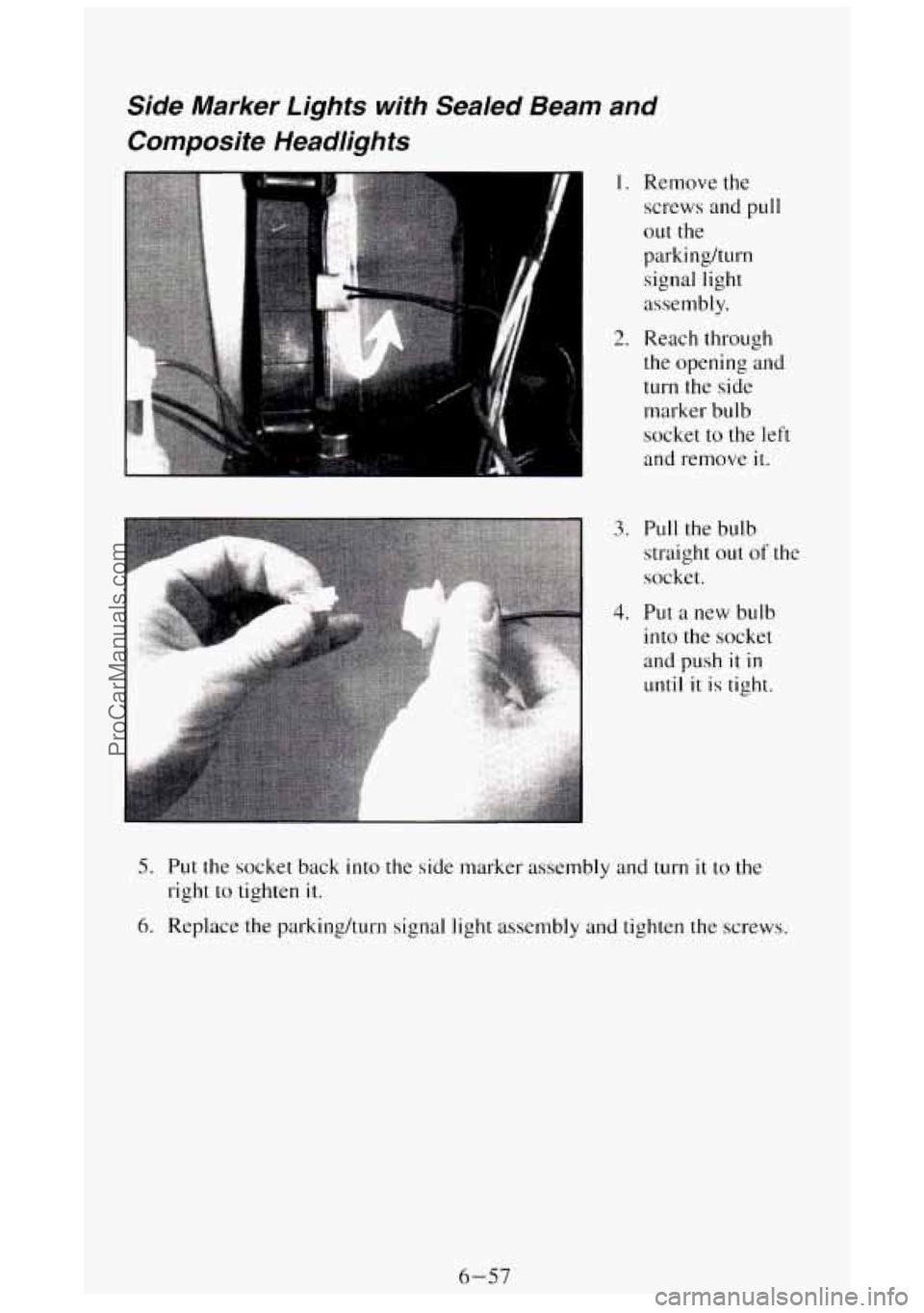

GMC SIERRA 1994  Owners Manual Side  Marker  Lights  with  Sealed  Beam  and Composite  Headhghts
1. Remove  the
screws and
pull
out the
parkinghrn
signal light
assembly.
2. Reach through
the  opening
and
turn  the side

Page 308 of 404

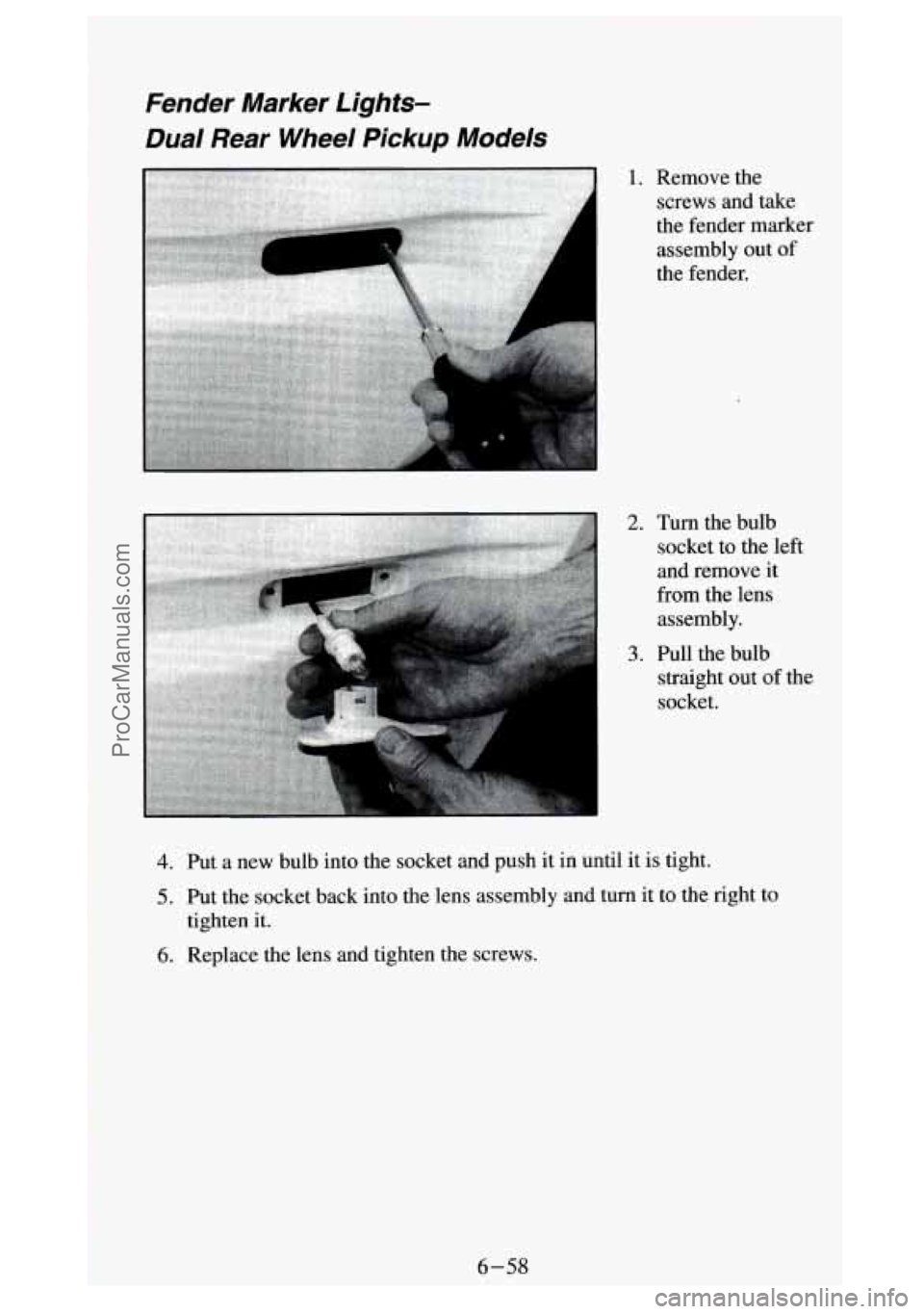

GMC SIERRA 1994  Owners Manual Fender  Marker  Lights-
Dual  Rear  Wheel  Pickup  Models
1.
2.
3.
Remove  the screws  and  take
the  fender  marker
assembly  out
of
the  fender.
Turn  the  bulb
socket  to  the left
and

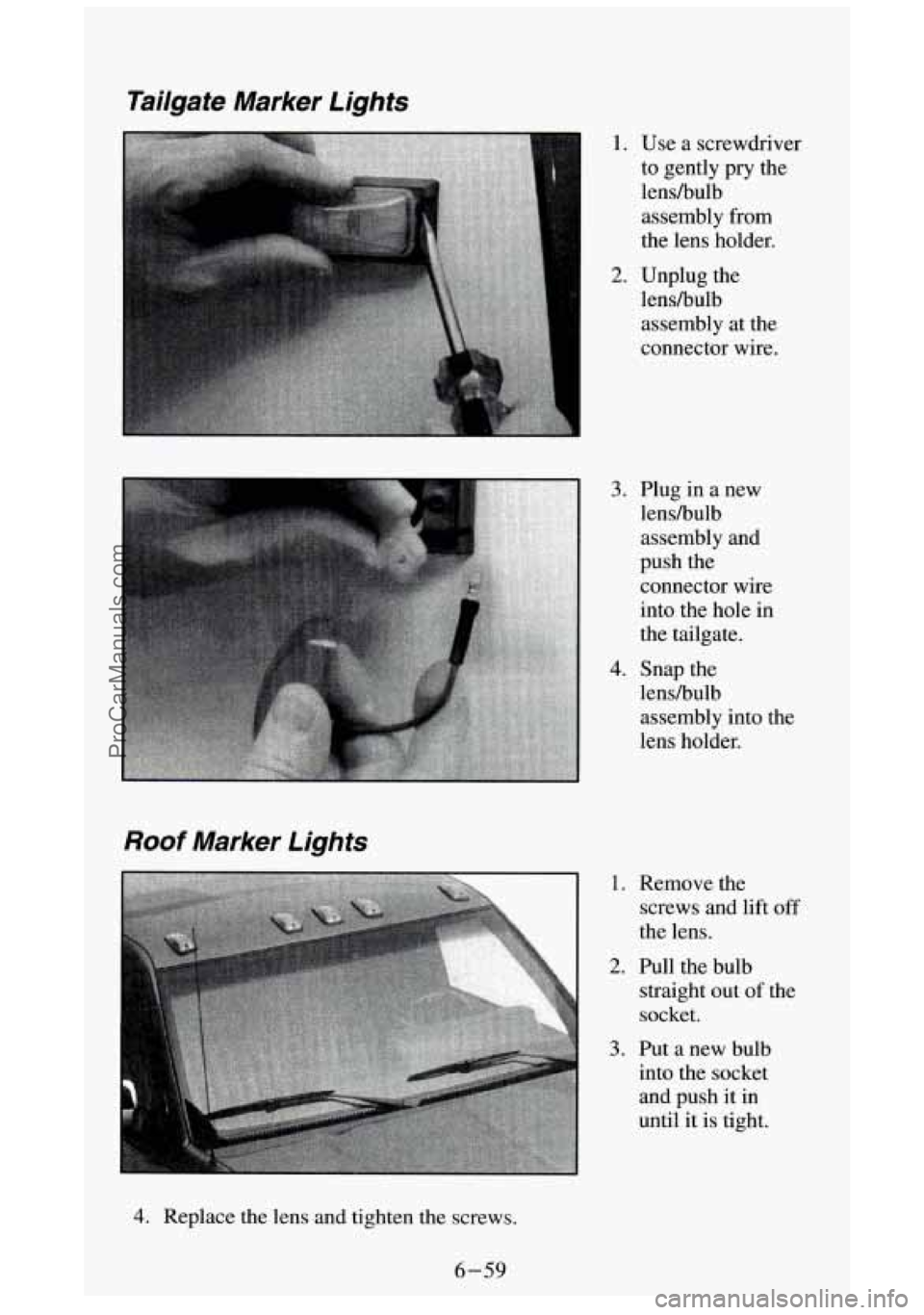

Page 309 of 404

GMC SIERRA 1994  Owners Manual Tailgate  Marker  Lights
1. Use a screwdriver
to  gently pry the
lenshulb  assembly  from
the  lens  holder.
2. Unplug the
lenshulb
assembly  at the
connector wire.
3. Plug  in a new
lensbul

Page 310 of 404

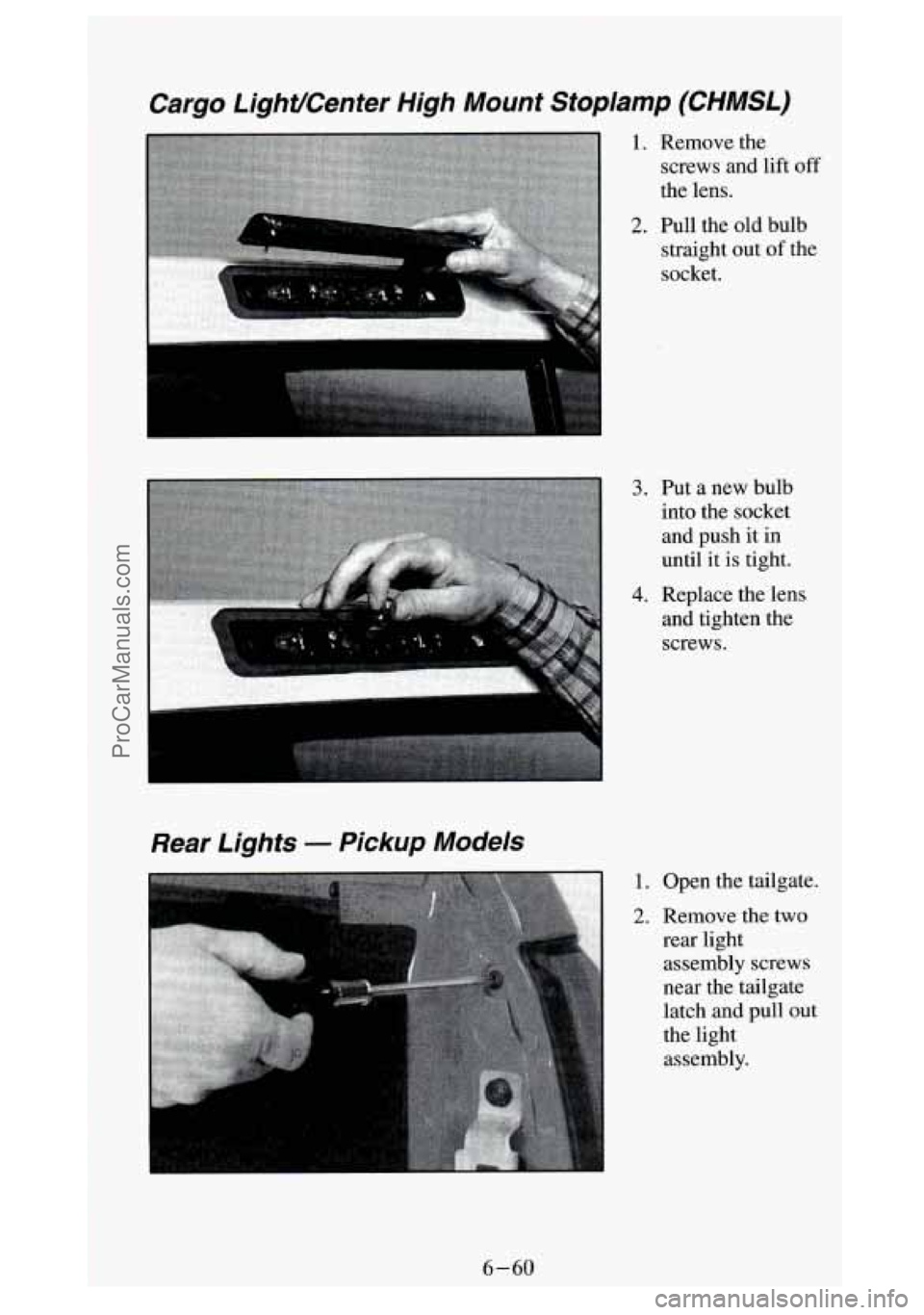

GMC SIERRA 1994  Owners Manual Cargo LighKenter  High  Mount  Stoplamp  (CHMSL)
1. Remove the
screws and lift  off
the lens.
2. Pull the old bulb  straight  out
of the
socket.
Rear  Lights - Pickup Models
3. Put a  new bulb
