GMC SIERRA 1996 Owners Manual

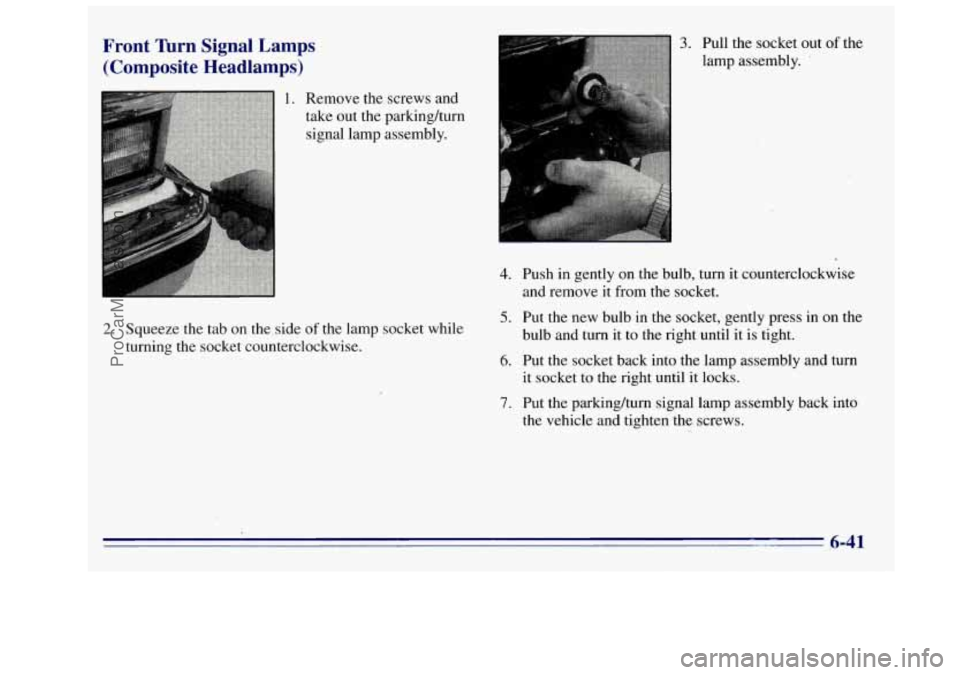

Front Wrn Signal Lamps
(Composite Headlamps)
1. Remove the screws and
take out the parkinghrn
signal lamp assembly.
3. Pull the socket out of the
lamp assembly.
.
b
4. Push in gently on the bulb, turn it counterclockwise
and remove it from the socket.
5. Put the new bulb in the socket, gently press in on the
2. Squeeze the tab on the.side of the lamp socket while
bulb and turn it to the right 'until it is tight.
turning the socket counterclockwise.
" 6. Put the socket back into the lamp assembly and turn
it socket to the right until it locks.
7. Put the parkinghurn signal lamp assembly back into
the vehicle and tighten the screws.
6-41
ProCarManuals.com

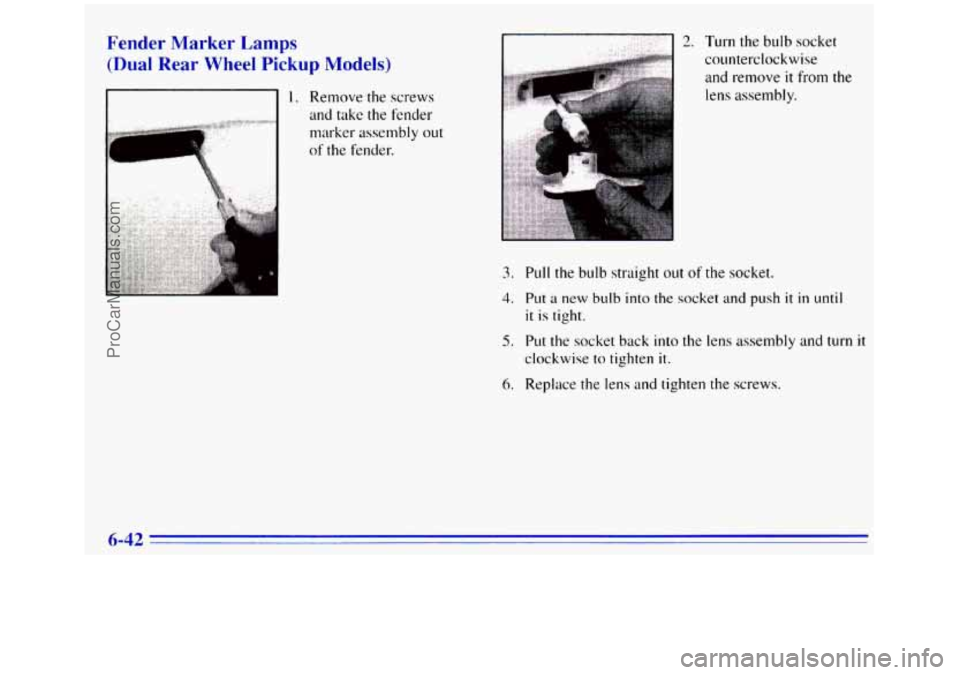

Fender Marker Lamps
(Dual Rear Wheel Pickup Models)
2. Turn the bulb socket
counterclockwise
and remove
it from the
lens assembly.
3. Pull the bulb straight out of the socket.
4. Put a new bulb into the socket and push it in until
it is tight.
5. Put the socket back into the lens assembly and turn it
clockwise to tighten it.
6. Replace the lens and tighten the screws.
6-42
ProCarManuals.com

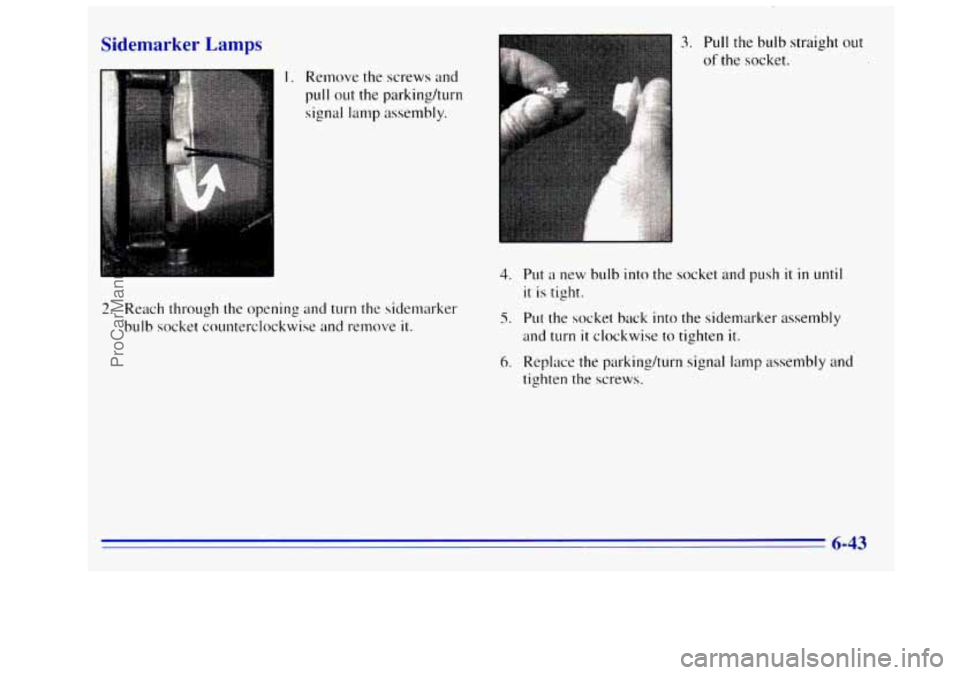

Sidemarker Lamps
I. Remove the screws and
pull out the parkingkurn
signal lamp assembly.
2. Reach through the opening and turn the sidemarker
bulb socket counterclockwise and remove it.
3. Pull the bulb straight out
of the socket.
4. Put a new bulb into the socket and push it in until
it is tight.
5. Put the socket back into the sidemarker assembly
and turn
it clockwise to tighten it.
6. Replace the parking/turn signal lamp assembly and
tighten the screws.
ProCarManuals.com

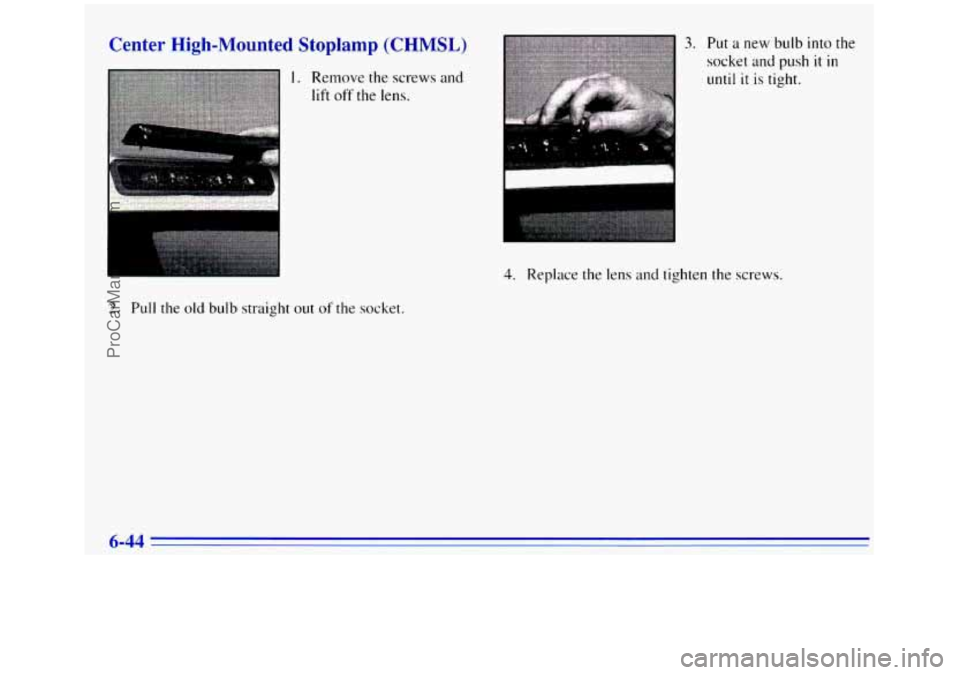

Center High-Mounted Stoplamp (CHMSL)
2. Pull the old bulb straight out of the socket.
3. Put a new bulb into the
socket and push it in
until it is tight.
4. Replace the lens and tighten the screws.
ProCarManuals.com

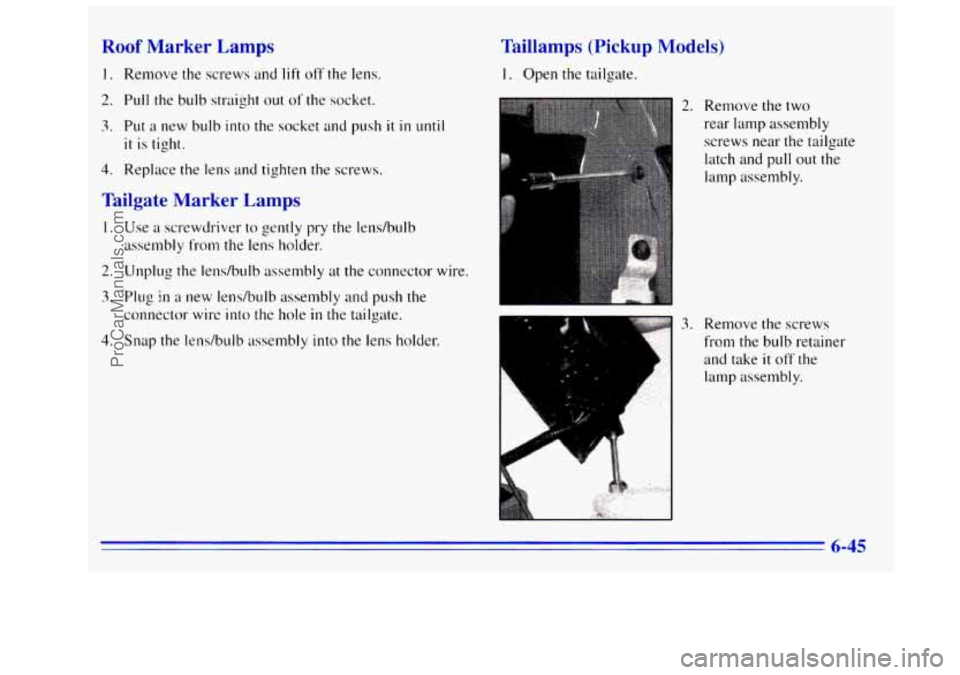

Roof Marker Lamps
I. Remove the screws and lift off the lens.
2. Pull the bulb straight out of the socket.
3. Put a new bulb into the socket and push it in until
it is tight.
4. Replace the lens and tighten the screws.
Tailgate Marker Lamps
1. Use a screwdriver to gently pry the lens/buIb
assembly
from the lens holder.
2. Unplug the lens/bulb assembly at the connector wire.
3. Plug in a new lendbulb assembly and push the
connector wire into
the hole in the tailgate.
4. Snap the lens/buIb assembly into the lens holder.
Taillamps (Pickup Models)
I. Open the tailgate.
cp
I
2. Remove the two
rear lamp assembly
screws near the tailgate
latch and pull out the
lamp assembly.
3. Remove the screws
from the
bulb retainer
and take
it off the
lamp assembly.
ProCarManuals.com

4. Pull the old bulb straight
out of the socket..
5.
6.
7.
8.
Put in a new bulb and push it in until it is tight.
Replace the bulb retainer.
Replace the rear lamp assembly and tighten
the screws.
Close the tailgate.
Taillamps (Chassis Cab Models)
1. Using your hands, peel the rubber seal away from
the lens.
2. Lift the lens off the
lamp assembly.
3. Slide the socket out of the lamp assembly.
6-46
ProCarManuals.com

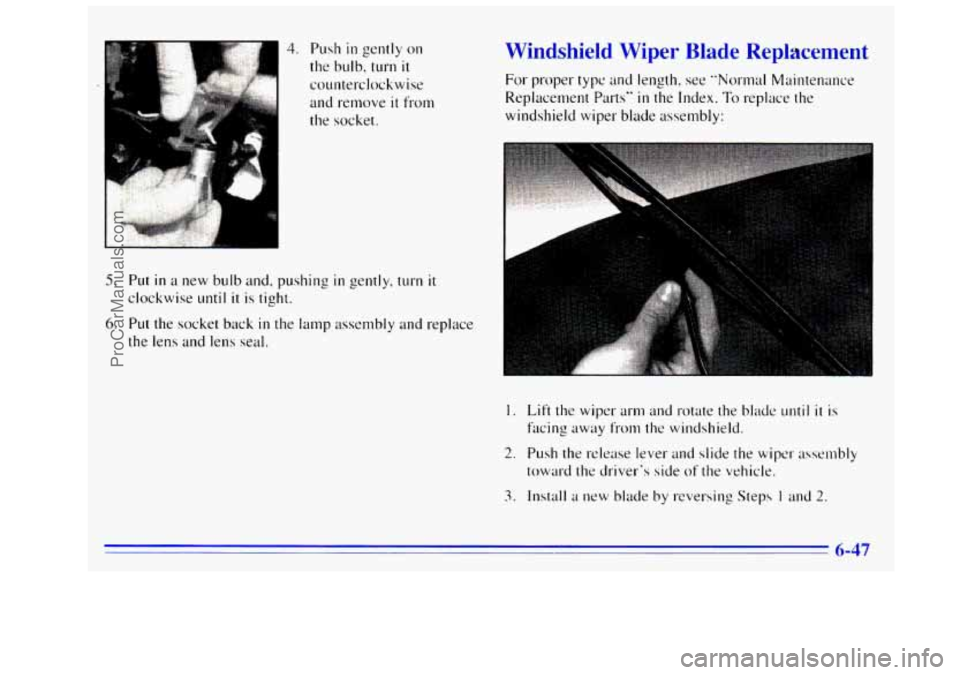

4. Push in gently on
the bulb, turn it
counterclockwise
c
. ..
and remove it from
the socket .
5. Put in a new bulb and, pushing in gently, turn it
clockwise
until it is tight.
6. Put the socket back in the latnp assembly and replace
the lens and lens seal.
indshield Wiper Blade l.Lpldcement
For proper type and length, see "Normal Maintenance
Replacement Parts"
in the Index. To replace the
windshield wiper blade assembly:
1
1. Lift the wiper arm and rotate the blade until it is
facing away
from the windshield.
2. Push the release lever and slide the wipcr asselnbly
toward the driver's side
of the vehicle.
3. Install a new blade by reversing Steps I and 2.
ProCarManuals.com

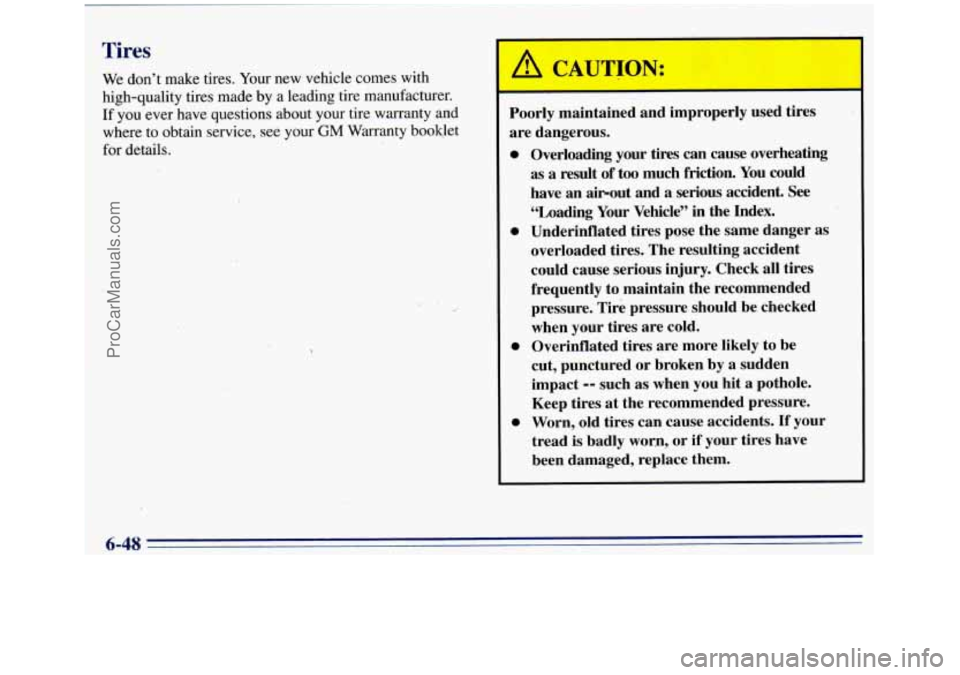

Tires
We don’t make tires. Your new vehicle comes with
high-quality tires made by a leading tire manufacturer.
If you ever have questions about your tire warranty and
where
to obtain service, see your GM Warranty bookJet
for details. Poorly maintained and improperly used tires
are dangerous.
0
0
0 0
Overloading your tires can cause overheating
as a result of too much friction. You could
have an airout and a serious accident. See
“Loading Your Vehicle”
m the Index.
Underinflated tires pose the same danger as
overloaded tires. The resulting accident
could cause serious injury. Check all tires
frequently to maintain the recommended pressure. Tire pressure should be checked
when your tires are cold.
Overinflated tires are more likely to
be
cut, punctured or broken by a sudden
impact
-- such as when you hit a pothole.
Keep tires at the recommended pressure.
Worn, old tires can cause accidents.
If your
tread is badly worn, or if your tires have
been damaged, replace them.
ProCarManuals.com

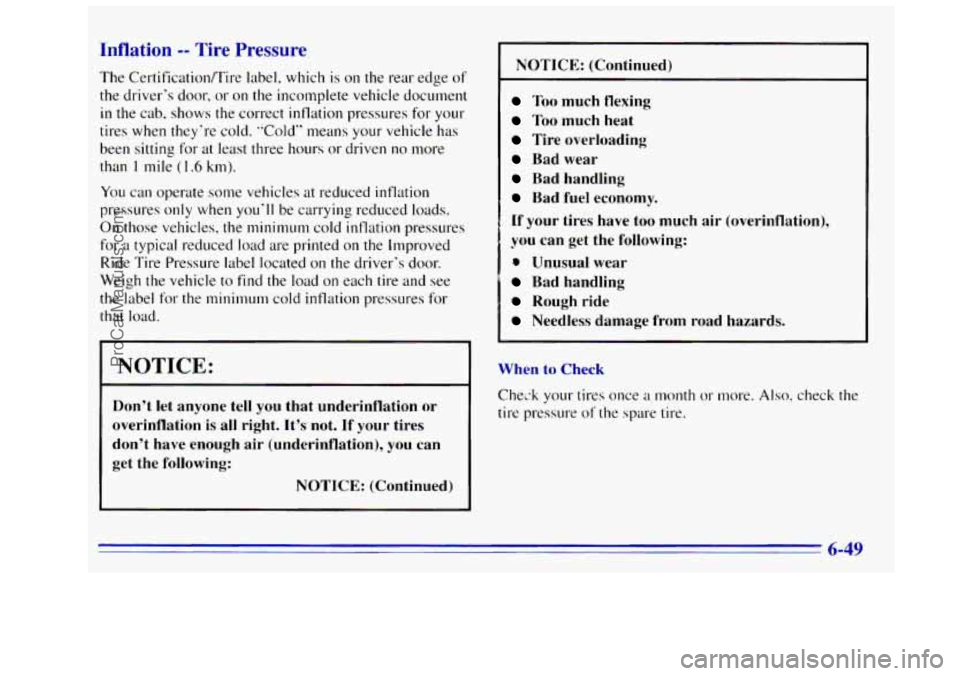

Inflation -- Tire Pressure
The Certification/Tire label. which is on the rear edge of
the driver's door, or on the incomplete vehicle document
in the cab, shows the correct inflation pressures for your
tires when they're cold. "Cold" means your vehicle has
been sitting for at least three hours or driven no more
than
I mile (I .6 km).
You can operate some vehicles at reduced inflation
pressures
only when you'll be carrying reduced loads.
On those vehicles, the minimum cold inflation pressures
for a typical reduced load are printed on the Improved
Ride Tire Pressure label located
on the driver's door.
Weigh the vehicle to find the load on each tire and see
the label for the
minimum cold inflation pressures for
that load.
1 NOTICE:
~.
1
Don't let anyone tell you that underinflation or
overinflation is
all right. It's not. If your tires
don't have enough air (underinflation), you can
get the following:
NOTICE: (Continued)
NOTICE: (Continued)
Too much flexing
Too much heat
Tire overloading
Bad wear
Bad handling
Bad fuel economy.
if your tires have too much air (overinflation),
you can get the following:
Unusual wear
Bad handling
Rough ride
Needless damage from road hazards.
When
to Check
Check your tires once
a month or more. Also, check the
tire pressure of the spare tire,
6-49
ProCarManuals.com

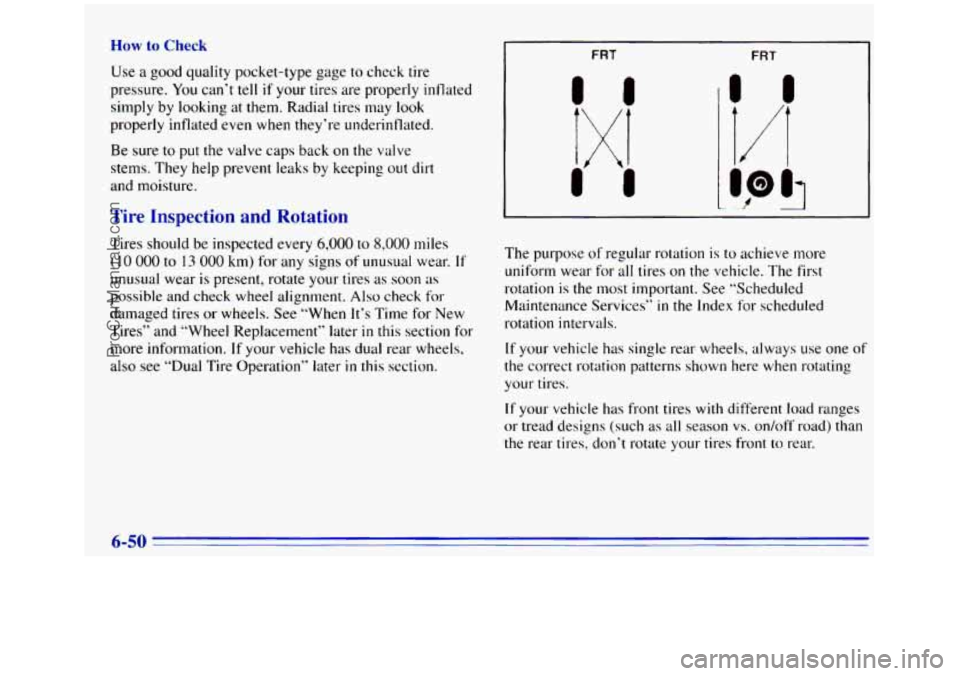

How to Check
Use a good quality pocket-type gage to check tire
pressure.
You can’t tell if your tires are properly inflated
simply by looking at them. Radial tires may
look
properly inflated even when they’re underinflated.
Be sure
to put the valve caps back on the valve
stems. They help prevent leaks
by keeping out dirt
.and moisture.
Tire Inspection and Rotation
Tires should be inspected every 6,000 to 8,000 miles
(10 000 to 13 000 km) for any signs of unusual wear. If
unusual wear
is present, rotate your tires as soon as
possible and check wheel alignment. Also check for
damaged tires or wheels. See “When It’s Time for New
Tires” and ‘‘Wheel Replacement” later
in this section for
more information.
If your vehicle has dual rear wheels,
also see “Dual ‘Tire Operation” later
in this section.
I
FRT FRT
I
The purpose of regular rotation is to achieve more
uniform wear for all tires on the vehicle. The first
rotation
is the most important. See “Scheduled
Maintenance Services”
in the Index for scheduled
rotation intervals.
If
your vehicle has single rear wheels, always use one of
the correct rotation patterns
shown here when rotating
your tires.
If your vehicle has front [Ires with different load ranges
or tread designs (such as all season vs. on/off road) than
the rear tires, don’t rotate your tires front to rear.
