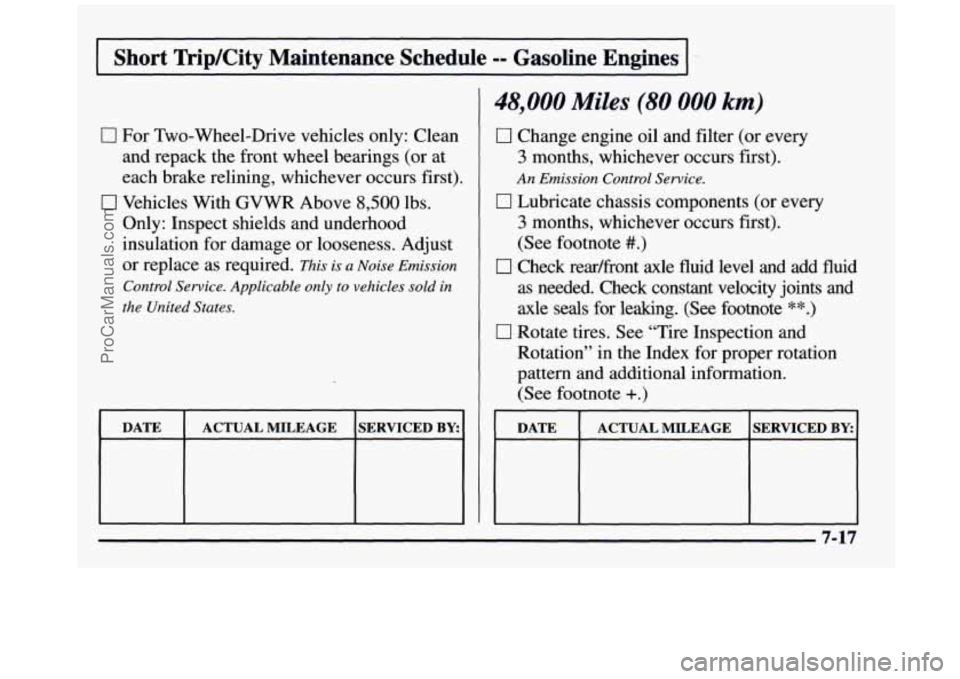

I Short TripKity Maintenance Schedule -= Gasoline Engines I
0 For Two-Wheel-Drive vehicles only: Clean and repack the front wheel bearings (or at
each brake relining, whichever occurs first).
0 Vehicles With GVWR Above 8,500 lbs.
Only: Inspect shields and underhood
insulation for damage or looseness. Adjust
or replace as required. This is a Noise Emission
Control Service. Applicable only to vehicles sold in
the United States.
DATE ACTUAL MILEAGE SERVICED BY:
48,000 Miles (80 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
0 Check readfiont axle fluid level and add fluid
as needed. Check constant velocity joints and
axle seals
for leaking. (See footnote **.)
0 Rotate tires. See “Tire Inspection and
Rotation’’ in the Index for proper rotation
pattern and additional information.
(See footnote
+.)
I DATE ACTUAL MILEAGE SERVICED BY:
7-17
ProCarManuals.com

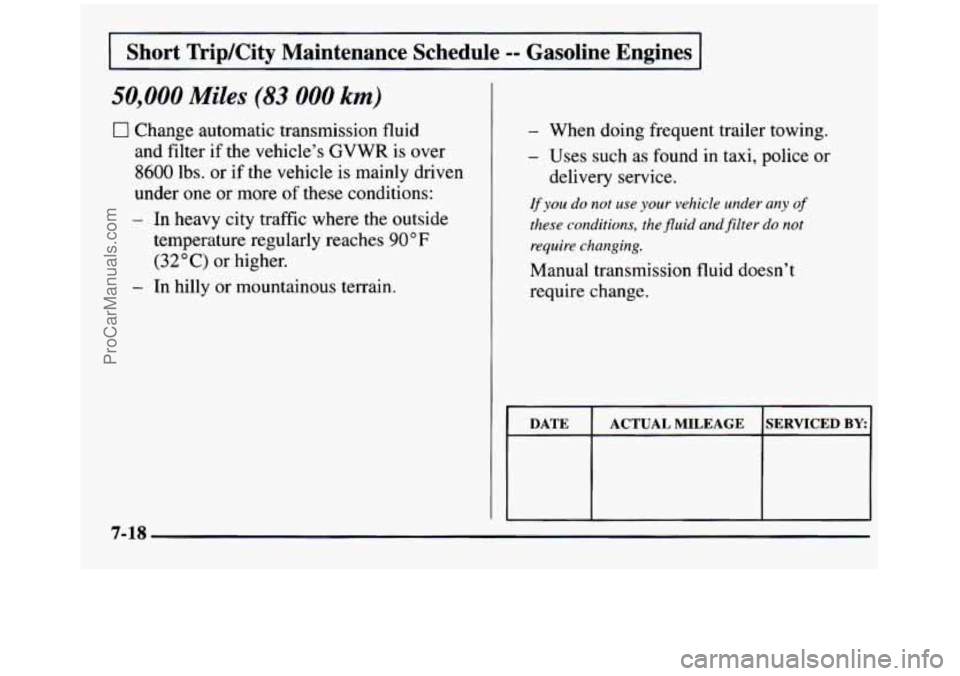

Short TripKity Maintenance Schedule -- Gasoline Engines
50,000 Miles (83 000 km)
0 Change automatic transmission fluid
and filter if
the vehicle’s GVWR is over
8600 lbs. or if the vehicle is mainly driven
under one or more
of these conditions:
- In heavy city traffic where the outside
temperature regularly reaches
90 O F
(32°C) or higher.
- In hilly or mountainous terrain.
- When doing frequent trailer towing.
- Uses such as found in taxi, police or
lf you do not use your vehicle under any of
these conditions, the fluid and filter do not
require changing.
Manual transmission fluid doesn’t
require change.
delivery
service.
I DATE I ACTUAL MILEAGE ISERVICED BY:)
7-18
ProCarManuals.com

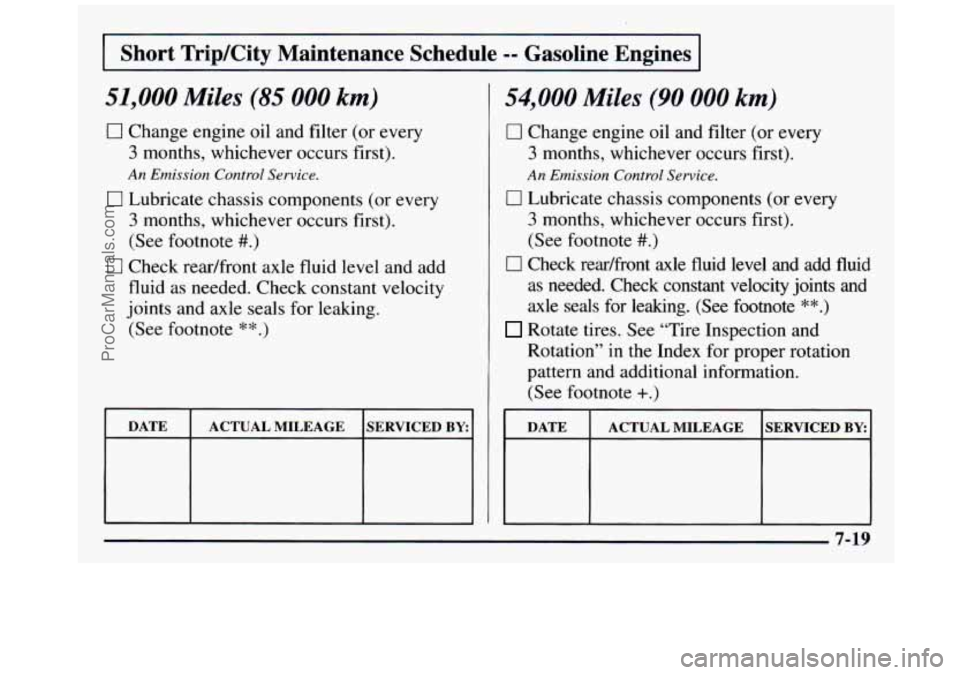

I Short TripKity Maintenance Schedule -= Gasoline Engines I
51,000 Miles (85 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
0 Check readfront axle fluid level and add
fluid as needed. Check constant velocity
joints and axle seals for leaking.
(See footnote
**.)
54,000 Miles (90 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote #.)
0 Check readfront axle fluid level and add fluid
as needed. Check constant velocity joints and
axle seals for leaking. (See footnote
**.)
Rotate tires. See “Tire Inspection and
Rotation”
in the Index for proper rotation
pattern and additional information.
(See footnote
+.)
I DATE I ACTUALMILEAGE ISERVICEDBY:
7-19
ProCarManuals.com

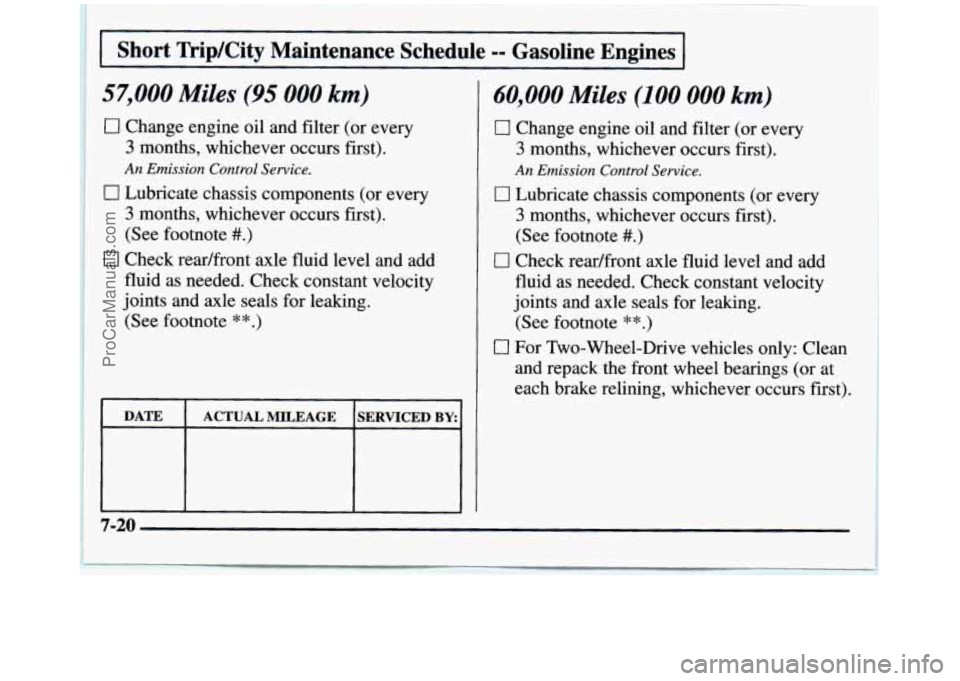

I Short Trip/City Maintenance Schedule -- Gasoline Engines I
57,000 Miles (95 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
0 Check readfront axle fluid level and add
fluid as needed. Check constant velocity
joints and axle seals for leaking.
(See footnote
* * .)
DATE ACTUAL MILEAGE SERVICED BY
60,000 Miles (100 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
0 Check readfront axle fluid level and add
fluid as needed. Check constant velocity
joints and axle seals for leaking.
(See footnote
**.)
0 For Two-Wheel-Drive vehicles only: Clean and repack the front wheel bearings (or at
each brake relining, whichever occurs first).
7-20
ProCarManuals.com

I Short TripKity Maintenance Schedule == Gasoline Engines 1
0 Vehicles With GVWR Above 8,500 lbs.
Only: Inspect shields and underhood
insulation for damage or looseness. Adjust
or replace as required. This is a Noise Emission
Control Service. Applicable only to vehicles
sold in
the United States.
0 Inspect engine accessory drive belt.
0 Replace fuel filter. An Emission Control Service.
(See footnote?.)
Conduct Exhaust Gas Recirculation (EGR)
system inspection as described in the
service manual.
An Emission Control Service.
(See footnote?.)
inspection, Check all fuel and vapor lines
and hoses for proper hook-up, routing and
An Emission Control Service.
0 Conduct evaporative control system condition. Check that
the purge valve works
properly (if equipped). Replace as needed.
An Emission Control Service. (See footnote ?.)
0 Inspect fuel tank, cap and lines for damage
or leaks. Inspect fuel cap gasket for any
damage. Replace parts as needed.
An Emission Control Service. (See footnote?.)
Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information.
(See footnote
+.)
DATE SERVICED BY: ACTUAL MILEAGE
I I I I
7-21
ProCarManuals.com

I Short TripKity Maintenance Schedule -- Gasoline Engines I
63,000 Miles (105 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
Cl Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
I7 Check readfront axle fluid level and add
fluid as needed. Check constant velocity
joints and axle seals for leaking.
(See footnote
* *.)
DATE ACTUAL MILEAGE SERVICED BY.
66,000 Miles (110 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
0 Check readfront axle fluid level and add fluid
as needed. Check constant velocity joints and
axle seals for leakmg. (See footnote
** .)
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information.
(See footnote
+.)
DATE ACTUAL MILEAGE
I
SERVICED BY.
ProCarManuals.com

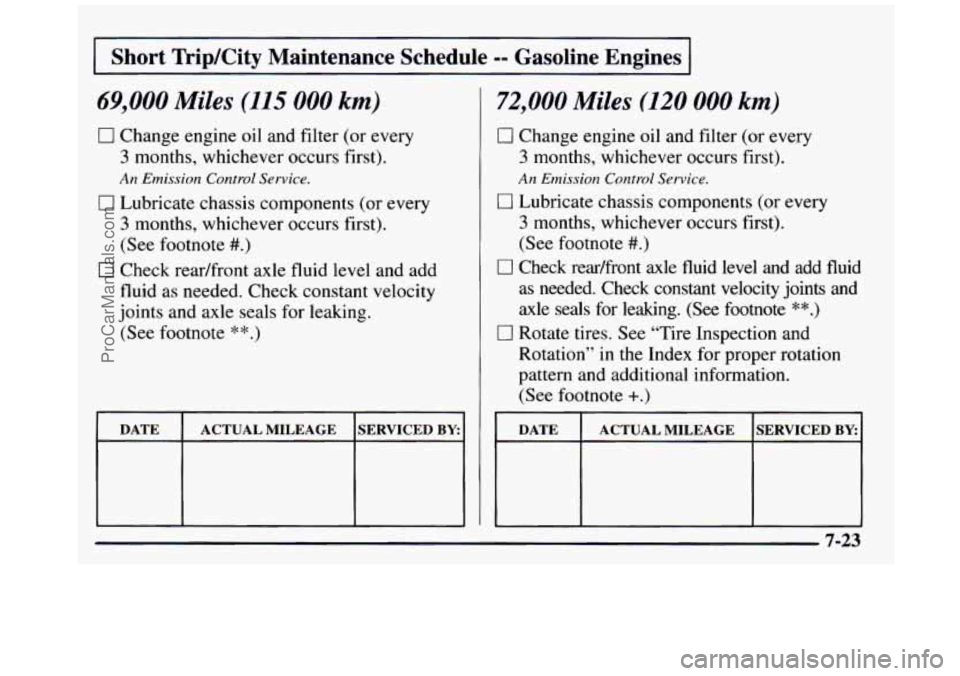

I Short Trip/City Maintenance Schedule -- Gasoline Engines l
69,000 Miles (115 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
[7 Check readfront axle fluid level and add
fluid as needed. Check constant velocity
joints and axle seals for leaking.
(See footnote
**.)
ACTUAL MILEAGE
3
SERVICED BY:
72,000 Miles (120 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
0 Check readfront axle fluid level and add fluid as needed. Check constant velocity joints and
axle seals for leaking. (See footnote
**.)
0 Rotate tires. See “Tire Inspection and
Rotation’’
in the Index for proper rotation
pattern and additional information.
(See footnote
+.)
I DATE I ACTUALMILEAGE ISERVICED BY:
7-23
ProCarManuals.com

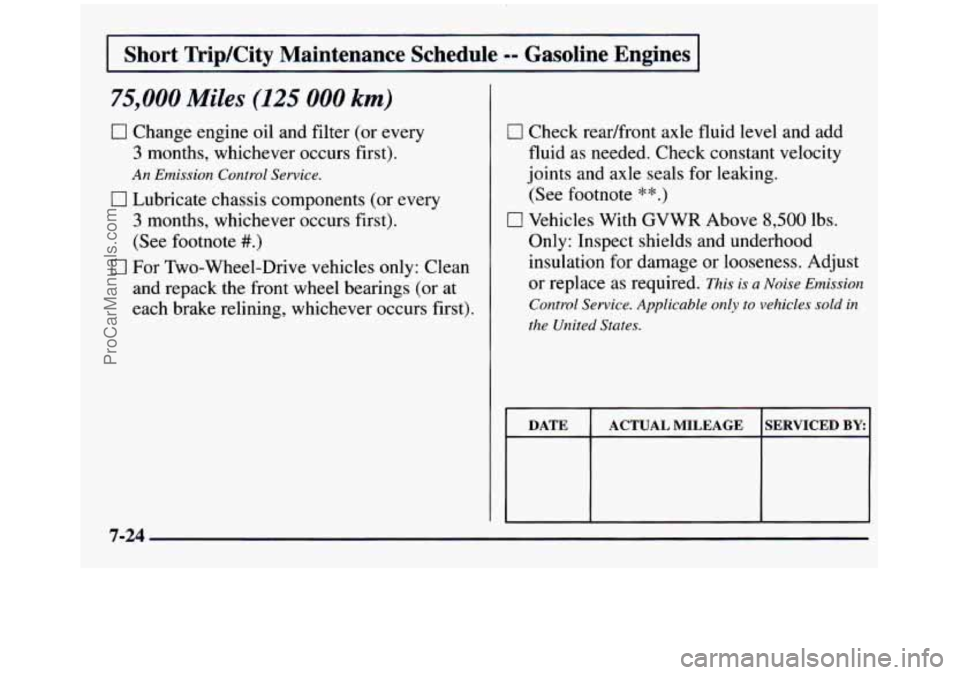

I Short Trip/City Maintenance Schedule -- Gasoline Engines I
75,000 Miles (125 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
0 For Two-Wheel-Drive vehicles only: Clean
and repack the front wheel bearings (or at
each brake relining, whichever occurs first).
0 Check readfront axle fluid level and add
fluid
as needed. Check constant velocity
joints and axle seals for leaking.
(See footnote
**.)
0 Vehicles With GVWR Above 8,500 lbs.
Only: Inspect shields and underhood
insulation for damage or looseness. Adjust
or replace as required.
This is a Noise Emission
Control Service. Applicable
only to vehicles sold in
the United States.
7-24
ProCarManuals.com

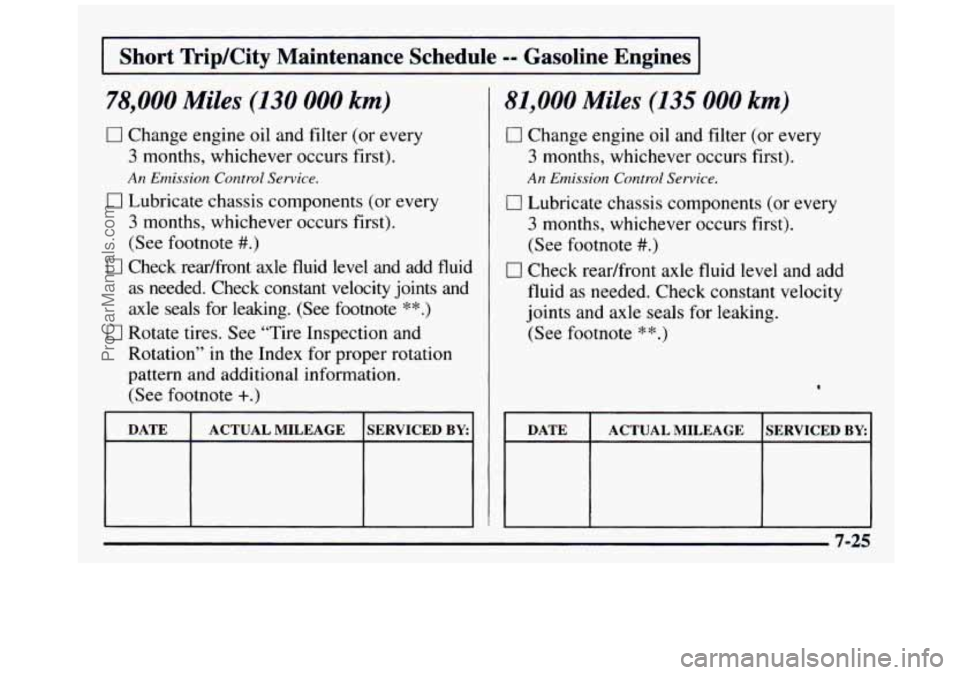

I Short Trip/City Maintenance Schedule =- Gasoline Engines I
78,000 Miles (130 000 km)
17 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
I7 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
0 Check readfront axle fluid level and add fluid
as needed. Check constant velocity joints and
axle seals for leaking. (See footnote
**.)
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information.
(See footnote
+.)
81,000 Miles (135 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
0 Check readfront axle fluid level and add
fluid as needed. Check constant velocity
joints and axle seals for leaking.
(See footnote
**.)
t
DATE ACTUAL MILEAGE SERVICED BY
7-25
ProCarManuals.com

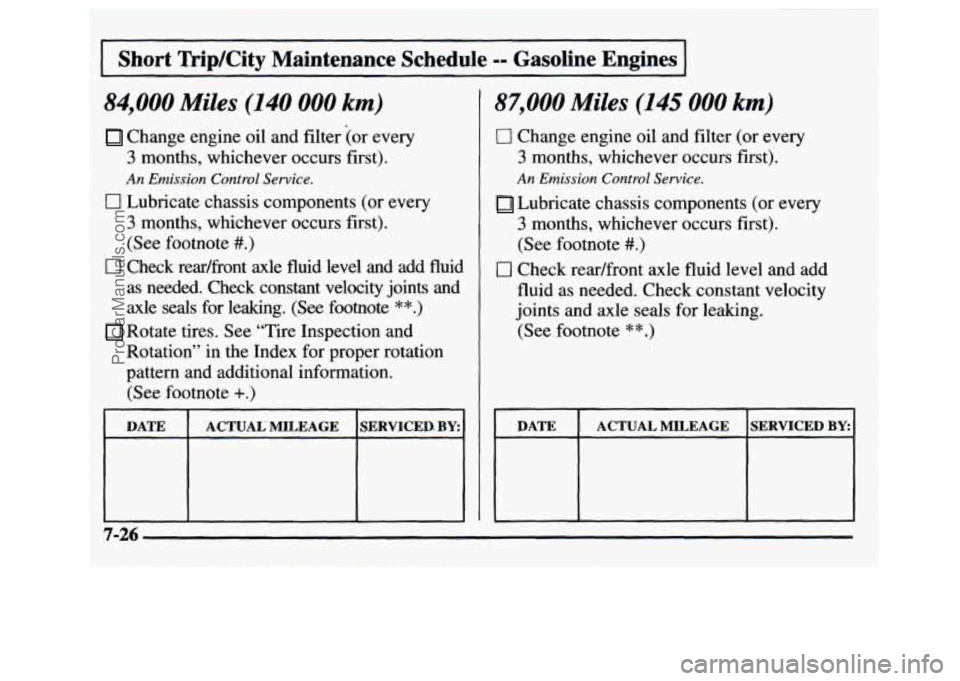

Short TripKity Maintenance Schedule -= Gasoline Engines
84,000 Miles (140 000 km)
Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
0 Check readfront axle fluid level and add fluid
as needed. Check constant velocity joints and
axle seals for leaking. (See footnote
**.)
Rotate tires. See “Tire Inspection and
Rotation”
in the Index for proper rotation
pattern and additional information.
(See footnote
+.)
87,000 Miles (145 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
0 Check readfront axle fluid level and add
fluid as needed. Check constant velocity
joints and axle seals for leaking.
(See footnote
* *.)
DATE ACTUAL MILEAGE SERVICED BY
I
7-26
