GMC SIERRA 2007 Owner's Manual

When to Change Lubricant
Refer to the Maintenance Schedule to determine
how often to change the lubricant. See
Scheduled Maintenance (Gasoline Engine) on
page 623.
What to Use
Refer to the Maintenance Schedule to determine
what kind of lubricant to use. SeeRecommended
Fluids and Lubricants on page 635.
Front Axle
When to Check and Change Lubricant
It is not necessary to regularly check front axle
uid unless you suspect there is a leak or you hear
an unusual noise. A uid loss could indicate a
problem. Have it inspected and repaired.
How to Check Lubricant
To get an accurate reading, the vehicle should be
on a level surface.
A. Fill Plug
B. Drain Plug
541

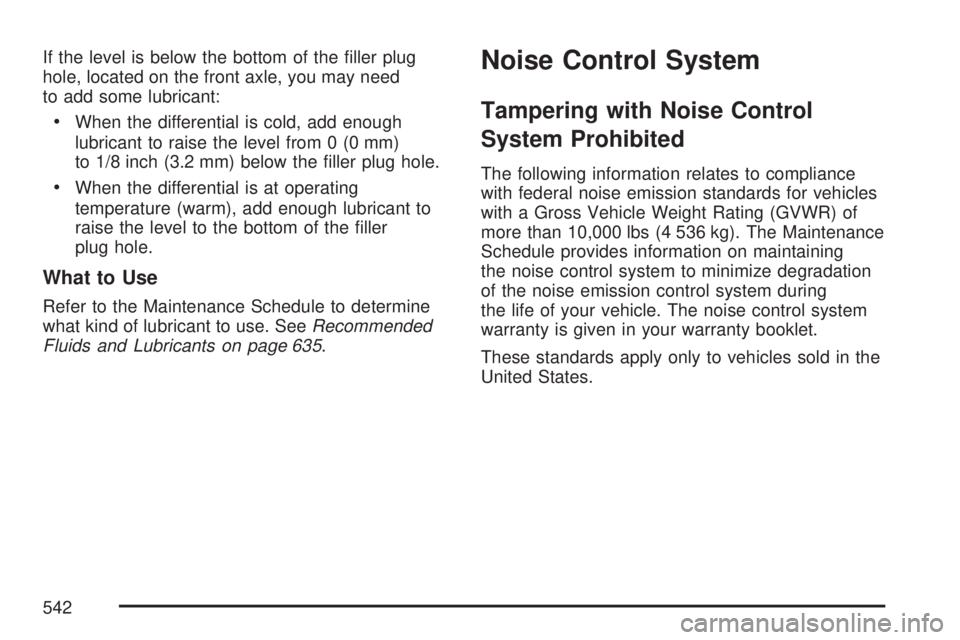

If the level is below the bottom of the ller plug
hole, located on the front axle, you may need
to add some lubricant:
When the differential is cold, add enough
lubricant to raise the level from 0 (0 mm)
to 1/8 inch (3.2 mm) below the ller plug hole.
When the differential is at operating
temperature (warm), add enough lubricant to
raise the level to the bottom of the ller
plug hole.
What to Use
Refer to the Maintenance Schedule to determine
what kind of lubricant to use. SeeRecommended
Fluids and Lubricants on page 635.
Noise Control System
Tampering with Noise Control
System Prohibited
The following information relates to compliance
with federal noise emission standards for vehicles
with a Gross Vehicle Weight Rating (GVWR) of
more than 10,000 lbs (4 536 kg). The Maintenance
Schedule provides information on maintaining
the noise control system to minimize degradation
of the noise emission control system during
the life of your vehicle. The noise control system
warranty is given in your warranty booklet.
These standards apply only to vehicles sold in the
United States.
542

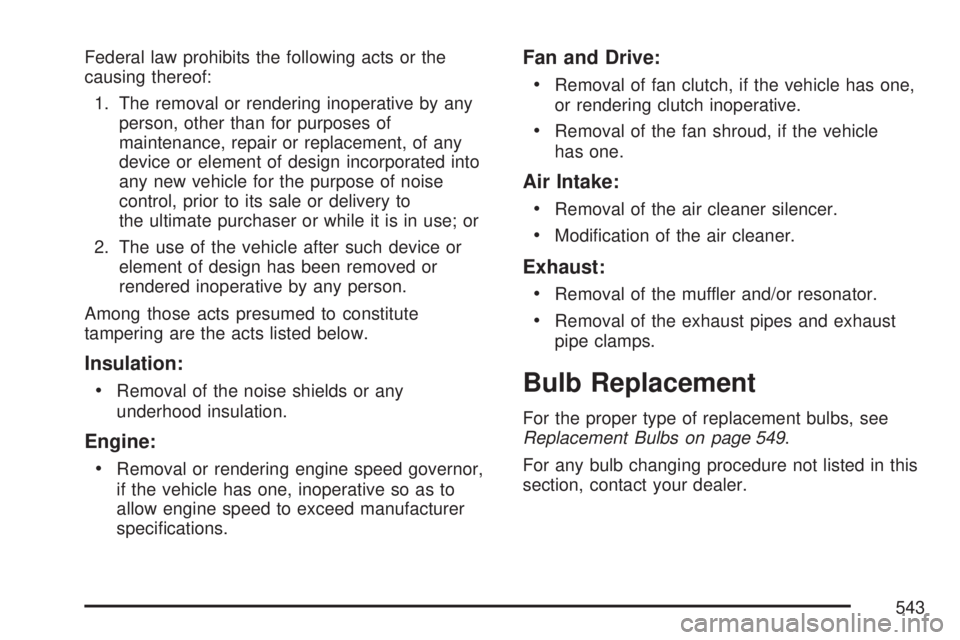

Federal law prohibits the following acts or the
causing thereof:
1. The removal or rendering inoperative by any
person, other than for purposes of
maintenance, repair or replacement, of any
device or element of design incorporated into
any new vehicle for the purpose of noise
control, prior to its sale or delivery to
the ultimate purchaser or while it is in use; or
2. The use of the vehicle after such device or
element of design has been removed or
rendered inoperative by any person.
Among those acts presumed to constitute
tampering are the acts listed below.
Insulation:

Removal of the noise shields or any
underhood insulation.
Engine:

Removal or rendering engine speed governor,
if the vehicle has one, inoperative so as to
allow engine speed to exceed manufacturer
specications.
Fan and Drive:

Removal of fan clutch, if the vehicle has one,
or rendering clutch inoperative.
Removal of the fan shroud, if the vehicle
has one.
Air Intake:

Removal of the air cleaner silencer.
Modication of the air cleaner.
Exhaust:

Removal of the muffler and/or resonator.
Removal of the exhaust pipes and exhaust
pipe clamps.
Bulb Replacement
For the proper type of replacement bulbs, see
Replacement Bulbs on page 549.
For any bulb changing procedure not listed in this
section, contact your dealer.
543

Halogen Bulbs
{CAUTION:
Halogen bulbs have pressurized gas
inside and can burst if you drop or
scratch the bulb. You or others could be
injured. Be sure to read and follow the
instructions on the bulb package.
Headlamps
To replace one of these bulbs, do the following:
1. Open the hood. SeeHood Release on
page 497for more information.
2. If you are replacing the bulb on the passenger
side remove the Engine Air Cleaner cover.
SeeEngine Air Cleaner/Filter (Gasoline
Engines) on page 505for more information.
3. Reach in and access the bulb sockets from
inside the engine compartment.4. Turn the bulb socket counterclockwise to
remove it from the headlamp assembly
and pull it straight out.
5. Unplug the electrical connector from the old
bulb by releasing the clips on the bulb socket.
6. Replace it with a new bulb socket.
7. Plug in the electrical connector to the new
bulb socket.
8. Reinstall the new bulb socket into the
headlamp assembly and turn it clockwise
to secure.
9. Close the hood.
544

Center High-Mounted Stoplamp
(CHMSL) and Cargo Lamp
To replace one of these bulbs, do the following:
1. Remove the screws and lift off the lamp
assembly.A. Cargo Lamp
B. Center High-Mounted Stoplamp Bulb
2. Remove the CHMSL and Cargo bulbs by
turning socket counterclockwise and pulling
the bulb straight out.
3. Install the CHMSL and Cargo bulbs by
pushing the bulb straight in and turning
clockwise.
4. Reinstall the lamp assembly and tighten the
screws.
545

Pickup Box Identication and
Fender Marker Lamps
To replace a pickup box identication or fender
marker lamp bulb, do the following:
1. Press the tab from the back to remove
the lamp.
2. Unplug the lamp assembly harness.
3. Gently pry the individual lamp from the lamp
assembly.
4. Unplug the lamp.
5. Plug in a new lamp and snap it into the
assembly.
6. Reinstall the lamp assembly.
Taillamps, Turn Signal, Stoplamps
and Back-up Lamps
To replace one of these bulbs, do the following:
1. Open the tailgate.Tailgate on page 122
for more information.
2. Remove the two
rear lamp assembly
screws near the
tailgate latch
strikerpost and pull
out the lamp
assembly.
3. Determine which of the following taillamp
assemblies applies to your vehicle.
546

A. Stoplamp/Taillamp/Turn Signal Lamp
B. Back-up Lamp
C. Stoplamp/Taillamp/Turn Signal Lamp
4. Press the tab, if the vehicle has one, and turn
the bulb socket counterclockwise to remove it
from the taillamp assembly.A. Stoplamp/Taillamp/Turn Signal Lamp
B. Stoplamp/Taillamp/Turn Signal Lamp
C. Back-up Lamp
D. Sidemarker Lamp
5. Pull the old bulb straight out from the socket.
6. Press a new bulb into the socket and turn
the socket clockwise into the taillamp
assembly.
7. Reinstall the taillamp assembly.
Dually ModelsAll Other Models
547

Taillamps (Chassis Cab Models)
A. Backup Lamp
B. Stoplamp/Taillamp/Turn Signal Lamp
To replace one of these bulbs, do the following:
1. Remove the four screws.
2. Lift the lens off the lamp assembly.
3. Turn the old bulb counterclockwise and pull
the it straight out from the socket.
4. Install a new bulb into the socket, turn it
clockwise, and press it in until it is tight.
5. Reinstall the lens and the four screws.
License Plate Lamp
To replace one of these bulbs, do the following:
1. Reach under the rear bumper for the bulb
socket.
2. Turn the bulb socket counterclockwise and
pull the bulb socket out of the connector.
3. Pull the old bulb from the bulb socket, keeping
the bulb straight as you pull it out.
4. Install the new bulb.
5. Reverse Steps 1 through 3 to reinstall the
bulb socket.
548

Replacement Bulbs
Exterior Lamp Bulb Number
Back-up Lamp 3047
Back-up Lamp* 1156
Cargo Lamp and Center
High-Mounted Stoplamp (CHMSL)912
Daytime Running Lamps (DRL) 4114K
Fender Marker and Front Roof
MarkerW5WLL
Front Parking and Turn Lamp 3457A
License Plate Lamp 168
Rear Marker Lamp, Taillamp and
Stoplamp*3047
Rear Turn Signal Lamp 3047
Sidemarker Lamp 194
Stoplamp/Turn Signal Lam/Taillamp* 1157
* Chassis Cab Models
For replacement bulbs not listed here, contact
your dealer/retailer.
Windshield Wiper Blade
Replacement
Windshield wiper blades should be inspected for
wear or cracking. SeeScheduled Maintenance
(Gasoline Engine) on page 623.
Replacement blades come in different types and
are removed in different ways. To replace the
wiper blade assembly, do the following:
1. Pull the windshield wiper arm connector away
from the windshield.
2. Squeeze the grooved areas on each side of
the blade, and rotate the blade assembly
away from the arm connector.
549

3. Install the new blade onto the arm connector
and make sure the grooved areas are fully set
in the locked position.
For the proper type and size, seeNormal
Maintenance Replacement Parts on page 638.
Tires
Your new vehicle comes with high-quality tires
made by a leading tire manufacturer. If you ever
have questions about your tire warranty and where
to obtain service, see your GM Warranty booklet for
details. For additional information refer to the tire
manufacturer’s booklet included with your vehicle.
{CAUTION:
Poorly maintained and improperly used
tires are dangerous.
Overloading your vehicle’s tires can
cause overheating as a result of too
much friction. You could have an
air-out and a serious accident. See
Loading Your Vehicle on page 425.
Underinated tires pose the same
danger as overloaded tires. The
resulting accident could cause serious
injury. Check all tires frequently to
maintain the recommended pressure.
CAUTION: (Continued)
550
