GMC SIERRA 2008 Get To Know Guide

Congratulations on your purchase of a GMC Sierra. Please read this information about your vehicle’s features and
your Owner Manual to ensure an outstanding ownership experience. Note that your vehicle may not include all thefeatures described in this booklet. Keep this booklet with your Owner Manual for easy reference.
DRIVER INFORMATION
Instrument Panels . . . . . . . . . . . . .2
Instrument Panel Cluster . . . . . . .4Vehicle Symbols . . . . . . . . . . . . . . .5
Voltmeter Operation . . . . . . . . . . . .5
Driver Information Center . . . . . .5
SAFETY& SECURITY
Remote Keyless Entry . . . . . . . . . .7
Content TheftDeterrent System . .7OnStar
® . . . . . . . . . . . . . . . . . . . . . .8
COMFORT
Power Seat Controls . . . . . . . . . . .8
Heated Seats . . . . . . . . . . . . . . . . . .8
Memory Settings . . . . . . . . . . . . . .9
Adjustable Pedals . . . . . . . . . . . . .9
Automatic Climate Controls . . . . .9
ENTERTAINMENT
Audio System Features . . . . . . . .10MultipleDisc CD Player . . . . . . . .13
Touch Screen Navigation
Entertainment System . . . . . . . . .13XM
®Satellite Radio . . . . . . . . . . .13
Rear Seat Audio and DVD Rear
Seat Entertainment Systems . . .14
Audio Steering Wheel Controls .14
CONVENIENCE
Remote Vehicle Start . . . . . . . . . .15Cruise Control . . . . . . . . . . . . . . .16
Rainsense™ II Windshield
Wipers . . . . . . . . . . . . . . . . . . . . . .16
Heated Windshield Washer
Fluid . . . . . . . . . . . . . . . . . . . . . . . .17
Automatic Headlamp System
and Interior Lamps . . . . . . . . . . . .17
Sunroof . . . . . . . . . . . . . . . . . . . . .17
Power Sliding Rear Window . . . .18Ultrasonic Rear Parking Assist .18
Universal Home Remote . . . . . . .19Automatic Dimming Rearview
Mirror with OnStar
®, Compass
and Temperature Display . . . . . .19
Power Foldaway Mirrors . . . . . . .19TrailerTow Mirrors . . . . . . . . . . . .20
Folding the Rear Seat . . . . . . . . .20
Cargo Management System . . . .20
PERFORMANCE & MAINTENANCE
6Speed Automatic
Transmission Controls . . . . . . . .21
StabiliTrak
®– Stability Control
System . . . . . . . . . . . . . . . . . . . . .21
Tire Pressure Monitor . . . . . . . . .21
Integrated Trailer Brake Control
System . . . . . . . . . . . . . . . . . . . . .22
Tighten Gas Cap Message . . . . .22
FlexFuel (E85) – Yellow Gas Cap 22Resetting the Engine Oil Life
System . . . . . . . . . . . . . . . . . . . . .23
OWNER INFORMATION
Sierra Accessories . . . . . . . . . . . .23
Roadside Assistance . . . . . . . . . .24
My GMLink . . . . . . . . . . . . . . . . . .24
Sierra 2008 A 5/16/07 7:49 AM Page 1

Getting to Know Your Sierra2
A. Air Outlets
B. Driver Information Center
Controls
C.Turn Signal/Multifunction
Lever
D. Instrument Panel ClusterE.Shift Lever
F. Tow/Haul Selector Button
(if equipped)
G. Audio System/Navigation
Entertainment System (if equipped)
H. Upper Storage
Compartment
See Section 3 of your Owner Manual.
DRIVER INFORMATION

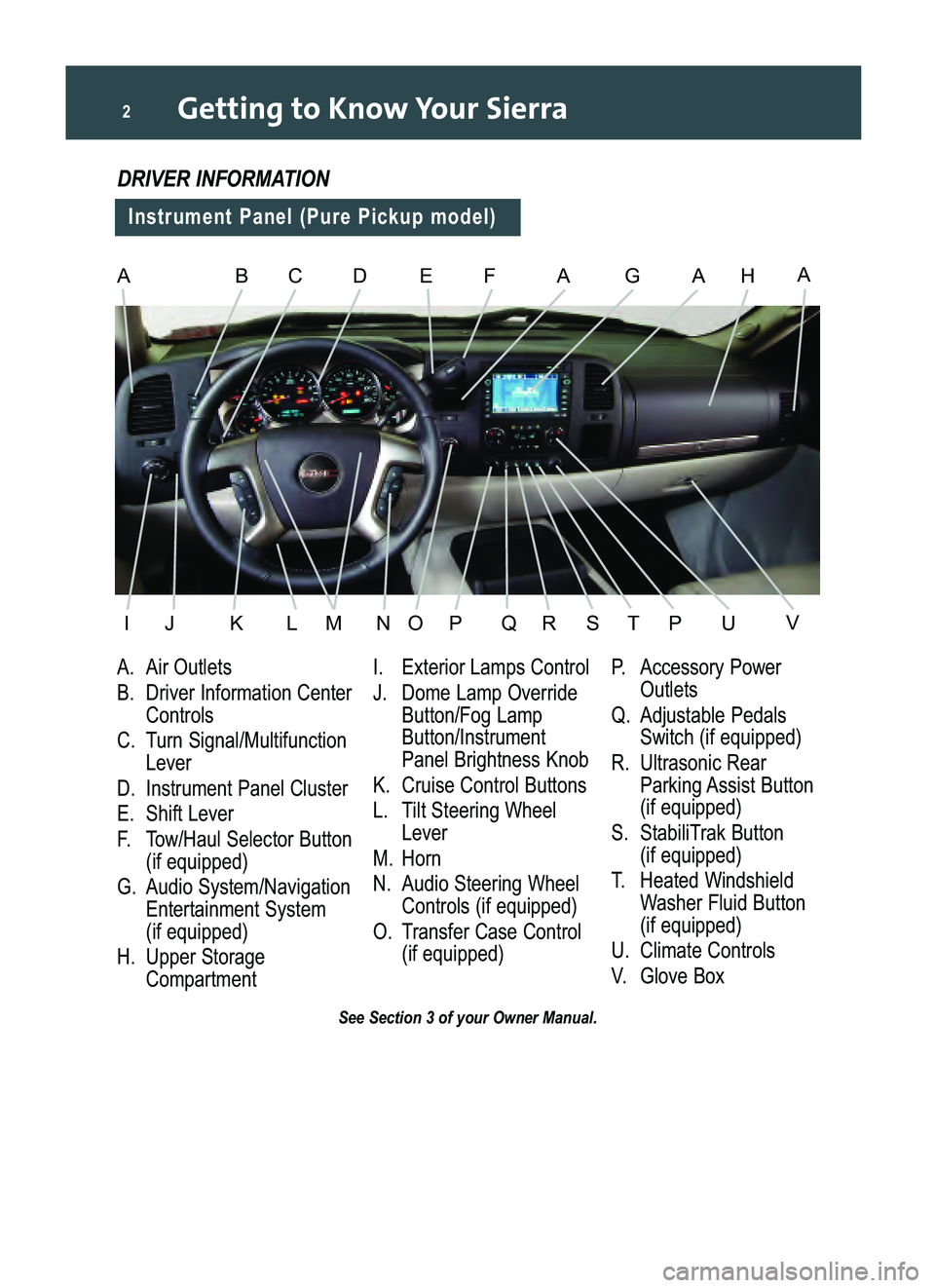

Instrument Panel (Pure Pickup model)
I. Exterior Lamps Control
J. Dome Lamp Override
Button/Fog LampButton/InstrumentPanel Brightness Knob
K. Cruise Control Buttons
L. Tilt Steering Wheel
Lever
M.Horn
N. Audio Steering Wheel
Controls (if equipped)
O. Transfer Case Control
(if equipped)P. Accessory Power
Outlets
Q. Adjustable Pedals
Switch (ifequipped)
R. Ultrasonic Rear
Parking Assist Button(if equipped)
S. StabiliTrak Button
(if equipped)
T.Heated Windshield
Washer Fluid Button
(if equipped)
U.Climate Controls
V. Glove Box
ABDEFAG
IJKLMNOPQ
A
R
CH
STUP
A
V
Sierra 2008 A 5/16/07 7:49 AM Page 2

3
See Section 3 of your Owner Manual.
A. Air Outlets
B.Turn Signal/Multifunction
Lever
C.Instrument Panel Cluster
D. Shift Lever
E. Tow/Haul Selector Button
(if equipped)
F. Driver Information Center
Controls
G. Audio System/Navigation
Entertainment System (if equipped)
H.Exterior Lamps Control

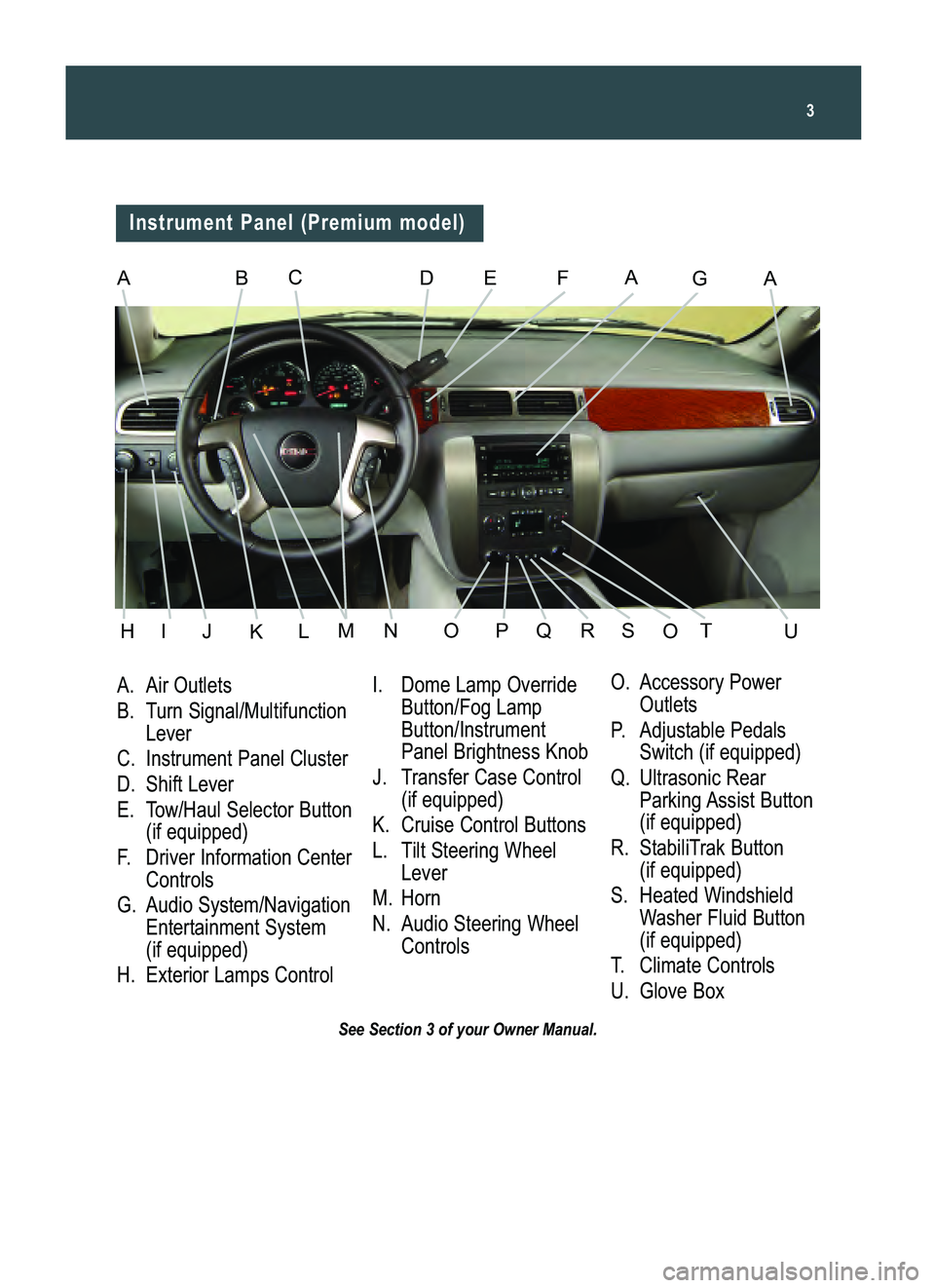

Instrument Panel (Premium model)
ABDEFAAGC
HIJLMNOPUQRSTOK
I. Dome Lamp Override
Button/Fog LampButton/InstrumentPanel Brightness Knob
J. Transfer Case Control
(if equipped)
K. Cruise Control Buttons
L. Tilt Steering Wheel
Lever
M. HornN.Audio Steering Wheel
ControlsO. Accessory Power
Outlets
P. Adjustable Pedals
Switch (if equipped)
Q.Ultrasonic Rear
Parking Assist Button
(if equipped)
R. StabiliTrak Button
(if equipped)
S.Heated Windshield
Washer Fluid Button
(if equipped)
T. Climate ControlsU.Glove Box
Sierra 2008 A 5/16/07 7:49 AM Page 3

Getting to Know Your Sierra4
Your vehicle’s instrument panel is
equipped with this cluster or one very
similar to it. The instrument clusterincludes these key features:
A. Oil Pressure Gauge (if equipped)B.Fuel Gauge*
C. Driver Information Center/Odometer
D. Tachometer
E. Speedometer
F. Engine Coolant Temperature GaugeG.Voltmeter (if equipped)
*Diesel Engine only: If ULTRALOW
SULFUR DIESELFUELONLY appears
on the fuel gauge, your vehicle isequipped with a Diesel Particulate
FilterEmissions System. Maintenance
messages may appear in your DriverInformation Center regarding thissystem. See your Diesel Engine OwnerManual for more information.
See Section 3 of your Owner Manual.
Note:The instrument cluster is designed
to let you know about many importantaspects of your vehicle’s operation. It is
important toread your Owner Manual
and become familiar with the informationbeing relayed to you by the lights,gauges and indicators, as well as whataction can be taken to ensure safetyandto prevent damage.
Diesel engine cluster shown.Instrument Panel Cluster
ABCEFGD
Sierra 2008 A 5/16/07 7:49 AM Page 4

5
Following are examples of symbols you
may find on your vehicle. It is importantto become familiar with them, as theyalert you to various vehicle operatingconditions.
Air Bag Readiness LightAir Conditioning (A/C)
Antilock Brake System Warning
Light
Brake System Warning Light
(Parking Brake Set)
Cruise Control Set LightFourWheel Drive Light
(Manual Transmission only)
HeadlampsHeated MirrorsMalfunction Indicator Lamp
(Check Engine Light)
Off
On/Off
On
Rear Window DefoggerSafety Belt Reminder LightSecurity Light
StabiliTrak Warning Light
Tire Pressure Warning Light
Tow/Haul Mode Light
Ultrasonic Rear Parking Assist
Voltmeter Operation
The voltmeter shows the condition of the
vehicle’s charging system. The systemis designed to regulate voltage output tohelp improve fuel economy and extendbattery life. Normal system operationreadings may fluctuate (as indicated bythe blue area in the illustration above)based on vehicle operation, includingthe number of electrical accessoriesbeing operated and engine speed.
See Section 3 of your Owner Manual.
Vehicle Symbols
Driver Information Center
Your vehicle’s Driver Information Center
(DIC) provides vehicle information, vehi
cle feature customization (if equipped),
and vehicle warning messages. The DICmessages will be shown on the instru
ment panel cluster display.
Sierra 2008 A 5/16/07 7:49 AM Page 5

Getting to Know Your Sierra6
DIC Controls (if equipped)
The following DIC
controls are located on the left or
right side (depending on model) ofthe instrumentpanel cluster:
(Trip/Fuel):Press this button
to display the following trip and fuelinformation:
• Odometer
(Vehicle Information):Press this
button to display the following vehicleinformation:
• Oil Life
•Display Units (English/Metric)
• Tire Pressure (if equipped)
•Trailer Gain and Output (ifequipped)
• Engine Hours
• Tire Pressure System Programming
(if equipped)
• Remote Keyless Entry Programming
(Customization):Press this button
to scroll through the following customization features:
• Display Language
• Auto Door Lock
• Auto Door Unlock
• Remote Door Lock
• Remote Door Unlock
• Delay Door Lock
• Exit Lighting
• Approach Lighting
• Chime Volume
• Park Tilt Mirrors (if equipped)
• Easy Exit Seat (if equipped)
• Memory Seat Recall (if equipped)
(Set/Reset):Press this button to set
or reset DIC information while it is dis
played or to acknowledge a warning
message.
Customization Settings
To customize features:
1. With the vehicle in Park, turn on the
ignition.
2. Press the (Customization) button
to display available customizationfeatures.
3. With the desired customization
feature displayed, press the (Set/Reset) button to access thefeature settings.
4.Press the button to scroll through
the available settings.
5. With the desired setting displayed,
press the button to select it.
6. Press the button to scroll to the
next feature.
Sierra 2008 A 5/16/07 7:49 AM Page 6

7
7. To exit the Feature Settings menu,
press the button until EXIT
FEATURE SETTINGS is displayed
and then press the button; or
press the button or the button.
Warnings and Messages
The DIC provides a variety of vehicle
warning messages (depending onoptional equipment) if a problem is
sensed in a vehicle system. To acknowledge a message and clear it from the
display, press the (Set/Reset) button.Some urgent messages cannot be
cleared from the DIC display.
If you have a current OnStar subscrip
tion, and a warning message appears,you can press the OnStar button and
speak to an OnStar Advisor. In manyvehicles, OnStar Advisors can access
certain diagnostic information and cantell you how serious the problem is andwhat you should do about it.
See Section 3 of your Owner Manual.
Note: Your vehicle’s warnings and mes
sages provide critical information thatcan prevent damage to your vehicle.Review your Owner Manual to becomefamiliar with the information displayedand the action required.
Remote Keyless Entry
(if equipped)
SAFETY& SECURITY
The Remote
Keyless Entry (RKE)transmitter includes
the followingfunctions:
(Remote Vehicle Start)(if
equipped): This feature can be used tostart the engine from outside the vehicle.
(See Remote Vehicle Start.)
(Lock):Press this button to lock all
the doors. RKE feedback (light flashand/or horn chirp) can be programmedusing the DIC.
(Unlock):Press this button to unlock
the driver’s door. Press it again withinfive seconds to unlock all remainingdoors. RKE feedback (light flash) can
be programmed using the DIC.
(Vehicle Locator/Panic Alarm):Press this button to locate your vehicle.
The turn signal lamps will flash and thehorn will sound three times.
Press and hold the button to activate the
panic alarm. The turn signal lamps will
flash and the horn will sound for 30 seconds. Press the button again or turn theignition to Run to cancel the alarm.
See Section 2 of your Owner Manual.
Content TheftDeterrent System
(if equipped with RKE)
To arm the content theftdeterrent
alarmsystem, lock the doors using the
Remote Keyless Entry (RKE) transmit
ter. The security light on the instrument
panel cluster will flash for approximately
30 seconds to indicate the alarm is activated. To disarm the system, unlock the
doors using the RKE transmitter.
The alarm system will not be armed or
disarmed if the doors are locked orunlocked with a key or the manual
door lock.
See Section 2 of your Owner Manual.
Sierra 2008 A 5/16/07 8:39 AM Page 7

Getting to Know Your Sierra8
The following power seat controls are
located on the outboard side of thedriver and front passenger seats: Your vehicle may feature the OnStar
Safe & Sound Plan or the uplevelOnStar Directions & Connections Plan,with one year of OnStar service from thedate you purchased your new vehicle.
OnStar offers a variety of capabilities,
such as Remote Door Unlock, AutomaticAirbag Notification, and HandsFreeCalling. In addition, most vehicles canget driving directions using a system
called TurnbyTurn Navigation. OnStar
Advisors can send a planned route to
your vehicle and, as you approach aturn, instructions play over your vehiclespeakers. Press the OnStar button to
ask an OnStar Advisor about the service
plan you have or to upgrade your plan.
For more information, refer to your
OnStar Owner’s Guide, call 1888
4ONSTAR (18884667827), or visit
onstar.com.
See Section 2 of your Owner Manual
OnStar®(if equipped)
Power Seat Controls
(if equipped)
COMFORT
A
B
C
Power Seat: Use the horizontal control
(A) to move the seat forward/rearwardand up/down as well as to raise/lowerthe front or rear of the seat cushion.
Power Recline(if equipped): Use the
vertical control (B) to recline/raise theseatback.
Power Lumbar(if equipped): Use the
round control (C) to increase/decreaselumbar support and to raise/lower theposition of the support.
See Section 1 of your Owner Manual.
The following
heated seatcontrols arelocated on thefront doors:
(Heated
Seatback):
Press the top
button to turnon the heated seatback.
(Heated Seat/Seatback):Press the
bottom button to turn on the heated seatand seatback.
Continue to press the desired button to
cycle through the temperature settingsof High (three indicator lights), Medium(two indicator lights), Low (one indicator
light) and Off (all indicator lights are off).
Heated seat operation is canceled each
time the ignition is turned off.
See Section 1 of your Owner Manual.
Heated Seats (if equipped)
Sierra 2008 A 5/16/07 8:39 AM Page 8

9
Memory Settings (if equipped)
The memory buttons are located on the
driver’s door next to the heated seatcontrols. Settings can be programmed
for the driver’s seat, the outside mirrorsand the adjustable pedals (if equipped)for two drivers.
To save memory settings:
1. Adjust the driver’s seat, outside
mirrors and pedals to a comfortable
position.
2. Press and hold button 1 or 2 until two
beeps sound.
3. Repeat these steps for a second
driver using the other memory button.
To recall the settings, press memory
button 1 or 2 with the vehicle in Park. Ifthe Remote Keyless Entry transmitter is
used to enter the vehicle and the memory seat recall feature is on (see DriverInformation Center), the settings will be
recalled automatically.
Easy Exit Seat
The easy exit seat button is located
between the two memory buttons. Pressthe exit button, with the vehicle in Park,
to move the driver’s seat to the exitposition.
If the easy exit seat feature is on (see
Driver Information Center), automaticseat movement will occur when the keyis removed from the ignition.
See Section 1 of your Owner Manual.
The accelerator and brake pedals can
be adjusted to a comfortable and safeoperating position by using theadjustable pedals switch located on the
Adjustable Pedals (if equipped)
The automatic climate control system
maintains the desired individual temper
ature for the driver and front seat pas
senger. The system adjusts the airflow
mode, fan speed, air conditioning and
recirculation functions to reach the settemperature(s) as quickly as possible.
Automatic Operation
To set the automatic mode:
1. Press the AUTO button.
2. Set the driver’s and front passenger’s
temperature using the + or – temperature buttons.
Automatic Climate Controls
(if equipped)
instrument
panel belowthe climatecontrols.
Press the top
arrow on theswitch to movethe pedalsaway from youand the bottom arrow on the switch tomove the pedals toward you.
The pedals cannot be adjusted when the
vehicle is in Reverse or when cruisecontrol is activated.
See Section 2 of your Owner Manual.
Sierra 2008 A 5/16/07 7:49 AM Page 9

Getting to Know Your Sierra10
Manual Operation
To operate the system manually, use the
following controls:
(On/Off):Press this button to turn
the system on or off.
+ – (Temperature Control): Press the
driver and passenger + or – temperaturebuttons to raise or lower the temperaturesetting(s).
(Fan):Press the up or down arrow to
increase or decrease fan speed.
(Airflow Mode):Press the up or
down arrow to change the direction
of the airflow as well as to select thedefog mode.
PASS (Passenger Temperature
Control):Press this button to turn off
the passenger temperature setting.
(Air Conditioning): Press this but
ton to turn the air conditioning system
on or off.
(Recirculation):Press this button
to circulate inside air through the vehi
cle. This mode keeps outside air fromentering the vehicle.
(Outside Air):Press this button to
allow outside air to enter the vehicle.
(Defrost):Press this button to
direct most of the air to the windshieldand some air to the side window outlets.
(Rear Window Defogger):Press
this button to activate the rear windowdefogger and the heated outside
rearview mirrors (if equipped). Thedefogger and heated mirrors will shut off
automatically or can be turned off by
pressing the button again.
See Section 3 of your Owner Manual.
Audio System Features
(NonNavigation Radios only)
ENTERTAINMENT
While most of the features on your radio
will look familiar, following are some thatmay be new:
(Power/Volume):Press this knob to
turn the system on or off. Turn the knobto adjust the volume.
(Information):Press this button to
switch the display between the radio station frequency and the time. If equipped,press this button to display additionaltext information related to the currentFMRDS or XM station, or MP3 song.
(Tune):Turn this knob to select radio
stations or, when a CD is playing, to
select a track or MP3 file.
Press the knob to adjust the tone
(bass/treble) or speakers (balance/fade).
BAND:Press this button to switch to
AM; FM; or XM (if equipped). With a CDplaying, press this button to switch tothe radio.
CD/AUX(if equipped): Press this button
to play a CD instead of the radio. Pressagain and the system will automaticallysearch for an auxiliary input device such
as a portable audio player.
Sierra 2008 A 5/16/07 7:49 AM Page 10
