GMC Sierra/Sierra Denali 1500 Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-14632426) - 2021 - CRC - 11/5/20

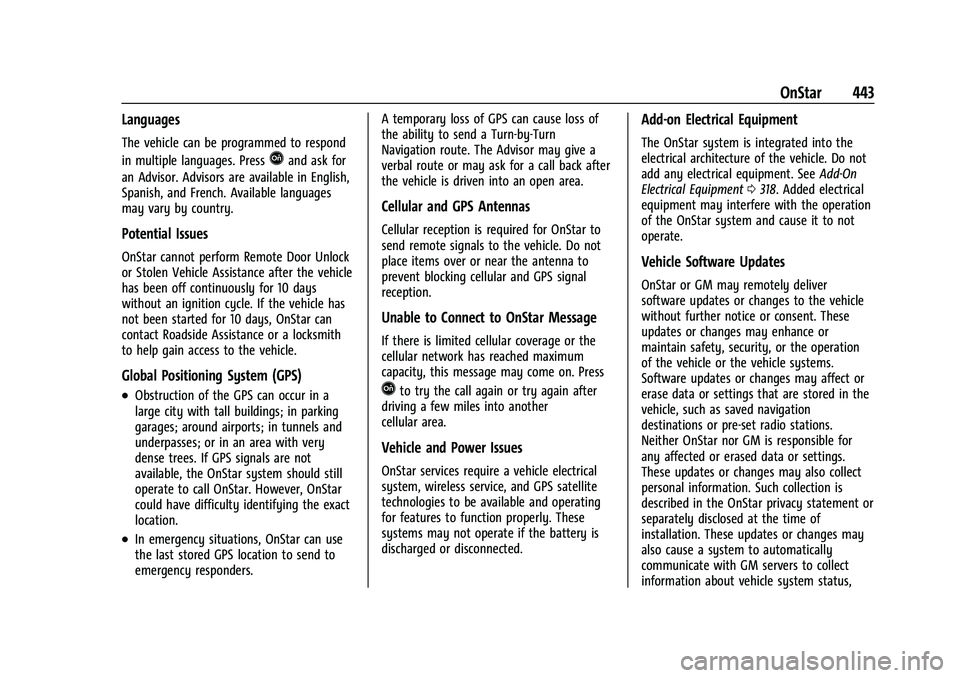

OnStar 443
Languages
The vehicle can be programmed to respond
in multiple languages. Press
Qand ask for
an Advisor. Advisors are available in English,
Spanish, and French. Available languages
may vary by country.
Potential Issues
OnStar cannot perform Remote Door Unlock
or Stolen Vehicle Assistance after the vehicle
has been off continuously for 10 days
without an ignition cycle. If the vehicle has
not been started for 10 days, OnStar can
contact Roadside Assistance or a locksmith
to help gain access to the vehicle.
Global Positioning System (GPS)
.Obstruction of the GPS can occur in a
large city with tall buildings; in parking
garages; around airports; in tunnels and
underpasses; or in an area with very
dense trees. If GPS signals are not
available, the OnStar system should still
operate to call OnStar. However, OnStar
could have difficulty identifying the exact
location.
.In emergency situations, OnStar can use
the last stored GPS location to send to
emergency responders. A temporary loss of GPS can cause loss of
the ability to send a Turn-by-Turn
Navigation route. The Advisor may give a
verbal route or may ask for a call back after
the vehicle is driven into an open area.
Cellular and GPS Antennas
Cellular reception is required for OnStar to
send remote signals to the vehicle. Do not
place items over or near the antenna to
prevent blocking cellular and GPS signal
reception.
Unable to Connect to OnStar Message
If there is limited cellular coverage or the
cellular network has reached maximum
capacity, this message may come on. Press
Qto try the call again or try again after
driving a few miles into another
cellular area.
Vehicle and Power Issues
OnStar services require a vehicle electrical
system, wireless service, and GPS satellite
technologies to be available and operating
for features to function properly. These
systems may not operate if the battery is
discharged or disconnected.
Add-on Electrical Equipment
The OnStar system is integrated into the
electrical architecture of the vehicle. Do not
add any electrical equipment. See Add-On
Electrical Equipment 0318. Added electrical
equipment may interfere with the operation
of the OnStar system and cause it to not
operate.
Vehicle Software Updates
OnStar or GM may remotely deliver
software updates or changes to the vehicle
without further notice or consent. These
updates or changes may enhance or
maintain safety, security, or the operation
of the vehicle or the vehicle systems.
Software updates or changes may affect or
erase data or settings that are stored in the
vehicle, such as saved navigation
destinations or pre-set radio stations.
Neither OnStar nor GM is responsible for
any affected or erased data or settings.
These updates or changes may also collect
personal information. Such collection is
described in the OnStar privacy statement or
separately disclosed at the time of
installation. These updates or changes may
also cause a system to automatically
communicate with GM servers to collect
information about vehicle system status,

GMC Sierra/Sierra Denali 1500 Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-14632426) - 2021 - CRC - 11/5/20
446 Connected Services
PressQ, then ask the Advisor to download
directions to the vehicle’s navigation system,
if equipped. After the call ends, the
navigation screen will provide prompts to
begin driving directions. Routes that are sent
to the navigation screen can only be
canceled through the navigation system.
See www.onstar.com (U.S.) or www.onstar.ca
(Canada).
Connections
The following services help with staying
connected.
For coverage maps, see www.onstar.com
(U.S.) or www.onstar.ca (Canada).
Ensuring Security
.Change the default passwords for the
Wi-Fi hotspot and myGMC mobile
application. Make these passwords
different from each other and use a
combination of letters and numbers to
increase the security.
.Change the default name of the SSID
(Service Set Identifier). This is your
network’s name that is visible to other
wireless devices. Choose a unique name
and avoid family names or vehicle
descriptions. Wi-Fi Hotspot (If Equipped)
The vehicle may have a built-in Wi-Fi
hotspot that provides access to the Internet
and web content at 4G LTE speed. Up to
seven mobile devices can be connected.
A data plan is required. Use the in-vehicle
controls only when it is safe to do so.
1. To retrieve Wi-Fi hotspot information, press
=to open the OnStar app on the
infotainment display, then select Wi-Fi
Hotspot. On some vehicles, touch Wi-Fi
or Wi-Fi Settings on the screen.
2. The Wi-Fi settings will display the Wi-Fi hotspot name (SSID), password, and on
some vehicles, the connection type (no
Internet connection, 3G, 4G, 4G LTE), and
signal quality (poor, good, excellent). The
LTE icon shows connection to Wi-Fi. It is
possible that the icon may not illuminate
even though the vehicle has an active
connection.
3. To change the SSID or password, press
Qor call 1-888-4ONSTAR to connect
with an Advisor. On some vehicles, the
SSID and password can be changed in
the Wi-Fi Hotspot menu. After initial set-up, your vehicle’s Wi-Fi
hotspot will connect automatically to your
mobile devices. Manage data usage by
turning Wi-Fi on or off on your mobile
device, using the myGMC mobile app, or by
contacting an OnStar Advisor. On some
vehicles, Wi-Fi can also be managed from
the Wi-Fi Hotspot menu.
MyGMC Mobile App (If Available)
Download the myGMC mobile app to
compatible Apple and Android smartphones.
GMC users can access the following services
from a smartphone:
.Remotely start/stop the vehicle,
if factory-equipped.
.Lock/unlock doors, if equipped with
automatic locks.
.Activate the horn and lamps.
.Check the vehicle’s fuel level, oil life,
or tire pressure, if factory-equipped with
the Tire Pressure Monitor System.
.Send destinations to the vehicle.
.Locate the vehicle on a map (U.S.
market only).
.Turn the vehicle's Wi-Fi hotspot on/off,
manage settings, and monitor data
consumption, if equipped.
.Locate a dealer and schedule service.

GMC Sierra/Sierra Denali 1500 Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-14632426) - 2021 - CRC - 11/5/20

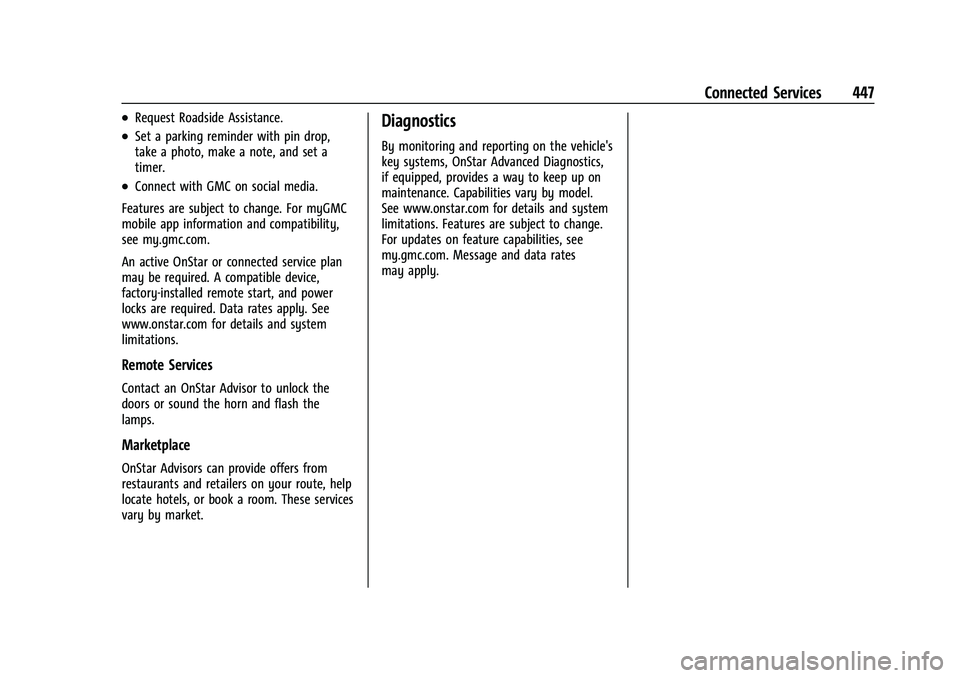

Connected Services 447
.Request Roadside Assistance.
.Set a parking reminder with pin drop,
take a photo, make a note, and set a
timer.
.Connect with GMC on social media.
Features are subject to change. For myGMC
mobile app information and compatibility,
see my.gmc.com.
An active OnStar or connected service plan
may be required. A compatible device,
factory-installed remote start, and power
locks are required. Data rates apply. See
www.onstar.com for details and system
limitations.
Remote Services
Contact an OnStar Advisor to unlock the
doors or sound the horn and flash the
lamps.
Marketplace
OnStar Advisors can provide offers from
restaurants and retailers on your route, help
locate hotels, or book a room. These services
vary by market.
Diagnostics
By monitoring and reporting on the vehicle's
key systems, OnStar Advanced Diagnostics,
if equipped, provides a way to keep up on
maintenance. Capabilities vary by model.
See www.onstar.com for details and system
limitations. Features are subject to change.
For updates on feature capabilities, see
my.gmc.com. Message and data rates
may apply.

GMC Sierra/Sierra Denali 1500 Owner Manual (GMNA-Localizing-U.S./Cana-
da/Mexico-14632426) - 2021 - CRC - 11/5/20

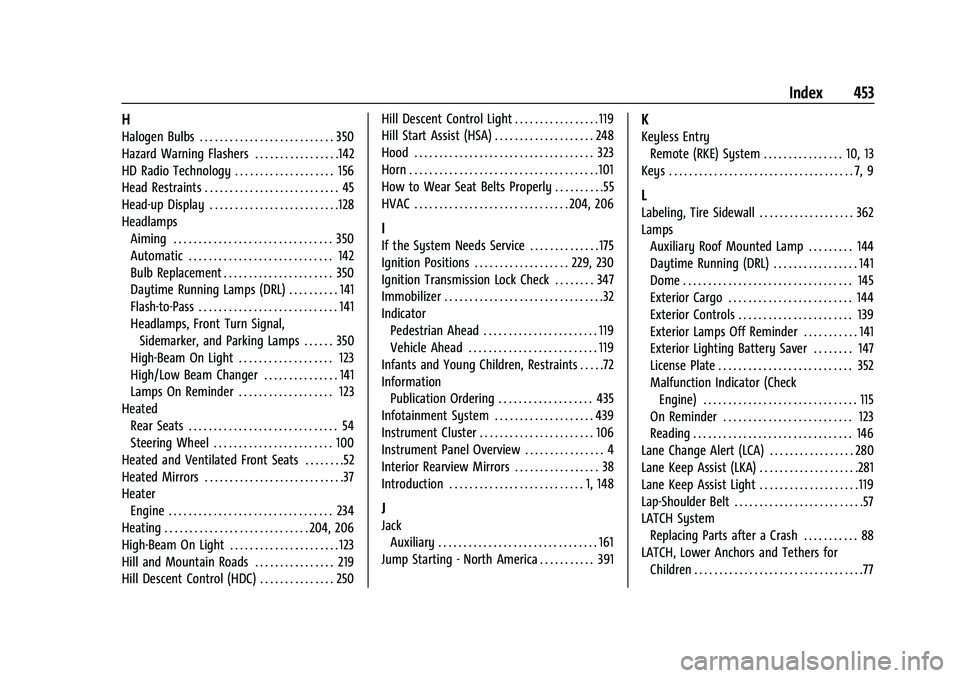

Index 453
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . 350
Hazard Warning Flashers . . . . . . . . . . . . . . . . .142
HD Radio Technology . . . . . . . . . . . . . . . . . . . . 156
Head Restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Head-up Display . . . . . . . . . . . . . . . . . . . . . . . . . .128
HeadlampsAiming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 350
Automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . 350
Daytime Running Lamps (DRL) . . . . . . . . . . 141
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Headlamps, Front Turn Signal,Sidemarker, and Parking Lamps . . . . . . 350
High-Beam On Light . . . . . . . . . . . . . . . . . . . 123
High/Low Beam Changer . . . . . . . . . . . . . . . 141
Lamps On Reminder . . . . . . . . . . . . . . . . . . . 123
Heated Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Steering Wheel . . . . . . . . . . . . . . . . . . . . . . . . 100
Heated and Ventilated Front Seats . . . . . . . .52
Heated Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Heater Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204, 206
High-Beam On Light . . . . . . . . . . . . . . . . . . . . . . 123
Hill and Mountain Roads . . . . . . . . . . . . . . . . 219
Hill Descent Control (HDC) . . . . . . . . . . . . . . . 250 Hill Descent Control Light . . . . . . . . . . . . . . . . . 119
Hill Start Assist (HSA) . . . . . . . . . . . . . . . . . . . . 248
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 323
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101
How to Wear Seat Belts Properly . . . . . . . . . .55
HVAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204, 206
I
If the System Needs Service . . . . . . . . . . . . . . 175
Ignition Positions . . . . . . . . . . . . . . . . . . . 229, 230
Ignition Transmission Lock Check . . . . . . . . 347
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Indicator
Pedestrian Ahead . . . . . . . . . . . . . . . . . . . . . . . 119
Vehicle Ahead . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Infants and Young Children, Restraints . . . . .72
Information Publication Ordering . . . . . . . . . . . . . . . . . . . 435
Infotainment System . . . . . . . . . . . . . . . . . . . . 439
Instrument Cluster . . . . . . . . . . . . . . . . . . . . . . . 106
Instrument Panel Overview . . . . . . . . . . . . . . . . 4
Interior Rearview Mirrors . . . . . . . . . . . . . . . . . 38
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 1, 148
J
Jack Auxiliary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Jump Starting - North America . . . . . . . . . . . 391
K
Keyless Entry Remote (RKE) System . . . . . . . . . . . . . . . . 10, 13
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7, 9
L
Labeling, Tire Sidewall . . . . . . . . . . . . . . . . . . . 362
Lamps Auxiliary Roof Mounted Lamp . . . . . . . . . 144
Daytime Running (DRL) . . . . . . . . . . . . . . . . . 141
Dome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Exterior Cargo . . . . . . . . . . . . . . . . . . . . . . . . . 144
Exterior Controls . . . . . . . . . . . . . . . . . . . . . . . 139
Exterior Lamps Off Reminder . . . . . . . . . . . 141
Exterior Lighting Battery Saver . . . . . . . . 147
License Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . 352
Malfunction Indicator (CheckEngine) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
On Reminder . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Lane Change Alert (LCA) . . . . . . . . . . . . . . . . . 280
Lane Keep Assist (LKA) . . . . . . . . . . . . . . . . . . . .281
Lane Keep Assist Light . . . . . . . . . . . . . . . . . . . . 119
Lap-Shoulder Belt . . . . . . . . . . . . . . . . . . . . . . . . . .57
LATCH System Replacing Parts after a Crash . . . . . . . . . . . 88
LATCH, Lower Anchors and Tethers for Children . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

GMC Sierra/Sierra Denali 1500 Owner Manual (GMNA-Localizing-U.S./Cana-
da/Mexico-14632426) - 2021 - CRC - 11/5/20
456 Index
PowerDoor Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Protection, Battery . . . . . . . . . . . . . . . . . . . . . 147
Retained Accessory (RAP) . . . . . . . . . . . . . . 236
Seat Adjustment . . . . . . . . . . . . . . . . . . . . . . . . 47
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Power Assist Steps . . . . . . . . . . . . . . . . . . . . . . . . 30
Pregnancy, Using Seat Belts . . . . . . . . . . . . . . 59
Privacy Vehicle Data Recording . . . . . . . . . . . . . . . . 437
Problems with Route Guidance . . . . . . . . . . .174
Program Courtesy Transportation . . . . . . . . . . . . . . . 433
Prohibited Fuels . . . . . . . . . . . . . . . . . . . . . . . . . 284
Proposition 65 Warning,
California . . . . . . . . . . . . . . . . . . . . .322, 343, 391, Back Cover
Publication Ordering Information . . . . . . . . 435
R
Radio HD Radio Technology . . . . . . . . . . . . . . . . . . 156
Radio Data System (RDS) . . . . . . . . . . . . . . . . . 157
Radio Frequency Statement . . . . . . . . . . . . . . 436
Radio Reception . . . . . . . . . . . . . . . . . . . . . . . . . .158 Radios
AM-FM Radio . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Satellite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Reading Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Rear Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 346 Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254
Rear Camera Mirror . . . . . . . . . . . . . . . . . . . . . . . 38
Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Rear Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Rear Vision Camera (RVC) . . . . . . . . . . . . . . . . 266
Rear Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Rearview Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 38 Automatic Dimming . . . . . . . . . . . . . . . . . . . . 38
Reclining Seatbacks . . . . . . . . . . . . . . . . . . . . . . . 48
Recognition Voice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Recommended Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283, 284
Recommended Fluids and Lubricants . . . . . 418
Records Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 422
Recreational Vehicle Towing . . . . . . . . . . . . . 395
Reimbursement Program, GM Mobility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .431
Remote Keyless Entry (RKE) System . . . 10, 13
Remote Vehicle Start . . . . . . . . . . . . . . . . . . . . . 20 Replacement
Glass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 348
Replacement Parts Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 419
Replacing Airbag System . . . . . . . . . . . . . . . . . . . 71
Replacing LATCH System Parts after a Crash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Replacing Seat Belt System Parts after a Crash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Reporting Safety Defects
Canadian Government . . . . . . . . . . . . . . . . . 437
General Motors . . . . . . . . . . . . . . . . . . . . . . . . 437
U.S. Government . . . . . . . . . . . . . . . . . . . . . . . 436
Restraints Where to Put . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Retained Accessory Power (RAP) . . . . . . . . . 236
Reverse Tilt Mirrors . . . . . . . . . . . . . . . . . . . . . . . 38
Ride Control Systems Enhanced Traction System (ETS) . . . . . . . 254
Roads
Driving, Wet . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Roadside Assistance Program . . . . . . . . . . . . .431
Roof Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Rotation, Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . 374
Routing, Engine Drive Belt . . . . . . . . . . . . . . . 427
Running the Vehicle While Parked . . . . . . . 238

GMC Sierra/Sierra Denali 1500 Owner Manual (GMNA-Localizing-U.S./Cana-
da/Mexico-14632426) - 2021 - CRC - 11/5/20

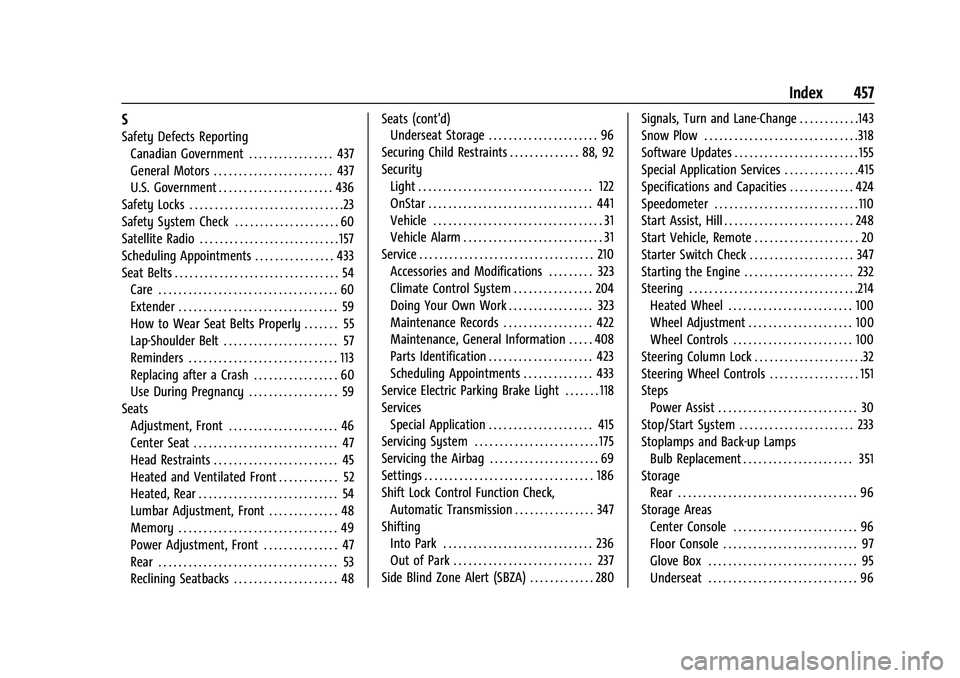

Index 457
S
Safety Defects ReportingCanadian Government . . . . . . . . . . . . . . . . . 437
General Motors . . . . . . . . . . . . . . . . . . . . . . . . 437
U.S. Government . . . . . . . . . . . . . . . . . . . . . . . 436
Safety Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Safety System Check . . . . . . . . . . . . . . . . . . . . . 60
Satellite Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Scheduling Appointments . . . . . . . . . . . . . . . . 433
Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Extender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
How to Wear Seat Belts Properly . . . . . . . 55
Lap-Shoulder Belt . . . . . . . . . . . . . . . . . . . . . . . 57
Reminders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Replacing after a Crash . . . . . . . . . . . . . . . . . 60
Use During Pregnancy . . . . . . . . . . . . . . . . . . 59
Seats Adjustment, Front . . . . . . . . . . . . . . . . . . . . . . 46
Center Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Head Restraints . . . . . . . . . . . . . . . . . . . . . . . . . 45
Heated and Ventilated Front . . . . . . . . . . . . 52
Heated, Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Lumbar Adjustment, Front . . . . . . . . . . . . . . 48
Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Power Adjustment, Front . . . . . . . . . . . . . . . 47
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Reclining Seatbacks . . . . . . . . . . . . . . . . . . . . . 48 Seats (cont'd)
Underseat Storage . . . . . . . . . . . . . . . . . . . . . . 96
Securing Child Restraints . . . . . . . . . . . . . . 88, 92
Security Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 441
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Vehicle Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210 Accessories and Modifications . . . . . . . . . 323
Climate Control System . . . . . . . . . . . . . . . . 204
Doing Your Own Work . . . . . . . . . . . . . . . . . 323
Maintenance Records . . . . . . . . . . . . . . . . . . 422
Maintenance, General Information . . . . . 408
Parts Identification . . . . . . . . . . . . . . . . . . . . . 423
Scheduling Appointments . . . . . . . . . . . . . . 433
Service Electric Parking Brake Light . . . . . . . 118
Services Special Application . . . . . . . . . . . . . . . . . . . . . 415
Servicing System . . . . . . . . . . . . . . . . . . . . . . . . . 175
Servicing the Airbag . . . . . . . . . . . . . . . . . . . . . . 69
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Shift Lock Control Function Check, Automatic Transmission . . . . . . . . . . . . . . . . 347
Shifting Into Park . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Out of Park . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Side Blind Zone Alert (SBZA) . . . . . . . . . . . . . 280 Signals, Turn and Lane-Change . . . . . . . . . . . .143
Snow Plow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .318
Software Updates . . . . . . . . . . . . . . . . . . . . . . . . . 155
Special Application Services . . . . . . . . . . . . . . .415
Specifications and Capacities . . . . . . . . . . . . . 424
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110
Start Assist, Hill . . . . . . . . . . . . . . . . . . . . . . . . . . 248
Start Vehicle, Remote . . . . . . . . . . . . . . . . . . . . . 20
Starter Switch Check . . . . . . . . . . . . . . . . . . . . . 347
Starting the Engine . . . . . . . . . . . . . . . . . . . . . . 232
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .214
Heated Wheel . . . . . . . . . . . . . . . . . . . . . . . . . 100
Wheel Adjustment . . . . . . . . . . . . . . . . . . . . . 100
Wheel Controls . . . . . . . . . . . . . . . . . . . . . . . . 100
Steering Column Lock . . . . . . . . . . . . . . . . . . . . . .32
Steering Wheel Controls . . . . . . . . . . . . . . . . . . 151
Steps Power Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Stop/Start System . . . . . . . . . . . . . . . . . . . . . . . 233
Stoplamps and Back-up Lamps Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . 351
Storage Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Storage Areas Center Console . . . . . . . . . . . . . . . . . . . . . . . . . 96
Floor Console . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Underseat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

GMC Sierra/Sierra Denali 1500 Owner Manual (GMNA-Localizing-U.S./Cana-
da/Mexico-14632426) - 2021 - CRC - 11/5/20

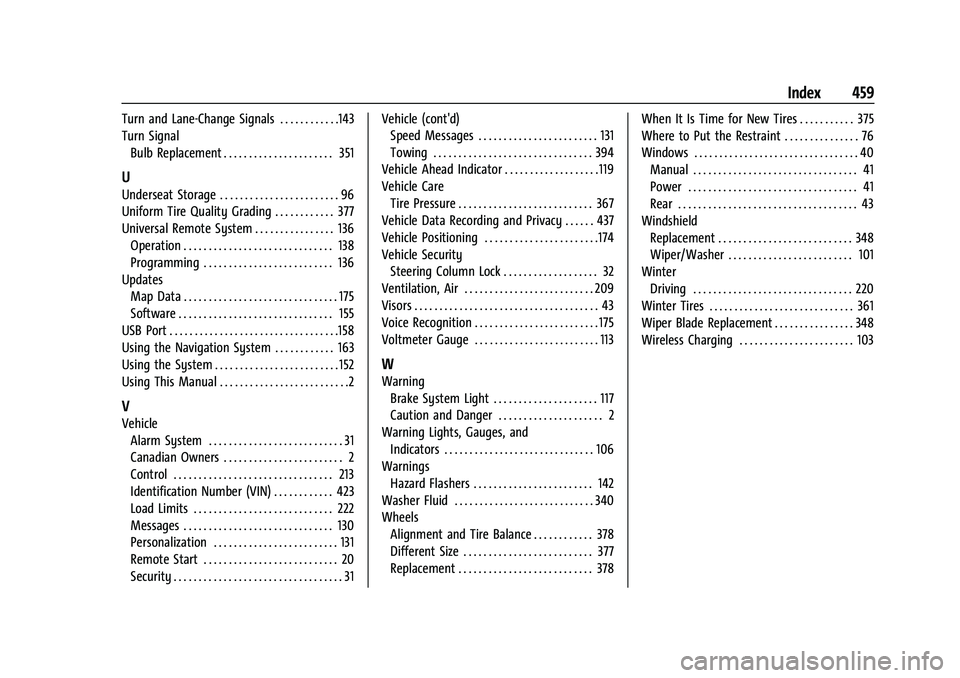

Index 459
Turn and Lane-Change Signals . . . . . . . . . . . .143
Turn SignalBulb Replacement . . . . . . . . . . . . . . . . . . . . . . 351
U
Underseat Storage . . . . . . . . . . . . . . . . . . . . . . . . 96
Uniform Tire Quality Grading . . . . . . . . . . . . 377
Universal Remote System . . . . . . . . . . . . . . . . 136Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Programming . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Updates Map Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
USB Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .158
Using the Navigation System . . . . . . . . . . . . 163
Using the System . . . . . . . . . . . . . . . . . . . . . . . . . 152
Using This Manual . . . . . . . . . . . . . . . . . . . . . . . . . .2
V
Vehicle Alarm System . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Canadian Owners . . . . . . . . . . . . . . . . . . . . . . . . 2
Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Identification Number (VIN) . . . . . . . . . . . . 423
Load Limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Personalization . . . . . . . . . . . . . . . . . . . . . . . . . 131
Remote Start . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Vehicle (cont'd)
Speed Messages . . . . . . . . . . . . . . . . . . . . . . . . 131
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 394
Vehicle Ahead Indicator . . . . . . . . . . . . . . . . . . . 119
Vehicle Care Tire Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 367
Vehicle Data Recording and Privacy . . . . . . 437
Vehicle Positioning . . . . . . . . . . . . . . . . . . . . . . .174
Vehicle Security
Steering Column Lock . . . . . . . . . . . . . . . . . . . 32
Ventilation, Air . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Voice Recognition . . . . . . . . . . . . . . . . . . . . . . . . . 175
Voltmeter Gauge . . . . . . . . . . . . . . . . . . . . . . . . . 113
W
Warning Brake System Light . . . . . . . . . . . . . . . . . . . . . 117
Caution and Danger . . . . . . . . . . . . . . . . . . . . . 2
Warning Lights, Gauges, and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Warnings
Hazard Flashers . . . . . . . . . . . . . . . . . . . . . . . . 142
Washer Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 340
Wheels Alignment and Tire Balance . . . . . . . . . . . . 378
Different Size . . . . . . . . . . . . . . . . . . . . . . . . . . 377
Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 378 When It Is Time for New Tires . . . . . . . . . . . 375
Where to Put the Restraint . . . . . . . . . . . . . . . 76
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Windshield
Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 348
Wiper/Washer . . . . . . . . . . . . . . . . . . . . . . . . . 101
Winter Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Winter Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 361
Wiper Blade Replacement . . . . . . . . . . . . . . . . 348
Wireless Charging . . . . . . . . . . . . . . . . . . . . . . . 103
