GMC SIERRA CLASSIC 2007 Owners Manual

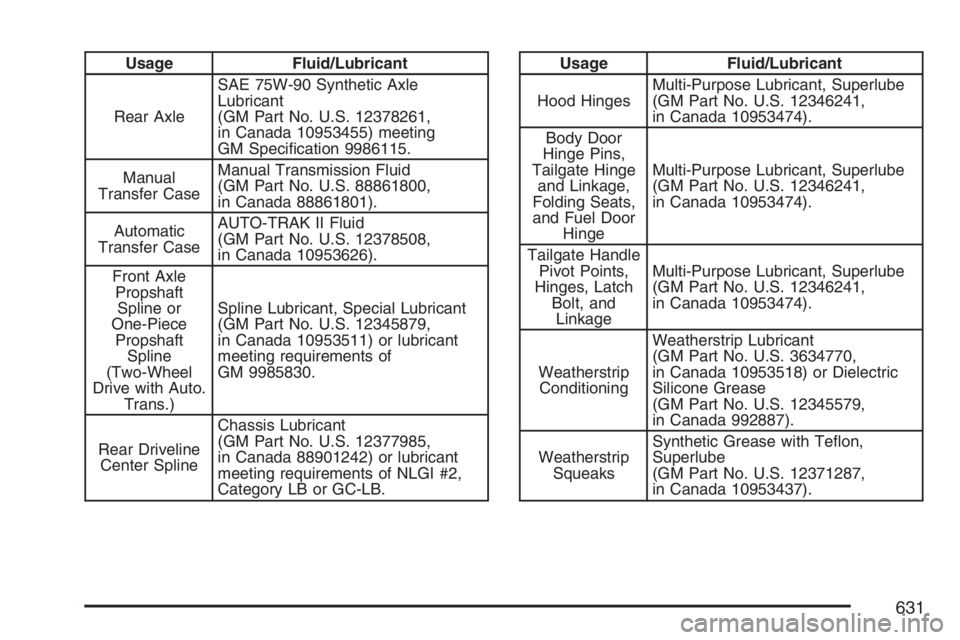

Usage Fluid/Lubricant
Rear AxleSAE 75W-90 Synthetic Axle
Lubricant
(GM Part No. U.S. 12378261,
in Canada 10953455) meeting
GM Specication 9986115.
Manual
Transfer CaseManual Transmission Fluid
(GM Part No. U.S. 88861800,
in Canada 88861801).
Automatic
Transfer CaseAUTO-TRAK II Fluid
(GM Part No. U.S. 12378508,
in Canada 10953626).
Front Axle
Propshaft
Spline or
One-Piece
Propshaft
Spline
(Two-Wheel
Drive with Auto.
Trans.)Spline Lubricant, Special Lubricant
(GM Part No. U.S. 12345879,
in Canada 10953511) or lubricant
meeting requirements of
GM 9985830.
Rear Driveline
Center SplineChassis Lubricant
(GM Part No. U.S. 12377985,
in Canada 88901242) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.Usage Fluid/Lubricant
Hood HingesMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241,
in Canada 10953474).
Body Door
Hinge Pins,
Tailgate Hinge
and Linkage,
Folding Seats,
and Fuel Door
HingeMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241,
in Canada 10953474).
Tailgate Handle
Pivot Points,
Hinges, Latch
Bolt, and
LinkageMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241,
in Canada 10953474).
Weatherstrip
ConditioningWeatherstrip Lubricant
(GM Part No. U.S. 3634770,
in Canada 10953518) or Dielectric
Silicone Grease
(GM Part No. U.S. 12345579,
in Canada 992887).
Weatherstrip
SqueaksSynthetic Grease with Teon,
Superlube
(GM Part No. U.S. 12371287,
in Canada 10953437).
631

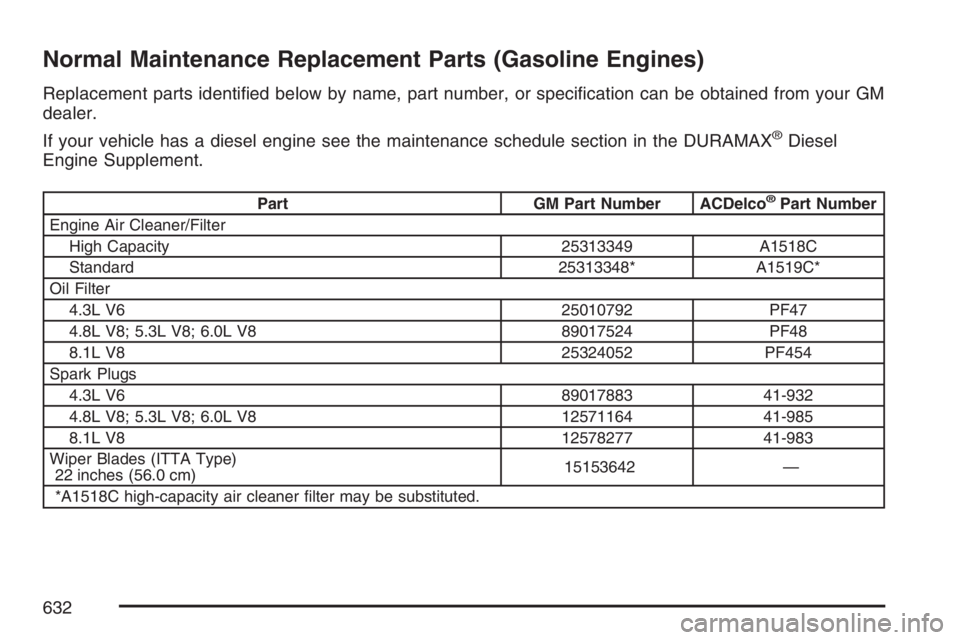

Normal Maintenance Replacement Parts (Gasoline Engines)
Replacement parts identied below by name, part number, or specication can be obtained from your GM
dealer.
If your vehicle has a diesel engine see the maintenance schedule section in the DURAMAX
®Diesel
Engine Supplement.
Part GM Part Number ACDelco®Part Number
Engine Air Cleaner/Filter
High Capacity 25313349 A1518C
Standard 25313348* A1519C*
Oil Filter
4.3L V6 25010792 PF47
4.8L V8; 5.3L V8; 6.0L V8 89017524 PF48
8.1L V8 25324052 PF454
Spark Plugs
4.3L V6 89017883 41-932
4.8L V8; 5.3L V8; 6.0L V8 12571164 41-985
8.1L V8 12578277 41-983
Wiper Blades (ITTA Type)
22 inches (56.0 cm)15153642 —
*A1518C high-capacity air cleaner lter may be substituted.
632

Engine Drive Belt Routing
(A) Air Conditioning CompressorV6 Engines
V8 Engines
633

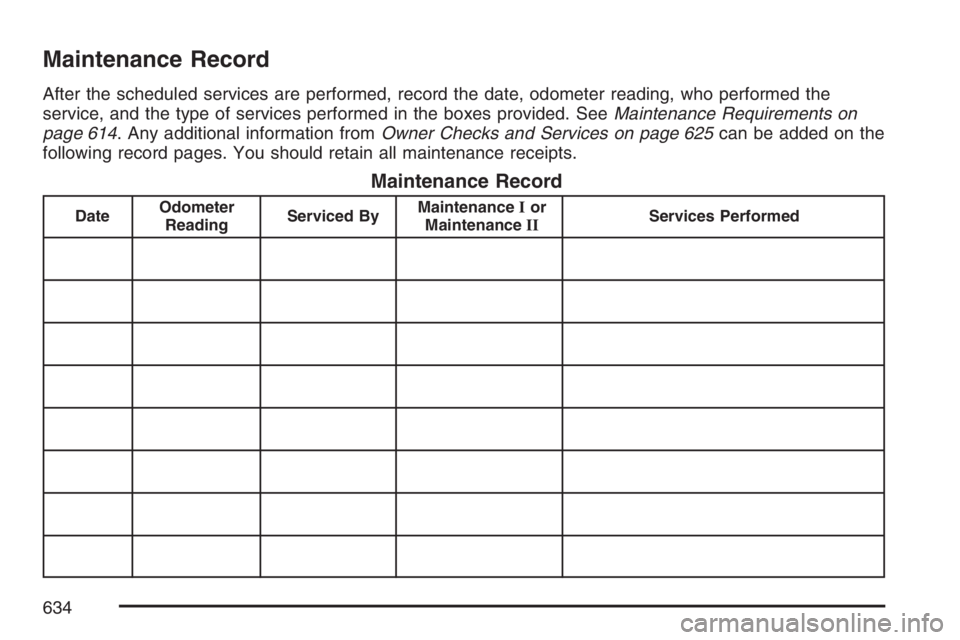

Maintenance Record
After the scheduled services are performed, record the date, odometer reading, who performed the
service, and the type of services performed in the boxes provided. SeeMaintenance Requirements on
page 614. Any additional information fromOwner Checks and Services on page 625can be added on the
following record pages. You should retain all maintenance receipts.
Maintenance Record
DateOdometer
ReadingServiced ByMaintenanceIor
MaintenanceIIServices Performed
634

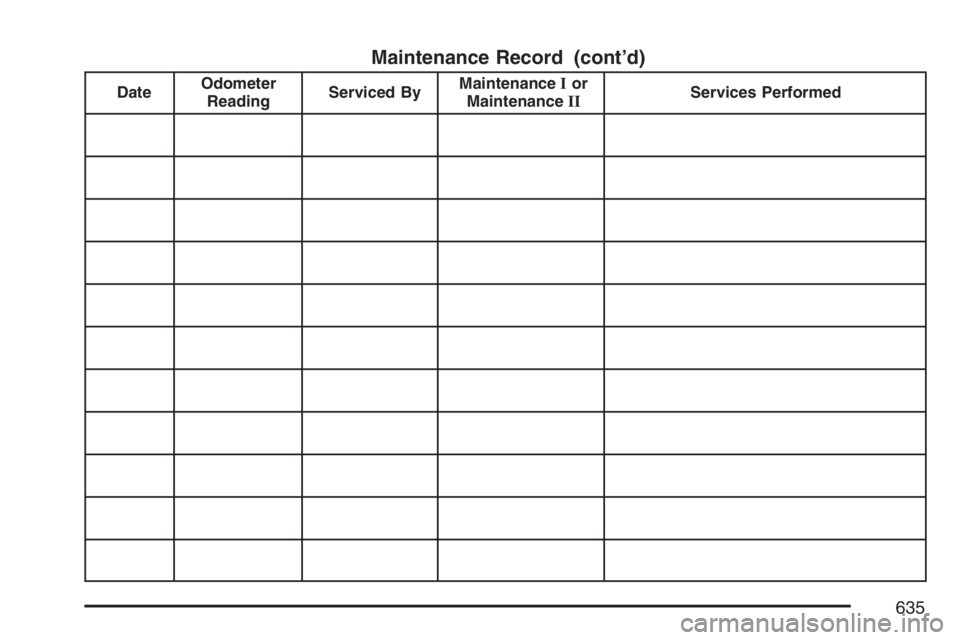

Maintenance Record (cont’d)
DateOdometer
ReadingServiced ByMaintenanceIor
MaintenanceIIServices Performed
635

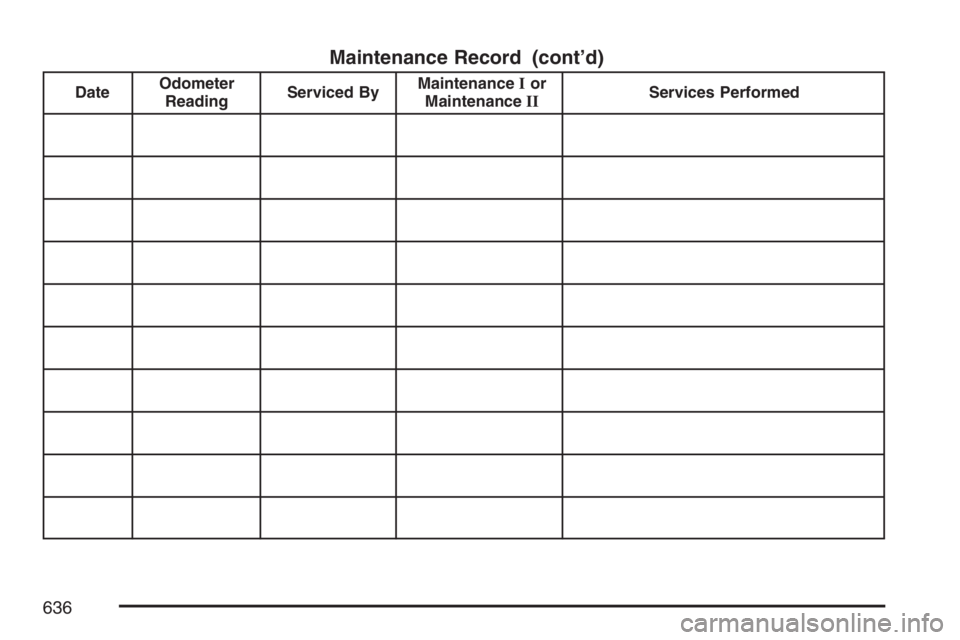

Maintenance Record (cont’d)
DateOdometer
ReadingServiced ByMaintenanceIor
MaintenanceIIServices Performed
636

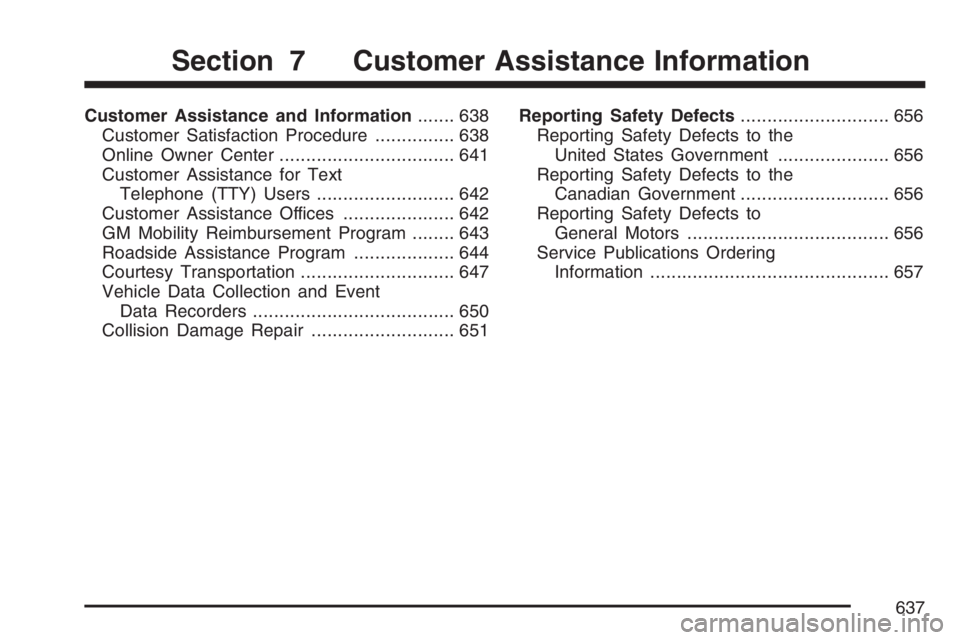

Customer Assistance and Information....... 638
Customer Satisfaction Procedure............... 638
Online Owner Center................................. 641
Customer Assistance for Text
Telephone (TTY) Users.......................... 642
Customer Assistance Offices..................... 642
GM Mobility Reimbursement Program........ 643
Roadside Assistance Program................... 644
Courtesy Transportation............................. 647
Vehicle Data Collection and Event
Data Recorders...................................... 650
Collision Damage Repair........................... 651Reporting Safety Defects............................ 656
Reporting Safety Defects to the
United States Government..................... 656
Reporting Safety Defects to the
Canadian Government............................ 656
Reporting Safety Defects to
General Motors...................................... 656
Service Publications Ordering
Information............................................. 657
Section 7 Customer Assistance Information
637

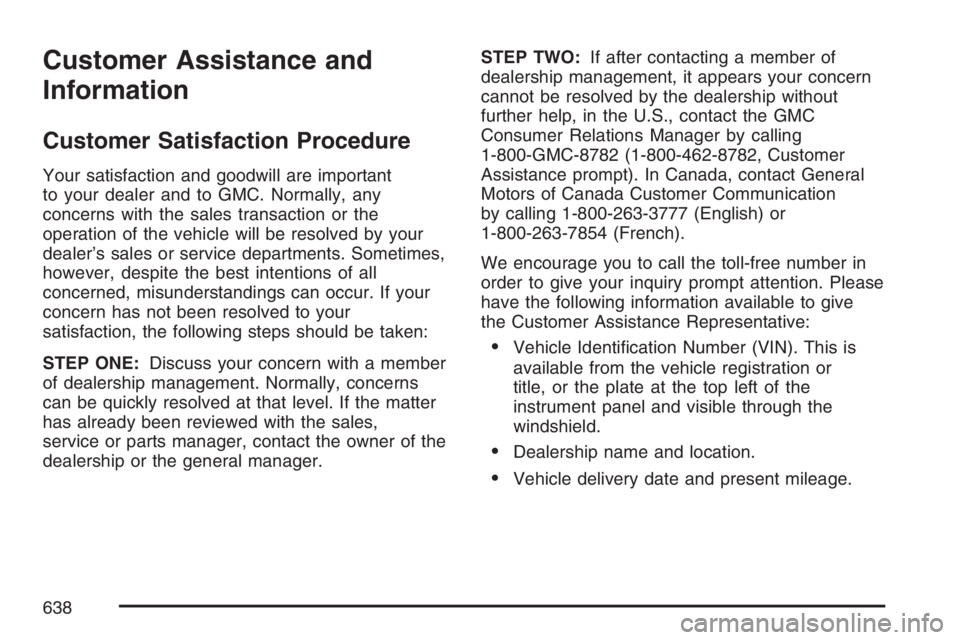

Customer Assistance and
Information
Customer Satisfaction Procedure
Your satisfaction and goodwill are important
to your dealer and to GMC. Normally, any
concerns with the sales transaction or the
operation of the vehicle will be resolved by your
dealer’s sales or service departments. Sometimes,
however, despite the best intentions of all
concerned, misunderstandings can occur. If your
concern has not been resolved to your
satisfaction, the following steps should be taken:
STEP ONE:Discuss your concern with a member
of dealership management. Normally, concerns
can be quickly resolved at that level. If the matter
has already been reviewed with the sales,
service or parts manager, contact the owner of the
dealership or the general manager.STEP TWO:If after contacting a member of
dealership management, it appears your concern
cannot be resolved by the dealership without
further help, in the U.S., contact the GMC
Consumer Relations Manager by calling
1-800-GMC-8782 (1-800-462-8782, Customer
Assistance prompt). In Canada, contact General
Motors of Canada Customer Communication
by calling 1-800-263-3777 (English) or
1-800-263-7854 (French).
We encourage you to call the toll-free number in
order to give your inquiry prompt attention. Please
have the following information available to give
the Customer Assistance Representative:
Vehicle Identication Number (VIN). This is
available from the vehicle registration or
title, or the plate at the top left of the
instrument panel and visible through the
windshield.
Dealership name and location.
Vehicle delivery date and present mileage.
638

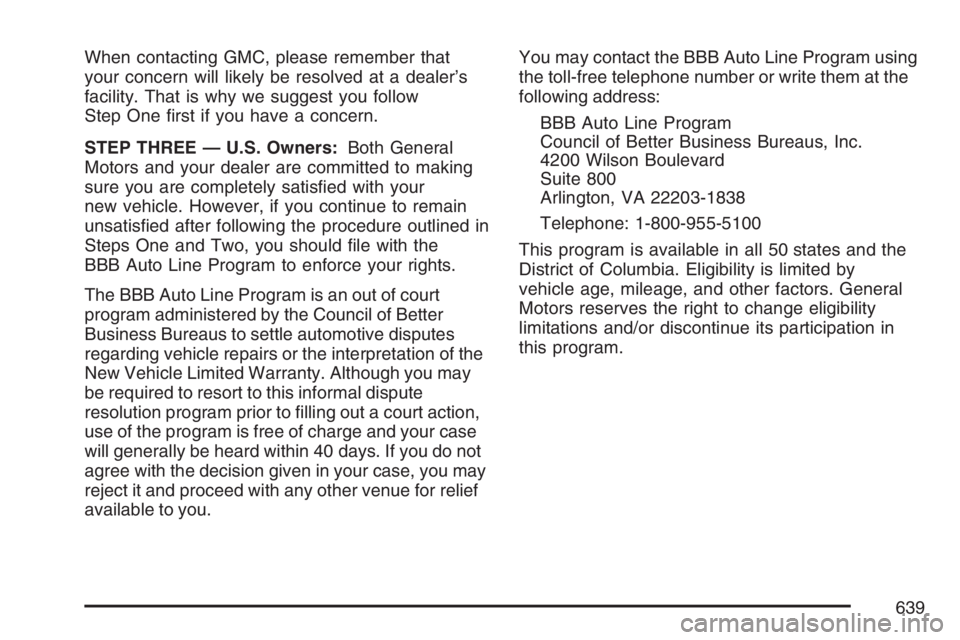

When contacting GMC, please remember that
your concern will likely be resolved at a dealer’s
facility. That is why we suggest you follow
Step One rst if you have a concern.
STEP THREE — U.S. Owners:Both General
Motors and your dealer are committed to making
sure you are completely satised with your
new vehicle. However, if you continue to remain
unsatised after following the procedure outlined in
Steps One and Two, you should le with the
BBB Auto Line Program to enforce your rights.
The BBB Auto Line Program is an out of court
program administered by the Council of Better
Business Bureaus to settle automotive disputes
regarding vehicle repairs or the interpretation of the
New Vehicle Limited Warranty. Although you may
be required to resort to this informal dispute
resolution program prior to lling out a court action,
use of the program is free of charge and your case
will generally be heard within 40 days. If you do not
agree with the decision given in your case, you may
reject it and proceed with any other venue for relief
available to you.You may contact the BBB Auto Line Program using
the toll-free telephone number or write them at the
following address:
BBB Auto Line Program
Council of Better Business Bureaus, Inc.
4200 Wilson Boulevard
Suite 800
Arlington, VA 22203-1838
Telephone: 1-800-955-5100
This program is available in all 50 states and the
District of Columbia. Eligibility is limited by
vehicle age, mileage, and other factors. General
Motors reserves the right to change eligibility
limitations and/or discontinue its participation in
this program.
639

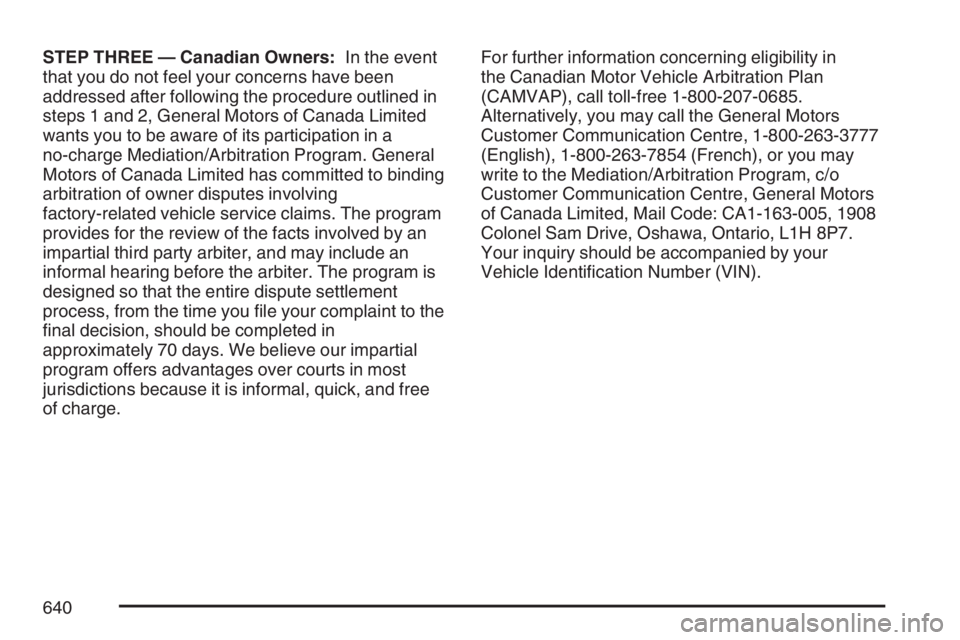

STEP THREE — Canadian Owners:In the event
that you do not feel your concerns have been
addressed after following the procedure outlined in
steps 1 and 2, General Motors of Canada Limited
wants you to be aware of its participation in a
no-charge Mediation/Arbitration Program. General
Motors of Canada Limited has committed to binding
arbitration of owner disputes involving
factory-related vehicle service claims. The program
provides for the review of the facts involved by an
impartial third party arbiter, and may include an
informal hearing before the arbiter. The program is
designed so that the entire dispute settlement
process, from the time you le your complaint to the
nal decision, should be completed in
approximately 70 days. We believe our impartial
program offers advantages over courts in most
jurisdictions because it is informal, quick, and free
of charge.For further information concerning eligibility in
the Canadian Motor Vehicle Arbitration Plan
(CAMVAP), call toll-free 1-800-207-0685.
Alternatively, you may call the General Motors
Customer Communication Centre, 1-800-263-3777
(English), 1-800-263-7854 (French), or you may
write to the Mediation/Arbitration Program, c/o
Customer Communication Centre, General Motors
of Canada Limited, Mail Code: CA1-163-005, 1908
Colonel Sam Drive, Oshawa, Ontario, L1H 8P7.
Your inquiry should be accompanied by your
Vehicle Identication Number (VIN).
640
