Section 3 Instrument Panel
3-1

The main components of your instrument panel are the following:
A. Dome Lamp Override Button. See
Interior Lamps on
page 3-16.
B. Exterior Lamp Control. See
Exterior Lamps on
page 3-12.
C. Air Outlets. See ªClimate Controlsº in Section 3.
D. Multifunction Lever. See
Turn Signal/Multifunction
Lever on page 3-5.
E. Instrument Panel Cluster. See
Instrument Panel
Cluster on page 3-28.
F. Gearshift Lever. See
Automatic Transmission
Operation on page 2-22.
G. Tow/Haul Selector Switch (If Equipped). See
Automatic Transmission Operation on page 2-22.
H. Audio System. See
Audio System(s) on page 3-64.
I. Comfort Control System. See
Dual Automatic
Climate Control System on page 3-19.
J. Instrument Panel Fuse Block. See
Fuses and Circuit
Breakers on page 5-105.K. Hood Release. See
Hood Release on page 5-9.
L. Audio Steering Wheel Controls (If Equipped). See
Audio Steering Wheel Controls on page 3-85.
M. Center Instrument Panel Fuse Block. See
Fuses and
Circuit Breakers on page 5-105.
N. Tilt Lever. See
Tilt Wheel on page 3-5.
O. Parking Brake Release. See
Parking Brake on
page 2-25.
P. Compact Disc Changer (If Equipped). See
CD
Changer on page 3-82.
Q. Ashtray. See
Accessory Power Outlets on page 3-18.
R. Accessory Power Outlet. See
Accessory Power
Outlets on page 3-18.
S. Air Bag Off Switch, 4±Wheel Steer Button, Manual
Selectable Ride Switch. See
Air Bag Off Switch
on page 1-68,QUADRASTEERŸ on page 4-12.
T. Glovebox. See
Glove Box on page 2-42.
3-3

Horn
To sound the horn, press the center pad on the
steering wheel.
Tilt Wheel
If your vehicle is equipped with a tilt wheel, it will allow
you to adjust the steering wheel before you drive.
You can raise it to the highest level to give your legs
more room when you exit and enter your vehicle.
The tilt steering wheel
lever is located on the
lower left side of the
column.
To tilt the wheel, hold the steering wheel and pull the
lever. Then move the steering wheel to a comfortable
position and release the lever to lock the wheel in place.
Turn Signal/Multifunction Lever
The lever on the left side of the steering column
includes the following:
·Turn and Lane Change Signals
·Headlamp High/Low-Beam Changer
·Flash-to-Pass
·Windshield Wipers
·Windshield Washer
·Cruise Control
For information on the exterior lamps, see
Exterior
Lamps on page 3-12.
3-5

Turn and Lane Change Signals
The turn signal has two upward (for right) and
two downward (for left) positions. These positions
allow you to signal a turn or a lane change.
To signal a turn, move the lever all the way up
or down. When the turn is ®nished, the lever will
return automatically.
To signal a lane change, just raise or lower the lever
until the arrow starts to ¯ash. Hold it there until you
complete your lane change. The lever will return by itself
when you release it.
An arrow on the instrument
panel cluster will ¯ash in
the direction of the
turn or lane change.
As you signal a turn or a lane change, if the arrows
¯ash more quickly than normal, a signal bulb may
be burned out and other drivers won't see your
turn signal.If a bulb is burned out, replace it to help avoid an
accident. If the arrows don't go on at all when you signal
a turn, check for burned-out bulbs and a blown fuse.
See
Fuses and Circuit Breakers on page 5-105.
Turn Signal On Chime
If your turn signal is left on for more than 3/4 of a mile
(1.2 km), a chime will sound at each ¯ash of the
turn signal and the message TURN SIGNAL ON will
also appear in the DIC. To turn the chime and message
off, move the turn signal lever to the off position.
Headlamp High/Low-Beam Changer
53
(Headlamp High/Low Beam Changer):To
change the headlamps from low to high beam, push the
lever toward the instrument panel. To return to
low-beam headlamps, pull the multifunction lever toward
you. Then release it.
When the high beams are
on, this indicator light on
the instrument panel
cluster will also be on.
3-6

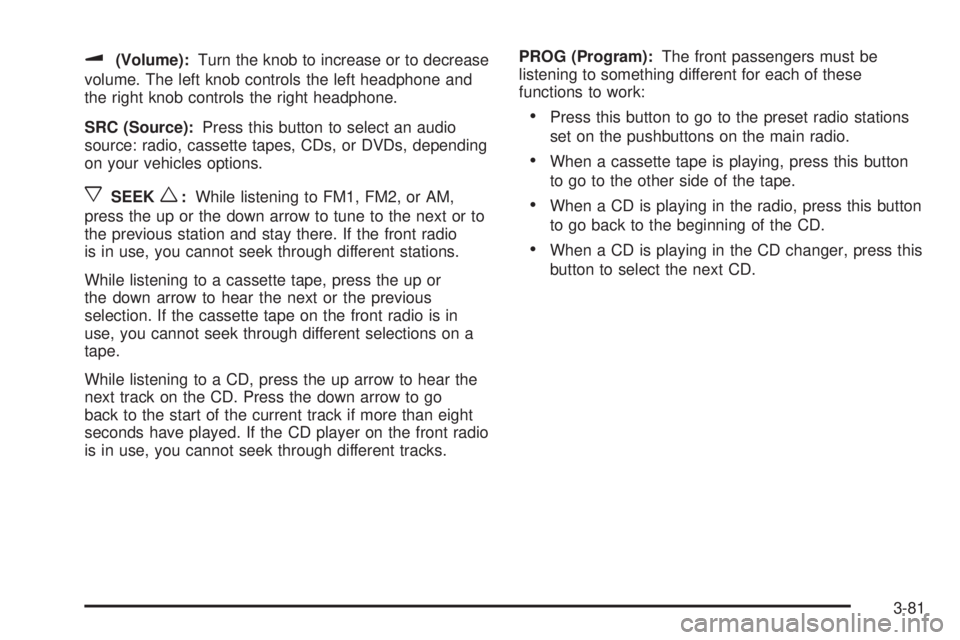

u(Volume):Turn the knob to increase or to decrease
volume. The left knob controls the left headphone and
the right knob controls the right headphone.
SRC (Source):Press this button to select an audio
source: radio, cassette tapes, CDs, or DVDs, depending
on your vehicles options.
xSEEKw:While listening to FM1, FM2, or AM,
press the up or the down arrow to tune to the next or to
the previous station and stay there. If the front radio
is in use, you cannot seek through different stations.
While listening to a cassette tape, press the up or
the down arrow to hear the next or the previous
selection. If the cassette tape on the front radio is in
use, you cannot seek through different selections on a
tape.
While listening to a CD, press the up arrow to hear the
next track on the CD. Press the down arrow to go
back to the start of the current track if more than eight
seconds have played. If the CD player on the front radio
is in use, you cannot seek through different tracks.PROG (Program):The front passengers must be
listening to something different for each of these
functions to work:
·Press this button to go to the preset radio stations
set on the pushbuttons on the main radio.
·When a cassette tape is playing, press this button
to go to the other side of the tape.
·When a CD is playing in the radio, press this button
to go back to the beginning of the CD.
·When a CD is playing in the CD changer, press this
button to select the next CD.
3-81

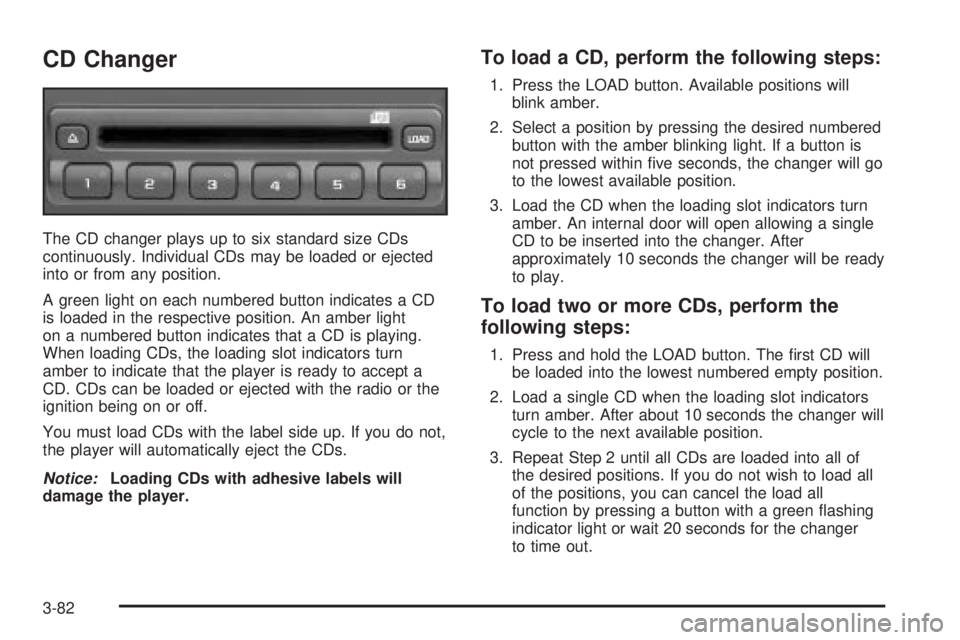

CD Changer
The CD changer plays up to six standard size CDs
continuously. Individual CDs may be loaded or ejected
into or from any position.
A green light on each numbered button indicates a CD
is loaded in the respective position. An amber light
on a numbered button indicates that a CD is playing.
When loading CDs, the loading slot indicators turn
amber to indicate that the player is ready to accept a
CD. CDs can be loaded or ejected with the radio or the
ignition being on or off.
You must load CDs with the label side up. If you do not,
the player will automatically eject the CDs.
Notice:Loading CDs with adhesive labels will
damage the player.
To load a CD, perform the following steps:
1. Press the LOAD button. Available positions will
blink amber.
2. Select a position by pressing the desired numbered
button with the amber blinking light. If a button is
not pressed within ®ve seconds, the changer will go
to the lowest available position.
3. Load the CD when the loading slot indicators turn
amber. An internal door will open allowing a single
CD to be inserted into the changer. After
approximately 10 seconds the changer will be ready
to play.
To load two or more CDs, perform the
following steps:
1. Press and hold the LOAD button. The ®rst CD will
be loaded into the lowest numbered empty position.
2. Load a single CD when the loading slot indicators
turn amber. After about 10 seconds the changer will
cycle to the next available position.
3. Repeat Step 2 until all CDs are loaded into all of
the desired positions. If you do not wish to load all
of the positions, you can cancel the load all
function by pressing a button with a green ¯ashing
indicator light or wait 20 seconds for the changer
to time out.
3-82

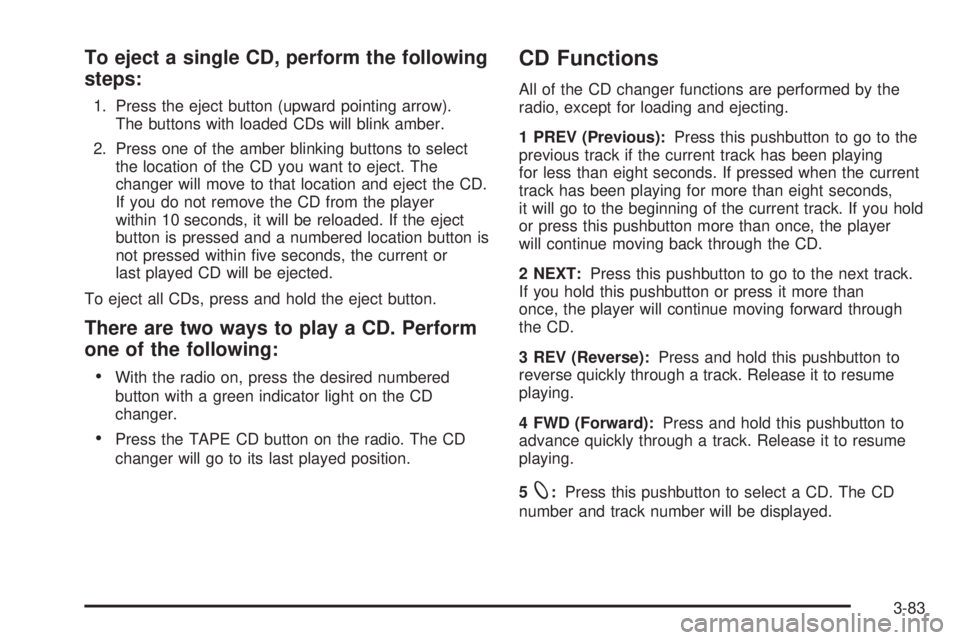

To eject a single CD, perform the following
steps:
1. Press the eject button (upward pointing arrow).
The buttons with loaded CDs will blink amber.
2. Press one of the amber blinking buttons to select
the location of the CD you want to eject. The
changer will move to that location and eject the CD.
If you do not remove the CD from the player
within 10 seconds, it will be reloaded. If the eject
button is pressed and a numbered location button is
not pressed within ®ve seconds, the current or
last played CD will be ejected.
To eject all CDs, press and hold the eject button.
There are two ways to play a CD. Perform
one of the following:
·
With the radio on, press the desired numbered
button with a green indicator light on the CD
changer.
·Press the TAPE CD button on the radio. The CD
changer will go to its last played position.
CD Functions
All of the CD changer functions are performed by the
radio, except for loading and ejecting.
1 PREV (Previous):Press this pushbutton to go to the
previous track if the current track has been playing
for less than eight seconds. If pressed when the current
track has been playing for more than eight seconds,
it will go to the beginning of the current track. If you hold
or press this pushbutton more than once, the player
will continue moving back through the CD.
2 NEXT:Press this pushbutton to go to the next track.
If you hold this pushbutton or press it more than
once, the player will continue moving forward through
the CD.
3 REV (Reverse):Press and hold this pushbutton to
reverse quickly through a track. Release it to resume
playing.
4 FWD (Forward):Press and hold this pushbutton to
advance quickly through a track. Release it to resume
playing.
5
X:Press this pushbutton to select a CD. The CD
number and track number will be displayed.
3-83

6 RDM (Random):Press this button to hear the tracks
in random, rather than sequential, order. RDM ALL
will appear on the radio display, which will randomly play
all of the loaded CDs. Press and hold this button until
you hear a beep and the radio will display RDM
ONE, which will randomly play the tracks on the current
CD. Press this button again to turn off random play,
RDM OFF will appear on the radio display.
qSEEKr:Press the right or the left SEEK arrow to
go to the next or to the previous track on the CD.
qSCANr:Press and hold either SCAN arrow for
more than two seconds until SCAN appears on the
display and you hear a beep. The radio will go to the
next track, play for 10 seconds, then go on to the
next track. Press either SCAN arrow again to stop
scanning.
BAND:Press BAND to listen to the radio when a CD is
playing.
TAPE DISC:Press this button if you have a CD loaded
in the changer and the radio is turned on, to play a
CD. Press this button to switch between playing a tape
and the CD changer if all are loaded.
CD Changer Errors
CHK CD (Check):If this message appears on the
display, it could be for one of the following reasons:
·It is very hot. When the temperature returns to
normal, the CD should play.
·You are driving on a very rough road. When the
road becomes smooth, the CD should play.
·The CD is dirty, scratched, wet, or upside down.
·The air is very humid. If so, wait about an hour and
try again.
·There may have been a problem while burning
the CD.
·The label may be caught in the CD player.
·The CD player is very hot.
If the CD is not playing correctly, for any other reason,
try a known good CD.
If any error occurs repeatedly or if an error cannot be
corrected, contact your dealer. If your radio displays an
error message, write it down and provide it to your
dealer when reporting the problem.
3-84

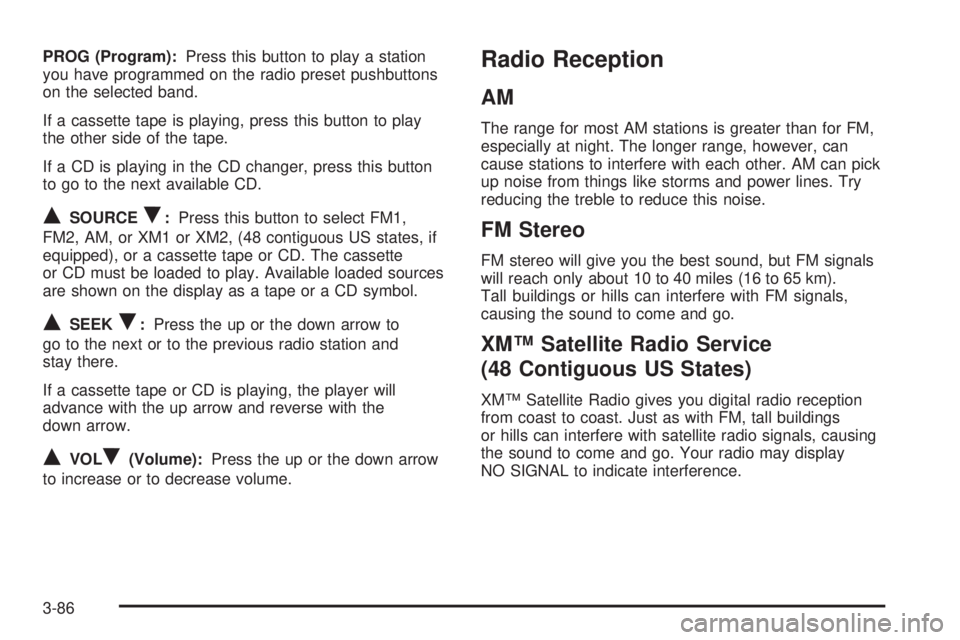

PROG (Program):Press this button to play a station
you have programmed on the radio preset pushbuttons
on the selected band.
If a cassette tape is playing, press this button to play
the other side of the tape.
If a CD is playing in the CD changer, press this button
to go to the next available CD.
QSOURCER:Press this button to select FM1,
FM2, AM, or XM1 or XM2, (48 contiguous US states, if
equipped), or a cassette tape or CD. The cassette
or CD must be loaded to play. Available loaded sources
are shown on the display as a tape or a CD symbol.
QSEEKR:Press the up or the down arrow to
go to the next or to the previous radio station and
stay there.
If a cassette tape or CD is playing, the player will
advance with the up arrow and reverse with the
down arrow.
QVOLR(Volume):Press the up or the down arrow
to increase or to decrease volume.
Radio Reception
AM
The range for most AM stations is greater than for FM,
especially at night. The longer range, however, can
cause stations to interfere with each other. AM can pick
up noise from things like storms and power lines. Try
reducing the treble to reduce this noise.
FM Stereo
FM stereo will give you the best sound, but FM signals
will reach only about 10 to 40 miles (16 to 65 km).
Tall buildings or hills can interfere with FM signals,
causing the sound to come and go.
XMŸ Satellite Radio Service
(48 Contiguous US States)
XMŸ Satellite Radio gives you digital radio reception
from coast to coast. Just as with FM, tall buildings
or hills can interfere with satellite radio signals, causing
the sound to come and go. Your radio may display
NO SIGNAL to indicate interference.
3-86

Audio System(s).............................................3-64
Audio Steering Wheel Controls......................3-85
Care of Your Cassette Tape Player................3-87
Care of Your CD Player...............................3-88
Care of Your CDs........................................3-88
CD Changer...............................................3-82
Chime Level Adjustment...............................3-88
Fixed Mast Antenna.....................................3-88
Navigation/Radio System..............................3-79
Radio with Cassette and CD.........................3-65
Rear Seat Audio (RSA)................................3-80
Setting the Time..........................................3-64
Theft-Deterrent Feature................................3-85
Understanding Radio Reception.....................3-86
XMŸ Satellite Radio Antenna System............3-88
Automatic Dimming Mirror Operation..................2-32
Automatic Headlamp System............................3-13
Automatic Transmission
Fluid..........................................................5-18
Operation...................................................2-22
B
Backing Up....................................................4-66
Battery..........................................................5-40
BATTERY NOT CHARGING.............................3-58
Battery Replacement......................................... 2-5
Battery Run-Down Protection............................3-18Battery Warning Light......................................3-35
Before Leaving on a Long Trip.........................4-38
Before You Go Off-Roading..............................4-18
Brake
Parking......................................................2-25
System Warning Light..................................3-37
Brake Adjustment............................................5-39
Brake Fluid....................................................5-36
Brake Pedal Travel.........................................5-39
Brake Wear...................................................5-39
Brakes..........................................................5-36
Braking........................................................... 4-6
Braking in Emergencies..................................... 4-8
Break-In, New Vehicle.....................................2-18
BUCKLE PASSENGER....................................3-58
BUCKLE SEATBELT.......................................3-58
Bulb Replacement...........................................5-49
Center High-Mounted Stoplamp (CHMSL) and
Cargo Lamp............................................5-54
Front Turn Signal, Sidemarker and Daytime
Running Lamps........................................5-50
Halogen Bulbs............................................5-49
Headlamps.................................................5-49
Pickup Box Identi®cation and Fender
Marker Lamps.........................................5-55
Replacement Bulbs......................................5-57
Roof Marker Lamps.....................................5-52
Taillamps....................................................5-56
Buying New Tires...........................................5-70
2
