Page 182 of 452
Instant Fuel Economy
Press the fuel information button until INST ECON
appears in the display. Instant fuel economy is how
many miles per gallon your vehicle is getting at
the particular moment in time. The instant fuel economy
cannot be reset.
GM Oil Life System
Press the fuel information button until ENGINE OIL LIFE
appears in the display. The GM Oil Life System shows
an estimate of the oil's remaining useful life. It will show
100% when the system is reset after an oil change. It
will alert you to change your oil on a schedule consistent
with your driving conditions.
Always reset the engine oil life after an oil change. To
reset the Oil Life System use the fuel button to reach the
ENGINE OIL LIFE screen and then press and hold
the select button for ®ve seconds while ENGINE OIL
LIFE is displayed. OIL LIFE RESET will appear on
the display for 10 seconds to let you know the system is
reset.
The DIC does not replace the need to maintain your
vehicle as recommended in the Maintenance Schedule
in this manual. Also, the oil change reminder will not
detect dusty conditions or engine malfunctions that may
affect the oil. Also, the oil change reminder does notmeasure how much oil you have in your engine. So, be
sure to check your oil level often. See
Engine Oil on
page 5-11.
Personalization Button
You can program certain features to a preferred setting
for up to two people. Press the personalization button
to scroll through the following personalization features.
All of the personalization options may not be available
on your vehicle. Only the options available will be
displayed on your DIC.
If your vehicle is not equipped with the DIC steering
wheel buttons you will not have any of the following
personalization options except for DISPLAY
LANGUAGE. See DISPLAY LANGUAGE later in this
section for more information.
·AUTOMATIC LOCKING
·AUTOMATIC UNLOCKING
·DELAYED LOCKING
·REMOTE LOCK FEEDBACK
·ALARM WARNING TYPE
·REMOTE UNLOCK FEEDBACK
·HEADLAMPS ON AT EXIT
3-50

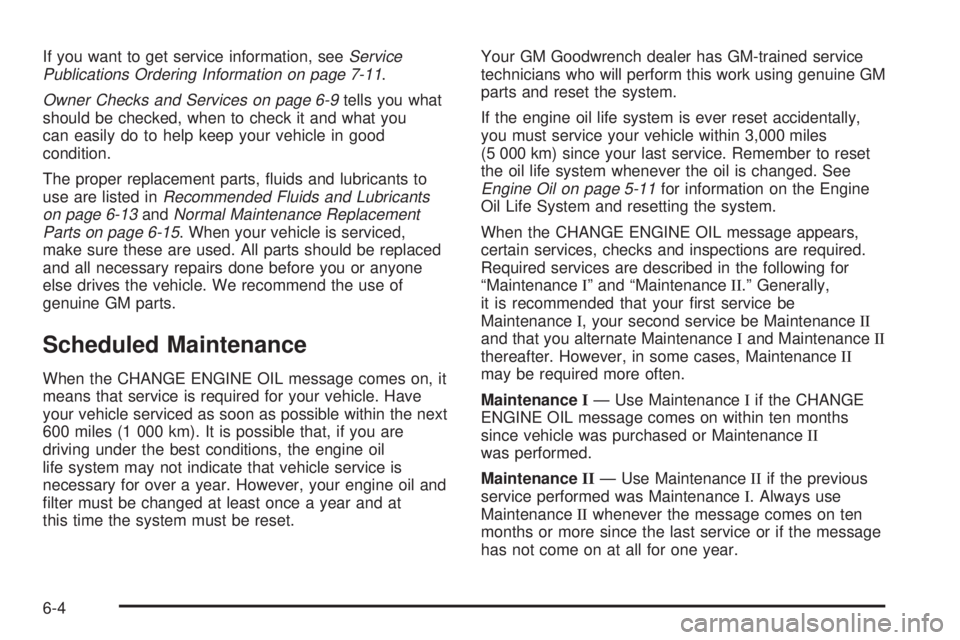

Page 410 of 452
If you want to get service information, seeService
Publications Ordering Information on page 7-11.
Owner Checks and Services on page 6-9tells you what
should be checked, when to check it and what you
can easily do to help keep your vehicle in good
condition.
The proper replacement parts, ¯uids and lubricants to
use are listed in
Recommended Fluids and Lubricants
on page 6-13andNormal Maintenance Replacement
Parts on page 6-15. When your vehicle is serviced,
make sure these are used. All parts should be replaced
and all necessary repairs done before you or anyone
else drives the vehicle. We recommend the use of
genuine GM parts.
Scheduled Maintenance
When the CHANGE ENGINE OIL message comes on, it
means that service is required for your vehicle. Have
your vehicle serviced as soon as possible within the next
600 miles (1 000 km). It is possible that, if you are
driving under the best conditions, the engine oil
life system may not indicate that vehicle service is
necessary for over a year. However, your engine oil and
®lter must be changed at least once a year and at
this time the system must be reset.Your GM Goodwrench dealer has GM-trained service
technicians who will perform this work using genuine GM
parts and reset the system.
If the engine oil life system is ever reset accidentally,
you must service your vehicle within 3,000 miles
(5 000 km) since your last service. Remember to reset
the oil life system whenever the oil is changed. See
Engine Oil on page 5-11for information on the Engine
Oil Life System and resetting the system.
When the CHANGE ENGINE OIL message appears,
certain services, checks and inspections are required.
Required services are described in the following for
ªMaintenanceIº and ªMaintenanceII.º Generally,
it is recommended that your ®rst service be
MaintenanceI, your second service be MaintenanceII
and that you alternate MaintenanceIand MaintenanceII
thereafter. However, in some cases, MaintenanceII
may be required more often.
MaintenanceIÐ Use MaintenanceIif the CHANGE
ENGINE OIL message comes on within ten months
since vehicle was purchased or MaintenanceII
was performed.
MaintenanceIIÐ Use MaintenanceIIif the previous
service performed was MaintenanceI. Always use
MaintenanceIIwhenever the message comes on ten
months or more since the last service or if the message
has not come on at all for one year.
6-4
Page 411 of 452
Scheduled Maintenance
Service MaintenanceIMaintenanceII
Change engine oil and ®lter. Reset oil life system. See
Engine Oil on
page 5-11.An Emission Control Service.··
Lubricate chassis components.
See footnote #.··
Visually check for any leaks or damage.
See footnote (j).··
Inspect engine air cleaner ®lter or change indicator (if equipped). If necessary,
replace ®lter. See
Engine Air Cleaner/Filter on page 5-16.An Emission Control
Service. See footnote ².··
Rotate tires and check in¯ation pressures and wear. See
Tires on page 5-59.··
Inspect brake system.
See footnote (a).··
Check engine coolant and windshield washer ¯uid levels and add ¯uid as
needed.··
Perform any needed additional services. See ªAdditional Required Servicesº in
this section.··
Inspect suspension and steering components.
See footnote (b).·
Inspect engine cooling system.
See footnote (c).·
Inspect wiper blades.
See footnote (d).·
Inspect restraint system components.
See footnote (e).·
Lubricate body components.
See footnote (f).·
Check transmission ¯uid level and add ¯uid as needed.·
6-5
Page 446 of 452
N
Navigation/Radio System..................................3-79
New Vehicle Break-In......................................2-18
Normal Maintenance Replacement Parts............6-15
O
Odometer......................................................3-29
Off-Road Recovery..........................................4-15
Oil
Engine.......................................................5-11
Pressure Gage............................................3-43
OIL LIFE RESET............................................3-60
OIL PRESSURE LOW.....................................3-60
Older Children, Restraints................................1-29
Online Owner Center........................................ 7-3
OnStar
žPersonal Calling.................................2-37
OnStaržServices............................................2-37
OnStaržSteering Wheel Controls......................2-38
OnStaržSystem.............................................2-36
OnStaržVirtual Advisor....................................2-37
Operating Your All-Wheel-Drive Vehicle Off
Paved Roads..............................................4-18
Other Warning Devices...................................... 3-4
Outlet Adjustment............................................3-26
Outside
Automatic Dimming Mirror.............................2-35
Convex Mirror.............................................2-36
Curb View Assist Mirrors..............................2-35Outside (cont.)
Heated Mirrors............................................2-36
Power Foldaway Mirrors...............................2-34
Power Mirrors.............................................2-34
Overheated Engine Protection
Operating Mode..........................................5-25
Owner Checks and Services.............................. 6-9
Owners, Canadian............................................... ii
Owner's Information........................................7-12
P
Park (P)
Shifting Into................................................2-26
Shifting Out of............................................2-28
Parking
Brake........................................................2-25
Over Things That Burn.................................2-29
Parking on Hills..............................................4-67
Passenger Air Bag Indicator.............................2-33
Passenger Air Bag Status Indicator...................3-33
PASSENGER DOOR AJAR..............................3-60
Passenger Sensing System..............................1-73
Passing.................................................4-15, 4-66
Passlock
ž......................................................2-17
Payload.........................................................4-54
Personalization Button.....................................3-50
Pickup Conversion to Chassis Cab....................4-57
Plan Ahead When Possible................................ 7-7
10
Page 448 of 452
Removing the Flat Tire and Installing the
Spare Tire..................................................5-80
Removing the Spare Tire and Tools...................5-77
Replacement Bulbs.........................................5-57
Replacing Brake System Parts..........................5-40
Replacing Restraint System Parts After
a Crash.....................................................1-80
Reporting Safety Defects
Canadian Government..................................7-11
General Motors...........................................7-11
United States Government............................7-10
Reprogramming a Single HomeLink
žButton.......2-42
Resetting Defaults...........................................2-42
Restraint System Check
Checking Your Restraint Systems...................1-79
Replacing Restraint System Parts After
a Crash..................................................1-80
Restraint Systems
Checking....................................................1-79
Replacing Parts...........................................1-80
Resynchronization............................................. 2-6
Retained Accessory Power (RAP)......................2-19
Right Front Passenger Position, Safety Belts......1-22
Right Front Passenger Position Top Strap
Anchor.......................................................1-42
Roadside
Assistance Program....................................... 7-6
Rocking Your Vehicle To Get It Out...................4-46
Running Your Engine While You Are Parked.......2-30
S
Safety Belt
Reminder Light............................................3-29
Safety Belts
Care of......................................................5-98
Center Passenger Position............................1-22
Driver Position............................................1-14
How to Wear Safety Belts Properly................1-14
Questions and Answers About Safety Belts.....1-13
Rear Safety Belt Comfort Guides for Children
and Small Adults......................................1-27
Rear Seat Passengers.................................1-24
Right Front Passenger Position......................1-22
Safety Belt Extender....................................1-29
Safety Belt Use During Pregnancy.................1-21
Safety Belts Are for Everyone......................... 1-8
Safety Chains.................................................4-64
Safety Warnings and Symbols.............................. iii
Scanning the Terrain.......................................4-21
Scheduled Maintenance..................................... 6-4
Seats
Head Restraints............................................ 1-7
Heated Seats............................................... 1-4
Memory.....................................................2-45
Power Lumbar.............................................. 1-4
Power Seats................................................. 1-3
Rear Seat Operation...................................... 1-8
Reclining Seatbacks...................................... 1-5
12
