GMC SIERRA DENALI 2018 Owners Manual

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-11349177) - 2018 - CRC - 10/17/17
380 Vehicle Care

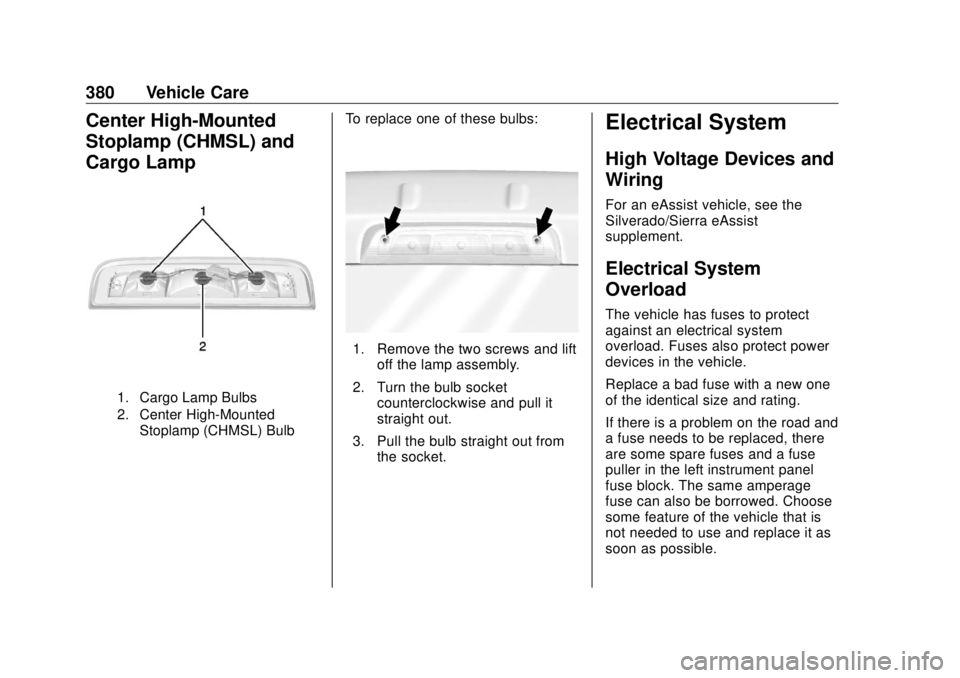

Center High-Mounted
Stoplamp (CHMSL) and
Cargo Lamp
1. Cargo Lamp Bulbs
2. Center High-Mounted
Stoplamp (CHMSL) Bulb To replace one of these bulbs:
1. Remove the two screws and lift
off the lamp assembly.
2. Turn the bulb socket
counterclockwise and pull it
straight out.
3. Pull the bulb straight out from
the socket. Electrical System High Voltage Devices and
Wiring For an eAssist vehicle, see the
Silverado/Sierra eAssist
supplement.
Electrical System
Overload The vehicle has fuses to protect
against an electrical system
overload. Fuses also protect power
devices in the vehicle.
Replace a bad fuse with a new one
of the identical size and rating.
If there is a problem on the road and
a fuse needs to be replaced, there
are some spare fuses and a fuse
puller in the left instrument panel
fuse block. The same amperage
fuse can also be borrowed. Choose
some feature of the vehicle that is
not needed to use and replace it as
soon as possible.

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-11349177) - 2018 - CRC - 10/17/17

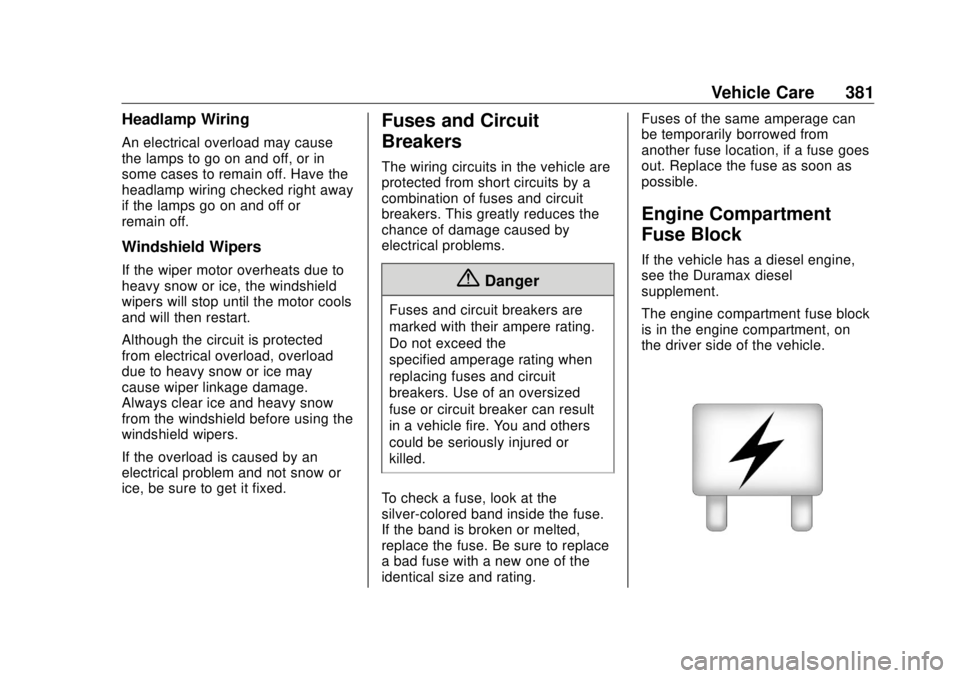

Vehicle Care 381Headlamp Wiring An electrical overload may cause
the lamps to go on and off, or in
some cases to remain off. Have the
headlamp wiring checked right away
if the lamps go on and off or
remain off.
Windshield Wipers If the wiper motor overheats due to
heavy snow or ice, the windshield
wipers will stop until the motor cools
and will then restart.
Although the circuit is protected
from electrical overload, overload
due to heavy snow or ice may
cause wiper linkage damage.
Always clear ice and heavy snow
from the windshield before using the
windshield wipers.
If the overload is caused by an
electrical problem and not snow or
ice, be sure to get it fixed. Fuses and Circuit
Breakers The wiring circuits in the vehicle are
protected from short circuits by a
combination of fuses and circuit
breakers. This greatly reduces the
chance of damage caused by
electrical problems.
{ DangerFuses and circuit breakers are
marked with their ampere rating.
Do not exceed the
specified amperage rating when
replacing fuses and circuit
breakers. Use of an oversized
fuse or circuit breaker can result
in a vehicle fire. You and others
could be seriously injured or
killed.
To check a fuse, look at the
silver-colored band inside the fuse.
If the band is broken or melted,
replace the fuse. Be sure to replace
a bad fuse with a new one of the
identical size and rating. Fuses of the same amperage can
be temporarily borrowed from
another fuse location, if a fuse goes
out. Replace the fuse as soon as
possible.
Engine Compartment
Fuse Block If the vehicle has a diesel engine,
see the Duramax diesel
supplement.
The engine compartment fuse block
is in the engine compartment, on
the driver side of the vehicle.

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-11349177) - 2018 - CRC - 10/17/17

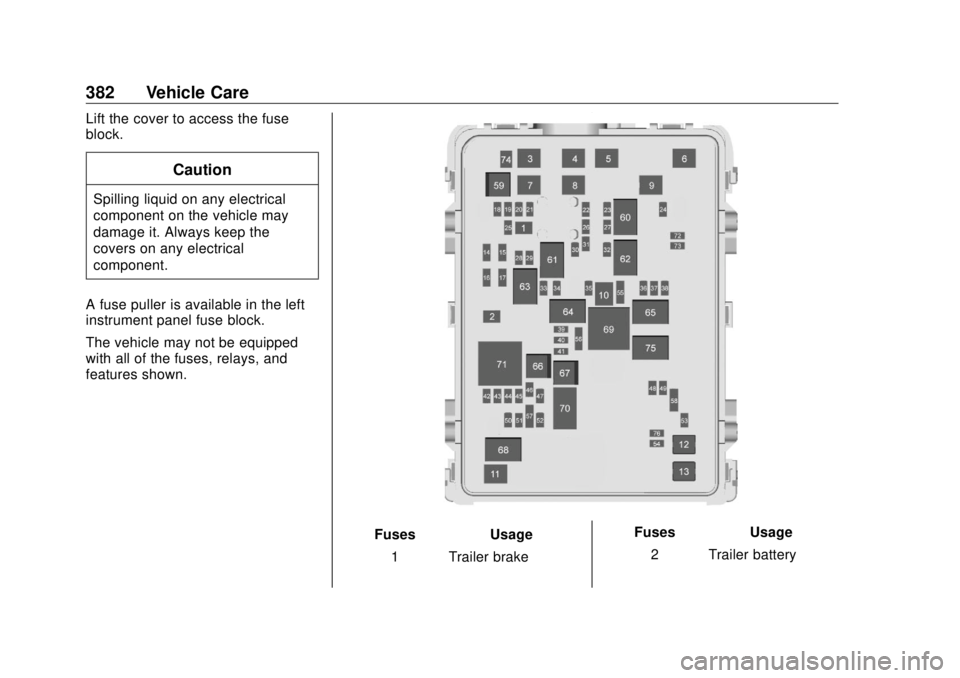

382 Vehicle Care Lift the cover to access the fuse
block.
CautionSpilling liquid on any electrical
component on the vehicle may
damage it. Always keep the
covers on any electrical
component.
A fuse puller is available in the left
instrument panel fuse block.
The vehicle may not be equipped
with all of the fuses, relays, and
features shown.
Fuses Usage
1 Trailer brake Fuses Usage
2 Trailer battery

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-11349177) - 2018 - CRC - 10/17/17

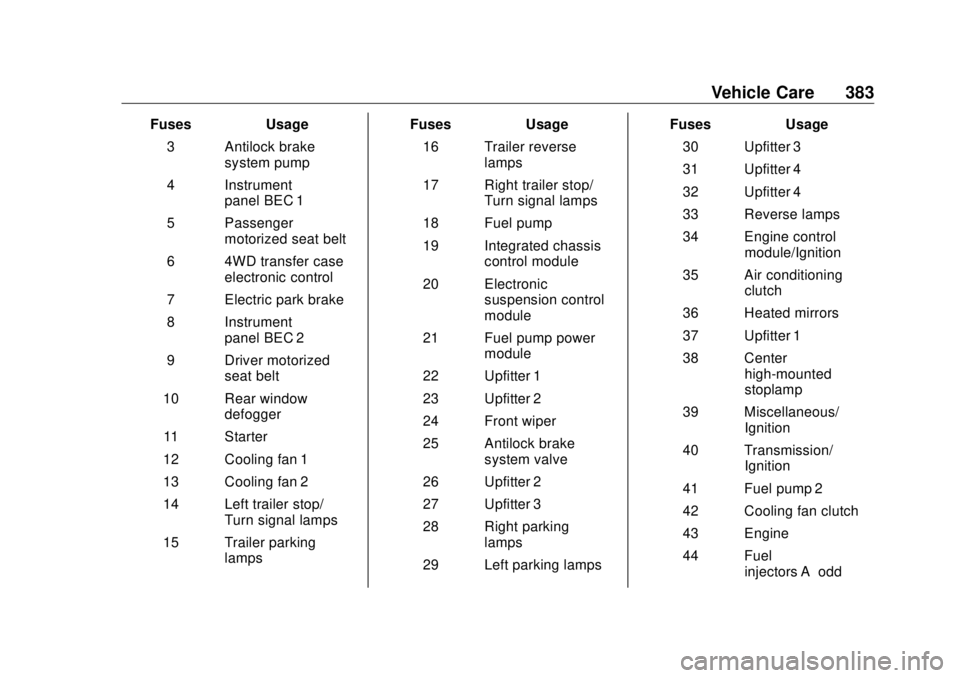

Vehicle Care 383Fuses Usage
3 Antilock brake
system pump
4 Instrument
panel BEC 1
5 Passenger
motorized seat belt
6 4WD transfer case
electronic control
7 Electric park brake
8 Instrument
panel BEC 2
9 Driver motorized
seat belt
10 Rear window
defogger
11 Starter
12 Cooling fan 1
13 Cooling fan 2
14 Left trailer stop/
Turn signal lamps
15 Trailer parking
lamps Fuses Usage
16 Trailer reverse
lamps
17 Right trailer stop/
Turn signal lamps
18 Fuel pump
19 Integrated chassis
control module
20 Electronic
suspension control
module
21 Fuel pump power
module
22 Upfitter 1
23 Upfitter 2
24 Front wiper
25 Antilock brake
system valve
26 Upfitter 2
27 Upfitter 3
28 Right parking
lamps
29 Left parking lamps Fuses Usage
30 Upfitter 3
31 Upfitter 4
32 Upfitter 4
33 Reverse lamps
34 Engine control
module/Ignition
35 Air conditioning
clutch
36 Heated mirrors
37 Upfitter 1
38 Center
high-mounted
stoplamp
39 Miscellaneous/
Ignition
40 Transmission/
Ignition
41 Fuel pump 2
42 Cooling fan clutch
43 Engine
44 Fuel
injectors A – odd

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-11349177) - 2018 - CRC - 10/17/17

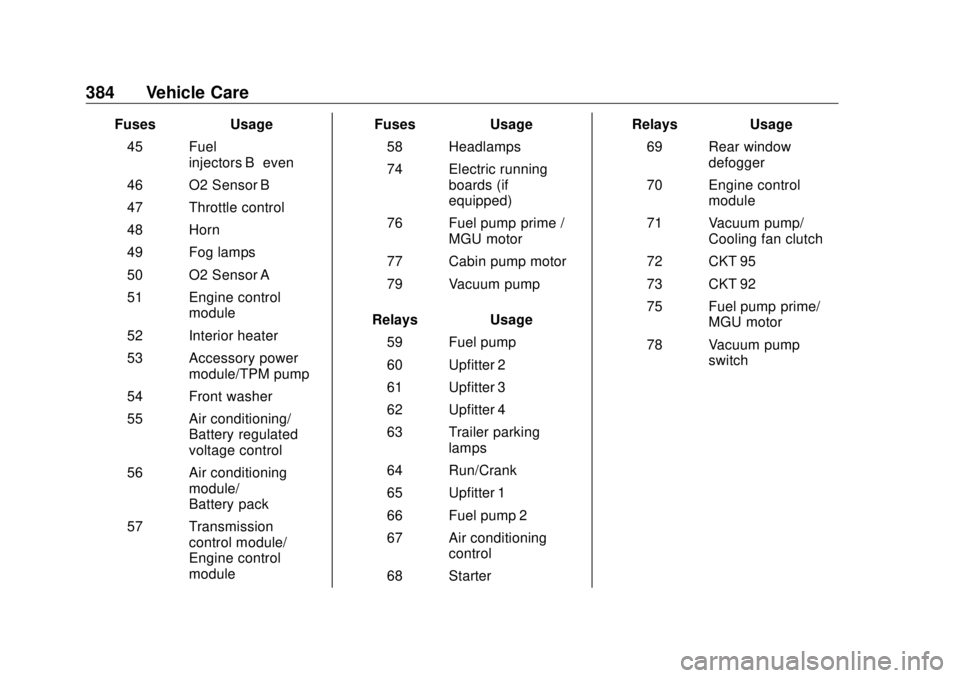

384 Vehicle Care Fuses Usage
45 Fuel
injectors B – even
46 O2 Sensor B
47 Throttle control
48 Horn
49 Fog lamps
50 O2 Sensor A
51 Engine control
module
52 Interior heater
53 Accessory power
module/TPM pump
54 Front washer
55 Air conditioning/
Battery regulated
voltage control
56 Air conditioning
module/
Battery pack
57 Transmission
control module/
Engine control
module Fuses Usage
58 Headlamps
74 Electric running
boards (if
equipped)
76 Fuel pump prime /
MGU motor
77 Cabin pump motor
79 Vacuum pump
Relays Usage
59 Fuel pump
60 Upfitter 2
61 Upfitter 3
62 Upfitter 4
63 Trailer parking
lamps
64 Run/Crank
65 Upfitter 1
66 Fuel pump 2
67 Air conditioning
control
68 Starter Relays Usage
69 Rear window
defogger
70 Engine control
module
71 Vacuum pump/
Cooling fan clutch
72 CKT 95
73 CKT 92
75 Fuel pump prime/
MGU motor
78 Vacuum pump
switch

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-11349177) - 2018 - CRC - 10/17/17
Vehicle Care 385

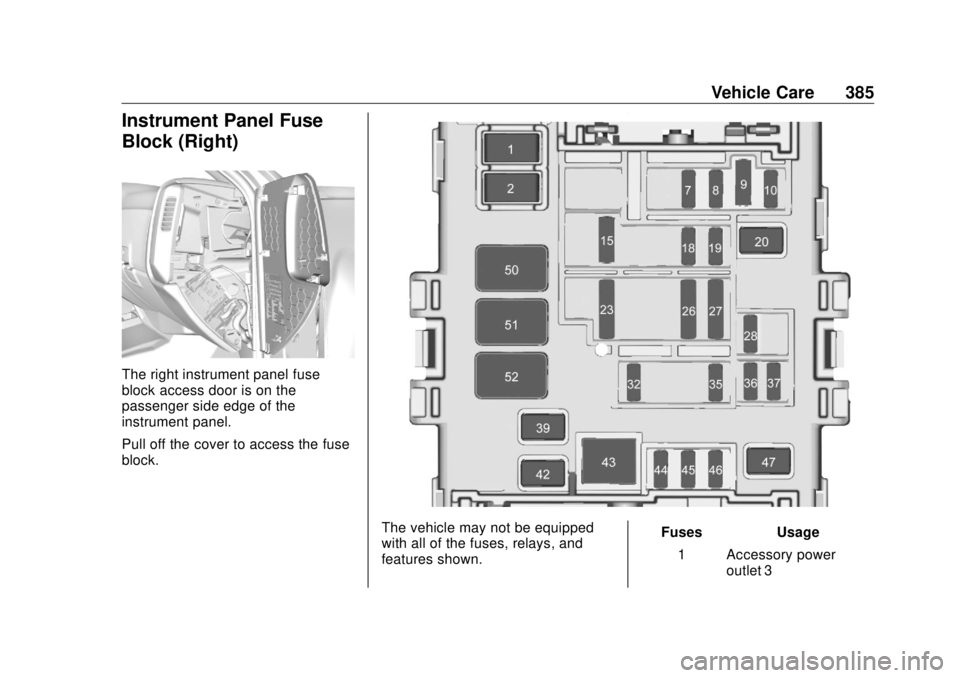

Instrument Panel Fuse
Block (Right)
The right instrument panel fuse
block access door is on the
passenger side edge of the
instrument panel.
Pull off the cover to access the fuse
block.
The vehicle may not be equipped
with all of the fuses, relays, and
features shown. Fuses Usage
1 Accessory power
outlet 3

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-11349177) - 2018 - CRC - 10/17/17

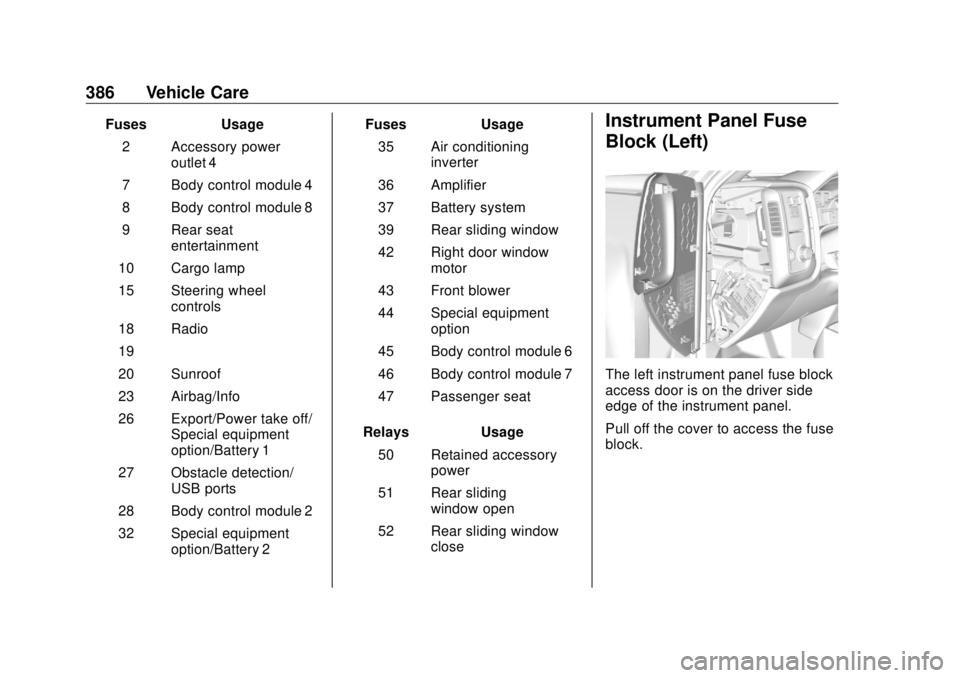

386 Vehicle Care Fuses Usage
2 Accessory power
outlet 4
7 Body control module 4
8 Body control module 8
9 Rear seat
entertainment
10 Cargo lamp
15 Steering wheel
controls
18 Radio
19 –
20 Sunroof
23 Airbag/Info
26 Export/Power take off/
Special equipment
option/Battery 1
27 Obstacle detection/
USB ports
28 Body control module 2
32 Special equipment
option/Battery 2 Fuses Usage
35 Air conditioning
inverter
36 Amplifier
37 Battery system
39 Rear sliding window
42 Right door window
motor
43 Front blower
44 Special equipment
option
45 Body control module 6
46 Body control module 7
47 Passenger seat
Relays Usage
50 Retained accessory
power
51 Rear sliding
window open
52 Rear sliding window

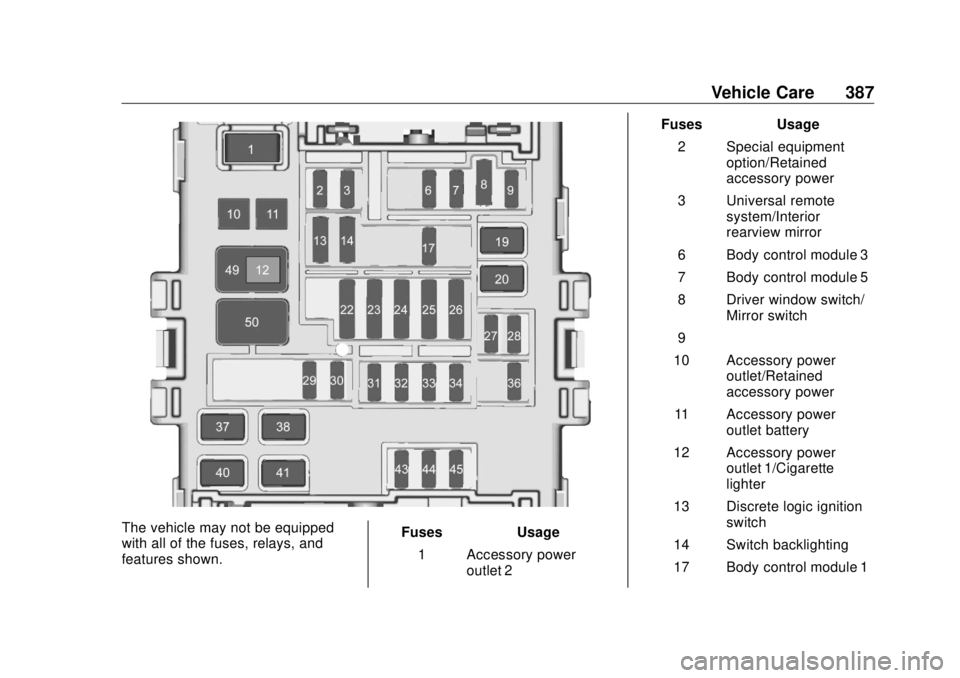

close Instrument Panel Fuse
Block (Left)
The left instrument panel fuse block
access door is on the driver side
edge of the instrument panel.
Pull off the cover to access the fuse
block.

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-11349177) - 2018 - CRC - 10/17/17
Vehicle Care 387
The vehicle may not be equipped
with all of the fuses, relays, and
features shown. Fuses Usage
1 Accessory power
outlet 2 Fuses Usage
2 Special equipment
option/Retained
accessory power
3 Universal remote
system/Interior
rearview mirror
6 Body control module 3
7 Body control module 5
8 Driver window switch/
Mirror switch
9 –
10 Accessory power
outlet/Retained
accessory power
11 Accessory power
outlet battery
12 Accessory power
outlet 1/Cigarette
lighter
13 Discrete logic ignition
switch
14 Switch backlighting
17 Body control module 1

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-11349177) - 2018 - CRC - 10/17/17

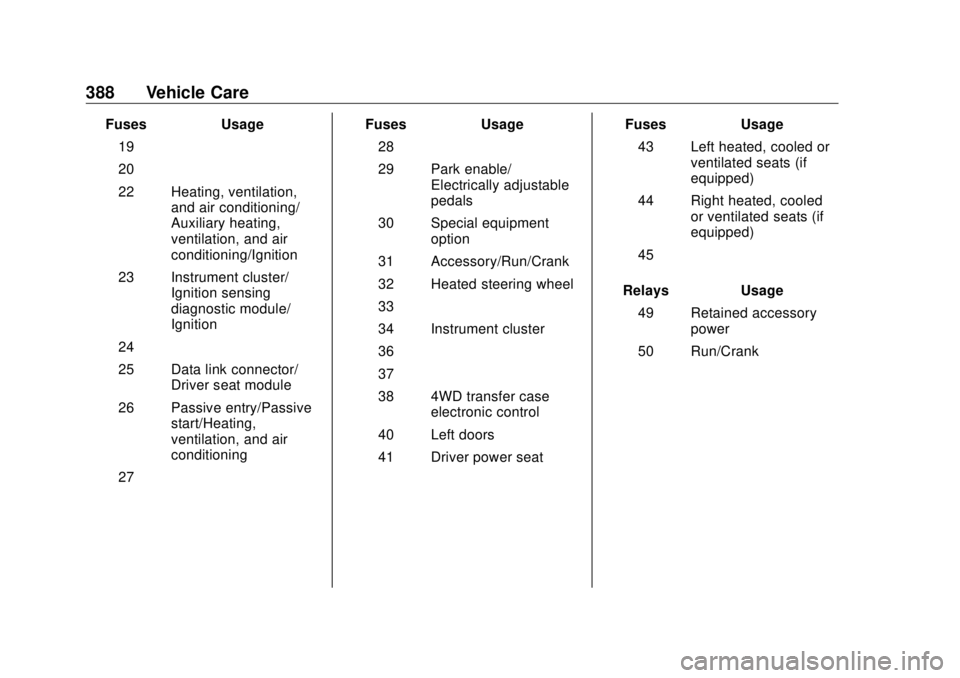

388 Vehicle Care Fuses Usage
19 –
20 –
22 Heating, ventilation,
and air conditioning/
Auxiliary heating,
ventilation, and air
conditioning/Ignition
23 Instrument cluster/
Ignition sensing
diagnostic module/
Ignition
24 –
25 Data link connector/
Driver seat module
26 Passive entry/Passive
start/Heating,
ventilation, and air
conditioning
27 – Fuses Usage
28 –
29 Park enable/
Electrically adjustable
pedals
30 Special equipment
option
31 Accessory/Run/Crank
32 Heated steering wheel
33 –
34 Instrument cluster
36 –
37 –
38 4WD transfer case
electronic control
40 Left doors
41 Driver power seat Fuses Usage
43 Left heated, cooled or
ventilated seats (if
equipped)
44 Right heated, cooled
or ventilated seats (if
equipped)
45 –
Relays Usage
49 Retained accessory
power
50 Run/Crank

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-11349177) - 2018 - CRC - 10/17/17
Vehicle Care 389

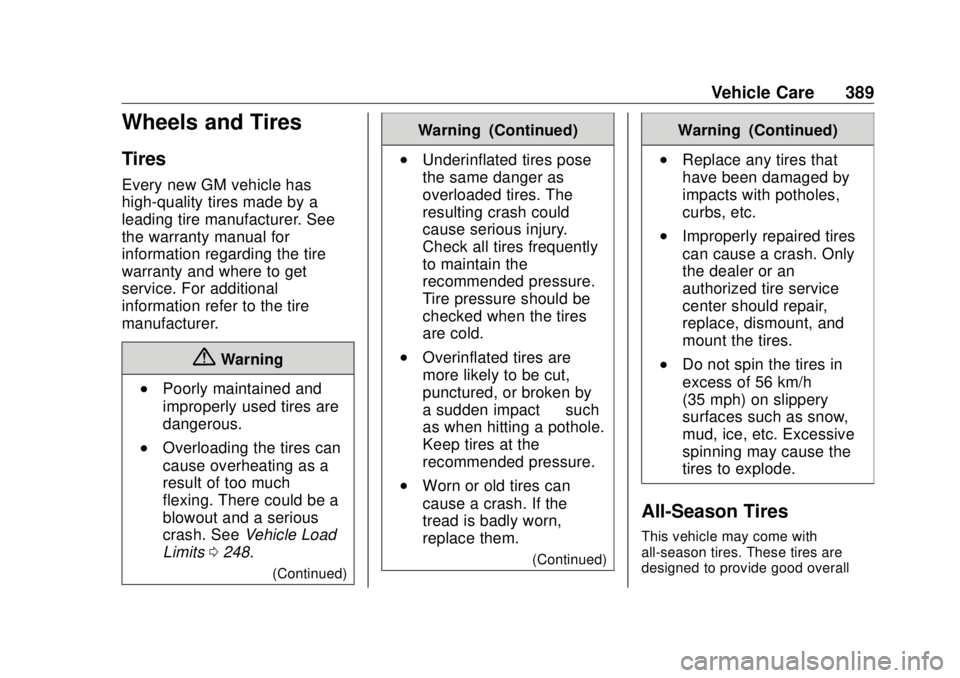

Wheels and Tires Tires Every new GM vehicle has
high-quality tires made by a
leading tire manufacturer. See
the warranty manual for
information regarding the tire
warranty and where to get
service. For additional
information refer to the tire
manufacturer.
{ Warning.
Poorly maintained and
improperly used tires are
dangerous..
Overloading the tires can
cause overheating as a
result of too much
flexing. There could be a
blowout and a serious
crash. See Vehicle Load
Limits 0 248 .
(Continued) Warning (Continued) .
Underinflated tires pose
the same danger as
overloaded tires. The
resulting crash could
cause serious injury.
Check all tires frequently
to maintain the
recommended pressure.
Tire pressure should be
checked when the tires
are cold. .
Overinflated tires are
more likely to be cut,
punctured, or broken by
a sudden impact — such
as when hitting a pothole.
Keep tires at the
recommended pressure.
.
Worn or old tires can
cause a crash. If the
tread is badly worn,
replace them.
(Continued) Warning (Continued) .
Replace any tires that
have been damaged by
impacts with potholes,
curbs, etc. .
Improperly repaired tires
can cause a crash. Only
the dealer or an
authorized tire service
center should repair,
replace, dismount, and
mount the tires. .
Do not spin the tires in
excess of 56 km/h
(35 mph) on slippery
surfaces such as snow,
mud, ice, etc. Excessive
spinning may cause the
tires to explode.
All-Season Tires This vehicle may come with
all-season tires. These tires are
designed to provide good overall
