Vehicle Care 293
Fuses of the same amperage can
be temporarily borrowed from
another fuse location, if a fuse goes
out. Replace the fuse as soon as
possible.
There is a fuse puller in the engine
compartment fuse block. See
Engine Compartment Fuse Block
0293. It can be used to easily
remove fuses from the fuse block.
To identify and check fuses,
circuit breakers, and relays see
Engine Compartment Fuse Block
0 293,Instrument Panel Fuse Block
0 296 andRear Compartment Fuse
Block 0298.Engine Compartment
Fuse Block
To remove the fuse block cover,
squeeze the clips on the cover and
lift it straight up. See Engine
Compartment Overview 0264.
Caution
Spilling liquid on any electrical
component on the vehicle may
damage it. Always keep the
covers on any electrical
component.

GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-10664916) - 2018 - crc - 9/15/17
294 Vehicle Care
The vehicle may not be equipped
with all of the fuses, relays, and
features shown.Fuses Usage
F01 Starter 1
F02 Starter 2
F03 Lambda sensor 1
F04 Engine control module Fuses Usage
F05 FlexFuel sensor
F06 Transmission control module
F07 –
F08 Engine control module
F09 Air conditioning clutch Fuses Usage
F10 Canister ventF11 Fuel system
F12 Front heated seats
F13 Afterboil pump
F14 –
F15 Lambda sensor 2
F16 Fuel injectors –odd
F17 Fuel injectors –even
F18 –/Selective catalytic
reduction module
(diesel only)
F19 –/NOx soot sensor
(diesel only)
F20 DC DC converter 2
F21 Shift control
F22 Antilock brake pump
F23 Front washer
F24 –
F25 –/Diesel fuel heater
(diesel only)
F26 –

GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-10664916) - 2018 - crc - 9/15/17
Vehicle Care 295
FusesUsage
F27 Antilock brake VAL
F28 LD trailer
F29 Rear window defogger
F30 Mirror defroster
F31 –
F32 Variable functions
F33 –
F34 Horn
F35 Vacuum pump
F36 Right high-beam headlamp
F37 Left high-beam headlamp
F38 Automatic headlamp leveling
F39 Fog lamps
F40 –
F41 Transmission range control module
F42 Motorized headlamp Fuses
Usage
F43 Fuel pump
F44 Interior rearview mirror
F45 Canister vent solenoid
F46 Driver side Ventilated Seat
F47 Steering column lock assembly
F48 Rear wiper
F49 –
F50 Heated steering wheel
F51 Right headlamp
F52 Engine control module/
Transmission control
F53 –
F54 Front wiper
F55 Front wiper speed/ Control
F56 – Fuses
Usage
F57 Left headlamp
Relays Usage
K01 Starter solenoid
K02 Air conditioning control
K03 –
K04 Wiper control
K05 Starter Solenoid
K06 –/Fuel
heater (diesel only)
K07 –
K08 –
K09 Wiper speed
K10 –
K11 –
K12 High-beam headlamps
K13 Headlamps/Daytime running lamps
K14 Run/Crank

GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-10664916) - 2018 - crc - 9/15/17
296 Vehicle Care
RelaysUsage
K15 Rear window defogger
*K16 Horn
*K17 Selective catalytic reduction
*K18 Fog lamps
*K19 Coolant pump
*K20 –
*K21 Rear washer
*K22 Front washer
*K23 Wiper control

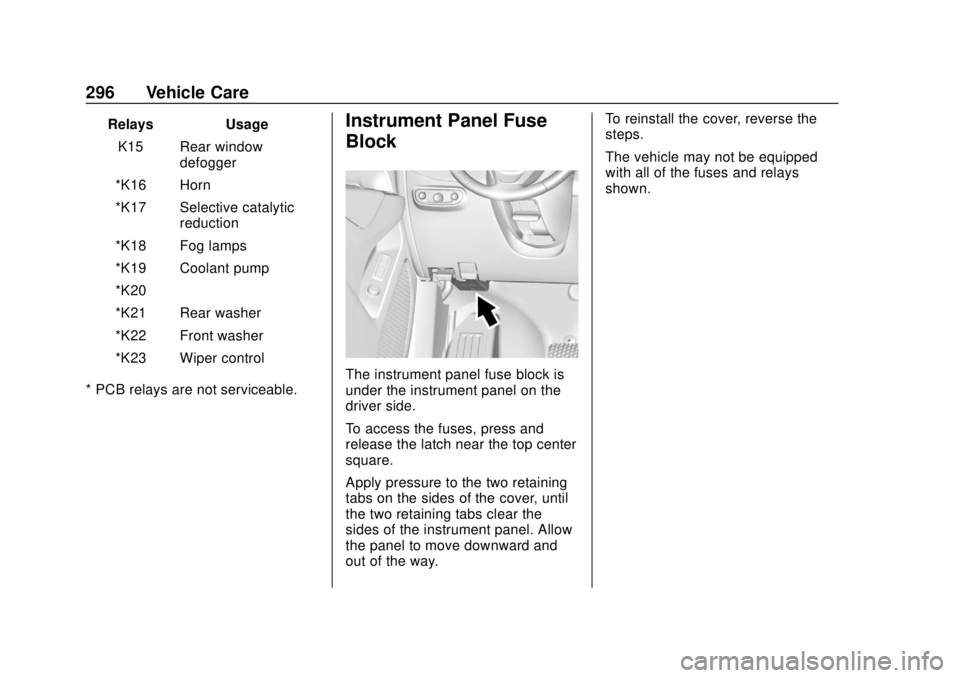

* PCB relays are not serviceable.Instrument Panel Fuse
Block
The instrument panel fuse block is
under the instrument panel on the
driver side.
To access the fuses, press and
release the latch near the top center
square.
Apply pressure to the two retaining
tabs on the sides of the cover, until
the two retaining tabs clear the
sides of the instrument panel. Allow
the panel to move downward and
out of the way. To reinstall the cover, reverse the
steps.
The vehicle may not be equipped
with all of the fuses and relays
shown.

GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-10664916) - 2018 - crc - 9/15/17
298 Vehicle Care
FusesUsage
F32 Body control module 8
F33 Heating, ventilation, and air conditioning
F34 Passive entry, passive start
F35 Liftgate latch
F36 Shift charger
F37 Cigarette lighter
F38 OnStar
F39 Instrument panel USB
F40 Camera module/ Liftgate module
F41 Parking assist module
F42 Radio
Relays Usage
K01 Deadbolt
K02 Retained accessory power Relays
Usage
K03 Liftgate
K04 –
K05 Logistics
Circuit
Breakers Usage
CB1 Front auxiliary power outlet
CB2 Auxiliary power outlet consoleRear Compartment Fuse
Block
The rear compartment fuse block is
behind a trim panel on the side of
the rear compartment.

GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-10664916) - 2018 - crc - 9/15/17
Vehicle Care 299
Remove the trim plate to access the
fuse block.
The vehicle may not be equipped
with all of the fuses and relays
shown.
FusesUsage
F1 Exhaust fuel heater
F2 Liftgate Fuses
Usage
F3 Trailer auxiliary power
F4 Power seats
F5 Memory seat module
F6 Sunroof
F7 Side blind zone alert
F8 Trailer reverse lamps
F9 Rear heated seat 1
F10 Parking assist F11 Rear heated seat 2
F12 –
F13 Trailer parking lamp
F14 Right trailer turn signal lamp
F15 Left parking lamp
F16 Right parking lamp
F17 –

GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-10664916) - 2018 - crc - 9/15/17
300 Vehicle Care
FusesUsage
F18 Left trailer turn signal lamp
F19 All-wheel drive
F20 Lumbar
F21 Rear auxiliary power outlet
F22 Rear drive unit
Relays Usage
K1 Right trailer stoplamp/Turn
signal lamp
K2 Trailer reverse lamps
K3 Left trailer stoplamp/Turn
signal lamp
K4 Park lamps
K5 Selective catalytic reduction (SCR) –
