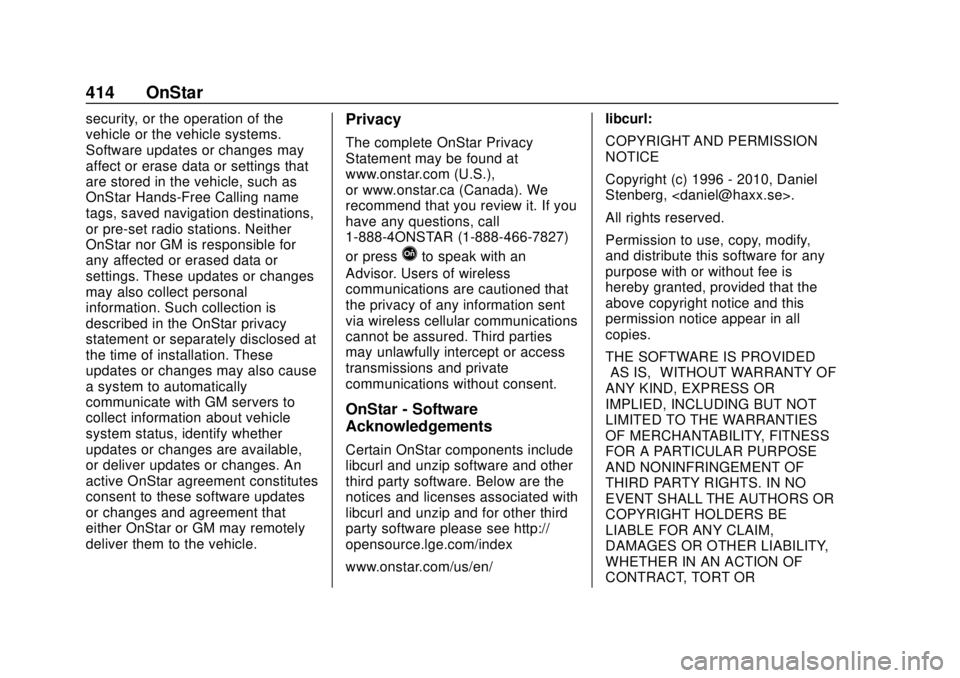

414 OnStar
security, or the operation of the
vehicle or the vehicle systems.
Software updates or changes may
affect or erase data or settings that
are stored in the vehicle, such as
OnStar Hands-Free Calling name
tags, saved navigation destinations,
or pre-set radio stations. Neither
OnStar nor GM is responsible for
any affected or erased data or
settings. These updates or changes
may also collect personal
information. Such collection is
described in the OnStar privacy
statement or separately disclosed at
the time of installation. These
updates or changes may also cause
a system to automatically
communicate with GM servers to
collect information about vehicle
system status, identify whether
updates or changes are available,
or deliver updates or changes. An
active OnStar agreement constitutes
consent to these software updates
or changes and agreement that
either OnStar or GM may remotely
deliver them to the vehicle.Privacy
The complete OnStar Privacy
Statement may be found at
www.onstar.com (U.S.),
or www.onstar.ca (Canada). We
recommend that you review it. If you
have any questions, call
1-888-4ONSTAR (1-888-466-7827)
or press
Qto speak with an
Advisor. Users of wireless
communications are cautioned that
the privacy of any information sent
via wireless cellular communications
cannot be assured. Third parties
may unlawfully intercept or access
transmissions and private
communications without consent.
OnStar - Software
Acknowledgements
Certain OnStar components include
libcurl and unzip software and other
third party software. Below are the
notices and licenses associated with
libcurl and unzip and for other third
party software please see http://
opensource.lge.com/index
www.onstar.com/us/en/ libcurl:
COPYRIGHT AND PERMISSION
NOTICE
Copyright (c) 1996 - 2010, Daniel
Stenberg, .
All rights reserved.
Permission to use, copy, modify,
and distribute this software for any
purpose with or without fee is
hereby granted, provided that the
above copyright notice and this
permission notice appear in all
copies.
THE SOFTWARE IS PROVIDED
“AS IS,”
WITHOUT WARRANTY OF
ANY KIND, EXPRESS OR
IMPLIED, INCLUDING BUT NOT
LIMITED TO THE WARRANTIES
OF MERCHANTABILITY, FITNESS
FOR A PARTICULAR PURPOSE
AND NONINFRINGEMENT OF
THIRD PARTY RIGHTS. IN NO
EVENT SHALL THE AUTHORS OR
COPYRIGHT HOLDERS BE
LIABLE FOR ANY CLAIM,
DAMAGES OR OTHER LIABILITY,
WHETHER IN AN ACTION OF
CONTRACT, TORT OR

GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-12146071) - 2019 - crc - 7/27/18
Connected Services 417
Connected
Services
Connected Services
Navigation . . . . . . . . . . . . . . . . . . . . 417
Connections . . . . . . . . . . . . . . . . . . 418
Diagnostics . . . . . . . . . . . . . . . . . . . 420
Connected Services
Navigation
Navigation requires a specific
OnStar or connected service plan.
Press
Qto receive Turn-by-Turn
directions or have them sent to the
vehicle’s navigation screen,
if equipped.
Turn-by-Turn Navigation
1. PressQto connect to an
Advisor.
2. Request directions to be downloaded to the vehicle.
3. Follow the voice-guided commands.
Using Voice Commands
During a Planned Route
Functionality of the Voice Command
button, if equipped, may vary by
vehicle and region. For some
vehicles, press
=to open the OnStar app on the infotainment
display. For other vehicles press
=
as follows.
Cancel Route
1. Press
=. System responds:
“OnStar ready,” then a tone.
2. Say “Cancel route.” System
responds: “Do you want to
cancel directions?”
3. Say “Yes.”System responds:
“OK, request completed, thank
you, goodbye.”
Route Preview
1. Press
=. System responds:
“OnStar ready,” then a tone.
2. Say “Route preview.” System
responds with the next three
maneuvers.
Repeat
1. Press
=. System responds:
“OnStar ready,” then a tone.

GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-12146071) - 2019 - crc - 7/27/18
418 Connected Services
2. Say“Repeat.” System
responds with the last direction
given, then responds with
“OnStar ready,” then a tone.
Get My Destination
1. Press
=. System responds:
“OnStar ready,” then a tone.
2. Say “Get my destination.”
System responds with the
address and distance to the
destination, then responds with
“OnStar ready,” then a tone.
Send Destination to Vehicle
Directions can be sent to the
vehicle’s navigation screen,
if equipped.
Press
Q, then ask the Advisor to
download directions to the vehicle’s
navigation system, if equipped. After
the call ends, the navigation screen
will provide prompts to begin driving
directions. Routes that are sent to
the navigation screen can only be
canceled through the navigation
system. See www.onstar.com (U.S.) or
www.onstar.ca (Canada).
Connections
The following services help with
staying connected.
For coverage maps, see
www.onstar.com (U.S.) or
www.onstar.ca (Canada).
Ensuring Security
.
Change the default passwords
for the Wi-Fi hotspot and
myGMC mobile application.
Make these passwords different
from each other and use a
combination of letters, numbers,
and symbols to increase the
security.
. Change the default name of the
SSID (Service Set Identifier).
This is your network’s name that
is visible to other wireless
devices. Choose a unique name
and avoid family names or
vehicle descriptions. Wi-Fi Hotspot (If Equipped)
The vehicle may have a built-in
Wi-Fi hotspot that provides access
to the Internet and web content at
4G LTE speed. Up to seven mobile
devices can be connected. A data
plan is required. Use the in-vehicle
controls only when it is safe to
do so.
1. To retrieve Wi-Fi hotspot information, press
=to open
the OnStar app on the
infotainment display, then
select Wi-Fi Hotspot. On some
vehicles, touch Wi-Fi or Wi-Fi
Settings on the screen.
2. The Wi-Fi settings will display the Wi-Fi hotspot name (SSID),
password, and on some
vehicles, the connection type
(no Internet connection, 3G,
4G, 4G LTE), and signal quality
(poor, good, excellent).
3. To change the SSID or password, press
Qor call
1-888-4ONSTAR to connect
with an Advisor. On some

GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/-
Mexico-12146071) - 2019 - crc - 7/27/18
Index 423
Child Restraints (cont'd)Securing . . . . . . . . . . . . . . . . . 104, 106
Systems . . . . . . . . . . . . . . . . . . . . . . . . 95
Circuit Breakers . . . . . . . . . . . . . . . . 318
Cleaning
Exterior Care . . . . . . . . . . . . . . . . . 367
Interior Care . . . . . . . . . . . . . . . . . . 371
Climate Control Systems . . . . . . . 170 Air Conditioning . . . . . . . . . . . . . . 170
Dual Automatic . . . . . . . . . . . . . . . 172
Heating . . . . . . . . . . . . . . . . . . . . . . . 170
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Cluster, Instrument . . . . . . . . 122, 125
Cold Weather Operation . . . . . . . . 264
Collision Damage Repair . . . . . . . 402
Compact Spare Tire . . . . . . . . . . . . 359
Compartments Storage . . . . . . . . . . . . . . . . . . . . . . . 109
Compass . . . . . . . . . . . . . . . . . . . . . . . 116
Compressor Kit, Tire Sealant . . . 347
Connected Services Connections . . . . . . . . . . . . . . . . . . 418
Diagnostics . . . . . . . . . . . . . . . . . . . 420
Navigation . . . . . . . . . . . . . . . . . . . . 417
Connections Connected Services . . . . . . . . . . 418
Control Hill Descent . . . . . . . . . . . . . . . . . . 225 Control (cont'd)
Traction and Electronic
Stability . . . . . . . . . . . . . . . . . . . . . 222
Control Light
Hill Descent . . . . . . . . . . . . . . . . . . 137
Control of a Vehicle . . . . . . . . . . . . . 181
Convenience Net . . . . . . . . . . . . . . . 111
Convex Mirrors . . . . . . . . . . . . . . . . . . 51
Coolant Engine Temperature Gauge . . 130
Cooling . . . . . . . . . . . . . . . . . . . . 170, 172
Cooling System . . . . . . . . . . . . . . . . . 301
Courtesy Lamps . . . . . . . . . . . . . . . . 166
Courtesy Transportation Program . . . . . . . . . . . . . . . . . . . . . . . 401
Cover Cargo . . . . . . . . . . . . . . . . . . . . . . . . . .110
Cruise Control . . . . . . . . . . . . . . . . . . 230
Light . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Cruise Control, Adaptive . . . . . . . . 232
Cupholders . . . . . . . . . . . . . . . . . . . . . 109
Customer Assistance . . . . . . . . . . . 398 Offices . . . . . . . . . . . . . . . . . . . . . . . . 397
Text Telephone (TTY)
Users . . . . . . . . . . . . . . . . . . . . . . . 398
Customer Information Publications OrderingInformation . . . . . . . . . . . . . . . . . . 404 Customer Satisfaction
Procedure . . . . . . . . . . . . . . . . . . . . . 395
D
Damage Repair, Collision . . . . . . . 402
Danger, Warning, and Caution . . . . 3
Data Collection
Infotainment System . . . . . . . . . . 408
OnStar . . . . . . . . . . . . . . . . . . . . . . . 408
Data Recorders, Event . . . . . . . . . 407
Daytime Running Lamps (DRL) . . . . . . . . . . . . . . . . . . 163
Defensive Driving . . . . . . . . . . . . . . . 181
Delayed Locking . . . . . . . . . . . . . . . . . 40
Diagnostics Connected Services . . . . . . . . . . 420
Diesel Exhaust Fluid . . . . . . . . 28, 208
Diesel Exhaust Fluid (DEF)
Warning Light . . . . . . . . . . . . . . . . . 140
Diesel Particulate Filter . . . . . . . . . 207
Distracted Driving . . . . . . . . . . . . . . . 180
Dome Lamps . . . . . . . . . . . . . . . . . . . 166
Door Delayed Locking . . . . . . . . . . . . . . . . 40
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Power Locks . . . . . . . . . . . . . . . . . . . . 40
Drive Belt Routing, Engine . . . . . . 394

GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/-
Mexico-12146071) - 2019 - crc - 7/27/18
428 Index
N
NavigationConnected Services . . . . . . . . . . 417
Net, Convenience . . . . . . . . . . . . . . 111
New Vehicle Break-In . . . . . . . . . . . 195
O
Odometer . . . . . . . . . . . . . . . . . . . . . . . 128 Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Off-Road . . . . . . . . . . . . . . . . . . . . . . . 183 Driving . . . . . . . . . . . . . . . . . . . . . . . . 183
Recovery . . . . . . . . . . . . . . . . . . . . . 182
Oil Engine . . . . . . . . . . . . . . . . . . . . . . . . 294
Engine Oil Life System . . . . . . . 298
Pressure Light . . . . . . . . . . . . . . . . 139
Older Children, Restraints . . . . . . . 91
Online Owner Center . . . . . . . . . . . 398
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . 408
OnStar Additional Information . . . . . . . . . . . . . . . . . . . . 411
OnStar Emergency . . . . . . . . . . . . . 410
OnStar Overview . . . . . . . . . . . . . . . 409
OnStar Security . . . . . . . . . . . . . . . . 411
Operation Fog Lamps . . . . . . . . . . . . . . . . . . . 165
Outlets Power . . . . . . . . . . . . . . . . . . . . . . . . .117 Overheating, Engine . . . . . . . . . . . . 305
P
Park
Shifting Into . . . . . . . . . . . . . . . . . . . 202
Shifting Out of . . . . . . . . . . . . . . . . 203
Park Assist . . . . . . . . . . . . . . . . . . . . . 243
Parking
Brake and P (Park)Mechanism Check . . . . . . . . . . .311
Extended . . . . . . . . . . . . . . . . . . . . . 205
Over Things That Burn . . . . . . . 205
Parking or Backing Assistance Systems . . . . . . . . . . 243
Passenger Airbag Status Indicator . . . . . . . . . . . . . . . . . . . . . . 132
Passenger Compartment Air
Filter . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Passenger Sensing System . . . . . 85
Pedestrian Ahead Indicator . . . . . 137
Perchlorate Materials Requirements, California . . . . . . 286
Personalization Vehicle . . . . . . . . . . . . . . . . . . . . . . . 152
Power Door Locks . . . . . . . . . . . . . . . . . . . . . 40
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Outlets . . . . . . . . . . . . . . . . . . . . . . . .117 Power (cont'd)
Protection, Battery . . . . . . . . . . . . 168
Retained Accessory (RAP) . . . 202
Seat Adjustment . . . . . . . . . . . . . . . . 60
Windows . . . . . . . . . . . . . . . . . . . . . . . 53
Pregnancy, Using Seat Belts . . . . 77
Privacy Vehicle Data Recording . . . . . . . 407
Program
Courtesy Transportation . . . . . . 401
Prohibited Fuels . . . . . . . . . . . . . . . . 261
Proposition 65 Warning,
California . . . . . . . . . . . .285, 309, 360, Back Cover
Publication Ordering Information . . . . . . . . . . . . . . . . . . . . 404
R
Radio Frequency Statement . . . . 405
Reading Lamps . . . . . . . . . . . . . . . . . 167
Rear Seats . . . . . . . . . . . . . . . . . . . . . . 67Heated . . . . . . . . . . . . . . . . . . . . . . . . . 70
Rear Vision Camera (RVC) . . . . . 243
Rear Window Washer/Wiper . . . . 115
Rearview Mirrors . . . . . . . . . . . . . . . . 52
Automatic Dimming . . . . . . . . . . . . . 52
Reclining Seatbacks . . . . . . . . . . . . . 61
