recommended oil GMC TERRAIN 2019 Owner's Guide

GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-12146071) - 2019 - crc - 7/27/18
378 Service and Maintenance
Maintenance
Schedule
Owner Checks and Services
At Each Fuel Stop
.Check the engine oil level. See
Engine Oil 0294.
Once a Month
. Check the tire inflation
pressures. See Tire Pressure
0 332.
. Inspect the tires for wear. See
Tire Inspection 0339.
. Check the windshield washer
fluid level. See Washer Fluid
0 307.
Engine Oil Change
When the CHANGE ENGINE OIL
SOON message displays, have the
engine oil and filter changed within
the next 1 000 km/600 mi. If driven
under the best conditions, the
engine oil life system may not
indicate the need for vehicle service
for up to a year. The engine oil and filter must be changed at least once
a year and the oil life system must
be reset. Your trained dealer
technician can perform this work.
If the engine oil life system is reset
accidentally, service the vehicle
within 5 000 km/3,000 mi since the
last service. Reset the oil life
system when the oil is changed.
See
Engine Oil Life System 0298.
On vehicles with diesel engines, it is
recommended to drain the diesel
fuel filter of water when the oil is
changed or when the WATER IN
FUEL CONTACT SERVICE
message displays.
Air Conditioning Desiccant
(Replace Every Seven Years)
The air conditioning system requires
maintenance every seven years.
This service requires replacement of
the desiccant to help the longevity
and efficient operation of the air
conditioning system. This service
can be complex. See your dealer.
Tire Rotation and Required
Services Every 12 000 km/
7,500 mi
Rotate the tires, if recommended for
the vehicle, and perform the
following services. See Tire
Rotation 0339.
. Check engine oil level and oil
life percentage. If needed,
change engine oil and filter, and
reset oil life system.
See Engine Oil 0294 and
Engine Oil Life System 0298.
. Check engine coolant level. See
Cooling System 0301.
. Check windshield washer fluid
level. See Washer Fluid 0307.
Check tire inflation pressures.
See Tire Pressure 0332.
. Inspect tire wear. See Tire
Inspection 0339.
. Visually check for fluid leaks.
. Inspect engine air cleaner filter.
See Engine Air Cleaner/Filter
0 299.

GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-12146071) - 2019 - crc - 7/27/18
384 Service and Maintenance
Additional
Maintenance and Care
Your vehicle is an important
investment and caring for it properly
may help to avoid future costly
repairs. To maintain vehicle
performance, additional
maintenance services may be
required.
It is recommended that your dealer
perform these services—their
trained dealer technicians know
your vehicle best. Your dealer can
also perform a thorough
assessment with a multi-point
inspection to recommend when your
vehicle may need attention.
The following list is intended to
explain the services and conditions
to look for that may indicate
services are required.
Battery
The 12-volt battery supplies power
to start the engine and operate any
additional electrical accessories. .
To avoid break-down or failure to
start the vehicle, maintain a
battery with full cranking power.
. Trained dealer technicians have
the diagnostic equipment to test
the battery and ensure that the
connections and cables are
corrosion-free.
Belts
. Belts may need replacing if they
squeak or show signs of
cracking or splitting.
. Trained dealer technicians have
access to tools and equipment
to inspect the belts and
recommend adjustment or
replacement when necessary.
Brakes
Brakes stop the vehicle and are
crucial to safe driving.
. Signs of brake wear may include
chirping, grinding, or squealing
noises, or difficulty stopping. .
Trained dealer technicians have
access to tools and equipment
to inspect the brakes and
recommend quality parts
engineered for the vehicle.
Fluids
Proper fluid levels and approved
fluids protect the vehicle’s systems
and components. See
Recommended Fluids and
Lubricants 0387 for GM approved
fluids.
. Engine oil and windshield
washer fluid levels should be
checked at every fuel fill.
. Instrument cluster lights may
come on to indicate that fluids
may be low and need to be
filled.
Hoses
Hoses transport fluids and should
be regularly inspected to ensure
that there are no cracks or leaks.
With a multi-point inspection, your
dealer can inspect the hoses and
advise if replacement is needed.

GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-12146071) - 2019 - crc - 7/27/18
Service and Maintenance 387

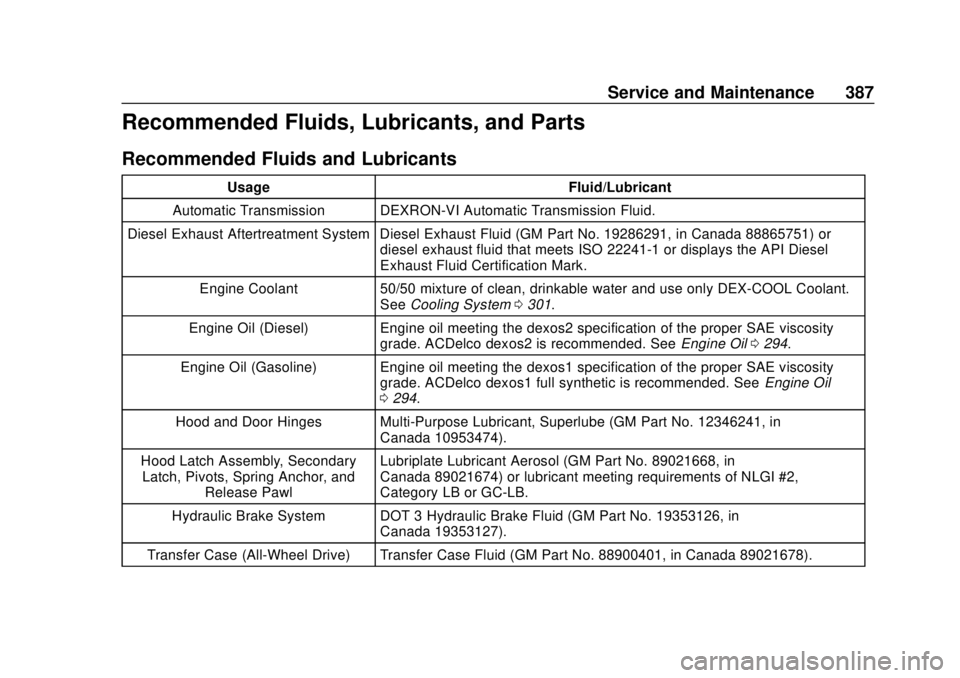

Recommended Fluids, Lubricants, and Parts
Recommended Fluids and Lubricants
UsageFluid/Lubricant
Automatic Transmission DEXRON-VI Automatic Transmission Fluid.
Diesel Exhaust Aftertreatment System Diesel Exhaust Fluid (GM Part No. 19286291, in Canada 88865751) or diesel exhaust fluid that meets ISO 22241-1 or displays the API Diesel
Exhaust Fluid Certification Mark.
Engine Coolant 50/50 mixture of clean, drinkable water and use only DEX-COOL Coolant.
See Cooling System 0301.
Engine Oil (Diesel) Engine oil meeting the dexos2 specification of the proper SAE viscosity
grade. ACDelco dexos2 is recommended. See Engine Oil0294.
Engine Oil (Gasoline) Engine oil meeting the dexos1 specification of the proper SAE viscosity grade. ACDelco dexos1 full synthetic is recommended. See Engine Oil
0 294.
Hood and Door Hinges Multi-Purpose Lubricant, Superlube (GM Part No. 12346241, in Canada 10953474).
Hood Latch Assembly, Secondary Latch, Pivots, Spring Anchor, and
Release Pawl Lubriplate Lubricant Aerosol (GM Part No. 89021668, in
Canada 89021674) or lubricant meeting requirements of NLGI #2,
Category LB or GC-LB.
Hydraulic Brake System DOT 3 Hydraulic Brake Fluid (GM Part No. 19353126, in Canada 19353127).
Transfer Case (All-Wheel Drive) Transfer Case Fluid (GM Part No. 88900401, in Canada 89021678).

GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/-
Mexico-12146071) - 2019 - crc - 7/27/18
Index 427
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . 42
LightingEntry . . . . . . . . . . . . . . . . . . . . . . . . . 167
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Illumination Control . . . . . . . . . . . 166
LED . . . . . . . . . . . . . . . . . . . . . . . . . . 315
Lights
Airbag Readiness . . . . . . . . . . . . . 131
Antilock Brake System(ABS) Warning . . . . . . . . . . . . . . 136
Brake System Warning . . . . . . . 135
Charging System . . . . . . . . . . . . . 133
Check Engine (Malfunction
Indicator) . . . . . . . . . . . . . . . . . . . . 133
Cruise Control . . . . . . . . . . . . . . . . 141
Diesel Exhaust Fluid (DEF) . . . 140
Electric Parking Brake . . . . . . . . 136
Engine Oil Pressure . . . . . . . . . . 139
Flash-to-Pass . . . . . . . . . . . . . . . . . 163
Front Fog Lamp . . . . . . . . . . . . . . 141
High-Beam On . . . . . . . . . . . . . . . . 141
High/Low Beam Changer . . . . . 163
Hill Descent Control . . . . . . . . . . 137
Lane Keep Assist . . . . . . . . . . . . . 137
Low Fuel Warning . . . . . . . . . . . . 140
Seat Belt Reminders . . . . . . . . . . 131
Security . . . . . . . . . . . . . . . . . . . . . . 141 Lights (cont'd)
Service Electric Parking
Brake . . . . . . . . . . . . . . . . . . . . . . . 136
StabiliTrak OFF . . . . . . . . . . . . . . . 138
Tire Pressure . . . . . . . . . . . . . . . . . 139
Tow/Haul Mode . . . . . . . . . . . . . . . 137
Traction Control System
(TCS)/StabiliTrak . . . . . . . . . . . . 138
Traction Off . . . . . . . . . . . . . . . . . . . 138
Wait to Start . . . . . . . . . . . . . . . . . . 139
Locks Automatic Door . . . . . . . . . . . . . . . . . 41
Delayed Locking . . . . . . . . . . . . . . . . 40
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Lockout Protection . . . . . . . . . . . . . . 41
Power Door . . . . . . . . . . . . . . . . . . . . . 40
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Loss of Control . . . . . . . . . . . . . . . . . 183
Low Fuel Warning Light . . . . . . . . . 140
Lower Anchors and Tethers
for Children (LATCH
System) . . . . . . . . . . . . . . . . . . . . . . . . 98
Lumbar Adjustment . . . . . . . . . . . . . . 61
Front Seats . . . . . . . . . . . . . . . . . . . . . 61
M
MaintenanceRecords . . . . . . . . . . . . . . . . . . . . . . 390 Maintenance and Care
Additional . . . . . . . . . . . . . . . . . . . . . 384
Maintenance Schedule . . . . . . . . . 378 Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . . 387
Malfunction Indicator Lamp . . . . . 133
Manual Mode . . . . . . . . . . . . . . . . . . . 217
Memory Features . . . . . . . . . . . . . . . . 12
Memory Seats . . . . . . . . . . . . . . . . . . . 62
Messages Engine Power . . . . . . . . . . . . . . . . 152
Vehicle . . . . . . . . . . . . . . . . . . . . . . . 151
Vehicle Speed . . . . . . . . . . . . . . . . 152
Mirrors Automatic Dimming . . . . . . . . . . . . . 52
Automatic DimmingRearview . . . . . . . . . . . . . . . . . . . . . . 52
Convex . . . . . . . . . . . . . . . . . . . . . . . . . 51
Folding . . . . . . . . . . . . . . . . . . . . . . . . . 51
Heated . . . . . . . . . . . . . . . . . . . . . . . . . 51
Manual Rearview . . . . . . . . . . . . . . . 52
Power . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Tilt in Reverse . . . . . . . . . . . . . . . . . . 52
Mirrors, Interior Rearview . . . . . . . . 52
Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 226 Driver Control . . . . . . . . . . . . . . . . . 226
Monitor System, Tire Pressure . . . . . . . . . . . . . . . . . . . . . . 334
