Technical Data 391
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . . 391
Service Parts Identification Label . . . . . . . . . . . . . . . . . . . . . . . . 391
Vehicle Data
Capacities andSpecifications . . . . . . . . . . . . . . . 392
Engine Drive Belt Routing . . . . 394
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on
the driver side of the vehicle. It can
be seen through the windshield from
outside. The Vehicle Identification
Number (VIN) also appears on the
Vehicle Certification and Service
Parts labels and certificates of title
and registration.
Engine Identification
The eighth character in the VIN is
the engine code. This code
identifies the vehicle's engine,
specifications, and replacement parts. See
“Engine Specifications”
under Capacities and Specifications
0 392 for the vehicle's engine code.
Service Parts
Identification Label
There may be a label on the inside
of the glove box that contains the
following information:
.
Vehicle Identification
Number (VIN)
. Model designation
. Paint information
. Production options and special
equipment
If there is no label, there is a
barcode on the certification label on
the center (B) pillar to scan for this
same information.

GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-12146071) - 2019 - crc - 7/27/18
392 Technical Data
Vehicle Data
Capacities and Specifications
ApplicationCapacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant type and charge amount, see the refrigerant label under thehood. See your dealer for more information.
Engine Cooling System 1.5L L4 Gas Engine 6.6 L 7.0 qt
1.6L L4 Diesel Engine 7.5 L 7.9 qt
2.0L L4 Gas Engine 7.8 L 8.2 qt
Engine Oil with Filter 1.5L L4 Gas Engine AWD 5.0 L 5.3 qt
1.5L L4 Gas Engine FWD 4.0 L 4.2 qt
1.6L L4 Diesel Engine 5.0 L 5.3 qt
2.0L L4 Gas Engine AWD 5.7 L 6.0 qt
2.0L L4 Gas Engine FWD 4.7 L 5.0 qt
Fuel Tank
FWD 56.0 L 14.8 gal

GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-12146071) - 2019 - crc - 7/27/18

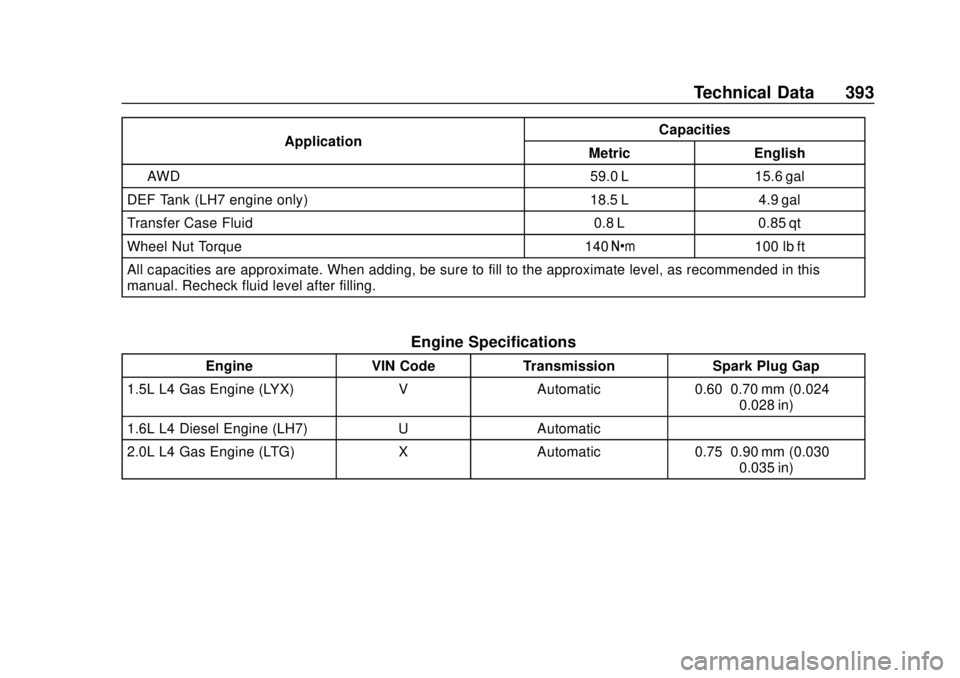

Technical Data 393
ApplicationCapacities
Metric English
AWD 59.0 L 15.6 gal
DEF Tank (LH7 engine only) 18.5 L 4.9 gal
Transfer Case Fluid 0.8 L 0.85 qt
Wheel Nut Torque 140 Y100 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck fluid level after filling.
Engine Specifications
Engine VIN CodeTransmission Spark Plug Gap
1.5L L4 Gas Engine (LYX) VAutomatic 0.60–0.70 mm (0.024–
0.028 in)
1.6L L4 Diesel Engine (LH7) UAutomatic —
2.0L L4 Gas Engine (LTG) XAutomatic 0.75–0.90 mm (0.030–
0.035 in)
