Heated Seats
The seats have the
heated seat feature,
the buttons used
to control this feature
are located on the front
doors near the door
handle.
I(Heated Seatback):Press this button to turn
on the heated seatback.
The light on the button will come on to indicate
that the feature is working. Press the button
to cycle through the temperature settings of high,
medium, and low and to turn the heat to the
seatback off. Indicator lights below the button show
the level of heat selected: three for high, two for
medium, and one for low.
J(Heated Seat and Seatback):Press this
button to turn on the heated seat and seatback.
The light on the button will come on to indicate that
the feature is working. Press the button to cycle
through the temperature settings of high, medium,
and low and to turn the heat to the seat off.
Indicator lights above the button will show the level
of heat selected: three for high, two for medium,
and one for low.
The heated seats will be canceled ten seconds
after the ignition is turned off. If you want to
use the heated seat feature after you restart your
vehicle, you will need to press the appropriate
heated seat or seatback button again.
11

Memory Seat, Mirrors, and Pedals
Your vehicle has the memory package.
The controls for this
feature are located on
the driver’s door
panel, and are used to
program and recall
memory settings for the
driver’s seat, outside
mirrors, and the
adjustable throttle and
brake pedal feature
if your vehicle has it.
To save your positions in memory, do the
following:
1. Adjust the driver’s seat, including the seatback
recliner and lumbar, both outside mirrors, and
the throttle and brake pedals to a comfortable
position.SeeOutside Power Foldaway Mirrors on
page 161andAdjustable Throttle and Brake
Pedal on page 143for more information.
Not all mirrors will have the ability to save and
recall the mirror positions.
2. Press and hold button 1 until two beeps let
you know that the position has been stored.
A second seating, mirror, and throttle and brake
pedal position can be programmed by repeating
the above steps and pressing button 2.
To recall the memory positions, the vehicle
must be in PARK (P). Press and release either
button 1 or button 2 corresponding to the desired
driving position. The seat, outside mirrors, and
adjustable throttle and brake pedals will move to
the position previously stored. You will hear a
single beep.
If you use the remote keyless entry transmitter to
enter your vehicle and the remote recall memory
feature is on, automatic seat, mirror, and
adjustable pedal movement will occur. See
“MEMORY SEAT RECALL” underDIC Vehicle
Customization (With DIC Buttons) on page 262for
more information.
12

To stop recall movement of the memory feature at
any time, press one of the power seat controls,
memory buttons, power mirror buttons, or
adjustable pedal switch.
If something has blocked the driver’s seat and/or
the adjustable pedals while recalling a memory
position, the driver’s seat and/or the adjustable
pedals recall may stop working. If this happens,
press the appropriate control for the area that
is not recalling for two seconds, after the
obstruction is removed. Then try recalling the
memory position again by pressing the appropriate
memory button. If the memory position is still
not recalling, see your dealer for service.Easy Exit Seat
The control for this feature is located on the
driver’s door panel between buttons 1 and 2.
With the vehicle in PARK (P), the exit position can
be recalled by pressing the exit button. You will
hear a single beep. The driver’s seat will
move back.
If the easy exit seat feature is on in the Driver
Information Center (DIC), automatic seat
movement will occur when the key is removed
from the ignition. See “EASY EXIT SEAT” under
DIC Vehicle Customization (With DIC Buttons)
on page 262for more information.
Further programming for the memory seat feature
can be done using the DIC. You can select or
not select the following:
The automatic easy exit seat feature
The remote memory seat recall feature
For programming information, seeDIC Vehicle
Customization (With DIC Buttons) on page 262.
13

Rear Seats
Heated Seats
The rear seats have the
heated seat feature,
the buttons used
to control this feature
are located on the
Rear Seat Audio (RSA)
panel.
M(Heated Seat):To heat the seat cushion,
press the button with the heated seat symbol.A heated seat symbol will be shown in the RSA
display to indicate that the feature is on. Press the
button to cycle through the temperature settings
of high, medium, and low, and to turn it off.
Indicator bars next to the symbol will designate
the level of heat selected: three for high,
two for medium, and one for low.
The heated seats will be canceled ten seconds
after the ignition is turned off. If the vehicle
is restarted, the heated seat button will need to
be pressed again to restart the feature.
Driver’s Side RSA
Heated Seat Button
Only shown
17

Automatic Release Fold and Tumble
Feature
The transmission must be in PARK (P) for this
feature to work.
Folding and Tumbling the Seat(s)
{CAUTION:
Automatically folding and tumbling the
seat when someone is sitting in the seat,
could cause injury to the person sitting
there. Always make sure there is no one
sitting in the seat before pressing the
automatic seat release button.To fold and tumble the seat, do the following:
1. Make sure that there is nothing under, in front
of, or on the seat.
Notice:Folding a rear seat with the safety
belts still fastened may cause damage to the
seat or the safety belts. Always unbuckle
the safety belts and return them to their normal
stowed position before folding a rear seat.
2. From the front
seats, press one of
the automatic
seat release buttons
located on the
overhead console.
Overhead Console
Buttons shown, Panel
Button similar
22

2. From the front
seats, press one of
the automatic
seat release buttons
located on the
overhead console.
When accessing the third row seats, if your
vehicle has them, from the outside of the
vehicle, press the button on the panel behind
either rear door.
One press of the button automatically folds the
seatback at and tumbles the seat forward.
There will be a slight delay between the folding
of the seatback and the tumbling of the seat.Returning the Seat(s) to the Sitting
Position
To return the seat to the sitting position, do the
following:
1. Pull the seat down until it latches to the oor.
The seatback cannot be raised if the seat is
not latched to the oor.
{CAUTION:
If the seatback is not locked, it could
move forward in a sudden stop or crash.
That could cause injury to the person
sitting there. Always push and pull on the
seatback to be sure it is locked.
2. Lift the seatback and push it rearward. Push
and pull on the seatback to make sure it is
locked.
Overhead Console
Buttons shown
31

To unlatch the belt, just push the button on the
buckle. The belt should go back out of the way.
Before you close the door, be sure the belt is out
of the way. If you slam the door on it, you can
damage both the belt and your vehicle.
Shoulder Belt Height Adjustment
Before you begin to drive, move the shoulder belt
adjuster to the height that is right for you.Adjust the height so that the shoulder portion of
the belt is centered on your shoulder. The
belt should be away from your face and neck,
but not falling off your shoulder. Improper
shoulder belt height adjustment could reduce
the effectiveness of the safety belt in a crash.
To move it down,
squeeze the buttons (A)
on the sides of the
height adjuster
and move the height
adjuster to the desired
position.
You can move the adjuster up just by pushing up
on the shoulder belt guide.
After you move the adjuster to where you want
it, try to move it down without squeezing the
buttons to make sure it has locked into position.
50

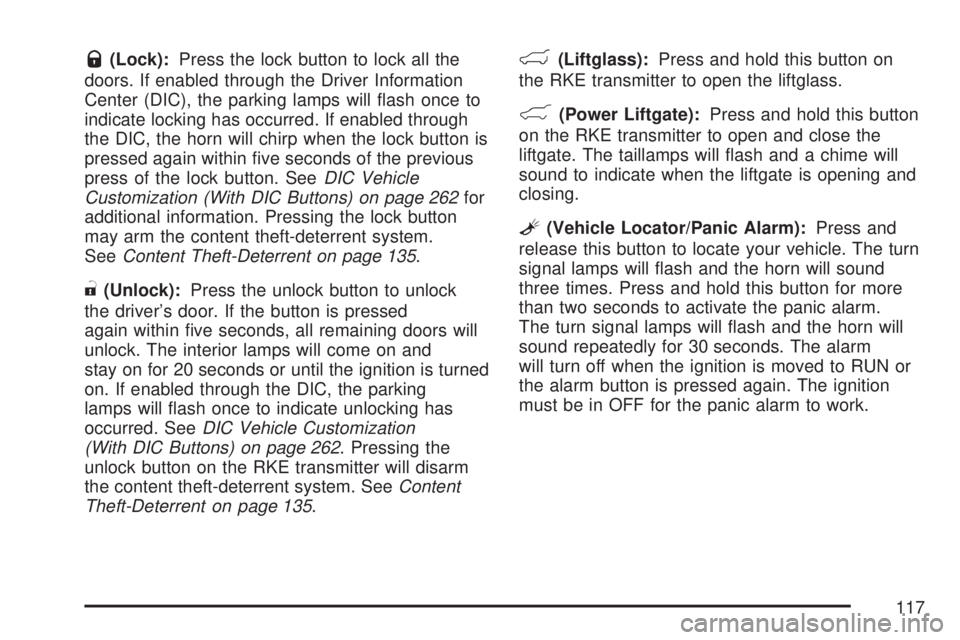

Q(Lock):Press the lock button to lock all the
doors. If enabled through the Driver Information
Center (DIC), the parking lamps will ash once to
indicate locking has occurred. If enabled through
the DIC, the horn will chirp when the lock button is
pressed again within ve seconds of the previous
press of the lock button. SeeDIC Vehicle
Customization (With DIC Buttons) on page 262for
additional information. Pressing the lock button
may arm the content theft-deterrent system.
SeeContent Theft-Deterrent on page 135.
"(Unlock):Press the unlock button to unlock
the driver’s door. If the button is pressed
again within ve seconds, all remaining doors will
unlock. The interior lamps will come on and
stay on for 20 seconds or until the ignition is turned
on. If enabled through the DIC, the parking
lamps will ash once to indicate unlocking has
occurred. SeeDIC Vehicle Customization
(With DIC Buttons) on page 262. Pressing the
unlock button on the RKE transmitter will disarm
the content theft-deterrent system. SeeContent
Theft-Deterrent on page 135.
m(Liftglass):Press and hold this button on
the RKE transmitter to open the liftglass.
&(Power Liftgate):Press and hold this button
on the RKE transmitter to open and close the
liftgate. The taillamps will ash and a chime will
sound to indicate when the liftgate is opening and
closing.
L(Vehicle Locator/Panic Alarm):Press and
release this button to locate your vehicle. The turn
signal lamps will ash and the horn will sound
three times. Press and hold this button for more
than two seconds to activate the panic alarm.
The turn signal lamps will ash and the horn will
sound repeatedly for 30 seconds. The alarm
will turn off when the ignition is moved to RUN or
the alarm button is pressed again. The ignition
must be in OFF for the panic alarm to work.
117

Matching Transmitter(s) to Your
Vehicle
Each RKE transmitter is coded to prevent another
transmitter from unlocking your vehicle. If a
transmitter is lost or stolen, a replacement can be
purchased through your GM dealer. Remember to
bring any additional transmitters so they can also
be re-coded to match the new transmitter. Once
your dealer has coded the new transmitter, the lost
transmitter will not unlock your vehicle. The vehicle
can have a maximum of eight transmitters matched
to it. See “Relearn Remote Key” underDIC
Operation and Displays (Using DIC Buttons) on
page 245orDIC Operation and Displays (Using
Trip Odometer Reset Stem) on page 250for
instructions on how to match RKE transmitters to
your vehicle.
Battery Replacement
Under normal use, the battery in your RKE
transmitter should last about four years.
You can tell the battery is weak if the transmitter
will not work at the normal range in any location.
If you have to get close to your vehicle before
the transmitter works, it is probably time to change
the battery.The REPLACE BATTERY IN REMOTE KEY
message in the vehicle’s DIC will display if the
RKE transmitter battery is low. See “REPLACE
BATTERY IN REMOTE KEY” underDIC Warnings
and Messages on page 252for additional
information.
Notice:When replacing the battery, use care
not to touch any of the circuitry. Static
from your body transferred to these surfaces
may damage the transmitter.
118

/(Remote Start):Press and release the lock
button and then press and hold the remote
start button to start the vehicle.
To start the vehicle using the remote start feature,
do the following:
1. Aim the transmitter at the vehicle.
2. Press and release the transmitter’s lock
button, then immediately press and hold
the transmitter’s remote start button until the
turn signal lights ash. If you can not see
the vehicle’s lights, press and hold the remote
start button for at least four seconds. The
vehicle’s doors will lock. Pressing the remote
start button again after the vehicle has
started will turn off the ignition.
When the vehicle starts, the parking lamps will
turn on and remain on while the vehicle is
running.
3. If it is your rst remote start since last driving,
repeat these steps while the engine is still
running for a 10 minute time extension.
Remote start can be extended one time.
When you enter the vehicle during a remote start,
and the engine is still running, turn the key to
the RUN position to drive the vehicle.If the vehicle is left running it will automatically
shut off after 10 minutes unless a time extension
has been done.
To manually shut off a remote start, do any of the
following:
Aim the RKE transmitter at the vehicle and
press the remote start button until the
parking lamps turn off.
Turn on the hazards warning ashers.
Turn the ignition switch on and then off.
The vehicle can be remote started two separate
times between driving sequences. The engine will
run for 10 minutes after each remote start.
Or, you can extend the engine run time by another
10 minutes within the rst 10 minute remote
start time frame, and before the engine stops.
For example, if the lock button and then the
remote start buttons are pressed again after
the vehicle has been running for ve minutes,
10 minutes are added, allowing the engine to run
for 15 minutes.
The additional ten minutes are considered a
second remote vehicle start.
120
