When It Is Time for New Tires
One way to tell when it’s
time for new tires is
to
check the treadwear
indicators, which will
appear when your tires have only
1/16 inch
(1.6 mm) or less of tread
remaining. Some
commercial truck tires may
not have treadwear indicators.
You need a new tire
if any of the following statements
are true:
You can see the indicators at three or more places
around the tire.
You can see cord or fabric showing through the
. The tread or sidewall is cracked, cut or snagged
The tire has a bump, bulge or split.
The tire has a puncture, cut or other damage that
tire’s rubber.
deep
enough
to show cord or fabric.
can’t be repaired well because of the size or
location
of the damage.
Buying New Tires
To find out what kind and size of tires you need, look at
the CertificationlTire label.
The tires installed on your vehicle when it was new had
a Tire Performance Criteria Specifications (TPC
Spec) number on each tire’s sidewall. When you get
new tires, get ones with that same TPC Spec number.
That way your vehicle will continue
to have tires
that are designed to give proper endurance, handling,
speed rating, traction, ride and other things during
normal service on your vehicle. If your tires have an
all-season tread design, the TPC number will be
followed by an
“MS” (for mud and snow).
If you ever replace your tires with those not having a
TPC Spec number, make sure they are the same size,
load range, speed rating and construction type (bias,
bias-belted or radial) as your original tires.
5-58

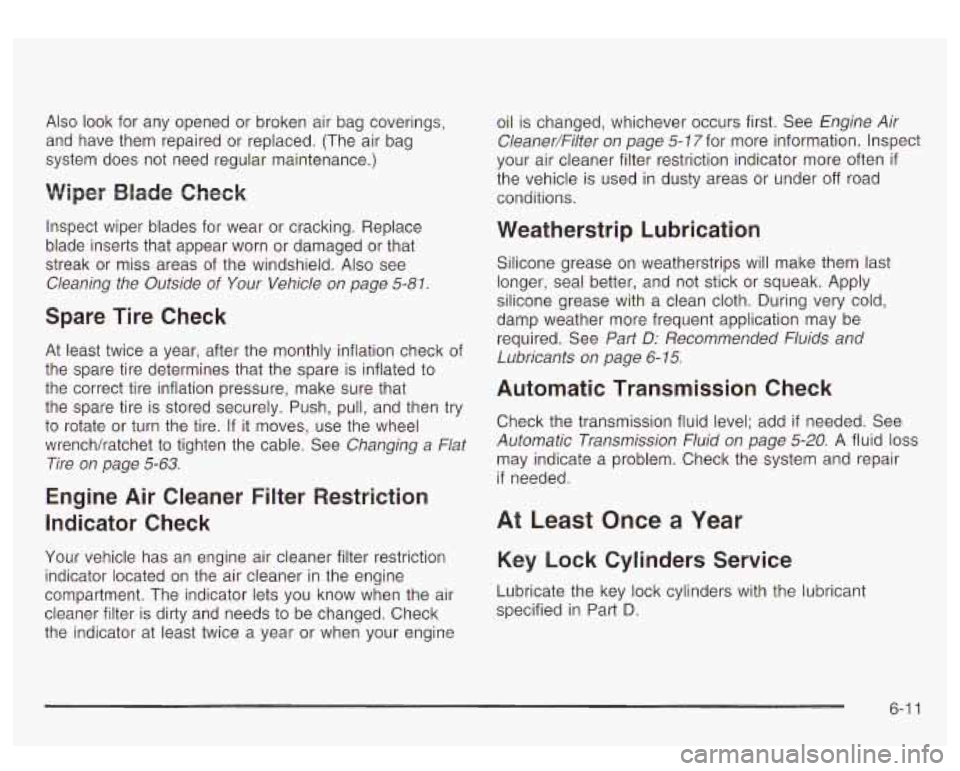

Also look for any opened or broken air bag coverings,
and have them repaired or replaced. (The air bag
system does not need regular maintenance.)
Inspect wiper blades for wear or cracking. Replace
blade inserts that appear worn or damaged or that
streak or miss areas of the windshield.
Also see
Cleaning the Outside
of Your Vehicle on page 5-81.
Spare Tire Check
At least twice a year, after the monthly inflation check of
the spare tire determines that the spare is inflated
to
the correct tire inflation pressure, make sure that
the spare tire is stored securely. Push, pull, and then
try
to rotate or turn the tire. If it moves, use the wheel
wrenchhatchet
to tighten the cable. See Changing a Flat
Tire
on page 5-63.
Engine Air Cleaner Filter Restriction
Indicator Check
Your vehicle has an engine air cleaner filter restriction
indicator located on the air cleaner in the engine
compartment. The indicator lets you know when the air
cleaner filter is dirty and needs
to be changed. Check
the indicator at least twice a year or when your engine oil is changed,
whichever occurs first. See Engine Air
Cleaner/Filter
on page 5- 17 for more information. Inspect
your air cleaner filter restriction indicator more often
if
the vehicle is used in dusty areas or under off road
conditions.
Weatherstrip Lubrication
Silicone grease on weatherstrips will make them last
longer, seal better, and not stick or squeak. Apply
silicone grease with a clean cloth. During very cold,
damp weather more frequent application may be required. See
Part D: Recommended Fluids and
Lubricants
on page 6- 15.
Automatic Transmission Check
Check the transmission fluid level; add if needed. See
Automatic Transmission Fluid on page
5-20. A fluid loss
may indicate a problem. Check the system and repair
if needed.
At Least Once a Year
Key Lock Cylinders Service
Lubricate the key lock cylinders with the lubricant
specified in Part D.

Driving (cont.)
Freeway
....................... ............ 4-33
Hill and Mountain Roads
..., ................... 4-35
In Rain and on Wet Roads
....................... 4-29
winter ........................................................ 4-37
Driving On Grades .......................................... 4-54
Driving on Snow or Ice
.................................... 4-38
Driving Through Deep Standing Water
............... 4-31
Driving Through Flowing Water
......................... 4-31
DVD Driving with a Trailer
....................................... 4-53
Care
of Your ............................................... 3-88
Care
of Your DVD Player ............................. 3-89
Cleaning the Video Screen
........................... 3-89
Distortion .................................................... 3-86
Rear Seat Entertainment System
................... 3-72
DVD Player
.................................................... 3-72 Engine
Air Cleaner/Filter
......................................... 5-17
Battery
....................................................... 5-39
Check and Service Engine Soon Light
............ 3-38
Coolant ...................................................... 5-22
Coolant Heater
............................................ 2-21
Coolant Temperature Gage
........................... 3-36
Cooling System Inspection
............................ 6-14
Engine Compartment Overview
...................... 5-12
Exhaust
..................................................... 2-29
Fan Noise
.................................................. 5-33
Oil
............................................................. 5-13
Overheating
................................................ 5-25
Starting
...................................................... 2-19
Engine Air Cleaner Filter Restriction
Indicator Check
........................................... 6-11
ENGINE COOLANT HOT
................................. 3-53
Engine Coolant Level Check
............................. 6-10
Engine Oil Additives ........................................ 5-16
Engine Oil Level Check
................................... 6-10
Entering or Exiting the Third Row Seats
.............. 1-7
Engine
Oil and Chassis Lubrication Scheduled
Maintenance
................................................. 6-5
ENGINE OVERHEATED
.................................. 3-53
Entertainment System Cleaning the Video Screen
........................... 3-89
DVD Distortion
............................................ 3-86
Entry Lighting
................................................. 3-16
Erasing HomeLink@ Buttons
.............................. 2-41
E
Easy Exit Seat ............................................... 2-48
Electrical System
............................................ 5-87
Add-on Equipment
...................................... 5-87
Fuses and Circuit Breakers
........................... 5-87
Power Windows and Other Power Options
...... 5-87
Windshield Wiper Fuses
............................... 5-87
Electrochromic Mirror Operation
................ 2-32
Emissions Inspection and Maintenance
Programs
....................................... .... 3-40
5

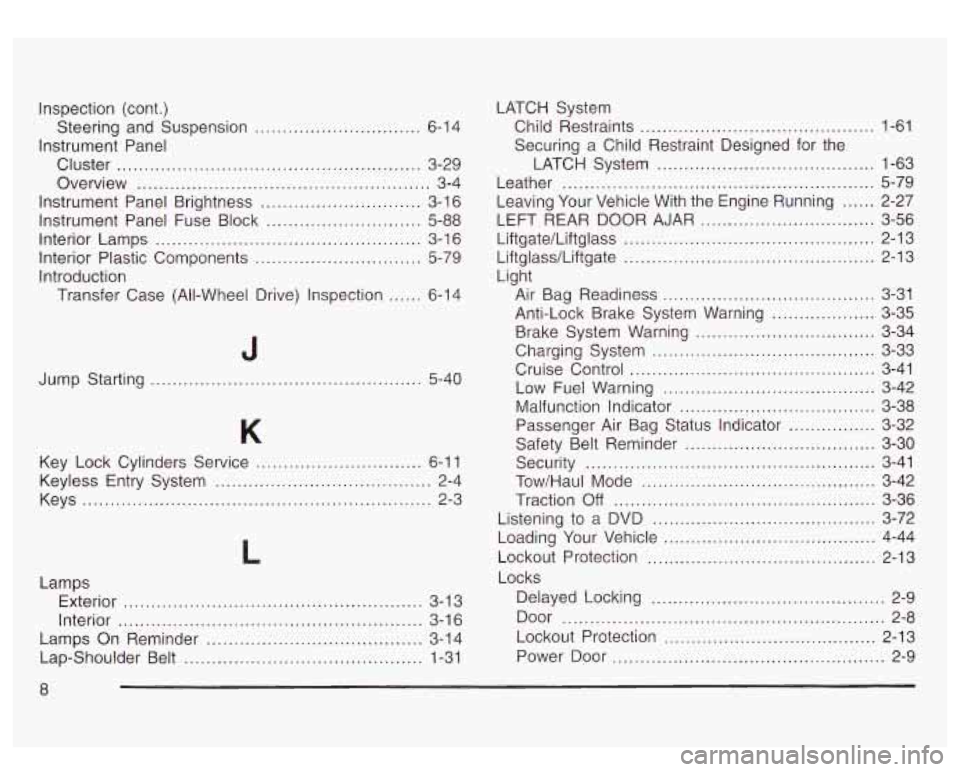

Inspection (cont.)
Instrument Panel
Steering
and Suspension
...............
Cluster ......................... .....................
Overview ..............................................
Instrument Panel Brightness ............................
Instrument Panel Fuse Block ...........................
Interior Lamps ...............................................
Interior Plastic Components .............................
Introduction
Transfer Case (All-Wheel Drive) Inspection
.....
. 6-14
. 3-29
... 3-4
. 3-16
. 5-88
. 3-16
. 5-79
. 6-14
Jump Starting
........................ 5-40
Key Lock Cylinders Service
........ ........... 6-1 1
Keys
........................................................... 2-3
Keyless
Entry System
....................................... 2-4
L
Lamps
Exterior
...................................................... 3-1 3
Interior
....................................................... 3-1 6
Lamps On Reminder
....................................... 3-14
Lap-Shoulder Belt
........................................... 1-31 LATCH
System
Child Restraints
........................................... 1-61
Securing a Child Restraint Designed for the
LATCH System
........................................ 1-63
Leather
......................................................... 5-79
LEFT REAR DOOR AJAR
................................ 3-56
Liftgate/LiftgIass
.............................. ........ 2-13
Liftglasdliftgate
.............................. .... 2-13
Light Leaving Your Vehicle With the Engine Running
...... 2-27
Air Bag Readiness
....................................... 3-31
Anti-Lock Brake System Warning
................... 3-35
Brake System Warning
................................. 3-34
Charging System
..................................... 3-33
Cruise Control
................. ................ 3-41
Low Fuel Warning
................................... 3-42
Malfunction Indicator
................................ 3-38
Passenger Air Bag Status Indicator
............ 3-32
Safety Belt Reminder
................................... 3-30
Security
..................................................... 3-41
Tow/Haul Mode
........................................... 3-42
Traction
Off ................................................ 3-36
Listening
to a DVD ..................................... 3-72
Loading Your Vehicle
................................... 4-44
Lockout Protection
.......................................... 2-13
Locks Delayed Locking
........................................... 2-9
Door
........................................................... 2-8
Lockout Protection
....................................... 2-13
Power Door
.................................................. 2-9
8

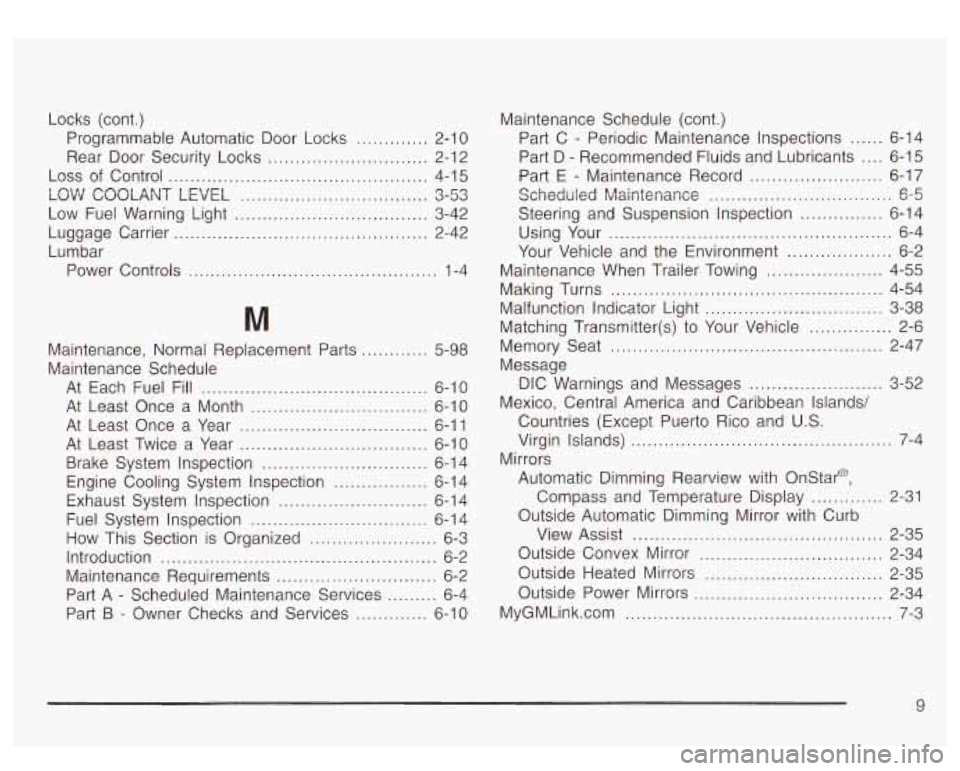

Locks (cont.) Programmable Automatic Door Locks
............. 2-1 0
Rear Door Security Locks ............................. 2-1 2
Loss of Control ............................................... 4-15
LOW COOLANT LEVEL .................................. 3-53
Low Fuel Warning Light
................................... 3-42
Lumbar Luggage Carrier
.............................................. 2-42
Power Controls
..................................... 1-4
Maintenance. Normal Replacement Parts
............ 5-98
Maintenance Schedule At Each Fuel Fill
......................................... 6-10
At Least Once a Month
................................ 6-10
At Least Once a Year .................................. 6-1 1
At Least Twice a Year .................................. 6-10
Brake System Inspection
.............................. 6-14
Engine Cooling System Inspection
................. 6-14
Exhaust System Inspection
........................ 6-1 4
Fuel System Inspection
............. ............ 6-14
How This Section is Organized
....................... 6-3
Introduction
.................................................. 6-2
Maintenance Requirements
............................. 6-2
Part A
- Scheduled Maintenance Services ......... 6-4
Part B
- Owner Checks and Services ............. 6-10 Maintenance Schedule
(cont.)
Part C
. Periodic Maintenance Inspections ...... 6-14
Part D
. Recommended Fluids and Lubricants .... 6-15
Part E
. Maintenance Record ........................ 6-17
Scheduled MainteEance
................................. 6-5
Steering and Suspension Inspection ............... 6-14
Your Vehicle and the Environment
................... 6-2
Maintenance When Trailer Towing
..................... 4-55
Making Turns
................................................. 4-54
Malfunction Indicator Light
................................ 3-38
Matching Transmitter(s)
to Your Vehicle ............... 2-6
Message Mexico, Central America and Caribbean Islands/ Using
Your
................................................... 6-4
Memory Seat
................................................. 2-47
DIC Warnings and Messages
........................ 3-52
Countries (Except Puerto Rico and
US .
Virgin Islands) ............................................... 7-4
Mirrors Automatic Dimming Rearview with Onstar@,
Compass and Temperature Display
............. 2-31
Outside Automatic Dimming Mirror with Curb View Assist
............................................. 2-35
Outside Convex Mirror
................................. 2-34
Outside Heated Mirrors
................................ 2-35
Outside Power Mirrors
.................................. 2-34
MyGMLink.com
................................................ 7-3
9

........... 3-30
....... 4-13

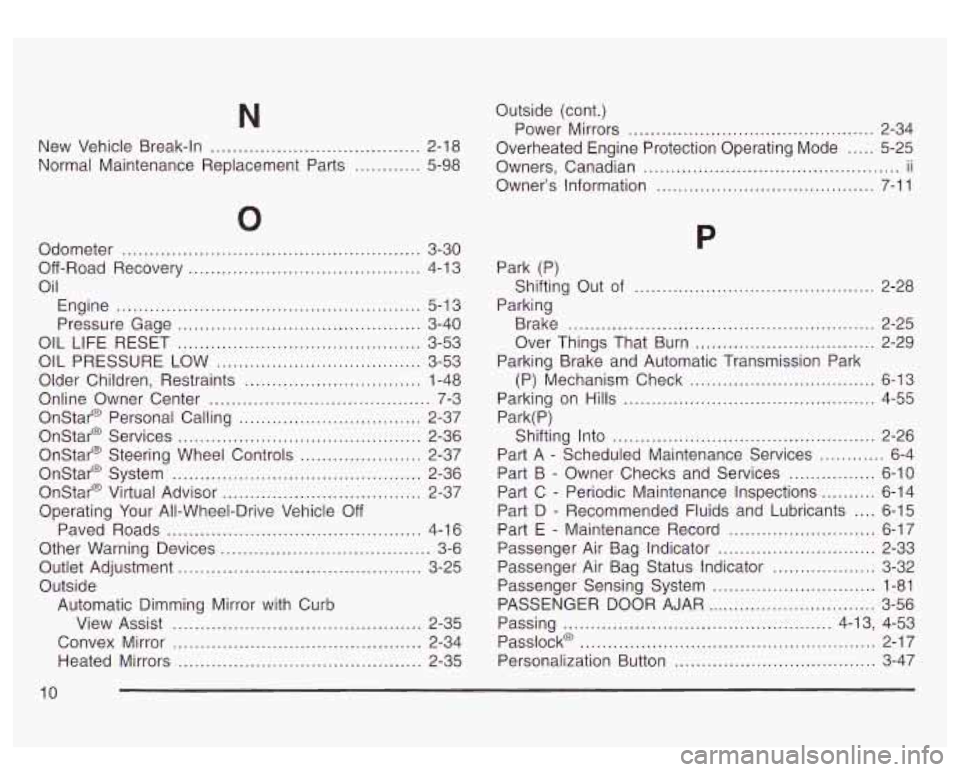

New
Vehicle Break-In
...................................... 2-18
Normal Maintenance Replacement Parts
............ 5-98
0
Odometer ................................
Oil Off-Road Recovery
............
Engine .............. .............. 5-13
Pressure Gage
.......... .................. 3-40
OIL LIFE RESET ............................................ 3-53
OIL PRESSURE LOW
..................................... 3-53
Older Children. Restraints
................................ 1-48
Online Owner Center
........................................ 7-3
Onstar@ Personal Calling
................................. 2-37
Onstar@ Services
............................................ 2-36
Onstar@ Steering Wheel Controls
...................... 2-37
Onstar@ System
............................................. 2-36
Onstar@ Virtual Advisor
.................................... 2-37
Operating Your All-Wheel-Drive Vehicle
Off
Paved Roads .............................................. 4-1 6
Other Warning Devices
...................................... 3-6
Outlet Adjustment
............................................ 3-25
Outside Automatic Dimming Mirror with Curb
View Assist
............................................. 2-35
Convex Mirror
............................................. 2-34
Heated Mirrors
............................................ 2-35 Outside
(cont.)
Power Mirrors
............................................. 2-34
Overheated Engine Protection Operating Mode
..... 5-25
Owners. Canadian
............................................... ii
Owner’s Information
........................................ 7-11
P
Park (P)
Parking Shifting Out
of
............................................ 2-28
Brake
........................................................ 2-25
Over Things That Burn
................................. 2-29
Parking Brake and Automatic Transmission Park
(P) Mechanism Check
.................................. 6-13
Parking on Hills .............................................. 4-55
Park( P)
Shifting Into
................................................ 2-26
Part
A - Scheduled Maintenance Services ............ 6-4
Part B
- Owner Checks and Services ................ 6-10
Part C
- Periodic Maintenance Inspections .......... 6-14
Part
D - Recommended Fluids and Lubricants .... 6-15
Part E
- Maintenance Record ........................... 6-17
Passenger Air Bag Indicator
............................. 2-33
Passenger Sensing System
.......................... 1-81
PASSENGER
DOOR AJAR ........ ............ 3-56
Passing
............................................. 4-13, 4-53
Passlock@
...................................................... 2-17
Personalization Button
..................................... 3-47
Passenger
Air Bag Status Indicator
................... 3-32
10

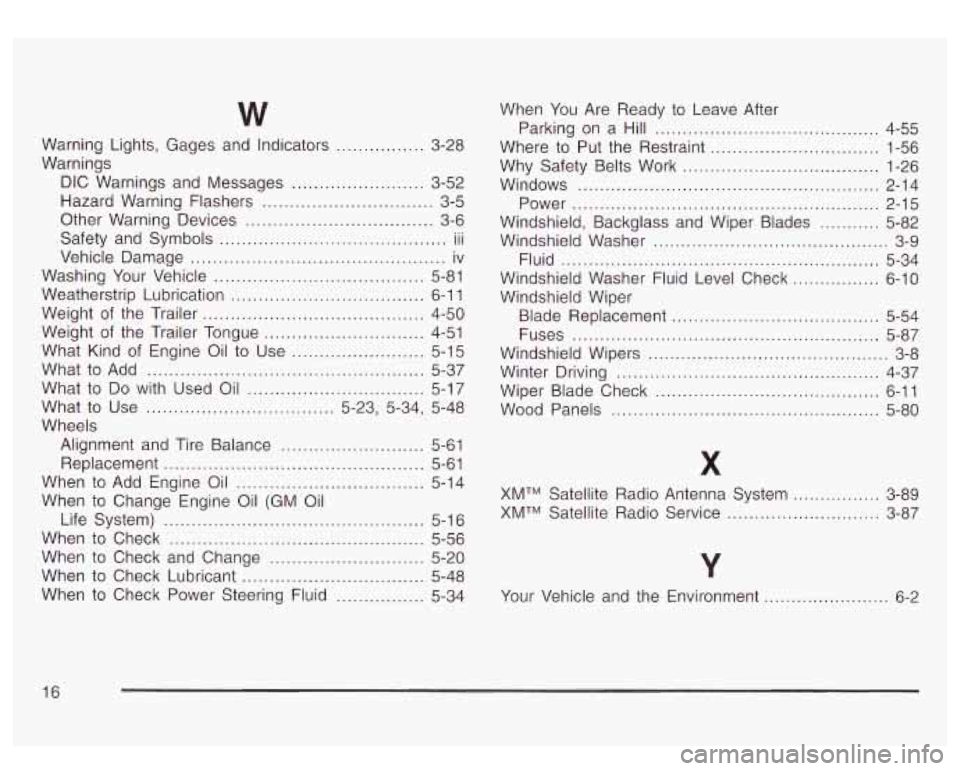

Warning Lights. Gages and Indicators ..... ... 3-28
Warnings DIC Warnings and Messages
..... ... 3-52
Other Warning Devices
.. ..... 3-6
Hazard
Warning Flashers
....... ..... 3-5
Safety and Symbols
... .... Ill
Vehicle Damage ........ .... ....... iv
...
Washing Your Vehicle .................................. 5-81
Weatherstrip Lubrication
................................... 6-1 1
Weight of the Trailer ........................................ 4-50
Weight of the Trailer Tongue
...... ............... 4-51
What Kind of Engine Oil
to Use ..... ... 5-1 5
What to Add ........................... ............... 5-37
What
to Do with Used Oil .. ................... 5-17
What to Use ........................
... 5-23, 5-34, 5-48
Wheels
Alignment and Tire Balance
.......................... 5-61
Replacement
............................................... 5-61
When
to Add Engine Oil .................................. 5-14
When to Change Engine Oil (GM Oil
Life System)
............................ ....... 5-16
When to Check
.................... ............... 5-56
When to Check and Change ............................ 5-20
When to Check Lubricant
................................. 5-48
When
to Check Power Steering Fluid ......... 5-34 When
You Are Ready
to Leave After
Where
to Put the Restraint ..........................
Why Safety Belts Work ...............................
Windows ..................................................
Power ...................................................
Windshield, Backglass and Wiper Blades ...
Windshield Washer .............................
Fluid ..............................................
Windshield Washer Fluid Level Check ....
Windshield Wiper
Parking on
a Hill .........................
Blade Replacement .................................
Fuses ...................................................
Windshield Wipers .................................
Winter
Driving ........ ...........
Wood Panels ......... ...........
Wiper Blade Check ..... ...........
X
XMTM Satellite Radio Antenna System ....
XMTM Satellite Radio Service ............
Y
Your Vehicle and the Environment . .
4-55
. 1-56
. 1-26
. 2-14
. 2-15
. 5-82
.. 3-9
. 5-34
. 6-10
. 5-54
. 5-a7
.. 3-8
. 4-37
. 6-1 1
. 5-80
..... 3-89
..... 3-87
.. 6-2
16
