Storing Radio Station Presets
This feature allows you to store up to 30 preset stations.
See “Number of Preset Pages” under “Radio Menu”
later in this section for more information. You can mix
AM, FM, and XM (if equipped). To store presets, do the
following:
1. Press the
O(power) knob to turn the system on.
2. If viewing a map screen, touch the source
screen button, press the AUDIO key, or press the
FAV (favorite) key.
3. Select the band.
4. Seek, scan, or tune to the desired station, to select
the station.
5. Press and hold one of the preset screen buttons for
more than two seconds or until you hear a beep.
6. Repeat the steps for each preset.
Sound Menu
f
(Sound Menu):Press this knob or press the
MENU key to access the Sound menu to adjust the
treble, midrange, bass, fade, balance, and equalization
or Digital Signal Processing (DSP), if equipped with
the Bose
®sound system. Digital Signal Processing (DSP) shown,
Equalization similar
3-5

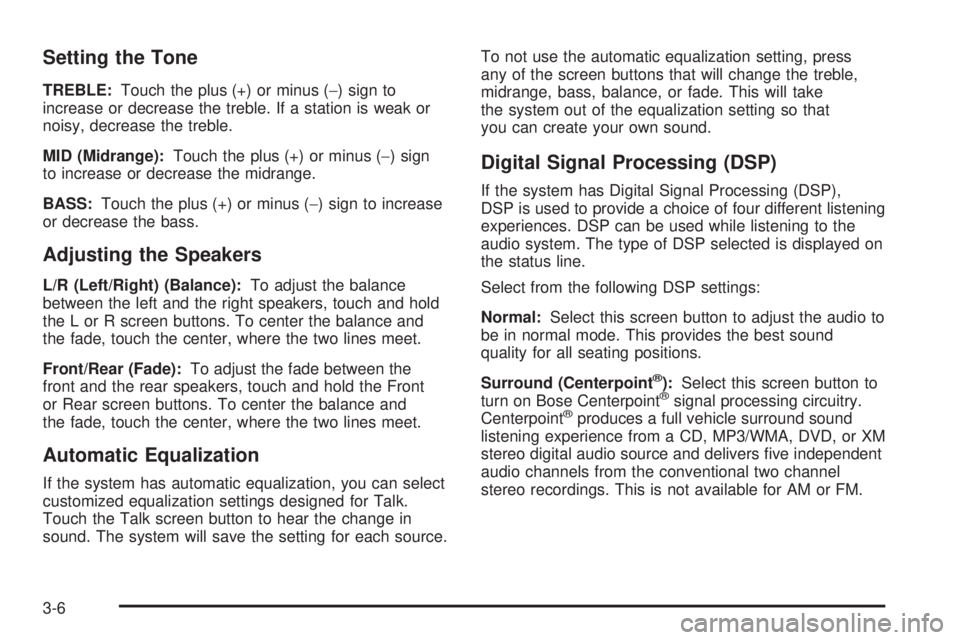

Setting the Tone
TREBLE:Touch the plus (+) or minus (−) sign to
increase or decrease the treble. If a station is weak or
noisy, decrease the treble.
MID (Midrange):Touch the plus (+) or minus (−) sign
to increase or decrease the midrange.
BASS:Touch the plus (+) or minus (−) sign to increase
or decrease the bass.
Adjusting the Speakers
L/R (Left/Right) (Balance):To adjust the balance
between the left and the right speakers, touch and hold
the L or R screen buttons. To center the balance and
the fade, touch the center, where the two lines meet.
Front/Rear (Fade):To adjust the fade between the
front and the rear speakers, touch and hold the Front
or Rear screen buttons. To center the balance and
the fade, touch the center, where the two lines meet.
Automatic Equalization
If the system has automatic equalization, you can select
customized equalization settings designed for Talk.
Touch the Talk screen button to hear the change in
sound. The system will save the setting for each source.To not use the automatic equalization setting, press
any of the screen buttons that will change the treble,
midrange, bass, balance, or fade. This will take
the system out of the equalization setting so that
you can create your own sound.
Digital Signal Processing (DSP)
If the system has Digital Signal Processing (DSP),
DSP is used to provide a choice of four different listening
experiences. DSP can be used while listening to the
audio system. The type of DSP selected is displayed on
the status line.
Select from the following DSP settings:
Normal:Select this screen button to adjust the audio to
be in normal mode. This provides the best sound
quality for all seating positions.
Surround (Centerpoint
®):Select this screen button to
turn on Bose Centerpoint®signal processing circuitry.
Centerpoint®produces a full vehicle surround sound
listening experience from a CD, MP3/WMA, DVD, or XM
stereo digital audio source and delivers ve independent
audio channels from the conventional two channel
stereo recordings. This is not available for AM or FM.
3-6

Driver:Select this screen button to adjust the audio to
give the driver the best possible sound quality.
Rear:Select this screen button to adjust the audio to
give the rear seat occupants the best possible sound
quality.
The 2 CH and 5.1 CH buttons are available only when a
5.1 CH disk is available and RSA is off.
2 CH (Channel):Select this screen button to enhance
surround sound. The Surround screen button must
be selected to select the 2 CH screen button.
5.1 CH (Channel):Select this screen button, when
listening to a DVD, to give a full affect of surround sound
listening. The Surround screen button must be selected
to select the 5.1 CH screen button.
Downmix:If a 5.1CH disk is playing, and the 2 CH
screen button is selected or RSA is turned on, the
system will downmix the audio from 5.1 CH to 2 CH if
this feature is supported on the disk.Radio Menu
Press the MENU key to enter the menu screen, then
press the MENU key repeatedly until Radio is selected
or touch the Radio screen button to make changes
for radio information displayed or to limit features while
driving, number of preset pages, XM categories, and
Automatic Volume Control or Bose
®AudioPilot®.
3-7

Additional Information Displayed
The navigation system may have this feature.
Touch the
4Additional Information Displayed screen
button to turn station, channel, CD, and MP3 information
on or off.
Touch the YES screen button to receive information,
when it is available, for the following; FM: RDS category
name and radio text, XM: Song Title and Artist Name,
CD: CD text, MP3: tag information.
Touch the NO screen button to receive no information.
Limit Features While Driving
The navigation system may have this feature.
Touch the Limit Features While Driving screen button
to turn on and off the ability to limit functions while
driving. When this screen button is highlighted,
the following functions will be limited while driving:
Music Navigator Scrolling
Radio Category Scrolling
Navigation Menu Scrolling and some functions
See “Category” earlier in this section for more
information. See “From Map” underDestination on
page 2-15for more information.
Number of Preset Pages
Touch the/Number of Preset Pages screen button to
change the number of preset pages, 1 through 6.
Each preset page can contain ve preset stations.
Touch the desired numbered screen button.
Remove/Add XM Categories
Touch the&Remove/Add XM Categories screen
button to remove or add XM categories when selecting
XM categories from the category list screen. The list
of XM categories will appear on the screen. Use the up
and down arrow screen buttons to scroll through the
list. The categories to remove will be highlighted and the
categories to add will be dark in color. Touch the
category that you would like to add or remove. Touch
the Restore All Categories screen button to add all
categories that have been removed.
3-8

Automatic Volume Control or Bose
AudioPilot®
>Automatic Volume Control:With automatic volume
control, your audio system adjusts automatically to
make up for road and wind noise as you drive.
To use Automatic Volume Control:
1. Set the volume at the desired level.
2. Press the MENU key to enter the menu screen,
then press the MENU key repeatedly until Radio
is selected or touch the Radio screen button
3. Press the
>Automatic Volume Control screen
button to access the Speed Compensated Volume
screen.
4. Touch the Low, Medium, or High screen buttons.
Each higher setting allows for more compensation
at faster vehicle speeds.
Then, as you drive, automatic volume control
automatically increases the volume, as necessary,
to overcome noise at any speed. The volume level
should always sound the same to you as you drive.
To turn automatic volume control off, touch the
OFF screen button.AudioPilot:If the system has the Bose
®sound system
it may include Bose AudioPilot®noise compensation
technology.
To use AudioPilot
®:
1. Press the MENU key to enter the menu screen,
then press the MENU key repeatedly until Radio
is selected or touch the Radio screen button
2. Press the
>Automatic Volume Control screen.
button to access the AudioPilot menu.
3. Press the ON screen button.
To turn it off, touch the OFF screen button.
When on, AudioPilot
®continuously adjusts the audio
system equalization, to compensate for background
noise, so that your music always sounds the same at the
set volume level.
This feature is most effective at lower volume settings
where background noise can affect how well you
hear the music being played through your vehicle’s
audio system. At higher volume settings, where
the music is much louder than the background noise,
there may be little or no adjustments by AudioPilot
®.
For more information on AudioPilot®, please visit
bose.com/audiopilot.
3-9

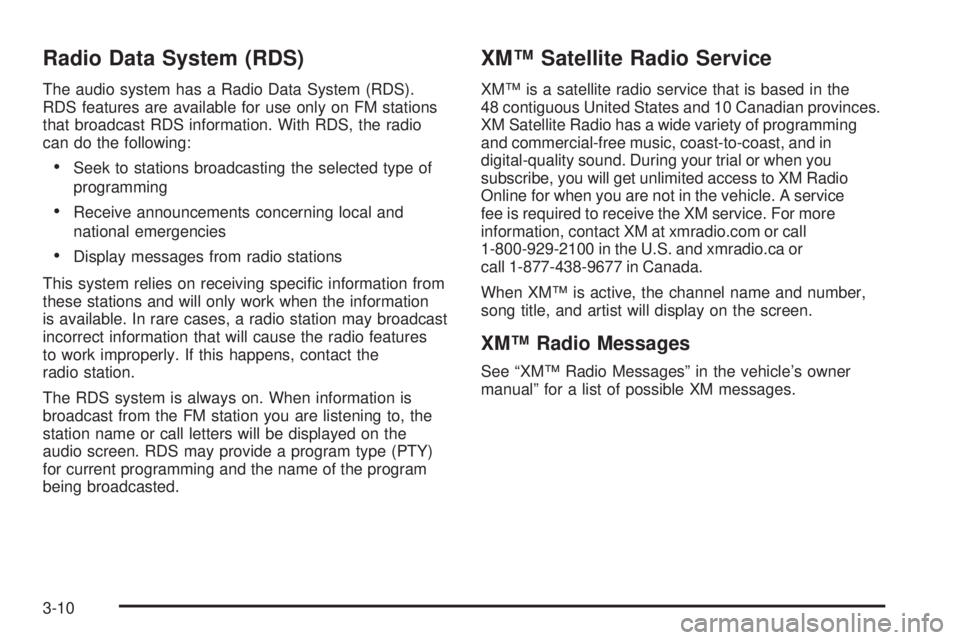

Radio Data System (RDS)
The audio system has a Radio Data System (RDS).
RDS features are available for use only on FM stations
that broadcast RDS information. With RDS, the radio
can do the following:
Seek to stations broadcasting the selected type of
programming
Receive announcements concerning local and
national emergencies
Display messages from radio stations
This system relies on receiving specic information from
these stations and will only work when the information
is available. In rare cases, a radio station may broadcast
incorrect information that will cause the radio features
to work improperly. If this happens, contact the
radio station.
The RDS system is always on. When information is
broadcast from the FM station you are listening to, the
station name or call letters will be displayed on the
audio screen. RDS may provide a program type (PTY)
for current programming and the name of the program
being broadcasted.
XM™ Satellite Radio Service
XM™ is a satellite radio service that is based in the
48 contiguous United States and 10 Canadian provinces.
XM Satellite Radio has a wide variety of programming
and commercial-free music, coast-to-coast, and in
digital-quality sound. During your trial or when you
subscribe, you will get unlimited access to XM Radio
Online for when you are not in the vehicle. A service
fee is required to receive the XM service. For more
information, contact XM at xmradio.com or call
1-800-929-2100 in the U.S. and xmradio.ca or
call 1-877-438-9677 in Canada.
When XM™ is active, the channel name and number,
song title, and artist will display on the screen.
XM™ Radio Messages
See “XM™ Radio Messages” in the vehicle’s owner
manual” for a list of possible XM messages.
3-10

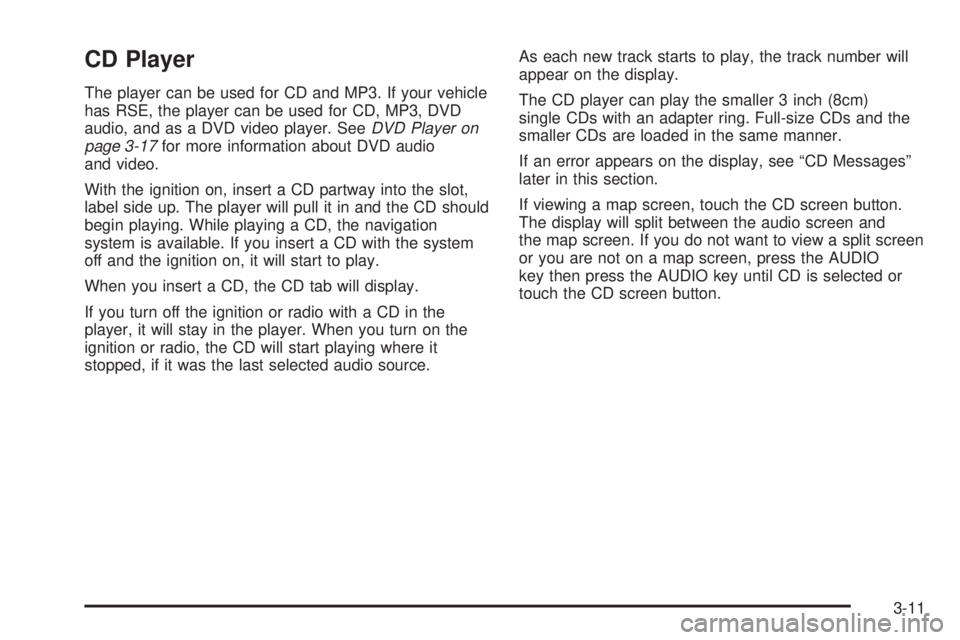

CD Player
The player can be used for CD and MP3. If your vehicle
has RSE, the player can be used for CD, MP3, DVD
audio, and as a DVD video player. SeeDVD Player on
page 3-17for more information about DVD audio
and video.
With the ignition on, insert a CD partway into the slot,
label side up. The player will pull it in and the CD should
begin playing. While playing a CD, the navigation
system is available. If you insert a CD with the system
off and the ignition on, it will start to play.
When you insert a CD, the CD tab will display.
If you turn off the ignition or radio with a CD in the
player, it will stay in the player. When you turn on the
ignition or radio, the CD will start playing where it
stopped, if it was the last selected audio source.As each new track starts to play, the track number will
appear on the display.
The CD player can play the smaller 3 inch (8cm)
single CDs with an adapter ring. Full-size CDs and the
smaller CDs are loaded in the same manner.
If an error appears on the display, see “CD Messages”
later in this section.
If viewing a map screen, touch the CD screen button.
The display will split between the audio screen and
the map screen. If you do not want to view a split screen
or you are not on a map screen, press the AUDIO
key then press the AUDIO key until CD is selected or
touch the CD screen button.
3-11

Playing an Audio CD
j/r(Pause/Play):Touch this button to pause the
CD. This button will then change to the play button.
Touch the play button to play the CD.
RANDOM:Touch this button to hear the tracks in
random, rather than sequential, order. Touch RANDOM
again to turn off random play.
r(Rewind):Touch and hold this button to rewind
quickly through a track selection. You will hear sound at a
reduced volume. Release this button to stop rewinding.
The display will show the elapsed time of the track.
[(Forward):Touch and hold this button to fast
forward quickly through a track selection. You will hear
sound at a reduced volume. Release this button to
stop fast forwarding. The display will show the elapsed
time of the track.
¨SEEK /©SEEK:Press the right arrow to go to the
next track. Press the left arrow to go to the start of
the current track, if more than ve seconds have played.
If either arrow is pressed more than once, the player
will continue moving backward or forward through
the CD. The sound will mute while seeking.
You can also turn the tune knob to seek to the next or
previous track.
When playing an audio CD, if your vehicle has RSE,
the rear seat operator can power on the RSE video
screen and use the remote control to navigate through
the tracks on the CD.
3-12

Using an MP3 CD
MP3 Format
There are guidelines that must be met, when creating an
MP3 disc. If the guidelines are not met when recording a
CD-R(W), the CD may not play. The guidelines are:
Sampling rate: 16 kHz, 22.05 kHz, 24 kHz, 32 kHz,
and 44.1 kHz.
Bit rates supported: 32, 40, 48, 56, 64, 80, 96, 112,
128, 160, 192, 224, 256, and 320 kbps.
ID3 tag information is displayed by the radio if it is
available. The radio supports ID3 tag information
v1.0 or v1.1. The radio will display a lename, song
name, artist name, album name, and directory name.
Maximum 32 characters, including spaces, in a le or
folder name.
Maximum number of folders is 253 with a maximum
hierarchy of eight folders.
Create a folder structure that makes it easy to nd
songs while driving. Organize songs by albums using
one folder for each album. Each folder or album
should contain 18 songs or less.
It is recommended that there is a maximum of
192 les on a disc.
The les can be recorded on a CD-R or CD-RW with
a maximum capacity of 700MB.
DVD with MP3 are not playable on this system.
Root Directory
The root directory will be treated as a folder. If the root
directory has compressed audio les, the directory
will be displayed as ROOT. All les contained directly
under the root directory will be accessed prior to
any root directory folders. However, playlists (Px) will
always be accessed before root folders or les.
Empty Directory or Folder
If a root directory or a folder exists somewhere in the
le structure that contains only folders/subfolders and no
compressed les directly beneath them, the player will
advance to the next folder in the le structure that
contains compressed audio les and the empty folder
will not be displayed or numbered.
3-13

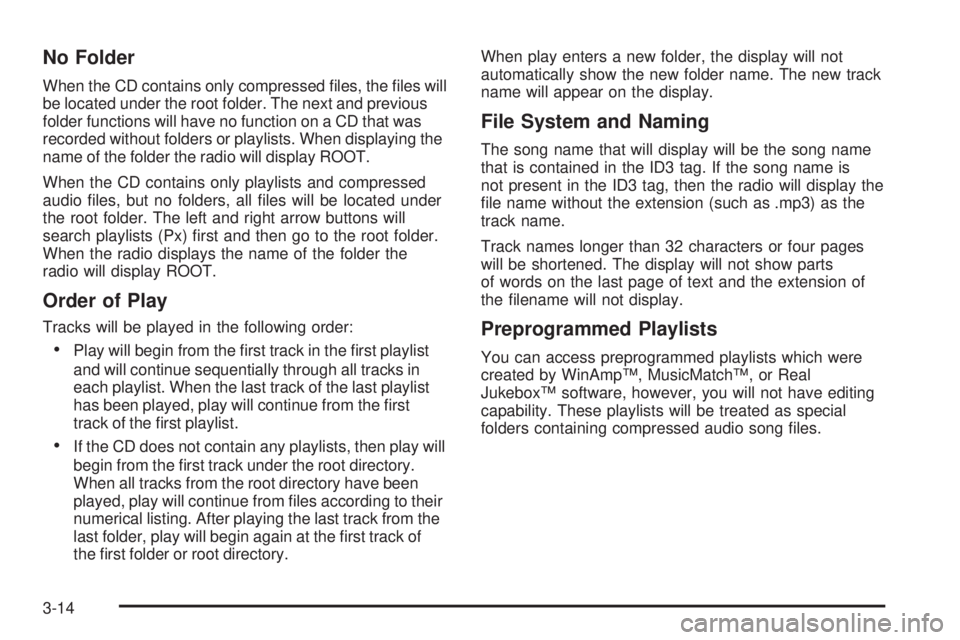

No Folder
When the CD contains only compressed les, the les will
be located under the root folder. The next and previous
folder functions will have no function on a CD that was
recorded without folders or playlists. When displaying the
name of the folder the radio will display ROOT.
When the CD contains only playlists and compressed
audio les, but no folders, all les will be located under
the root folder. The left and right arrow buttons will
search playlists (Px) rst and then go to the root folder.
When the radio displays the name of the folder the
radio will display ROOT.
Order of Play
Tracks will be played in the following order:
Play will begin from the rst track in the rst playlist
and will continue sequentially through all tracks in
each playlist. When the last track of the last playlist
has been played, play will continue from the rst
track of the rst playlist.
If the CD does not contain any playlists, then play will
begin from the rst track under the root directory.
When all tracks from the root directory have been
played, play will continue from les according to their
numerical listing. After playing the last track from the
last folder, play will begin again at the rst track of
the rst folder or root directory.When play enters a new folder, the display will not
automatically show the new folder name. The new track
name will appear on the display.
File System and Naming
The song name that will display will be the song name
that is contained in the ID3 tag. If the song name is
not present in the ID3 tag, then the radio will display the
le name without the extension (such as .mp3) as the
track name.
Track names longer than 32 characters or four pages
will be shortened. The display will not show parts
of words on the last page of text and the extension of
the lename will not display.
Preprogrammed Playlists
You can access preprogrammed playlists which were
created by WinAmp™, MusicMatch™, or Real
Jukebox™ software, however, you will not have editing
capability. These playlists will be treated as special
folders containing compressed audio song les.
3-14
