GMC YUKON HYBRID 2010 User Guide

Section 2 Seats and Restraint System
Front Seats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Power Seats (Tahoe and Yukon Two-Mode Hybrid) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Manual Lumbar (Tahoe and Yukon Two-Mode Hybrid) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Manual Reclining Seatbacks (Tahoe and Yukon Two-Mode Hybrid) . . . . . . . . . 2-3 Restraint System Check
. . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Replacing Restraint System Parts After a Crash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
2-1

Front Seats
Power Seats (Tahoe and Yukon
Two-Mode Hybrid)
A. Power Seat Adjustment Control
B. Manual Lumbar Control
C. Manual Reclining Seatback Lever
Adjust the seat forward or rearward by sliding the
control (A) forward or rearward. Your vehicle may have additional features to adjust the
power seat:
.Raise or lower the front part of the seat cushion by
moving the front of the control up or down.
.Raise or lower the entire seat by moving the rear
of the control up or down.
Manual Lumbar (Tahoe and Yukon
Two-Mode Hybrid)
Increase or decrease lumbar support by turning the
control (B) forward or rearward.
2-2

Manual Reclining Seatbacks
(Tahoe and Yukon Two-Mode Hybrid)
To recline the seatback:1. Lift the reclining seatback lever (C).
2. Move the seatback to the desired position, then release the lever to lock the seatback in place.
3. Push and pull on the seatback to make sure it is locked.
To return the seatback to an upright position: 1. Lift the lever fully without applying pressure to the seatback and the seatback will return to the upright
position.
2. Release the lever to lock the seatback in place.
3. Push and pull on the seatback to make sure it is locked.
Restraint System Check
Replacing Restraint System Parts
After a Crash
If an airbag inflates or the vehicle has been in a
crash, the vehicle's sensing system may command
the automatic hybrid battery disconnect to open.
The battery will disconnect. The hybrid battery will be
off and the vehicle will not start. The airbag readiness
light and/or SERVICE HYBRID SYSTEM warning
message may come on in the driver information center.
See “Airbag Readiness Light” in the owner manual and
Driver Information Center (DIC)
on page 4‑12for more
information.
To operate the vehicle, the automatic hybrid battery
disconnect must be reconnected by a qualified service
technician and sensing system parts will need to be
replaced. Have the vehicle serviced right away.
2-3

2NOTES
2-4

Section 3 Features and Controls
Storage Areas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Power Outlet Alternating Current . . . . . . . . . . . . . . . . 3-2
Starting and Operating Your Vehicle . . . . . . . . . . . . . .3-3
Starting the Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Automatic Transmission Operation . . . . . . . . . . . . . . 3-6 Four-Wheel Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
Shifting Into Park . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15
Engine Coolant Heater . . . . . . . . . . . . . . . . . . . . . . . . . 3-17
Regenerative Braking . . . . . . . . . . . . . . . . . . . . . . . . . . 3-18
Running the Vehicle While Parked . . . . . . . . . . . . . 3-18
3-1

Storage Areas
Power Outlet Alternating Current
The vehicle may have a power outlet that can be used
to plug in electrical equipment that uses a maximum
limit of 150 watts.
The power outlet is
located in the rear cargo
area on the driver side.
An indicator light on the outlet turns on to show it is in
use. The light comes on when the ignition is in ON/RUN
and equipment requiring less than 150 watts is plugged
into the outlet, and no system fault is detected. The indicator light does not come on when the ignition
is in LOCK/OFF or if no equipment is plugged into
the outlet.
If equipment is connected using more than 150 watts,
or a system fault is detected, a protection circuit shuts
off the power supply and the indicator light turns off.
To reset the circuit, unplug the item and plug it back in
or turn the Retained Accessory Power (RAP) off and
then back on. The power restarts when equipment
using 150 watts or less is plugged into the outlet and a
system fault is not detected.
The power outlet is not designed for the following
electrical equipment and may not work properly if these
items are plugged into the power outlet:
.Equipment with high initial peak wattage such as:
compressor-driven refrigerators and electric
power tools.
.Other equipment requiring an extremely stable
power supply such as: microcomputer-controlled
electric blankets, touch sensor lamps, etc.
See High Voltage Devices and Wiring on page 6‑3.
3-2

Starting and Operating Your
Vehicle
Starting the Vehicle
{WARNING:
Exiting the vehicle, without first shifting into
P (Park), may cause the vehicle to move, and you
or others can be seriously injured. Because the
vehicle has the Automatic Engine Start/Stop
feature, the vehicle’s engine might seem to be
shut off when you come to a complete stop.(Continued)
WARNING: (Continued)
However, once the brake pedal is released,
the vehicle can move. The vehicle’s engine can
also restart at any time.
Shift to P (Park) and turn the ignition to
LOCK/OFF, before exiting the vehicle.
Start the engine as you would any other engine.
See “Starting the Engine” in the owner manual for
more information on starting. If pulling a trailer with
trailer brakes, see Towing a Trailer
on page 5‑8for more information.
3-3

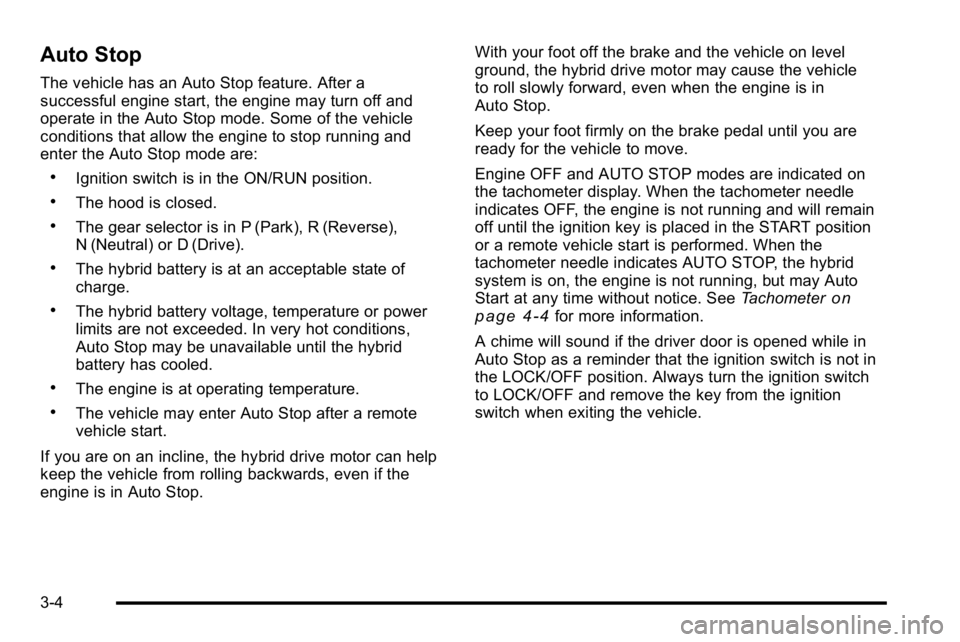

Auto Stop
The vehicle has an Auto Stop feature. After a
successful engine start, the engine may turn off and
operate in the Auto Stop mode. Some of the vehicle
conditions that allow the engine to stop running and
enter the Auto Stop mode are:
.Ignition switch is in the ON/RUN position.
.The hood is closed.
.The gear selector is in P (Park), R (Reverse),
N (Neutral) or D (Drive).
.The hybrid battery is at an acceptable state of
charge.
.The hybrid battery voltage, temperature or power
limits are not exceeded. In very hot conditions,
Auto Stop may be unavailable until the hybrid
battery has cooled.
.The engine is at operating temperature.
.The vehicle may enter Auto Stop after a remote
vehicle start.
If you are on an incline, the hybrid drive motor can help
keep the vehicle from rolling backwards, even if the
engine is in Auto Stop. With your foot off the brake and the vehicle on level
ground, the hybrid drive motor may cause the vehicle
to roll slowly forward, even when the engine is in
Auto Stop.
Keep your foot firmly on the brake pedal until you are
ready for the vehicle to move.
Engine OFF and AUTO STOP modes are indicated on
the tachometer display. When the tachometer needle
indicates OFF, the engine is not running and will remain
off until the ignition key is placed in the START position
or a remote vehicle start is performed. When the
tachometer needle indicates AUTO STOP, the hybrid
system is on, the engine is not running, but may Auto
Start at any time without notice. See
Tachometer
on
page 4‑4for more information.
A chime will sound if the driver door is opened while in
Auto Stop as a reminder that the ignition switch is not in
the LOCK/OFF position. Always turn the ignition switch
to LOCK/OFF and remove the key from the ignition
switch when exiting the vehicle.
3-4

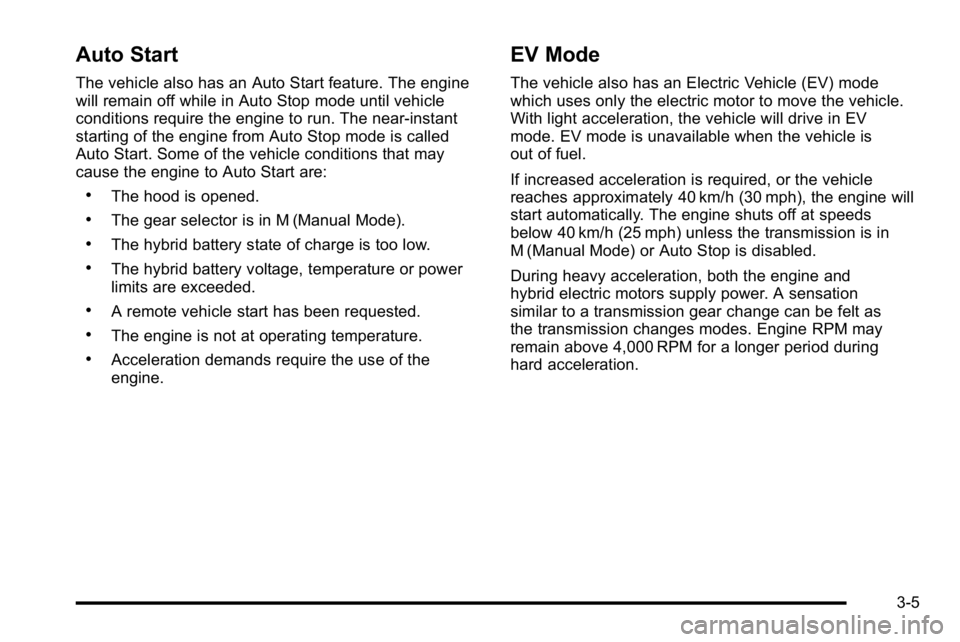

Auto Start
The vehicle also has an Auto Start feature. The engine
will remain off while in Auto Stop mode until vehicle
conditions require the engine to run. The near-instant
starting of the engine from Auto Stop mode is called
Auto Start. Some of the vehicle conditions that may
cause the engine to Auto Start are:
.The hood is opened.
.The gear selector is in M (Manual Mode).
.The hybrid battery state of charge is too low.
.The hybrid battery voltage, temperature or power
limits are exceeded.
.A remote vehicle start has been requested.
.The engine is not at operating temperature.
.Acceleration demands require the use of the
engine.
EV Mode
The vehicle also has an Electric Vehicle (EV) mode
which uses only the electric motor to move the vehicle.
With light acceleration, the vehicle will drive in EV
mode. EV mode is unavailable when the vehicle is
out of fuel.
If increased acceleration is required, or the vehicle
reaches approximately 40 km/h (30 mph), the engine will
start automatically. The engine shuts off at speeds
below 40 km/h (25 mph) unless the transmission is in
M (Manual Mode) or Auto Stop is disabled.
During heavy acceleration, both the engine and
hybrid electric motors supply power. A sensation
similar to a transmission gear change can be felt as
the transmission changes modes. Engine RPM may
remain above 4,000 RPM for a longer period during
hard acceleration.
3-5

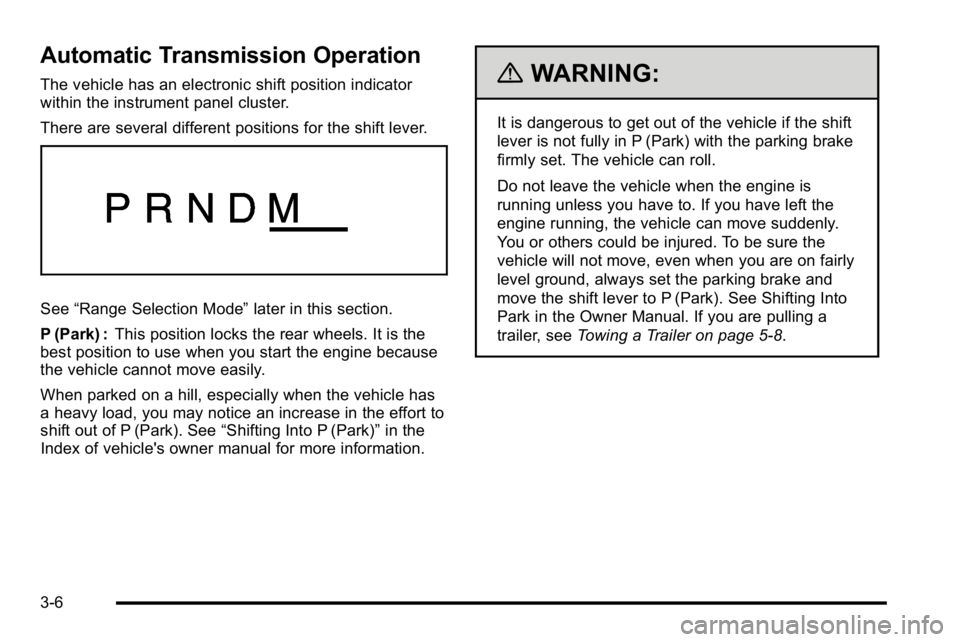

Automatic Transmission Operation
The vehicle has an electronic shift position indicator
within the instrument panel cluster.
There are several different positions for the shift lever.
See“Range Selection Mode” later in this section.
P (Park) : This position locks the rear wheels. It is the
best position to use when you start the engine because
the vehicle cannot move easily.
When parked on a hill, especially when the vehicle has
a heavy load, you may notice an increase in the effort to
shift out of P (Park). See “Shifting Into P (Park)”in the
Index of vehicle's owner manual for more information.
{WARNING:
It is dangerous to get out of the vehicle if the shift
lever is not fully in P (Park) with the parking brake
firmly set. The vehicle can roll.
Do not leave the vehicle when the engine is
running unless you have to. If you have left the
engine running, the vehicle can move suddenly.
You or others could be injured. To be sure the
vehicle will not move, even when you are on fairly
level ground, always set the parking brake and
move the shift lever to P (Park). See Shifting Into
Park in the Owner Manual. If you are pulling a
trailer, see Towing a Trailer on page 5‑8.
3-6
