GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - crc - 6/20/17
Introduction 3
{ DangerDanger indicates a hazard with a
high level of risk which will result
in serious injury or death.
{ WarningWarning indicates a hazard that
could result in injury or death.
CautionCaution indicates a hazard that
could result in property or vehicle
damage. A circle with a slash through it is a
safety symbol which means “ Do
Not, ” “ Do not do this, ” or “ Do not let
this happen. ”
Symbols The vehicle has components and
labels that use symbols instead of
text. Symbols are shown along with
the text describing the operation or
information relating to a specific
component, control, message,
gauge, or indicator.
M : Shown when the owner ’ s
manual has additional instructions
or information.
* : Shown when the service
manual has additional instructions
or information.
0 : Shown when there is more
information on another page —
“ see page. ”
Vehicle Symbol Chart
Here are some additional symbols
that may be found on the vehicle
and what they mean. See the
features in this manual for
information. 9 : Airbag Readiness Light
# : Air Conditioning
! : Antilock Brake System (ABS)
$ : Brake System Warning Light
" : Charging System
I : Cruise Control
` : Do Not Puncture
^ : Do Not Service
B : Engine Coolant Temperature
O : Exterior Lamps
_ : Flame/Fire Prohibited
. : Fuel Gauge
+ : Fuses
3 : Headlamp High/Low-Beam
Changer
j : LATCH System Child Restraints
* : Malfunction Indicator Lamp
: : Oil Pressure
O : Power
/ : Remote Vehicle Start
> : Seat Belt Reminders
7 : Tire Pressure Monitor

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - crc - 6/20/17
52 Keys, Doors, and Windows When trying to start the vehicle, the
security light comes on briefly when
the ignition is turned on.
If the engine does not start and the
security light stays on, there is a
problem with the system. Turn the
ignition off and try again.
If the engine still does not start, and
the key appears to be undamaged,
try another ignition key. It may be
necessary to check the fuse. See
Fuses and Circuit Breakers 0 309 .
If the engine still does not start with
the other key, the vehicle needs
service. If the vehicle does start, the
first key may be faulty. See your
dealer. It is possible for the immobilizer
system to learn new or replacement
keys. Up to eight keys can be
programmed for the vehicle. To
program additional keys, see Keys
(Keyless Access) 0 27 or Keys (Key
Access) 0 28 . To program additional
transmitters, see your dealer.
Do not leave the key or device that
disarms or deactivates the vehicle
theft system in the vehicle.
See your dealer to get a new key
blank cut exactly as the ignition key
that operates the system. Exterior Mirrors Convex Mirrors
{ WarningA convex mirror can make things,
like other vehicles, look farther
away than they really are. If you
cut too sharply into the right lane,
you could hit a vehicle on the
right. Check the inside mirror or
glance over your shoulder before
changing lanes.
The passenger side mirror is convex
shaped. A convex mirror's surface is
curved so more can be seen from
the driver seat.

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - crc - 6/20/17
128 Instruments and Controls .
One in the third row seat on the
driver side
.
One in the rear cargo area on
the passenger side
Vehicles with Bench Seats
.
One on the center stack below
the climate control system
.
One in the storage area on the
bench seat
.
One on the rear of the center
armrest storage
.
One in the third row seat area on
the driver side
.
One in the rear cargo area on
the passenger side
Lift the cover to access and replace
when not in use.
The accessory power outlets are
powered as follows:
.
The power outlet near the
cupholders for vehicles with a
center console or on the center
stack for vehicles with bench
seats, can be configured to
operate using Retained
Accessory Power (RAP) or battery power modes. If these
power outlets are used while in
the battery power mode, this
could cause interference
between the Remote Keyless
Entry (RKE) transmitter and the
vehicle, and the vehicle may not
start.
See Ignition Positions (Key
Access) 0 207 or Ignition
Positions (Keyless Access)
0 205 .
.
The power outlets in the third
row seat area or in the rear
cargo area are powered at all
times. The power outlets inside
the storage area, on the rear of
the console, or on the bench
seat are only powered when the
ignition is on or in ACC/
ACCESSORY, or when RAP is
active.
{ Warning
Power is always supplied to the
outlet, if configured accordingly.
Do not leave electrical equipment
(Continued) Warning (Continued) plugged in when the vehicle is not
in use because the vehicle could
catch fire and cause injury or
death.
CautionLeaving electrical equipment
plugged in for an extended period
of time while the ignition is off will
drain the battery. Always unplug
electrical equipment when not in
use and do not plug in equipment
that exceeds the maximum
15 amp rating.
Certain power accessory plugs may
not be compatible with the
accessory power outlet and could
overload vehicle or adapter fuses.
If a problem is experienced, see
your dealer.

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - crc - 6/20/17
Lighting 175The lever returns to its starting
position whenever it is released.
If after signaling a turn or a lane
change the arrows flash rapidly or
do not come on, a signal bulb could
be burned out.
Replace any burned out bulbs. If a
bulb is not burned out, check the
fuse. See Fuses and Circuit
Breakers 0 309 .
Turn Signal On Chime
If the turn signal is left on for more
than 1.2 km (0.75 mi), a chime
sounds at each flash of the turn
signal. The message TURN
SIGNAL ON will also appear in the
Driver Information Center (DIC). To
turn the chime and message off,
move the turn signal lever to the off
position. Fog Lamps
If equipped with fog lamps, the
button is on the exterior lamp
control, to the left of the steering
column.
The ignition must be on for the fog
lamps to come on.
# : Press to turn the fog lamps on
or off. A light will come on in the
instrument cluster.
When the fog lamps are turned on,
the parking lamps automatically
turn on. When the headlamps are changed
to high beam, the fog lamps also go
off. When the high-beam headlamps
are turned off, the fog lamps will
come on again.
Some localities have laws that
require the headlamps to be on with
the fog lamps.

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - crc - 6/20/17
276 Vehicle Care
Vehicle Care General Information General Information . . . . . . . . . . 277
California Proposition
65 Warning . . . . . . . . . . . . . . . . . 277
California Perchlorate
Materials Requirements . . . . . 278
Accessories and
Modifications . . . . . . . . . . . . . . . . 278
Vehicle Checks Doing Your Own
Service Work . . . . . . . . . . . . . . . 278
Hood . . . . . . . . . . . . . . . . . . . . . . . . . 279
Engine Compartment
Overview . . . . . . . . . . . . . . . . . . . . 280
Engine Oil . . . . . . . . . . . . . . . . . . . . 283
Engine Oil Life System . . . . . . . 285
Automatic Transmission Fluid
(6 Speed Transmission) . . . . . 286
Automatic Transmission Fluid
(8 and 10 Speed
Transmission) . . . . . . . . . . . . . . . 289
Engine Air Cleaner/Filter . . . . . . 290
Cooling System . . . . . . . . . . . . . . 291
Engine Overheating . . . . . . . . . . 294
Engine Fan . . . . . . . . . . . . . . . . . . . 296
Washer Fluid . . . . . . . . . . . . . . . . . 296
Brakes . . . . . . . . . . . . . . . . . . . . . . . 297 Brake Fluid . . . . . . . . . . . . . . . . . . . 297
Battery - North America . . . . . . 298
Four-Wheel Drive . . . . . . . . . . . . . 299
Front Axle . . . . . . . . . . . . . . . . . . . . 300
Rear Axle . . . . . . . . . . . . . . . . . . . . 300
Noise Control System . . . . . . . . 301
Starter Switch Check . . . . . . . . . 302
Automatic Transmission Shift
Lock Control Function
Check . . . . . . . . . . . . . . . . . . . . . . . 302
Ignition Transmission Lock
Check . . . . . . . . . . . . . . . . . . . . . . . 303
Park Brake and P (Park)
Mechanism Check . . . . . . . . . . 303
Wiper Blade Replacement . . . . 303
Glass Replacement . . . . . . . . . . 304
Windshield Replacement . . . . . 304
Gas Strut(s) . . . . . . . . . . . . . . . . . . 305
Headlamp Aiming Headlamp Aiming . . . . . . . . . . . . 306
Bulb Replacement Bulb Replacement . . . . . . . . . . . . 306
High Intensity Discharge (HID)
Lighting . . . . . . . . . . . . . . . . . . . . . 306
LED Lighting . . . . . . . . . . . . . . . . . 307
Fog Lamps . . . . . . . . . . . . . . . . . . . 307
Back-Up Lamps . . . . . . . . . . . . . . 307
License Plate Lamp . . . . . . . . . . 308 Electrical System Electrical System Overload . . . 309
Fuses and Circuit Breakers . . . 309

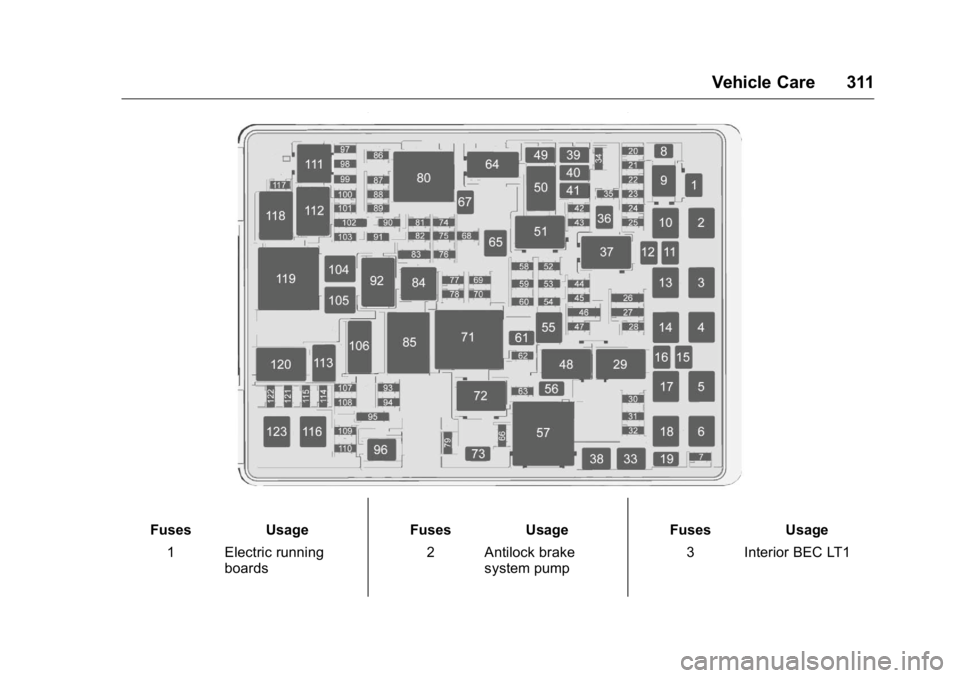

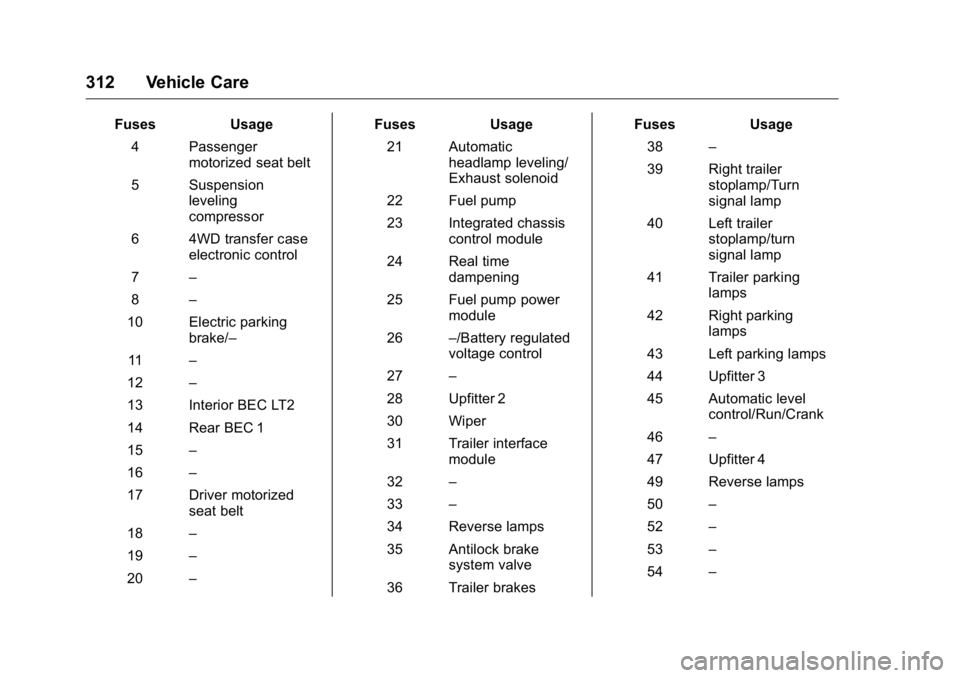

Engine Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 310
Instrument Panel Fuse
Block (Left) . . . . . . . . . . . . . . . . . 314
Instrument Panel Fuse Block
(Right) . . . . . . . . . . . . . . . . . . . . . . 317
Rear Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 319
Wheels and Tires Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 320
All-Season Tires . . . . . . . . . . . . . . 321
Winter Tires . . . . . . . . . . . . . . . . . . 321
Low-Profile Tires . . . . . . . . . . . . . 322
All-Terrain Tires . . . . . . . . . . . . . . . 322
Tire Sidewall Labeling . . . . . . . . 322
Tire Designations . . . . . . . . . . . . . 324
Tire Terminology and
Definitions . . . . . . . . . . . . . . . . . . 324
Tire Pressure . . . . . . . . . . . . . . . . . 327
Tire Pressure for High-Speed
Operation . . . . . . . . . . . . . . . . . . . 328
Tire Pressure Monitor
System . . . . . . . . . . . . . . . . . . . . . . 329
Tire Pressure Monitor
Operation . . . . . . . . . . . . . . . . . . . 330
Tire Inspection . . . . . . . . . . . . . . . . 333
Tire Rotation . . . . . . . . . . . . . . . . . 334

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - crc - 6/20/17
Vehicle Care 309
Electrical System Electrical System
Overload The vehicle has fuses to protect
against an electrical system
overload. Fuses also protect power
devices in the vehicle.
Replace a bad fuse with a new one
of the identical size and rating.
If there is a problem on the road and
a fuse needs to be replaced, there
are some spare fuses and a fuse
puller in the left instrument panel
fuse block. The same amperage
fuse can also be borrowed. Choose
some feature of the vehicle that is
not needed to use and replace it as
soon as possible.
Headlamp Wiring
An electrical overload may cause
the lamps to go on and off, or in
some cases to remain off. Have the
headlamp wiring checked right away
if the lamps go on and off or
remain off. Windshield Wipers If the wiper motor overheats due to
heavy snow or ice, the windshield
wipers will stop until the motor cools
and will then restart.
Although the circuit is protected
from electrical overload, overload
due to heavy snow or ice may
cause wiper linkage damage.
Always clear ice and heavy snow
from the windshield before using the
windshield wipers.
If the overload is caused by an
electrical problem and not snow or
ice, be sure to get it fixed.
Fuses and Circuit
Breakers The wiring circuits in the vehicle are
protected from short circuits by a
combination of fuses and circuit
breakers. This greatly reduces the
chance of damage caused by
electrical problems. { DangerFuses and circuit breakers are
marked with their ampere rating.
Do not exceed the
specified amperage rating when
replacing fuses and circuit
breakers. Use of an oversized
fuse or circuit breaker can result
in a vehicle fire. You and others
could be seriously injured or
killed.
To check a fuse, look at the
silver-colored band inside the fuse.
If the band is broken or melted,
replace the fuse. Be sure to replace
a bad fuse with a new one of the
identical size and rating.
Fuses of the same amperage can
be temporarily borrowed from
another fuse location, if a fuse goes
out. Replace the fuse as soon as
possible.

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - crc - 6/20/17
Vehicle Care 311
Fuses Usage
1 Electric running
boards Fuses Usage
2 Antilock brake
system pump Fuses Usage
3 Interior BEC LT1

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - crc - 6/20/17
312 Vehicle Care Fuses Usage
4 Passenger
motorized seat belt
5 Suspension
leveling
compressor
6 4WD transfer case
electronic control
7 –
8 –
10 Electric parking
brake/ –
11 –
12 –
13 Interior BEC LT2
14 Rear BEC 1
15 –
16 –
17 Driver motorized
seat belt
18 –
19 –
20 – Fuses Usage
21 Automatic
headlamp leveling/
Exhaust solenoid
22 Fuel pump
23 Integrated chassis
control module
24 Real time
dampening
25 Fuel pump power
module
26 – /Battery regulated
voltage control
27 –
28 Upfitter 2
30 Wiper
31 Trailer interface
module
32 –
33 –
34 Reverse lamps
35 Antilock brake
system valve
36 Trailer brakes Fuses Usage
38 –
39 Right trailer
stoplamp/Turn
signal lamp
40 Left trailer
stoplamp/turn
signal lamp
41 Trailer parking
lamps
42 Right parking
lamps
43 Left parking lamps
44 Upfitter 3
45 Automatic level
control/Run/Crank
46 –
47 Upfitter 4
49 Reverse lamps
50 –
52 –
53 –
54 –

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - crc - 6/20/17
Vehicle Care 313Fuses Usage
55 –
56 –
57 –
58 –
59 Euro trailer
60 Air conditioning
control
61 –
62 –
63 Upfitter 1
64 –
65 –
66 –
67 Trailer battery
68 Secondary
fuel pump
69 RC upfitter 3 and 4
70 VBAT
upfitter 3 and 4
71 –
73 – Fuses Usage
74 Engine control
module/Ignition
75 Miscellaneous/
Ignition/ –
76 Transmission/
Ignition
77 RC upfitter 1 and 2
78 VBAT
upfitter 1 and 2
79 –
80 –
81 –
82 –
83 Euro trailer/RC
85 –
86 –
87 Engine
88 Injector A – odd
89 Injector B – even
90 O2 sensor B
91 Throttle control Fuses Usage
93 Horn
94 Fog lamps
95 High-beam
headlamps
96 –
97 –
98 –
99 –
100 O2 sensor A
101 Engine control
module
102 Engine control
module/
Transmission
control module
103 Auxiliary interior
heater
104 Starter
105 –
106 –
107 Aeroshutter
108 –

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - crc - 6/20/17
314 Vehicle Care Fuses Usage
109 Police upfitter
110 –
111 –
113 –
114 Front windshield
washer
115 Rear window
washer
116 Left cooling fan
117 Fuel pump prime
118 –
119 –
120 Fuel pump prime
121 Right HID
headlamp
122 Left HID headlamp
123 Right cooling fan
Relays Usage
9 Fuel pump
29 Upfitter 2 Relays Usage
37 Upfitter 3
48 Upfitter 4
51 Parking lamp
64 Secondary
fuel pump
72 Upfitter 1
84 Run/Crank
92 Engine control
module
112 Starter Instrument Panel Fuse
Block (Left)
The left instrument panel fuse block
access door is on the driver side
edge of the instrument panel.
Pull off the cover to access the fuse
block.
