HONDA ACCORD 2007 CL7 / 7.G Owners Manual

µ
µ
Witho ut navig atio n system
With navig atio n system
With navig atio n systemThe system will automatically return
the display to the selected audio
mode about f ive seconds af ter you
stop adjusting a mode. On vehicles
with navigation system, touch the
RETURN icon to go back to the
audio screen.
Press the SOUND button or icon, or
press the TUNE knob repeatedly to
display the Bass (BAS), Treble
(TRE), Balance (BAL), and Fader
(FAD) settings. On vehicles with
navigation system, touch the
SOUND icon or press the TUNE
knob.
These two
modes adjust the strength of the
sound coming f rom each speaker.
BAL adjusts the side-to-side strength,
while FAD adjusts the f ront-to-back
strength.
Use the TRE/BAS
modes to adjust the tone to your
liking.
If you want to adjust the sound while
the radio/CD is playing, push the
AUDIO DISPLAY button, then touch
the SOUND icon in the display. Touch the arrows next to the BAS or
TRE icons. The adjustment shows
you the current setting.
Touch the lef t or right bars on the
sound grid. Balance is equalized
when the vertical lines are centered
on the grid.
Touchthefrontorrearbarsonthe
sound grid. The f ader is equalized
when the horizontal lines are
centered on the grid.
Eachmodeisshowninthedisplayas
it changes. Turn the PWR/VOL
knob to adjust the setting to your
liking. When the level reaches the
center, you will see a ‘‘ ’’ in the
display.
Adjusting the Sound
Balance/Fader
Treble/Bass
Playing the AM/FM Radio
Features
119
——
y

y
(y
y

The radio can receive the complete
AM and FM bands.
Those bands cover these f requen-
cies:
AM band: 530 to 1,710 kHz
FM band: 87.7 to 107.9 MHzHow well the radio receives stations
is dependent on many f actors, such
as the distance from the station’s
transmitter, nearby large objects,
and atmospheric conditions.
Driving very near the transmitter of
a station that is broadcasting on a
f requency close to the f requency of
the station you are listening to can
also af f ect your radio’s reception.
You may temporarily hear both
stations,orhearonlythestationyou
are close to.
A radio station’s signal gets weaker
as you get f arther away f rom its
transmitter. If you are listening to an
AM station, you will notice the sound
volume becoming weaker, and the
stationdriftinginandout.If youare
listening to an FM station, you will
see the stereo indicator f lickering of f
and on as the signal weakens.
Eventually, the stereo indicator will
go of f and the sound will f ade
completely as you get out of range of
the station’s signal.
Radio stations on the AM band are
assigned f requencies at least 10 kHz
apart (530, 540, 550). Stations on the
FM band are assigned f requencies at
least 0.2 MHz apart (87.9, 88.1, 88.3).
Stations must use these exact
f requencies. It is f airly common f or
stations to round-of f the f requency in
their advertising, so your radio could
display a f requency of 100.9 even
though the announcer may identif y
the station as ‘‘FM101.’’
Radio Frequencies Radio Reception
Playing the AM/FM Radio
120
——
y


y
(y
y

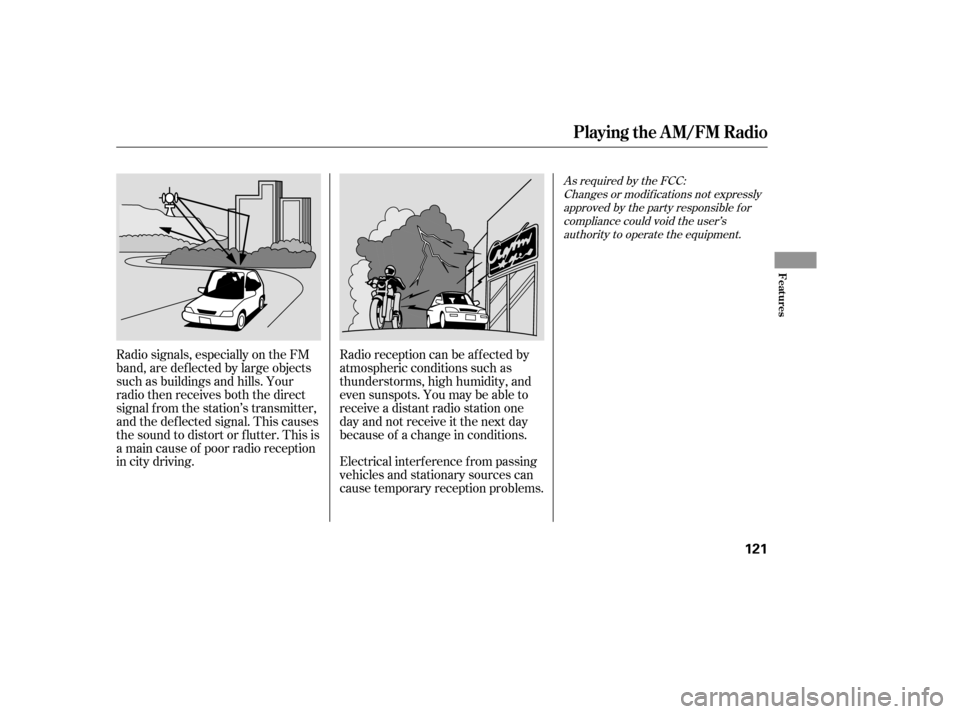

Radio signals, especially on the FM
band, are def lected by large objects
such as buildings and hills. Your
radio then receives both the direct
signal f rom the station’s transmitter,
and the def lected signal. This causes
the sound to distort or flutter. This is
a main cause of poor radio reception
in city driving.Radio reception can be af f ected by
atmospheric conditions such as
thunderstorms, high humidity, and
even sunspots. You may be able to
receive a distant radio station one
day and not receive it the next day
because of a change in conditions.
Electrical interf erence f rom passing
vehicles and stationary sources can
cause temporary reception problems.
As required by the FCC:
Changes or modif ications not expressly approved by the party responsible f orcompliance could void the user’s
authority to operate the equipment.
Playing the AM/FM Radio
Features
121
——
y


y
(y
y

Playing a CD
122

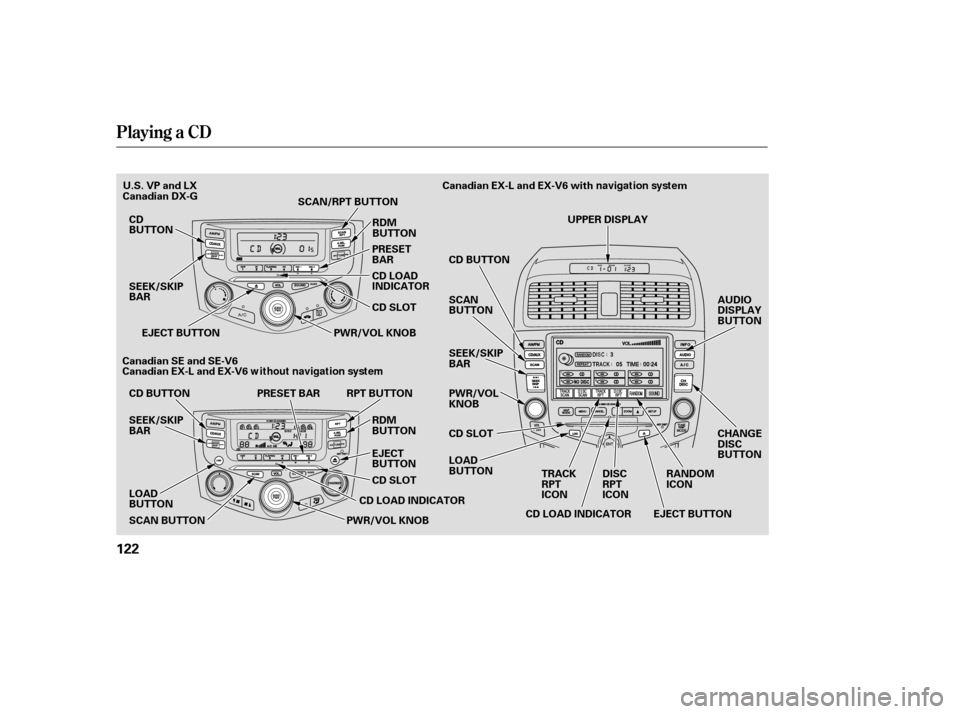

PWR/VOL KNOBPWR/VOL KNOB
EJECT BUTTON
CD SLOT
CD BUTTON RPT BUTTON EJECT
BUTTON
CD SLOT
PWR/VOL KNOB
SEEK/SKIP
BAR
SEEK/SKIP
BAR
TRACK
RPTICON RANDOMICON
DISC
RPTICON
CD LOAD INDICATOR
CD LOAD
INDICATOR
RDM
BUTTON
CD
BUTTON
SEEK/SKIP
BAR SCAN/RPT BUTTON
RDM
BUTTON
CD LOAD INDICATOR
LOAD
BUTTON
SCAN BUTTON CD BUTTON
SCAN
BUTTON
LOAD
BUTTON
CD SLOT
EJECT BUTTONCHANGE
DISC
BUTTON
AUDIO
DISPLAY
BUTTON
UPPER DISPLAY
PRESET
BAR
PRESET BAR Canadian EX-L and EX-V6 with
navigat ion syst em
U.S. VP and LX
Canadian DX-G
Canadian SE and SE-V6
Canadian EX-L and EX-V6 w it hout navigat ion syst em
——
y

y
(y
y

Playing a CD
Features
123

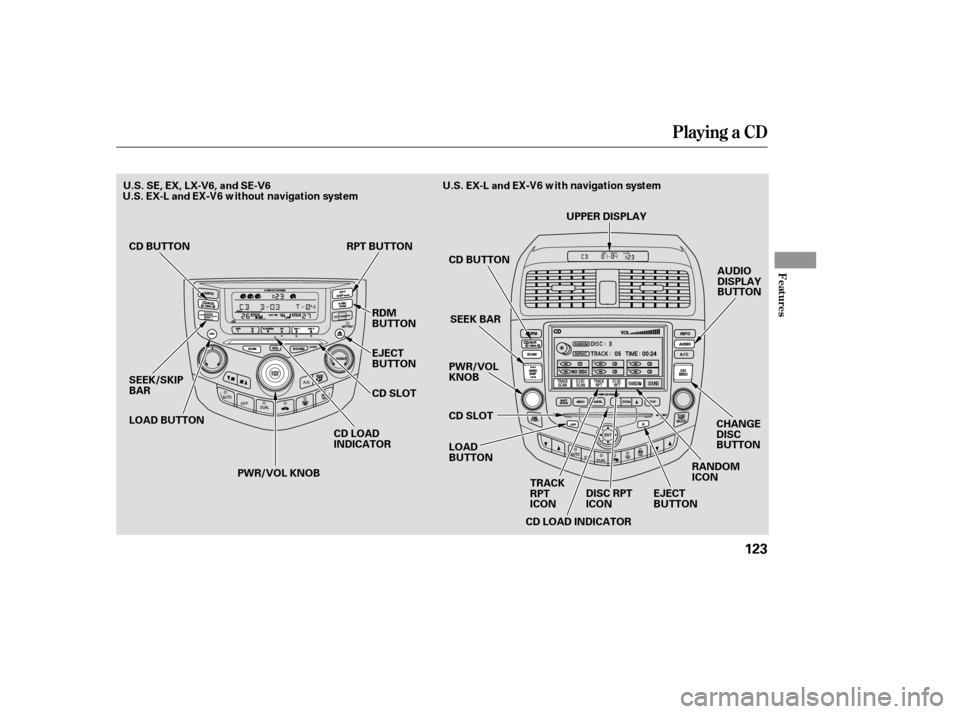

AUDIO
DISPLAY
BUTTON
SEEK/SKIP
BAR CD LOAD
INDICATORCD BUTTON
SEEK BAR
PWR/VOLKNOB
LOAD
BUTTON
CD SLOT
CD LOAD INDICATOR RANDOMICON
EJECT
BUTTON
LOAD BUTTON RPT BUTTON
RDM
BUTTON
EJECT
BUTTON
CD SLOT
PWR/VOL KNOB
CD BUTTON
UPPER DISPLAY
CHANGE
DISC
BUTTON
TRACK
RPTICON DISC RPTICON
U.S. EX-L and E
X -V 6 w it h navigat ion syst em
U.S.SE,EX,LX-V6,andSE-V6
U.S. EX-L and E X -V 6 w it hout navigat ion syst em
——
y

y
(y
y

To load or play CDs, the ignition
switch must be in the ACCESSORY
(I) or the ON(II) position.
You operate the CD player/CD
changer with the same controls used
for the radio. To select the CD
player/CD changer, press the CD
button. The number of the track
playing is shown in the display. With
the in-dash CD changer, the disc and
track numbers are displayed. The
system will continuously play a CD
until you change modes.To listen to satellite radio when a CD
is playing, press the CD/AUX XM
button.
To play the radio when a CD is
playing, press the AM/FM button.
Press the CD button again to switch
back to the CD player.
Insert a CD about half way into the
CD slot. The drive will pull the CD in
the rest of the way and begin to play
it. When the system reaches the end
of the disc, it will return to the
beginning and play the disc again.
To play a tape when a CD is playing,
insert a tape in the player (optional).
If a tape is in the player, press the
CD/AUX button. Press the CD/AUX
button again to switch back to the
CD player.
If you turn the system of f while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition,
the disc will stay in the drive. When
youturnthesystembackon,theCD
will begin playing where it lef t of f .
Vehic les witho ut in-dash CD c hang er
Vehic les with satellite radioTo Play a CD
Playing a CD, CD Changer
124
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
——
y

y
(y
y

µµ´
Û
Ý
Press the LOAD button until you
hear a beep and see ‘‘LOAd’’ in the
display.
The disc number f or an empty
position is highlighted and the red
light starts blinking.
When the CD load indicator turns
green and ‘‘LOAD’’ appears in the
screen again, insert the next CD in
the slot.
Repeat steps 1 through 3 until all
six positions are loaded. If you are
not loading all six positions, the
system begins playing the last CD
loaded. You can also load a CD into an empty
position while a CD is playing. Select
the empty position (the disc number
indicator is not highlighted) and
press the appropriate preset bar or
touch a disc icon. The current CD
stops playing and starts the loading
sequence. The CD just loaded will
play.
You operate the CD changer with
the same controls used f or the radio.
The numbers of the disc and track
playingareshowninthedisplay.On
vehicles with navigation system,
these numbers also appear in the
upper display.
To select a dif f erent disc, press the
appropriate side of a preset bar
(1 6) or use the Preset 5 (DISC )
to select the previous disc or Preset
6 (DISC ) to select the next disc in
sequence. On vehicles with
navigation system, touch the
appropriate disc icon or press the
or side of the CH/DISC bar. If
youselectanemptypositioninthe
CD changer, the system will try to
load the CD in the next available slot.
Insert the disc into the CD slot
when the green CD load indicator
comes on. Insert it only about
half way; the drive will pull it in the
rest of the way. You will see
‘‘BUSY’’ in the display as the CD
load indicator turns red and blinks
as the CD is loaded.
1. 2.3. 4. 5.
CONT INUED
Vehic les with in-dash CD c hang er
Vehic les with in-dash CD c hang er
Playing a CD, CD Changer
Features
125
——
y

y
(y
y

µ
µµ
µµ
µ
µVehic les witho ut navig atio n system EX-L and EX-V6 with navi g atio n system Press to play the
tracks in random order. You will see
RDM in the display. Press the RDM
button again to return to normal play.
The SCAN f unction
samples all the tracks on the
selected disc in the order they are
recorded. To activate it, press and
release the SCAN button. You will
see SCAN in the display, and you will
get a 10 second sampling of each
track on the selected CD. Press the
SCAN button again to get out of scan
mode. To use the controls, press the
AUDIO DISPLAY button; the control
icons will appear on the screen.
Press the icon or
SCAN button to get a 10 second
sampling of each track on the
current CD. Press the icon or button
again to turn it off.
Touch to get a 10
second sampling of the f irst song of
each disc in the CD changer. Touch
the icon again to turn it off.
Touch to
continuously play the same song on
the CD. Press the icon again to stop
the function.
Push the to
play the next track on the disc. Push
the oncetoreplaythetrackin
play; press it twice to replay the
previous track. To move rapidly
within a track, press and hold the or button.
Press to continuously
replay a track. You will see RPT in
the display. Press the RPT button
again to turn it off. RANDOM
SCAN TRACK SCAN
DISC SCAN
TRACK RPT
SEEK /SK IP
REPEAT
Playing a CD, CD Changer
126
——
y

y
(y

y

µµ
µ Touch the icon to
continuously replay the current CD.
Touch again to turn it of f .
Touch the icon to
play the current CD in random order.
Touch again to stop.
Selects an icon and
plays the disc.
If you turn the system of f while a CD
is playing, the CD will stay in the
drive. When you turn the system
back on, the CD will begin playing
where it lef t of f .
Press the eject button ( ) to
remove the CD. If you eject the CD,
but do not remove it f rom the slot,
the system will automatically reload
the CD af ter 15 seconds and put it in
pause mode. To begin playing, press
the CD button. PresstheAM/FMorCD/AUX/XM
button to switch to the AM/FM
radio or satellite radio while a CD is
playing. To play the CD, press the
CD/AUX/XM button again.
If a tape is in the optional tape player,
press the CD/AUX button to switch
to the tape while a CD is playing.
Press the CD/AUX button again to
switch back to the CD player.
To remove the disc currently playing,
press the EJECT button. When a
disc is removed f rom a slot, the
system automatically begins the load
sequence so you can load another
CD in that position. If you do not
remove the disc f rom the changer
within 15 seconds, the system
returns to the previous mode (AM/
FM or satellite radio). The disc will
reload into the system and will
remainthereinapausemode.
To remove a dif f erent disc f rom the
changer,firstselectitwiththe
appropriate preset bar or icon. When
that CD begins playing, press the
eject button. Continue pressing the
EJECT button to remove all the discs
f rom the changer.U.S. EX-L and EX-V6
Except U.S. VP, LX, and Canadian DX-GDISC RPT
TRACK RDM
CH DISC
To Stop Playing a CD Removing CDs f rom the Changer
Playing a CD, CD Changer
Features
127
——
y


y
(y
y

µ´
Load the desired CDs into the
magazine, and load the magazine
into the changer according to the
instructions that came with the unit.
To select the CD changer, press the
CD button. The disc and track
numbers will be displayed. To select
a dif f erent disc, use Preset 5 (DISC
), f or a previous disc; or Preset 6
(DISC ), to select the next disc in
sequence.
If you select an empty slot in the
magazine, the changer will search
f or the next available CD to load and
play.
An optional six or eight disc CD
changer is available f or your vehicle
f rom your dealer.
This disc changer uses the same
controls used f or the in-dash CD
player/changer or the radio.
U.S. VP and LX, and Canadian DX-G
Operating the Optional CD
Changer
Playing a CD, CD Changer
128
——
y


y
(y
y
