HONDA ACCORD 2007 CL7 / 7.G Owners Manual
Manufacturer: HONDA, Model Year: 2007, Model line: ACCORD, Model: HONDA ACCORD 2007 CL7 / 7.GPages: 292, PDF Size: 4.96 MB
Page 101 of 292

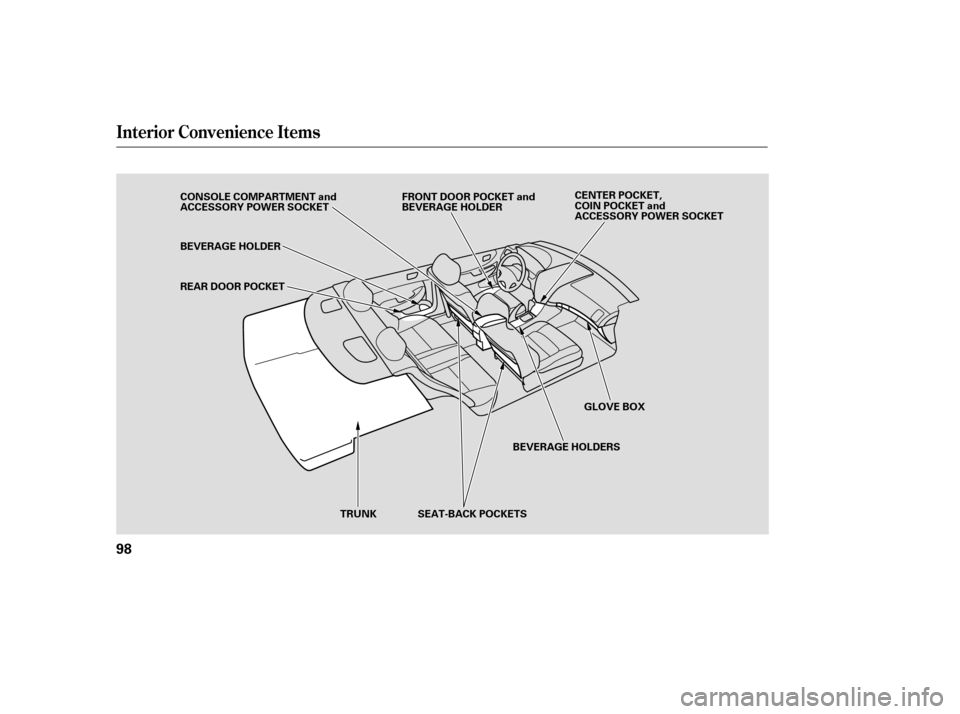

Interior Convenience Items
98
REAR DOOR POCKET
BEVERAGE HOLDER
BEVERAGE HOLDERSGLOVE BOX
TRUNK SEAT-BACK POCKETS CENTER POCKET,
COIN POCKET and
ACCESSORY POWER SOCKET
CONSOLE COMPARTMENT and
ACCESSORY POWER SOCKET
FRONT DOOR POCKET and
BEVERAGE HOLDER
— —
y
y
( y
y
Page 102 of 292
Be caref ul when you are using the
beverage holders. A spilled liquid
that is very hot can scald you or your
passengers. Liquid can also spill
f rom the door pocket beverage
holders when you close the doors.
Useonlyresealablecontainersinthe
door pockets.
Spilled liquids can damage the
upholstery, carpeting, and electrical

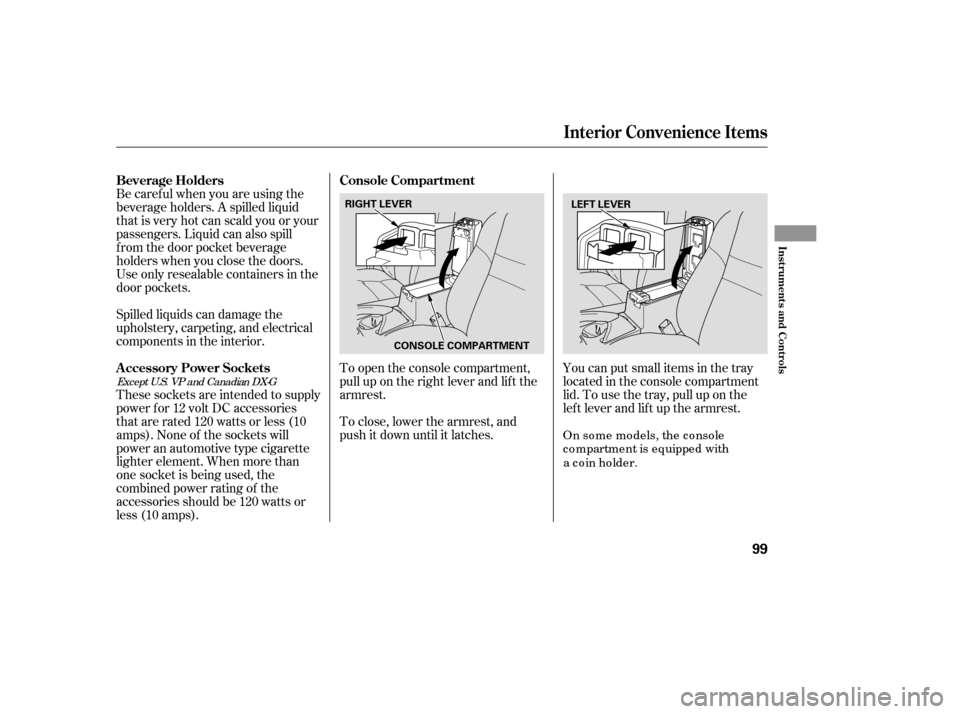

components in the interior.To open the console compartment,
pull up on the right lever and lif t the
armrest.
To close, lower the armrest, and
push it down until it latches.You can put small items in the tray
located in the console compartment
lid. To use the tray, pull up on the
lef t lever and lif t up the armrest.
These sockets are intended to supply
power f or 12 volt DC accessories
that are rated 120 watts or less (10
amps). None of the sockets will
power an automotive type cigarette
lighter element. When more than
one socket is being used, the
combined power rating of the
accessories should be 120 watts or
less (10 amps).
On so me mo dels, the c o nso le
c o mpartment is
equipped with
a c o in ho lder.
Except U.S. VP and Canadian DX-G
Beverage Holders
A ccessory Power Sockets Console Compartment
Interior Convenience Items
Inst rument s and Cont rols
99
CONSOLE COMPARTMENT
RIGHT LEVER
LEFT LEVER
— —
y
y
( y
y
Page 103 of 292

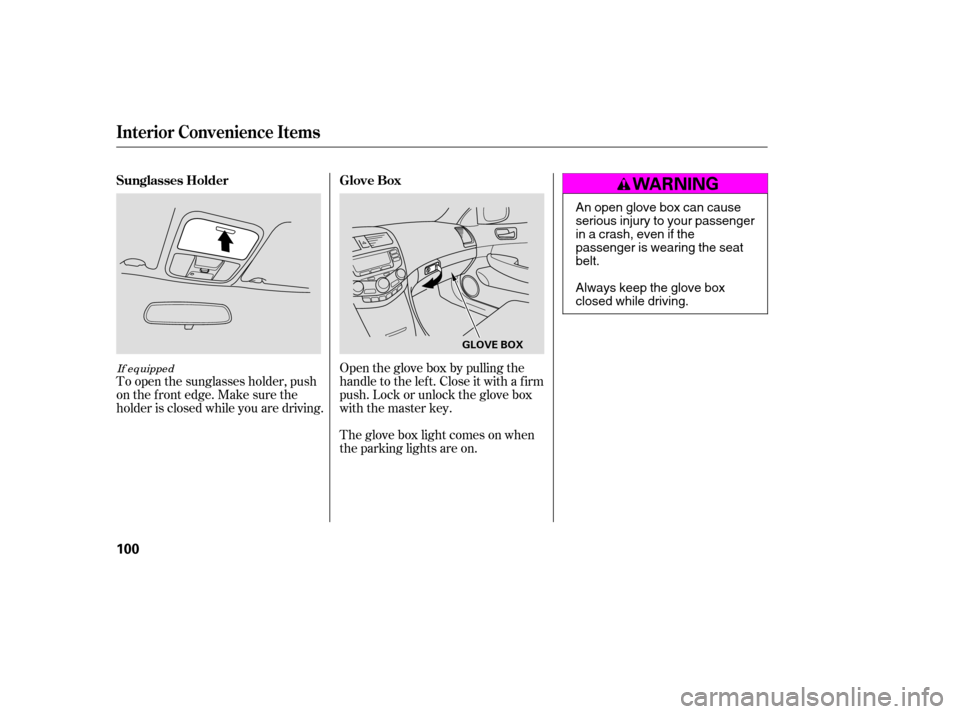

Open the glove box by pulling the
handle to the lef t. Close it with a f irm
push. Lock or unlock the glove box
with the master key.
The glove box light comes on when
the parking lights are on.
To open the sunglasses holder, push
on the f ront edge. Make sure the
holder is closed while you are driving.If equipped
Sunglasses Holder Glove Box
Interior Convenience Items
100
GLOVE BOX
An open glove box can cause
serious injury to your passenger
inacrash,evenifthe
passenger is wearing the seatbelt.
Always keep the glove box
closed while driving.
— —
y
y
( y
y
Page 104 of 292

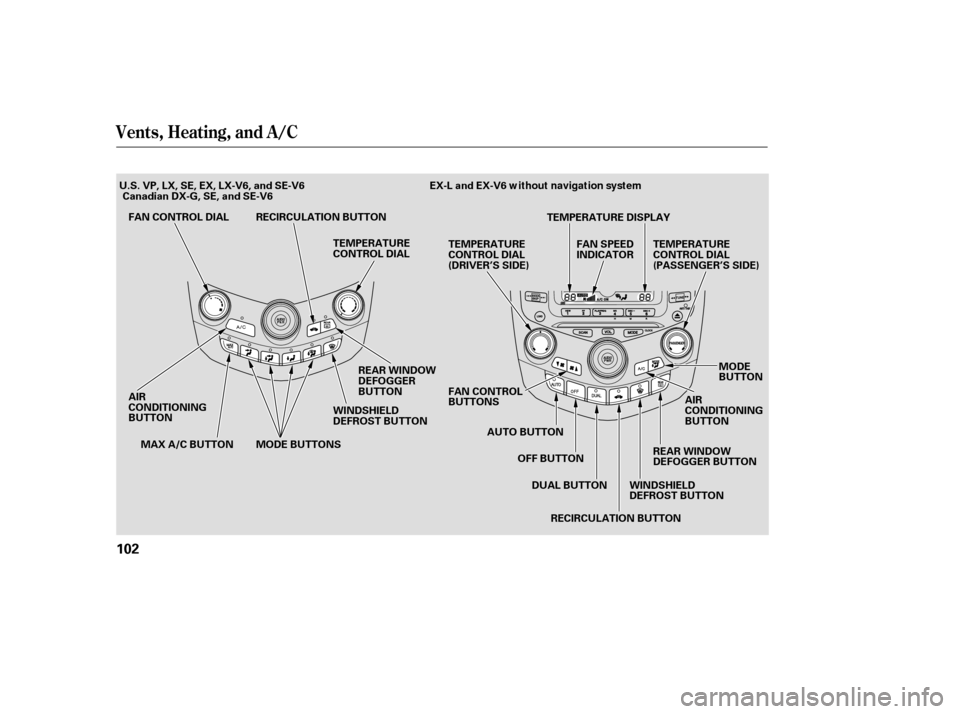

Vents, Heating, and A/C
102
TEMPERATURE
CONTROL DIAL
MAX A/C BUTTON REAR WINDOW
DEFOGGER BUTTON
TEMPERATURE
CONTROL DIAL
(DRIVER’S SIDE)
FAN CONTROL
BUTTONS
TEMPERATURE
CONTROL DIAL
(PASSENGER’S SIDE)
MODE
BUTTON
RECIRCULATION BUTTON AIR
CONDITIONING
BUTTON
AUTO BUTTON
OFF BUTTONDUAL BUTTON WINDSHIELD DEFROST BUTTON
FAN SPEED
INDICATOR
AIR
CONDITIONING
BUTTON MODE BUTTONS
RECIRCULATION BUTTON
REAR WINDOW
DEFOGGER
BUTTON
WINDSHIELD
DEFROST BUTTON
FAN CONTROL DIAL
TEMPERATURE DISPLAY
EX-L and EX-V6
w it hout navigat ion syst em
U.S.VP,LX,SE,EX,LX-V6,andSE-V6
Canadian DX-G, SE, and SE-V6
— —
y
y
( y
y
Page 105 of 292

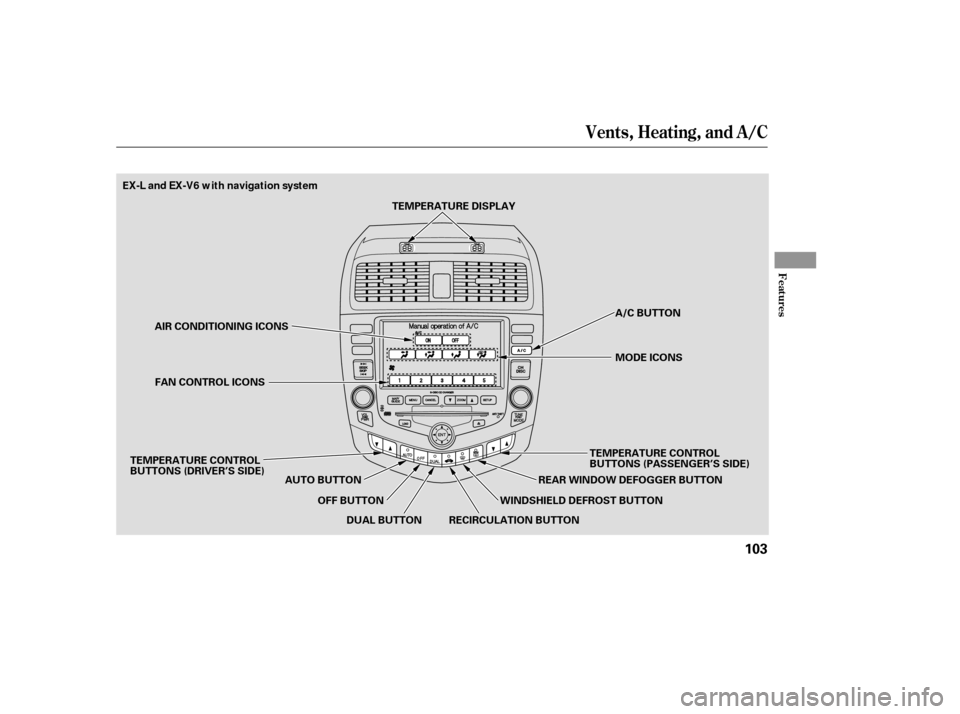

Vents, Heating, and A/C
Features
103
AUTO BUTTONMODE ICONS
A/C BUTTON
AIR CONDITIONING ICONS
FAN CONTROL ICONS
DUAL BUTTON TEMPERATURE CONTROL
BUTTONS (PASSENGER’S SIDE)
RECIRCULATION BUTTON WINDSHIELD DEFROST BUTTONREAR WINDOW DEFOGGER BUTTON
TEMPERATURE CONTROL
BUTTONS (DRIVER’S SIDE)
OFF BUTTONTEMPERATURE DISPLAY
E
X-L and EX-V6 w it h navigat ion syst em
— —
y
y
( y
y
Page 106 of 292
ÛÝ
The climate control system can also
be operated by voice control. See the
Navi section in your quick start
guide f or an overview of this system,
and the navigation system manual
f or complete details.
You can manually select the f an
speed by pressing the f an control
buttons. The f an speed is
represented by vertical bars in the
display. Press the DUAL button. The
indicator in the button will come on.
The driver and passenger can each
select the temperature control
buttons ( or ) to the
desired setting.
When the indicator in the DUAL
button is off, both sides adjust to the
driver’s side temperature.
Turn this dial to increase or decrease
the fan speed and airflow. You can manually select the f an
speed by pressing the A/C button
next to the display, and then
pressing the f an control icons.
Turning this dial clockwise increases
the temperature of the airflow.
The driver and passenger can select
independent temperature settings by
selecting the DUAL button.
Push the DUAL button. When the
indicator in the button is on, turn the
dials to adjust the temperature.
Only o n mo dels equipped with
Navig atio n system
Exc ept EX-L and EX-V6 with navig atio n
system
EX-L and EX-V6
EX-L and EX-V6 witho ut navig atio nsystem EX-L and EX-V6 with navig atio n system
EX-L and EX-V6
EX-L and EX-V6 with navig atio n system
EX-L and EX-V6 witho ut navig atio n system
U.S. VP, LX, SE, EX, LX-V6, and SE-V6
Canadian DX-G, SE, and SE-V6
Vents, Heating, and A/C
Voice Control System
Fan Control T emperature Control
104
— —
y
y
( y
y
Page 107 of 292
When the recirculation indicator is
on, air f rom the vehicle’s interior is
sent throughout the system again.
When the indicator is off, air is
brought in f rom the outside of the
vehicle (fresh air mode).
The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
Thesystemshouldbeleftinfresh
air mode under almost all conditions.
Keeping the system in recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
Switch to recirculation mode when
driving through dusty or smoky
conditions, then return to fresh air
mode.
This button turns the rear window
def ogger of f and on (see page ).
Press the A/C button to turn the air
conditioning on and of f . The display
shows ‘‘A/C ON’’ when the air
conditioning is on. The display
shows ‘‘A/C OFF’’ when the air
conditioning is of f .
The display shows ‘‘ON’’ and ‘‘OFF’’
after you press the A/C button. The
display shows ‘‘A/C ON’’ af ter you
touch ‘‘ON’’ to turn the air
conditioning on. The display shows
‘‘A/C OFF’’ af ter you touch ‘‘OFF’’ to
turn the air conditioning off. When the A/C is of f , the airf low
temperature does not f all below the
outside air temperature. When you
set the airf low temperature lower
than the outside air temperature,
make sure the A/C is on.
Press the A/C button to turn the
airconditioningonoroff.The
indicator above the button is on
when the air conditioning is on.
72
EX-L and EX-V6
Except EX-L and EX-V6
EX-L and EX-V6 witho ut navig atio n system
EX-L and EX-V6 with navig atio nsystem
Air Conditioning (A/C) Button
Rear Window Def ogger Button
Recirculation Button
Vents, Heating, and A/C
Features
105
— —
y
y
( y
y
Page 108 of 292
Use the mode control buttons or
icons to select the vents the air f lows
f rom. Some air f lows f rom the
dashboard corner vents in all modes.Air flows from the center
and corner vents in the dashboard.
Air f lows f rom the f loor
vents.
Air f lows f rom the def roster
vents at the base of the windshield. When you select or ,
the system automatically switches to
Fresh Air mode and turns on the
A/C. In these modes, the A/C stays
on with the indicator off.
When you select , the system
automatically switches to Fresh Air
mode.
Airf low is divided between
the vents in the dashboard and the
f loor vents.
Airf low is divided between
the f loor vents and the def roster
vents at the base of the windshield. Each time you press the MODE
button, the display shows the mode
selected.
Press the A/C button to view the
display, then touch any of the mode
icons on the display. The system automatically
turns on the A/C, selects ,
and switches to recirculation mode.
Each indicator above the button is on
when the MAX A/C is turned on.
The f low-through ventilation system
draws in outside air, circulates it
through the interior, then exhausts it
through vents near the rear window.
Set the temperature to the lower
limit.
Make sure the A/C is of f .
Select and fresh air mode.
Set the f an to the desired speed.
1. 2. 3.4.
EX-L and EX-V6 witho ut navig atio n
system
EX-L and EX-V6 with navig atio nsystem Except EX-L and EX-V6
Mode Control
MAX A/C Button
Ventilation
Vents, Heating, and A/C
106
— —
y
y
( y
y
Page 109 of 292
ÛÝAir conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page
). If it moves near the red zone,
turn of f the A/C until the gauge
reading returns to normal. Press the A/C button; the manual
operation A/C screen will appear.
Select the ON icon on the display.
Select the desired temperature
and MODE selections. If the
outside air is humid, select the
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
you can
cool it down more rapidly by partially
opening the windows, turning on the
A/C, and setting the fan to
maximum speed in f resh air mode.
Press the A/C button, the manual
operation of A/C screen will
appear.
Select the desired mode and f an
speed icons on the display.
Adjustforwarmthwiththe
temperature buttons ( or ). To cool the interior with MAX A/C:
Set the f an to the desired speed.
Select the MAX A/C mode.
The system automatically turns on
the A/C, selects and
switches to Recirculation mode.
Make sure the temperature
control dial is all the way to the left.
The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes bef ore you
f eel warm air coming f rom the
system.
Select .
When you select , the system
automatically switches to the fresh
air mode.
Set the f an to the desired speed.
Adjust the warmth of the air with
the temperature control dial. Turn on the A/C by pressing the
A/C button.
Make sure the temperature
control is set to maximum cool.
Select .
If the outside air is humid, select
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
Set the f an to the desired speed.
1. 2. 3. 1.2. 3.
1. 2. 3. 1.2. 3.
65
1. 2.3. 4. 5.
If the interior is very warm,
Exc ept EX-L and EX-V6 with navig atio n system Exc ept EX-L and EX-V6 with navig atio n
system EX-L and EX-V6 with navig atio n system
EX-L and EX-V6 with Navigation System
Except EX-L and EX-V6
Using the Heater Using the A /C
Vents, Heating, and A/C
Features
107
— —
y
y
( y
y
Page 110 of 292
Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry.To remove f og f rom the inside of the
windows:
When you switch to , f rom
or mode, the A/C
stays on whether the indicator is on
or of f . This helps prevent the
windows f rom rapidly f ogging up
when the air is suddenly routed away
f rom the windshield. If you want to
turn the A/C of f , press and release
the A/C button until the indicator in
thebuttoncomesonandthengoes
of f .
Set the f an to the desired speed, or
high f or f aster def rosting.
Select . The system
automatically switches to f resh air
mode and turns on the A/C. The
A/C indicator will not come on if it
was previously off.
Adjust the temperature so the
airf low f eels warm.
Select to help clear the
rear window.
To increase airf low to the
windshield, close the corner vents.
Turn the fan on.
If the A/C is of f , turn it on.
Select and fresh air mode.
Adjust the temperature to your
pref erence.
This setting is suitable f or all driving
conditions whenever the outside
temperature is above 32°F (0°C). 1. 2. 3. 4.5.
1. 2.3.4.
Dehumidif y the Interior T o Def og and Def rost
Vents, Heating, and A/C
108
— —
y
y
( y
y
