Pushandholdtherearof the
master door lock switch on the
driver’s door. You will hear a click.
Continue to hold the switch:Until you hear another click
(af ter about 5 seconds) to
activate
Or, until you hear two more
clicks (af ter about 10 seconds)
to activate
Pushandholdtherearof the
master door lock switch on the
driver’s door. You will hear a click,
and after about 5 seconds, you will
hear another click.
Turn the ignition switch to the ON
(II) position, and make sure to
close the driver’s door.
Make sure the shif t lever is in the
Park (P) position.
Release the switch, and within 20
seconds, turn the ignition switch
to the LOCK (0) position.
Release the switch, and within 20
seconds, turn the ignition switch
to the LOCK (0) position.
1. 2. 3. 4.
3. 4.
driver’s door unlock
feature.
all doors unlock f eature.
Unlocks the driver’s door or all doors
when the shif t lever is moved into thePark (P) position with the brake pedal
depressed (A/T vehicles only).
Door L ocks

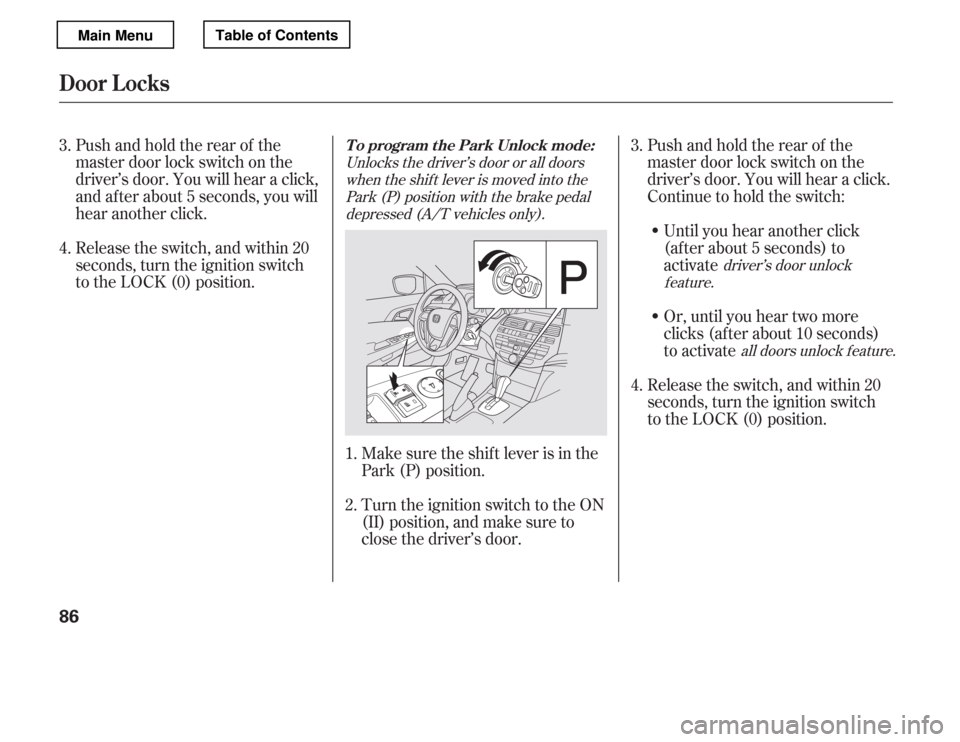

To program the Park Unlock mode:
86
Main MenuTable of Contents

Even if your vehicle’s battery is
removed or goes dead, the system
keeps the auto door lock/unlock
setting which you selected.Turn the ignition switch to the
LOCK (0) position.
push and hold the
brake pedal, then move the shift
lever out of the Park (P) position.
Pushandholdtherearof the
master door lock switch on the
driver’s door. You will hear a click.
Continue to hold the switch:
Until you hear another click
(af ter about 5 seconds) to
activate
Or, until you hear two more
clicks (af ter about 10 seconds)
to activate
Make sure the shif t lever is in the
Park (P) position (A/T vehicles).
Turn the ignition switch to the ON
(II) position, and make sure to
close the driver’s door. Release the switch, and within 20
seconds, turn the ignition switch
to the ACCESSORY (I) position.
move the shif t
lever to the Park (P) position.
4. 5. 6.
3.
1. 2.
On A/T vehicles, driver’s door unlock
feature.
all doors unlock f eature.
Unlocks the driver’s door or all doors
when the ignition switch is moved out ofthe ON (II) position. On A/T vehicles,
Door L ocks

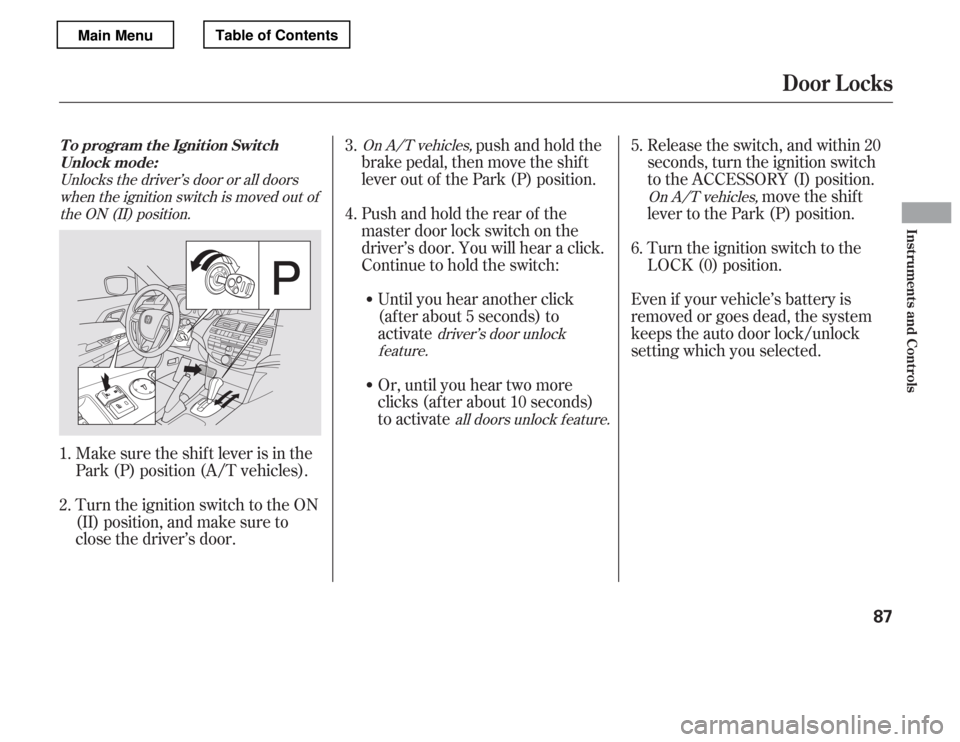

T o program t he Ignit ion Swit ch
Unlock mode:
Inst rument s and Cont rols
87
Main MenuTable of Contents

µµ

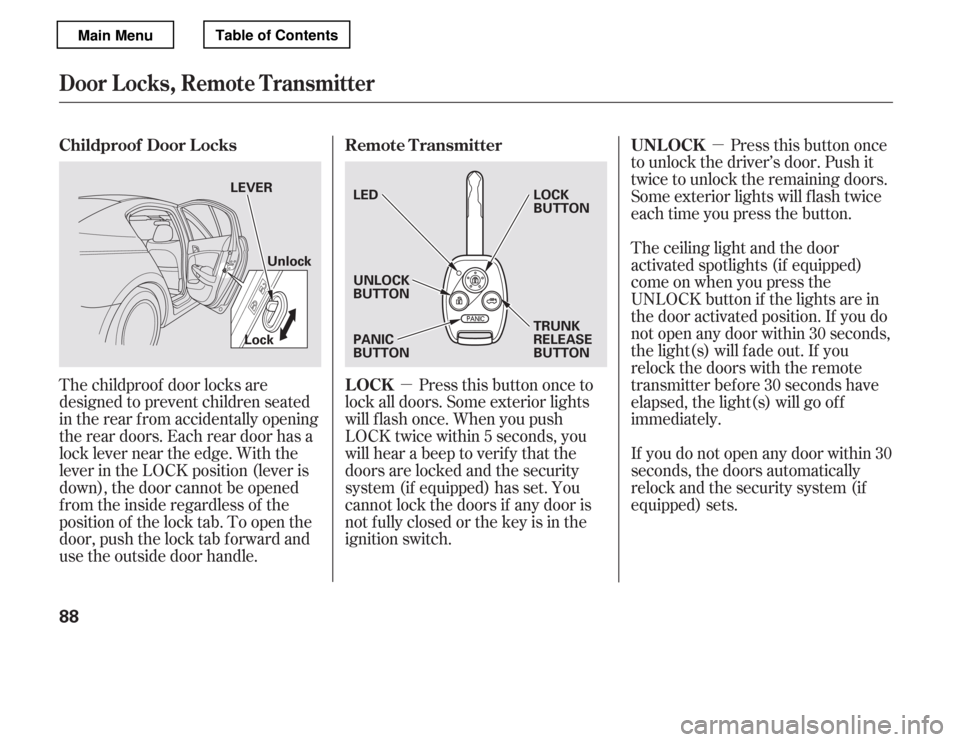

The childproof door locks are
designed to prevent children seated
in the rear f rom accidentally opening
the rear doors. Each rear door has a
lock lever near the edge. With the
lever in the LOCK position (lever is
down), the door cannot be opened
fromtheinsideregardlessof the
position of the lock tab. To open the
door, push the lock tab f orward and
use the outside door handle. Press this button once to
lock all doors. Some exterior lights
will f lash once. When you push
LOCK twice within 5 seconds, you
will hear a beep to verify that the
doors are locked and the security
system (if equipped) has set. You
cannot lock the doors if any door is
not f ully closed or the key is in the
ignition switch. Pressthisbuttononce
to unlock the driver’s door. Push it
twice to unlock the remaining doors.
Some exterior lights will f lash twice
each time you press the button.
The ceiling light and the door
activated spotlights (if equipped)
come on when you press the
UNLOCK button if the lights are in
the door activated position. If you do
not open any door within 30 seconds,
the light(s) will f ade out. If you
relock the doors with the remote
transmitter before 30 seconds have
elapsed, the light(s) will go of f
immediately.
If you do not open any door within 30
seconds, the doors automatically
relock and the security system (if
equipped) sets.
Childproof Door L ocks Remote T ransmitter
LOCKUNL OCK
Door Locks, Remote Transmitter
88
Unlock
LEVER
Lock UNLOCK
BUTTON
LED
TRUNK
RELEASE
BUTTON
PANIC
BUTTON LOCK
BUTTON
Main MenuTable of Contents

µµ

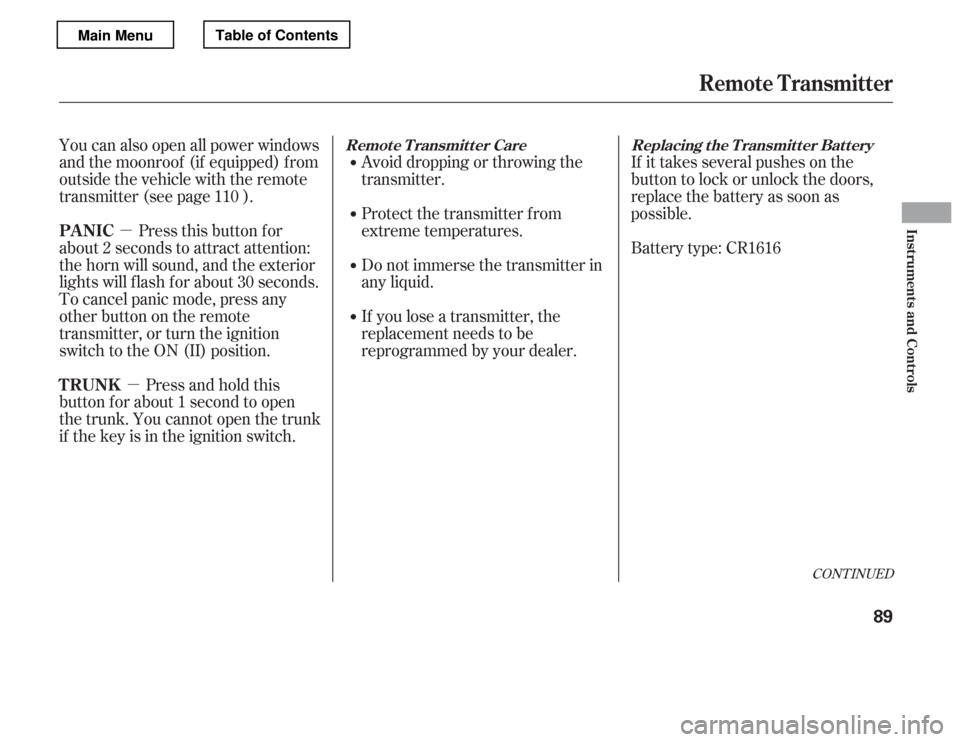

You can also open all power windows
and the moonroof (if equipped) f rom
outside the vehicle with the remote
transmitter (see page ).
Pressthisbuttonfor
about 2 seconds to attract attention:
the horn will sound, and the exterior
lights will f lash f or about 30 seconds.
To cancel panic mode, press any
other button on the remote
transmitter, or turn the ignition
switch to the ON (II) position.
Press and hold this
button f or about 1 second to open
the trunk. You cannot open the trunk
if the key is in the ignition switch. Avoid dropping or throwing the
transmitter.
Protect the transmitter from
extreme temperatures.
Do not immerse the transmitter in
any liquid.
If you lose a transmitter, the
replacement needs to be
reprogrammed by your dealer.
If it takes several pushes on the
button to lock or unlock the doors,
replace the battery as soon as
possible.
Battery type: CR1616
110
CONT INUED
Remote Transmitter
PA NIC
TRUNK
Remote Transmitter Care Replacing the Transmitter Battery
Inst rument s and Cont rols
89
Main MenuTable of Contents

´

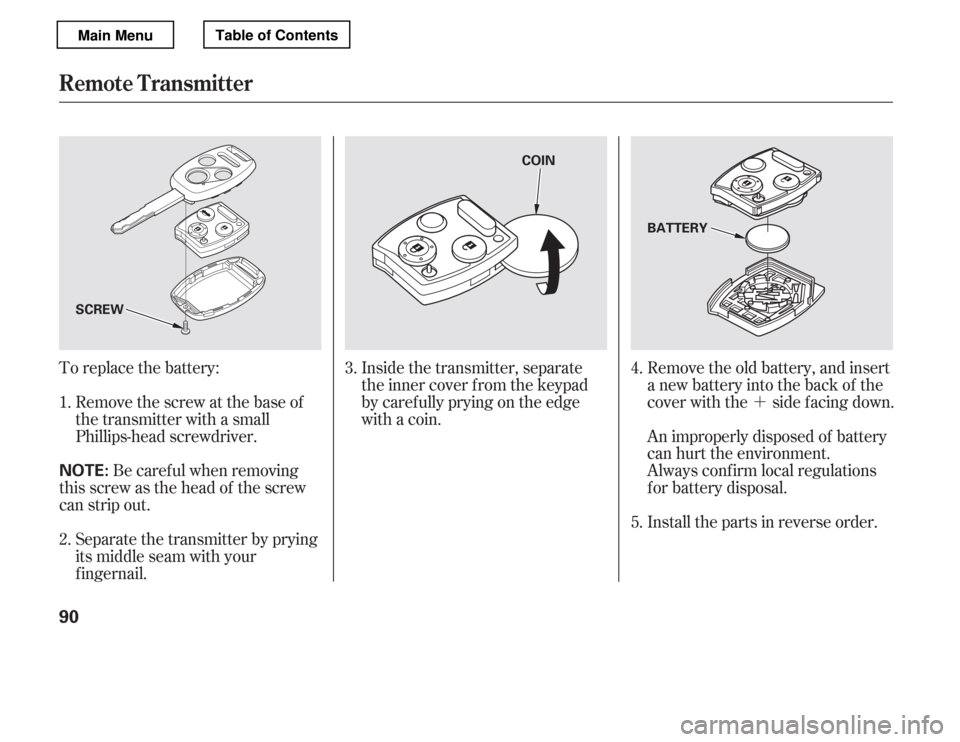

To replace the battery:
Remove the screw at the base of
the transmitter with a small
Phillips-head screwdriver. Be caref ul when removing
this screw as the head of the screw
can strip out.
Separate the transmitter by prying
its middle seam with your
f ingernail. Inside the transmitter, separate
the inner cover f rom the keypad
by caref ully prying on the edge
with a coin.
Remove the old battery, and insert
a new battery into the back of the
cover with the side f acing down.
An improperly disposed of battery
can hurt the environment.
Always conf irm local regulations
for battery disposal.
Install the parts in reverse order.
1. 2. 3.
4.
5.
Remote Transmitter
90
NOTE:
SCREW BATTERY
COIN
Main MenuTable of Contents

As required by the FCC:This device complies with Part 15 of the
FCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and (2) this device must accept any
interf erence received, including interf erence that may cause undesired operation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’s authority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.
Operation is subject to the f ollowing twoconditions: (1) this device may not cause
interf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device. U.S. EX-L V6
Canadian EX-L and EX-L V6 withnavigation system

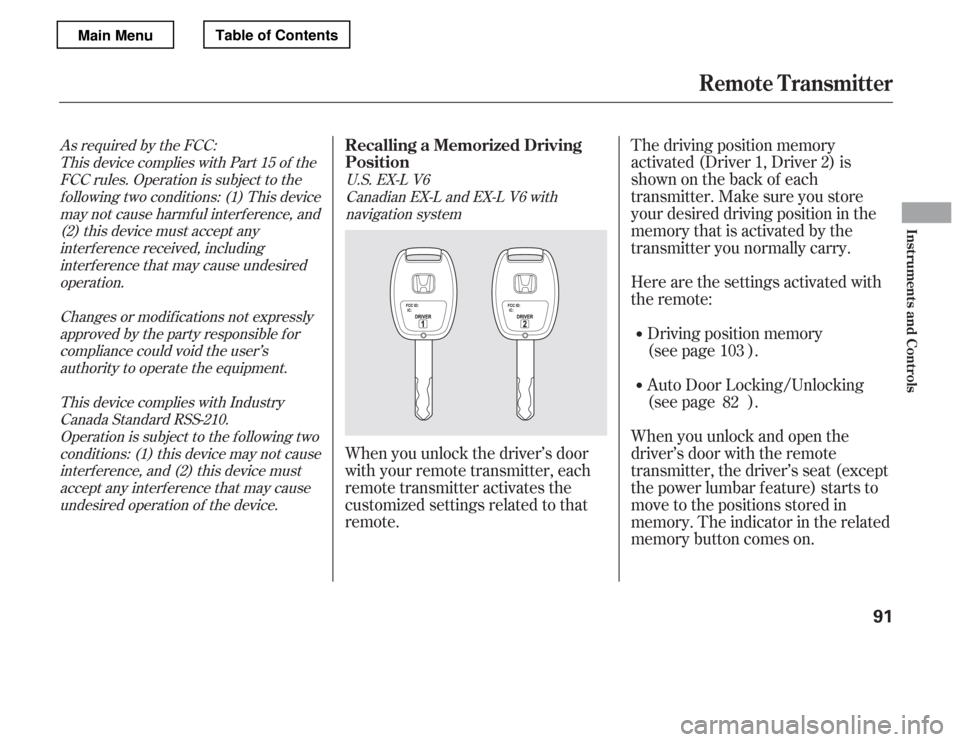

When you unlock the driver’s door
with your remote transmitter, each
remote transmitter activates the
customized settings related to that
remote. The driving position memory
activated (Driver 1, Driver 2) is
shownonthebackof each
transmitter. Make sure you store
your desired driving position in the
memory that is activated by the
transmitter you normally carry.
Here are the settings activated with
the remote:
Driving position memory
(see page ).
Auto Door Locking/Unlocking
(see page ).
When you unlock and open the
driver’s door with the remote
transmitter, the driver’s seat (except
the power lumbar feature) starts to
move to the positions stored in
memory. The indicator in the related
memory button comes on. 103
82
Remote Transmitter
Recalling a Memorized Driving
Position
Inst rument s and Cont rols
91
Main MenuTable of Contents

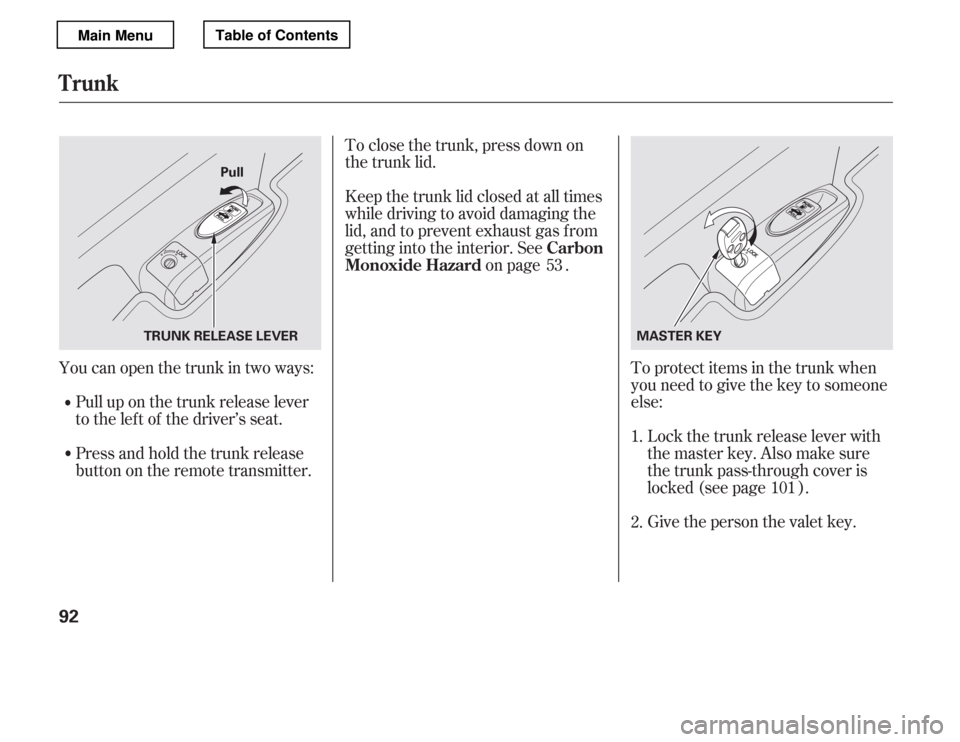

To protect items in the trunk when
you need to give the key to someone
else:Give the person the valet key.
Lockthetrunkreleaseleverwith
the master key. Also make sure
the trunk pass-through cover is
locked (see page ).
To close the trunk, press down on
the trunk lid.
Youcanopenthetrunkintwoways: Pull up on the trunk release lever
to the lef t of the driver’s seat.
Press and hold the trunk release
button on the remote transmitter. Keep the trunk lid closed at all times
while driving to avoid damaging the
lid, and to prevent exhaust gas f rom
getting into the interior. See
on page .
1. 2.
53
101
Trunk
Carbon
Monoxide Hazard
92
Pull
TRUNK RELEASE LEVER MASTER KEY
Main MenuTable of Contents

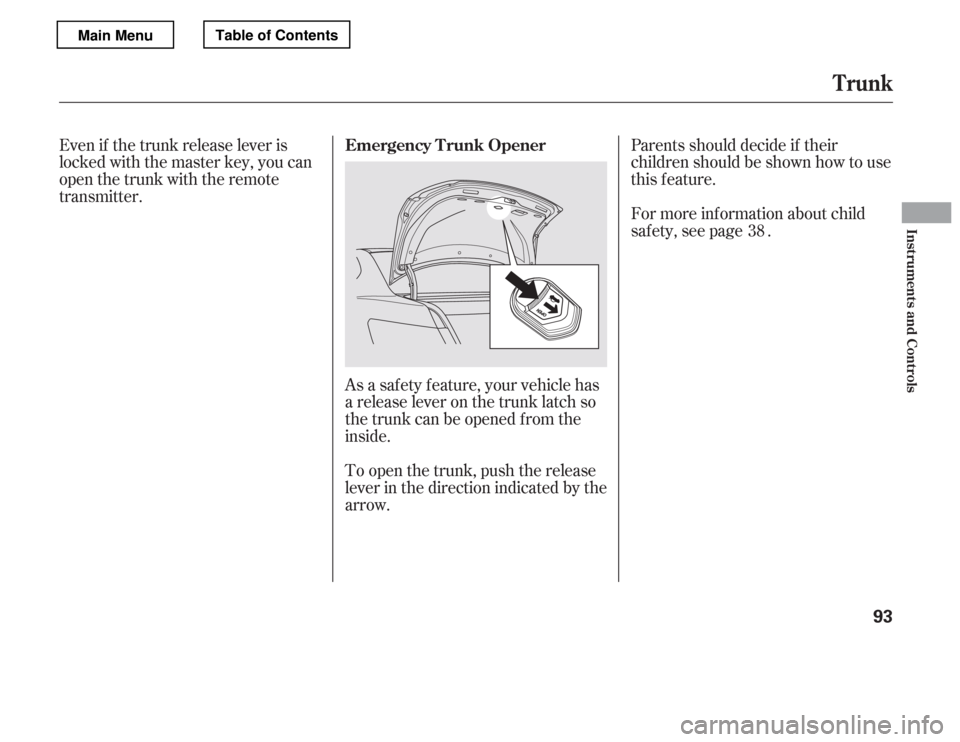

As a saf ety f eature, your vehicle has
a release lever on the trunk latch so
the trunk can be opened f rom the
inside.Parents should decide if their
children should be shown how to use
this feature.
For more inf ormation about child
saf ety, see page .
Even if the trunk release lever is
locked with the master key, you can
open the trunk with the remote
transmitter.
To open the trunk, push the release
leverinthedirectionindicatedbythe
arrow. 38
Trunk
Emergency T runk Opener
Inst rument s and Cont rols
93
Main MenuTable of Contents

µ
Moves the seat forward
and backward.
The controls f or the power
adjustable front seats are on the
outside edge of each seat bottom.
You can adjust the seats with the
ignition switch in any position. Make
all seat adjustments bef ore you start
driving.
The passenger seat has the same
adjustments as the driver’s seat but
without any height and lumbar
adjustments.
The f ront passenger’s seat adjusts
manually.
Raisesorlowerstheseat.
(Driver’s seat only)
Moves the f ront of the
seat up or down.
(Driver’s seat only) Moves the whole seat up
and f orward, or down
and backward. The front
of the seat also tilts up or
down at the same time.
(Driver’s seat only)
Adjusts the seat-back
angle f orward or
backward.
Increases or decreases
the lumbar support.
See pages f or important saf ety
inf ormation and warnings about how toproperly position the seats and seat-backs.
Except LX
11 13
EX-L and EX-L V6 Except EX-L and EX-L V6 Driver’s seat only on SE, EX, EX-L and
V6 models
Seats
Front Seat Power A djustments
94
Driver’s seat
is shown.
Main MenuTable of Contents

µ

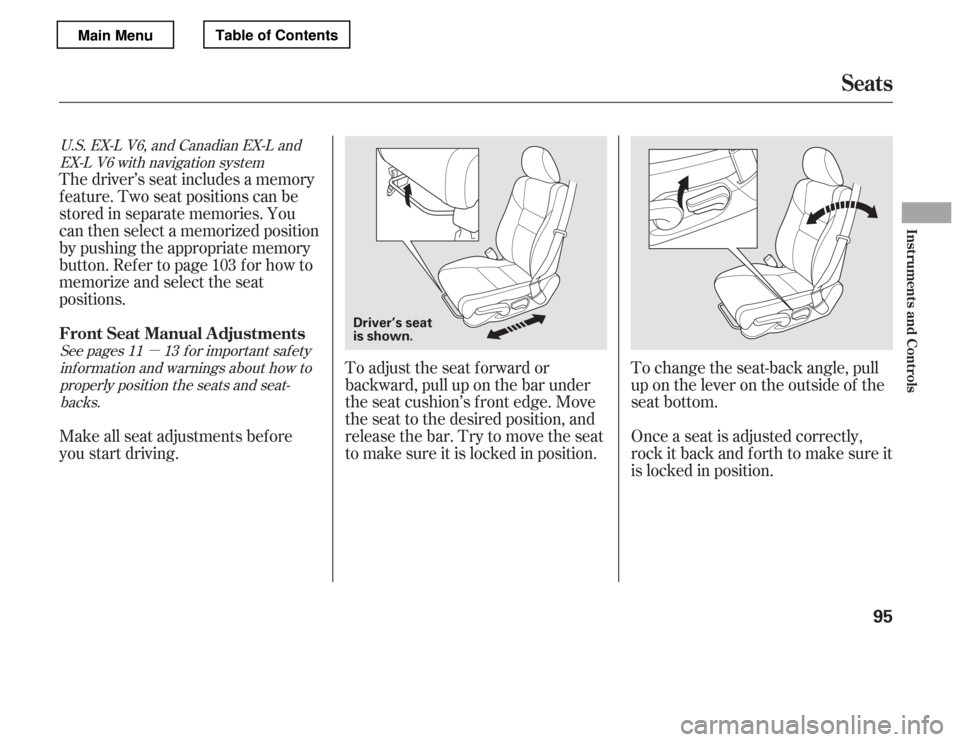

To adjust the seat f orward or
backward, pull up on the bar under
the seat cushion’s f ront edge. Move
the seat to the desired position, and
releasethebar.Trytomovetheseat
to make sure it is locked in position.To change the seat-back angle, pull
up on the lever on the outside of the
seat bottom.
Once a seat is adjusted correctly,
rock it back and f orth to make sure it
is locked in position.
The driver’s seat includes a memory
f eature. Two seat positions can be
stored in separate memories. You
canthenselectamemorizedposition
by pushing the appropriate memory
button. Ref er to page f or how to
memorize and select the seat
positions.
Make all seat adjustments bef ore
you start driving.
103
See pages f or important saf ety
inf ormation and warnings about how to
properly position the seats and seat-backs.
U.S. EX-L V6, and Canadian EX-L and
EX-L V6 with navigation system
11 13
Seats
FrontSeatManualAdjustments
Inst rument s and Cont rols
95
Driver’s seat
is shown.
