The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
f ederal law and Canadian provincial/
territorial regulations to disconnect,
reset, or alter the odometer with the
intent to change the number of miles
or kilometers indicated.

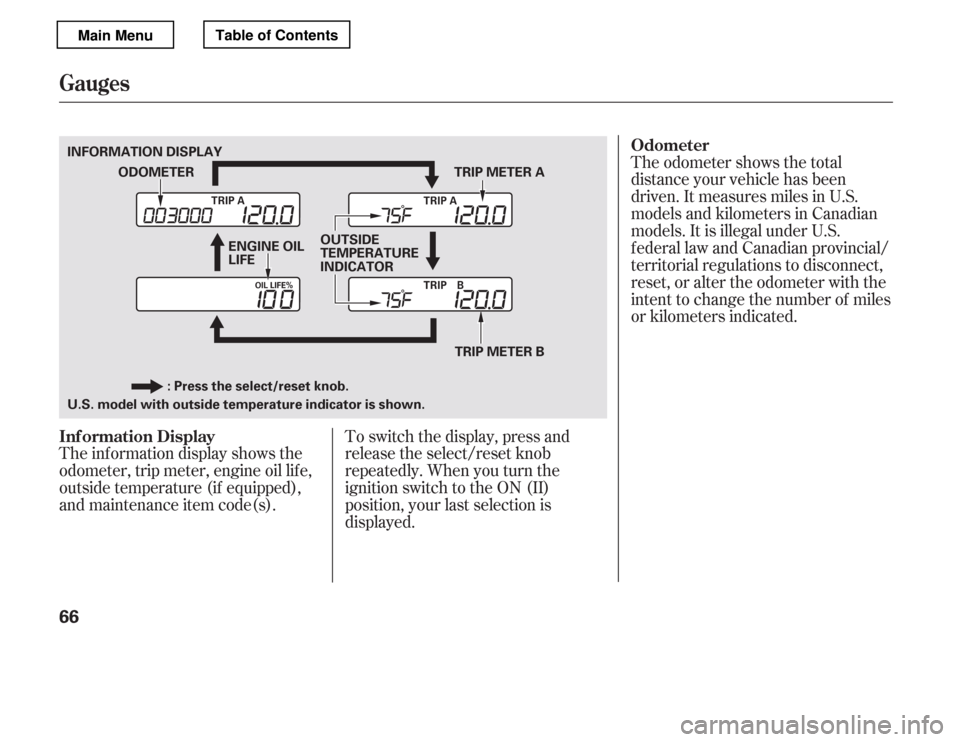

The inf ormation display shows the
odometer, trip meter, engine oil lif e,
outside temperature (if equipped),
and maintenance item code(s). To switch the display, press and
release the select/reset knob
repeatedly. When you turn the
ignition switch to the ON (II)
position, your last selection is
displayed.
Gauges
Odometer
Inf ormation Display
66
INFORMATION DISPLAY TRIP METER A
TRIP METER B
ENGINE OIL LIFE
OUTSIDE
TEMPERATURE
INDICATOR
: Press the select/reset knob.
U.S. model with outside temperature indicator is shown. ODOMETER
Main MenuTable of Contents

¶¶µ
µµµµ µµµIf equipped
The temperature sensor is in the
f ront bumper. Theref ore, the
temperature reading can be af f ected
by heat ref lection f rom the road
surf ace, engine heat, and the
exhaust f rom surrounding traf f ic.
This can cause an incorrect
temperature reading when your
speed is under 19 mph (30 km/h).
The sensor delays the display update
until it reaches the correct outside
temperature. This may take several
minutes.
If the outside temperature is incorrectly displayed, you can adjust
it up to 5

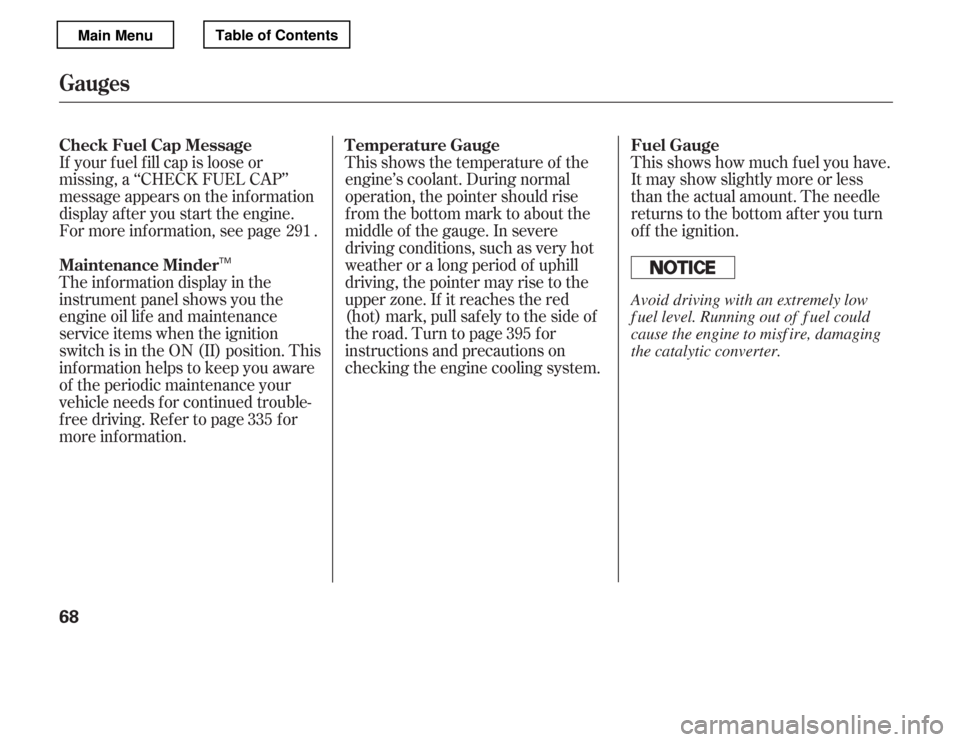

This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise
from the bottom mark to about the
middle of the gauge. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the pointer may rise to the
upper zone. If it reaches the red
(hot) mark, pull saf ely to the side of
the road. Turn to page for
instructions and precautions on
checking the engine cooling system.This shows how much f uel you have.
It may show slightly more or less
than the actual amount. The needle
returns to the bottom after you turn
of f the ignition.
If your f uel f ill cap is loose or
missing, a ‘‘CHECK FUEL CAP’’
message appears on the inf ormation
display af ter you start the engine.
For more inf ormation, see page .
The inf ormation display in the
instrument panel shows you the
engine oil lif e and maintenance
service items when the ignition
switch is in the ON (II) position. This
inf ormation helps to keep you aware
of the periodic maintenance your
vehicle needs f or continued trouble-
f ree driving. Ref er to page f or
more inf ormation. 291
335 395
Gauges
Temperature Gauge Fuel Gauge
Check Fuel Cap Message
Maintenance Minder
68
TM
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
Main MenuTable of Contents

Î ÎÎ
Î
Î
Î
Î
Î
Î
Î
If equipped
Only on vehicles equipped with navigation system, ref er to the navigati on system manual.
To use the horn, press the center pad of the steering wheel.
1:2:3:

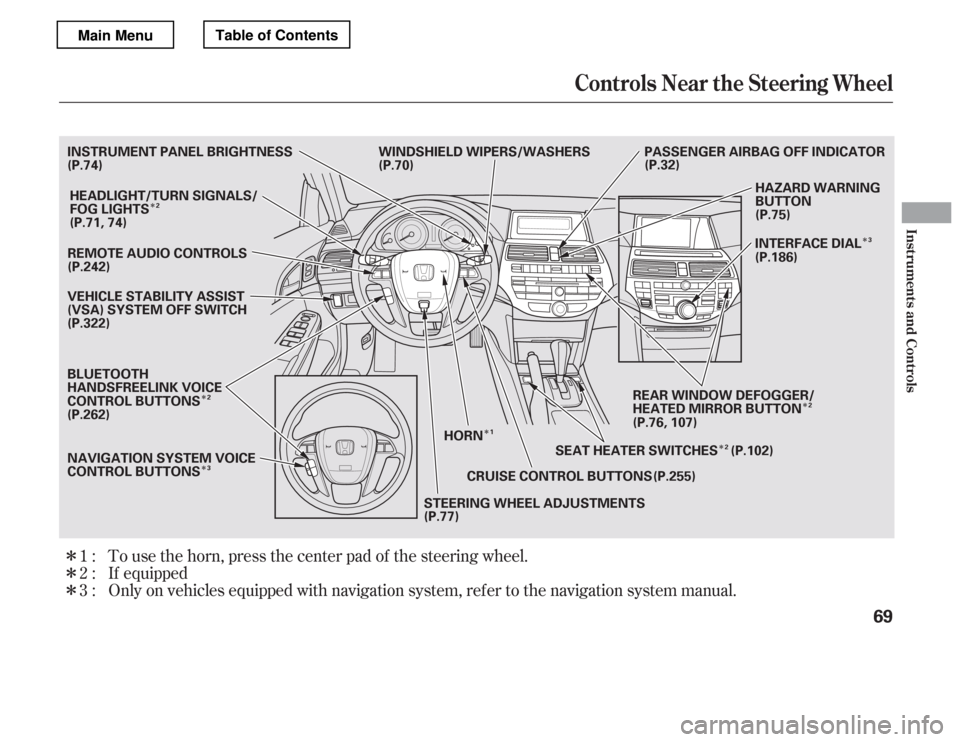

Controls Near the Steering Wheel
Inst rument s and Cont rols
69
HAZARD WARNING
BUTTON
INTERFACE DIAL
HORN
HEADLIGHT/TURN SIGNALS/
FOG LIGHTS
REMOTE AUDIO CONTROLS
NAVIGATION SYSTEM VOICE
CONTROL BUTTONS
BLUETOOTH
HANDSFREELINK VOICE
CONTROL BUTTONS
VEHICLE STABILITY ASSIST
(VSA) SYSTEM OFF SWITCH
REAR WINDOW DEFOGGER/
HEATED MIRROR BUTTON
STEERING WHEEL ADJUSTMENTS CRUISE CONTROL BUTTONS
SEAT HEATER SWITCHES PASSENGER AIRBAG OFF INDICATOR
WINDSHIELD WIPERS/WASHERS
INSTRUMENT PANEL BRIGHTNESS
(P.74)
(P.71, 74)
(P.242)
(P.322)
(P.262) (P.70)
(P.32)
(P.75)
(P.186)
(P.76, 107) (P.102)
(P.255)
(P.77)
3
1
2
3
2
2
2
Main MenuTable of Contents

µ
µ
µ µ
µ µ
µ
µ µ

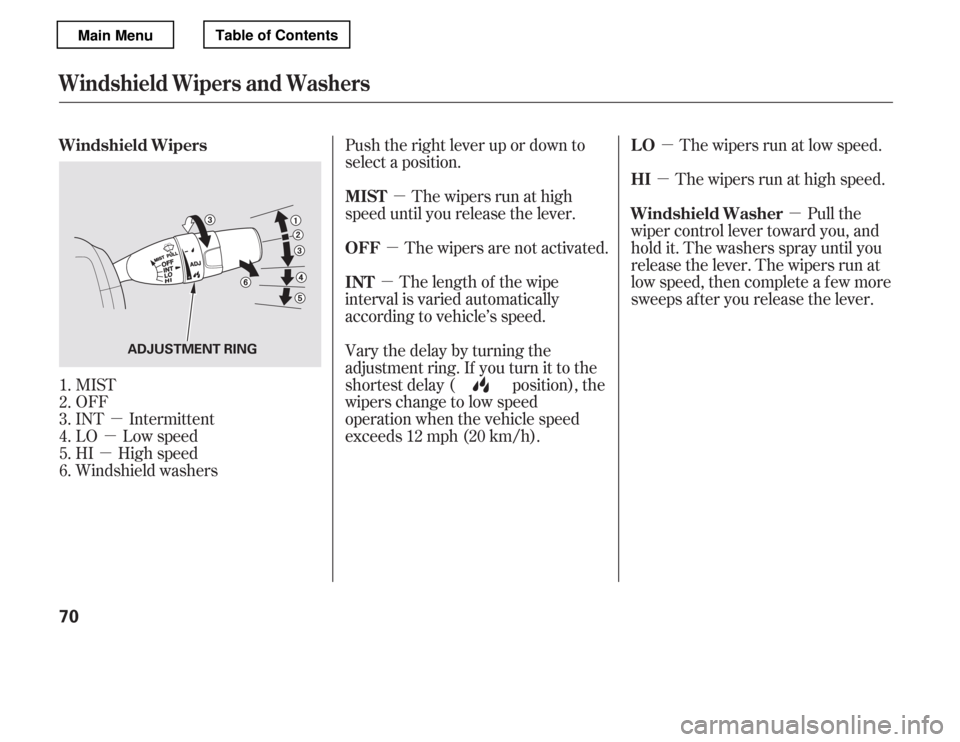

MIST
OFF
INT Intermittent
LO Low speed
HI High speed
Windshield washers Push the right lever up or down to
select a position.
The wipers run at high
speed until you release the lever.
The wipers are not activated. The wipers run at low speed.
The wipers run at high speed.
Vary the delay by turning the
adjustment ring. If you turn it to the
shortest delay ( position), the
wipers change to low speed
operation when the vehicle speed
exceeds 12 mph (20 km/h). The length of the wipe
interval is varied automatically
according to vehicle’s speed. Pull the
wiper control lever toward you, and
hold it. The washers spray until you
release the lever. The wipers run at
low speed, then complete a f ew more
sweeps af ter you release the lever.
1.2.3.4.5.6. MIST
OFF
LO HI
INT
Windshield Wipers
Windshield Washer
Windshield Wipers and Washers
70
ADJUSTMENT RING
Main MenuTable of Contents

ÎÎ
Î
µ
µ
µ
Î Turn signal
Of f
Parking and indicator lights
AUTO
Headlights on
High beams
Flashhighbeams
Fog lights of f

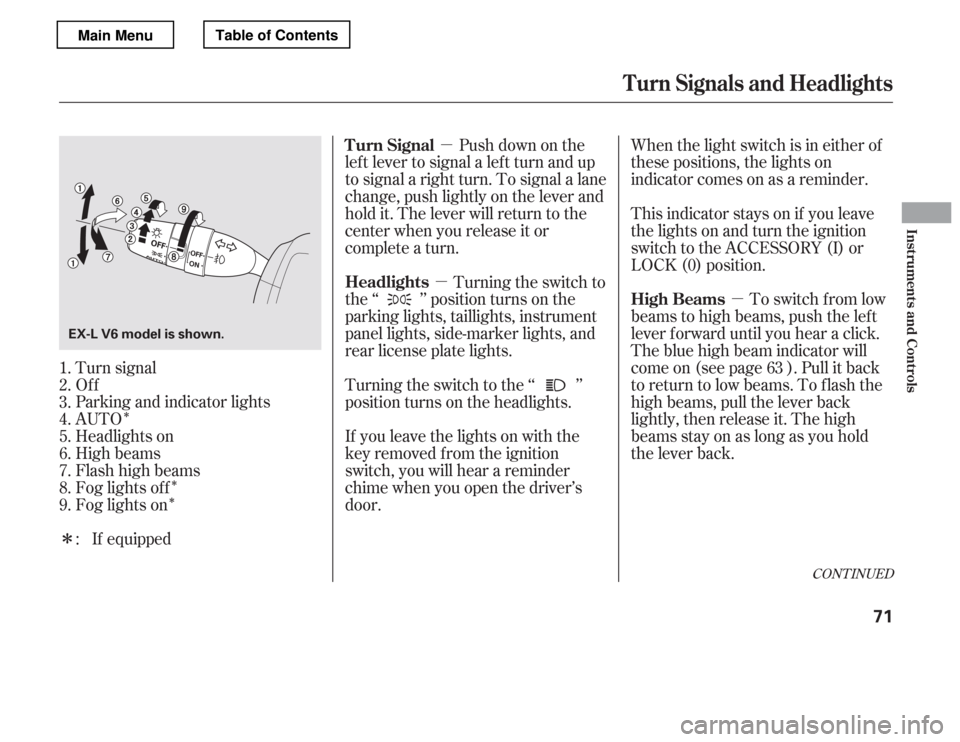

Fog lights on Push down on the
lef t lever to signal a lef t turn and up
to signal a right turn. To signal a lane
change, push lightly on the lever and
hold it. The lever will return to the
center when you release it or
complete a turn. When the light switch is in either of
these positions, the lights on
indicator comes on as a reminder.
This indicator stays on if you leave
the lights on and turn the ignition
switch to the ACCESSORY (I) or
LOCK (0) position.
To switch f rom low
beams to high beams, push the lef t
lever f orward until you hear a click.
The blue high beam indicator will
come on (see page ). Pull it back
to return to low beams. To flash the
high beams, pull the lever back
lightly, then release it. The high
beamsstayonaslongasyouhold
the lever back.
If equipped Turning the switch to
the ‘‘ ’’ position turns on the
parking lights, taillights, instrument
panel lights, side-marker lights, and
rear license plate lights.
Turning the switch to the ‘‘ ’’
position turns on the headlights.
If you leave the lights on with the
key removed f rom the ignition
switch, you will hear a reminder
chime when you open the driver’s
door.
1.2.3.4.5.6.7.8.9.
: 63
CONT INUED
Turn Signals and Headlights
Turn Signal
High Beams
Headlights
Inst rument s and Cont rols
71
EX-L V6 model is shown.
Main MenuTable of Contents

µEven with the automatic lighting
f eature turned on, we recommend
thatyouturnonthelightsmanually
when driving at night or in a dense
f og, or when you enter dark areas
such as long tunnels or parking
f acilities.
Do not leave the light switch in
AUTO if you will not be driving the
vehicle f or an extended period (a
weekormore).Youshouldalsoturn
of f the lights if you plan to leave the
engine idling or of f f or a long time.
The automatic lighting
f eature turns on the headlights and
all other exterior lights, when it
senses low ambient light.
The lights will remain on when you
turn of f the ignition switch. They will
turn of f automatically when you
remove the key and open the driver’s
door. To turn them on again, either
turn the ignition switch to the ON
(II) position or turn the light switch
to the position.
To turn on automatic lighting, turn
the light switch to AUTO. The lights
will come on automatically when the
outside light level becomes low (at
dusk, f or example). The lights on
indicator comes on as a reminder.
The lights and indicator will turn of f
automatically when the system
senses high ambient light.
The automatic lighting f eature is
controlledbyasensorlocatedontop
of the dashboard. Do not cover this
sensor or spill liquids on it.
If equipped
AUTO
Turn Signals and Headlights
72
LIGHT SENSOR
Main MenuTable of Contents

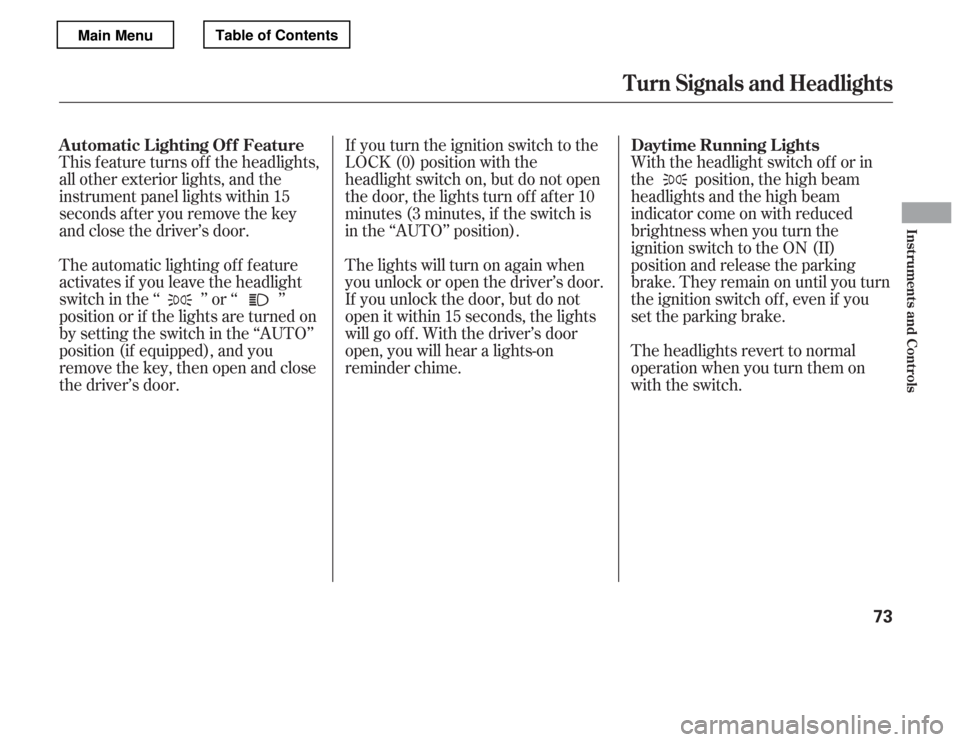

This f eature turns of f the headlights,
all other exterior lights, and the
instrument panel lights within 15
seconds after you remove the key
and close the driver’s door.
The automatic lighting of f f eature
activates if you leave the headlight
switch in the ‘‘ ’’ or ‘‘ ’’
position or if the lights are turned on
by setting the switch in the ‘‘AUTO’’
position (if equipped), and you
remove the key, then open and close
the driver’s door.If you turn the ignition switch to the
LOCK (0) position with the
headlight switch on, but do not open
the door, the lights turn of f af ter 10
minutes (3 minutes, if the switch is
in the ‘‘AUTO’’ position).
The headlights revert to normal
operation when you turn them on
with the switch.
With the headlight switch of f or in
the position, the high beam
headlights and the high beam
indicator come on with reduced
brightness when you turn the
ignition switch to the ON (II)
position and release the parking
brake. They remain on until you turn
the ignition switch of f , even if you
set the parking brake.
The lights will turn on again when
you unlock or open the driver’s door.
If you unlock the door, but do not
open it within 15 seconds, the lights
will go off. With the driver’s door
open, you will hear a lights-on
reminder chime.
Automatic Lighting Of f Feature
Daytime Running Lights
Turn Signals and Headlights
Inst rument s and Cont rols
73
Main MenuTable of Contents

The select/reset knob on the
instrument panel controls the
brightness of the instrument panel
lights. Turn the knob to adjust the
brightness with the ignition switch in
the ON (II) position and the parking
lights on.

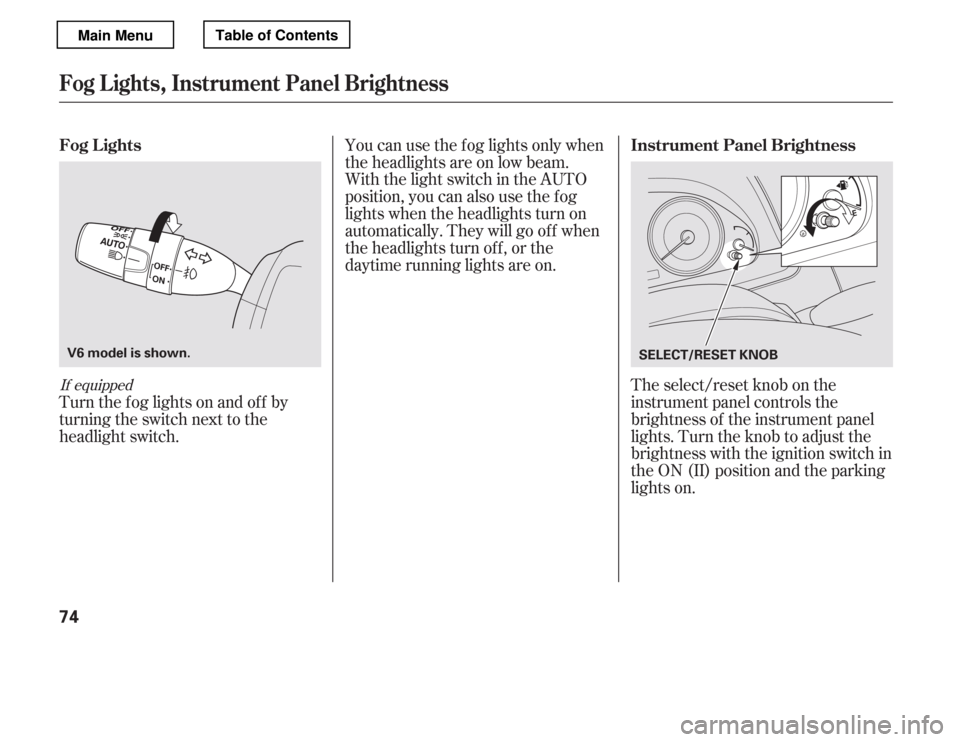

You can use the f og lights only when
the headlights are on low beam.
Turn the f og lights on and of f by
turning the switch next to the
headlight switch. With the light switch in the AUTO
position, you can also use the f og
lights when the headlights turn on
automatically. They will go of f when
the headlights turn of f , or the
daytime running lights are on.If equipped
Fog L ights, Instrument Panel Brightness
Fog L ights
Instrument Panel Brightness
74
SELECT/RESET KNOB
V6 model is shown.
Main MenuTable of Contents

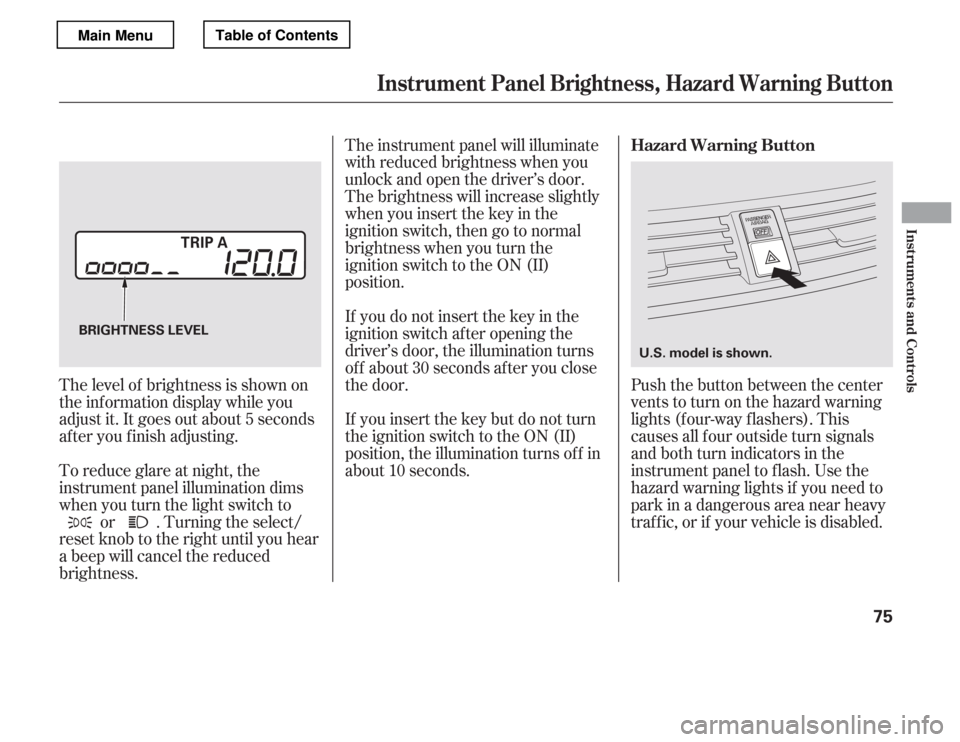

Push the button between the center
vents to turn on the hazard warning
lights (f our-way f lashers). This
causes all f our outside turn signals
and both turn indicators in the
instrument panel to f lash. Use the
hazard warning lights if you need to
park in a dangerous area near heavy
traf f ic, or if your vehicle is disabled.
The instrument panel will illuminate
with reduced brightness when you
unlock and open the driver’s door.
The brightness will increase slightly
when you insert the key in the
ignitionswitch,thengotonormal
brightness when you turn the
ignition switch to the ON (II)
position.
If you insert the key but do not turn
the ignition switch to the ON (II)
position, the illumination turns of f in
about 10 seconds.
If you do not insert the key in the
ignition switch af ter opening the
driver’s door, the illumination turns
of f about 30 seconds af ter you close
the door.
The level of brightness is shown on
the inf ormation display while you
adjust it. It goes out about 5 seconds
af ter you f inish adjusting.
To reduce glare at night, the
instrument panel illumination dims
when you turn the light switch to
or . Turning the select/
reset knob to the right until you hear
a beep will cancel the reduced
brightness. Hazard Warning Button
Instrument Panel Brightness, Hazard Warning Button
Inst rument s and Cont rols
75
BRIGHTNESS LEVEL
U.S. model is shown.
Main MenuTable of Contents
