The inside mirror can automatically
darken to reduce glare. To turn on
this feature, press the button on the
bottom of the mirror. The AUTO
indicator comes on as a reminder.
When it is on, the mirror darkens
when it senses the headlights of a
vehicle behind you, then returns to
normal visibility when the lights are
gone. Press the button again to turn
of f this f eature.
Keeptheinsideandoutsidemirrors
clean and adjusted f or best visibility.
Be sure to adjust the mirrors bef ore
you start driving.
The inside mirror has day and night
positions. The night position reduces
glare f rom headlights behind you.
Flip the tab on the bottom edge of
the mirror to select the day or night
position.
EX-L and EX-L V6
LX,LX-P,SE,EXandEXV6
Mirrors
106
AUTO BUTTON
INDICATOR SENSOR
TAB
There is also a sensor on the back of
the mirror. Items hung on the mirror
may block this sensor and af f ect its
perf ormance.
Main MenuTable of Contents

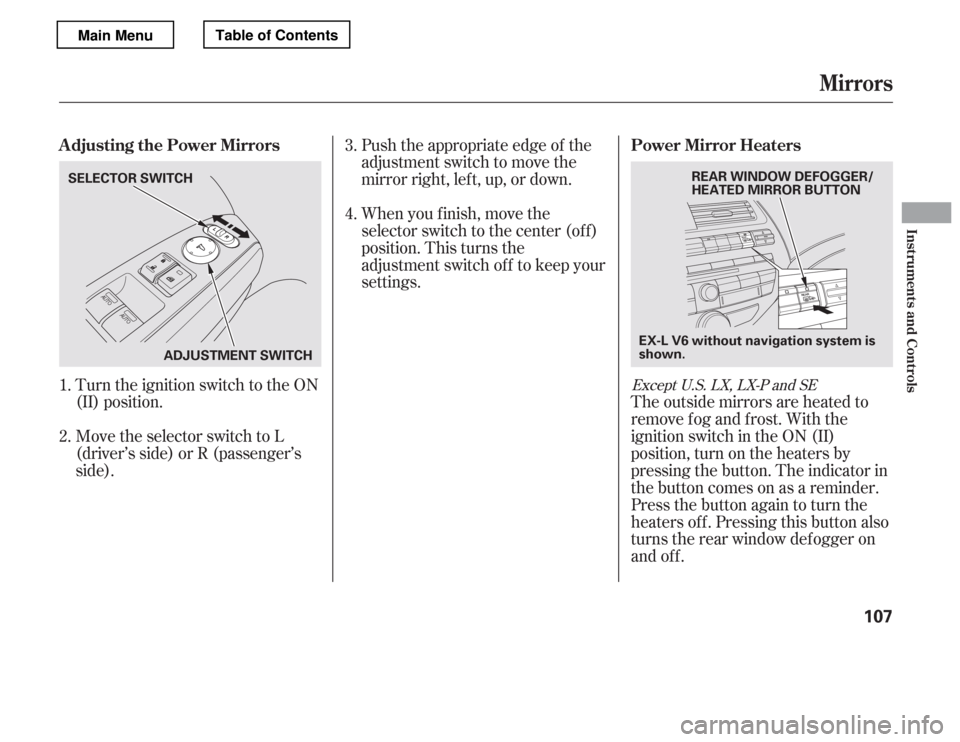

Turn the ignition switch to the ON
(II) position.
Move the selector switch to L
(driver’s side) or R (passenger’sside).Push the appropriate edge of the
adjustment switch to move the
mirrorright,left,up,ordown.
When you f inish, move the
selector switch to the center (off)
position. This turns the
adjustment switch of f to keep your
settings.
The outside mirrors are heated to
remove fog and frost. With the
ignition switch in the ON (II)
position, turn on the heaters by
pressing the button. The indicator in
the button comes on as a reminder.
Press the button again to turn the
heaters off. Pressing this button also
turns the rear window def ogger on
and off.
1. 3.
2. 4.Except U.S. LX, LX-P and SE
PowerMirrorHeaters
Adjusting the Power Mirrors
Mirrors
Inst rument s and Cont rols
107
SELECTOR SWITCH
ADJUSTMENT SWITCH EX-L V6 without navigation system is
shown.REAR WINDOW DEFOGGER/
HEATED MIRROR BUTTON
Main MenuTable of Contents

µ

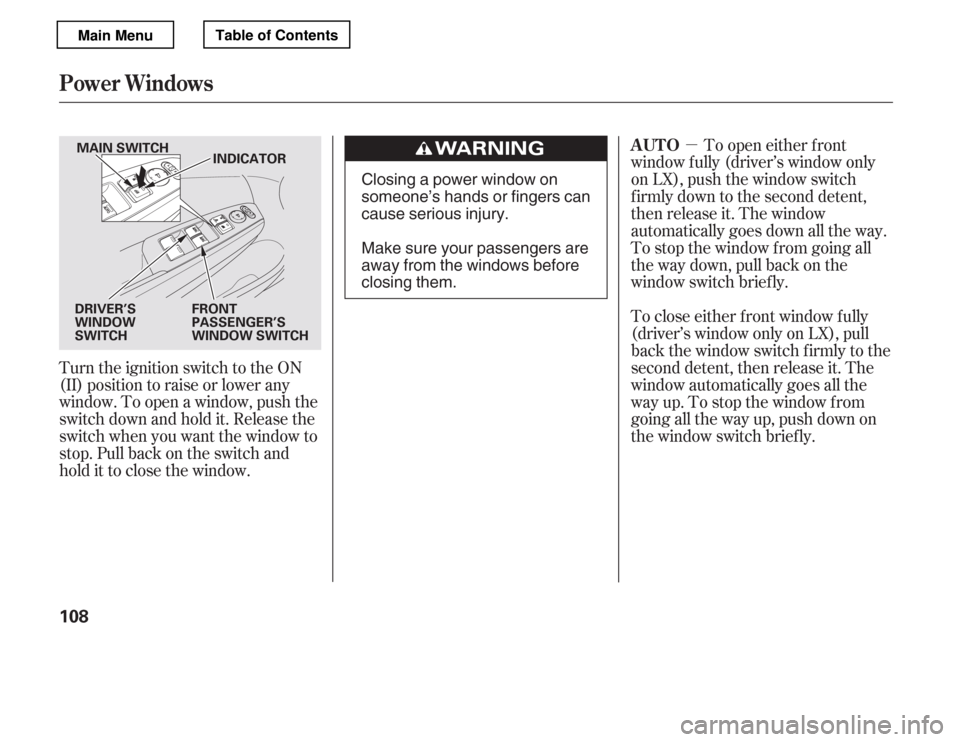

Turn the ignition switch to the ON
(II) position to raise or lower any
window. To open a window, push the
switchdownandholdit.Releasethe
switch when you want the window to
stop. Pull back on the switch and
hold it to close the window. To open either f ront
window f ully (driver’s window only
on LX), push the window switch
firmly down to the second detent,
then release it. The window
automatically goes down all the way.
To stop the window f rom going all
the way down, pull back on the
window switch briefly.
To close either f ront window f ully
(driver’s window only on LX), pull
back the window switch f irmly to the
second detent, then release it. The
window automatically goes all the
way up. To stop the window f rom
going all the way up, push down on
the window switch briefly.
AUTO
Power Windows
108
MAIN SWITCH
DRIVER’S
WINDOW
SWITCH FRONT
PASSENGER’S
WINDOW SWITCHINDICATOR
Closing a power window on
someone’s hands or fingers can
cause serious injury.
Make sure your passengers are
away from the windows before
closing them.
Main MenuTable of Contents

µ

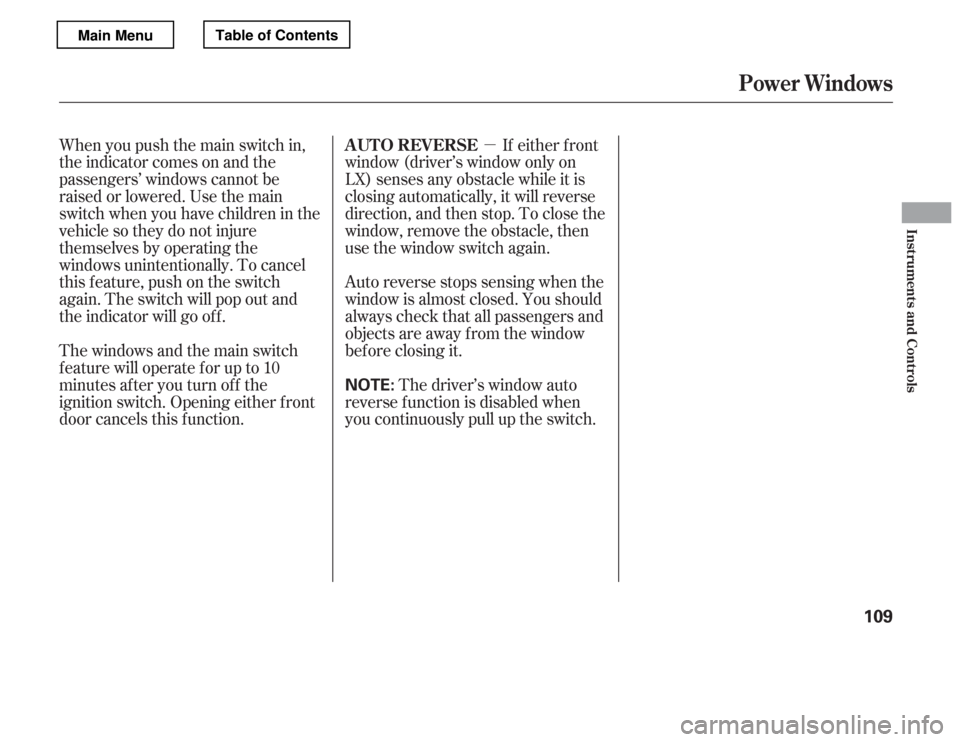

Auto reverse stops sensing when the
window is almost closed. You should
always check that all passengers and
objects are away from the window
bef ore closing it. If either f ront
window (driver’s window only on
LX) senses any obstacle while it is
closing automatically, it will reverse
direction, and then stop. To close the
window, remove the obstacle, then
use the window switch again.
When you push the main switch in,
the indicator comes on and the
passengers’ windows cannot be
raised or lowered. Use the main
switchwhenyouhavechildreninthe
vehicle so they do not injure
themselves by operating the
windows unintentionally. To cancel
this feature, push on the switch
again. The switch will pop out and
the indicator will go of f .
The windows and the main switch
feature will operate for up to 10
minutes after you turn off the
ignition switch. Opening either f ront
door cancels this f unction.
The driver’s window auto
reverse f unction is disabled when
you continuously pull up the switch.
AUTO REVERSE
Power Windows
Inst rument s and Cont rols
109
NOTE:
Main MenuTable of Contents

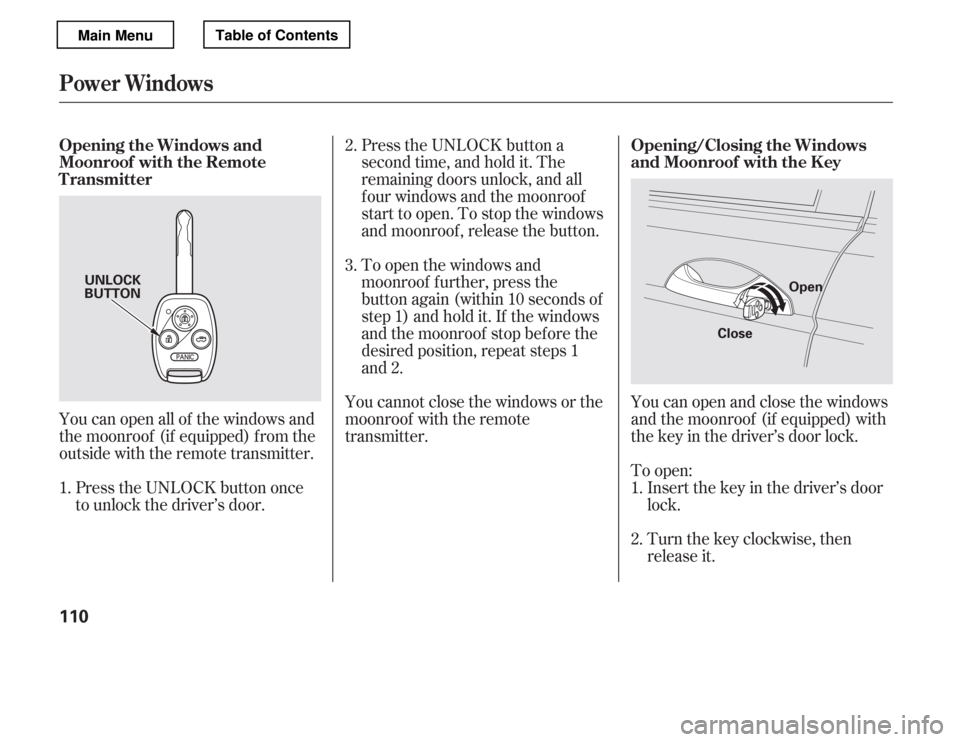

Press the UNLOCK button a
second time, and hold it. The
remaining doors unlock, and all
f our windows and the moonroof
start to open. To stop the windows
and moonroof , release the button.You can open and close the windows
and the moonroof (if equipped) with
the key in the driver’s door lock.Turn the key clockwise, then
release it.
Insert the key in the driver’s door
lock.
To open:
Press the UNLOCK button once
to unlock the driver’s door.
You can open all of the windows and
the moonroof (if equipped) f rom the
outside with the remote transmitter. To open the windows and
moonroof f urther, press the
button again (within 10 seconds of
step 1) and hold it. If the windows
and the moonroof stop bef ore the
desired position, repeat steps 1
and 2.
You cannot close the windows or the
moonroof with the remote
transmitter.
1. 2. 3.
1. 2.
Opening the Windows and
Moonroof with the Remote
Transmitter
Opening/Closing the Windows
and Moonroof with the K ey
Power Windows
110
Open
Close
UNLOCK
BUTTON
Main MenuTable of Contents

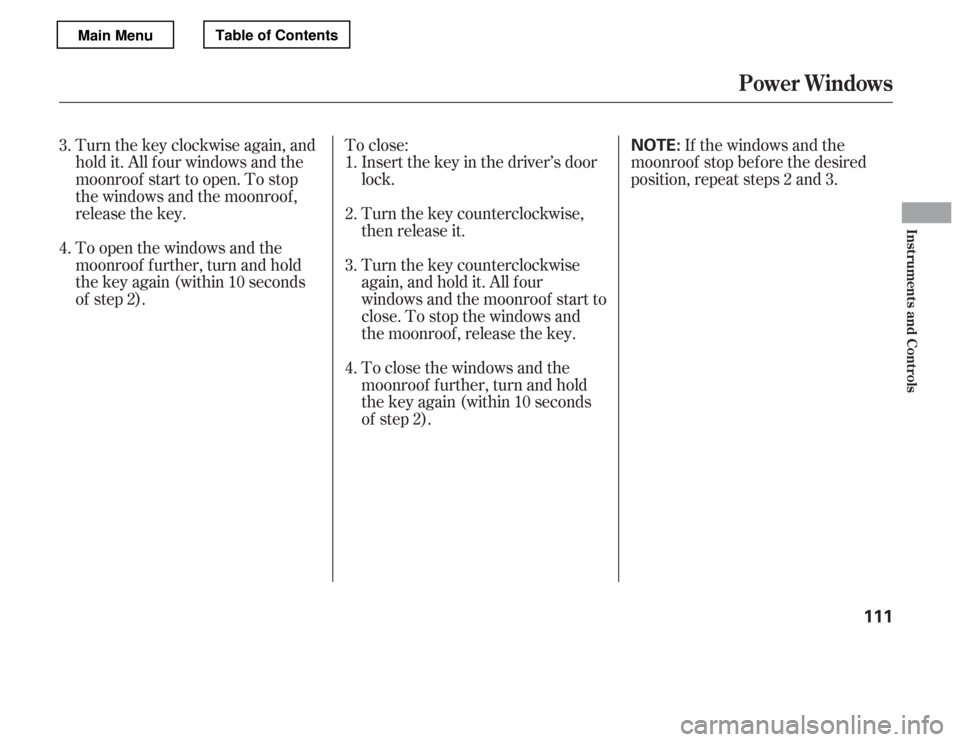

Turnthekeyclockwiseagain,and
hold it. All f our windows and the
moonroof start to open. To stop
the windows and the moonroof ,
release the key.To close:
Insert the key in the driver’s door
lock.
Turn the key counterclockwise,
then release it.
Turn the key counterclockwise
again, and hold it. All four
windows and the moonroof start to
close. To stop the windows and
the moonroof , release the key.
To close the windows and the
moonroof f urther, turn and hold
the key again (within 10 seconds
of step 2).
To open the windows and the
moonroof f urther, turn and hold
the key again (within 10 seconds
of step 2).
If the windows and the
moonroof stop bef ore the desired
position, repeat steps 2 and 3.
1. 2.3. 4.
3.4.
Power Windows
Inst rument s and Cont rols
111
NOTE:
Main MenuTable of Contents

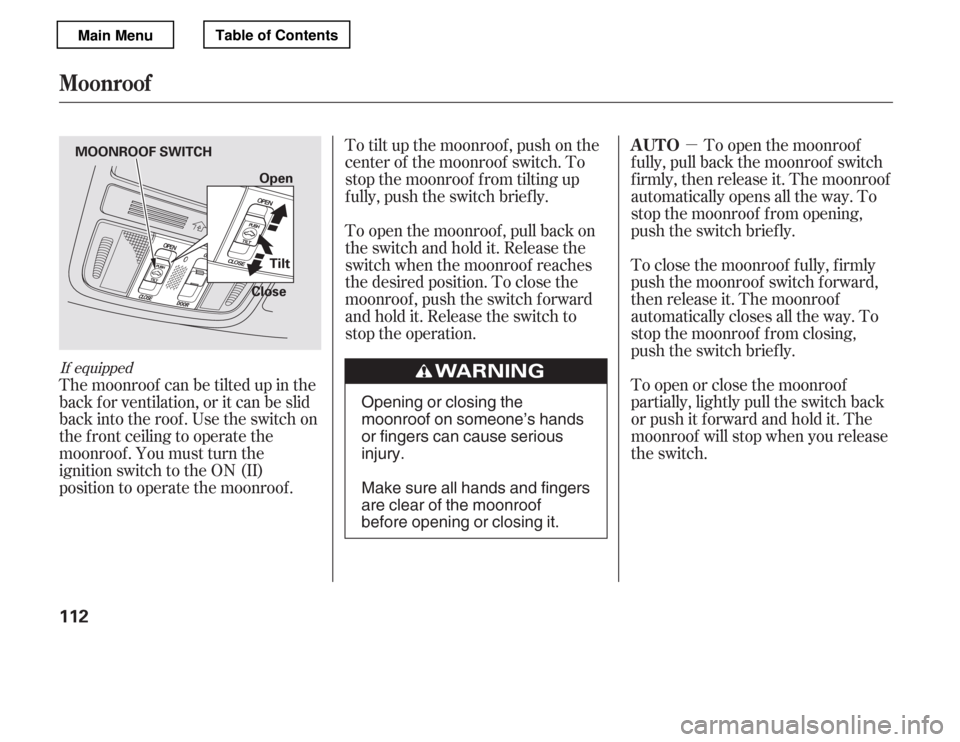

µTo open the moonroof
f ully, pull back the moonroof switch
f irmly, then release it. The moonroof
automatically opens all the way. To
stop the moonroof f rom opening,
push the switch briefly.
To close the moonroof f ully, f irmly
push the moonroof switch f orward,
then release it. The moonroof
automatically closes all the way. To
stop the moonroof f rom closing,
push the switch briefly.
To open or close the moonroof
partially, lightly pull the switch back
or push it f orward and hold it. The
moonroof will stop when you release
the switch.
To tilt up the moonroof , push on the
center of the moonroof switch. To
stop the moonroof f rom tilting up
f ully, push the switch brief ly.
To open the moonroof , pull back on
the switch and hold it. Release the
switch when the moonroof reaches
the desired position. To close the
moonroof , push the switch f orward
andholdit.Releasetheswitchto
stop the operation.
The moonroof can be tilted up in the
back f or ventilation, or it can be slid
back into the roof. Use the switch on
the f ront ceiling to operate the
moonroof . You must turn the
ignition switch to the ON (II)
position to operate the moonroof .
If equipped
AUTO
Moonroof
112
MOONROOF SWITCH
Tilt
Open
Close
Opening or closing the
moonroof on someone’s hands
or fingers can cause seriousinjury.
Make sure all hands and fingers
are clear of the moonroof
before opening or closing it.
Main MenuTable of Contents

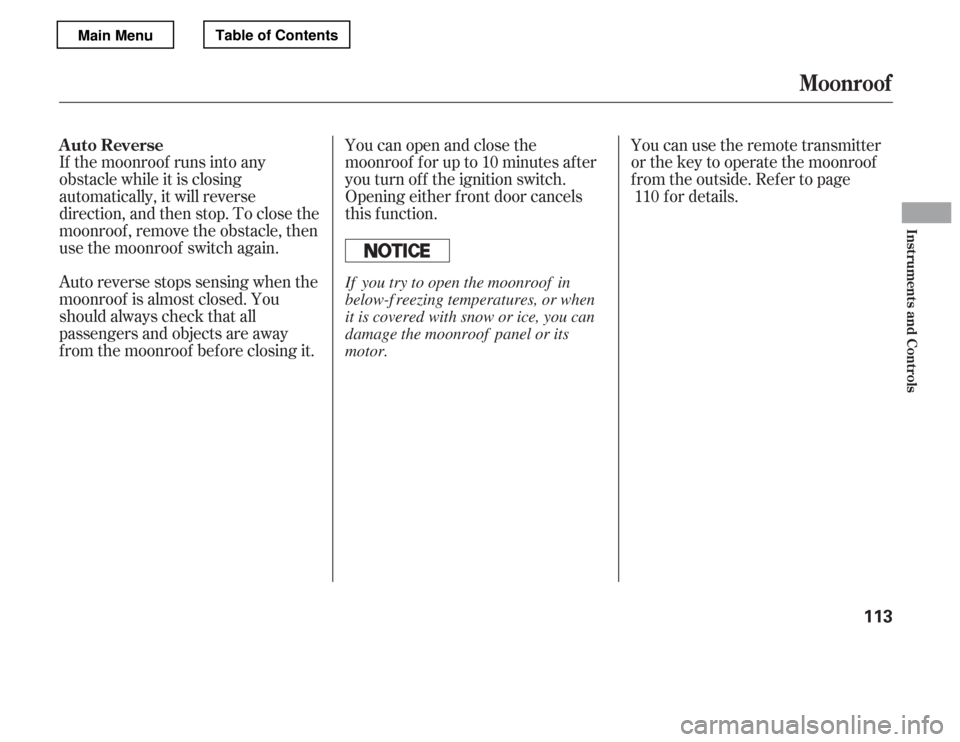

You can open and close the
moonroof f or up to 10 minutes af ter
you turn of f the ignition switch.
Opening either f ront door cancels
this function.
Auto reverse stops sensing when the
moonroof is almost closed. You
should always check that all
passengers and objects are away
f rom the moonroof bef ore closing it.
If the moonroof runs into any
obstacle while it is closing
automatically, it will reverse
direction, and then stop. To close the
moonroof , remove the obstacle, then
use the moonroof switch again.
You can use the remote transmitter
or the key to operate the moonroof
f rom the outside. Ref er to page
f or details.
110
Auto Reverse
Moonroof
Inst rument s and Cont rols
113
If you try to open the moonroof in
below-f reezing temperatures, or when
it is covered with snow or ice, you can
damage the moonroof panel or its
motor.
Main MenuTable of Contents

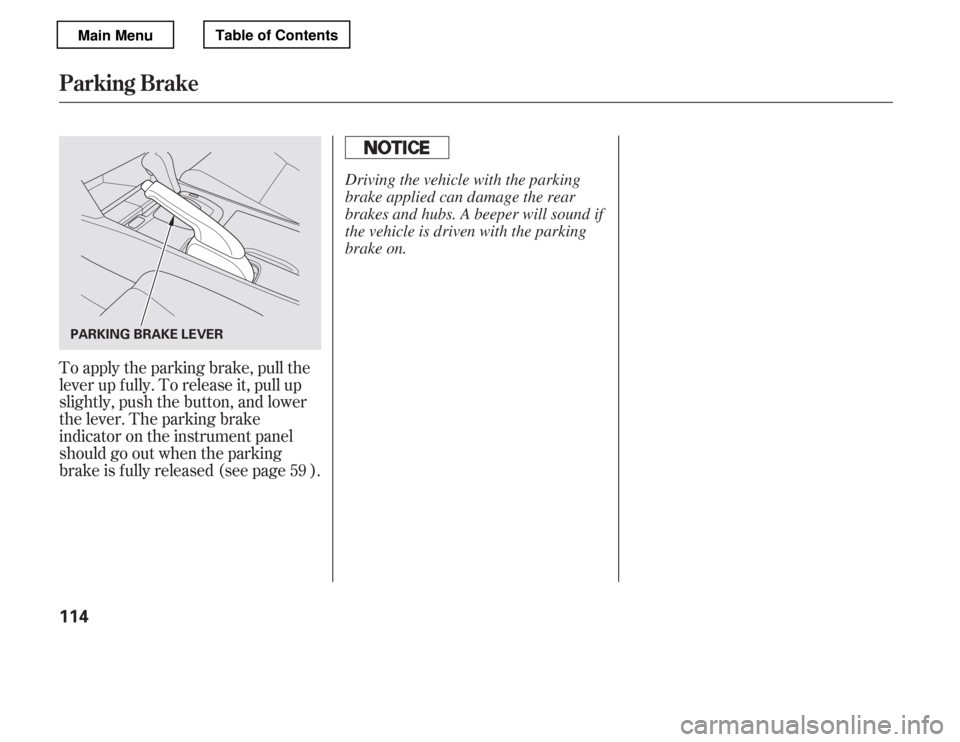

To apply the parking brake, pull the
lever up f ully. To release it, pull up
slightly, push the button, and lower
the lever. The parking brake
indicator on the instrument panel
should go out when the parking
brake is f ully released (see page ).59
Parking Brake
114
PARKING BRAKE LEVER
Driving the vehicle with the parking
brake applied can damage the rear
brakes and hubs. A beeper will sound if
the vehicle is driven with the parking
brake on.
Main MenuTable of Contents

ÃŽ

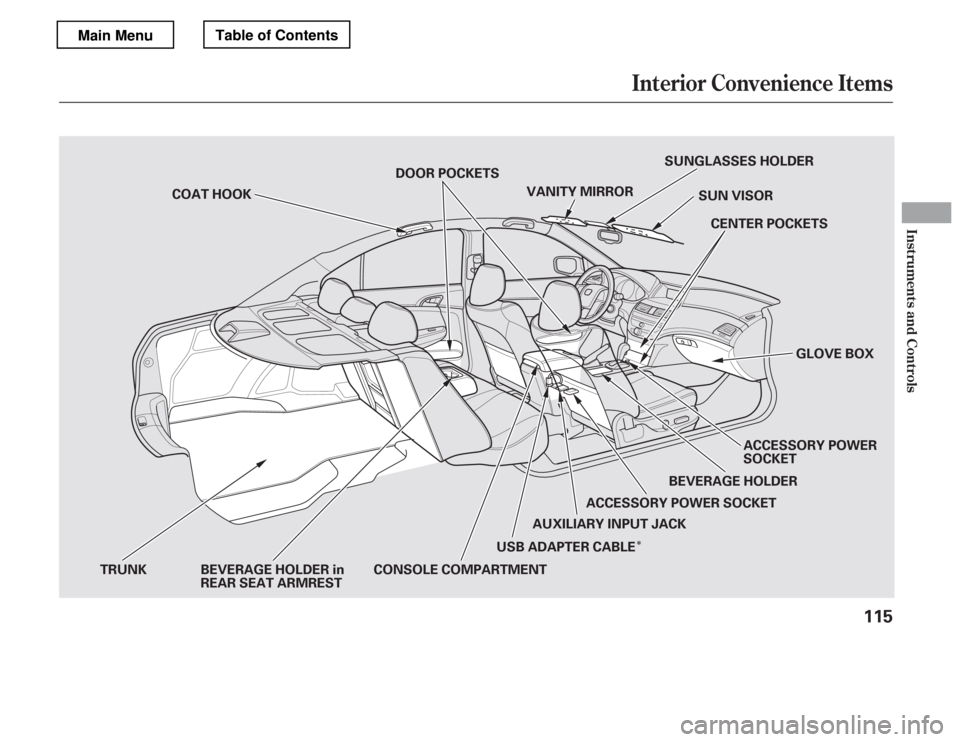

Interior Convenience Items
Inst rument s and Cont rols
115
SUNGLASSES HOLDERACCESSORY POWER
SOCKET
VANITY MIRROR
SUN VISOR
CENTER POCKETS
AUXILIARY INPUT JACK
COAT HOOK
BEVERAGE HOLDER
ACCESSORY POWER SOCKET
TRUNK DOOR POCKETS
GLOVE BOX
USB ADAPTER CABLE
BEVERAGE HOLDER in
REAR SEAT ARMREST CONSOLE COMPARTMENT
