HONDA ACCORD 2015 9.G User Guide

10Quick Reference Guide
Safe Driving
(P 27)
Airbags
(P 39)
● Your vehicle is fitted with airbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety
(P 52)
● All children 12 and younger should be seated in the rear seat.
● Smaller children should be properly restrained in a forward-facing child seat.
● Infants must be properly restrained in a rear-facing child seat.
Exhaust Gas Hazard
(P 64)
● Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the eng ine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist
(P 31)
● Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts
(P 32)
● Fasten your seat belt and sit upright well
back in the seat.
● Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.

11Quick Reference Guide
Instrument Panel
(P 67)
CanadaU.S.
Low Fuel IndicatorAnti-lock Brake
System (
ABS)
Indicator
Parking Brake
and Brake System
Indicator (Red)
Canada U.S.
Washer Level
Indicator
*
System Indicators
Malfunction
Indicator Lamp
Low Oil Pressure
Indicator
Charging System
Indicator
Vehicle Stability
Assist (VSA ®) System
Indicator
VSA ® OFF Indicator
Low Tire Pressure/
TPMS Indicator
Electric Power
Steering (EPS) System
Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Fog Light Indicator
*
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
System Indicators
CRUISE CONTROL
Indicator
*
Adaptive Cruise
Control ( ACC)
Indicator
*
CRUISE MAIN
Indicator
*
Tachometer Speedometer
Fuel Gauge
Security System
Alarm Indicator
Shift Lever
Position
Indicator
*
Gauges
(P 89)
/Information Display
* (P 90)
/
Multi-Information Display
* (P 93)
/System Indicators
(P 68) Turn Signal and
Hazard Warning
Indicators
System Indicators
Temperature Gauge
M (7-speed manual
shift mode) Indicator/
Shift Indicator
*
Maintenance Minder
Indicator
*
Smart Entry System
Indicator
*
Starter System
Indicator
*
System Message
Indicator
*
ECON mode
IndicatorForward Collision
Warning (
FCW
) Indicator
*
Lane Departure Warning
(LDW
) Indicator
*
Light Control
Indicator
*
Door and Trunk
Open Indicator Brake System
Indicator (Amber)
Supplemental
Restraint System
Indicator
Canada U.S.
Models with
information
display
Models with
information
display
*
Not available on all models

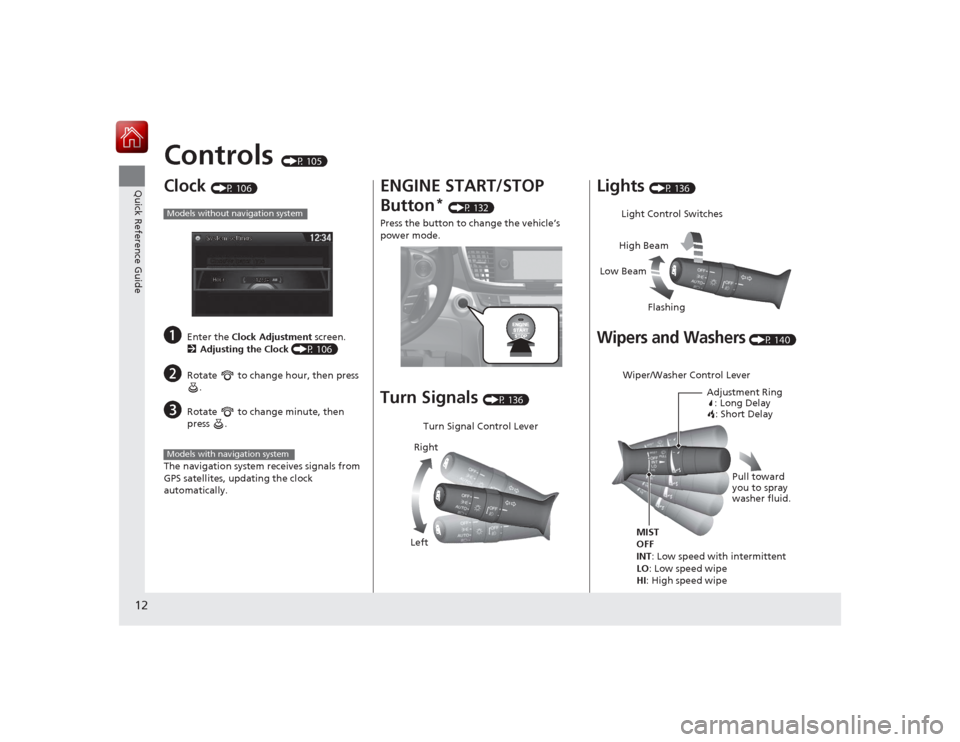

12Quick Reference Guide
Controls
(P 105)
Clock
(P 106)
a
Enter the Clock Adjustment screen.
2 Adjusting the Clock (P 106)
b
Rotate to change hour, then press
.
c
Rotate to change minute, then
press .
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
Models without navigation systemModels with navigation system
ENGINE START/STOP
Button
* (P 132)
Press the button to change the vehicle’s
power mode.
Turn Signals
(P 136)
Turn Signal Control Lever
Right
Left
Lights
(P 136)
Wipers and Washers
(P 140)
Light Control Switches
Low Beam High Beam
FlashingWiper/Washer Control Lever Adjustment Ring: Long Delay: Short Delay
MIST
OFF
INT: Low speed with intermittent
LO : Low speed wipe
HI: High speed wipe Pull toward
you to spray
washer fluid.

13Quick Reference Guide
Steering Wheel
(P 145)
● To adjust, pull th e adjustment lever
towards you, adjust to the desired
position, then lock the lever back in place.
Unlocking the Front
Doors from the Inside (P 116)
● Pull either front door inner handle to
unlock and open it at the same time.
● Unlocking and opening the driver’s door
from the inner handle unlocks all the
other doors.
Trunk
(P 120)
● To unlock and open the trunk:
•Pull the trunk release.
• Press the trunk release button on the remote
transmitter or the smart entry remote.
• Press the trunk release button
* on the
trunk lid.
Power Door Mirrors(P 147)
● With the ignition switch in ON
(w*1, move
the selector switch to L or R .
● Push the appropriate edge of the
adjustment switch to adjust the mirror.
Trunk Release
Selector Switch
Adjustment Switch
Power Windows
(P 127)
● With the ignition switch in ON
(w*1, open
and close the power windows.
● If the power window lock button is in the
off position, each passenger's window
can be opened and closed with its own
switch.
● If the power window lock button is in the
on position (indicator on), each
passenger's window switch is disabled.
*1: Models with the smart entry system have
an ENGINE START/STOP button instead of
an ignition switch.
Power Window Lock Button
Window
Switch Indicator
*
Not available on all models

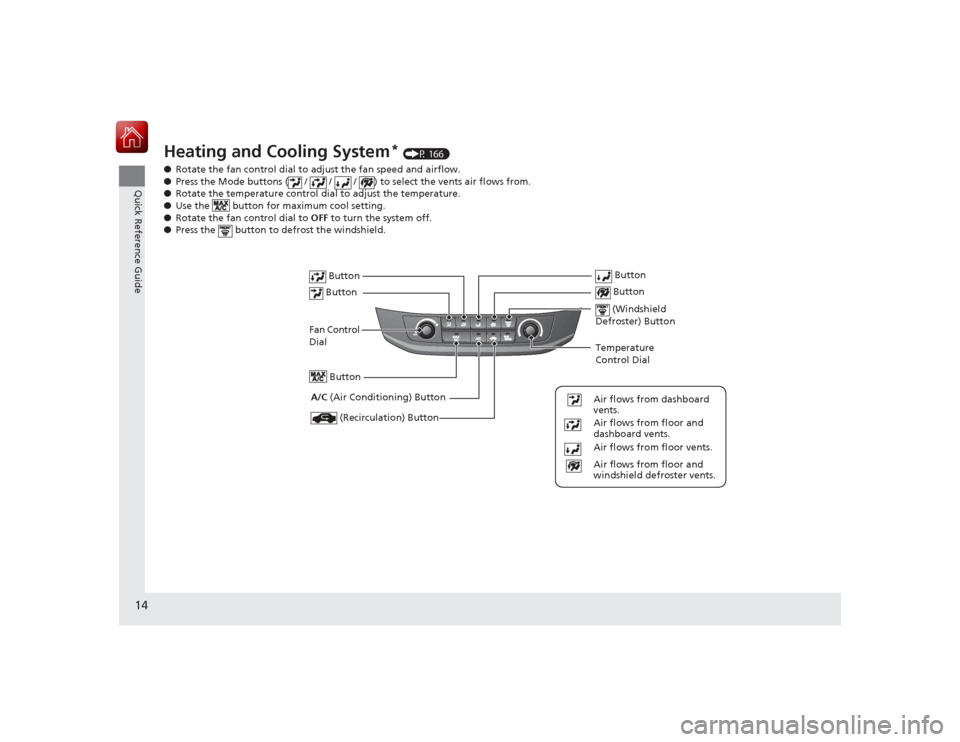

14Quick Reference Guide
Heating and Cooling System
* (P 166)
● Rotate the fan control dial to adjust the fan speed and airflow.
● Press the Mode buttons ( / / / ) to select the vents air flows from.
● Rotate the temperature control dial to adjust the temperature.
● Use the button for maximum cool setting.
● Rotate the fan control dial to OFF to turn the system off.
● Press the button to defrost the windshield.
Fan Control
Dial (Windshield
Defroster) ButtonA/C (Air Conditioning) Button
Air flows from floor and
windshield defroster vents.
Air flows from floor vents. Air flows from floor and
dashboard vents. Air flows from dashboard
vents.
Button Button Button (Recirculation) Button
Temperature
Control Dial Button
Button

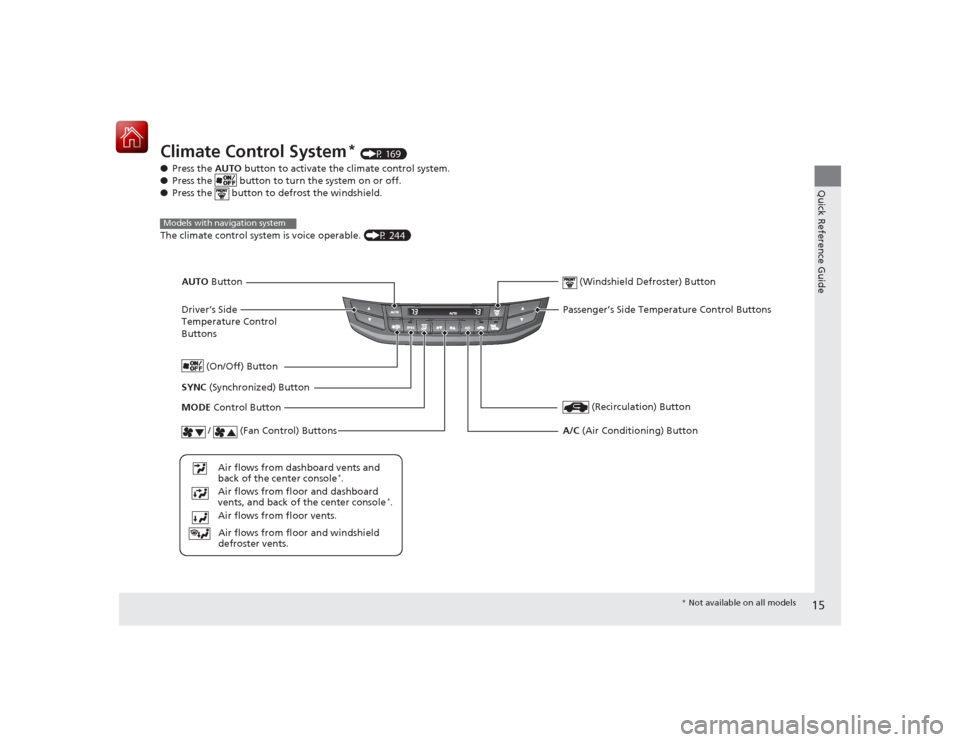

15Quick Reference Guide
Climate Control System
* (P 169)
● Press the AUTO button to activate the climate control system.
● Press the button to turn the system on or off.
● Press the button to defrost the windshield.
The climate control system is voice operable. (P 244)
Models with navigation system
Driver’s Side
Temperature Control
Buttons (Windshield Defroster) ButtonSYNC
(Synchronized) Button
Air flows from floor and windshield
defroster vents.
Air flows from floor vents. Air flows from floor and dashboard
vents, and back of the center console
*.
Air flows from dashboard vents and
back of the center console
*.
AUTO
Button
(On/Off) Button
(Recirculation) Button
MODE Control Button
/ (Fan Control) Buttons
A/C (Air Conditioning) ButtonPassenger’s Side Temperature Control Buttons
* Not available on all models

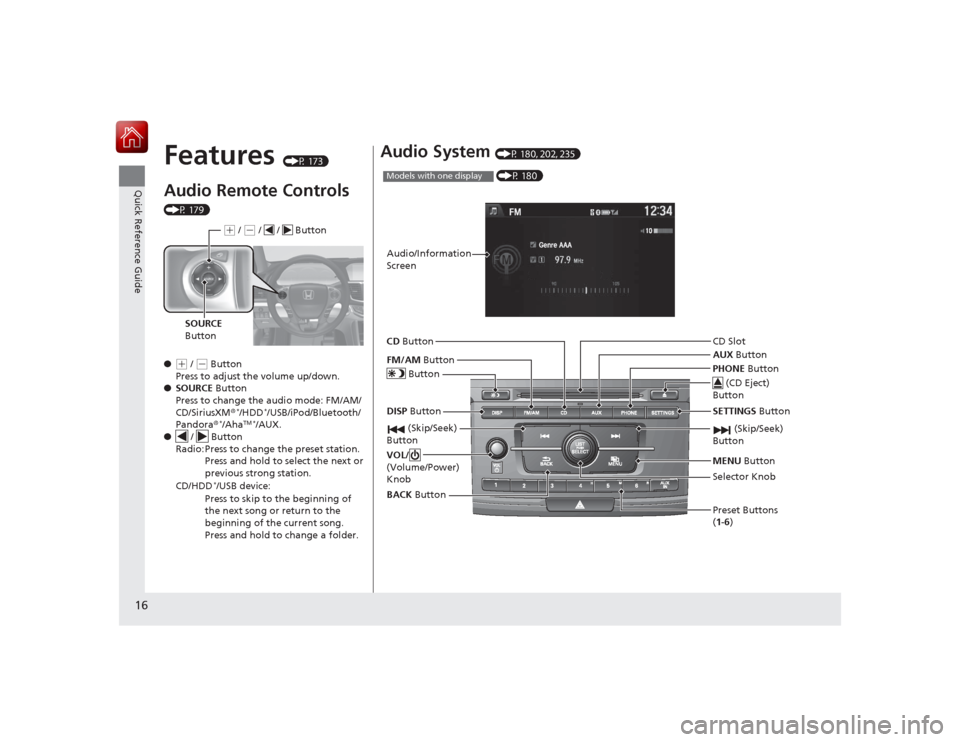

16Quick Reference Guide
Features
(P 173)
Audio Remote Controls (P 179)
●
(+ / ( - Button
Press to adjust the volume up/down.
● SOURCE Button
Press to change the audio mode: FM/AM/
CD/SiriusXM ®
*/HDD
*/USB/iPod/Bluetooth/
Pandora®
*/Aha
TM *
/AUX.
● / Button
Radio: Press to change the preset station. Press and hold to select the next or
previous strong station.
CD/HDD
*/USB device:
Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.( + / (- / / Button
SOURCE
Button
Audio System
(P 180, 202, 235) (P 180)
Models with one displayAudio/Information
Screen
BACK Button
FM/AM
Button
(Skip/Seek)
Button
Selector Knob
Button
VOL/
(Volume/Power)
KnobCD
Button
AUX Button
CD Slot
(CD Eject)
Button
Preset Buttons
( 1- 6)
SETTINGS Button
(Skip/Seek)
ButtonPHONE ButtonMENU Button
DISP Button

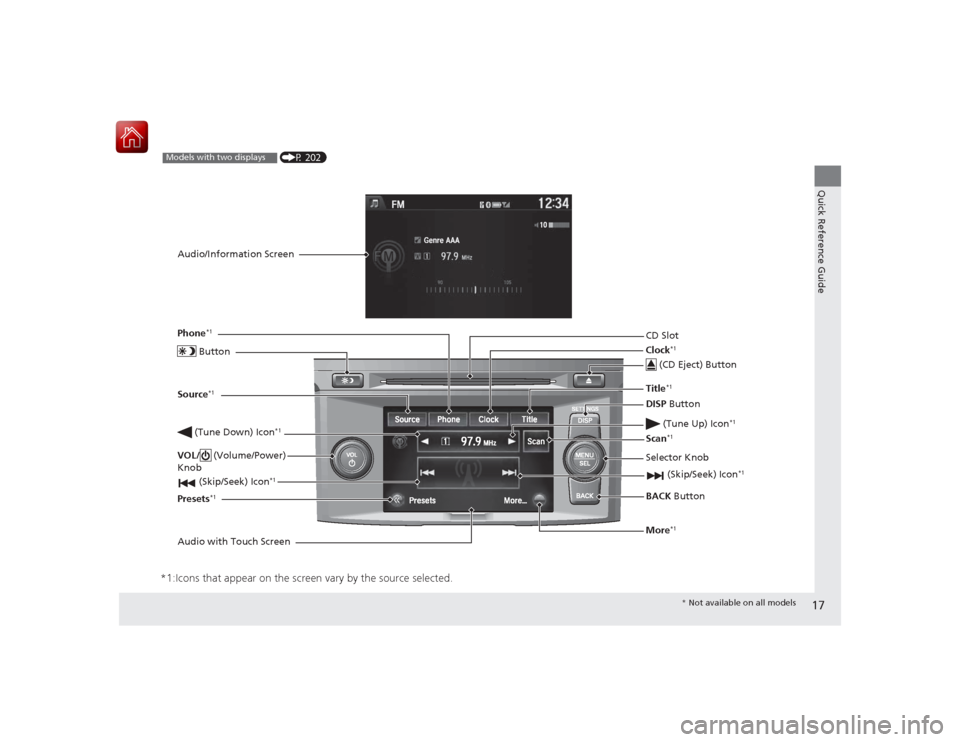

17Quick Reference Guide
*1:Icons that appear on the screen vary by the source selected.
CD Slot (CD Eject) ButtonBACK Button
Selector Knob
(Tune Down) Icon
*1
(Skip/Seek) Icon
*1
(P 202)
Models with two displaysAudio/Information Screen
Audio with Touch Screen ButtonSource
*1
VOL/
(Volume/Power)
Knob
(Skip/Seek) Icon
*1
Presets
*1
Phone
*1
Clock
*1
DISP Button
(Tune Up) Icon
*1
More
*1
Title
*1
Scan
*1
* Not available on all models

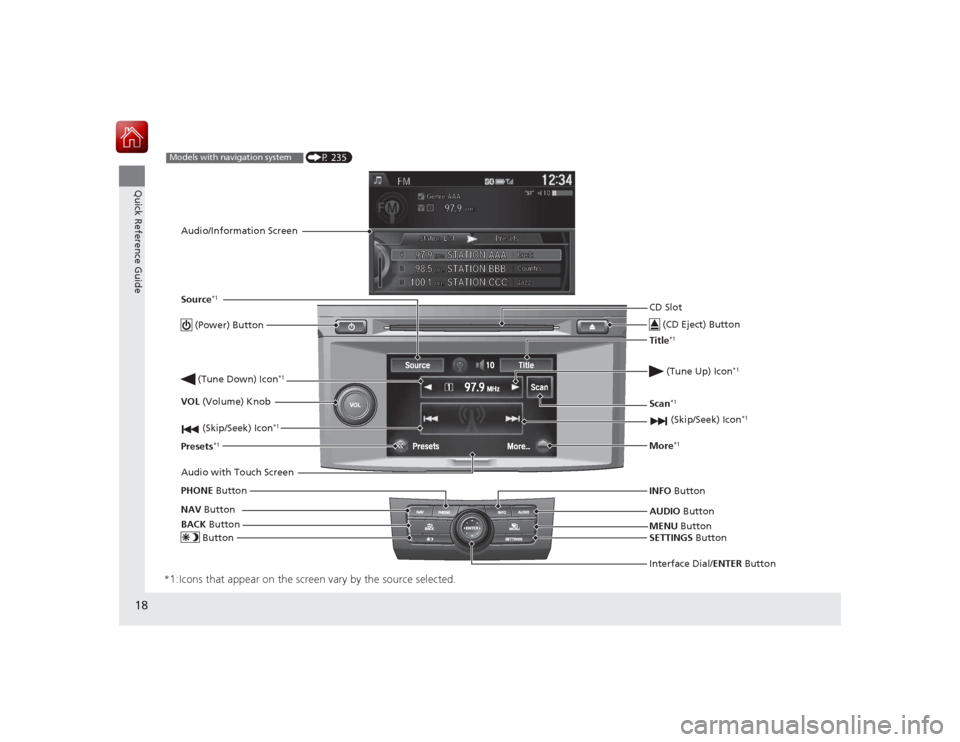

18Quick Reference Guide
*1:Icons that appear on the screen vary by the source selected.
CD Slot (CD Eject) ButtonMENU Button
Interface Dial/ENTER Button
(Skip/Seek) Icon
*1
(P 235)
Models with navigation systemAudio/Information Screen
Audio with Touch Screen
ButtonSource
*1
VOL (Volume) Knob
(Skip/Seek) Icon
*1
Presets
*1
(Tune Up) Icon
*1
More
*1
(Power) Button (Tune Down) Icon
*1
INFO Button
AUDIO Button
SETTINGS Button
BACK
Button
NAV
Button
PHONE
ButtonTitle
*1
Scan
*1

19Quick Reference Guide
Driving
(P 415)
M Indicator
Shift Indicator
Manual Transmission
* (P 441)
Continuously Variable Transmission
(CVT)
* (P 433, 435)
● Shift to (P and depress the brake pedal when starting the engine.
● Shifting
ParkTurn off or start the engine.
Transmission is locked.NeutralTransmission is not locked.
Drive (S)●Better acceleration.
● Increased engine braking.
● Going up or down hills.
● On models with paddle shifter, 7-speed
manual shift mode can be used.
Models without
paddle shifter
Models with
paddle shifter
Depress the brake pedal
and press the release button
to move out of
(P.
Press the release button to
move the shift lever.
Move the shift lever without
pressing the release button.
ReverseUsed when reversing.Drive● Normal driving.
● On models with paddle
shifter, 7-speed mode can
be used temporarily.
Low
*
●Further increased engine braking.
● Going up or down hills. Shift Down
(
-
Paddle Shifter Shift Up
(
+
Paddle Shifter
7-Speed Manual Shift
Mode
(P 437)
● Allows you to manually
shift the transmission up or
down without removing
your hands from the
steering wheel.
When the shift lever is in
(S
●Pulling a paddle shifter
changes the mode from
continuously variable
transmission (CVT) to 7-speed
manual shift mode.
● The M indicator and the
selected speed number are
displayed in the shift indicator.When the shift lever is in
(D
● Pulling a paddle shifter
temporarily chang es the mode
from continuously variable
transmission (CVT) to 7-speed
manual shift mode. The
selected speed number is
displayed in the shift indicator.
Shift Lever
Release
Button
* Not available on all models
