HONDA ACCORD 2017 9.G Owners Manual

210
uuAudio System Basic Operation uPlaying a USB Flash Drive
Features

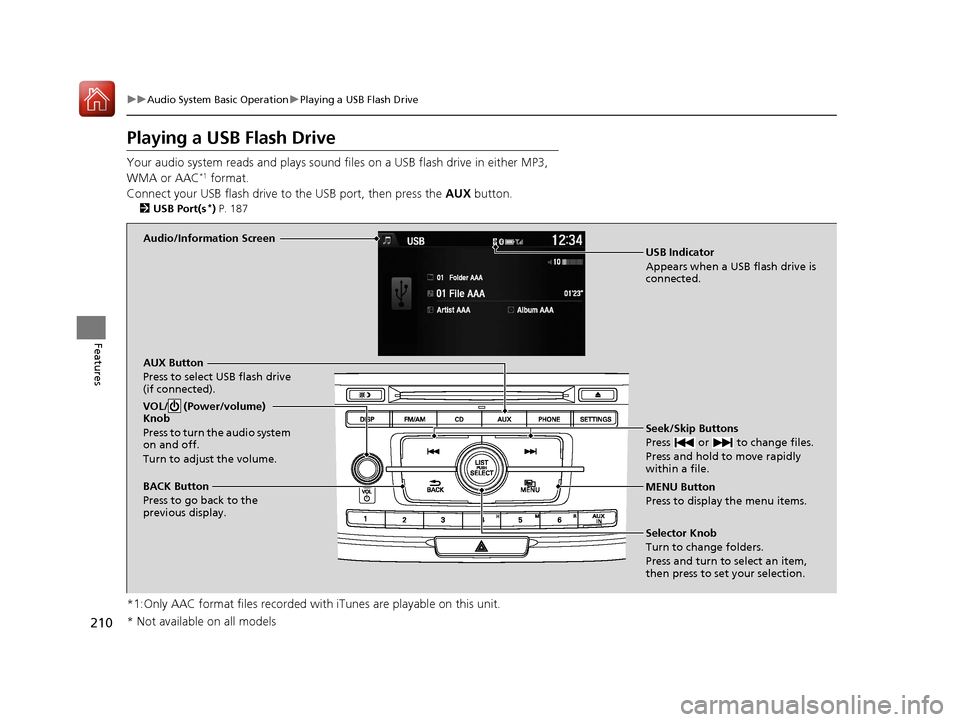

Playing a USB Flash Drive
Your audio system reads and plays sound fi les on a USB flash drive in either MP3,
WMA or AAC*1 format.
Connect your USB flash drive to the USB port, then press the AUX button.
2USB Port(s*) P. 187
*1:Only AAC format files recorded with iTunes are playable on this unit.
Audio/Information Screen
AUX Button
Press to select USB flash drive
(if connected). Seek/Skip Buttons
Press or to change files.
Press and hold to move rapidly
within a file.
MENU Button
Press to display the menu items.
Selector Knob
Turn to change folders.
Press and turn to select an item,
then press to set your selection.
VOL/ (Power/volume)
Knob
Press to turn the audio system
on and off.
Turn to adjust the volume.
BACK Button
Press to go back to the
previous display.
USB Indicator
Appears when a USB flash drive is
connected.
* Not available on all models
17 ACCORD 4D GAS-31T2A6400.book 210 ページ ２０１６年６月７日　火曜日　午後５時６分

Continued211
uuAudio System Basic Operation uPlaying a USB Flash Drive
Features

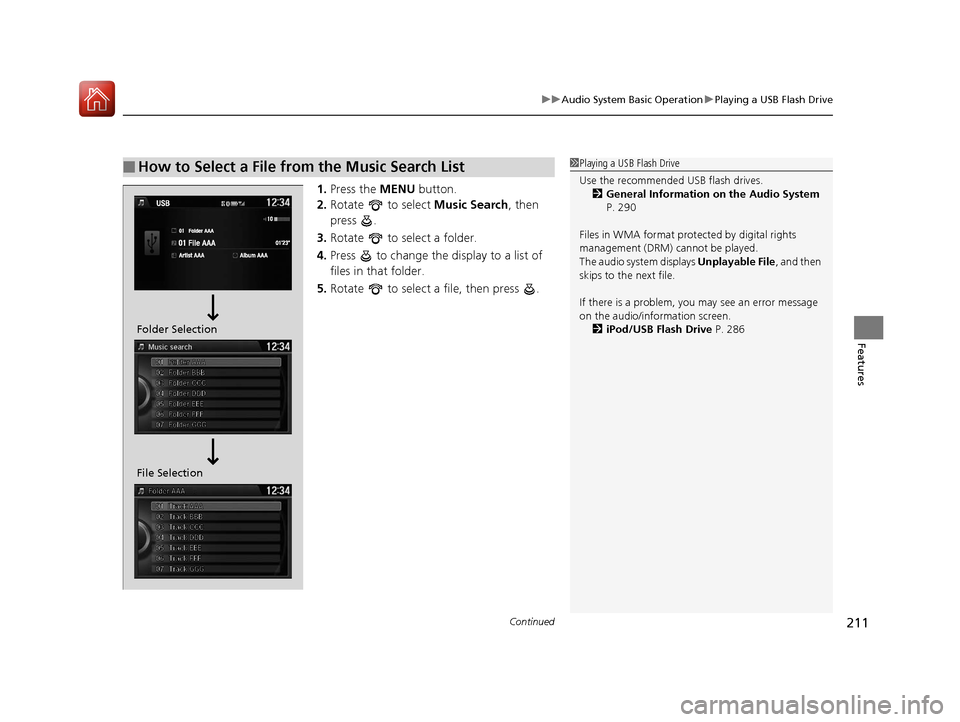

1. Press the MENU button.
2. Rotate to select Music Search, then
press .
3. Rotate to select a folder.
4. Press to change the display to a list of
files in that folder.
5. Rotate to select a file, then press .
■How to Select a File from the Music Search List1Playing a USB Flash Drive
Use the recommended USB flash drives.
2 General Information on the Audio System
P. 290
Files in WMA format prot ected by digital rights
management (DRM) cannot be played.
The audio system displays Unplayable File, and then
skips to the next file.
If there is a problem, you may see an error message
on the audio/information screen.
2 iPod/USB Flash Drive P. 286
File Selection Folder Selection
17 ACCORD 4D GAS-31T2A6400.book 211 ページ ２０１６年６月７日　火曜日　午後５時６分

uuAudio System Basic Operation uPlaying a USB Flash Drive
212
Features

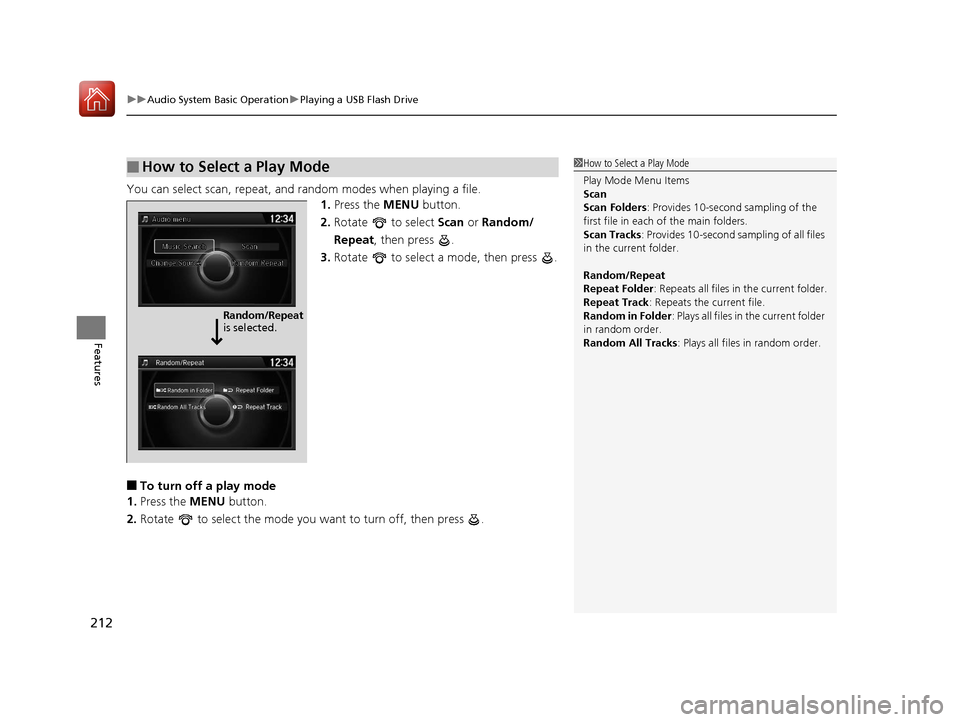

You can select scan, repeat, and random modes when playing a file.
1.Press the MENU button.
2. Rotate to select Scan or Random/
Repeat, then press .
3. Rotate to select a mode, then press .
■To turn off a play mode
1. Press the MENU button.
2. Rotate to select the mode you want to turn off, then press .
■How to Select a Play Mode1How to Select a Play Mode
Play Mode Menu Items
Scan
Scan Folders : Provides 10-second sampling of the
first file in each of the main folders.
Scan Tracks : Provides 10-second sa mpling of all files
in the current folder.
Random/Repeat
Repeat Folder : Repeats all files in the current folder.
Repeat Track: Repeats the current file.
Random in Folder : Plays all files in the current folder
in random order.
Random All Tracks : Plays all files in random order.
Random/Repeat
is selected.
17 ACCORD 4D GAS-31T2A6400.book 212 ページ ２０１６年６月７日　火曜日　午後５時６分

213
uuAudio System Basic Operation uPlaying Bluetooth ® Audio
Continued
Features

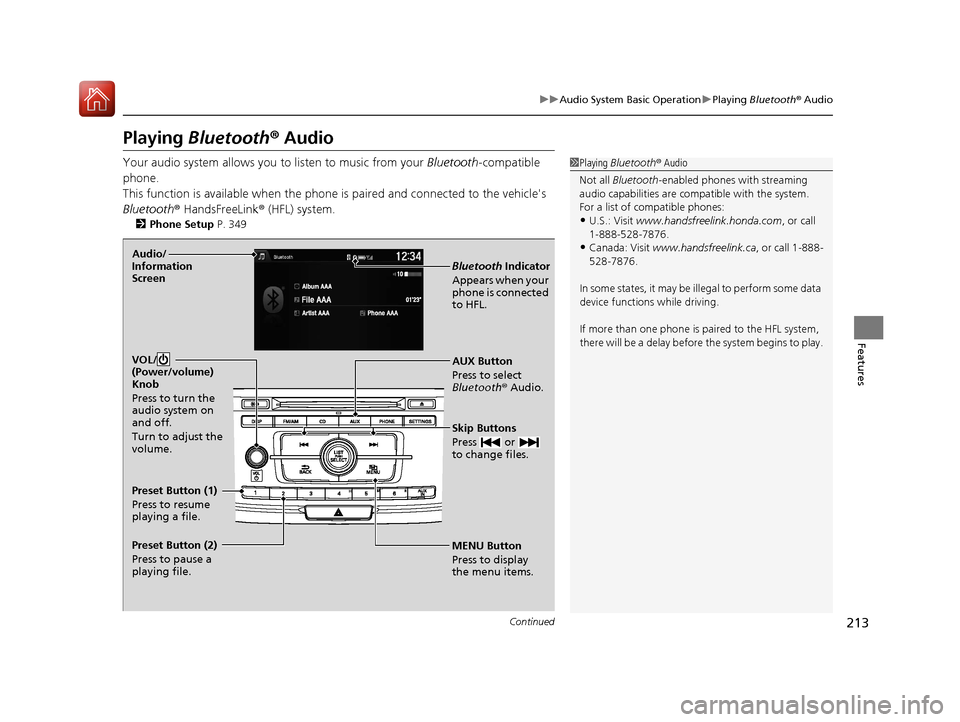

Playing Bluetooth ® Audio
Your audio system allows you to listen to music from your Bluetooth-compatible
phone.
This function is available when the phone is paired an d connected to the vehicle's
Bluetooth ® HandsFreeLink ® (HFL) system.
2Phone Setup P. 349
1Playing Bluetooth ® Audio
Not all Bluetooth -enabled phones with streaming
audio capabilities are compatible with the system.
For a list of compatible phones:
•U.S.: Visit www.handsfreelink.honda.com , or call
1-888-528-7876.
•Canada: Visit www.handsfreelink.ca , or call 1-888-
528-7876.
In some states, it may be il legal to perform some data
device functions while driving.
If more than one phone is paired to the HFL system,
there will be a delay before the system begins to play.
MENU Button
Press to display
the menu items. AUX Button
Press to select
Bluetooth® Audio.
Skip Buttons
Press or
to change files.
Bluetooth Indicator
Appears when your
phone is connected
to HFL.
VOL/
(Power/volume)
Knob
Press to turn the
audio system on
and off.
Turn to adjust the
volume.Audio/
Information
Screen
Preset Button (1)
Press to resume
playing a file.
Preset Button (2)
Press to pause a
playing file.
17 ACCORD 4D GAS-31T2A6400.book 213 ページ ２０１６年６月７日　火曜日　午後５時６分

uuAudio System Basic Operation uPlaying Bluetooth ® Audio
214
Features

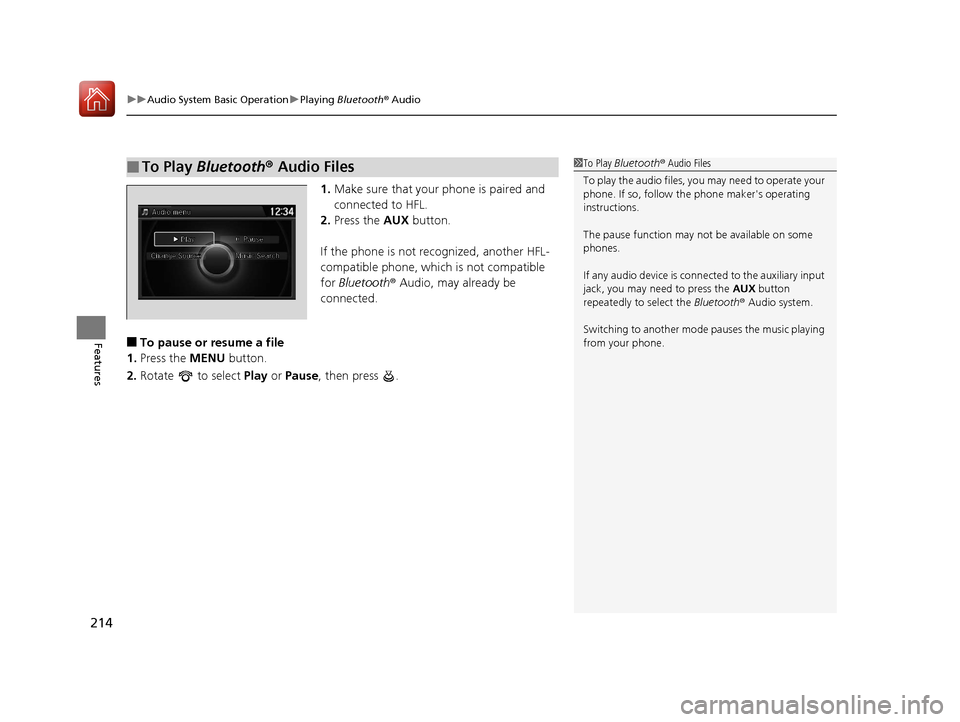

1. Make sure that your phone is paired and
connected to HFL.
2. Press the AUX button.
If the phone is not recognized, another HFL-
compatible phone, which is not compatible
for Bluetooth ® Audio, may already be
connected.
■To pause or resume a file
1. Press the MENU button.
2. Rotate to select Play or Pause , then press .
■To Play Bluetooth® Audio Files1To Play Bluetooth ® Audio Files
To play the audio files, y ou may need to operate your
phone. If so, follow the phone maker's operating
instructions.
The pause function may no t be available on some
phones.
If any audio device is conne cted to the auxiliary input
jack, you may need to press the AUX button
repeatedly to select the Bluetooth® Audio system.
Switching to another mode pauses the music playing
from your phone.
17 ACCORD 4D GAS-31T2A6400.book 214 ページ ２０１６年６月７日　火曜日　午後５時６分

215
Features

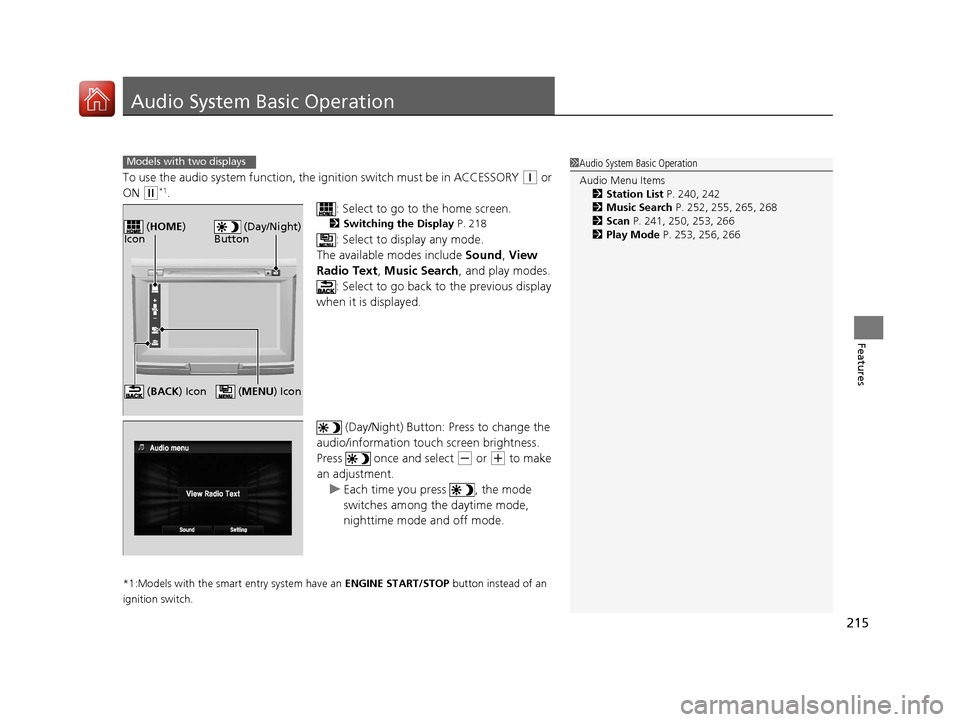

Audio System Basic Operation
To use the audio system function, the ignition swit ch must be in ACCESSORY (q or
ON
(w*1.
: Select to go to the home screen.
2Switching the Display P. 218
: Select to display any mode.
The available modes include Sound, View
Radio Text , Music Search , and play modes.
: Select to go back to the previous display
when it is displayed.
(Day/Night) Button: Press to change the
audio/information touch screen brightness.
Press once and select
(- or (+ to make
an adjustment.
u Each time you press , the mode
switches among the daytime mode,
nighttime mode and off mode.
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Models with two displays1 Audio System Basic Operation
Audio Menu Items
2 Station List P. 240, 242
2 Music Search P. 252, 255, 265, 268
2 Scan P. 241, 250, 253, 266
2 Play Mode P. 253, 256, 266
(Day/Night)
Button ( HOME )
Icon
( MENU) Icon (BACK ) Icon
17 ACCORD 4D GAS-31T2A6400.book 215 ページ ２０１６年６月７日　火曜日　午後５時６分

216
uuAudio System Basic Operation uAudio/Information Screen
Features

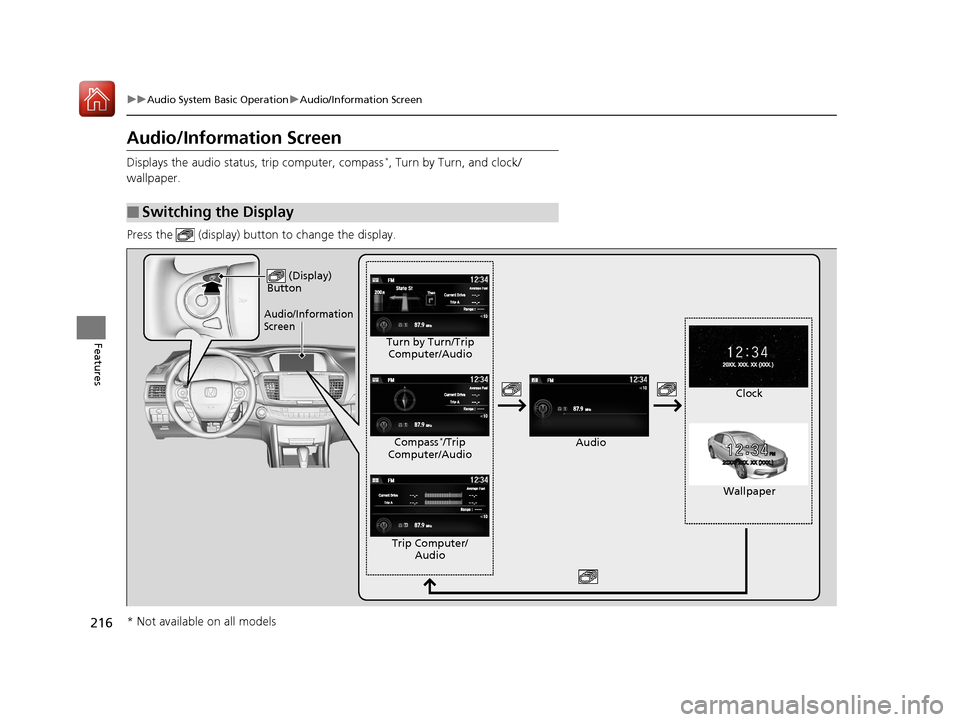

Audio/Information Screen
Displays the audio status, trip computer, compass*, Turn by Turn, and clock/
wallpaper.
Press the (display) butto n to change the display.
■Switching the Display
(Display)
Button
Audio
Compass*/Trip
Computer/Audio Clock
Turn by Turn/Trip
Computer/Audio
Audio/Information
Screen
Wallpaper
Trip Computer/ Audio
* Not available on all models
17 ACCORD 4D GAS-31T2A6400.book 216 ページ ２０１６年６月７日　火曜日　午後５時６分

217
uuAudio System Basic Operation uAudio/Information Screen
Features

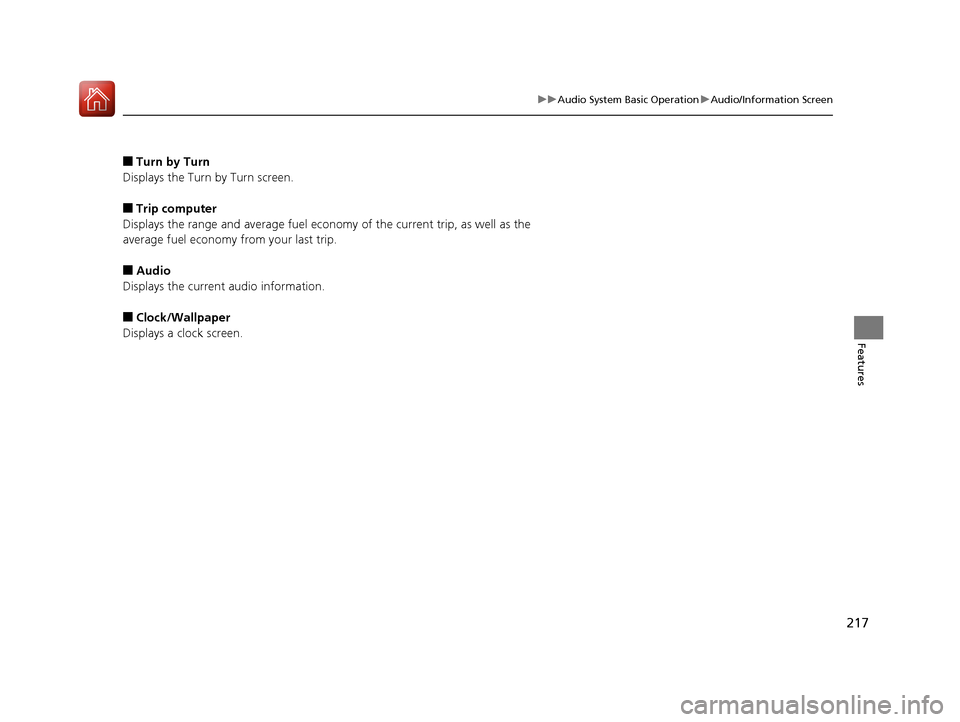

■Turn by Turn
Displays the Turn by Turn screen.
■Trip computer
Displays the range and average fuel econom y of the current trip, as well as the
average fuel economy from your last trip.
■Audio
Displays the current audio information.
■Clock/Wallpaper
Displays a clock screen.
17 ACCORD 4D GAS-31T2A6400.book 217 ページ ２０１６年６月７日　火曜日　午後５時６分

218
uuAudio System Basic Operation uAudio/Information Touch Screen
Features

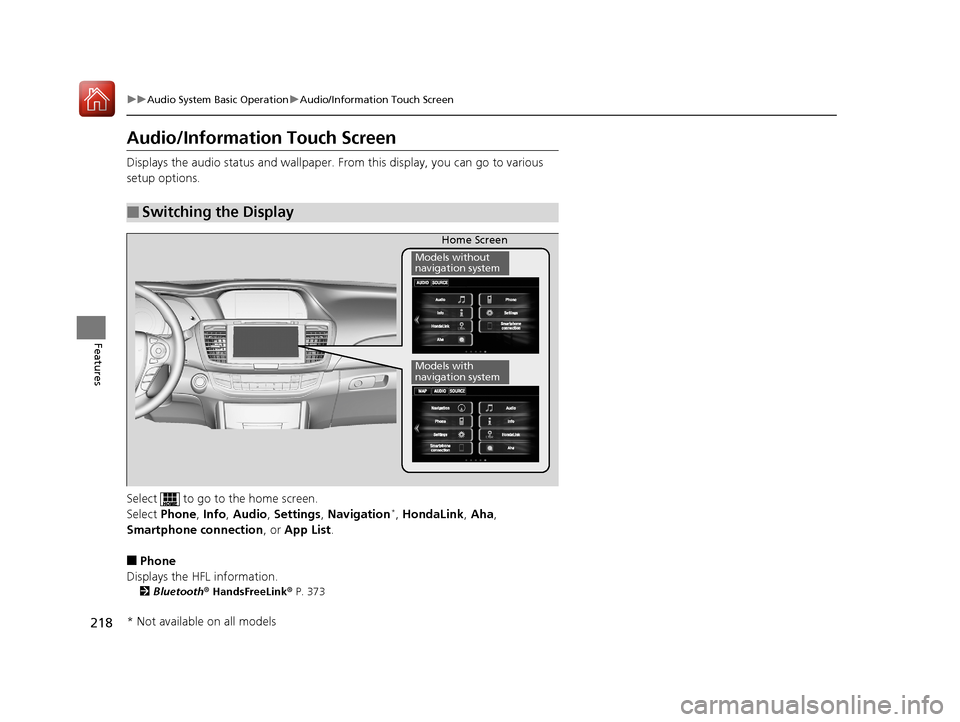

Audio/Information Touch Screen
Displays the audio status and wallpaper. From this display, you can go to various
setup options.
Select to go to the home screen.
Select Phone, Info, Audio , Settings , Navigation
*, HondaLink , Aha ,
Smartphone connection, or App List .
■Phone
Displays the HFL information.
2 Bluetooth® HandsFreeLink ® P. 373
■Switching the Display
Home Screen
Models without
navigation system
Models with
navigation system
* Not available on all models
17 ACCORD 4D GAS-31T2A6400.book 218 ページ ２０１６年６月７日　火曜日　午後５時６分

219
uuAudio System Basic Operation uAudio/Information Touch Screen
Continued
Features

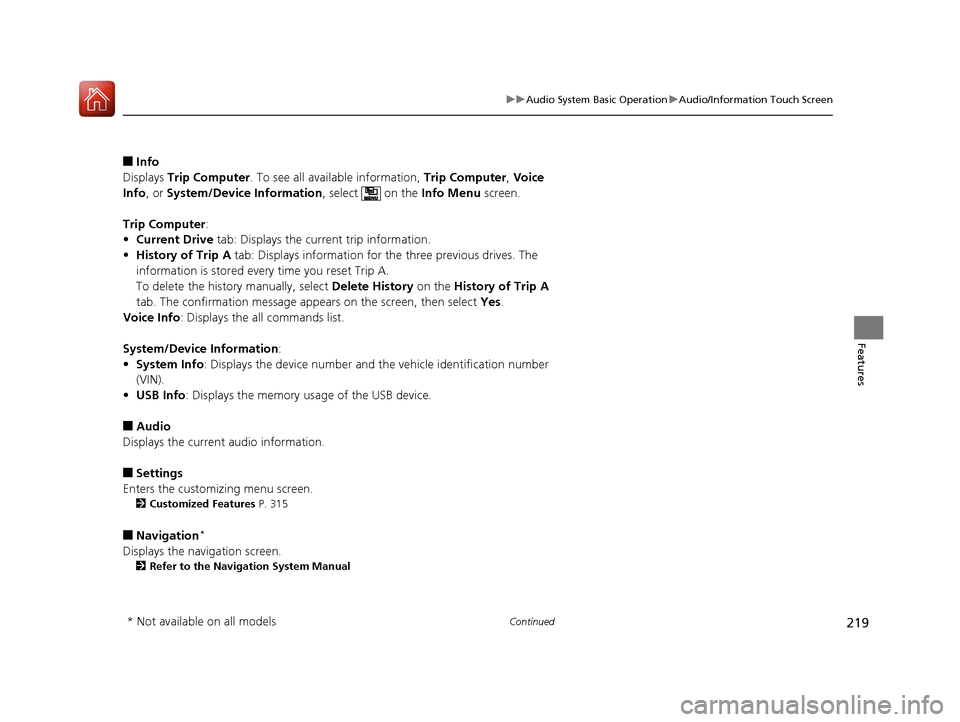

■Info
Displays Trip Computer . To see all available information, Trip Computer, Voice
Info , or System/Device Information , select on the Info Menu screen.
Trip Computer :
• Current Drive tab: Displays the current trip information.
• History of Trip A tab: Displays information for the three previous drives. The
information is stored every time you reset Trip A.
To delete the history manually, select Delete History on the History of Trip A
tab. The confirmation message appears on the screen, then select Yes.
Voice Info : Displays the all commands list.
System/Device Information :
• System Info : Displays the device number and the vehicle identification number
(VIN).
• USB Info : Displays the memory usage of the USB device.
■Audio
Displays the current audio information.
■Settings
Enters the customizing menu screen.
2 Customized Features P. 315
■Navigation*
Displays the navigation screen.
2Refer to the Navigation System Manual
* Not available on all models
17 ACCORD 4D GAS-31T2A6400.book 219 ページ ２０１６年６月７日　火曜日　午後５時６分
