HONDA ACCORD 2017 9.G Owners Manual

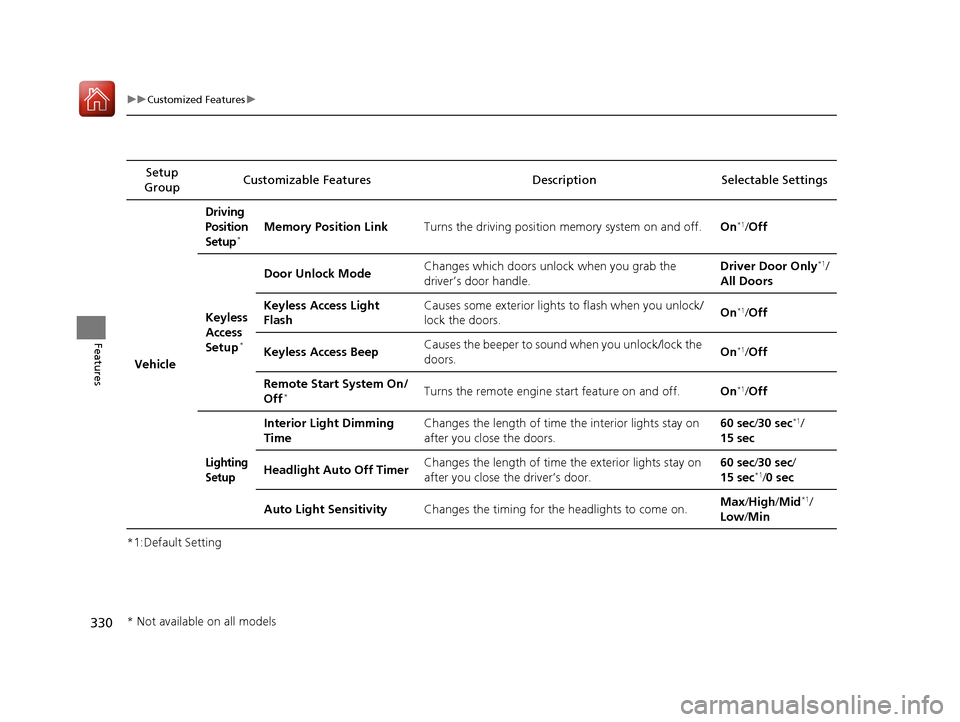

330
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Vehicle
Driving
Position
Setup
*Memory Position Link
Turns the driving position memory system on and off.On*1/Off
Keyless
Access
Setup
*
Door Unlock Mode Changes which doors unlock when you grab the
driver’s door handle. Driver Door Only*1/
All Doors
Keyless Access Light
Flash Causes some exterior lights
to flash when you unlock/
lock the doors. On
*1/
Off
Keyless Access Beep Causes the beeper to sound when you unlock/lock the
doors.
On
*1/
Off
Remote Start System On/
Off
*Turns the remote engine start feature on and off. On*1/Off
Lighting
Setup
Interior Light Dimming
Time Changes the length of time
the interior lights stay on
after you close the doors. 60 sec/
30 sec*1/
15 sec
Headlight Auto Off Timer Changes the length of time the exterior lights stay on
after you close the driver’s door. 60 sec/
30 sec/
15 sec
*1/ 0 sec
Auto Light Sensitivity Changes the timing for th e headlights to come on. Max
/High /Mid
*1/
Low /Min
* Not available on all models
17 ACCORD 4D GAS-31T2A6400.book 330 ページ ２０１６年６月７日　火曜日　午後５時６分

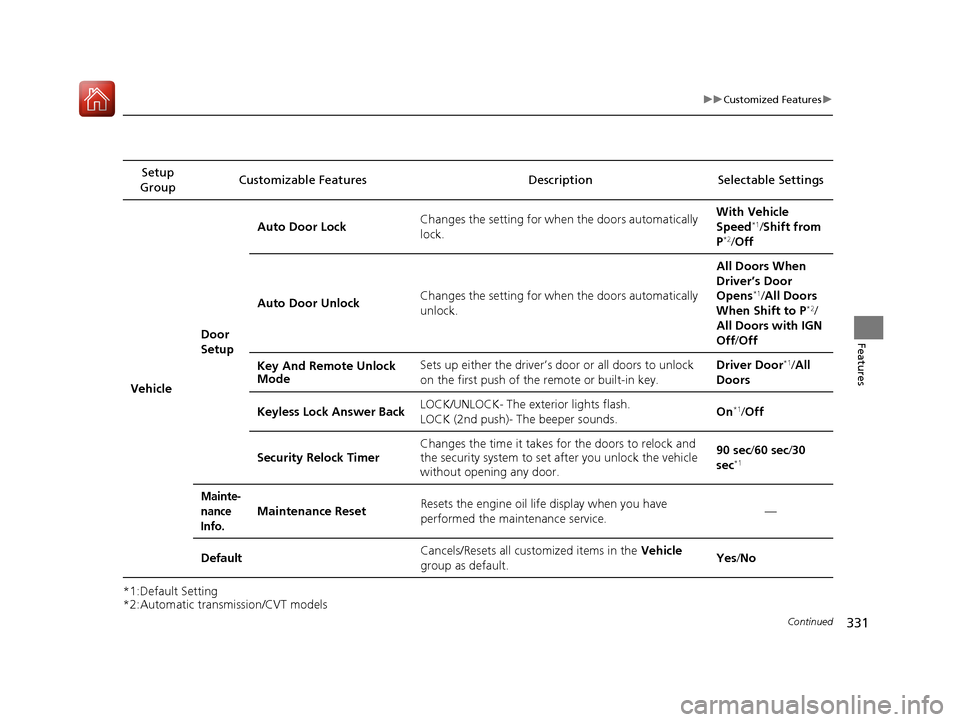

331
uuCustomized Features u
Continued
Features
*1:Default Setting
*2:Automatic transmission/CVT modelsSetup
Group Customizable Features Description Selectable Settings
Vehicle Door
SetupAuto Door Lock
Changes the setting for when the doors automatically
lock. With Vehicle
Speed
*1/
Shift from
P*2/ Off
Auto Door Unlock Changes the setting for when the doors automatically
unlock. All Doors When
Driver’s Door
Opens
*1/
All Doors
When Shift to P*2/
All Doors with IGN
Off /Off
Key And Remote Unlock
Mode Sets up either the driver’s door or all doors to unlock
on the first push of the remote or built-in key. Driver Door
*1/
All
Doors
Keyless Lock Answer Back LOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds. On
*1/
Off
Security Relock Timer Changes the time it takes fo
r the doors to relock and
the security system to set after you unlock the vehicle
without opening any door. 90 sec
/60 sec/ 30
sec
*1
Mainte-
nance
Info.
Maintenance ResetResets the engine oil lif e display when you have
performed the maintenance service.—
DefaultCancels/Resets all customized items in the Vehicle
group as default.Yes /No
17 ACCORD 4D GAS-31T2A6400.book 331 ページ ２０１６年６月７日　火曜日　午後５時６分

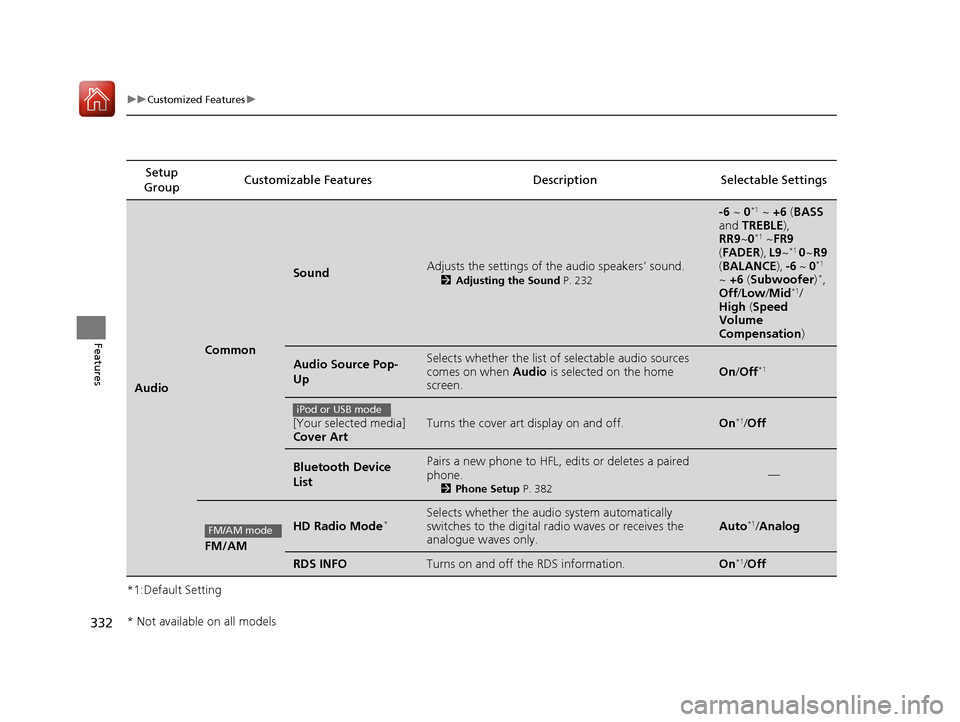

332
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Audio
Common
SoundAdjusts the settings of the audio speakers’ sound.
2
Adjusting the Sound P. 232
-6 ~ 0*1 ~ +6 (BASS
and TREBLE ),
RR9 ~0
*1 ~FR9
( FADER ), L9 ~*1 0 ~R9
( BALANCE ), -6 ~ 0*1
~ +6 (Subwoofer )*,
Off /Low/ Mid*1/
High (Speed
Volume
Compensation )
Audio Source Pop-
UpSelects whether the list of selectable audio sources
comes on when Audio is selected on the home
screen.On /Off*1
[Your selected media]
Cover ArtTurns the cover art display on and off.On*1/Off
Bluetooth Device
ListPairs a new phone to HFL, edits or deletes a paired
phone.
2 Phone Setup P. 382
—
FM/AM
HD Radio Mode*Selects whether the audio system automatically
switches to the digital ra dio waves or receives the
analogue waves only.Auto*1/ Analog
RDS INFOTurns on and off the RDS information.On*1/Off
iPod or USB mode
FM/AM mode
* Not available on all models
17 ACCORD 4D GAS-31T2A6400.book 332 ページ ２０１６年６月７日　火曜日　午後５時６分

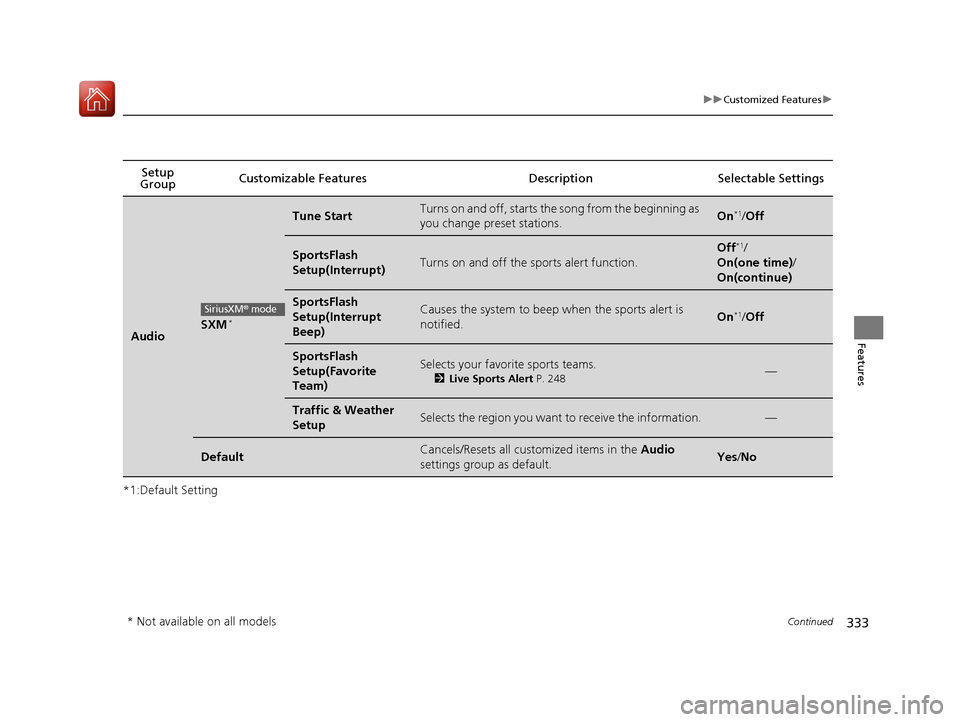

333
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings
AudioSXM*
Tune StartTurns on and off, starts the song from the beginning as
you change preset stations.On*1/ Off
SportsFlash
Setup(Interrupt)Turns on and off the sp orts alert function.
Off*1/
On(one time) /
On(continue)
SportsFlash
Setup(Interrupt
Beep)Causes the system to beep when the sports alert is
notified.On*1/ Off
SportsFlash
Setup(Favorite
Team)Selects your favorite sports teams.
2 Live Sports Alert P. 248—
Traffic & Weather
SetupSelects the region you want to receive the information.—
DefaultCancels/Resets all customized items in the Audio
settings group as default.Yes /No
SiriusXM® mode
* Not available on all models
17 ACCORD 4D GAS-31T2A6400.book 333 ページ ２０１６年６月７日　火曜日　午後５時６分

334
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Clock/
Info
Clock
Clock/
Wallpaper
TypeClock
See System on P. 324
Wallpaper
Clock Adjustment*
Clock Format
Auto Time Zone*
Manual Time Zone*
Auto Daylight
Clock Display
Clock Reset
HondaLinkDiagnostic & Location
DataTurns HondaLink
® on and off.On/Off
OtherInfo Screen
PreferenceChanges the information screen type.Info Menu*1/Off
DefaultCancels/Resets all cust omized items in the Clock/Info
settings group as default.Yes /No
* Not available on all models
17 ACCORD 4D GAS-31T2A6400.book 334 ページ ２０１６年６月７日　火曜日　午後５時６分

335
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Phone
Phone
Bluetooth Device
ListPairs a new phone to HFL, connects or disconnects a
paired phone.
2Phone Setup P. 382
—
Edit Speed DialEdits, adds or delete s a speed dial entry.
2Speed Dial P. 388—
Ring ToneSelects the ring tone.Fixed /Mobile
Phone*1
Automatic Phone
SyncSets phonebook and call history data to be
automatically imported when a phone is paired to HFL.On*1/Off
HondaLink AssistTurns HondaLink Assist on and off.On /Off*1
Text/Email
Enable Text/EmailTurns the text/e-mail mess age function on and off.On*1/Off
Select AccountSelects a text or e-mail message account.—
New Message
NotificationSelects whether a pop-up alert comes on the screen
when HFL receives a new text/e-mail messages.On /Off
DefaultCancels/Resets all cust omized items in the Phone
settings group as default.Yes /No
17 ACCORD 4D GAS-31T2A6400.book 335 ページ ２０１６年６月７日　火曜日　午後５時６分

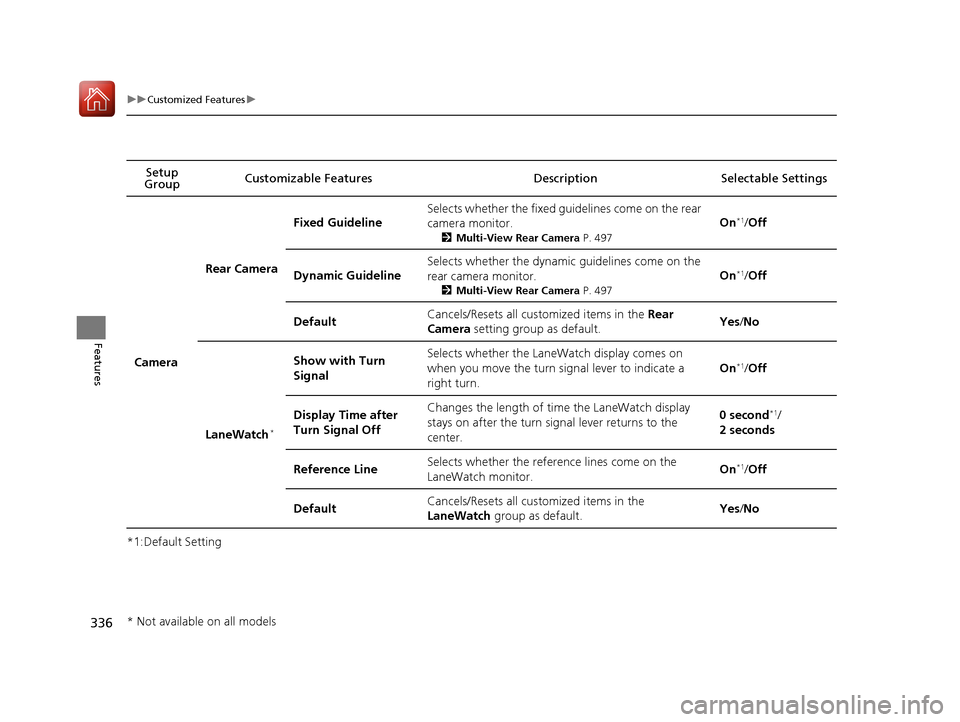

336
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Camera
Rear Camera
Fixed Guideline
Selects whether the fixed guidelines come on the rear
camera monitor.
2
Multi-View Rear Camera P. 497
On*1/Off
Dynamic Guideline
Selects whether the dynamic guidelines come on the
rear camera monitor.
2 Multi-View Rear Camera P. 497
On*1/Off
DefaultCancels/Resets all cust omized items in the Rear
Camera setting group as default.Yes/No
LaneWatch*
Show with Turn
SignalSelects whether the LaneWatch display comes on
when you move the turn signal lever to indicate a
right turn.
On*1/ Off
Display Time after
Turn Signal OffChanges the length of time the LaneWatch display
stays on after the turn signal lever returns to the
center.0 second*1/
2 seconds
Reference LineSelects whether the reference lines come on the
LaneWatch monitor.On*1/ Off
DefaultCancels/Resets all cust omized items in the
LaneWatch group as default.Yes/No
* Not available on all models
17 ACCORD 4D GAS-31T2A6400.book 336 ページ ２０１６年６月７日　火曜日　午後５時６分

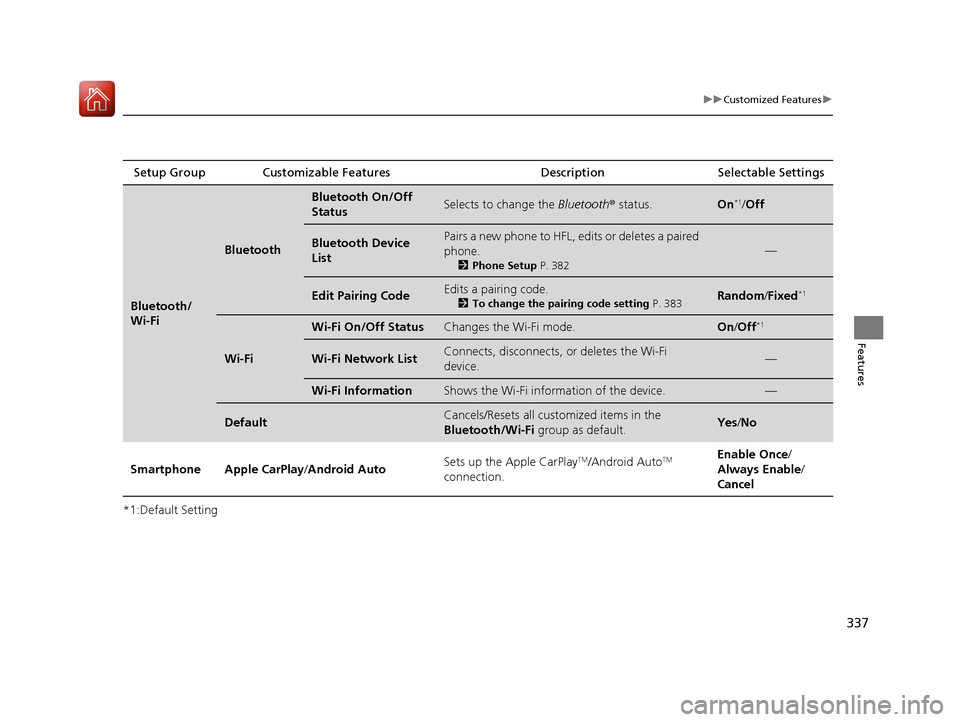

337
uuCustomized Features u
Features
*1:Default SettingSetup Group Customizable Features
Description Selectable Settings
Bluetooth/
Wi-Fi
Bluetooth
Bluetooth On/Off
StatusSelects to change the Bluetooth® status.On*1/Off
Bluetooth Device
ListPairs a new phone to HFL, edits or deletes a paired
phone.
2 Phone Setup P. 382
—
Edit Pairing CodeEdits a pairing code.
2To change the pairing code setting P. 383Random/Fixed*1
Wi-Fi
Wi-Fi On/Off StatusChanges the Wi-Fi mode.On /Off*1
Wi-Fi Network ListConnects, disconnects, or deletes the Wi-Fi
device.—
Wi-Fi InformationShows the Wi-Fi information of the device.—
DefaultCancels/Resets all customized items in the
Bluetooth/Wi-Fi group as default.Yes/No
Smartphone Apple CarPlay /Android Auto Sets up the Apple CarPlay
TM/Android AutoTM
connection. Enable Once
/
Always Enable/
Cancel
17 ACCORD 4D GAS-31T2A6400.book 337 ページ ２０１６年６月７日　火曜日　午後５時６分

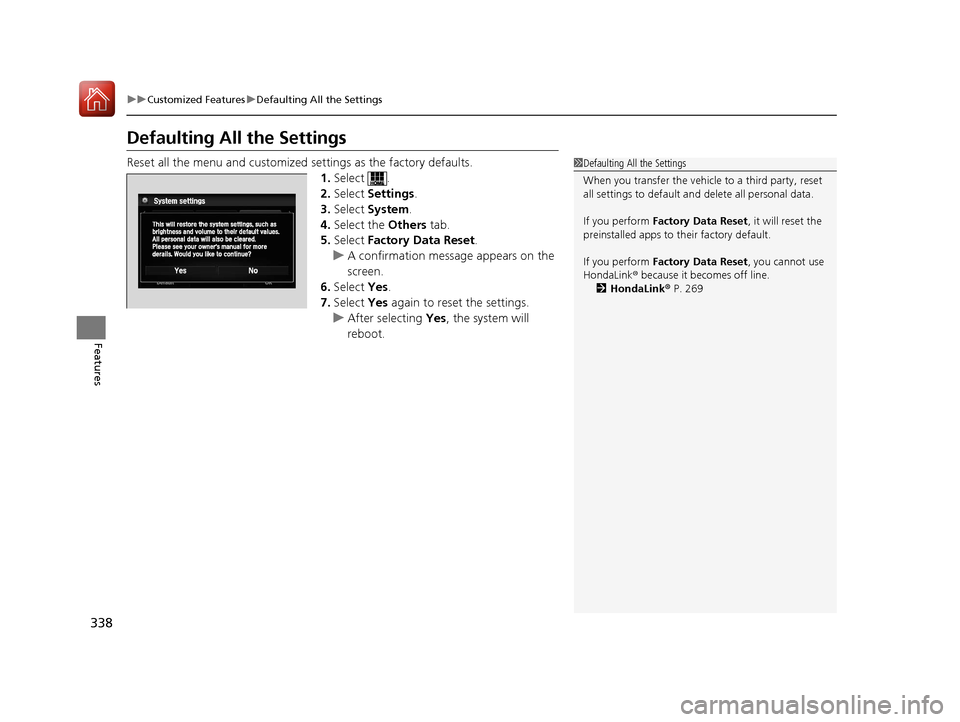

338
uuCustomized Features uDefaulting All the Settings
Features
Defaulting All the Settings
Reset all the menu and customized settings as the factory defaults.
1. Select .
2. Select Settings .
3. Select System .
4. Select the Others tab.
5. Select Factory Data Reset .
u A confirmation message appears on the
screen.
6. Select Yes.
7. Select Yes again to reset the settings.
u After selecting Yes, the system will
reboot.1 Defaulting All the Settings
When you transfer the vehicle to a third party, reset
all settings to default a nd delete all personal data.
If you perform Factory Data Reset , it will reset the
preinstalled apps to their factory default.
If you perform Factory Data Reset , you cannot use
HondaLink ® because it becomes off line.
2 HondaLink ® P. 269
17 ACCORD 4D GAS-31T2A6400.book 338 ページ ２０１６年６月７日　火曜日　午後５時６分

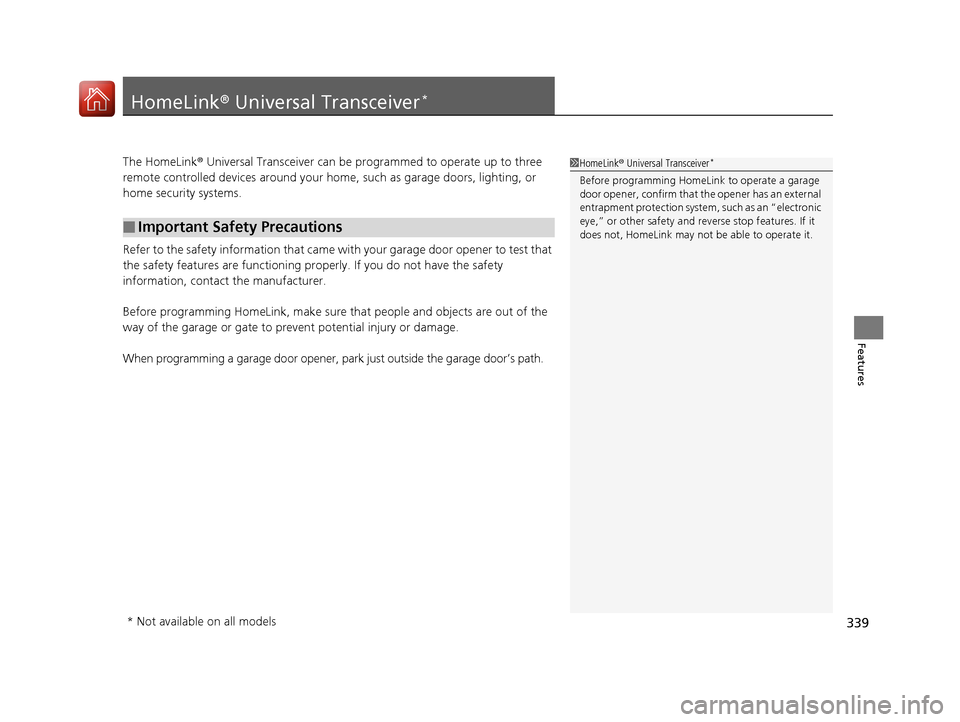

339
Features
HomeLink® Universal Transceiver*
The HomeLink ® Universal Transceiver can be programmed to operate up to three
remote controlled devices around your home, such as garage doors, lighting, or
home security systems.
Refer to the safety information that came wi th your garage door opener to test that
the safety features are functioning properly. If you do not have the safety
information, contact the manufacturer.
Before programming HomeLink, make sure that people and objects are out of the
way of the garage or gate to prevent potential injury or damage.
When programming a garage door opener, pa rk just outside the garage door’s path.
■Important Safety Precautions
1HomeLink ® Universal Transceiver*
Before programming HomeLi nk to operate a garage
door opener, confirm that the opener has an external
entrapment protection system, such as an “electronic
eye,” or other safety and re verse stop features. If it
does not, HomeLink may not be able to operate it.
* Not available on all models
17 ACCORD 4D GAS-31T2A6400.book 339 ページ ２０１６年６月７日　火曜日　午後５時６分
