HONDA ACCORD 2017 9.G Owners Manual

uuBluetooth ® HandsFreeLink ®u HFL Menus
370
Features
1. Press the PHONE button.
2. Press the MENU button.
3. Rotate to select Text Messages, then
press .
4. Rotate to select a message, then press
.
u The text message is displayed. The
system automatically starts reading the
message aloud.

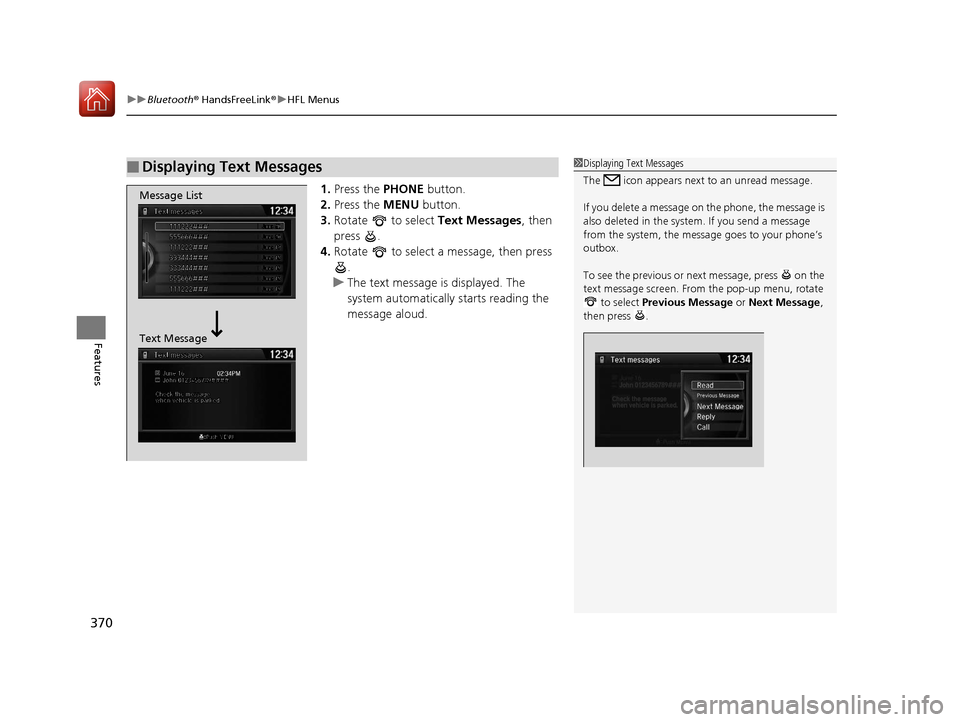

■Displaying Text Messages1Displaying Text Messages
The icon appears next to an unread message.
If you delete a message on the phone, the message is
also deleted in the system. If you send a message
from the system, the message goes to your phone’s
outbox.
To see the previous or next message, press on the
text message screen. From the pop-up menu, rotate
to select Previous Message or Next Message,
then press .
Message List
Text Message
17 ACCORD 4D GAS-31T2A6400.book 370 ページ ２０１６年６月７日　火曜日　午後５時６分

Continued371
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

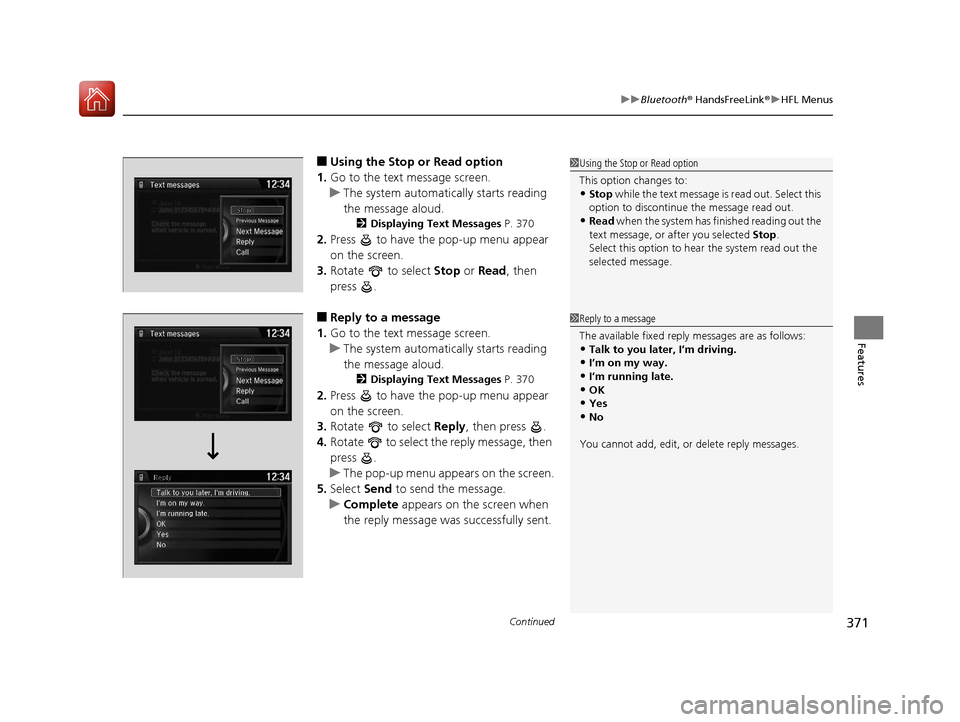

■Using the Stop or Read option
1. Go to the text message screen.
u The system automatically starts reading
the message aloud.
2 Displaying Text Messages P. 370
2.Press to have the pop-up menu appear
on the screen.
3. Rotate to select Stop or Read , then
press .
■Reply to a message
1. Go to the text message screen.
u The system automatically starts reading
the message aloud.
2 Displaying Text Messages P. 370
2.Press to have the pop-up menu appear
on the screen.
3. Rotate to select Reply, then press .
4. Rotate to select the reply message, then
press .
u The pop-up menu appears on the screen.
5. Select Send to send the message.
u Complete appears on the screen when
the reply message was successfully sent.
1 Using the Stop or Read option
This option changes to:
•Stop while the text message is read out. Select this
option to discontinue the message read out.
•Read when the system has finished reading out the
text message, or after you selected Stop.
Select this option to hear the system read out the
selected message.
1 Reply to a message
The available fixed reply messages are as follows:
•Talk to you later, I’m driving.
•I’m on my way.•I’m running late.
•OK
•Yes•No
You cannot add, edit, or delete reply messages.
17 ACCORD 4D GAS-31T2A6400.book 371 ページ ２０１６年６月７日　火曜日　午後５時６分

372
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

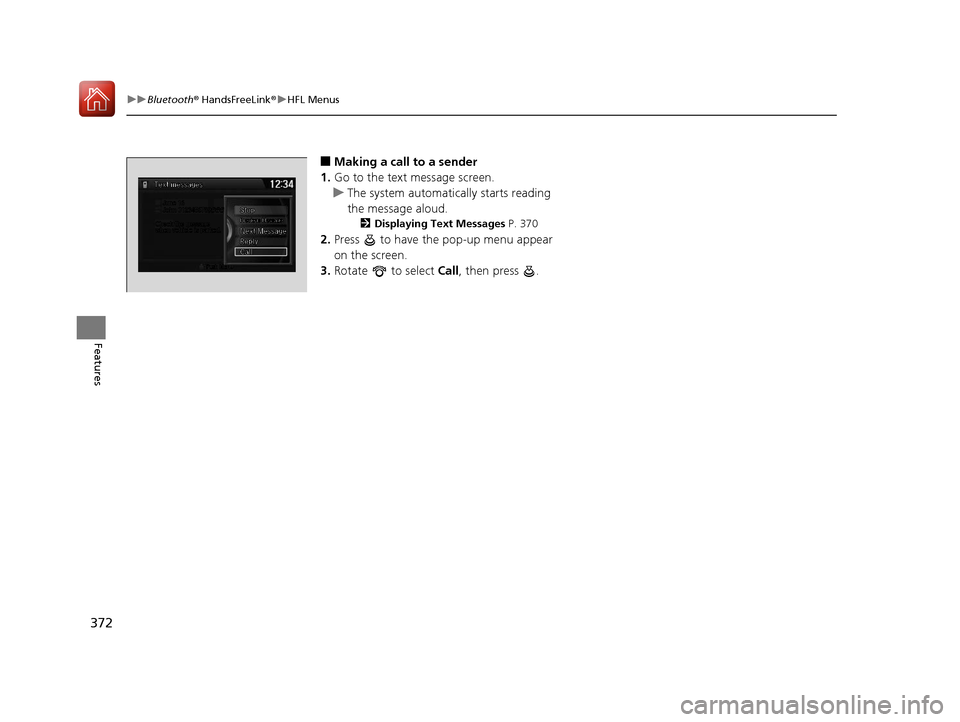

■Making a call to a sender
1. Go to the text message screen.
u The system automatically starts reading
the message aloud.
2 Displaying Text Messages P. 370
2.Press to have the pop-up menu appear
on the screen.
3. Rotate to select Call, then press .
17 ACCORD 4D GAS-31T2A6400.book 372 ページ ２０１６年６月７日　火曜日　午後５時６分

373Continued
Features

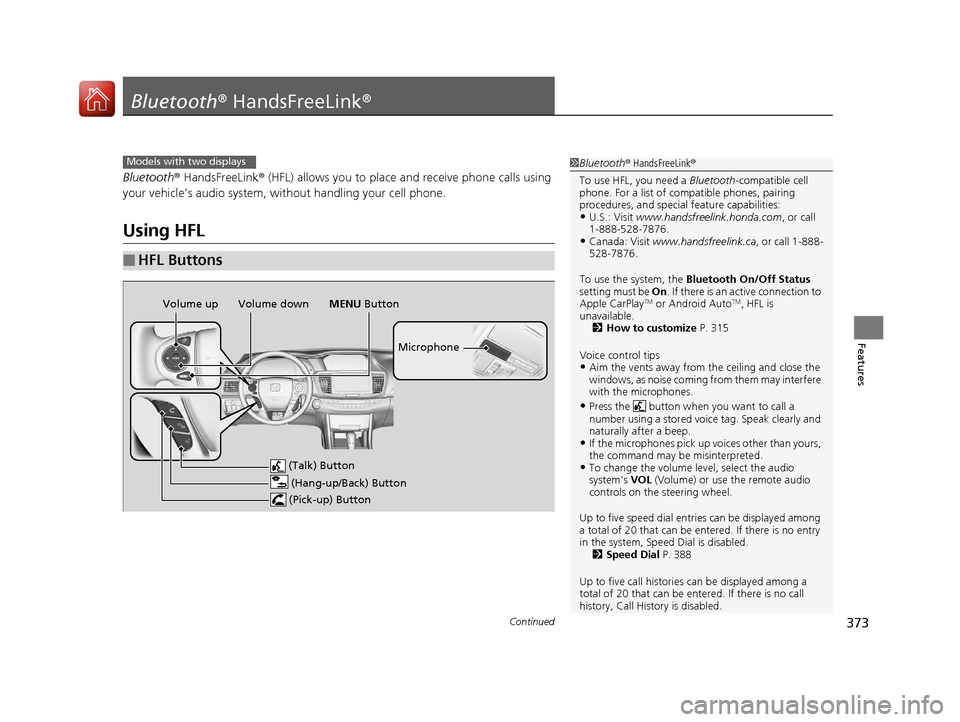

Bluetooth® HandsFreeLink ®
Bluetooth® HandsFreeLink ® (HFL) allows you to place and receive phone calls using
your vehicle’s audio system, without handling your cell phone.
Using HFL
■HFL Buttons
1 Bluetooth ® HandsFreeLink ®
To use HFL, you need a Bluetooth-compatible cell
phone. For a list of compatible phones, pairing
procedures, and special feature capabilities:
•U.S.: Visit www.handsfreelink.honda.com , or call
1-888-528-7876.
•Canada: Visit www.handsfreelink.ca , or call 1-888-
528-7876.
To use the system, the Bluetooth On/Off Status
setting must be On . If there is an active connection to
Apple CarPlay
TM or Android AutoTM, HFL is
unavailable. 2 How to customize P. 315
Voice control tips
•Aim the vents away from the ceiling and close the
windows, as noise coming fr om them may interfere
with the microphones.
•Press the button when you want to call a
number using a stored voic e tag. Speak clearly and
naturally after a beep.
•If the microphones pick up vo ices other than yours,
the command may be misinterpreted.
•To change the volume level, select the audio
system's VOL (Volume) or use the remote audio
controls on the steering wheel.
Up to five speed dial entries can be displayed among
a total of 20 that can be en tered. If there is no entry
in the system, Speed Dial is disabled. 2 Speed Dial P. 388
Up to five call historie s can be displayed among a
total of 20 that can be entered. If there is no call
history, Call History is disabled.
Models with two displays
(Talk) Button
Volume up
Microphone
(Hang-up/Back) Button
(Pick-up) Button
Volume down MENU Button
17 ACCORD 4D GAS-31T2A6400.book 373 ページ ２０１６年６月７日　火曜日　午後５時６分

uuBluetooth ® HandsFreeLink ®u Using HFL
374
Features

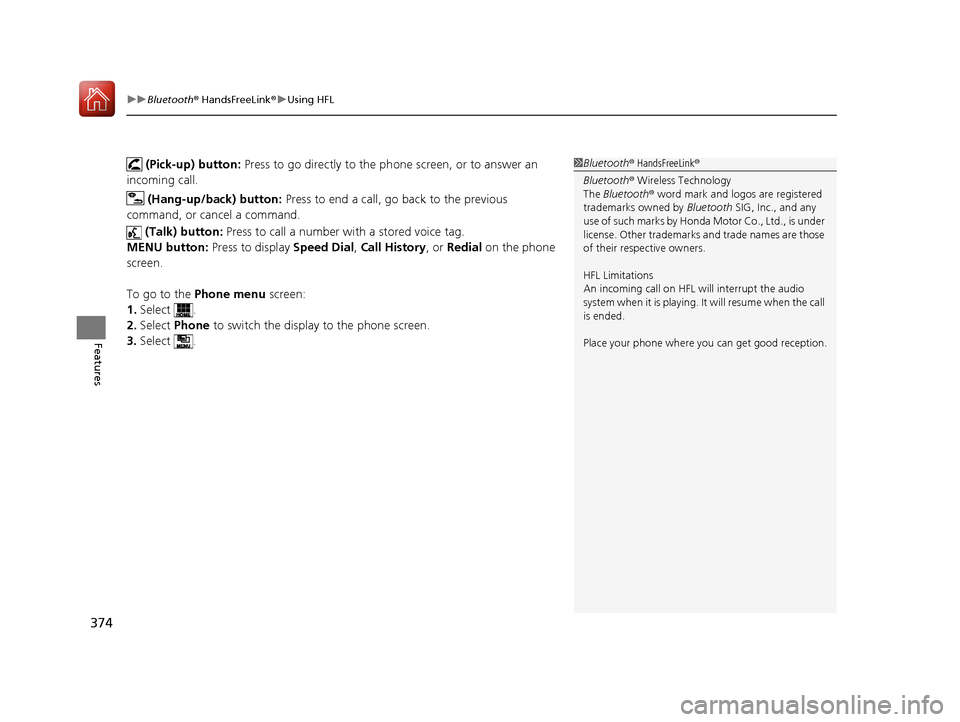

(Pick-up) button: Press to go directly to the ph one screen, or to answer an
incoming call.
(Hang-up/back) button: Press to end a call, go back to the previous
command, or cancel a command.
(Talk) button: Press to call a number with a stored voice tag.
MENU button: Press to display Speed Dial , Call History , or Redial on the phone
screen.
To go to the Phone menu screen:
1. Select .
2. Select Phone to switch the display to the phone screen.
3. Select .1Bluetooth ® HandsFreeLink ®
Bluetooth ® Wireless Technology
The Bluetooth ® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc., and any
use of such marks by Honda Motor Co., Ltd., is under
license. Other trademarks and trade names are those
of their respective owners.
HFL Limitations
An incoming call on HFL will interrupt the audio
s y s te m wh e n it is p la y i n g . It wi ll re s u m e w h en t h e c a l l
is ended.
Place your phone where y ou can get good reception.
17 ACCORD 4D GAS-31T2A6400.book 374 ページ ２０１６年６月７日　火曜日　午後５時６分

Continued375
uuBluetooth ® HandsFreeLink ®u Using HFL
Features
The audio/information screen and audio/information touch screen notify you when
there is an incoming call.

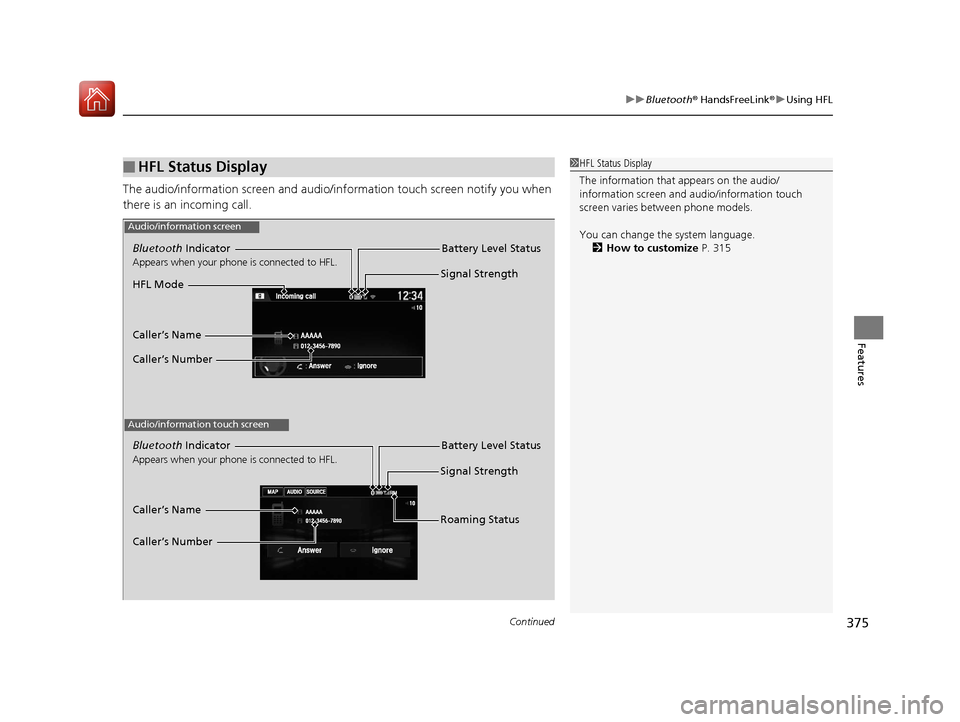

■HFL Status Display1HFL Status Display
The information that appears on the audio/
information screen and audio/information touch
screen varies between phone models.
You can change the system language.
2 How to customize P. 315
Bluetooth Indicator
Appears when your phone is connected to HFL.Signal Strength
HFL Mode
Battery Level Status
Caller’s Name
Caller’s Number Roaming Status
Audio/information touch screen
Caller’s Name
Caller’s Number
Audio/information screen
Bluetooth
Indicator
Appears when your phone is connected to HFL.Signal StrengthBattery Level Status
17 ACCORD 4D GAS-31T2A6400.book 375 ページ ２０１６年６月７日　火曜日　午後５時６分

376
uuBluetooth ® HandsFreeLink ®u Using HFL
Features
Certain manual functions are disabled or inoperable while the ve hicle is in motion.
You cannot select a grayed-out option until the vehicle is stopped.
Only previously stored speed dial entries with voice tags, phonebook names, or
numbers can be called using voice commands while the vehicle is in motion.
2 Speed Dial P. 388

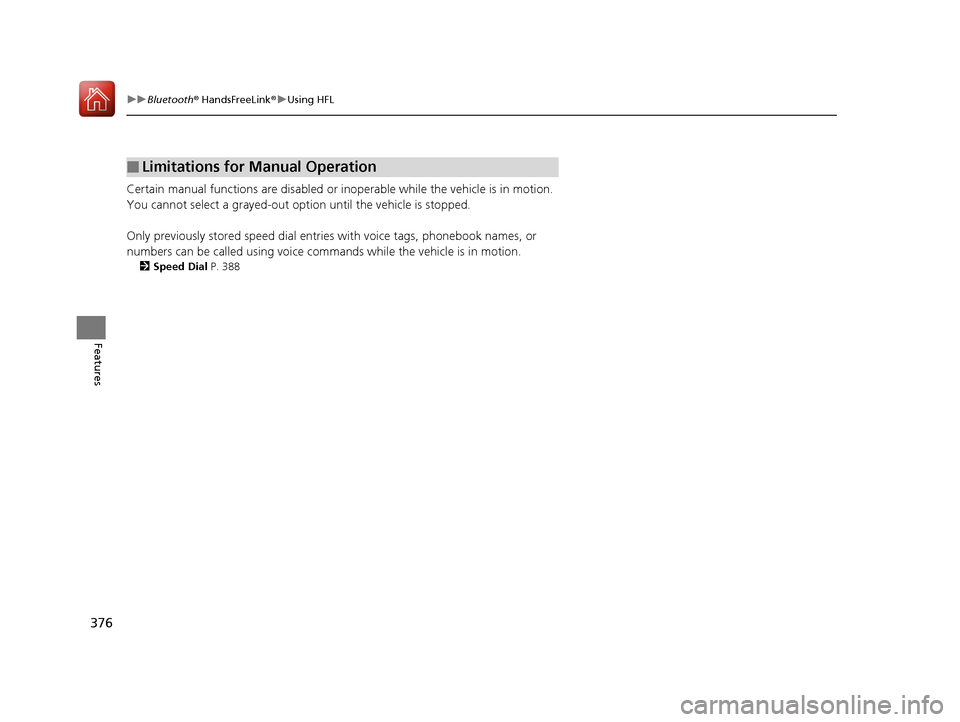

■Limitations for Manual Operation
17 ACCORD 4D GAS-31T2A6400.book 376 ページ ２０１６年６月７日　火曜日　午後５時６分

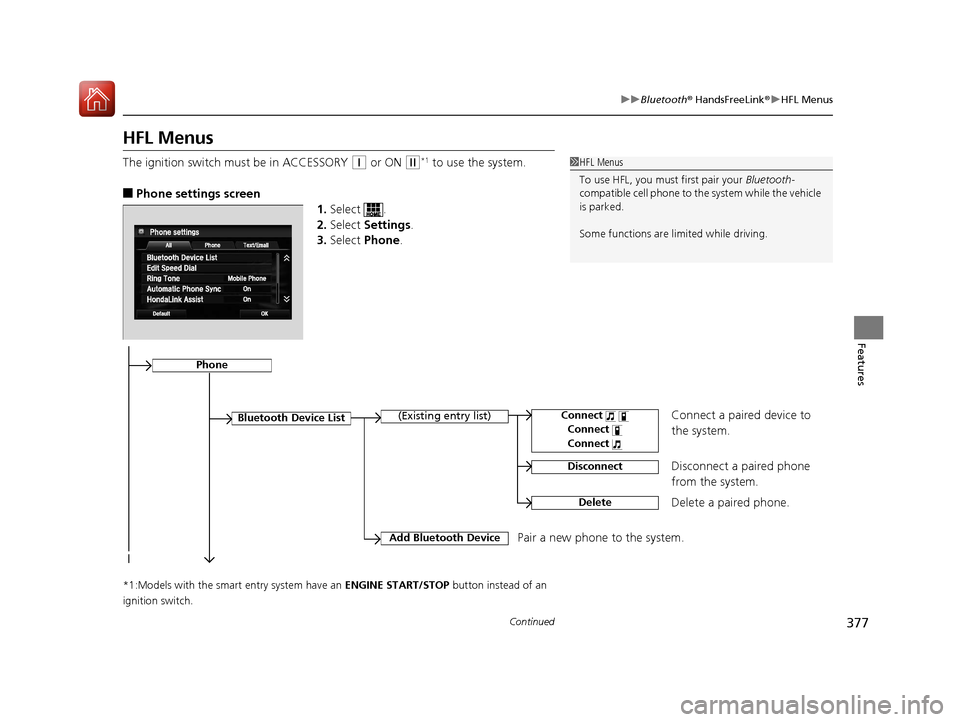

377
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features
HFL Menus
The ignition switch mu st be in ACCESSORY (q or ON (w*1 to use the system.
■Phone settings screen
1.Select .
2. Select Settings .
3. Select Phone.
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 HFL Menus
To use HFL, you must first pair your Bluetooth-
compatible cell phone to th e system while the vehicle
is parked.
Some functions are li mited while driving.
Disconnect a paired phone
from the system.
Bluetooth Device List(Existing entry list)
Disconnect
DeleteDelete a paired phone.
Add Bluetooth DevicePair a new phone to the system.
Phone
Connect a paired device to
the system.Connect
Connect
Connect
17 ACCORD 4D GAS-31T2A6400.book 377 ページ ２０１６年６月７日　火曜日　午後５時６分

378
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

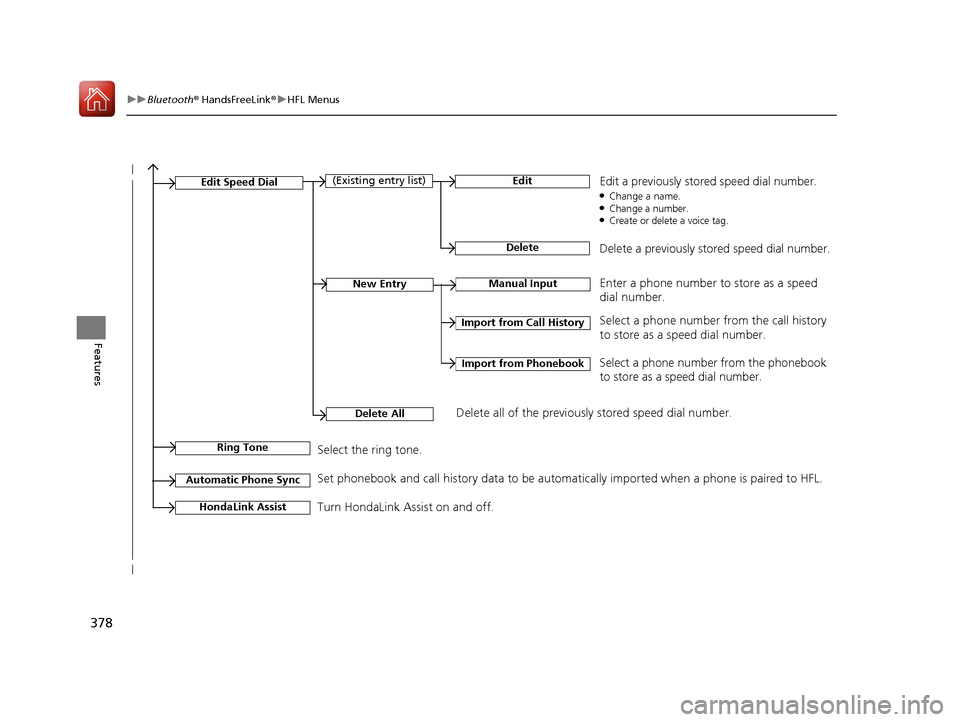

Manual InputNew Entry
Import from Call History
Import from Phonebook
Edit
Delete
(Existing entry list)Edit Speed Dial
Delete All
Enter a phone number to store as a speed
dial number.
Select a phone number from the call history
to store as a speed dial number.
Delete all of the previously stored speed dial number.Select a phone number from the phonebook
to store as a speed dial number. Edit a previously stored speed dial number.
●Change a name.●Change a number.●Create or delete a voice tag.
Delete a previously stored speed dial number.
Ring ToneSelect the ring tone.
Automatic Phone SyncSet phonebook and call history data to be automa
tically imported when a phone is paired to HFL.
Turn HondaLink Assist on and off.HondaLink Assist
17 ACCORD 4D GAS-31T2A6400.book 378 ページ ２０１６年６月７日　火曜日　午後５時６分

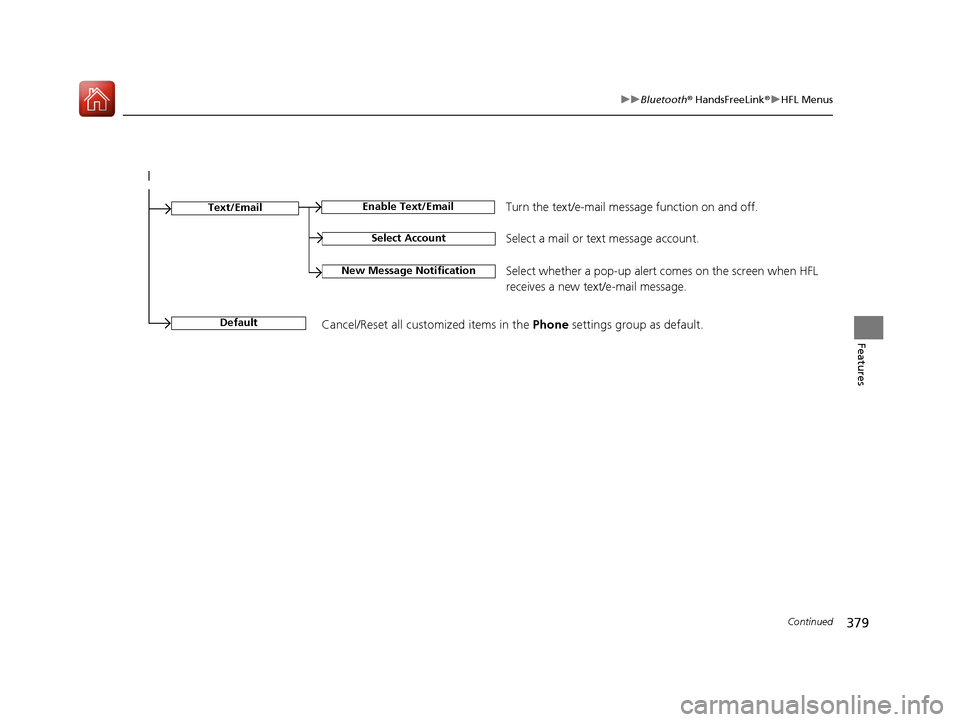

379
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features
Select Account
Enable Text/EmailText/Email
New Message NotificationSelect whether a pop-up alert comes on the screen when HFL
receives a new text/e-mail message.
Turn the text/e-mail message function on and off.
Select a mail or te xt message account.
DefaultCancel/Reset all customized items in the Phone settings group as default.
