display HONDA ACCORD 2022 Owners Manual

545
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
System Message
Indicator
Sub Items
Main Item
U.S. models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
# : See information on maintenance and emissions warranty in the first column on page 641.
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and lines (Including ABS/VSA ®)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
*4:
Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures.
This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 25,000 miles (40,000 km).
*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
7●Replace brake fluid*5
Continuously variable transmission models

546

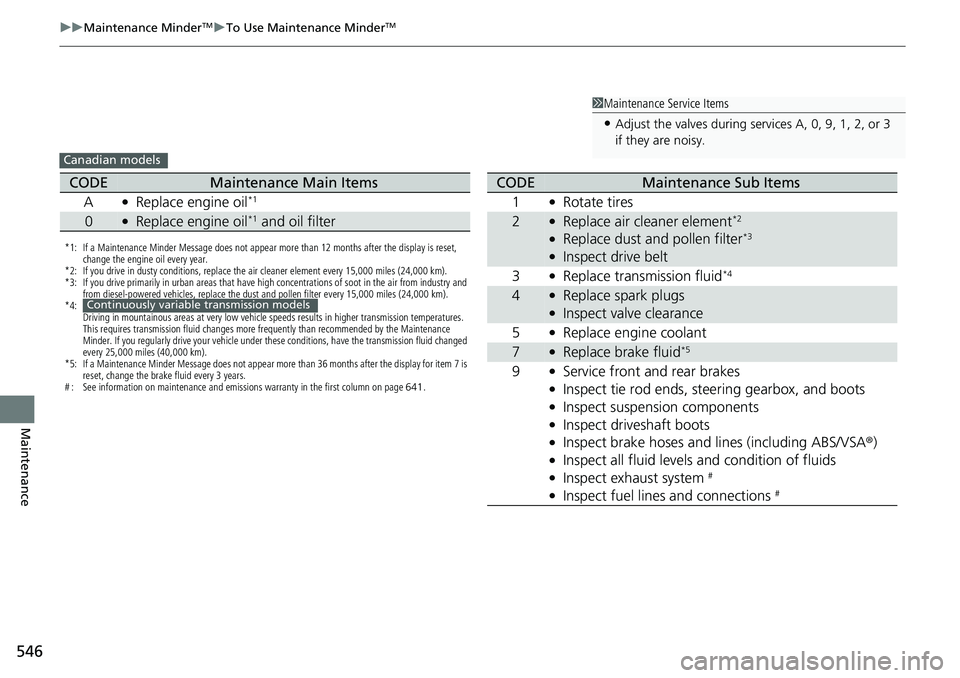

uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
1Maintenance Service Items
•Adjust the valves during services A, 0, 9, 1, 2, or 3
if they are noisy.
Canadian models
*1: If a Maintenance Minder Message does not appear more than 12 months after the display is reset,
change the engine oil every year.
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures.
This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 25,000 miles (40,000 km).
*5: If a Maintenance Minder Message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
# : See information on maintenance and emissions warranty in the first column on page 641.
CODEMaintenance Main Items
A
●Replace engine oil*1
0●Replace engine oil*1 and oil filter
Continuously variable transmission models
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
7●Replace brake fluid*5
9●Service front and rear brakes●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (including ABS/VSA®)●Inspect all fluid levels and condition of fluids●Inspect exhaust system #
●Inspect fuel lines and connections #

547
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance

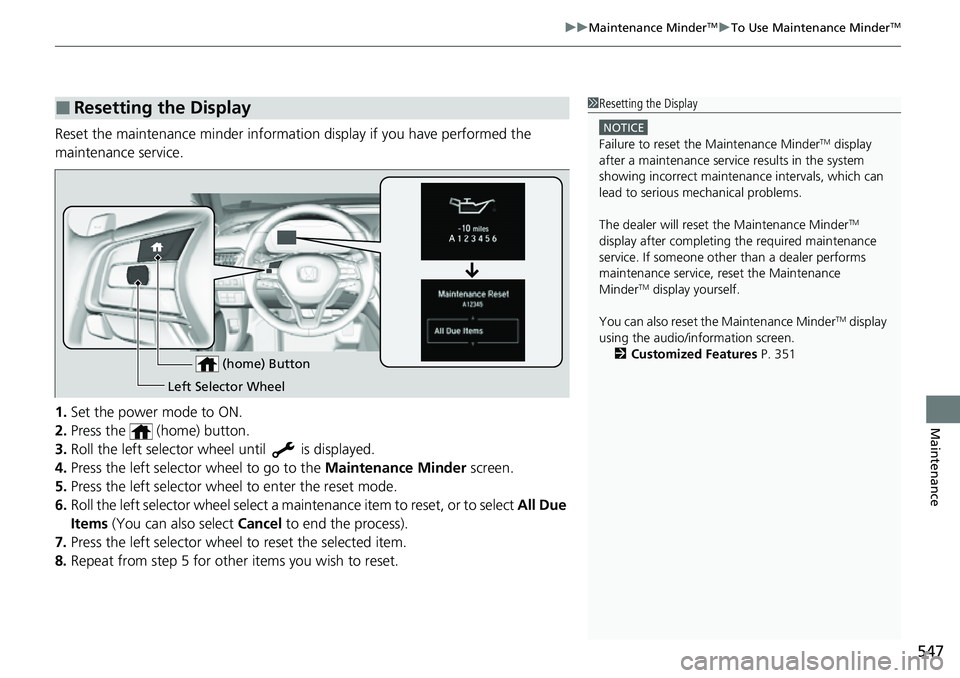

Reset the maintenance minder information display if you have performed the
maintenance service.
1. Set the power mode to ON.
2. Press the (home) button.
3. Roll the left selector wheel until is displayed.
4. Press the left selector wheel to go to the Maintenance Minder screen.
5. Press the left selector wheel to enter the reset mode.
6. Roll the left selector wheel select a main tenance item to reset , o r t o s e l e c t All Due
Items (You can also select Cancel to end the process).
7. Press the left selector wheel to reset the selected item.
8. Repeat from step 5 for other items you wish to reset.
■Resetting the Display1Resetting the Display
NOTICE
Failure to reset the Maintenance MinderTM display
after a maintenance servic e results in the system
showing incorrect maintenance intervals, which can
lead to serious mechanical problems.
The dealer will reset the Maintenance Minder
TM
display after completing th e required maintenance
service. If someone other than a dealer performs
maintenance service, reset the Maintenance
Minder
TM display yourself.
You can also reset the Maintenance Minder
TM display
using the audio/information screen. 2 Customized Features P. 351
Left Selector Wheel (home) Button

584
Maintenance
Battery
Checking the Battery
The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the driver information interface will display a
warning message. If this happens, have your
vehicle inspected by a dealer.
Check the battery te rminals for corrosion
monthly.
If your vehicle’s battery is disconnected or goes dead:
• The audio system is disabled.
2 Reactivating the audio system P. 249
•The clock resets.
2 Clock P. 166
•The immobilizer system needs to be reset.
2 Immobilizer System Indicator P. 98
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
Models without navigation system
Canadian models

Index
646
Index
Index
Numbers
7-Speed Manual Shift Mode.................... 431
Operation ................................................ 432
A
ABS (Anti-lock Brake System) ................... 516
Accessories and Modifications ................. 593
Accessory Power Sockets .......................... 231
Adaptive Cruise Control (ACC) with Low
Speed Follow ........................... 103, 104, 470
Adaptive Damper System ......................... 440
Additives
Coolant ................................................... 559
Engine Oil ................................................ 551
Washer .................................................... 563
Additives, Engine Oil ................................ 551
Adjusting
Armrest ................................................... 222
Front Seats .............................................. 212
Head Restraints........................................ 219
Mirrors .................................................... 210
Rear Seats................................................ 216
Steering Wheel ........................................ 209
Agile Handling Assist ................................ 443
Air Conditioning System (Climate Control System) ........................ 240
Changing the Mode ................................ 240
Defrosting the Windshield and Windows ............................................... 241
Dust and Pollen Filter ............................... 587 Recirculation/Fresh Air Mode ................... 240
Sensors ................................................... 243
Synchronized Mode................................. 242
Using Automatic Climate Control ............ 240
Air Pressure ............................... 576, 633, 635
Airbags ........................................................ 46
Advanced Airbags ..................................... 52
After a Collision ........................................ 49
Airbag Care............................................... 63
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 49
Indicator.............................................. 60, 93
Knee Airbags............................................. 54
Passenger Airbag Off Indicator .................. 61
Sensors ..................................................... 46
Side Airbags .............................................. 57
Side Curtain Airbags.................................. 59
AM/FM Radio ............................................ 278
Android Auto ........................................... 320
Anti-lock Brake System (ABS) .................. 516
Indicator.................................................... 93
Apple CarPlay ........................................... 313
Armrest ..................................................... 222
AT&T Hotspot ........................................... 311
Audio Remote Controls ........................... 250
Audio System ............................................ 246
Adjusting the Sound................................ 272
Audio/Information Screen........................ 254
Display Setup .......................................... 273
Error Messages ........................................ 327
General Information ................................ 329 Home Screen .......................................... 259
How to Update Wirelessly ....................... 266
How to Update with a USB Device .......... 270
How to use Siri Eyes Free ........................ 312
iPod ........................................................ 293
Limitations for Manual Operation ............ 274
MP3/WMA/AAC ..................................... 296
Reactivating ............................................ 249
Remote Controls ..................................... 250
Security Code ......................................... 249
Selecting an Audio Source ...................... 274
Status Area ............................................. 264
System Updates ...................................... 266
Theft Protection ...................................... 249
USB Flash Drives.............................. 296, 330
USB Ports ................................................ 247
Wallpaper Setup ..................................... 257
Audio/Information Screen ....................... 254
Authorized Manuals ................................ 644
Auto Door Locking/Unlocking ................ 180
Customize .............................................. 368
Auto High-Beam ...................................... 199
Indicator ................................................... 94
Auto Idle Stop .......................................... 435
Auto Idle Stop OFF Button ...................... 436
Automatic Brake Hold ............................. 513
Indicator ........................................... 86, 513
Automatic Brake Hold System
Indicator ........................................... 86, 513
Automatic Intermittent Wipers .............. 203
Automatic Lighting .................................. 196

648
Index
Shift Lever Does Not Move....................... 609
Shifting............................................ 427, 429
Controls ..................................................... 165
Coolant (Engine) ....................................... 559
Adding to the Engine Coolant Reserve
Tank ...................................................... 559
Adding to the Radiator ............................ 560
Overheating............................................. 611
Creeping (Automatic Transmission/ Continuously Variable Transmission) ..... 419
Cross Traffic Monitor ................................ 525
Cup Holders ............................................... 227
Customer Service Information ................. 645
Customized Features ................................ 351
D
Daytime Running Lights ........................... 198
Dead Battery ............................................. 606
Defaulting All the Settings ...................... 370
Defrosting the Windshield and
Windows .................................................. 241
Devices that Emit Radio Waves ................ 637
Dimming
Headlights ............................................... 195
Rearview Mirror ....................................... 210
Dipstick (Engine Oil) ................................. 552
Directional Signals (Turn Signal) .............. 194
Door Mirrors ............................................. 211 Doors
......................................................... 167
Auto Door Locking .................................. 180
Auto Door Unlocking .............................. 180
Door and Trunk Open Message ................. 37
Keys ........................................................ 167
Locking/Unlocking the Doors from the Inside ...................................... 177
Locking/Unlocking the Doors
from the Outside ................................... 170
Lockout Prevention System ...................... 176
DOT Tire Quality Grading ........................ 578
Driver Attention Monitor ........................ 154
Driver Information Interface ................... 140
Switching the Display .............................. 140
Warning and Information Messages ........ 109
Driving ...................................................... 401
Automatic Transmission/Continuously Variable
Transmission.......................................... 419
Braking ................................................... 508
Shifting Position ...................... 420, 427, 429
Starting the Engine.................................. 412
Driving Position Memory System ............ 207
Driving Support Information ................... 157
Dust and Pollen Filter ............................... 587
E
Eco Assist® System ...................................... 12
ECON Button ............................................ 434
Econ Mode
Indicator.................................................. 100 Elapsed Time
............................................ 147
Electric Power Steering (EPS) System
Indicator ........................................... 95, 617
Electronic Stability Control (ESC) ............ 441
Emergency ................................................ 626
Emergency Engine Stop ........................... 605
Emergency Trunk Opener ....................... 183
Emissions Testing (Readiness Codes) ...... 639
Engine ....................................................... 636
Coolant .................................................. 559
Jump Starting ......................................... 606
Oil .......................................................... 551
Starting................................................... 412
Engine Coolant ........................................ 559
Adding to the Engine Coolant Reserve Tank ..................................................... 559
Adding to the Radiator ........................... 560
Overheating ............................................ 611
Temperature Gauge ................................ 139
Engine Oil ................................................. 551
Adding ................................................... 554
Checking ................................................ 552
Displaying Oil Life ................................... 542
Low Oil Pressure Warning ....................... 613
Recommended Engine Oil ....................... 551
ENGINE START/STOP Button .................... 191
EPS (Electric Power Steering) System ...... 617
Exhaust Gas Hazard
(Carbon Monoxide) .................................. 78
Exterior Care (Cleaning) .......................... 590
Exterior Mirrors ........................................ 211

649
Index
F
Features.................................................... 245
Filters Dust and Pollen....................................... 587
Oil .......................................................... 555
Flat Tire ..................................................... 597
Floor Mats ................................................ 589
Fluids
Automatic Transmission .......................... 561
Brake ...................................................... 562
Continuously Variable Transmission ........ 561
Engine Coolant ....................................... 559
Windshield Washer ................................. 563
FM/AM Radio ........................................... 278
Fog Lights ................................................. 197
Indicator ................................................... 97
Folding Down the Rear Seat ................... 216
Foot Brake ................................................ 512
Front Airbags (SRS) .................................... 49
Front Seat Heaters ................................... 237
Front Seat Heaters and Seat Ventilation .............................................. 238
Front Seats Adjusting ................................................ 212
Front Sensor Camera ............................... 504
Fuel ..................................................... 25, 531
Economy................................................. 534
Gauge .................................................... 139
Instant Fuel Economy .............................. 145
Low Fuel Indicator..................................... 93
Range ..................................................... 145 Recommendation .................................... 531
Refueling ................................................. 531
Fuel Economy and CO2 Emissions ............ 534
Fuel Fill Door ....................................... 25, 532
Unable to Unlock ..................................... 627
Fuses .......................................................... 620
Inspecting and Changing ......................... 625
Locations ................................. 620, 622, 624
G
Gasoline (Fuel) Economy ................................................. 534
Gauge ..................................................... 139
Information ............................................. 531
Instant Fuel Economy ............................... 145
Low Fuel Indicator ..................................... 93
Refueling ................................................. 531
Gauges ...................................................... 139
Glass (care) ........................................ 588, 591
Glove Box .................................................. 225
H
Halogen Bulbs ........................................... 564
Handling the Unexpected ........................ 595
HandsFreeLink ® (HFL) ............................... 374
Automatic Import of Cellular Phonebook and
Call History ............................................ 384
Automatic Transferring ............................ 383
Displaying Messages ................................ 394 Favorite Contacts .................................... 385
HFL Buttons............................................. 374
HFL Menus .............................................. 377
HFL Status Display ................................... 376
In Case of Emergency ...................... 305, 398
Limitations for Manual Operation ............ 376
Making a Call .......................................... 387
Options During a Call .............................. 390
Phone Setup............................................ 379
Receiving a Call ....................................... 390
Receiving a Text Message ........................ 392
Ringtone ................................................. 383
Selecting a Phone .................................... 393
To Set Up a Text Message Options .......... 391
Hazard Warning Button .............................. 6
HD Radio
TM............................................... 281
Head Restraints ........................................ 219
Headlights ................................................. 195
Aiming .................................................... 564
Auto High-Beam ..................................... 199
Automatic Operation............................... 196
Dimming ......................................... 195, 198
Operating................................................ 195
Head-Up Display ....................................... 159
Heated Steering Wheel ............................ 236
Heated Windshield Button ...................... 204
Heaters (Seat) ........................... 237, 238, 239
HFL (HandsFreeLink ®)............................... 374
High Beam Indicator .................................. 97
Hill Start Assist System ............................. 417
HomeLink ® Universal Transceiver ............ 371

651
Index
L
Lane Keeping Assist System (LKAS)........ 486
Language (HFL) ........................................ 376
LATCH (Child Seats) ................................... 69
Lights ................................................ 195, 564
Auto High-Beam ..................................... 199
Automatic............................................... 196
Bulb Replacement ................................... 564
Daytime Running Lights .......................... 198
Fog Lights ............................................... 197
High Beam Indicator ................................. 97
Interior.................................................... 223
Light Switches......................................... 195
Lights On Indicator.................................... 97
Turn Signals ............................................ 194
Load Limits ............................................... 405
Locking/Unlocking ................................... 167
Auto Door Locking/Unlocking ................. 180
Childproof Door Locks ............................ 179
From Inside ............................................. 177
From Outside .......................................... 170
Keys........................................................ 167
Using a Key............................................. 175
Lockout Prevention System ..................... 176
Low Battery Charge ................................. 613
Low Fuel Indicator ..................................... 93
Low Keyless Remote Signal Strength ..... 169
Low Oil Pressure Warning ....................... 613
Low Speed Braking Control .................... 465
Lower Anchors ........................................... 69
Lubricant Specifications Chart ........ 632, 634Luggage (Maximum Load Limit)
............. 405
Lumbar Support Adjustment Switch ....... 213
M
Maintenance..................................... 149, 537
Battery .................................................... 584
Brake Fluid .............................................. 562
Cleaning .................................................. 588
Climate Control System ........................... 587
Coolant ................................................... 559
Maintenance Minder
TM............................ 541
Oil ........................................................... 552
Precautions .............................................. 538
Radiator .................................................. 560
Remote Transmitter ................................. 586
Replacing Light Bulbs ............................... 564
Safety ...................................................... 539
Service Items ........................................... 545
Tires ........................................................ 575
Transmission Fluid ................................... 561
Under the Hood ...................................... 548
Malfunction Indicator Lamp .............. 87, 614
Map Lights ................................................ 224
Maximum Load Limit ............................... 405
Meters, Gauges ......................................... 139
Mirrors ....................................................... 210
Adjusting ................................................. 210
Door ........................................................ 211
Exterior .................................................... 211
Interior Rearview ..................................... 210 Modifications (and Accessories)
.............. 593
Moonroof ................................................. 190
MP3 ........................................................... 296
MP3/WMA/AAC ........................................ 296
Multi-View Rear Camera .......................... 529
N
Navigation........................................ 148, 163
Numbers (Identification) .......................... 636
O
Odometer................................................. 142
Oil (Engine) ............................................... 551
Adding .................................................... 554
Checking................................................. 552
Displaying Oil Life .................................... 542
Low Oil Pressure Warning........................ 613
Recommended Engine Oil ....................... 551
Viscosity .................................................. 551
Open Source Licenses ............................... 345
Opening
Trunk ...................................................... 628
Opening/Closing Hood....................................................... 550
Moonroof ............................................... 190
Power Windows ...................................... 187
Trunk ...................................................... 181
Outside Temperature ............................... 143
Overheating .............................................. 611
