444

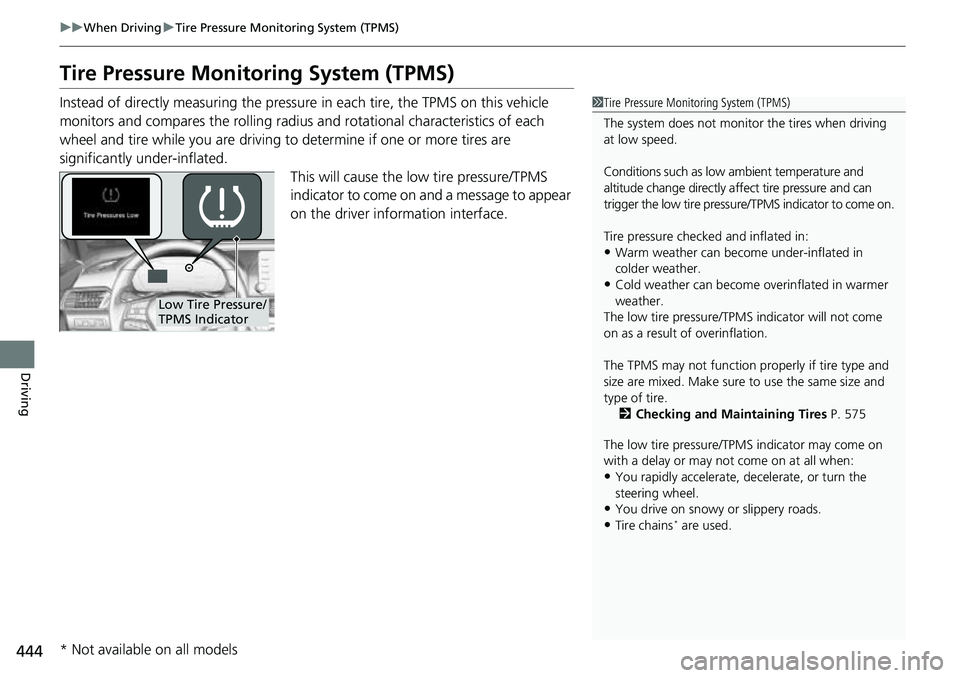

uuWhen Driving uTire Pressure Monitoring System (TPMS)
Driving
Tire Pressure Monitoring System (TPMS)
Instead of directly measuring the pressu re in each tire, the TPMS on this vehicle
monitors and compares the rolling radius and rotational characteristics of each
wheel and tire while you are driving to determine if one or more tires are
significantly under-inflated.
This will cause the low tire pressure/TPMS
indicator to come on and a message to appear
on the driver information interface.1 Tire Pressure Monitoring System (TPMS)
The system does not monitor the tires when driving
at low speed.
Conditions such as low ambient temperature and
altitude change directly a ffect tire pressure and can
trigger the low tire pressure/TPMS indicator to come on.
Tire pressure checked and inflated in:
•Warm weather can beco me under-inflated in
colder weather.
•Cold weather can become overinflated in warmer
weather.
The low tire pressure/TPMS indicator will not come
on as a result of overinflation.
The TPMS may not function pr operly if tire type and
size are mixed. Make sure to use the same size and
type of tire. 2 Checking and Maintaining Tires P. 575
The low tire pressure/TPMS indicator may come on
with a delay or may not come on at all when:
•You rapidly accelerate, decelerate, or turn the
steering wheel.
•You drive on snowy or slippery roads.
•Tire chains* are used.
Low Tire Pressure/
TPMS Indicator
* Not available on all models

461
uuHonda Sensing ®u Collision Mitigation Braking SystemTM (CMBSTM)
Continued
Driving
■Vehicle conditions
• Headlight lenses are dirty or the h eadlights are not properly adjusted.
• The outside of the windshield is blocked by dirt, mud, leaves, wet snow, etc.
• The inside of the windshield is fogged.
• An abnormal tire or wheel condition (inco rrect sizes, varied sizes or construction,
improperly inflated, co mpact spare tire, etc.).
• When tire chains
* are installed.
• The vehicle is tilted due to a heavy load or suspension modifications.
• The camera temperature gets too high.
• Driving with the parking brake applied.
• When the radar sensor at the lower part of the front bumper gets dirty.
• The vehicle is towing a trailer
*.
• Driving at night or in a dark place (e.g., a tunnel) with the headlights off.
■Detection limitations
• A vehicle or pedestrian suddenly crosses in front of you.
• The distance between your vehicle and the vehicle or pedestrian ahead of you is
too short.
• A vehicle cuts in front of you at a slow speed, and it brakes suddenly.
• When you accelerate rapidly and approach the vehicle or pedestrian ahead of you
at high speed.
• The vehicle ahead of you is a motorcycle, bicycle, mobility scooter or other small
vehicle.
• When there are animals in front of your vehicle.
• When you drive on a curved, winding or undulating road that makes it difficult for
the sensor to properly detect a vehicle in front of you.
• The speed difference between your vehicle an d a vehicle or pedestrian in front of
you is significantly large.
• An oncoming vehicle suddenly comes in front of you.
• Another vehicle suddenly comes in fr ont of you at an intersection, etc.
• Your vehicle abruptly crosses over in front of an oncoming vehicle.
• When driving through a narrow iron bridge.
• When the lead vehicle suddenly slows down.
* Not available on all models

uuHonda Sensing ®u Adaptive Cruise Control (ACC) with Low Speed Follow
476
Driving
The system may automatically shut off under certain conditions. Some examples of
these conditions are listed below. Other conditions may reduce some of the ACC
with Low Speed Follow functions.
2 Front Sensor Camera P. 504
2 Radar Sensor P. 506
■Environmental conditions
• Driving in bad weather (rain, fog, snow, etc.).
■Roadway conditions
• Driving on a snowy or wet roadway (obs cured lane marking, vehicle tracks,
reflected lights, road spray, high contrast).
■Vehicle conditions
• The outside of the windshie ld is blocked by dirt, mud, leaves, wet snow, etc.
• An abnormal tire or wheel condition (incorre ct sizes, varied sizes or construction,
improperly inflated, comp act spare tire, etc.).
• The camera temperature gets too high.
• The parking brake is applied.
• When the radar sensor cover is dirty.
• The vehicle is tilted due to a heav y load or suspension modifications.
• When tire chains
* are installed.
■ACC with Low Speed Follow Conditions and Limitations1ACC with Low Speed Follow Conditions and Limitations
If you need the radar sensor to be repaired, or
removed, or the radar se nsor cover is strongly
impacted, turn off the system by pressing the
button and take your vehicle to a dealer.
Have your vehicle checked by a dealer if you find any
unusual behavior of the system (e.g., the warning
message appears too frequently).
* Not available on all models

497
uuHonda Sensing ®u Road Departure Mitigation (RDM) System
Driving
■Roadway conditions
• Driving on a snowy or wet roadway (obs cured lane marking, vehicle tracks,
reflected lights, road spray, high contrast).
• Driving on a road with temporary lane markings.
• Faint, multiple, or varied lane markings are visible on the roadway due to road
repairs or old lane markings.
• The roadway has merging, split, or crossing lines (e.g., such as at an intersection
or crosswalk).
• The lane markings are extremely narrow, wide, or changing.
• The vehicle in front of you is driving near the lane lines.
• The road is hilly or the vehicle is approaching the crest of a hill.
• Driving on rough or unpaved roads, or over bumpy surfaces.
• When objects on the road (curb, guard rail, pylons, etc.) are recognized as white
(or yellow) lines.
• Driving on roads with double lines.
■Vehicle conditions
• Headlight lenses are dirty or the h eadlights are not properly adjusted.
• The outside of the windshield is streaked or blocked by dirt, mud, leaves, wet
snow, etc.
• The inside of the windshield is fogged.
• The camera temperature gets too high.
• An abnormal tire or wheel condition (inco rrect sizes, varied sizes or construction,
improperly inflated, co mpact spare tire, etc.).
• The vehicle is tilted due to a heavy load or suspension modifications.
• When tire chains
* are installed.
• The vehicle is towing a trailer*.
* Not available on all models

516
uuBraking uAnti-lock Brake System (ABS)
Driving
Anti-lock Brake System (ABS)
Helps prevent the wheels from locking up, a nd helps you retain steering control by
pumping the brakes rapidly, much faster than you can.
The electronic brake distribution (EBD) system, which is part of the ABS, also
balances the front-to-rear braking distri bution according to vehicle loading.
You should never pump the brake pedal. Let the ABS work for you by always
keeping firm, steady pressure on the brake pe dal. This is sometimes referred to as
“stomp and steer.”
■ABS operation
The brake pedal may pulsate slightly when the ABS is working. Depress the brake
pedal and keep holding the pedal firmly dow n. On dry pavement, you will need to
press on the brake pedal very hard before the ABS activates. However, you may feel
the ABS activate immediately if yo u are trying to stop on snow or ice.
ABS may activate when you depress the brake pedal when driving on:
• Wet or snow covered roads.
• Roads paved with stone.
• Roads with uneven surfaces, such as potholes, cracks, manholes, etc.
When the vehicle speed goes unde r 6 mph (10 km/h), the ABS stops.
■ABS1Anti-lock Brake System (ABS)
NOTICE
The ABS may not function correctly if you use a tire of
the incorrect size or type.
If the ABS indicator comes on while driving, there
may be a problem with the system. While normal
braking will not be affected, there is a possibility that
the ABS will not be opera ting. Have your vehicle
checked by a dealer immediately.
The ABS is not designed for the purpose of reducing
the time or distance it takes for a vehicle to stop: It is
designed to limit brake lo ckup which can lead to
skidding and loss of steering control.
In the following cases, yo ur vehicle may need more
distance to stop than a vehicle without the ABS:
•You are driving on rough or uneven road surfaces,
such as gravel or snow.
•The tires are equipped with tire chains*.
The following may be observed with the ABS system:
•Motor sounds coming from the engine
compartment when the brakes are applied, or
when system checks are being performed after the
engine has been started and while the vehicle
accelerates.
•Brake pedal and/or the vehicle body vibration when
ABS activates.
These vibrations and sounds are normal to ABS
systems and are no cause for concern.
* Not available on all models

583

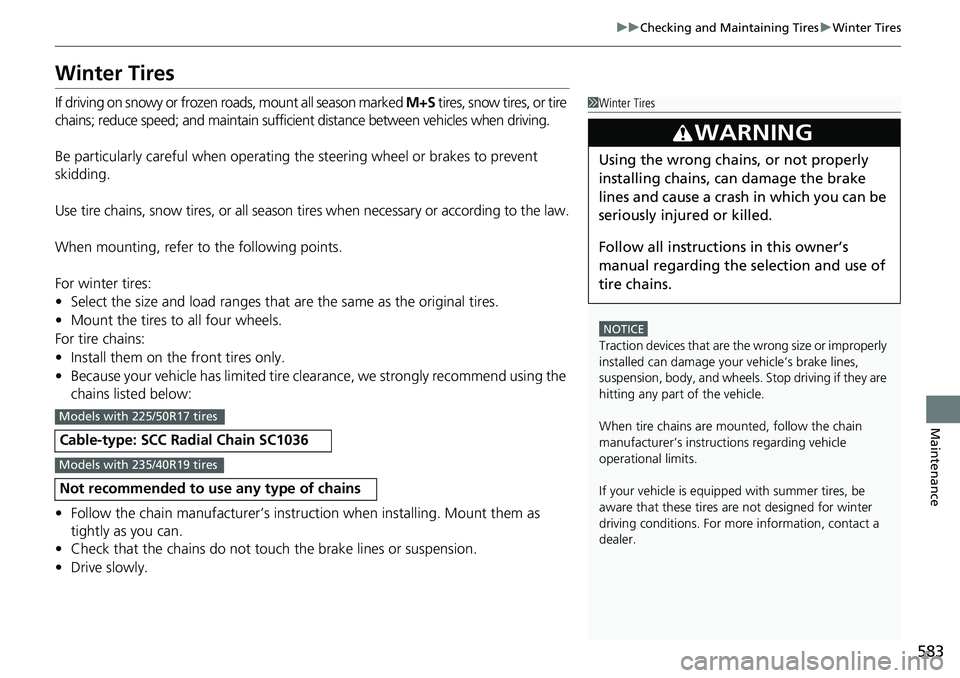

uuChecking and Maintaining Tires uWinter Tires
Maintenance
Winter Tires
If driving on snowy or frozen roads, mount all season marked M+S tires, snow tires, or tire
chains; reduce speed; and maintain sufficient distance between vehicles when driving.
Be particularly careful wh en operating the steering wheel or brakes to prevent
skidding.
Use tire chains, snow tires, or all season tires when necessary or according to the law.
When mounting, refer to the following points.
For winter tires:
• Select the size and load ranges that are the same as the original tires.
• Mount the tires to all four wheels.
For tire chains:
• Install them on the front tires only.
• Because your vehicle has limited tire clea rance, we strongly recommend using the
chains listed below:
• Follow the chain manufactur er’s instruction when installing. Mount them as
tightly as you can.
• Check that the chains do not touc h the brake lines or suspension.
• Drive slowly.
Cable-type: SCC Radial Chain SC1036
Not recommended to us e any type of chains
1Winter Tires
NOTICE
Traction devices that are the wrong size or improperly
installed can damage your vehicle’s brake lines,
suspension, body, and wheels. Stop driving if they are
hitting any part of the vehicle.
When tire chains are mounted, follow the chain
manufacturer’s instructi ons regarding vehicle
operational limits.
If your vehicle is equipp ed with summer tires, be
aware that these tires are not designed for winter
driving conditions. For more information, contact a
dealer.
3WARNING
Using the wrong chains, or not properly
installing chains, can damage the brake
lines and cause a crash in which you can be
seriously injured or killed.
Follow all instruction s in this owner’s
manual regarding the selection and use of
tire chains.
Models with 225/50R17 tires
Models with 235/40R19 tires

653
Index
Shifting (Transmission)............ 420, 427, 429
Shoulder Anchor ........................................ 43
Side Airbags ............................................... 57
Side Curtain Airbags .................................. 59
Siri Eyes Free ............................................. 312
SiriusXM ® Radio ....................................... 282
Snow Tires ................................................ 583
Spare Tire ................................. 597, 633, 635
Spark Plugs ....................................... 632, 634
Specifications ........................................... 632
Specified Fuel ........................... 531, 632, 634
Speedometer ............................................ 139
SPORT Mode ............................................. 433
Indicator ................................................. 101
SRS Airbags (Airbags) ................................ 49
Starting Assist Brake Function ................ 439
Starting the Engine .................................. 412
Does Not Start ........................................ 603
Jump Starting ......................................... 606
Steering Wheel Adjusting ................................................ 209
Stopping ................................................... 518
Summer Tires ............................................ 583
Sunglasses Holder .................................... 230
Supplemental Restraint System (SRS) ....... 49
Switches (Around the Steering Wheel) ........ 6, 7, 191
System Message Indicator ......................... 99
System Updates ........................................ 266T
Tachometer....................................... 151, 162
Temperature Gauge ..................................................... 139
Outside Temperature ............................... 143
Temperature Sensor ......................... 143, 243
Time (Adjusting) ....................................... 166
Tire Pressure Monitoring System
(TPMS) ..................................................... 444
Indicator ............................................ 96, 618
Tires ........................................................... 575
Air Pressure ............................. 576, 633, 635
Checking and Maintaining ....................... 575
Inspection ................................................ 575
Labeling .................................................. 576
Puncture (Flat Tire) ................................... 597
Regulations ............................................. 578
Rotation .................................................. 582
Spare Tire ................................ 597, 633, 635
Summer .................................................. 583
Tire Chains .............................................. 583
Wear Indicators ....................................... 580
Winter ..................................................... 583
Tools .......................................................... 596
Towing a Trailer ....................................... 407
Equipment and Accessories ..................... 409
Load Limits .............................................. 407
Towing Your Vehicle ................................ 411
Emergency .............................................. 626 TPMS
(Tire Pressure Monitoring System) ........ 444
Indicator............................................ 96, 618
Traffic Sign Recognition System .............. 498
Transmission ..................... 419, 420, 427, 429
Automatic ............................................... 420
Continuously Variable ..................... 427, 429
Fluid ........................................................ 561
Number................................................... 636
Shift Position Indicator............................... 88
Transmission System
Indicator.............................................. 89, 91
TRIP Button ............................................... 142
Trip Computer .................................. 144, 146
Trip Meter ................................. 143, 145, 147
Troubleshooting ....................................... 595
Blown Fuse.............................. 620, 622, 624
Brake Pedal Vibrates .................................. 30
Buzzer Sounds When Opening Door.......... 31
Emergency Towing .................................. 626
Engine Won’t Start .................................. 603
Noise When Braking .................................. 32
Overheating ............................................ 611
Puncture/Flat Tire .................................... 597
Rear Door Won’t Open...................... 31, 179
Shift Lever Won’t Move ........................... 609
Warning Indicators .................................... 82
Trunk ......................................................... 181
Lid........................................................... 181
Light Bulb........................................ 632, 634
Main Switch ............................................ 183

654
Index
Unable to Open ....................................... 628
Turbo Engine Vehicle ............................... 535
Turn Signals ............................................... 194
Indicators (Instrum ent Panel) ...................... 97
Turn-by-Turn Directions ................... 148, 163
U
Unlocking the Doors................................. 170
Unlocking the Front Doors
from the Inside ........................................ 178
USB Flash Drives ................................ 296, 330
USB Ports ................................................... 247
Using the Keyless Acce ss System with Push
Button Start System ................................ 170
V
Vanity Mirrors............................................... 9
Vehicle Identification Number ................. 636
Vehicle Speed ............................................ 162
Vehicle Stability Assist
TM (VSA® )............... 441
Off Button ............................................... 442
Off Indicator .............................................. 95
System Indicator ........................................ 94
Ventilation ........................................ 238, 240
Viscosity (Oil) ............................. 551, 633, 635
Voice Control Operation .......................... 275
Voice Portal Screen .................................. 276
Voice Recognition .................................... 275
VSA ® (Vehicle Stability Assist
TM)............... 441
W
Wallpaper ................................................. 257
Warning and Information Messages ....... 109
Warning Indicator On/Blinking ............... 613
Warning Labels ........................................... 79
Warnings ................................................... 149
Warranties (Warranty Manual provided separately) .............................................. 641
Watts ................................................. 632, 634
Wear Indicators (Tire) .............................. 580
Wheel Nut Wrench (Jack Handle) ... 596, 600
Wi-Fi Connection ...................................... 310
Window Washers ..................................... 202
Adding/Refilling Fluid .............................. 563
Switch ..................................................... 202
Windows (Opening and Closing) ............ 187
Windshield
Cleaning ......................................... 588, 591
Defrosting/Defogging .............................. 241
Washer Fluid ........................................... 563
Wiper Blades ........................................... 572
Wipers and Washers................................ 202
Winter Tires Snow Tires .............................................. 583
Tire Chains .............................................. 583
Wipers and Washers ................................. 202
Automatic Intermi ttent Wipers ................ 203
Checking and Replacing Wiper Blades ..... 572
Wireless Charger ...................................... 232
WMA ......................................................... 296
Worn Tires ................................................ 575
