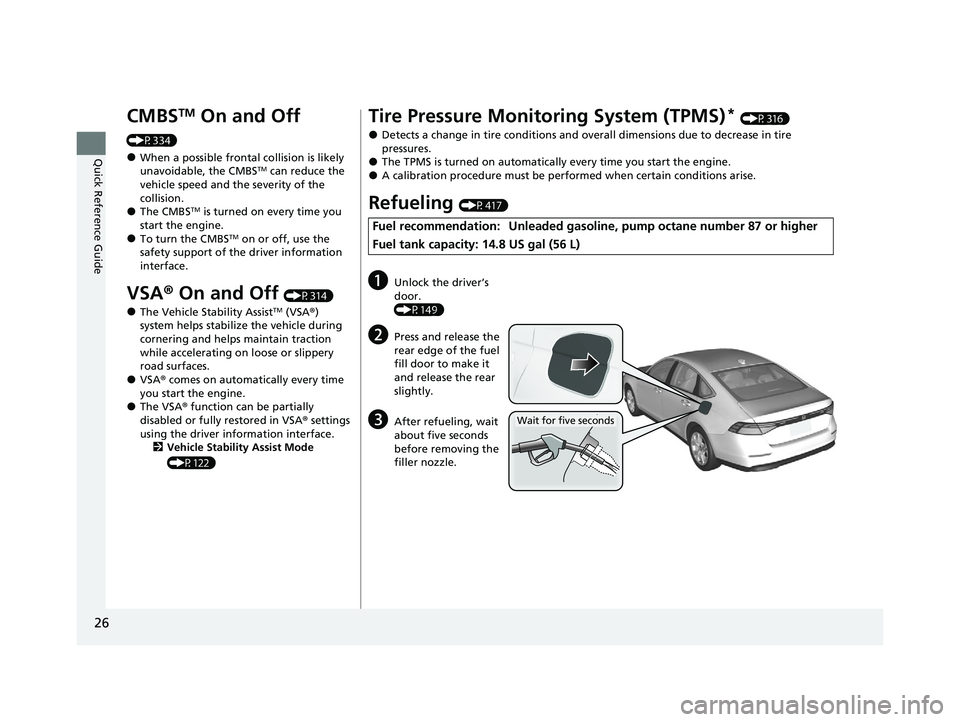

26
Quick Reference Guide
CMBSTM On and Off
(P334)
●When a possible frontal collision is likely
unavoidable, the CMBSTM can reduce the
vehicle speed and the severity of the
collision.
●The CMBSTM is turned on every time you
start the engine.
●To turn the CMBSTM on or off, use the
safety support of th e driver information
interface.
VSA ® On and Off (P314)
●The Vehicle Stability AssistTM (VSA® )
system helps stabilize the vehicle during
cornering and helps maintain traction
while accelerating on loose or slippery
road surfaces.
●VSA ® comes on automatically every time
you start the engine.
●The VSA ® function can be partially
disabled or fully restored in VSA ® settings
using the driver information interface. 2 Vehicle Stability Assist Mode
(P122)
Tire Pressure Monitoring System (TPMS)* (P316)
●Detects a change in tire conditions and overall dimensions due to decrease in tire
pressures.
●The TPMS is turned on automatically every time you start the engine.●A calibration procedure must be performed when certain conditions arise.
Refueling (P417)
Fuel recommendation: Unleaded gasoli ne, pump octane number 87 or higher
Fuel tank capacity: 14.8 US gal (56 L)
aUnlock the driver’s
door.
(P149)
bPress and release the
rear edge of the fuel
fill door to make it
and release the rear
slightly.
cAfter refueling, wait
about five seconds
before removing the
filler nozzle.Wait for five seconds
23 ACCORD 4D US PET MAP-3130A6000_01.book 26 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

33
Quick Reference Guide
Pressing the electric
parking brake switch does
not release the parking
brake. Why?Press the electric parking brake switch with the brake pedal
depressed.
I’m seeing an amber
indicator of a tire with an
exclamation point. What is
that?
The Tire Pressure Monitoring Syst em (TPMS) needs attention. If
you recently inflated or changed a tire, you have to recalibrate
the system.
2 Tire Pressure Monitoring System (TPMS)* (P316)
Depressing the accelerator
pedal does not release the
parking brake
automatically. Why?●Fasten the driver’s seat belt.
●Check if the transmission is in (P or (N. If so, select any other
position.
Why do I hear a screeching
sound when I apply the
brake pedal?The brake pads may need to be replaced. Have your vehicle
inspected by a dealer.
Models with TPMS
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 33 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

85
uuIndicators u
Continued
Instrument Panel
*1 : When you set the power mode to ON, these indicators come on to indicate that system checks are being performed. They go off a few seconds later or after the engine
has started. If an indicator does not come on or turn off, ther e may be a malfunction in the corresponding system. To resolve the issue, follow the instructions in the
owner's manual.
Auto High-Beam
Indicator
Low Tire Pressure/
TPMS Indicator*
Turn Signal and
Hazard Warning
Indicators
Lights On
Indicator
High Beam
Indicator
System Message
Indicator Adaptive Cruise Control
(ACC) with Low Speed
Follow Indicator
(Amber)
Lane Keeping Assist
System (LKAS) Indicator
(Amber)
Safety Support
Indicator (Green/Gray)

P. 93
A
uto Idle Stop System
Indi
cator (Amber) 
P. 96
 P. 94 
P. 98
*1
 P. 94
 P. 94

P. 94
Immobilizer System
Indica
tor 
P. 95
Se
curity System Alarm
Indica
tor 
P. 95
 P. 94 
P. 99
 P. 103
*1
Adaptive Cruise Control
(ACC) with Low Speed
Follow Indicator
(White/Green)
 P. 98
*1
Lane Keeping Assist
System (LKAS) Indicator
(White/Green) 
P. 99*1
*1
Safety Support
Indicator (Amber)
P. 100
*1
ECON Mode
Indicator 
P. 95
Auto Idle Stop OFF
Indicator 
P. 96
Aut
o Idle Stop
Sus
pend Indicator P. 97
Cruise Mode Indicator
(W

hite/Green) 
P. 99
Adaptive Cruise Control
(ACC) with Low Speed
Follow Interval
Indicator 
P. 99
Auto Idle Stop
Indicator (Green) 
P. 96
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 85 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

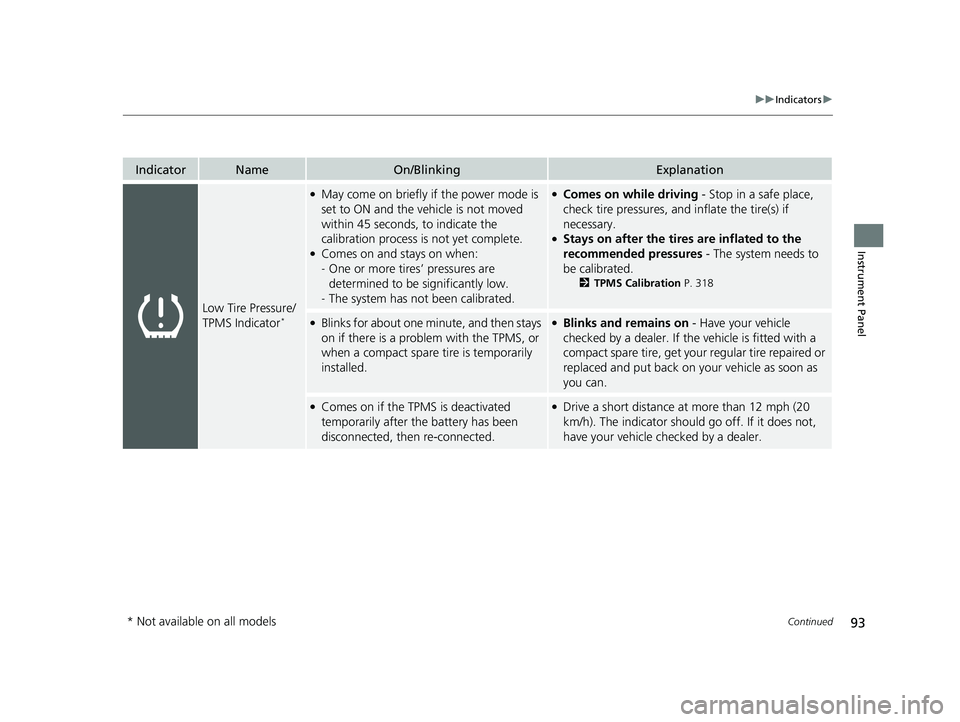

93
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Low Tire Pressure/
TPMS Indicator*
●May come on briefly if the power mode is
set to ON and the vehicle is not moved
within 45 seconds, to indicate the
calibration process is not yet complete.
●Comes on and stays on when:
-One or more tires’ pressures are
determined to be significantly low.
- The system has not been calibrated.
●Comes on while driving - Stop in a safe place,
check tire pressures, and inflate the tire(s) if
necessary.
●Stays on after the tire s are inflated to the
recommended pressures - The system needs to
be calibrated.
2 TPMS Calibration P. 318
●Blinks for about one minute, and then stays
on if there is a problem with the TPMS, or
when a compact spare tire is temporarily
installed.●Blinks and remains on - Have your vehicle
checked by a dealer. If the vehicle is fitted with a
compact spare tire, get your regular tire repaired or
replaced and put back on your vehicle as soon as
you can.
●Comes on if the TPMS is deactivated
temporarily after the battery has been
disconnected, then re-connected.●Drive a short distance at more than 12 mph (20
km/h). The indicator should go off. If it does not,
have your vehicle checked by a dealer.
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 93 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

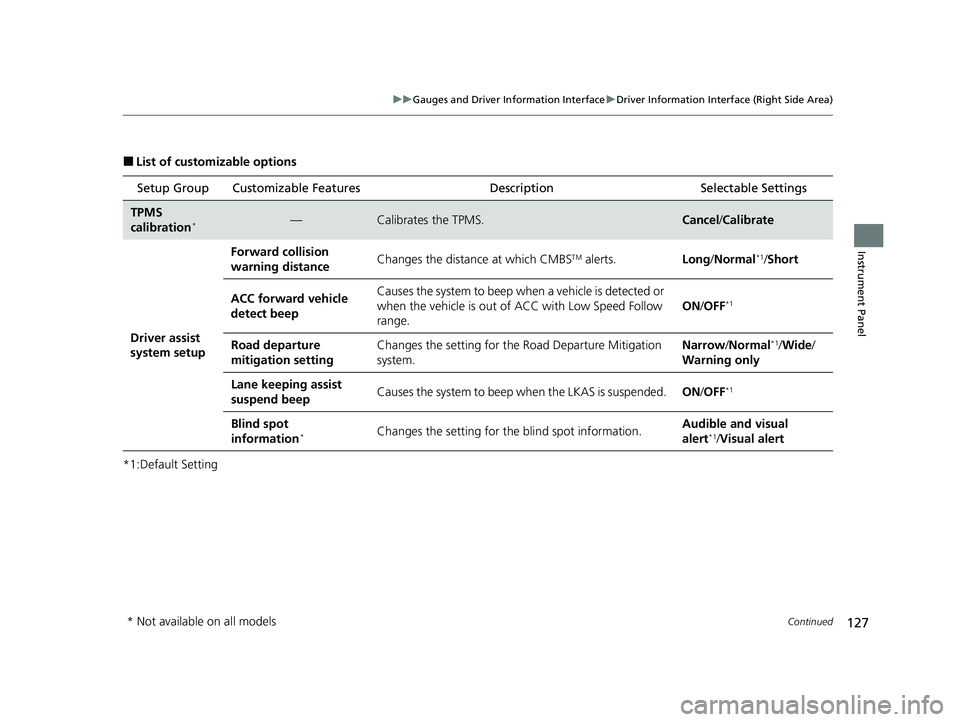

127
uuGauges and Driver Information Interface uDriver Information Interface (Right Side Area)
Continued
Instrument Panel
■List of customizable options
*1:Default Setting Setup Group Customizable Features
Description Selectable Settings
TPMS
calibration*—Calibrates the TPMS.Cancel/Calibrate
Driver assist
system setup Forward collision
warning distance
Changes the distance at which CMBS
TM alerts.
Long/Normal*1/Short
ACC forward vehicle
detect beep Causes the system to beep wh
en a vehicle is detected or
when the vehicle is out of ACC with Low Speed Follow
range. ON
/OFF
*1
Road departure
mitigation setting Changes the setting for th
e Road Departure Mitigation
system. Narrow
/Normal*1/Wide /
Warning only
Lane keeping assist
suspend beep Causes the system to beep
when the LKAS is suspended. ON/OFF
*1
Blind spot
information*Changes the setting for th e blind spot information. Audible an
d visual
alert*1/ Visual alert
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 127 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

289
Driving
This chapter discusses driving and refueling.
Before Driving................................... 290
Towing a Trailer ................................ 295
When Driving
Starting the Engine .......................... 296
Precautions While Driving................. 302
Continuously Variable Transmission.. 303
Shifting ............................................ 304
ECON Mode .................................... 306
Auto Idle Stop .................................. 307
Vehicle Stability AssistTM (VSA® ), aka
Electronic Stability Control (ESC),
System ........................................ 313
Agile Handling Assist ....................... 315
Tire Pressure Monitoring System (TPMS)*...................................... 316Tire Pressure Monitoring System (TPMS) -
Required Federal Explanation ........... 321
Blind Spot Information System
*....... 323
Honda Sensing ®................................ 327
Collision Mitigati on Braking System
TM
(CMBSTM) ....................................... 330
Adaptive Cruise Control (ACC) with Low
Speed Follow ................................. 342
Lane Keeping Assist System (LKAS) .. 362
Traffic Jam Assist ............................. 373
Road Departure Mitigation System ... 382 Traffic Sign Recognition System ....... 390
Front Sensor Camera ....................... 396
Radar Sensor ................................... 398
Braking Brake System ................................... 399
Anti-lock Brake System (ABS) ........... 407
Brake Assist System ......................... 408
Parking Your Vehicle ........................ 409
Multi-View Rear Camera .................. 415
Refueling ........................................... 417
Fuel Economy and CO
2 Emissions .... 420
Turbo Engine Vehicle ....................... 421
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 289 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

313
uuWhen Driving uVehicle Stability AssistTM (VSA ®), aka Electronic Stability Control (ESC), System
Continued
Driving
Vehicle Stability AssistTM (VSA ®), aka Electronic
Stability Control (ESC), System
VSA ® helps stabilize the vehicle during cornering if the vehicle turns more or less
than what was intended. It also assists in maintaining traction on slippery surfaces.
It does so by regulating engine ou tput and selectively applying the brakes.
When VSA ® activates, you may notice that the
engine does not respond to the accelerator.
You may also notice some noise from the
hydraulic brake system. You will also see the
indicator blink.
■VSA ® Operation
1 Vehicle Stability AssistTM (VSA® ), aka Electronic Stability Control
(ESC), System
The VSA ® may not function properl y if tire type and
size are mixed. Make sure to use the same size and
type of tire, and the air pressures as specified.
When the VSA ® system indicator comes on and stays
on while driving, there ma y be a problem with the
system. While this may not interfere with normal
driving, have your vehi cle checked by a dealer
immediately.
VSA ® cannot enhance stability in all driving situations
and does not control the entire braking system. You
still need to drive and corner at speeds appropriate
for the conditions and always leave a sufficient
margin of safety.
The main function of the VSA ® system is generally
known as Electronic Stability Control (ESC). The
system also includes a traction control function.
The Vehicle Stability Assist
TM (VSA ®) system, Adaptive
Cruise Control (ACC) with Low Speed Follow, safety
support, low tire pressure/TPMS
*, and parking brake
and brake system (amber) indicators may come on in
amber along with a message in the driver information
interface when you set the power mode to ON after
reconnecting the battery.
Drive a short distance at more than 12 mph (20 km/h).
Each indicator should go off. If any do not, have your
vehicle checked by a dealer.
VSA ® System
Indicator
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 313 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

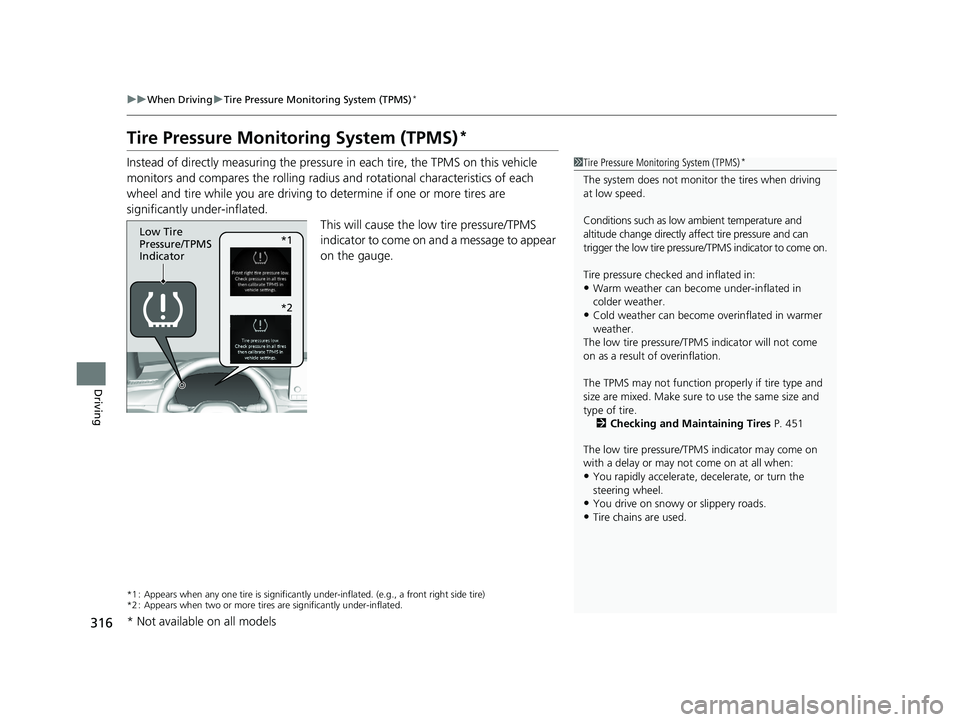

316
uuWhen Driving uTire Pressure Monitoring System (TPMS)*
Driving
Tire Pressure Monitoring System (TPMS)*
Instead of directly measuring the pressu re in each tire, the TPMS on this vehicle
monitors and compares the rolling radius and rotational characteristics of each
wheel and tire while you are driving to determine if one or more tires are
significantly under-inflated.
This will cause the low tire pressure/TPMS
indicator to come on and a message to appear
on the gauge.
*1 : Appears when any one tire is significantly under-inflated. (e.g., a front right side tire)
*2 : Appears when two or more tires are significantly under-inflated.
1 Tire Pressure Monitoring System (TPMS)*
The system does not monitor the tires when driving
at low speed.
Conditions such as low ambient temperature and
altitude change directly a ffect tire pressure and can
trigger the low tire pressure/TPMS indicator to come on.
Tire pressure checked and inflated in:
•Warm weather can beco me under-inflated in
colder weather.
•Cold weather can become overinflated in warmer
weather.
The low tire pressure/TPMS indicator will not come
on as a result of overinflation.
The TPMS may not function pr operly if tire type and
size are mixed. Make sure to use the same size and
type of tire. 2 Checking and Maintaining Tires P. 451
The low tire pressure/TPMS indicator may come on
with a delay or may not come on at all when:
•You rapidly accelerate, decelerate, or turn the
steering wheel.
•You drive on snowy or slippery roads.
•Tire chains are used.
Low Tire
Pressure/TPMS
Indicator*1
*2
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 316 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

Continued317
uuWhen Driving uTire Pressure Monitoring System (TPMS)*
Driving
1Tire Pressure Monitoring System (TPMS)*
The low tire pressure/TPMS indicator may come on
under the following conditions:
•A compact spare tire is used.
•There is a heavier and uneve n load on the tires than
the condition at calibration.
•Tire chains are used.
The Vehicle Stability Assist
TM (VSA ®) system, Adaptive
Cruise Control (ACC) with Low Speed Follow, safety
support, low tire pressure /TPMS, and parking brake
and brake system (amber) indicators may come on in
amber along with a message in the driver information
interface when you set the power mode to ON after
reconnecting the battery.
Drive a short distance at more than 12 mph (20 km/h).
Each indicator should go off. If any do not, have your
vehicle checked by a dealer.
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 317 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

uuWhen Driving uTire Pressure Monitoring System (TPMS)*
318
Driving
You must start TPMS calibration every time you:
• Adjust the pressure in one or more tires.
• Rotate the tires.
• Replace one or more tires.
Before calibrating the TPMS:
• Set the cold tire pressu re in all four tires.
2Checking Tires P. 451
Make sure:
•The vehicle is at a complete stop.
• The transmission is in
(P.
• The power mode is in ON.
■TPMS Calibration1TPMS Calibration
TPMS cannot be calibrated if a compact spare tire is
installed.
The calibration process requires approximately 30
minutes of cumulative driv ing at speeds between 30-
60 mph (48-97 km/h).
During this period, if the pow er mode is set to ON and
the vehicle is not moved wi thin 45 seconds, you may
notice the low tire pressu re/TPMS indicator comes on
briefly. This is normal and indicates that the calibration
process is not yet complete.
23 ACCORD 4D US PET MAP-3130A6000_01.book 318 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分
