HONDA ACCORD COUPE 2003 CL7 / 7.G Owners Manual

µTo activate the Repeat
f eature, press and release the RPT
button. You will see RPT in the
display as a reminder. The system
continuously replays the current
track. Press the RPT button again to
turn it off. Pressing either side of the
SKIP or TUNE bar also turns of f the
repeat feature.
Audio System
Comf ort and Convenience Feat ures
REPEAT
178

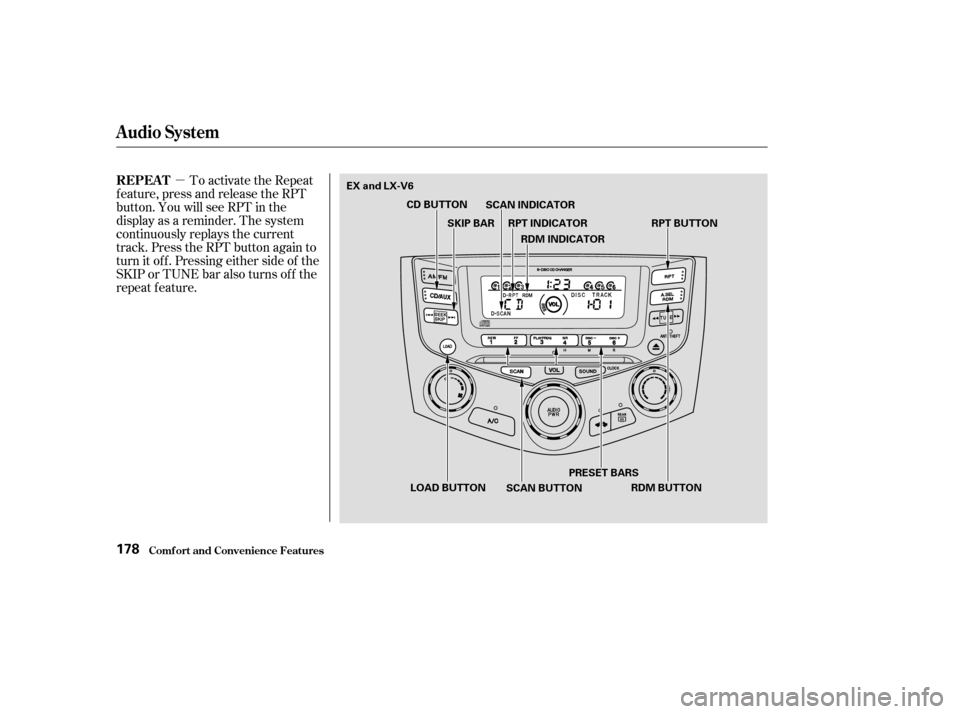

RDM BUTTON
SCAN BUTTON
LOAD BUTTON PRESET BARS
CD BUTTON
SCAN INDICATOR
RPT BUTTON
RDM INDICATOR
RPT INDICATOR
SKIP BAR
EX and LX-V6

µµ
CONT INUED
To take the system out of CD mode,
press the AM/FM button. Each time
you press the AM/FM button, the
system will change to the next mode;
FM1, FM2 or AM. When you return
to CD mode by pressing the CD
button, play will continue at the same
point that it lef t of f .
If you turn the system of f while a CD
is playing, either with the PWR/VOL
knob or the ignition switch, play will
continue at the same point when you
turn it back on.
This f eature, when
activated, replays all the tracks on
the selected disc in the order they
are recorded on the CD. To activate
the disc repeat f eature, select the D-
Repeat mode by pressing and
holding the RPT button. You will see
D-RPT in the display. The system
continuously replays the current CD.
Press the RPT button again to turn it
of f . Pressing either side of the SKIP
or TUNE bar also turns of f the
repeat feature. This feature,
when activated, plays the tracks
within a CD in random order, rather
than in the order they are recorded
on the CD. To activate Random Play,
press the RDM button. You will see
RDM in the display. The system will
then select and play tracks randomly.
This continues until you deactivate
RandomPlaybypressingtheRDM
button again, or you select a
dif f erent CD with a preset bar.
Audio System
D-REPEAT RANDOM PLAY
Comf ort and Convenience Feat ures179

To remove the disc that is currently
playing, press the eject button. You
will see ‘‘EJEC’’ in the display. When
you remove the disc f rom the slot,
the system automatically begins the
Load sequence so you can load
another CD in that position. If you do
not load another CD, af ter 15
seconds, the system selects the
previous mode (AM, FM1, or FM2).
If you do not remove the disc f rom
the slot, the system will reload the
disc af ter 15 seconds, and select the
previous mode (AM or FM). To
begin playing the disc, press the CD
button.
To remove a different CD from the
changer,firstselectitwiththeleftor
right side of the appropriate preset
bar. When that CD begins playing,
press the eject button.
Removing CDs f rom t he Changer
Audio System

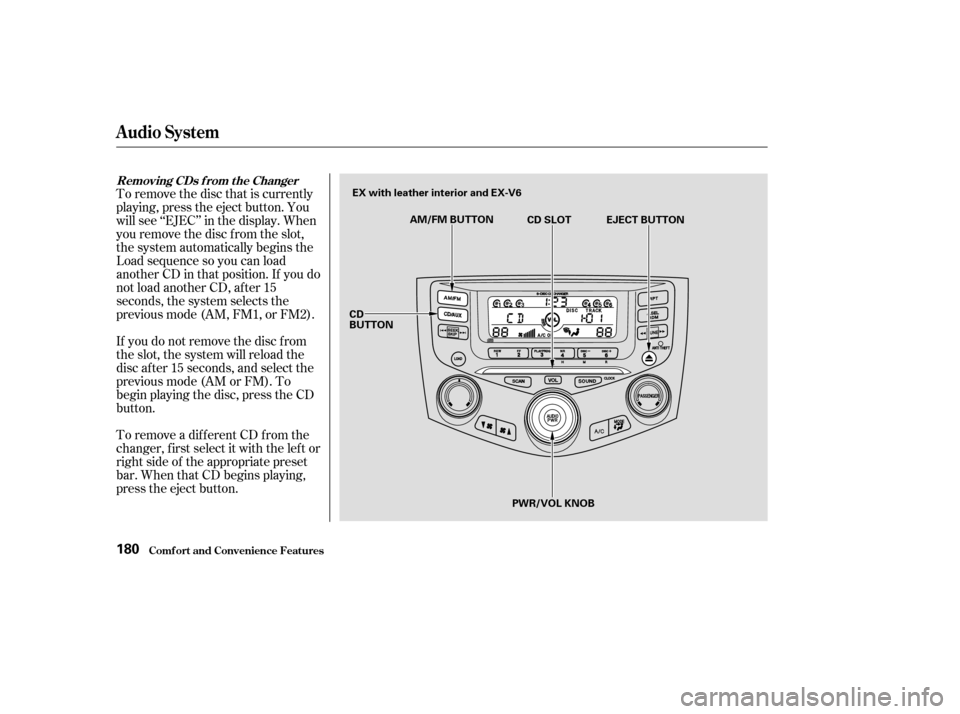

Comf ort and Convenience Feat ures180
CD SLOT
CD
BUTTON
PWR/VOL KNOBEJECT BUTTON
AM/FM BUTTON
EX with leather interior and EX-V6

If you press the eject button while
listening to the radio, or with the
audio system turned of f , the disc
that was last selected is ejected.
Af ter that disc is ejected, pressing
the eject button again will eject the
next disc in numerical order. By
doing this six times, you can remove
all the CDs f rom the changer.
In any mode, if you press the eject
button and hold it until you hear a
beep, the system will eject all of the
discs in the changer.
You can also eject discs when the
ignition switch is of f . The disc that
was last selected is ejected f irst. You
can eject all six discs, one at a time.
For inf ormation on how to handle
and protect compact discs, see page.
205
Audio System
Comf ort and Convenience Feat ures
Protecting Compact Discs
181

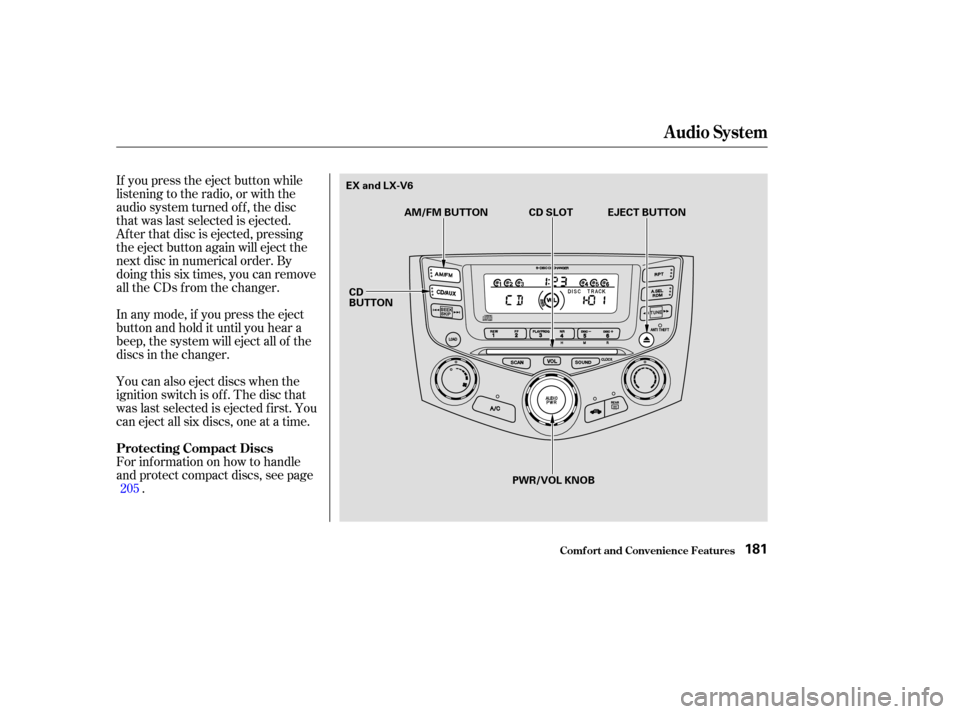

CD
BUTTON EJECT BUTTON
AM/FM BUTTON
CD SLOT
PWR/VOL KNOB
EX and LX-V6

If you see an error indication in the
display while operating the CD
changer, f ind the cause in the chart
to the right. If you cannot clear the
error indication, take the car to your
Honda dealer.Indication
Solution
Cause
Press the CD eject button and pull out the CDs.
Check for an error indication. Insert the CDs
again. If the code does not disappear or the
CDs cannot be pulled out, consult your Honda
dealer.
Press the CD eject button and pull out the CDs.
Check for an error indication. Insert the CDs
again. If the code does not disappear or the
CDs cannot be pulled out, consult your Honda
dealer.
Insert CDs.
FOCUS Error
Mechanical Error
No CD in the CD
Changer
CD Changer Error Indications
Audio System
Comf ort and Convenience Feat ures182

Î
Î
The cassette system f eatures Dolby
noise reduction, automatic sensing of
chromium-dioxide (CrO ) tape, and
auto-reverse f or continuous play.
To operate the cassette player, the
ignition switch must be in
ACCESSORY(I) or ON(II). Make
sure the tape opening on the cassette
is f acing to the right, then insert the
cassette most of the way into the slot.
The system will pull it in the rest of
the way, and begin to play.
2
Dolby noise reduction manuf actured under
license from Dolby Laboratories Licensing Corpo-
ration. ‘‘DOLBY’’ and the double-D symbol are trademarks of Dolby Laboratories
Licensing Corporation.
CONT INUED
Operating the Cassette Player
(Optional)
Audio System

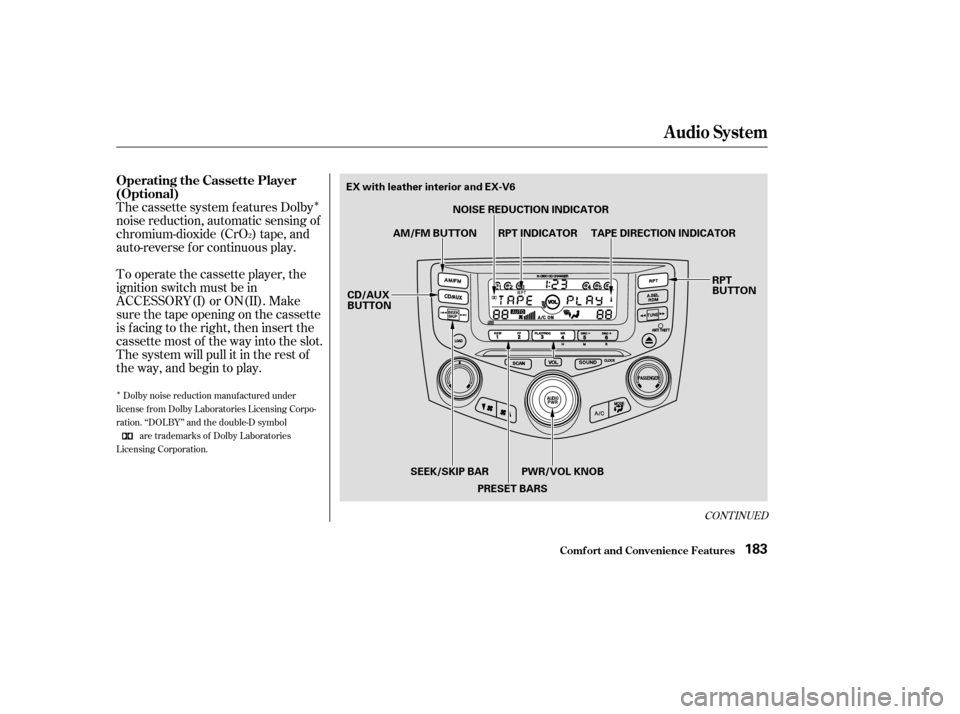

Comf ort and Convenience Feat ures183
RPT
BUTTON
CD/AUX
BUTTON NOISE REDUCTION INDICATOR
RPT INDICATOR TAPE DIRECTION INDICATOR
AM/FM BUTTON
PRESET BARS
SEEK/SKIP BAR PWR/VOL KNOB
EX with leather interior and EX-V6

Û
The tape direction indicator will light
to show you which side of the
cassette is playing. The indicates
thesideyouinsertedfacingupward
is now playing. If you want to play
the other side, press the Preset 3
(PLAY/PROG) side of the preset
bar.
Dolby noise reduction turns on when
you insert a cassette. The indi-
cator will light in the display. If the
tape was not recorded with Dolby
noise reduction, turn it of f by
pressing the Preset 4 (NR) side of
the preset bar.
Noise reduction remains of f until you
turn it on by pressing the button
again.
Audio System
Comf ort and Convenience Feat ures184

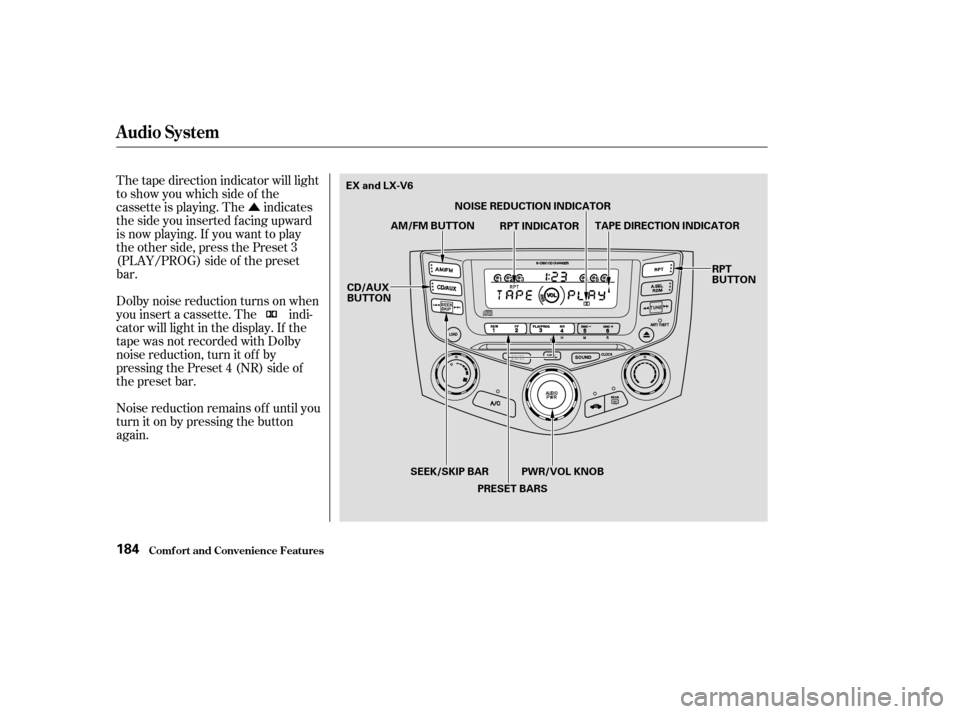

RPT
BUTTON
CD/AUX
BUTTON
PRESET BARS
SEEK/SKIP BAR PWR/VOL KNOB NOISE REDUCTION INDICATOR
AM/FM BUTTON TAPE DIRECTION INDICATOR
RPT INDICATOR
EX and LX-V6

µ
µ The Skip f unction allows
youtofindthebeginningof asong
or passage. To activate SKIP, press
the SEEK/SKIP bar. Press the side to advance to the
beginning of the next song or
passage, or the side to return to
the beginning of the current song or
passage. FF or REW will f lash in the
display as the tape moves. When the
system reaches the beginning of the
next song or passage (FF), or the
beginning of the current one (REW),
it goes back to PLAY mode.
Fast Forward and Re-
wind move the tape rapidly. To re-
wind the tape, push the Preset 1
(REW) side of the preset bar. You
will see REW in the display. To f ast
f orward the tape, push the Preset 2
(FF) side of the preset bar. You will
see FF displayed. Press the Preset 1,
2, or 3 side of the bars to take the sys-
tem out of rewind or f ast f orward.
When the system reaches the end of
the tape, it reverses direction and
begins to play. With a cassette playing, you can use
the FF, REW, SKIP, or REPEAT
f unction to f ind a desired program.
When the system reaches the end of
the tape, it will automatically reverse
direction and play the other side. If
you want to remove the cassette
from the drive, press the eject button
on the cassette player.
If you turn the system of f while a
tape is playing, either with the PWR/
VOL knob or by turning of f the
ignition, the cassette will remain in
the drive. When you turn the system
back on, the cassette player will be in
pause mode. To begin playing, press
thePreset3(PLAY/PROG)sideof
the preset bar.
To switch to the radio or CD player
while a tape is playing, press the
AM/FM, or CD/AUX button. To
change back to the cassette player,
push the CD/AUX button.
CONT INUED
SK IP
FF/REW T ape Search Functions
Audio System
Comf ort and Convenience Feat ures185

µThe Repeat f unction
continuously replays the current
song or passage. Press the RPT
button to activate it; you will see RPT
displayed as a reminder. When the
system reaches the end of the song
or passage currently playing, it will
automatically go into rewind. When
it senses the beginning of the same
song or passage, the system returns
to PLAY mode. It will continue to
repeat this same program until you
deactivate REPEAT by pressing the
button again. The SKIP and REPEAT f unctions
use silent periods on the tape to f ind
the end of a song or passage. These
f eatures may not work to your
satisfaction if there is almost no gap
between selections, a high noise
level between selections, or a silent
period in the middle of a selection.
Damaged cassettes can jam inside
the drive or cause other problems.
See page for information on
cassette care and protection.
210
REPEA T
Caring f or the Cassette Player
Audio System
Comf ort and Convenience Feat ures186

Your Honda’s audio system provides
clear reception on both AM and FM
bands, while the preset icons in the
Navigation System display allow you
to easily select your f avorite stations.
The in-dash CD changer holds up to
six discs. You operate the CD
changer with the same controls used
f or the radio. See page f or CD
changer operation.
The anti-thef t f eature will disable the
system if it is disconnected f rom the
car’s battery. To get the system
working again, you must enter a
code number (see page ).196
212
A M/FM/CD Changer
Audio System
With Navigation System
Audio System

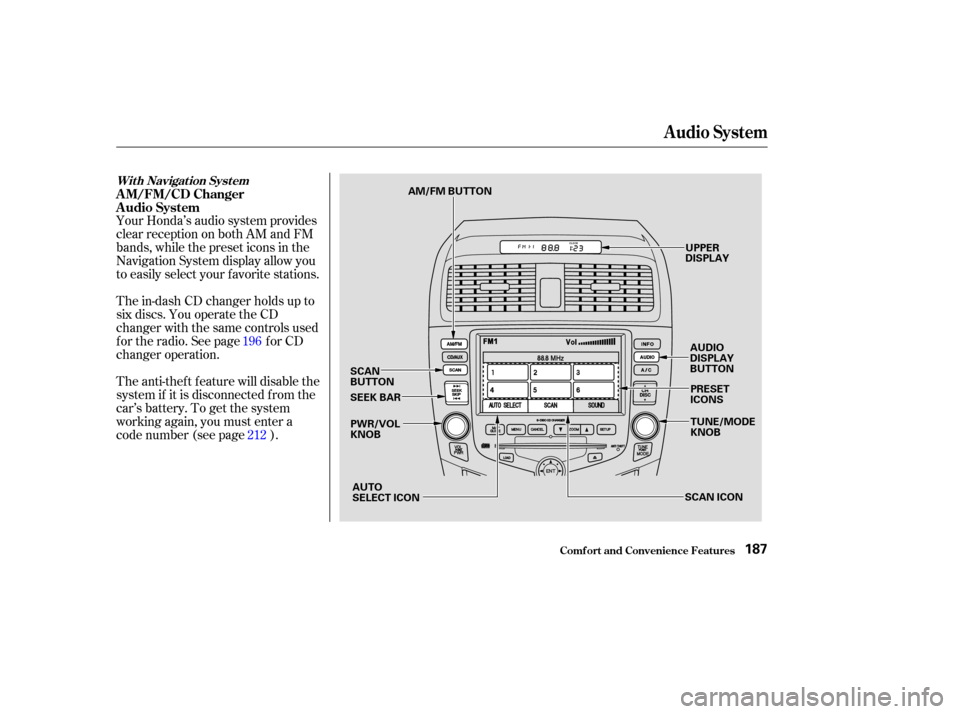

Comf ort and Convenience Feat ures187
AM/FM BUTTON
SEEK BAR SCAN
BUTTON PWR/VOL
KNOB
AUTO
SELECT ICON SCAN ICONUPPER
DISPLAY
AUDIO
DISPLAY
BUTTONPRESET
ICONS
TUNE/MODE
KNOB
