HONDA ACCORD COUPE 2003 CL7 / 7.G Owners Manual

If you see an error indication in the
display while operating the CD
player,findthecauseinthechartto
the right. If you cannot clear the
error indication, take the car to your
Honda dealer.Indication Cause
Solution
FOCUS Error
Mechanical Error
High TemperaturePress the eject button and pull out the disc.
Check if the disc is inserted correctly in the CD
player.
Make sure the disc is not scratched or damaged.
Press the eject button and pull out the disc.
Check the disc for damage or deformation.
If the CD cannot be pulled out or the error
indication does not disappear after the disc is
ejected, see your Honda dealer.
Do not try to force the disc out of the player.
Will disappear when the temperature returns to
normal.
CD Player Error Indications
Audio System
Comf ort and Convenience Feat ures158

IndicationSolution
Cause
If you see an error indication in the
display while operating the optional
CD changer, f ind the cause in the
chart to the right. If you cannot clear
the error indication, take the car to
your Honda dealer.
Press the magazine eject button and pull out
the magazine. Check for an error indication.
Insert the magazine again. If the code does not
disappear or the magazine cannot be pulled out,
consult your Honda dealer.
Insert CD.
Press the magazine eject button and pull out
the magazine. Check for an error indication.
Insert the magazine again. If the code does not
disappear or the magazine cannot be pulled out,
consult your Honda dealer.
Will disappear when the temperature returns to
normal.
Insert CD magazine.
FOCUS Error
No CD in the CD
Magazine
Mechanical Error
High Temperature
No CD magazine in the
CD Changer
CD Changer Error Indications
Audio System
Comf ort and Convenience Feat ures159

Î
Î
The cassette system f eatures Dolby
noise reduction, automatic sensing of
chromium-dioxide (CrO ) tape, and
auto-reverse f or continuous play.
To operate the cassette player, the
ignition switch must be in
ACCESSORY(I) or ON(II). Make
sure the tape opening on the cassette
is f acing to the right, then insert the
cassette most of the way into the slot.
The system will pull it in the rest of
the way, and begin to play.
2
Dolby noise reduction manuf actured under
license from Dolby Laboratories Licensing Corpo-
ration. ‘‘DOLBY’’ and the double-D symbol are trademarks of Dolby Laboratories
Licensing Corporation.
Operating the Cassette Player
(Optional)
Audio System
Comf ort and Convenience Feat ures160

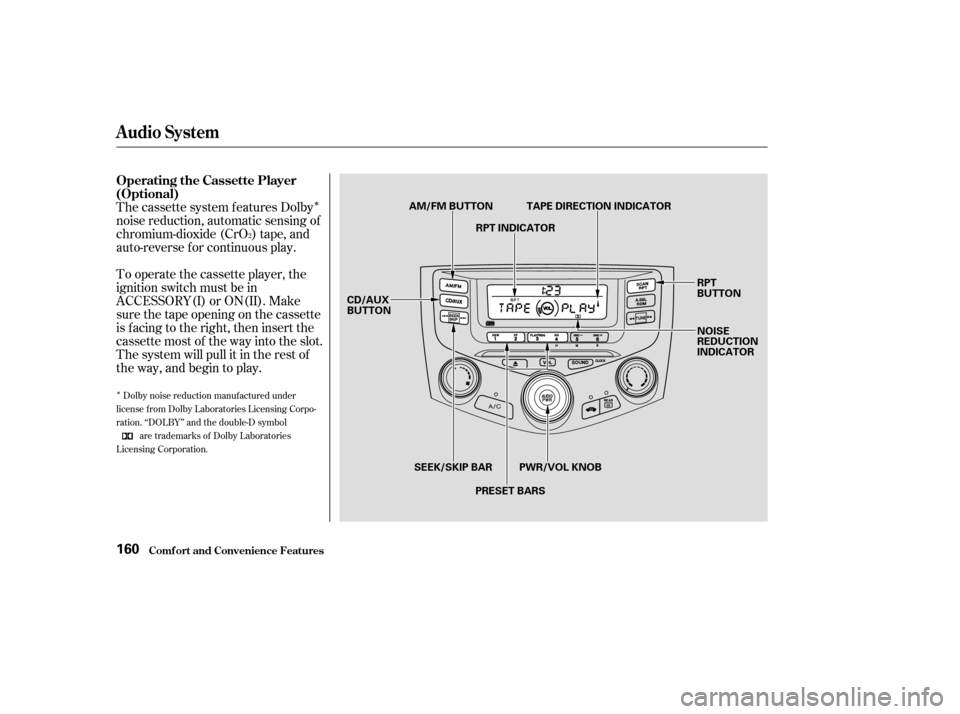

CD/AUX
BUTTON RPT
BUTTON
NOISE
REDUCTION
INDICATOR
PRESET BARS
SEEK/SKIP BAR PWR/VOL KNOB
AM/FM BUTTON TAPE DIRECTION INDICATOR
RPT INDICATOR

Ûµ
The tape direction indicator will light
to show you which side of the
cassette is playing. The indicates
thesideyouinsertedfacingupward
is now playing. If you want to play
the other side, press the Preset 3
(PLAY/PROG) side of the preset
bar.
Dolby noise reduction turns on when
you insert a cassette. The indi-
cator will light in the display. If the
tape was not recorded with Dolby
noise reduction, turn it of f by
pressing the Preset 4 (NR) side of
the preset bar.
Noise reduction remains of f until you
turn it on by pressing the bar again. If you turn the system of f while a
tape is playing, either with the PWR/
VOL knob or by turning of f the
ignition, the cassette will remain in
the drive. When you turn the system
back on, the cassette player will be in
pause mode. To begin playing, press
thePreset3(PLAY/PROG)sideof
the preset bar.
To switch to the radio or CD player
while a tape is playing, press the
AM/FM, or CD/AUX button. To
change back to the cassette player,
push the CD/AUX button.
With a cassette playing, you can use
the FF, REW, SKIP, or REPEAT
f unction to f ind a desired program.
Fast Forward and Re-
wind move the tape rapidly. To re-
wind the tape, push the Preset 1
(REW) side of the preset bar. You
will see REW in the display. To f ast
f orward the tape, push the Preset 2
(FF) side of the preset bar. You will
see FF displayed. Press the Preset 1,
2, or 3 side of the bars to take the sys-
tem out of rewind or f ast f orward.
When the system reaches the end of
the tape, it reverses direction and
begins to play.
When the system reaches the end of
the tape, it will automatically reverse
direction and play the other side. If
you want to remove the cassette
from the drive, press the eject button
on the cassette player.
CONT INUED
Audio System
Comf ort and Convenience Feat ures
T ape Search Functions
FF/REW
161

µ
µ
Damaged cassettes can jam inside
the drive or cause other problems.
See page for information on
cassette care and protection.
The Repeat f unction
continuously replays the current
song or passage. Press the RPT
button to activate it; you will see RPT
displayed as a reminder. When the
system reaches the end of the song
or passage currently playing, it will
automatically go into rewind. When
it senses the beginning of the same
song or passage, the system returns
to PLAY mode. It will continue to
repeat this same program until you
deactivate REPEAT by pressing the
button again.
The SKIP and REPEAT f unctions
use silent periods on the tape to f ind
the end of a song or passage. These
f eatures may not work to your
satisfaction if there is almost no gap
between selections, a high noise
level between selections, or a silent
period in the middle of a selection.
The Skip f unction allows
you to f ind the beginning of a song
or passage. To activate SKIP, press
the SEEK/SKIP bar. Press the side to advance to the
beginning of the next song or
passage, or the side to return to
the beginning of the current song or
passage. FF or REW will f lash in the
display as the tape moves. When the
system reaches the beginning of the
next song or passage (FF), or the
beginning of the current one (REW),
it goes back to PLAY mode. 210
Caring f or the Cassette Player
REPEAT
SK IP
Audio System
Comf ort and Convenience Feat ures162

The in-dash CD changer holds up to
six discs. You operate the CD
changer with the same controls used
f or the radio. See page f or CD
changer operation.
The anti-thef t f eature will disable the
system if it is disconnected f rom the
car’s battery. To get the system
working again, you must enter a
code number (see page ). Your Honda’s audio system provides
clear reception on both AM and FM
bands, while the preset bars allow
you to easily select your f avorite
stations.173
212
For LX-V6, EX and EX-V6 withoutNavigation System
A M/FM/CD Changer
Audio System
Audio System
Comf ort and Convenience Feat ures163

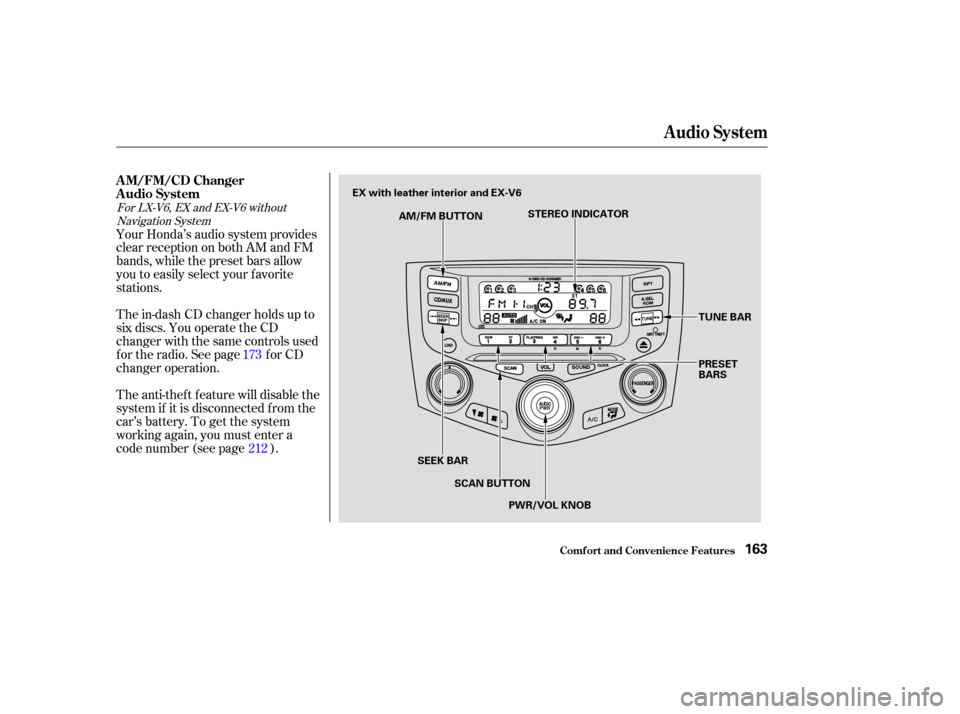

AM/FM BUTTON STEREO INDICATOR
TUNE BAR
PRESET
BARS
SEEK BAR PWR/VOL KNOB
SCAN BUTTON
EX with leather interior and EX-V6

The ignition switch must be in
ACCESSORY (I) or ON (II) to
operate the audio system. Turn the
system on by pressing the PWR/
VOL knob or the AM/FM button.
Adjust the volume by turning the
knob.
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM/FM
button. On the FM band, ST will be
displayed if the station is broadcast-
ing in stereo. Stereo reproduction on
AM is not available.
Audio System
Comf ort and Convenience Feat ures
Operating the Radio
164

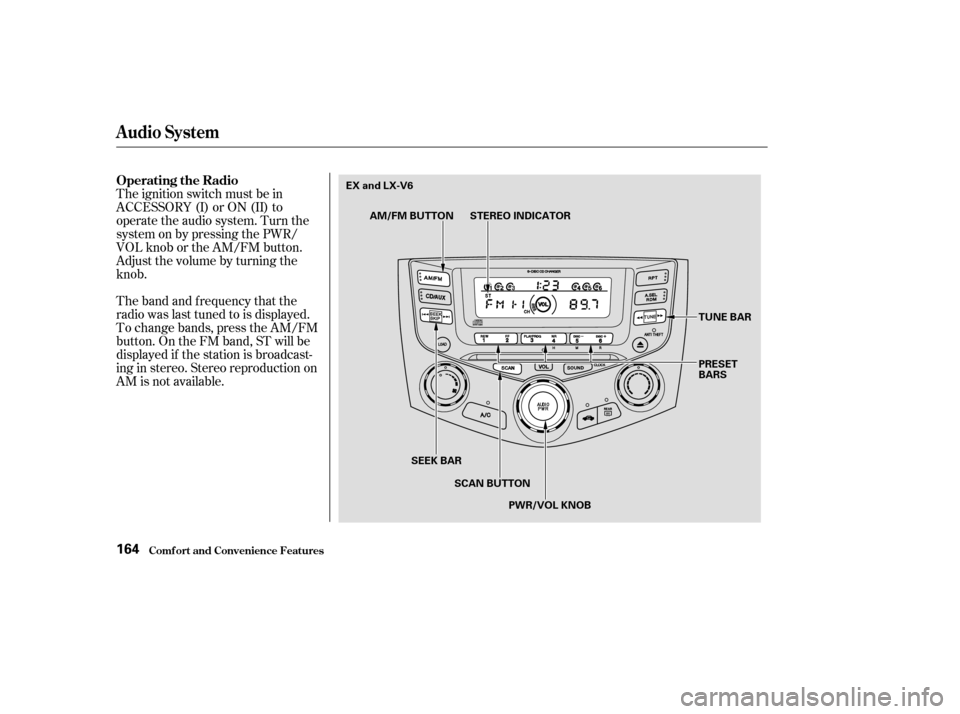

AM/FM BUTTON STEREO INDICATORTUNE BAR
PRESET
BARS
SEEK BAR PWR/VOL KNOB
SCAN BUTTON
EX and LX-V6

µµµ
CONT INUED
You can use any of f ive methods to
f ind radio stations on the selected
band: TUNE, SEEK, SCAN, AUTO
SELECT, and the preset bars.
Use the TUNE bar to tune
the radio to a desired f requency.
Push the on the TUNE bar to
tune to a higher f requency, or push
the to tune to a lower f requency.
Hold the bar down until the display
reaches the desired f requency. The SEEK f unction
searches the band for a station with
a strong signal. To activate it, press
the SEEK bar ( or ) until
you hear a beep, then release it.
Depending on which side of the
SEEK bar you press, the system
scans upward or downward f rom the
current f requency. It stops when it
finds a station with a strong signal. The SCAN function
samples all the stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. You will see SCAN in
the display. The system will scan up
the band for a station with a strong
signal. When it f inds one, it will stop
and play that station for
approximately f ive seconds. If you do
nothing, the system will then scan
f or the next strong station and play
that f or f ive seconds. When it plays a
station that you want to continue
listening to, press the SCAN button
again.
Audio System
Comf ort and Convenience Feat ures
TUNE SEEK
SCA N
165

µµ µ
µ
You can store the
f requencies of your f avorite radio
stations in the three preset bars.
Each bar will store two f requencies
on the AM band, and f our
f requencies on the FM band.
To store a f requency: Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each preset
bar.
UsetheTUNE,SEEK,orSCAN
function to tune the radio to a
desired station.
Pick the preset number (1 6)
you want for that station. Press
the left or right side of the bar and
hold it until you hear a beep.
Repeat steps 1 to 3 to store a total
of six stations on AM and twelve
on FM. Once a station’s f requency is stored,
simply press and release the lef t or
right side of the proper preset bar to
tune to it.
The preset f requencies will be lost if
your car’s battery goes dead, is
disconnected, or the radio f use is
removed.
If you are
traveling far from home and can no
longer receive the stations you
preset, you can use the Auto Select
feature to find stations in the local
area.
To activate Auto Select, press the
A. SEL button. A. SEL will f lash in
the display, and the system will go
into scan mode f or several seconds.
It automatically scans both bands,
looking f or stations with strong
signals. It stores the f requencies of
six AM stations and twelve FM
stations in the preset bars (1 6).
You can then use the preset bars to
select those stations.
1.
2.
3.
4.
Audio System
Comf ort and Convenience Feat ures
Preset
A UT O SEL ECT
166

CONT INUED
If you are in a remote area, Auto
Select may not f ind six strong AM
stations or twelve strong FM stations.
If this happens, you will see a ‘‘0’’
displayed when you press the lef t or
right side of any preset bar that does
not have a station stored.
Audio System
Comf ort and Convenience Feat ures167

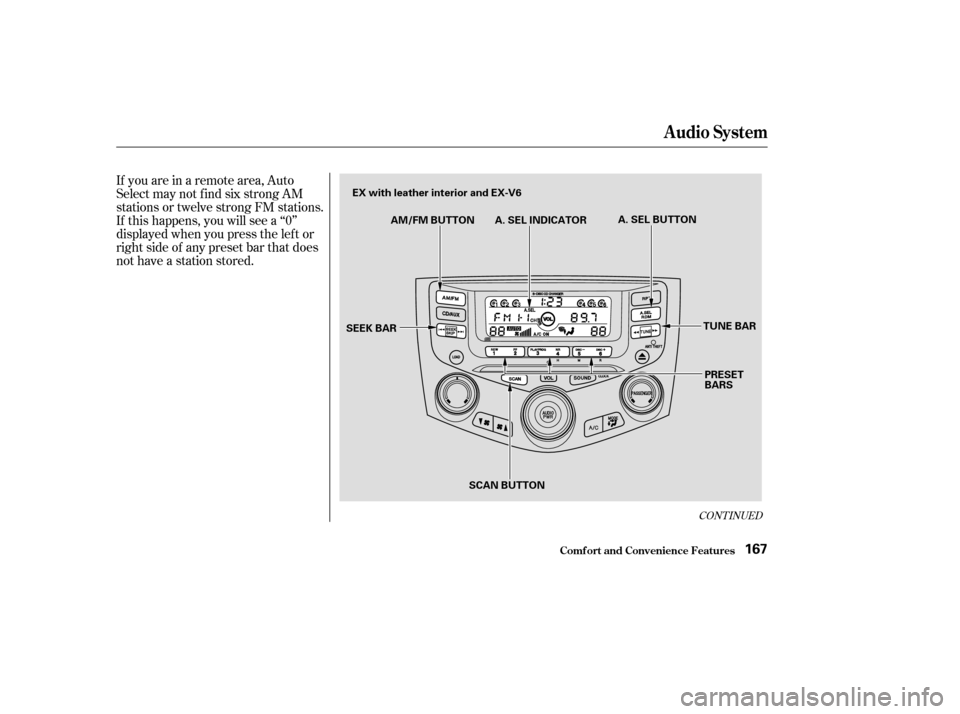

AM/FM BUTTON A. SEL INDICATORA. SEL BUTTON
PRESET
BARS
TUNE BAR
SEEK BAR
SCAN BUTTON
EX with leather interior and EX-V6
