Page 141 of 429

HONDA ACCORD COUPE 2003 CL7 / 7.G Owners Manual Û
Ý

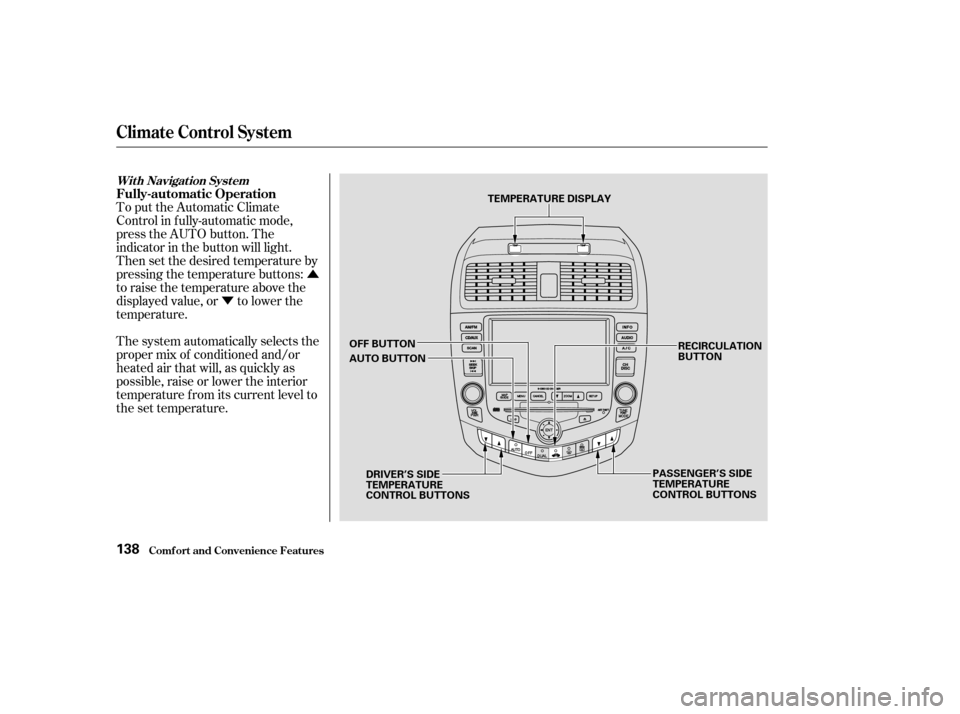

To put the Automatic Climate
Control in f ully-automatic mode,
press the AUTO button. The
indicator in the button will light.
Then set the desired temperature by
pressing the temperature butto

Page 142 of 429

HONDA ACCORD COUPE 2003 CL7 / 7.G Owners Manual You can manually select various
f unctions of the Climate Control
system when it is in f ully automatic
mode. All other f eatures remain
automatically controlled. Some of
these functions appear in the

Page 143 of 429

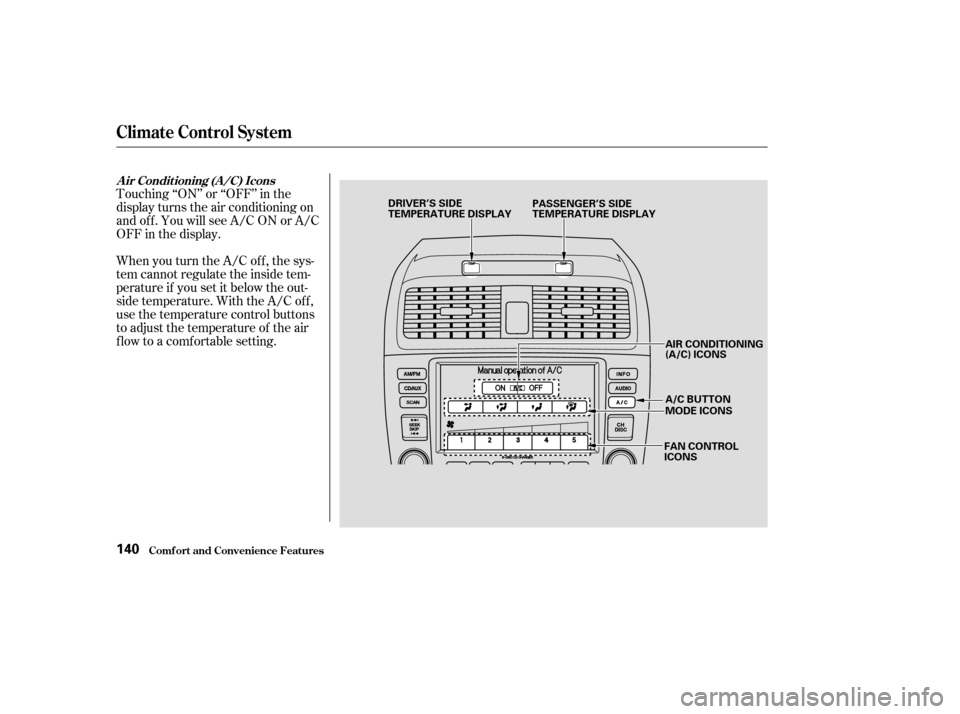

HONDA ACCORD COUPE 2003 CL7 / 7.G Owners Manual Touching ‘‘ON’’ or ‘‘OFF’’ in the
display turns the air conditioning on
andoff.YouwillseeA/CONorA/C
OFF in the display.
When you turn the A/C of f , the sys-
tem cannot regulate the in

Page 144 of 429

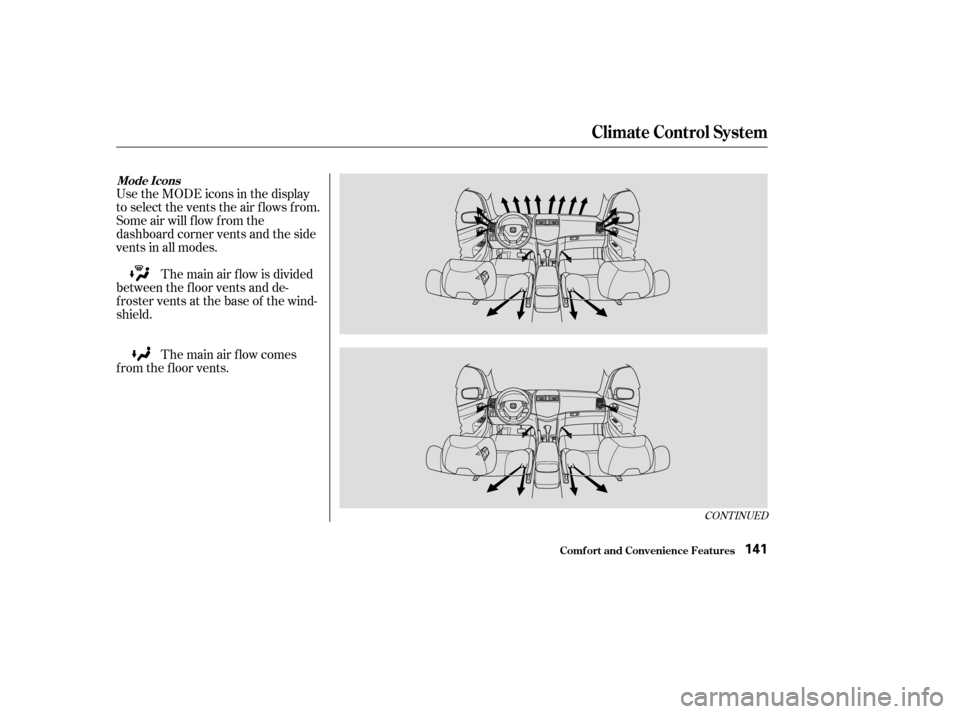

HONDA ACCORD COUPE 2003 CL7 / 7.G Owners Manual The main air f low is divided
between the f loor vents and de-
froster vents at the base of the wind-
shield. Use the MODE icons in the display
to select the vents the air flows from.
Some air will fl

Page 145 of 429

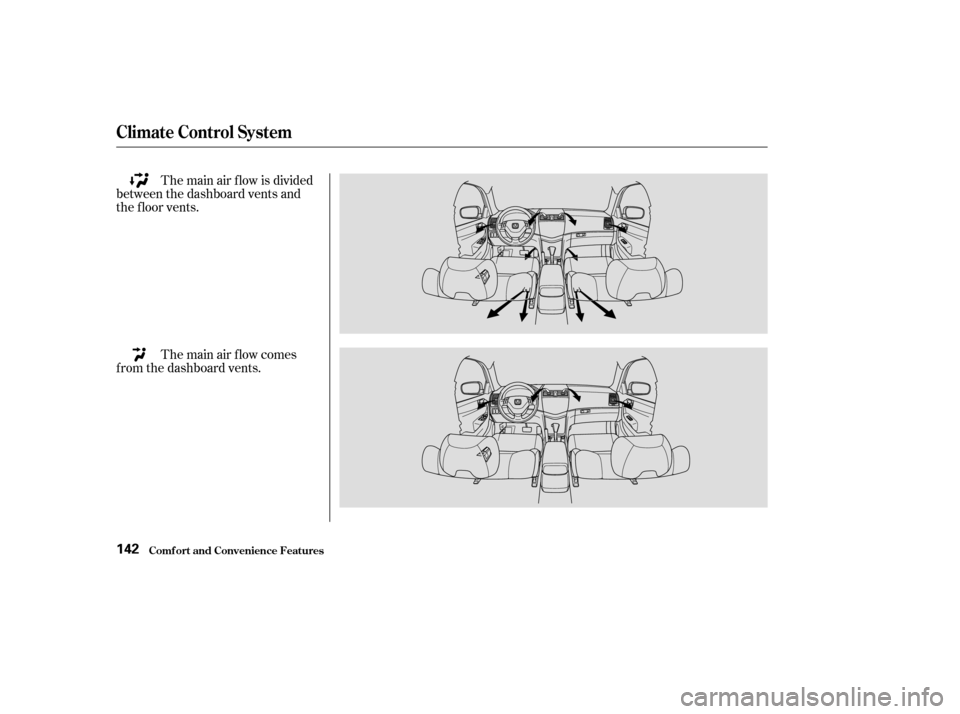

HONDA ACCORD COUPE 2003 CL7 / 7.G Owners Manual The main air f low is divided
between the dashboard vents and
the f loor vents.
The main air flow comes
f rom the dashboard vents.
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures142

Page 146 of 429

HONDA ACCORD COUPE 2003 CL7 / 7.G Owners Manual You can manually select the f an
speed by touching any of the f an
control icons on the display.
This button controls the source of air
going into the system. When the
indicator in this button is lit,

Page 147 of 429

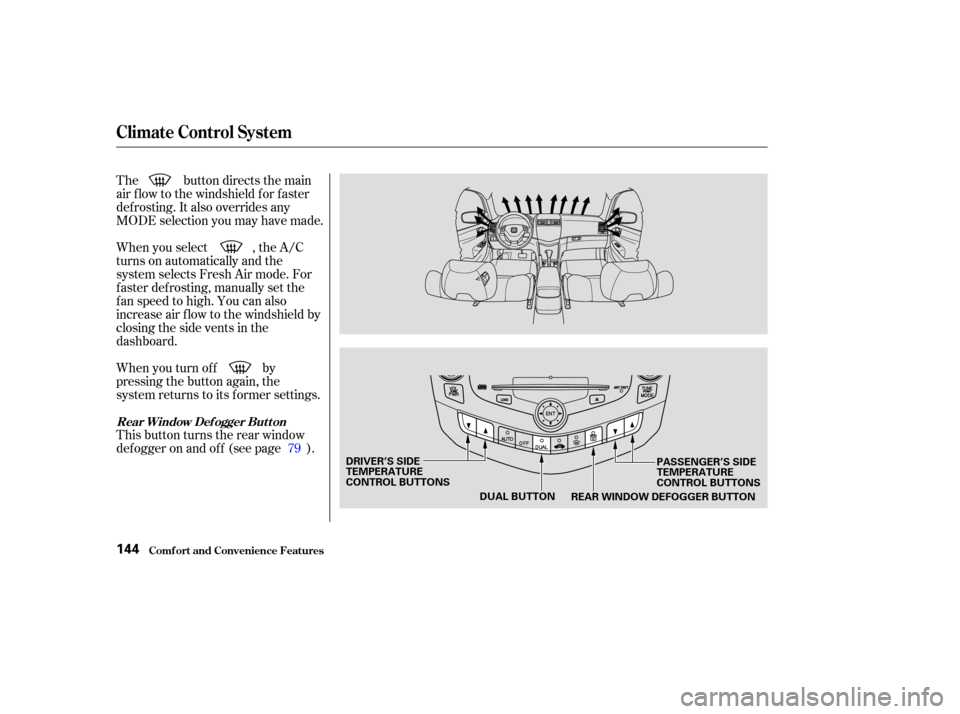

HONDA ACCORD COUPE 2003 CL7 / 7.G Owners Manual The button directs the main
air f low to the windshield f or f aster
def rosting. It also overrides any
MODE selection you may have made.
When you turn of f by
pressing the button again, the
system re

Page 148 of 429

HONDA ACCORD COUPE 2003 CL7 / 7.G Owners Manual ÛÝ

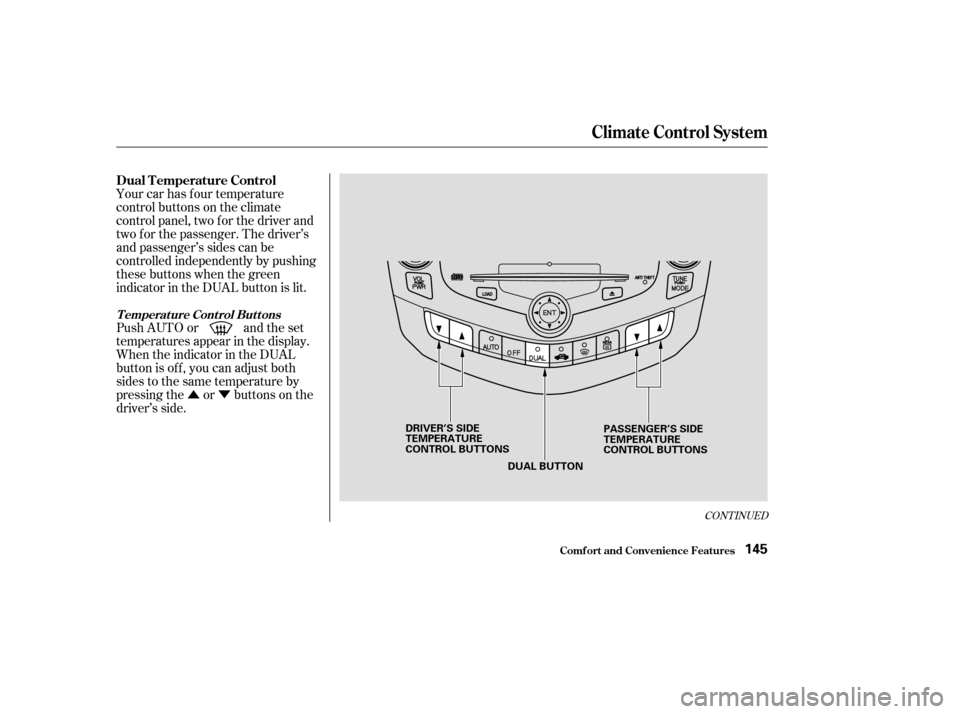

Your car has f our temperature
control buttons on the climate
control panel, two f or the driver and
two f or the passenger. The driver’s
andpassenger’ssidescanbe
controlled independently b

Page 149 of 429

HONDA ACCORD COUPE 2003 CL7 / 7.G Owners Manual ÛÝÛÝ

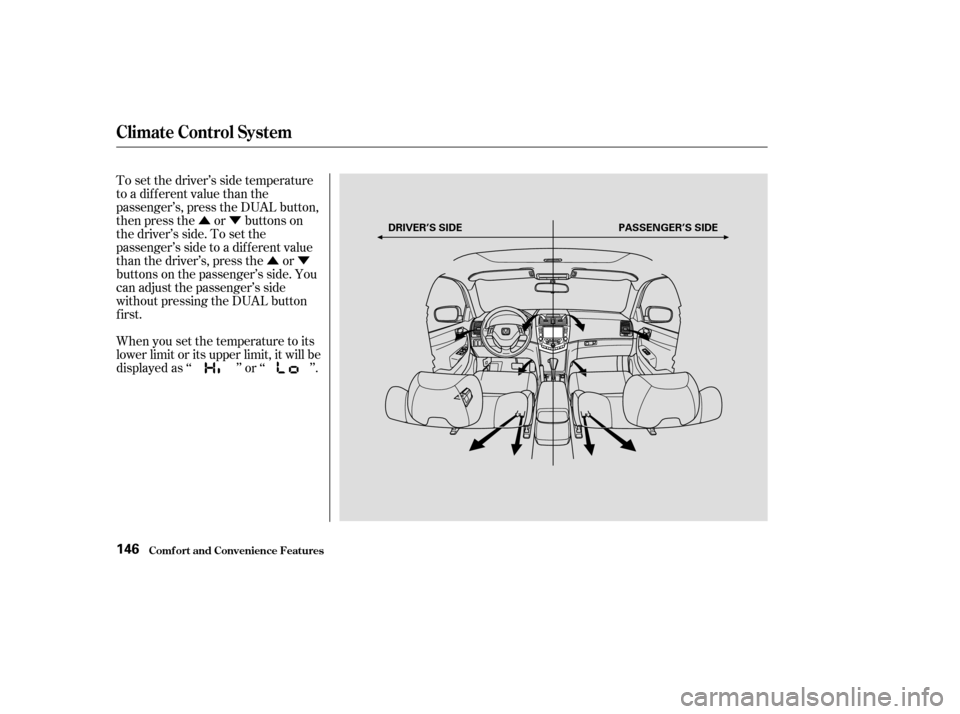

To set the driver’s side temperature
to a different value than the
passenger’s, press the DUAL button,
then press the or buttons on
the driver’s side. To set the
passenger’s side

Page 150 of 429

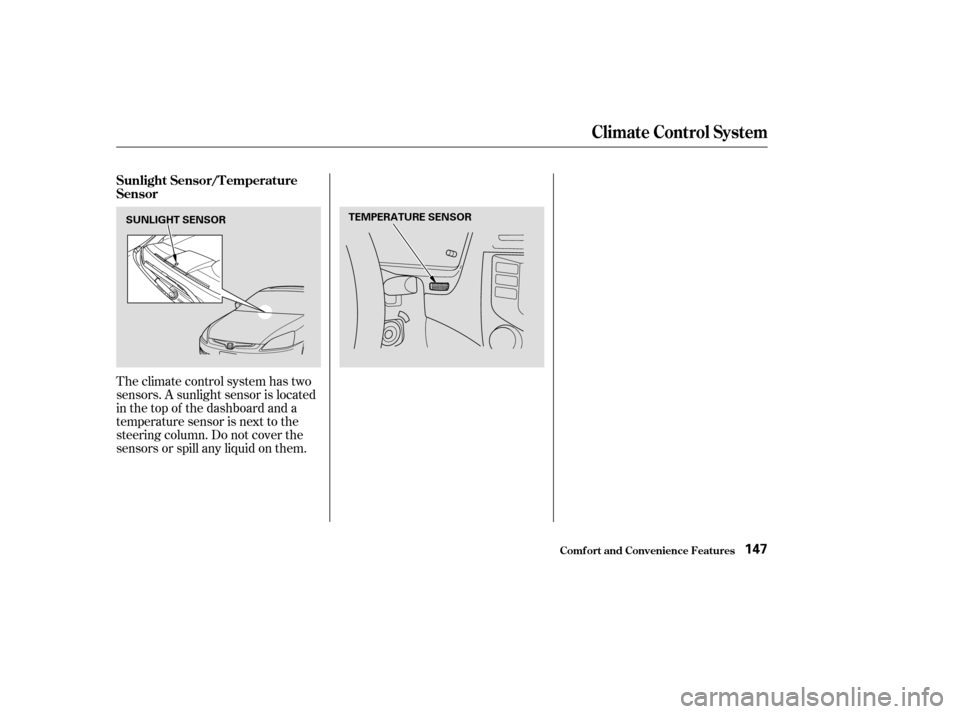

HONDA ACCORD COUPE 2003 CL7 / 7.G Owners Manual Theclimatecontrolsystemhastwo
sensors. A sunlight sensor is located
in the top of the dashboard and a
temperature sensor is next to the
steering column. Do not cover the
sensors or spill any liquid on
