HONDA ACCORD COUPE 2004 CL7 / 7.G Owners Manual

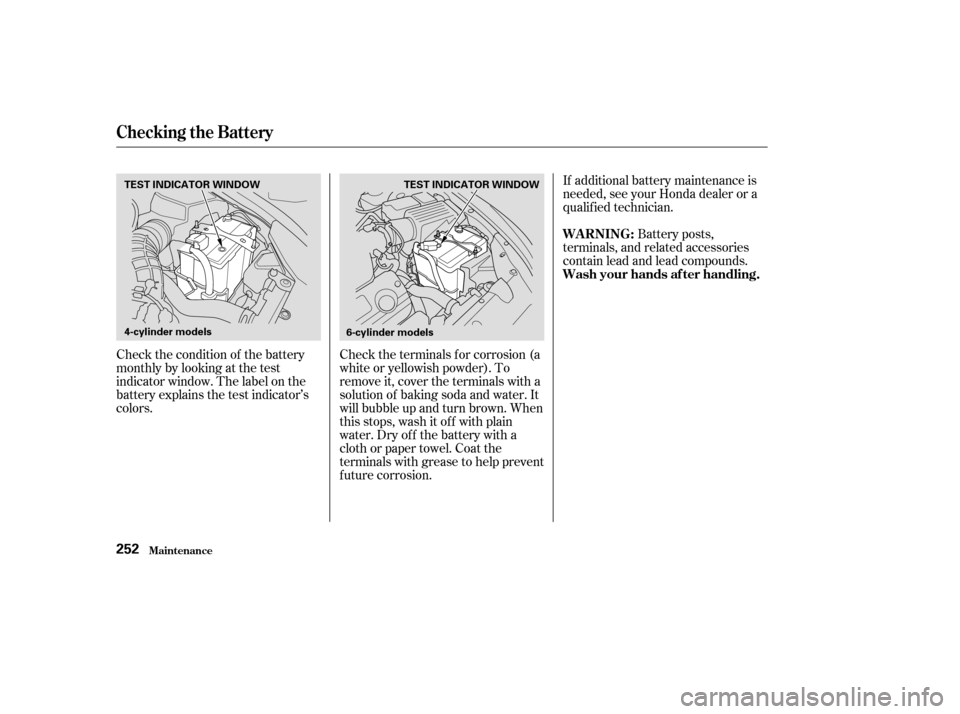

Check the condition of the battery
monthlybylookingatthetest
indicator window. The label on the
battery explains the test indicator’s
colors.Check the terminals f or corrosion (a
white or yellowish powder). To
remove it, cover the terminals with a
solution of baking soda and water. It
will bubble up and turn brown. When
this stops, wash it of f with plain
water. Dry off the battery with a
cloth or paper towel. Coat the
terminals with grease to help prevent
f uture corrosion.If additional battery maintenance is
needed, see your Honda dealer or a
qualif ied technician.
Battery posts,
terminals, and related accessories
contain lead and lead compounds.
WARNING:
Wash your hands af ter handling.
Maint enance
Checking the Battery
252
TEST INDICATOR WINDOW
4-cylinder models
6-cylinder modelsTEST INDICATOR WINDOW
——y
y
(%
yy

µ
If you need to connect the battery to
a charger, disconnect both cables to
prevent damaging your vehicle’s
electrical system. Always disconnect
the negative ( ) cable first, and
reconnect it last.
Maint enance
Checking the Battery
253
The battery gives off explosive
hydrogen gas during normaloperation.
A spark or flame can cause the
battery to explode with enough
force to kill or seriously hurt you.
Wear protective clothing and a
face shield, or have a skilled
mechanic do the batterymaintenance.
——y
y
(%
yy

If you need to park your vehicle f or
an extended period (more than one
month), there are several things you
should do to prepare it f or storage.
Proper preparation helps prevent
deterioration and makes it easier to
get your vehicle back on the road. If
possible, store your vehicle indoors.Fill the f uel tank.
Change the engine oil and f ilter.
Wash and dry the exterior
completely.
Cleantheinterior.Makesurethe
carpeting, floor mats, etc. are
completely dry.
Leave the parking brake off. Put
the transmission in Reverse
(manual) or Park (automatic).
Block the rear wheels. If the vehicle is to be stored f or a
longer period, it should be
supported on jackstands so the
tires are of f the ground.
Leave one window open slightly (if
the vehicle is being stored
indoors).
Disconnect the battery.
Support the f ront wiper blade
arms with a f olded towel or rag so
they do not touch the windshield.
To minimize sticking, apply a
silicone spray lubricant to all door
and trunk seals. Also, apply a
vehiclebodywaxtothepainted
surfaces that mate with the door
and trunk seals.
Cover the vehicle with a
‘‘breathable’’ cover, one made
f rom a porous material such as
cotton. Non-porous materials, suchas plastic sheeting, trap moisture,
which can damage the paint.
If possible, periodically run the
engine until it reaches f ull
operating temperature (the
cooling f ans cycle on and of f
twice). Pref erably, do this once a
month.
If you store your vehicle f or 1 year or
longer, have your Honda dealer
perf orm the inspections as soon as
youtakeitoutof storage(seepages and ). The 6-cylinder model
needs the inspections called f or in
the 2 years/30,000 miles (48,000 km)
maintenance schedule (Normal
Conditions) and the 4-cylinder model
needs the inspections called f or in
the 2 years/40,000 miles (64,000 km)
maintenance schedule (Normal
Conditions). The replacements
called f or in the maintenance
schedule are not needed unless the
vehicle has actually reached that
time or mileage. 205 210
Vehicle Storage
Maint enance254
——y
y
(%
yy

This section covers the more
common problems that motorists
experience with their vehicles. It
gives you inf ormation about how to
safely evaluate the problem and what
to do to correct it. If the problem has
stranded you on the side of the road,
you may be able to get going again.
If not, you will also f ind instructions
on getting your vehicle towed.......................
Compact Spare Tire . 256
....................
Changing a Flat Tire . 257
.............
If the Engine Won’t Start . 262
................................
Jump Starting . 264
..............
If the Engine Overheats . 266
.........
Low Oil Pressure Indicator . 268
..........
Charging System Indicator . 269
.......
Malf unction Indicator Lamp . 269
...............
Brake System Indicator . 271
......................
Emergency Towing . 272
..................
Closing the Moonroof . 274
..............................................
Fuses . 275
..............................
Fuse Locations . 278
Taking Care of the Unexpected
T aking Care of t he Unexpect ed255
——y
y
(%
yy

Use the compact spare tire as a
temporary replacement only. Get
your regular tire repaired or replaced
and put it back on your vehicle as
soon as you can.Follow these precautions:
Never exceed 50 mph (80 km/h)
under any circumstances.
This tire gives a harsher ride and
less traction on some road sur-
f aces. Use greater caution while
driving.
Do not mount snow chains on it.
Do not use your compact spare
tire on another vehicle unless it is
thesamemakeandmodel.
Do not use the compact spare tire
if you are towing a trailer.
Turn off the Traction Control
System (see page ). Driving
withthecompactsparetiremay
activate the TCS. Replace the tire when you can see
the tread wear indicator bars. The
replacement should be the same size
and design tire, mounted on the
same wheel. The spare tire is not
designed to be mounted on a regular
wheel, and the spare wheel is not
designed f or mounting a regular tire.
Check the compact spare tire
inf lation pressure every time you
check the other tires. It should be
inf lated to:
192
On all V6 models
Compact Spare Tire
T aking Care of t he Unexpect ed256
INDICATOR LOCATION MARKTREAD WEAR INDICATOR BAR
60 psi (420 kPa , 4.2 kgf/cm)
——y
y
(%
yy

CONT INUED
If you have a f lat tire while driving,
stop in a saf e place to change it.
Drive slowly along the shoulder until
you get to an exit or an area that is
far away from the traffic lanes.Park the vehicle on f irm, level and
non-slippery ground. Put the
transmission in Park (automatic)
or Reverse (manual). Apply the
parking brake.
If you are towing a trailer, unhitch
the trailer.
Turn on the hazard warning
indicators, and turn the ignition
switch to LOCK (0). Have all the
passengers get out of the vehicle
while you change the tire.The tools are in the trunk. Open
the trunk and raise the trunk f loor
by lif ting up on the back edge.
Take the tool kit out of the trunk.
Unscrew the wing bolt and take
the spare tire out of its well.
5.
4.
3.
2. 1.
Changing a Flat T ire
T aking Care of t he Unexpect ed257
TRUNK FLOOR
SPARE TIRE JACK
TOOL KIT
The vehicle can easily roll off
the jack, seriously injuring
anyone underneath.
Follow the directions for
changing a tire exactly, and
never get under the vehicle
when it is supported only by thejack.
——y

y
(%
yy

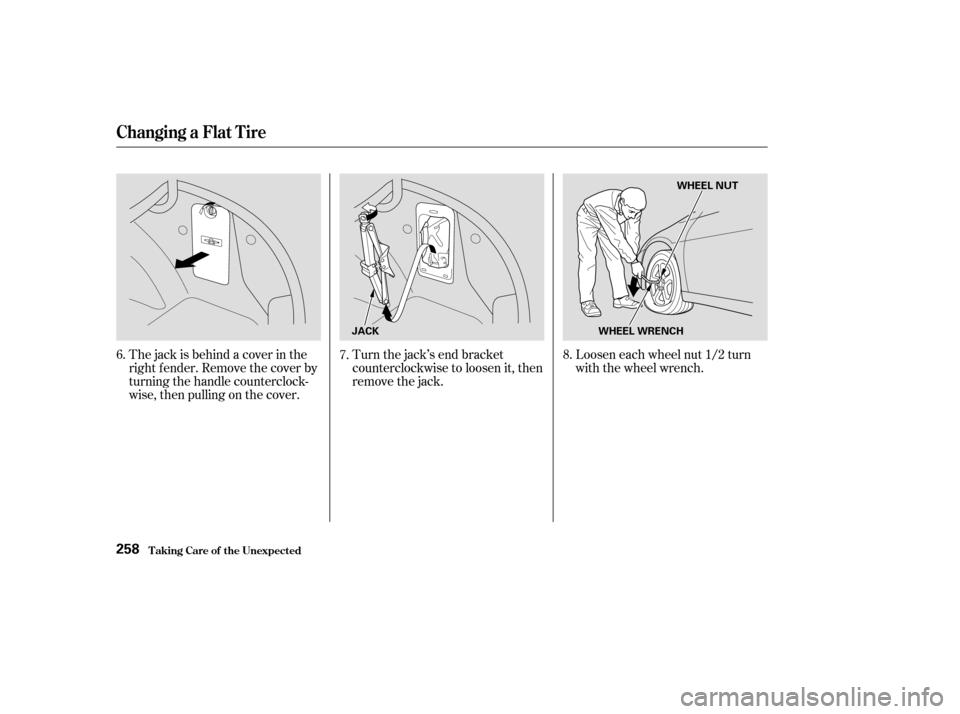

The jack is behind a cover in the
right f ender. Remove the cover by
turning the handle counterclock-
wise, then pulling on the cover.Turn the jack’s end bracket
counterclockwise to loosen it, then
remove the jack.
Loosen each wheel nut 1/2 turn
with the wheel wrench.
6.
7.8.
Changing a Flat T ire
T aking Care of t he Unexpect ed258
JACK
WHEEL WRENCHWHEEL NUT
——y
y
(%
y
y

CONT INUED
Place the jack under the jacking
point nearest the tire you need to
change. Turn the end bracket
clockwise until the top of the jack
contacts the jacking point. Make
sure the jacking point tab is
restinginthejacknotch.Use the extension and wheel
wrench as shown to raise the
vehicle until the f lat tire is of f the
ground.
Remove the wheel nuts, then
remove the f lat tire. Handle the
wheel nuts caref ully; they may be
hot f rom driving. Place the f lat tire
on the ground with the outside
surface facing up.Do not attempt to forcibly pry the
wheel cover of f with a screwdriver or
other tool. The wheel cover cannot
be removed without f irst removing
the wheel nuts.
9.
10.
11.On LX and LX-V6 models
Changing a Flat T ire
T aking Care of t he Unexpect ed259
JACKING POINT WHEEL WRENCHWHEEL COVER
WHEEL NUTS WHEEL NUTS
——y

y
(%
yy

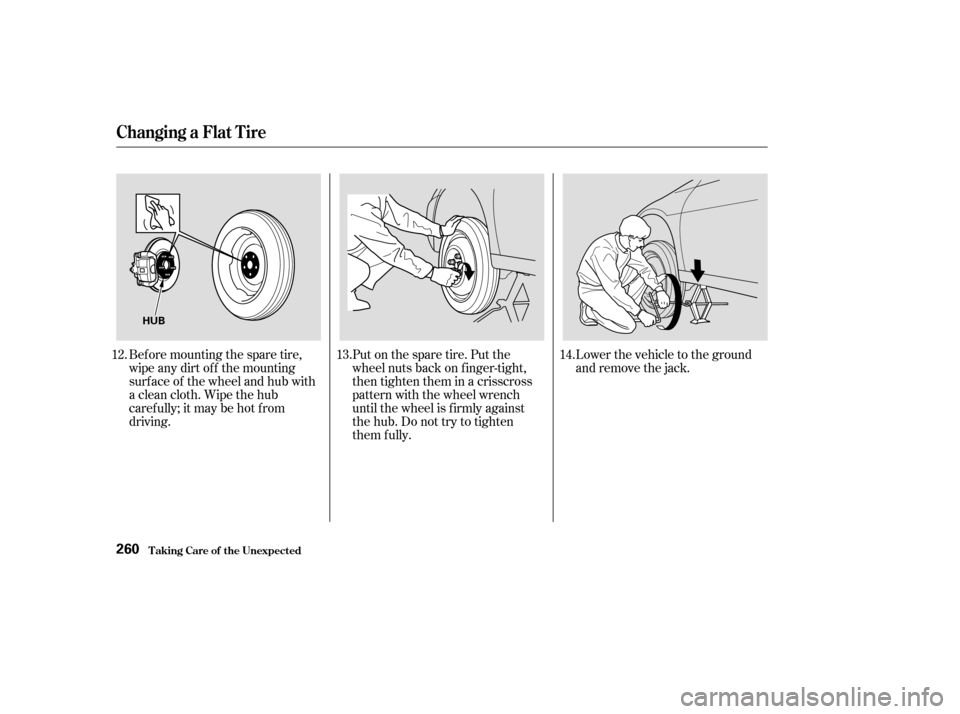

Lower the vehicle to the ground
and remove the jack.
Bef ore mounting the spare tire,
wipeanydirtoff themounting
surface of the wheel and hub with
a clean cloth. Wipe the hub
carefully;itmaybehotfrom
driving. Put on the spare tire. Put the
wheel nuts back on f inger-tight,
then tighten them in a crisscross
pattern with the wheel wrench
until the wheel is f irmly against
the hub. Do not try to tighten
them f ully.
13. 14.
12.
Changing a Flat T ire
T aking Care of t he Unexpect ed260
HUB
——y
y
(%
yy

CONT INUED
Tighten the wheel nuts securely in
the same crisscross pattern. Have
the wheel nut torque checked at
the nearest automotive service
f acility.
Tighten the wheel nuts to:Remove the center cap before
storing the f lat tire in the trunk
well.
Place the flat tire face down in the
spare tire well.
Remove the spacer cone f rom the
wing bolt, turn it over, and put it
back on the bolt.
Secure the f lat tire by screwing
the wing bolt back into its hole.
15. 16. 17.
18.
19.EX and EX-V6 models
Changing a Flat T ire
T aking Care of t he Unexpect ed261
WING BOLT
SPACER CONEFor
sparetire
For
normaltire
80 lbf·ft (108 N·m , 11 kgf·m)
——y
y
(%
yy
