HONDA ACCORD COUPE 2006 CL7 / 7.G Repair Manual

This indicator normally comes on for
a few seconds when you turn the
ignition switch to the ON (II)
position. If it comes on at any other
time, there is a problem with the
ABS. If this happens, have your
vehicle checked at a dealer. With
this indicator on, your vehicle still
has normal braking ability but no
anti-lock function. For more
info rmation, see page . This
indicator comes on for a few
seconds when you turn the ignition
switch to the ON (II) position. It will
then go off if you have inserted a
properly-coded ignition key. If it is
not a properly-coded key, the
indicator will blink, and the engine
will not start (see page ).
This indicator also blinks several
times when you turn the ignition
switch from the ON (II) position to
the ACCESSORY (I) or the LOCK
(0) position. The
left or right turn signal indicator
blinks when you signal a lane change
or turn. If the indicator does not
blink or blinks rapidly, it usually
means one of the turn signal bulbs is burned out (see page ). Replace
the bulb as soon as possible, since
other drivers cannot see that you are
signaling.
When you press the hazard warning
button, both turn signal indicators
blink. All turn signals on the outside
of the vehicle should f lash.
75
249
209
Anti-lock Brake System
(A BS) Indicator
Immobilizer System
Indicator Turn Signal and
Hazard Warning
Indicators
Instrument Panel Indicators
Inst rument s and Cont rols
59
——y

y
(%yy

This indicator is located in the fuel
gauge. It comes on as a reminder
that you must refuel soon.
When the indicator comes on, there
are about 2.72 U.S. gal (10.3
)of
fuel remaining in the tank before the
needle reaches E. There is a small
reserve of fuel remaining in the tank
when the needle does reach E.
This indicator reminds you that the
exterior lights are on. It comes on
when the light switch is in either the
or position. If you turn the
ignition switch to the ACCESSORY
(I) or LOCK (0) position without
turning off the light switch, this
indicator will stay on. A reminder
chime will also sound when you open
the driver’s door.
This indicator c omes on when the
washer fluid level is low. Add washer
fluid when you see this indicator (see page ).
If this indicator comes on when the
ignition switch is turned to the ON
(II) position and the parking brake is
released, it means there is a problem
in the high beam headlight’s circuit.
Have your vehicle c
hecked by your
dealer.
When the daytime running lights
(DRL) are on, this indicator comes
on with reduced brightness (see
page ).
This
indicator comes on with the
high beam headlights. For more
info rmation, see p age .69
70 238
Canadian models only
Instrument Panel Indicators
‘‘Daytime Running
Lights’’ Indicator Low Fuel Indicator
Lights On Indicator
Washer Level Indicator
High Beam Indicator
60
LOW FUEL INDICATOR
——y

y
(%yy

This indicator comes on when the
security system is set. For more info rmation, see p age .
The specific door indicator comes on
in this monitor if either door is not
fully closed.
The trunk indicator comes on when
the trunk is opened or if it is not fully
closed.
All the indicators in the monitor
come on for a few seconds when you
turn the ignition switch to the ON
(II) position.
If the remaining engine oil life is
more than 16 percent, this indicator
comes on for a few seconds when
you turn the ignition switch to the
ON (II) position.
This indicator reminds you that it is
time to take your vehicle in for
scheduled maintenance. The
maintenance
main items and sub
items will be displayed in the
information display. See page for
more inf ormation on the
maintenance minder.
This indicator goes of f when your
dealer resets it after completing the
required maintenance service. 174
221 Security System Indicator
Maintenance Minder
Indicator Door and T runk Open Monitor
Instrument Panel Indicators
Inst rument s and Cont rols
61
SECURITY SYSTEM INDICATOR
——y
y
(%yy

On all V6 models On all V6 models
This indicator normally comes on for
a few seconds when you turn the
ignition switch to the ON (II)
position.
Ifitcomesonandstaysonatany
other time, or if it does not come on
when you turn the ignition switch to
the ON (II) position, there is a
problem with the VSA system. Take
your vehicle to a dealer to have it
checked. Without VSA, your vehicle
still has normal driving ability, but
will not have VSA traction and
stability enhancement. See pagefor more information on the
VSA system. This indicator c
omes on when you
turn on the cruise control system by
pressing the CRUISE button (see page ).
This indicator c omes on when you
set the cruise control. See page for information on operating the
cruise control.
This indicator h
as three functions:
Itcomesonasareminderthatyou
have turned off the vehicle
stability assist (VSA) system.
It flashes w hen VSA is active (see
page ).
It comes on along with the VSA
system indicator if there is a
problem with the VSA system.
This indicator normally comes on for
a few seconds when you turn the
ignition switch to the ON (II)
position. For more information, see page .
1.
2.
3.
211 211
211 175
175
Instrument Panel Indicators
Vehicle Stability Assist
(VSA ) System Indicator Cruise Main Indicator
Cruise Control Indicator
VSA A ctivation Indicator
62
——y
y
(%yy

To switch the information display
between the odometer/trip meter,
outside temperature/trip meter (if
equipped), and engine oil lif e and
maintenance item code(s), press the
Select/Reset knob repeatedly.
This shows the total distance your
vehicle has been driven. It measures
miles in U.S. models and kilometers
in Canadian models.
It is illegal under U.S. f ederal law and
Canadian provincial regulations to
disconnect, reset, or alter the
odometer with the intent to change
the number of miles or kilometers
indicated. When you turn the ignition switch to
the ON (II) position, your last
selection appears in the display.
Gauges
Odometer
Inst rument s and Cont rols
63

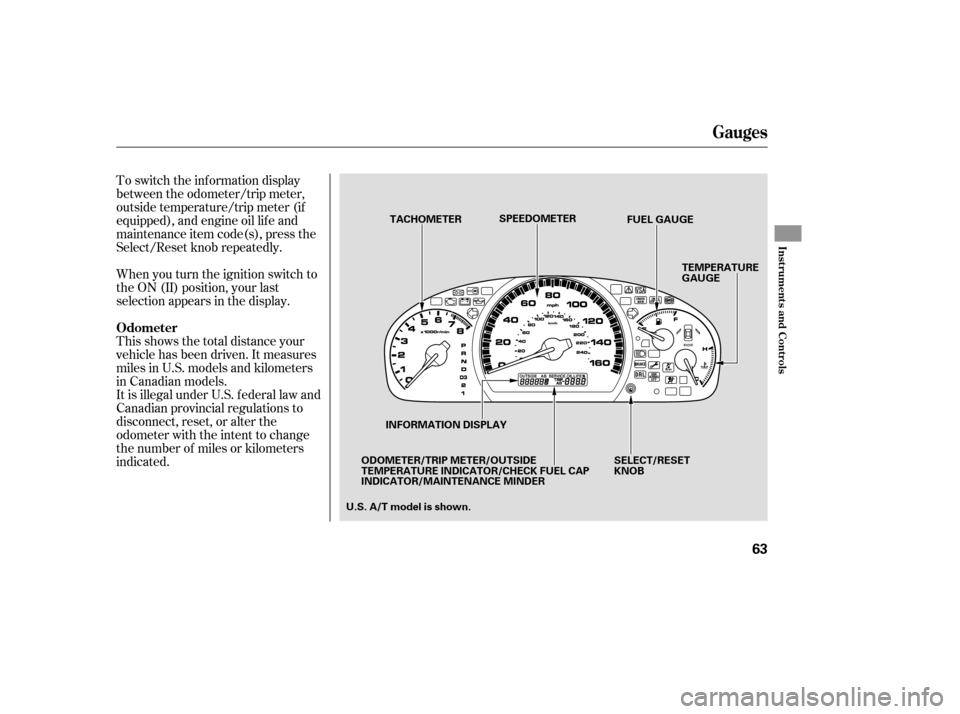

TACHOMETERSPEEDOMETER
FUEL GAUGE
SELECT/RESET
KNOB TEMPERATURE
GAUGE
INFORMATION DISPLAY
U.S. A/T model is shown. ODOMETER/TRIP METER/OUTSIDE
TEMPERATURE INDICATOR/CHECK FUEL CAP
INDICATOR/MAINTENANCE MINDER
——y
y
(%yy

This shows how much fuel you have.
It may show slightly more or less
than the actual amount. The needle
returns to the bottom after you turn
off the ignition. This
shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise
from the bottom white mark to about
the middle of the gauge. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the pointer may rise into the
upperhalfofthegauge.Ifitreaches
the red (Hot) mark, pull safely to the side of the road. See page for
instructions and precautions on
checking the engine’s cooling
system.
This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters: Trip A
and Trip B. Switch between them by
pressing the Select/Reset knob
repeatedly. Each trip meter works
independently, so you can keep track
of two dif f erent distances.
To reset a trip meter, display it and
then press and hold the select/reset
knob until the number resets to ‘‘0.0’’.
274
Fuel Gauge T emperature Gauge
Trip Meter
Gauges
64
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
——y
y
(%yy

¶¶µµ
µµµ
µµµ
In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace. When the temperature reaches the
desired value, release the Select/
Reset knob. You should see the new
outside temperature displayed. NOTE: The temperature must be
stabilized bef ore doing this
procedure. If the outside temperature is
incorrectly displayed, you can adjust
it 5°F in U.S. models ( 3°C in
Canadian models) warmer or cooler.
This indicator displays the outside
temperature in Fahrenheit (U.S.
models) or Centigrade (Canadian
models). To see the outside
temperature, press and release the
Select/Reset knob until the
temperature is displayed.
The temperature sensor is in the
f ront bumper. Theref ore, the
temperature reading can be af f ected
by heat ref lection f rom the road
surf ace, engine heat, and the
exhaust f rom surrounding traf f ic.
This can cause an incorrect
temperature reading when your
speed is under 19 mph (30 km/h).
The sensor delays the indicator
update until it reaches the correct
outside temperature. This may take
several minutes. Select the outside temperature
indicator, then press the Select/
Reset knob f or 10 seconds. The
f ollowing sequence will appear f or 1
secondeach:0,1,2,3,4,5, 5, 4,
3, 2, 1, 0 (U.S.) or 0, 1, 2, 3,
3, 2, 1, 0 (Canada). If you f uel cap is loose or missing, a
‘‘CHECK FUEL CAP’’ message
appears in the information display
af ter you start the engine. Turn the
engine of f and conf irm the f uel cap is
installed. If it is, loosen the cap, then
retighten it until it clicks at least
once. When you restart the engine,
the message appears again. To clear
the message, press and release the
Select/Reset knob.
CONT INUED
On 4-cylinder EX-L and 6-cylinder EX
models
Outside Temperature Indicator Check Fuel Cap Indicator
Gauges
Inst rument s and Cont rols
65
——y

y
(%yy

Î
Î
Î
Î Î
Î
To
use the horn, press the pad around the ‘‘H’’ logo.
If equipped.
1:
2:
Controls
Near the Steering Wheel
Instru m ent sand Cont ro ls
67
EX-V6 model without navigation system is shown. CRUISE
CONTROLS
TILT/TELESCOPIC ADJUSTMENT
REMOTE
AUDIO
CONTROLS
HEADLIGHTS/
TURN
SIGNALS WINDSHIELD
WIPERS/WASHERS
REAR WINDOW
DEFOGGER AUDIO SYSTEM
HAZARD
WARNING
BUTTON PASSENGER
AIRBAG OFF
INDICATOR
(P.69) HORN
MOONROOF
SWITCH
(P.94) (P.73)INSTRUMENT
PANEL
BRIGHTNESS (P.71)
(P.68)
(P.29)
(P.71)
(P.72)
SEAT HEATERS
(P.90)
(P.171)
(P.212) (P.124)
(P.175)
VEHICLE
STABILITY ASSIST
OFF SWITCH
1
2 2
2
——y
y
(%yy

µ
µ
µ µ
µ
µ µ
µ
µ
MIST
OFF
INT Intermittent
LO Low speed
HI High speed
Windshield washers
Push the right lever up or down to
select a position. The wipers are not activated.
Vary the delay by turning the INT
TIME ring.
If youturnittotheshortestdelay,
the wipers will change to low
speed operation when the vehicle
speed exceeds 12 mph (20 km/h).
While the vehicle is stopped and in
gear, the wipers sweep the
windshield whenever you remove
your f oot f rom the brake pedal. The wipers run at low speed.
The wipers run at high speed. Pull the
wiper control lever toward you, and
hold it. The washers spray until you
release the lever. The wipers run at
low speed, then complete one more
sweep after you release the lever.
The wipers run at high
speed until you release the lever.
The length of the wiper
interval is varied automatically
according to the vehicle’s speed.
1.
2.
3.
4.
5.
6 Windshield Wipers OFF
LO
HIWindshield Washers
MIST
INT
Windshield Wipers and Washers
68
——y
y
(%y
y
