HONDA ACCORD COUPE 2006 CL7 / 7.G Owners Manual

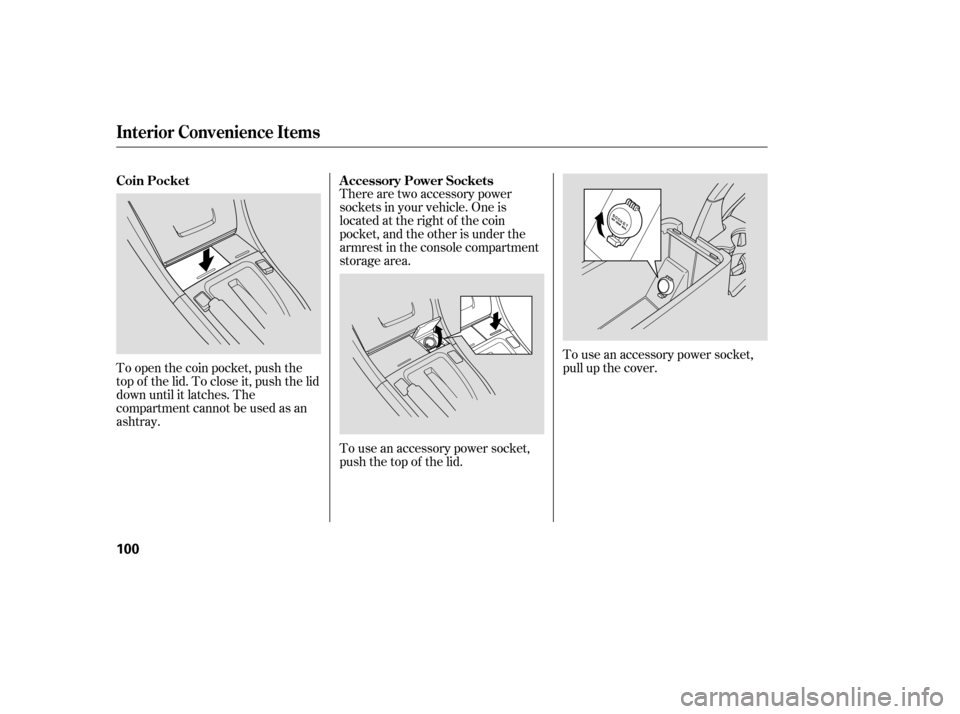

To open the console compartment,
pull up on the right lever and lif t the
armrest.
To close, lower the armrest, and
push it down until it latches.You can put small items in the tray
located in the console compartment
lid. To use the tray, pull up on the
lef t lever and lif t up the armrest.
Thetrayintheconsolecompartment
has a coin holder.To open the center CD pocket, push
down on the center of the lid to
unlatch it. It will swing open
automatically. To close it, push the
lid down until it latches. This pocket
can store up to 12 CDs.On vehicles without navigation system
Console Compartment
Center CD Pocket
Interior Convenience Items
Inst rument s and Cont rols
99
CONSOLE COMPARTMENT
RIGHT LEVER
LEFT LEVER
Push
——y
y
(%y
y

To open the coin pocket, push the
top of the lid. To close it, push the lid
down until it latches. The
compartmentcannotbeusedasan
ashtray.There are two accessory power
sockets in your vehicle. One is
locatedattherightofthecoin
pocket, and the other is under the
armrest in the console compartment
storage area.
To use an accessory power socket,
push the top of the lid.
To use an accessory power socket,
pull up the cover.
Coin Pocket A ccessory Power Sockets
Interior Convenience Items
100
——y
y
(%y
y

In this position, the sun visor can be
adjusted by moving it on its slider.
Make sure you put the sun visor
back in place when you are getting
into or out of the vehicle.Pull up the vanity mirror cover to use
it. The lights beside the mirror come
on when you pull up the cover.
These sockets are intended to supply
power f or 12 volt DC accessories
that are rated 120 watts or less (10
amps).
To use an accessory power socket,
the ignition switch must be in the
ACCESSORY (I) or ON (II) position.
None of the sockets will power an
automotive type cigarette lighter
element. When more than one
socket is being used, the combined
power rating of the accessories
should be 120 watts or less
(10 amps).
To use the sun visor, pull it down.
Whenusingthesunvisorforthe
side window, remove the support rod
f rom the clip, and swing it out.
Do not use the sun visor extension
over the inside mirror. Sun Visor Vanity Mirror
Interior Convenience Items
Inst rument s and Cont rols
101
SUN VISOR
——y

y
(%y
y

To open the sunglasses holder, push
ontherearedge.Makesurethe
holder is closed while you are driving.
Some larger styles of sunglasses
may not f it in the holder.
You may also store small items in
thisholder.Makesuretheyare
small enough to let the holder close
and latch, and that they are not
heavy enough to cause the holder to
pop open while driving.To use a coat hook, pull it down.
Close it with a f irm push.
Make sure the coat hook is closed
when you are not using it. This hook
is not designed f or large or heavy
items.
The ceiling light has a three-position
switch; ON, Door Activated (center),
and OFF.
Sunglasses Holder Coat Hook Ceiling L ight
Interior Convenience Items, Interior L ights
102
COAT HOOK
DOOR ACTIVATED
OFF ON
——y
y
(%y
y

The f ront ceiling light has a two-
position switch; Door Activated and
OFF.In the Door Activated position both
ceiling lights, the light comes on
when you:
Open either door.
Unlock the driver’s door with the
master door lock switch, lock tab,
key, or the remote transmitter.
Remove the key from the ignition
switch.
Af ter both doors are closed tightly,
the light(s) dims slightly, then f ade
out in about 30 seconds.
If you do not open either door af ter
unlocking the driver’s door or
removing the key from the ignition
switch, the light(s) f ades out in
about 30 seconds.
If you leave either door open without
the key is in the ignition switch, the
ceiling light(s) will go of f af ter 3
minutes. Turn on a spotlight by pushing the
lens. Push the lens again to turn it
of f . You can use the spotlights at all
times.
On EX, EX-L, and EX-V6 models
Interior Lights
Spotlights
Inst rument s and Cont rols
103
DOOR
ACTIVATED
OFF LX and LX-V6 models
EX, EX-L, and EX-V6 models
——y

y
(%y
y

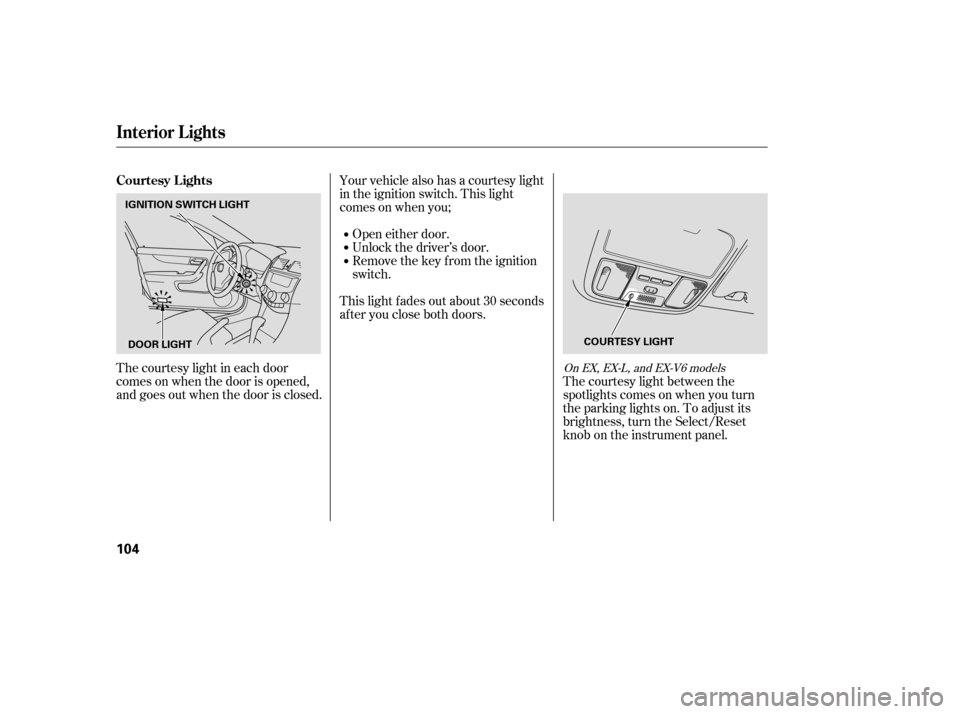

The courtesy light in each door
comes on when the door is opened,
and goes out when the door is closed.Your vehicle also has a courtesy light
in the ignition switch. This light
comesonwhenyou;
Open either door.
Unlock the driver’s door.
Remove the key from the ignition
switch.
This light f ades out about 30 seconds
af ter you close both doors.
The courtesy light between the
spotlights comes on when you turn
the parking lights on. To adjust its
brightness, turn the Select/Reset
knob on the instrument panel.On EX, EX-L, and EX-V6 models
Interior Lights
Courtesy Lights
104
IGNITION SWITCH LIGHT
DOOR LIGHT COURTESY LIGHT
——y
y
(%y
y

The standard audio system has
many f eatures. This section de-
scribes those f eatures and how to
use them.
Your vehicle has an anti-theft audio
system that requires a code number
to enable it. The heating and cooling system in
your vehicle provides a comf ortable
driving environment in all weather
conditions.......
Heating and Cooling System .106
......................
Heating and A/C .108
..........
Climate Control System .113
Climate Control System
.......
with navigation system .117
.........
Dual Temperature Control .121
.............
Climate Control Sensors .123
...............................
Audio System .124
.................
AM/FM/CD Player .126
............
AM/FM/CD Changer .136
AM/FM/CD Changer
.......
with navigation system .149
...........
AM/FM Radio Reception .164
...
XM
Satellite Radio Reception . 166
...................
Protecting Your CDs .169
.........
Caring f or the Tape Player . 170
...............
Remote Audio Controls . 171
................
Radio Thef t Protection . 172
.........................
Setting the Clock .173
...........................
Security System .174
..............................
Cruise Control .175
HomeLink Universal ...............................
Transceiver .178
The security system helps to
discourage vandalism and thef t of
your vehicle.
On all models except the 4-cylinder LX
Features
Features
105
——y
y
(%y
y

Read the appropriate pages in this
section for operation of the heating
and cooling systems installed in your
vehicle.
See pages to for the
manual system.
See pages to for the
automatic system.
See pages to for the
automatic system with navigation
system.
You can control the driver and the
passenger side temperatu re
independently.
The dual temperature control is
ref erred to page to . 121 122112108
116120117
113
On EX-L and EX-V6 models
Heating and Cooling System
106
(LX,EX and LX-V6 models)
Automatic System Manual System
(EX-L and EX-V6 models without navigation system) U.S. models Canadian models
——y


y
(%y
y

Heating and Cooling System
Features
107
Automatic A/C System with navigation system
(EX-L and EX-V6 models)
U.S. models shown.
——y

y
(%y

y

Turn the dial clockwise to increase
the fan speed and airflow. Turn the
dial counterclockwise to decrease it.
Turning this dial clockwise increases
the temperature of the airflow.
This button turns the air
conditioning on and of f . The
indicator above the button is on
when the A/C is on. Fan Control Dial
T emperature Control Dial
Air Conditioning (A/C) Button
Heating and A /C
108
FAN CONTROL DIALTEMPERATURE
CONTROL DIAL
MODE BUTTONS
RECIRCULATION BUTTON
MAX A/C BUTTON REAR WINDOW
DEFOGGER
BUTTON
AIR CONDITIONING
(A/C) BUTTON LX, EX, and LX-V6 models
——y
y
(%y


y
