Check the condition of the battery
monthlybylookingatthetest
indicator window. The label on the
battery explains the test indicator’s
colors. Check the terminals f or corrosion (a
white or yellowish powder). To
remove it, cover the terminals with a
solution of baking soda and water. It
will bubble up and turn brown. When
this stops, wash it of f with plain
water. Dry off the battery with a
cloth or paper towel. Coat the
terminals with grease to help prevent
f uture corrosion. Battery posts,
terminals, and related accessories
contain lead and lead compounds.
If you need to connect the battery to
a charger, disconnect both cables to
prevent damaging your vehicle’s
electrical system. Always disconnect
the negative ( ) cable first, and
reconnect it last. If additional battery maintenance is
needed, see your dealer or a
qualif ied mechanic.
The location of the test indicator
window varies between
manuf acturers. WARNING:
Wash your hands af ter handling.
Checking the Battery
388
TEST INDICATOR WINDOW
TEST INDICATOR WINDOW
V6 models
4-cylinder models
10/06/18 16:32:32 31TA5630_393
2011 Accord Sedan

Fill the f uel tank.
Wash and dry the exterior
completely.
Clean the interior. Make sure the
carpeting, floor mats, etc., are
completely dry.
If you need to park your vehicle f or
an extended period (more than 1
month), there are several things you
should do to prepare it f or storage.
Proper preparation helps prevent
deterioration and makes it easier to
get your vehicle back on the road. If
possible, store your vehicle indoors.
If your vehicle’s battery is
disconnected, or goes dead, the time
setting may be lost. To reset the time,
see page .
If your vehicle’s battery is
disconnected or goes dead, the audio
system may disable itself . The next
timeyouturnontheradio,youwill
see ‘‘ENTER CODE’’ in the
f requency display. Use the preset
buttons to enter the code (see page
).
The navigation system will also
disableitself.Thenexttimeyouturn
on the ignition switch, the system
will require you to enter a PIN
bef ore it can be used. Ref er to the
navigation system manual. 254
CONT INUED
On models with navigation system
Except LX, LX-P
andU.S. SE
Vehicle Storage
Checking the Battery, Vehicle Storage
Maint enance
389
The battery gives off explosive
hydrogen gas during normal
operation.
A spark or flame can cause the
battery to explode with enough
force to kill or seriously hurt you.
Wear protective clothing and a
face shield, or have a skilled
technician do the battery
maintenance.
10/06/18 16:32:41 31TA5630_394
page 253
2011 Accord Sedan

Support the f ront wiper blade
arms with a f olded towel or rag so
they do not touch the windshield.
To minimize sticking, apply a
silicone spray lubricant to all door
and trunk seals. Also, apply a
vehiclebodywaxtothepainted
surfaces that mate with the door
and trunk seals.
Cover the vehicle with a
‘‘breathable’’ cover, one made
f rom a porous material such as
cotton. Non-porous materials, such
as plastic sheeting, trap moisture,
which can damage the paint.
Leave the parking brake off. Put
the transmission in reverse
(manual) or Park (automatic).
If possible, periodically run the
engine until it reaches f ull
operating temperature (the
cooling f ans cycle on and of f
twice). Preferably, do this once
Block the rear wheels.
If the vehicle is to be stored f or a
longer period, it should be
supported on jackstands so the
tires are of f the ground.
Leave one window
open slightly
Disconnect the battery.
Vacuum dirt and dust f rom the
leather f requently. Pay close
attention to the pleats and seams.
Clean the leather with a sof t cloth
dampened with a 90% water and 10%
neutral wool detergent solution.
Then buf f it with a clean, dry cloth.
Remove any dust or dirt on leather
surf aces immediately.
If equipped
Vehicle Storage, Interior Care
Leather
390
10/06/18 16:32:49 31TA5630_395
(if the vehicle is
being stored indoors).
a month.
2011 Accord Sedan

This section covers the more
common problems that motorists
experience with their vehicles. It
gives you inf ormation about how to
safely evaluate the problem and what
to do to correct it. If the problem has
stranded you on the side of the road,
you may be able to get going again.
If not, you will also f ind instructions
on getting your vehicle towed.......................
Compact Spare Tire .392
....................
Changing a Flat Tire .393
.............
If the Engine Won’t Start . 398
................................
Jump Starting .400
..............
If the Engine Overheats . 403
.........
Low Oil Pressure Indicator . 405
..........
Charging System Indicator . 405
.......
Malf unction Indicator Lamp . 406
...............
Brake System Indicator . 407
..............................................
Fuses .408
..............................
Fuse Locations .412
......................
Emergency Towing .415
Taking Care of the Unexpected
T aking Care of t he Unexpect ed
391
10/06/18 16:32:52 31TA5630_396
2011 Accord Sedan

Check the air pressure of the
compact spare tire every time you
check the other tires. It should be
inf lated to:Replace the tire when you can see
the tread wear indicator bars. The
replacement should be the same size
and design tire, mounted on the
same wheel. The spare tire is not
designed to be mounted on a regular
wheel, and the spare wheel is not
designed f or mounting a regular tire.
Use the compact spare tire as a
temporary replacement only. Get
your regular tire repaired or replaced,
and put it back on your vehicle as
soon as you can.
Do not mount snow chains on the
compact spare tire.
Follow these precautions:
Never exceed 50 mph (80 km/h).
This tire gives a harsher ride and
less traction on some road
surf aces. Use greater caution
while driving.
Do not use your compact spare
tire on another vehicle unless it is
thesamemakeandmodel.
The low tire pressure indicator
comes on and stays on af ter you
replace the flat tire with the
compact spare tire. Af ter several
miles (kilometers) driving with the
compact spare tire, the TPMS
indicator comes on and the low
tire pressure indicator goes of f .
Compact Spare Tire
392
INDICATOR LOCATION MARK
TREAD WEAR INDICATOR BAR
60 psi (420 kPa , 4.2 kgf/cm)
10/06/18 16:33:01 31TA5630_397
2011 Accord Sedan

CONT INUED
Park the vehicle on f irm, level, and
non-slippery ground. Put the
transmission in Park (automatic)
or reverse (manual). Apply the
parking brake.
If you have a f lat tire while driving,
pull over saf ely. Drive slowly along
the shoulder until you get to an area
far away from traffic lanes.
Turn on the hazard warning lights,
and turn the ignition switch to the
LOCK (0) position. Have all
passengers get out of the vehicle
while you change the tire.

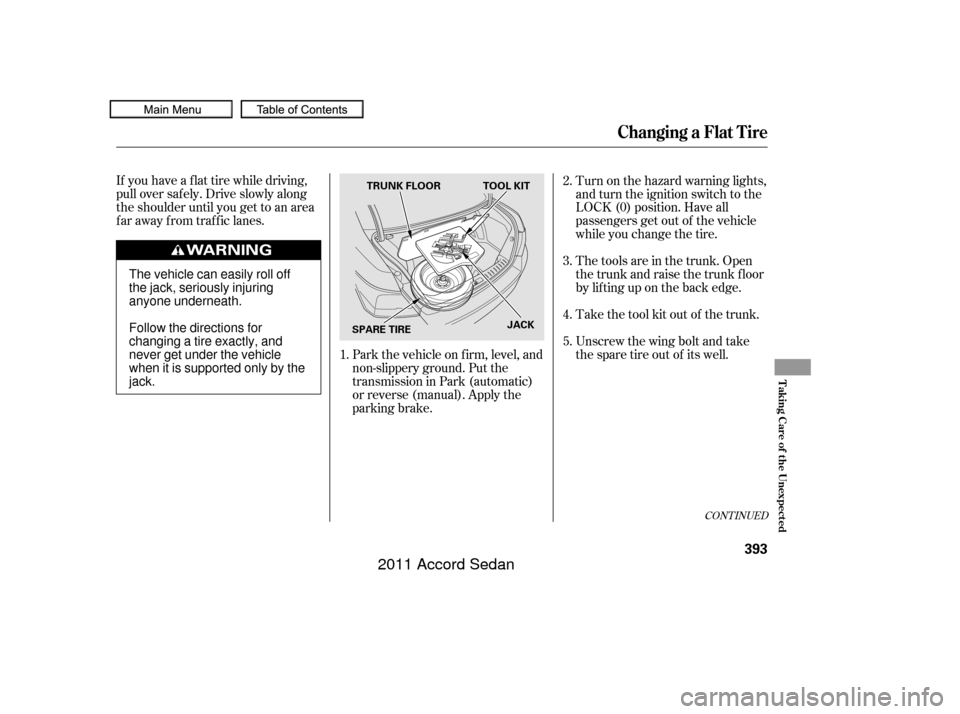

The tools are in the trunk. Open
the trunk and raise the trunk f loor
by lif ting up on the back edge.
Take the tool kit out of the trunk.
Unscrew the wing bolt and take
the spare tire out of its well.
5. 4. 3. 2.
1.
Changing a Flat Tire
T aking Care of t he Unexpect ed
393
TRUNK FLOOR JACK
SPARE TIRE TOOL KIT
The vehicle can easily roll off
the jack, seriously injuring
anyone underneath.
Follow the directions for
changing a tire exactly, and
never get under the vehicle
when it is supported only by the
jack.
10/06/18 16:33:09 31TA5630_398
2011 Accord Sedan

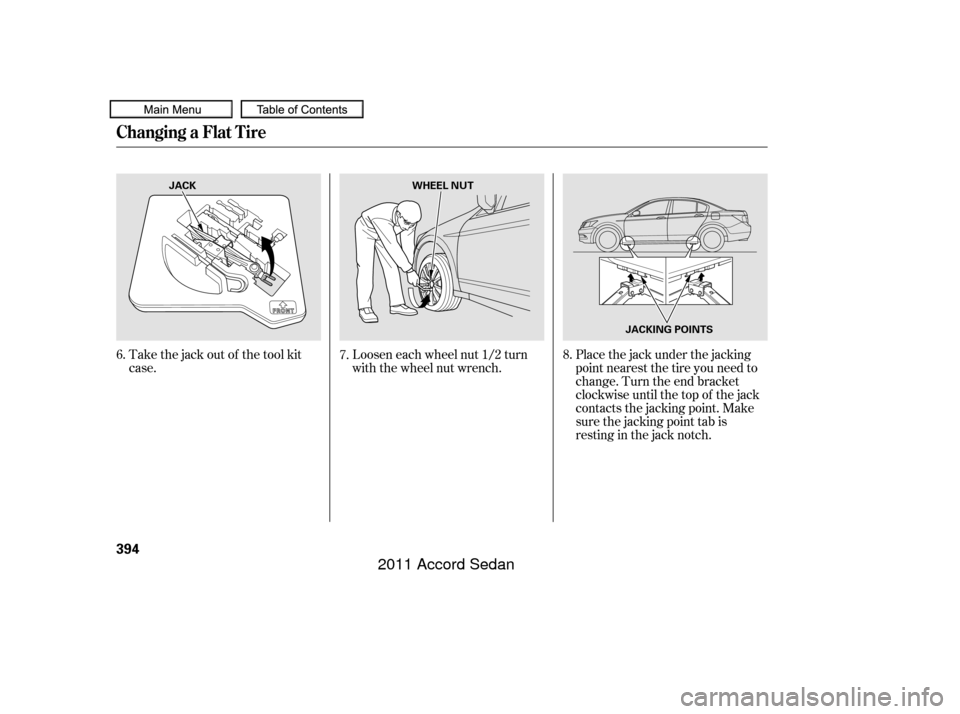

Take the jack out of the tool kit
case.Loosen each wheel nut 1/2 turn
with the wheel nut wrench.Placethejackunderthejacking
point nearest the tire you need to
change. Turn the end bracket
clockwise until the top of the jack
contacts the jacking point. Make
sure the jacking point tab is
restinginthejacknotch.
6.
7.8.
Changing a Flat Tire
394
JACK
WHEEL NUT
JACKING POINTS
10/06/18 16:33:15 31TA5630_399
2011 Accord Sedan

CONT INUED

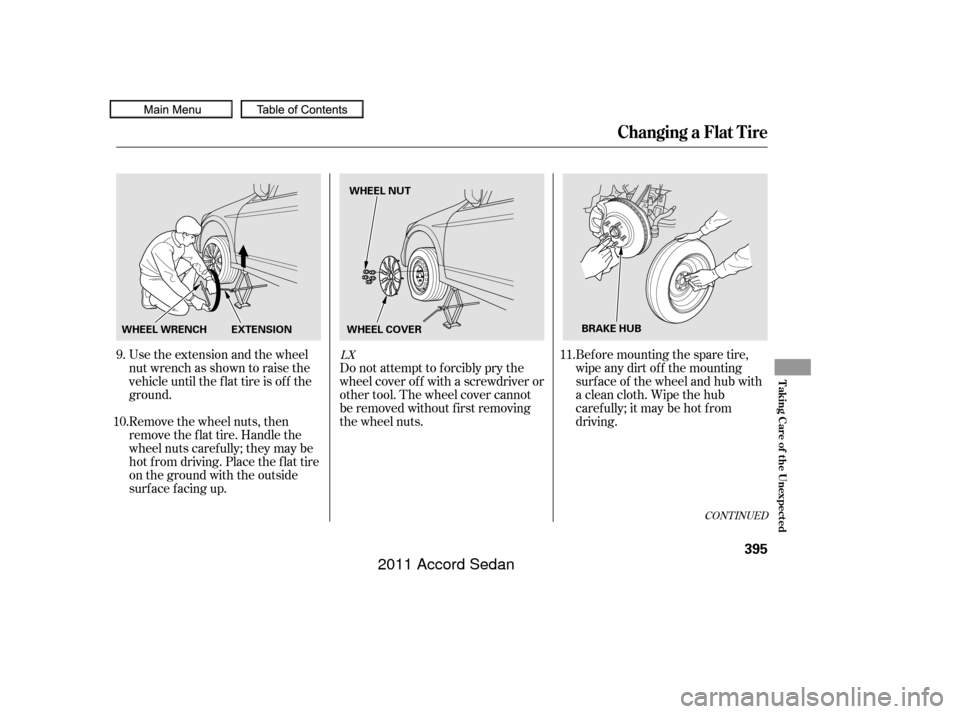

Use the extension and the wheel
nut wrench as shown to raise the
vehicle until the f lat tire is of f the
ground.
Remove the wheel nuts, then
remove the f lat tire. Handle the
wheel nuts caref ully; they may be
hot from driving. Place the flat tire
on the ground with the outside
surface facing up.Do not attempt to forcibly pry the
wheel cover of f with a screwdriver or
other tool. The wheel cover cannot
be removed without f irst removing
the wheel nuts.
Bef ore mounting the spare tire,
wipe any dirt of f the mounting
surface of the wheel and hub with
a clean cloth. Wipe the hub
carefully;itmaybehotfrom
driving.
9.
10. 11.LX
Changing a Flat Tire
T aking Care of t he Unexpect ed
395
WHEEL WRENCH EXTENSIONWHEEL NUT
WHEEL COVER BRAKE HUB
10/06/18 16:33:23 31TA5630_400
2011 Accord Sedan

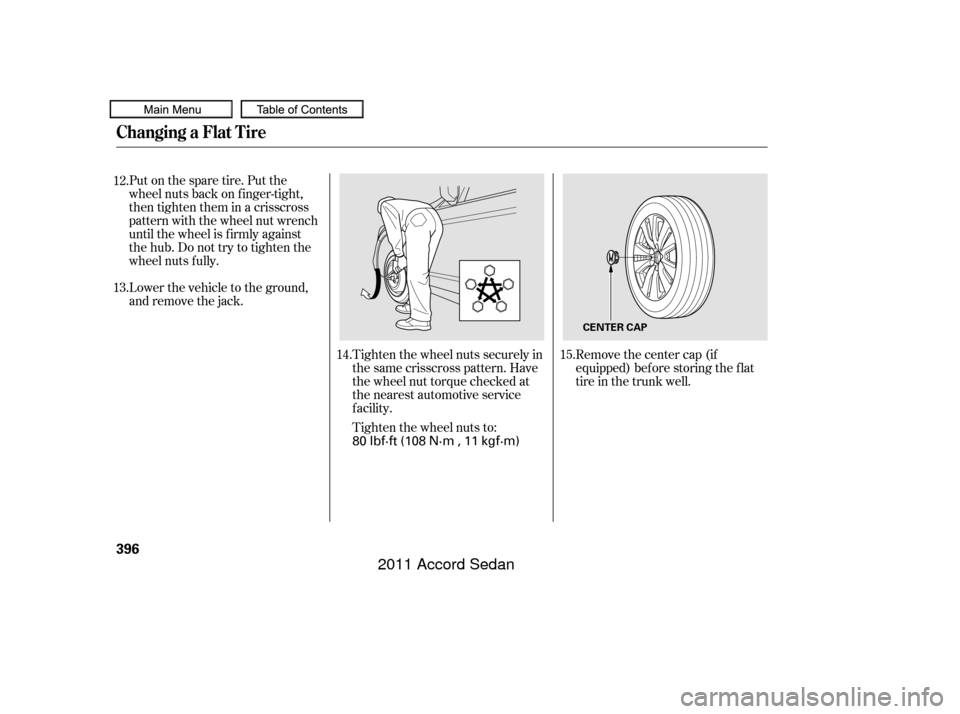

Put on the spare tire. Put the
wheel nuts back on f inger-tight,
then tighten them in a crisscross
pattern with the wheel nut wrench
until the wheel is f irmly against
the hub. Do not try to tighten the
wheel nuts f ully.
Lower the vehicle to the ground,
and remove the jack.Tighten the wheel nuts securely in
the same crisscross pattern. Have
the wheel nut torque checked at
the nearest automotive service
f acility.
Tighten the wheel nuts to:Remove the center cap (if
equipped) bef ore storing the f lat
tire in the trunk well.
15.
12.
13.
14.
Changing a Flat Tire
396
CENTER CAP
80 lbf·ft (108 N·m , 11 kgf·m)
10/06/18 16:33:29 31TA5630_401
2011 Accord Sedan

Place the flat tire face down in the
spare tire well.

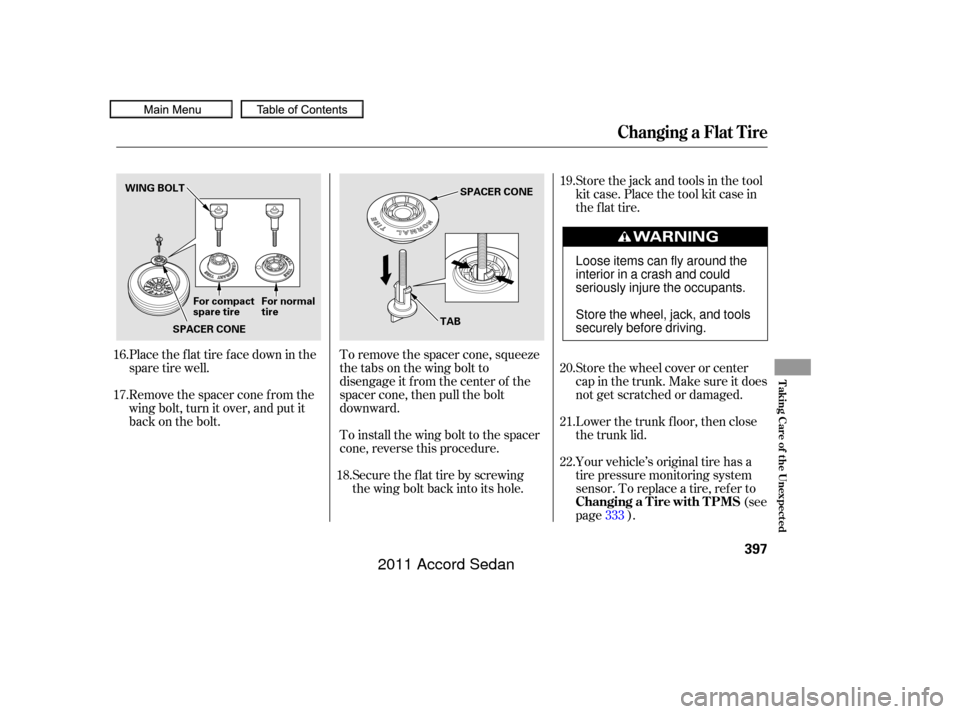

Remove the spacer cone f rom the
wing bolt, turn it over, and put it
back on the bolt.To remove the spacer cone, squeeze
the tabs on the wing bolt to
disengage it f rom the center of the
spacer cone, then pull the bolt
downward.
To install the wing bolt to the spacer
cone, reverse this procedure.
Securetheflattirebyscrewing
the wing bolt back into its hole. Store the jack and tools in the tool
kit case. Place the tool kit case in
the f lat tire.
Your vehicle’s original tire has a
tire pressure monitoring system
sensor. To replace a tire, ref er to
(see
page ). Lower the trunk f loor, then close
the trunk lid. Store the wheel cover or center
cap in the trunk. Make sure it does
not get scratched or damaged.
16.
17. 19.
18. 20.
21.
22.
333
Changing a Flat Tire
Changing a T ire with T PMS
T aking Care of t he Unexpect ed
397
WING BOLT
SPACER CONE SPACER CONE
TAB
For compact
spare tire
For normal
tire
Loose items can fly around the
interiorinacrashandcould
seriously injure the occupants.
Store the wheel, jack, and tools
securely before driving.
10/06/18 16:33:40 31TA5630_402
