The vehicle’s f uses are contained in
threefuseboxes.

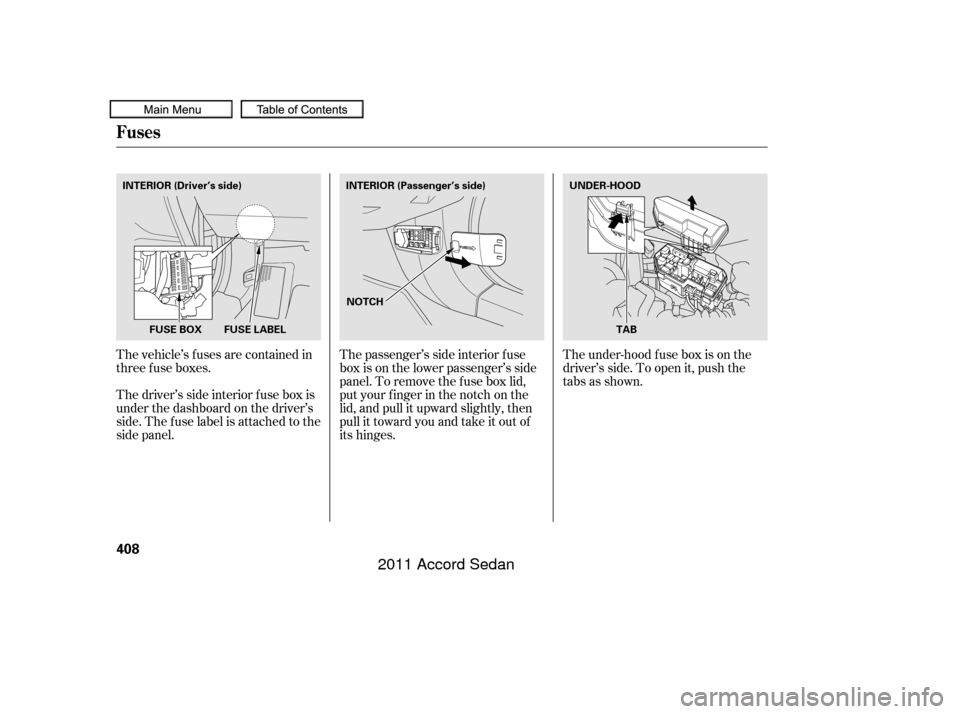

Thedriver’ssideinteriorfuseboxis
under the dashboard on the driver’s
side. The fuse label is attached to the
side panel.The passenger’s side interior f use
box is on the lower passenger’s side
panel. To remove the f use box lid,
put your f inger in the notch on the
lid, and pull it upward slightly, then
pull it toward you and take it out of
its hinges.The under-hood f use box is on the
driver’s side. To open it, push the
tabs as shown.
Fuses
408
UNDER-HOOD
INTERIOR (Driver’s side)
FUSE BOX FUSE LABEL TAB
NOTCH
INTERIOR (Passenger’s side)
10/06/18 16:34:58 31TA5630_413
2011 Accord Sedan

Also check the combined f use box in
the under-hood f use box.
If something electrical in your
vehicle stops working, the first thing
youshouldcheckforisablownfuse.
Determine f rom the chart on pages
, and , or the diagram on
thefuseboxlidorthefuselabel,
which f use or f uses control that
component. Check those f uses f irst,
but check all the f uses bef ore
deciding that a blown f use is not the
cause. Replace any blown f uses and
check if the device works. Check each of the large f uses in
the under-hood f use box by
looking at the wire inside.
Removing these f uses requires a
Phillips-head screwdriver.
Turn the ignition switch to the
LOCK (0) position. Make sure the
headlights and all other
accessories are of f .
On the under-hood and passenger’s
side interior f use boxes, remove
the cover f rom each f use box. 3.
1.
2. 412 413 414
CONT INUED
Fuses
Checking and Replacing Fuses
T aking Care of t he Unexpect ed
409

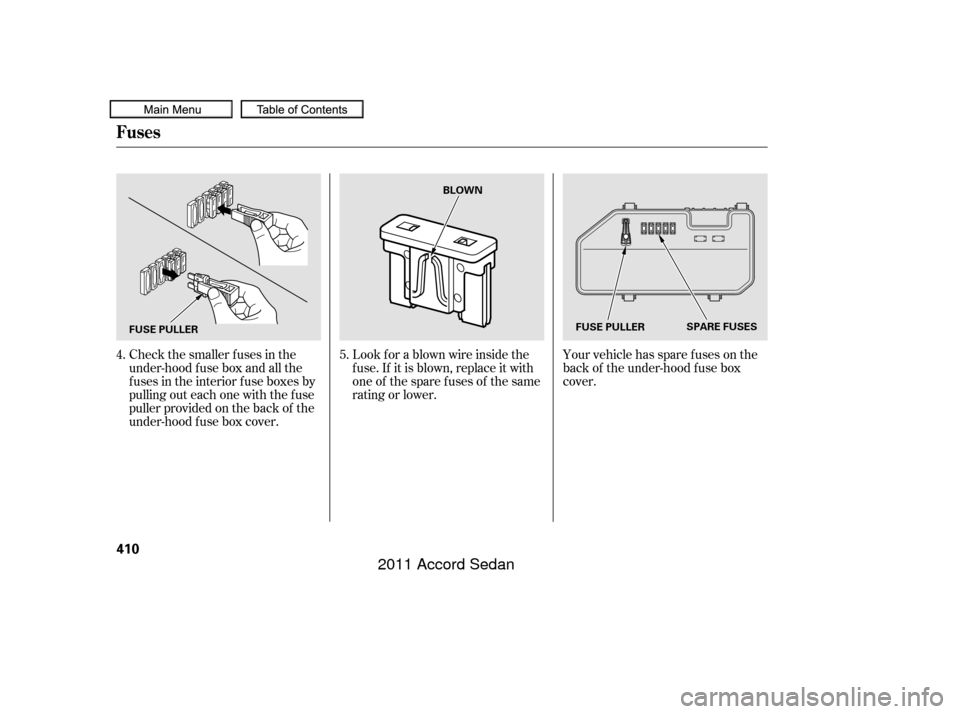

FUSE
BLOWN BLOWN
10/06/18 16:35:07 31TA5630_414
2011 Accord Sedan

Your vehicle has spare fuses on the
back of the under-hood f use box
cover.

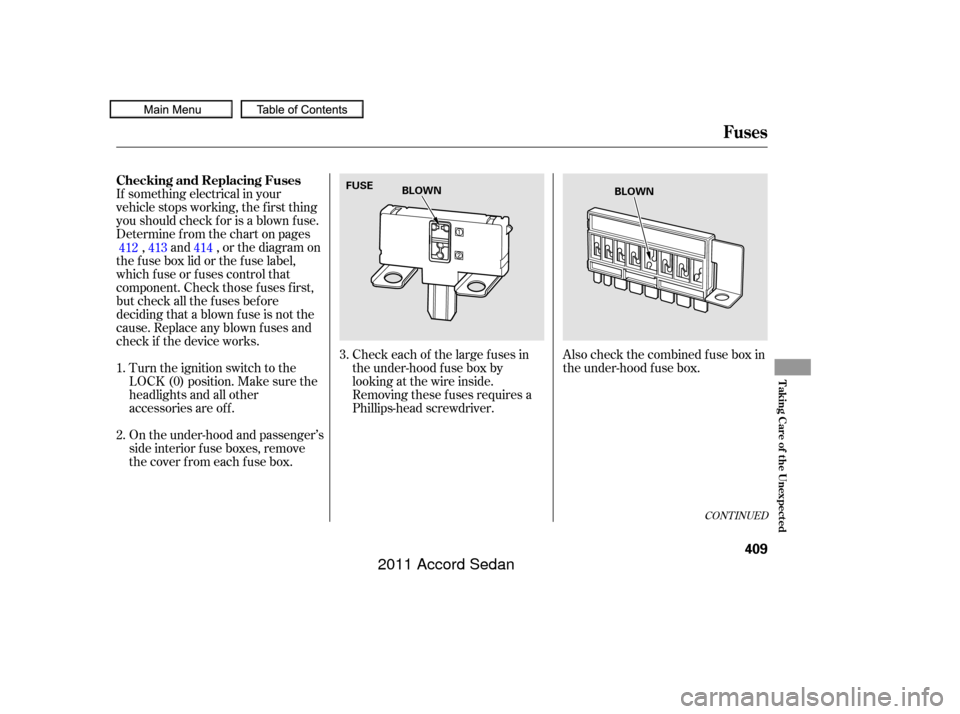

Look f or a blown wire inside the
f use. If it is blown, replace it with
oneof thesparefusesof thesame
rating or lower.
Check the smaller f uses in the
under-hood f use box and all the
fuses in the interior fuse boxes by
pulling out each one with the f use
pullerprovidedonthebackof the
under-hood f use box cover. 5.
4.
Fuses
410
BLOWN
SPARE FUSES
FUSE PULLER FUSE PULLER
10/06/18 16:35:13 31TA5630_415
2011 Accord Sedan

If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem with your
vehicle. Leave the blown fuse in
that circuit, and have your vehicle
checked by a qualif ied technician.
If you replace the blown f use with a
spare f use that has a lower rating, it
might blow out again. This does not
indicate that anything is wrong.
Replace the f use with one of the
correct rating as soon as you can. If you cannot drive the vehicle
without f ixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
f rom one of the other circuits. Make
sureyoucandowithoutthatcircuit
temporarily (such as the accessory
power socket).
6.
Fuses
T aking Care of t he Unexpect ed
411
Replacing a f use with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a
replacement f use with the proper rating
f or the circuit, install one with a lower
rating.
10/06/18 16:35:17 31TA5630_416
2011 Accord Sedan

µ
µ
µ
µ
µ
µ
µ
µ µ
µ
µ
µ
µ
µ
Î
Î
Î
Î
Î
Î
µ
µ
µ
µ µ
µ
µ
µ
µ
µ
Î
ε
µ
µ
µÎ
Î
Circuits Protected No.
Circuits Protected
Circuits Protected Amps.
Amps. Amps.
No. No.
Not Used
Not Used
Sub Fan Motor
Wiper Motor
Main Fan Motor
Driver’s Side Light Main
Driver’s Side Fuse Box
Passenger’s Side Light Main4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
21 Driver’s Side Fuse Box
IG Main
Rear Defroster
Sub Fan Motor
Not Used
Not Used
Not Used
Heater Motor
Hazard
Horn, Stop
Not Used
Not Used
IG Coil
FI Sub
Back Up
Interior Lights
FI Main
DBW
Not Used
Back Up, FI ECU
MG Clutch
Fan Relay
Battery
Battery
Passenger’s Side Fuse Box
Not Used
ABS/VSA
ABS/VSA Motor
Passenger’s Side Fuse Box
Not Used
30 A
30 A
30 A
30 A
(60 A) 30 A
100 A
120 A
40 A
40 A
30 A
(40 A) (40 A)
50 A
40 A
20 A
40 A
15 A
20 A
15 A
15 A
10 A
7.5 A 15 A
15 A
7.5 A
7.5 A
7.5 A
V6 models
1:
2: 4-cylinder models
37
38
12
21
22
23
24
25 26
32
33
34
35
36
1
2
1
2
1
2
11
11
31
311
2
Fuse Locations
412
UNDER-HOOD FUSE BOX
10/06/18 16:35:26 31TA5630_417
2011 Accord Sedan

Î
Î Î
Î
Î
Î
Î
Î
µ µµ
Î
No. No.No.
Circuits Protected
Circuits Protected
Amps. Circuits Protected Amps.Amps.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15 16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
If equipped A/C
Accessory, Key, Lock
Accessory
Driver’s Power Seat Sliding
Moonroof
Driver’s Power Seat Reclining
Rear Left Power Window
Front Accessory Power Socket
Driver’s Power Window
Driver’s Side Door Lock
Lef t Front Fog Light
Lef t Side Small Lights
(Exterior)
Left Headlight High Beam
TPMS
Left Headlight Low Beam
Not Used
Fuel Pump
VB SOL
SRS
ODS (Occupant Detection
System)
Not Used
ACM
Daytime Running Lights
7.5 A
15 A
7.5 A
7.5 A
7.5 A 15 A
7.5 A Not Used
Seat Memory
Washer
Wiper
Meter
ABS/VSA
ACG
STS 20 A
10 A
10 A
7.5 A
10 A
7.5 A 7.5 A
7.5 A
7.5 A
20 A
20 A
20 A
20 A
15 A
20 A
10 A
10 A
10 A
10 A
7.5 A 10 A
:
Fuse Locations
T aking Care of t he Unexpect ed
413
INTERIOR FUSE BOX (Driver’s Side)
10/06/18 16:35:34 31TA5630_418
2011 Accord Sedan

ÎÎ
Î
Î Î
Î
µ
µ µµ
µ
µ
µ
µ
Î
No. No.No.
Circuits Protected
Circuits Protected Circuits Protected
Amps. Amps.Amps.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15 16
17
18
19
20
21
22
If equipped
Front Passenger’s Power
Seat Sliding
Right Side Door Lock
Rear Right Power Window
Rear Accessory Power
Socket
Front Passenger’s Power
Window
Not Used
Premium AMP
Right Headlight High Beam
Right Side Small Lights
(Exterior)
Right Front Fog Light
Right Headlight Low Beam
Not Used
Interior Lights
Not Used
Front Passenger’s Power
Seat Reclining Not Used
Not Used
Lumbar Support
Seat Heater
Not Used
Not Used
Not Used
10 A
10 A
10 A
10 A
7.5 A 20 A 20 A
10 A
20 A
15 A
20 A
20 A10 A
15 A
:
Fuse Locations
414
INTERIOR FUSE BOX (Passenger’s Side)
10/06/18 16:35:43 31TA5630_419
2011 Accord Sedan

µµ
If your vehicle needs to be towed,
call a prof essional towing service or
organization. Never tow your vehicle
with just a rope or chain. It is very
dangerous.
The operator
loads your vehicle on the back of a
truck. Therearetwowaystotowyour
vehicle: If , due to damage, your vehicle must
be towed with the f ront wheels on
the ground, do this:
With the f ront wheels on the ground,
do not tow the vehicle more than 50
miles (80 km), and keep the speed
below35mph(55km/h).
The tow
truck uses two pivoting arms that go
under the f ront tires and lif t them of f
the ground. The rear tires remain on
the ground.
Release the parking brake. Start the engine. Shif t the transmission to neutral.
Leave the ignition switch in the
ACCESSORY (I) position so the
steering wheel does not lock.
Release the parking brake.
Shif t to the D position and hold f or
5 seconds, then to N.
Turn of f the engine.
Leave the ignition switch in the
ACCESSORY (I) position so the
steering wheel does not lock.
Manual transmission:
Automatic transmission:
CONT INUED
Flat -bed EquipmentWheel-lif t Equipment
T his is the best way to
transport your vehicle.
This is an acceptable
way to tow your vehicle.
Emergency Towing
T aking Care of t he Unexpect ed
415
Improper towing preparation will
damage the transmission. Follow the
above procedure exactly. If you cannot
shif t the transmission or start the
engine (automatic transmission), your
vehicle must be transported with the
f ront wheels of f the ground.
10/06/18 16:35:56 31TA5630_420
2011 Accord Sedan

Emergency Towing
416
Trying to lif t or tow your vehicle by the
bumpers will cause serious damage.
The bumpers are not designed to
support the vehicle’s weight.The steering system can be damaged if
the steering wheel is locked. Leave the
ignition switch in the ACCESSORY (I)
position, and make sure the steering
wheel turns f reely bef ore you begin
towing.
10/06/18 16:35:59 31TA5630_421
2011 Accord Sedan

µ
