engine HONDA ACCORD COUPE 2016 9.G Quick Guide

| 1
VISUAL INDEX
1  Lights/turn signals/LaneWatch
      button*   p. 35, p. 38, p. 112
2  SEL/RESET knob   p. 27
Brightness control p. 35
3  Wipers/washers   p. 37
4  Cruise control buttons*   p. 107
Adaptive Cruise Control (ACC)
 buttons*   p. 108
Lane Keeping Assist System (LKAS)
 button*   p. 111
5 Horn
6  Voice recognition buttons   p. 73,
p. 78, p. 86
7  Instrument panel   p. 23
8 Information display*   p. 27
  Multi-information display*   p. 28
9 Info (p/q) buttons*   p. 28
  SEL/RESET button*   p. 28
10 Audio controls p. 51
11 Tire Pressure Monitoring System
  (TPMS) button*   p. 122
12 Lane Keeping Assist System (LKAS)
  button*   p. 111
13  ENGINE START/STOP button*   p. 100
14  Vehicle Stability Assist (VSA®) oFF
 button   p. 106
Collision Mitigation Braking System™
 (CMBS™) OFF button*   p. 113
road Departure Mitigation (rDM)
 button*   p. 110
Parking sensor system button*
p. 114
15 ECON button*   p. 106
VISUAL INDEX
*if equipped*if equipped
Quickly locate items in the vehicle’s interior.
Steering Wheel and Nearby Controls
12
5
107415
116
38
9121314
Making a Call ......................................81
SMS Text Messaging and E-Mail* ...83
HondaLink® Assist ..............................84
Siri™ Eyes Free ...................................85
NAVIGATION* ......................................86
Basic Navigation Operation .............86
Entering a Destination .......................88
Routing ..................................................91
DRIVING ................................................93
Before Driving .....................................93
Maximum Load Limit ..........................95
Towing a Trailer ..................................97
Remote Engine Start* .........................98
Starting to Drive ..................................99
Shifting ................................................100
Braking ...............................................105
Eco Assist System .............................106
Vehicle Stability Assist (VSA®), aka
Electronic Stability Control (ESC)
System .................................................106
Cruise Control* ..................................107
Adaptive Cruise Control (ACC)* .....108
Road Departure Mitigation
(RDM)* ................................................110
Lane Keeping Assist System
(LKAS)* ................................................111
LaneWatch™* ...................................112
Collision Mitigation Braking
System™ (CMBS™)* ........................113
Parking Sensor System* ..................114
Multi-View Rear Camera .................115
Refueling ............................................116
HANDLING THE UNEXPECTED .......117
Smart Entry Remote Battery
Strength* ............................................117
Shift Lever Does Not Move* ...........117
Jump Starting ....................................118
Overheating ........................................120
Emergency Engine Stop* .................121
Emergency Towing ...........................121
Tire Pressure Monitoring System
(TPMS) ................................................122
Changing a Flat Tire ..........................124
Fuse Locations ...................................127
MAINTENANCE .................................130
Safety Precautions ...........................130
Maintenance Minder™....................131
Under the Hood ..................................133
Engine Oil ...........................................135
Engine Coolant ..................................138
Brake Fluid .........................................139
Clutch Fluid* ......................................139
Checking the Battery ........................140
Window Washer Fluid .....................140
Changing Wiper Blades ...................141
Tire Information .................................142
Tire Labeling ......................................145
DOT Tire Quality Grading .................146
Testing of Readiness Codes ............148
SPECIFICATIONS ...............................149
CUSTOMER INFORMATION .............152
Frequently Asked Questions/
Troubleshooting ................................152
Contact Us ..........................................153
Honda Roadside Assistance ...........153
Warranty Coverages .........................154
VOICE COMMAND INDEX ................155
INDEX ..................................................157

4 || 5
SAFETYSAFETY
Carbon Monoxide Gas
The engine exhaust from this vehicle contains carbon monoxide, a colorless, 
odorless, and highly toxic gas. As long as you properly maintain your ve\
hicle and
follow the instructions set forth below, you will not accumulate dangerous levels 
of carbon monoxide gas in the vehicle interior.
Have the exhaust system inspected for leaks whenever:
• The exhaust system is making an unusual noise.
• The exhaust system may have been damaged.
• The vehicle is raised for an oil change.
When you operate a vehicle with the trunk open, airflow can pull exhaust gas 
into the interior and create a hazardous condition. If you must drive with the trunk 
open, open all the windows and set the climate control system as shown below.
1. Select the fresh air mode.
2. Select the mode.
3. Set the fan speed to high.
4. Set the temperature control to a comfortable setting.

Adjust the climate control system in the same manner if you sit in your \
parked
vehicle with the engine running.
An enclosed area such as a garage can quickly fill up with carbon monoxide gas. 
Do not run the engine with the garage door closed. even when the garage door is
open, drive out of the garage immediately after starting the engine.
Seat Belts
A seat belt is your best protection in all types of collisions. Airbags are designed to 
supplement seat belts, not replace them. So even though your vehicle is equipped 
with airbags, make sure you and your passengers always wear your seat belts and 
wear them properly.
Lap/Shoulder Seat Belts
All five seating positions are equipped with lap/shoulder seat belts with 
emergency locking retractors. In normal driving, the retractor lets you move 
freely while keeping some tension on the belt. During a collision or sudden stop, 
the retractor locks to restrain your body. The rear seat belts also have a lockable 
retractor for use with child seats.
The front seats are equipped with automatic seat belt tensioners to enhance 
safety. The tensioners automatically tighten the front seat belts during a moderate 
to severe frontal collision, sometimes even if the collision is not seve\
re enough to
inflate the front airbags.
Proper Use of Seat Belts
Follow these guidelines for proper use:
• All occupants should sit upright, well back in the seat, and remain in that 
position for the duration of the trip. Slouching and leaning reduce the \
effectiveness of the belt and can increase the chance of serious injury in a 
crash.
• Never place the shoulder part of a lap/shoulder seat belt under your arm or 
behind your back. This could cause very serious injuries in a crash.
• Two people should never use the same seat belt. If they do, they could be very 
seriously injured in a crash.
• Do not put any accessories on the seat belts. Devices intended to improve 
comfort or reposition the shoulder part of a seat belt can reduce the protective 
capability and increase the chance of serious injury in a crash.
• No one should sit in a seat with an inoperative seat belt or one that does not 
appear to be working correctly. Using a seat belt that is not working properly 
may not protect the occupant in a crash. Have a dealer check the belt as soon 
as possible.
Carbon monoxide gas is toxic. Breathing it can cause unconsciousness and 
even kill you.
Avoid any enclosed areas or activities that expose you to carbon monoxide.
WARNING
Not wearing a seat belt properly increases the chance of a serious injury or 
death in a crash, even though your vehicle has airbags.
Be sure you and your passengers always wear seat belts and wear them 
properly.
WARNING

22 || 23
INSTRUMENT PANELSAFETY
INSTRUMENT PANELReporting Safety Defects
In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could 
cause injury or death, you should immediately inform the National Highway Traffic
Safety Administration (NHTSA) in addition to notifying American Honda \
Motor Co.,
Inc.
If NHTSA receives similar complaints, it may open an investigation, and  if it finds 
that a safety defect exists in a group of vehicles, it may order a recal\
l and remedy
campaign. However, NHTSA cannot become involved in individual problems 
between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the vehicle Safety Hotline toll-free at 1-888-327-
4236 (TTY: 1-800-424-9153); go to http://www.safercar.gov; or write to: Administrator,
NHTSA, 1200 New Jersey Avenue, SE., Washington, DC 20590. You can also obtain 
other information about motor vehicle safety from http://www.safercar.gov.
In Canada
If you believe that your vehicle has a defect which could cause a crash or could 
cause injury or death, you should immediately inform Honda Canada, Inc., and you 
may also inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if 
it finds that a safety defect exists in a group of vehicles, it may le\
ad to a recall and
remedy campaign. However, Transport Canada cannot become involved in individual 
problems between you, your dealer, or Honda Canada, Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may 
call 1-800-333-0510. For more information on reporting safety defects or  about motor 
vehicle safety, go to http://www.tc.gc.ca/roadsafety.
Learn about the indicators, gauges, and displays related to driving the vehicle.
Indicators briefly appear with each engine start and then go out. Red and amber 
indicators are most critical. Blue and green indicators are used for gen\
eral
information.
Malfunction Indicators
These are the most critical indicators. If they come on and stay lit while driving or at 
any other time, there may be a problem. See your dealer if necessary.
Brake system
• Brake fluid is low.
• The brake system has a problem.
Press the brake pedal lightly to check pedal pressure. If normal, check 
the brake fluid level when you stop. If abnormal, take immediate action. If 
necessary, downshift the transmission to slow the vehicle using engine
braking. Have your vehicle repaired immediately.
Low oil pressure
engine oil pressure is low. Stop in a safe place. open the hood. Check the oil
level, and add oil if necessary (see page 135). If the indicator does not turn 
off, have your vehicle repaired immediately.
Charging system
The battery is not charging. Turn off all electrical items, but do not turn off 
the vehicle to prevent further battery discharge. Have your vehicle repaired 
immediately.
Supplemental Restraint System (SRS)
There is a problem with one of the airbag systems or seat belt tensioners. 
Smart Entry system*
There is a problem with the smart entry system.
U.S.
Canada
*if equipped

24 || 25
INSTRUMENT PANELINSTRUMENT PANEL
Malfunction indicator lamp (check engine light)
• The emissions control system may have a problem, or the fuel cap is loose  
or missing.
• (Blinks) A misfire in the engine’s cylinders is detected. Stop in a safe place, 
and wait for the engine to cool down.
Anti-lock Brake System (ABS)
There is a problem with the anti-lock brake system. Your vehicle still has 
normal braking ability, but no anti-lock function. 
Tire Pressure Monitoring System (TPMS)*
There is a problem with the tire pressure monitoring system, or the vehicle is  
fitted with the compact spare tire.
Light control*
There is a problem with the automatic lighting control system or low beam 
headlights.
Parking sensor system*
There is a problem with the system, or the sensor(s) are blocked.
Collision Mitigation Braking System™ (CMBS™)*
There is a problem with the system, the temperature is too high, or the 
camera is blocked.
Vehicle Stability Assist (VSA®)
There is a problem with the VSA system.
Brake system
There is a problem with the brake system.
Electric Power Steering (EPS)
There is a problem with the EPS system.
Auto High-Beam System*
There is a problem with the system, or the camera is blocked.
Starter system*
There is a problem with the starter system. If you cannot start the vehicle, 
press the brake pedal, then press and hold the ENGINE START/STOP button 
(see page 100) for 15 seconds.
Adaptive Cruise Control (ACC)*
There is a problem with the system, the temperature is too high, or the radar 
sensor is blocked.
Canada
U.S.
*if equipped
Condition Indicators
These indicators may require you to perform an action.
Parking brake
Release the parking brake before driving. You will hear a beep if you drive 
with it not fully released.
Seat belt reminder
Make sure seat belts are fastened for you and all passengers. The indicator 
blinks and beeps sound continuously if you or your front passenger has  not 
fastened your seat belts when you begin driving. If the indicator remains  on 
after seat belts are fastened, see your dealer.
Door open
A door is not closed. A beep sounds if a door is open while driving.
Low fuel
Refuel as soon as possible. If the indicator blinks, there is a problem with the 
fuel gauge. See your dealer.
Low tire pressure*
Stop in a safe place, check tire pressures, and inflate tire(s) if n\
ecessary.
The indicator also appears if your vehicle is fitted with the compact \
spare
tire. Have your regular tire repaired or replaced as soon as possible.
Washer fluid level (Canadian models)
The washer fluid is low. refill the washer fluid (see page 140).
System message*
When a condition or malfunction indicator comes on, a message also 
appears on the multi-information display. Check the display for more
information.
Maintenance Minder™*
Scheduled maintenance for your vehicle is due (see page 132).
*if equipped
Lane Keeping Assist System (LKAS)*
There is a problem with the system, the temperature is too high, or the 
camera is blocked.
Road Departure Mitigation (RDM)*
There is a problem with the system, the temperature is too high, or the 
camera is blocked.
Canada
U.S.
Canada
U.S.

26 || 27
INSTRUMENT PANELINSTRUMENT PANEL
Immobilizer
Your key or remote transmitter cannot be recognized by the vehicle. If the 
indicator blinks, you may not be able to start the engine. Turn the vehicle off, 
and then on again. If it continues to blink, there may be a problem with the 
system. See your dealer.
On/Off Indicators
These indicators remind you when an item is on or off.
*if equipped
vSA off
VSA engaged (blinking)
CRUISE MAIN on
CRUISE CONTROL on
ACC* on
LKAS* on
CMBS™* off
Turn signals/hazards on
Fog lights* on
High beams on
exterior lights on
Auto High-Beam System* on
ECON mode* on
Information Display*
Consists of several displays that provide you with useful information.
Press the select/reset knob to cycle through the displays shown below.
Select/reset
knob
Instant fuel economy odometerTrip meter Aoutside temperature
Instant fuel economyAverage fuel economy BTrip meter Boutside temperature
Instant fuel economyAverage fuel economy ATrip meter Aoutside temperature
Instant fuel economyrangeTrip meter Aoutside temperature
engine oil life
*if equipped

28 || 29
INSTRUMENT PANELINSTRUMENT PANEL
Multi-Information Display (MID)*
Consists of several displays that provide you with useful information.
*if equipped
Blank screen
rangeAverage/instant fuel economy
engine oil life
elapsed time
Lower Displays
Press the SEL/RESET button to cycle through the displays shown below.
odometerTrip ATrip B
Average speed
vehicle Settings
button:
Changes the display.
Multi-information display
SEL/RESET button:
Enters the selected item.
Main Displays
Press either Info (p/q) button to cycle through the displays shown below.
Vehicle Settings
Use the MID to customize certain vehicle features when the vehicle is in Park (P) 
or the parking brake is applied. You can also use the SETTINGS button* (see page 
47).
An example of how to change the Trip A reset timing setting is below. Use the Info 
(p/q) and SEL/RESET buttons to make and enter selections.
1. Scroll to the v ehicle Settings menu and select it.
2. Scroll to Meter Setup and select it.
3. Scroll to “Trip A” reset Timing and select it.
4. Scroll through the options, and select the one
you want.
5. Scroll to exit, and select it to exit the menus.
*if equipped

30 || 31
VEHICLE CONTROLSVEHICLE CONTROLS
VEHICLE CONTROLS
*if equipped
Learn about the various controls necessary for operating and driving the vehicle.
Using the Key or Remote Transmitter*
Lock or unlock the doors and trunk.
Unlock button: Press once to unlock the driver’s door. Press again to unlock both doors.Trunk button: Press and hold to unlock and open the trunk.
Lock button: Press to lock the doors. Press again for audible verification.
Panic button: Press to sound the alarm for 30 seconds. Press again to cancel.
Built-in key*: Slide the release knob on the back of the transmitter to pull out the built-in key. 
Release knob
Built-in key
Leaving the key or remote transmitter in the vehicle can result in theft\
or
accidental movement of the vehicle. Always take it with you whenever you\
leave
the vehicle unattended.
NOTICE
Engine button*: Press and hold to remotely start the engine (see page 98).
Smart Entry System*
When you carry the remote transmitter (for example, in a pocket or purse) and it 
is outside the vehicle and within range (about 32 inches or 80 cm), you can lock or 
unlock the doors and trunk without handling the transmitter.
Unlocking/Locking the Doors
To unlock: Grab the driver’s door handle when the 
vehicle is off to unlock the driver’s door. Grab the 
passenger’s door handle to unlock both doors.
To lock: Press the door lock button on the door 
handle when the vehicle is off. If the remote 
transmitter is inside the vehicle, the doors will not
lock.
Unlocking the Trunk
Press the trunk release button* to unlock and open 
the trunk.
*if equipped
Door lock button
Trunk release button

50 || 51

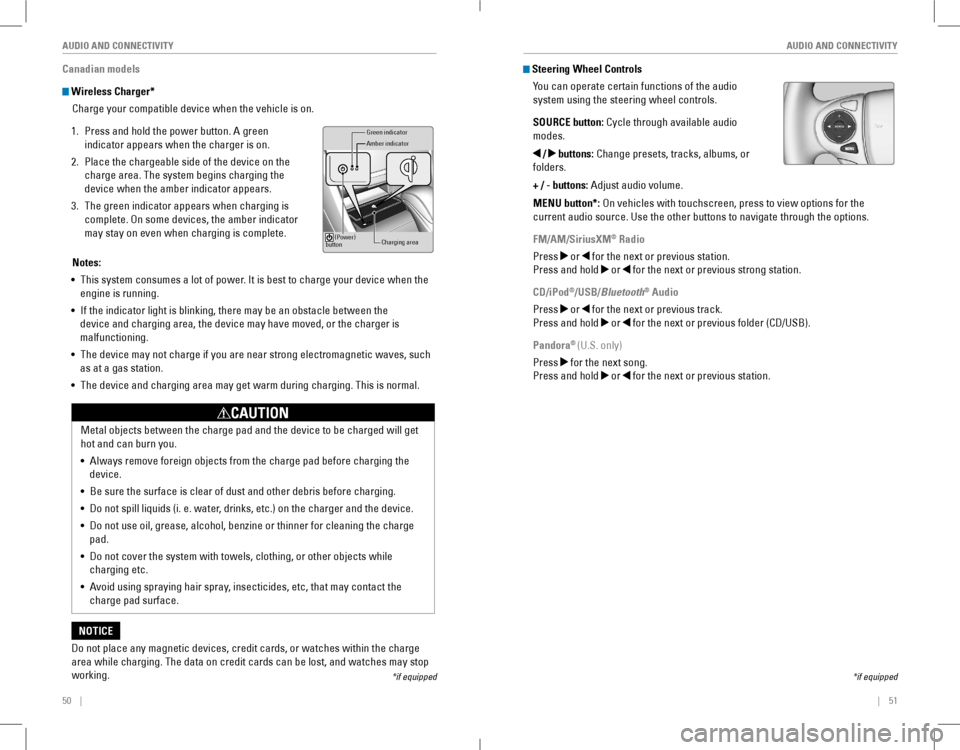

AUDIO AND CONNECTIVITYAUDIO AND CONNECTIVITY
Canadian models
Wireless Charger*
Charge your compatible device when the vehicle is on.
1. Press and hold the power button. A green 
indicator appears when the charger is on.
2. Place the chargeable side of the device on the 
charge area. The system begins charging the 
device when the amber indicator appears.
3. The green indicator appears when charging is
complete. On some devices, the amber indicator 
may stay on even when charging is complete.
Green indicato r
Amber indicator
Charging area
(Power)
button
Notes:
• This system consumes a lot of power. It is best to charge your device when the 
engine is running.
• If the indicator light is blinking, there may be an obstacle between the 
device and charging area, the device may have moved, or the charger is
malfunctioning.
• The device may not charge if you are near strong electromagnetic waves, \
such
as at a gas station.
• The device and charging area may get warm during charging. This is norma\
l.
Do not place any magnetic devices, credit cards, or watches within the c\
harge
area while charging. The data on credit cards can be lost, and watches may stop 
working.
NOTICE
Metal objects between the charge pad and the device to be charged will get 
hot and can burn you.
• Always remove foreign objects from the charge pad before charging the 
device.
• Be sure the surface is clear of dust and other debris before charging.
• Do not spill liquids (i. e. water, drinks, etc.) on the charger and the device.
• Do not use oil, grease, alcohol, benzine or thinner for cleaning the charge 
pad.
• Do not cover the system with towels, clothing, or other objects while 
charging etc.
• Avoid using spraying hair spray, insecticides, etc, that may contact the
charge pad surface.
CAUTION
*if equipped
Steering Wheel Controls
You can operate certain functions of the audio
system using the steering wheel controls.
SOURCE button: Cycle through available audio 
modes.
/ buttons: Change presets, tracks, albums, or 
folders.
+ / - buttons: Adjust audio volume.
MENU button*: on vehicles with touchscreen, press to view options for the
current audio source. Use the other buttons to navigate through the options.
FM/AM/SiriusXM® Radio
Press or for the next or previous station.
Press and hold or for the next or previous strong station.
CD/iPod®/USB/Bluetooth® Audio
Press or for the next or previous track.
Press and hold or  for the next or previous folder (CD/USB).
Pandora® (U.S. only)
Press for the next song.
Press and hold or for the next or previous station.
*if equipped

92 || 93
DRIVINGNAVIGATION
Traffic
view traffic flow and incidents in major metro areas. You can also select traffic to
avoid. Traffic coverage is limited in Canada.
Viewing traffic
1. From the map screen, select the traffic icon.
2. Select Traffic Conditions.
3. Traffic icons are shown on the map. Select the
magnifying glass icon to display a full list of
traffic delays.
Avoiding traffic on your route
1. From the map screen, select the traffic icon.
2. Select Traffic on route.
3. Select an incident to avoid from the list.
4. Select the menu icon.
5. Select Avoid.
DRIVING
Learn about preparation for driving, as well as other features.
Before Driving
Check the following items before you begin driving.
Exterior Checks
• Make sure there are no obstructions on the windows, door mirrors, exterior 
lights, or other parts of the vehicle.
• remove any frost, snow, or ice.
• Make sure the hood is securely closed.
• Heat from the engine and exhaust can ignite flammable materials left under 
the hood, causing a fire. If you’ve parked your vehicle for an extended period, 
inspect and remove any debris that may have collected, such as dried grass 
and leaves that have fallen or have been carried in for use as a nest by a small 
animal. Also check under the hood for leftover flammable materials after you or 
someone else has performed maintenance on your vehicle.
• Make sure the tires are in good condition.
• Make sure there are no people or objects behind or around the vehicle.
Interior Checks
• Store or secure all items on board properly.
• Do not pile items higher in the cargo area than the seat-back height.
• Do not place anything in the front seat footwells. Make sure to secure t\
he floor
mats.
• If you have any animals on board, do not let them move freely around in the 
vehicle.
• Securely close and lock all doors and the trunk.
• Adjust your seating position, mirrors, and steering wheel properly.
• Make sure items placed on the floor behind the front seats cannot roll under the 
seats.
• Everyone in the vehicle must fasten their seat belt.
• Make sure that the indicators in the instrument panel come on when you s\
tart
the vehicle, and go off soon after.
If the doors are frozen shut, use warm water around the door edges to melt any 
ice. Do not try to force them open, as this can damage the rubber trim around the 
doors. When done, wipe dry to avoid further freezing.
NOTICE

94 || 95
DRIVINGDRIVING
In addition:
• During the first 600 miles (1,000 km) of operation, avoid sudden acc\
eleration or
full throttle operation so as not to damage the engine or powertrain.
• Avoid hard braking for the first 200 miles (300 km). You should also follow this 
when the brake pads are replaced.
Improper accessories or modifications can affect your vehicle’s handling, and 
stability, and performance, and cause a crash in which you can be seriously 
hurt or killed.
Follow all instructions in the vehicle owner’s manual regarding accessories
and modifications.
WARNING
Maximum Load Limit
Carrying too much cargo or improperly storing it can affect your vehicle\
’s handling,
stability, stopping distance, and tires, and make it unsafe. 
The maximum load for your vehicle is 850 lbs (385 kg). See the Tire and Loading 
Information label on the driver’s doorjamb.
This figure includes the total weight of all occupants, cargo, and
accessories, and the tongue load if you are towing a trailer. Below are the
steps for determining the correct load limit:
1. Locate the statement “The combined weight of occupants and cargo 
should never exceed XXX kg or XXX lbs.” on your vehicle’s placard.
2. Determine the combined weight of the driver and passengers that will be 
riding in your vehicle.
3. Subtract the combined weight of the driver and passengers from XXX kg 
or XXX lbs.
4. The resulting figure equals the available amount of cargo and luggage 
load capacity. For example, if the “XXX” amount equals 1,400 lbs. and 
there will be five 150 lb. passengers in your vehicle, the amount of 
available cargo and luggage load capacity is 650 lbs. (1,400 - 750 (5 x 150) 
= 650 lbs.)
5. Determine the combined weight of luggage and cargo being loaded on 
the vehicle. That weight may not safely exceed the available cargo and 
luggage load capacity calculated in step 4.
6. If your vehicle will be towing a trailer, load from your trailer will be 
transferred to your vehicle. Consult the owner’s Manual on the owner
Information CD or at owners.honda.com (U.S.) or myhonda.ca (Canada)
to determine how this reduces the available cargo and luggage load 
capacity of your vehicle.
In addition, the total weight of the vehicle, all occupants, accessories, 
cargo, and trailer tongue load must not exceed the Gross Vehicle Weight 
Rating (GVWR) or the Gross Axle Weight Rating (GAWR). Both are on a label 
on the driver’s doorjamb.
Label example
