If your vehicle needs to be towed,
call a prof essional towing service or
an organization. Never tow your
vehicle with just a rope or chain. It is
very dangerous.
Therearetwowaystotowyour
vehicle.
The operator
loads your vehicle on the back of a
truck.
The tow
truck uses two pivoting arms that go
under the tires (f ront or rear) and lif t
them of f the ground. The other two
tires remain on the ground. If , due to damage, your vehicle must
be towed with the f ront wheels on
the ground, do the f ollowing:
Release the parking brake.
Start the engine.
ShifttoD,thentoN.
Turn of f the engine.Flat -bed Equipment
Wheel-lif t Equipment
This is the best way to trans-
port your vehicle.
T his is
an acceptable way to tow your
vehicle.
Emergency T owing
250
Improper towing preparation will
damage the transmission. Follow the
above procedure exactly. If you cannot
shif t the transmission or start the
engine (automatic transmission), your
vehicle must be transported with the
f ront wheels of f the ground.
—
—
yy
('yy

With the f ront wheels on the ground,
it is best to tow the vehicle no farther
than 50 miles (80 km), and keep the
speedbelow35mph(55km/h).If you decide to tow your vehicle
with all f our wheels on the ground,
make sure you use a properly-
designed and attached tow bar.
Prepare the vehicle for towing as
described above, and leave the
ignition switch in Accessory (I) so
the steering wheel does not lock.
Make sure the radio and any items
plugged into the accessory power
socket are turned of f so they do not
rundownthebattery.
If your vehicle is equipped with a
f ront spoiler, remove it bef ore
towing so it is not damaged.
Emergency T owing
T aking Care of t he Unexpect ed
251
The steering system can be damaged if
the steering wheel is locked. Leave the
ignition switch in ACCESSORY (I), and
make sure the steering wheel turns
f reely bef ore you begin towing.
Trying to lif t or tow your vehicle by the
bumpers will cause serious damage.
The bumpers are not designed to
support the vehicle’s weight.
—
—
y
y
('yy

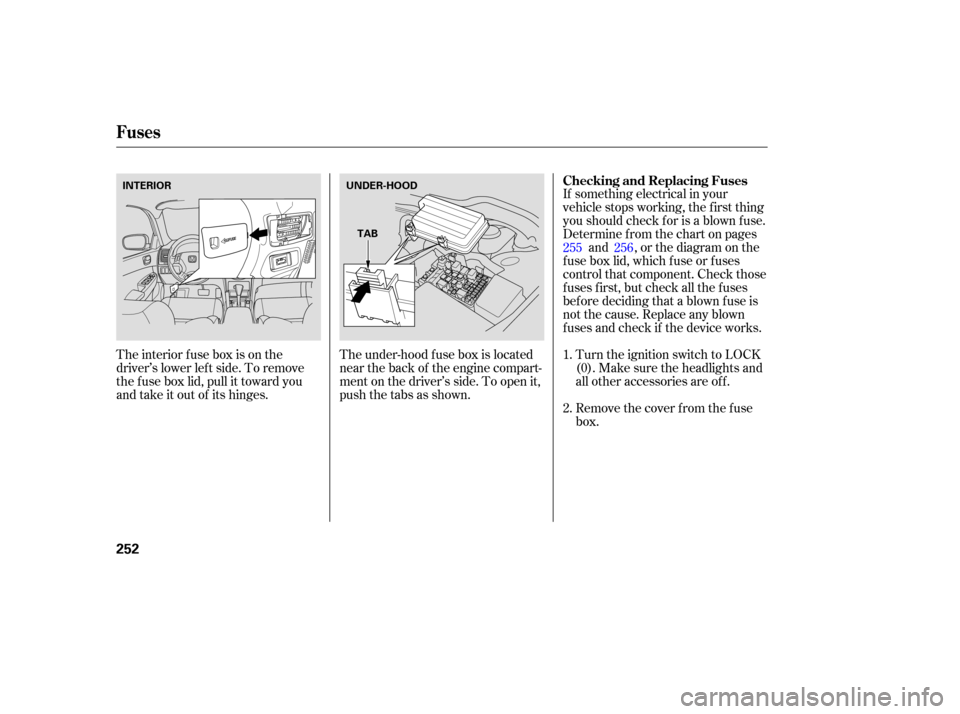

The interior f use box is on the
driver’s lower lef t side. To remove
the f use box lid, pull it toward you
and take it out of its hinges.The under-hood f use box is located
near the back of the engine compart-
ment on the driver’s side. To open it,
pushthetabsasshown.If something electrical in your
vehicle stops working, the first thing
youshouldcheckforisablownfuse.
Determine f rom the chart on pages
and , or the diagram on the
f use box lid, which f use or f uses
control that component. Check those
f uses f irst, but check all the f uses
bef ore deciding that a blown f use is
not the cause. Replace any blown
f uses and check if the device works.
Turn the ignition switch to LOCK
(0). Make sure the headlights and
all other accessories are of f .
Remove the cover f rom the f use
box.
1.
2. 255 256 Checking and Replacing Fuses
Fuses
252
INTERIOR
UNDER-HOOD
TAB
—
—
yy
('yy

Check each of the large f uses in
the under-hood f use box by
looking at the wire inside.
Removing these f uses requires a
Phillips-head screwdriver.Check the smaller f uses in the
under-hood f use box and all the
fuses in the interior fuse box by
pulling out each one with the f use
puller provided in the under-hood
fuse box.
Look f or a burned wire inside the
f use. If it is burned, replace it with
one of the spare f uses of the same
rating or lower.
3.
4.
5.
CONT INUED
Fuses
T aking Care of t he Unexpect ed
253

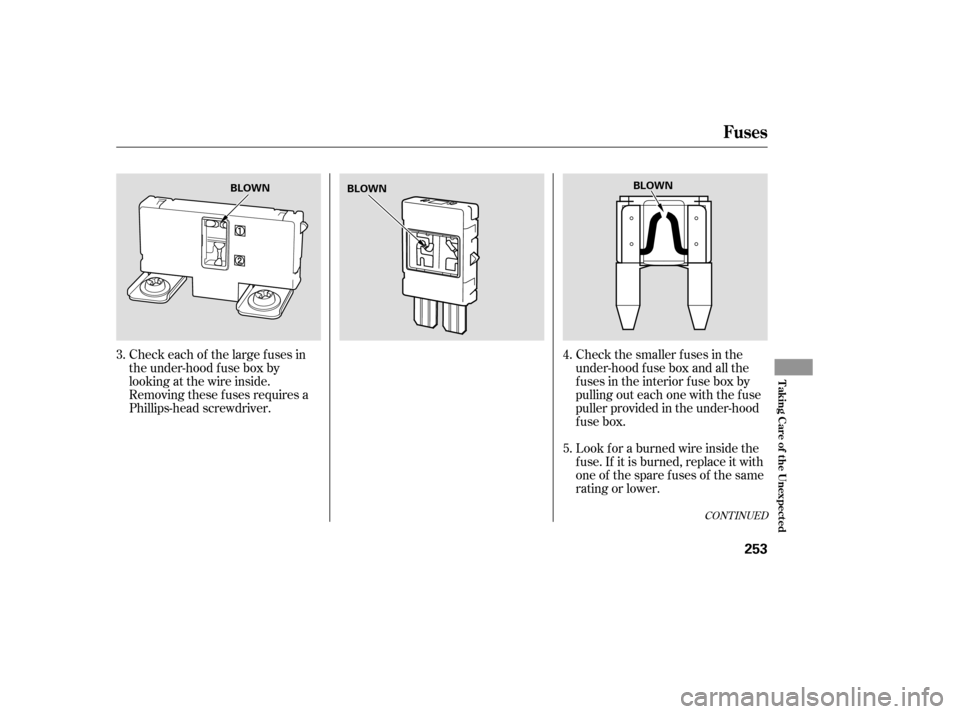

BLOWN
BLOWN BLOWN
—
—
yy
('yy

If you cannot drive the vehicle
without f ixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
f rom one of the other circuits with
the f use puller provided in the under-
hood f use box. Make sure you can
do without that circuit temporarily
(such as the accessory power socket
or radio).If you replace the blown f use with a
spare f use that has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
f use with one of the correct rating as
soon as you can.
If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem with your
vehicle. Leave the blown fuse in
that circuit, and have your vehicle
checked by a qualif ied mechanic.
6.
Fuses
254
FUSE PULLER
Replacing a f use with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a
replacement f use with the proper rating
f or the circuit, install one with a lower
rating.
—
—
yy
('yy

´
µ
No.No.
Amps. Circuits Protected No. Amps. Circuits Protected
Circuits Protected
Amps.
1
2
3
4
5 6
7
8
9
10
10 A
30 A
10 A
15 A
10 A Left Headlight Low
Rear Defroster Coil
Lef t Headlight Hi
Small Light
Right Headlight Hi 11
12
13
14
15
16
17
18
19
20
21
22
23
30 A
7.5 A 20 A
40 A
40 A
15 A
30 A
40 A
40 A
40 A
40 A
120 A 70 A
50 A
50 A Cooling Fan
MG. Clutch
Horn, Stop
Rear Defroster
Back Up, ACC
Hazard
TCS Motor
TCS
Ignition Coil, DRL (Canada)
Power Seats, Seat Heaters
Heater Motor
Battery
EPS
BIG1Main
Power Window Main
Right Headlight Low
Back Up
FI ECU
Condenser f an
Not Used
10 A
7.5 A 15 A
20 A
Fuses
T aking Care of t he Unexpect ed
255
UNDER-HOOD FUSE/RELAY BOX
—
—
yy
('yy

ε
µµ
µ
µ
µ
Î No.
No. Circuits Protected No. Amps. Circuits Protected Amps. Amps. Circuits Protected
: On Canadian model
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
1
2
3
4
5
6
7
8
9 DrivebyWire
Ignition Coil
Day Light
Laf Heater
Radio
Interior Light
Back-Up Lights
Door Lock
Front Accessory Sockets 10
11
12
13
14
15
16
7.5 A
30 A
20 A
20 A
20 A IG OPDS
IG Wiper
Not Used
Not Used
Driver’s Power Seat (Slide)
Heated Seat
Driver’s Power Seat
(Recline)
15 A
15 A
10 A
15 A
10 A
7.5 A 10 A
20 A
20 A 15 A
15 A
7.5 A
7.5 A 10 A
7.5 A 20 A
20 A
20 A
20 A
7.5 A
7.5 A
7.5 A 20 A
7.5 A 15 A
10 A Not Used
IG ACG
IG Fuel Pump
IG Washer
IG Meter
IG SRS
IGP
Power Window (Lef t Rear)
Power Window (Right Rear)
Power Window (Passenger)
Power Window (Driver)
Not Used
Hybrid HAC
IG HAC
Not Used
ACC
Not Used
Rear Accessory Socket
STS
ACM
IMA
Fuses
256

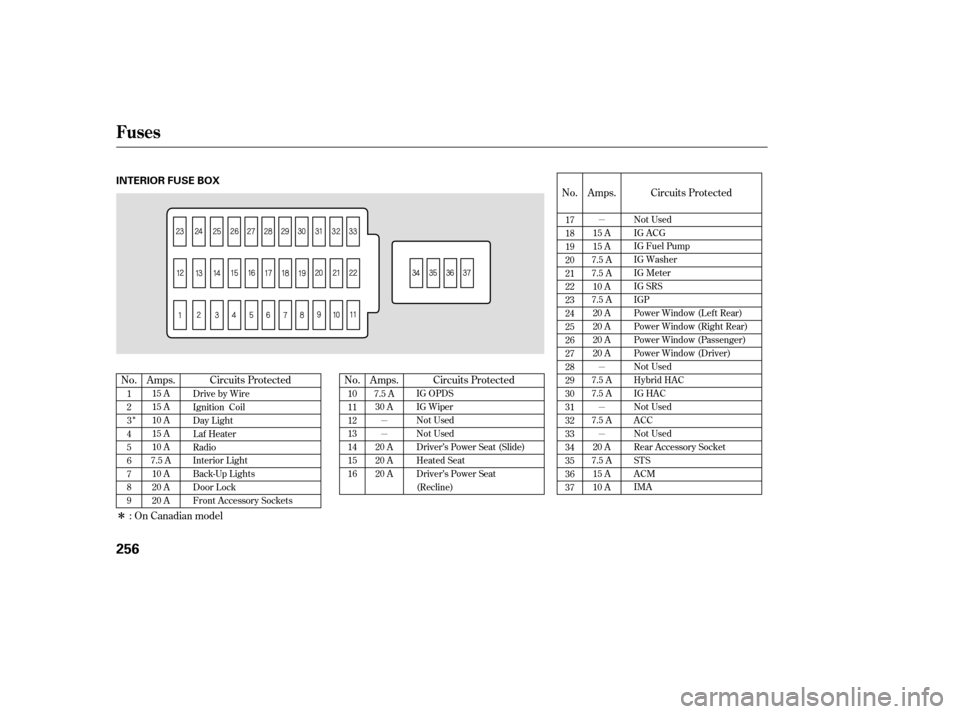

INTERIOR FUSE BOX
—

—yy
('yy

Thediagramsinthissectiongive
you the dimensions and capacities of
your vehicle, and the locations of the
identif ication numbers. It also
includes inf ormation you should
know about your vehicle’s tires and
emissions control systems.................
Identif ication Numbers .258
................................
Specif ications .260
DOT Tire Quality Grading
.....................
(U.S.Vehicles) .262
Unif orm Tire Quality ..................................
Grading .262
.................................
Treadwear .262
......................................
Traction .262
.............................
Temperature .263
.................................
Tire Labeling .264
.......................
Emissions Controls .265
.....................
The Clean Air Act .265
Crankcase Emissions Control
....................................
System .265
Evaporative Emissions Control ....................................
System .265
Onboard Ref ueling Vapor ................................
Recovery .265
...
Exhaust Emissions Controls .266
....................
PGM-FI System .266
Ignition Timing Control
................................
System .266
Exhaust Gas Recirculation ...................
(EGR) System .266
Three Way Catalytic ...........................
Converter .266 ....................
Replacement Parts .266
..
Three Way Catalytic Converter .267
..............
State Emissions Testing .268
T echnical Inf ormat ion
T echnical Inf ormation
257
—
—
yy
('yy

The Vehicle Identif ication Number
(VIN) is the 17-digit number your
Honda dealer uses to register your
vehicle f or warranty purposes. It is
also necessary f or licensing and
insuring your vehicle. The easiest
placetofindtheVINisonaplate
fastened to the top of the dashboard.
Youcanseeitbylookingthrough
the windshield on the driver’s side. It
is also on the Certification label
attached to the driver’s doorjamb,
and is stamped on the engine
compartment bulkhead. The VIN is
also provided in bar code on the

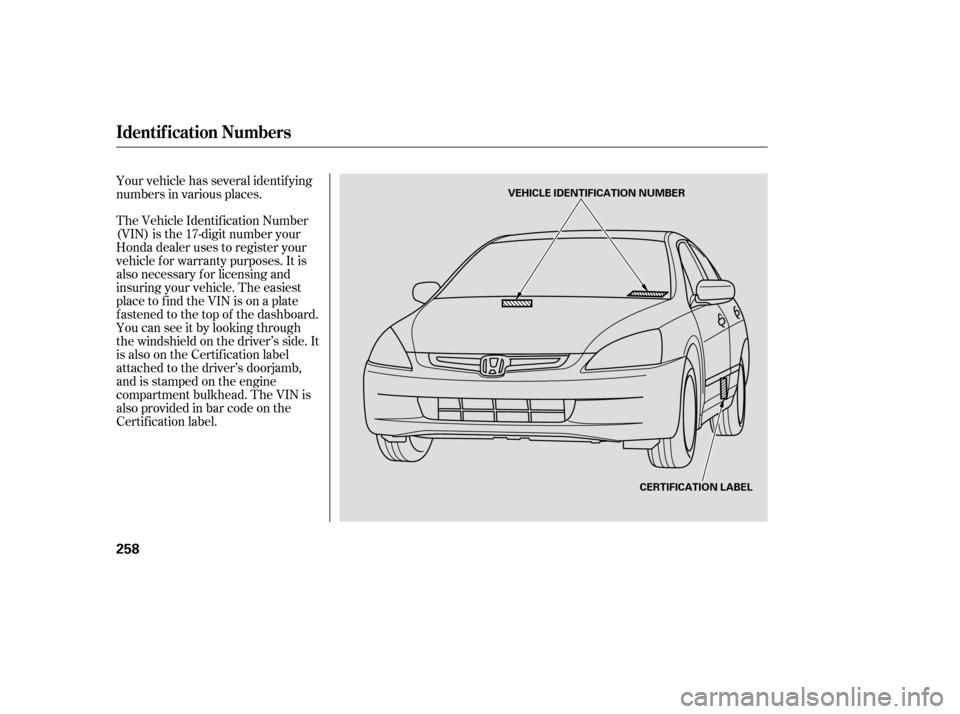

Certif ication label. Your vehicle has several identif ying
numbers in various places.
Identif ication Numbers
258
VEHICLE IDENTIFICATION NUMBERCERTIFICATION LABEL
—
—y
y
('y
y

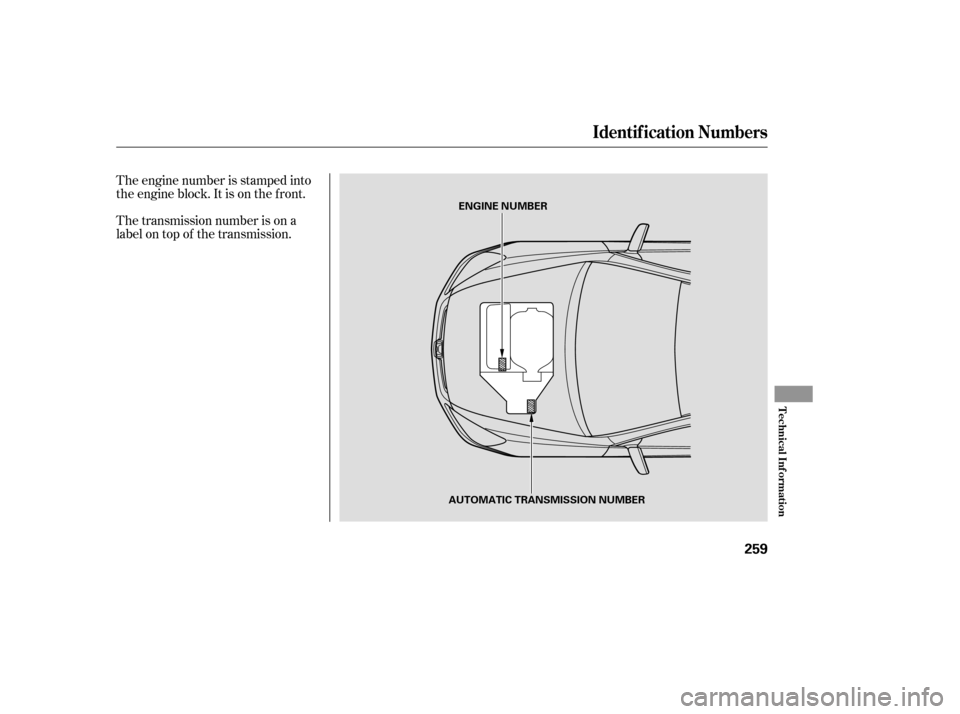

The engine number is stamped into
the engine block. It is on the f ront.
The transmission number is on a
label on top of the transmission.
Identif ication Numbers
T echnical Inf ormation
259
AUTOMATIC TRANSMISSION NUMBERENGINE NUMBER
—
—
