HONDA ACCORD HYBRID 2005 CL7 / 7.G Owners Manual

Theheadlightswereproperlyaimed
when your vehicle was new. If you
regularly carry heavy items in the
trunk or pull a trailer, readjustment
may be required. Adjustments
should be perf ormed by your dealer
or other qualif ied mechanic.Your vehicle has two bulbs on each
side, f our in total. Make sure you are
replacing the bulb that is burned out.
Your vehicle uses halogen headlight
bulbs. When replacing a bulb, handle
it by its plastic case and protect the
glass from contact with your skin or
hard objects. If you touch the glass,
clean it with denatured alcohol and a
clean cloth.
Headlight A iming Replacing a Headlight Bulb
Lights
210
Halogen headlight bulbs get very hot
when lit. Oil, perspiration, or a scratch
on the glass can cause the bulb to
overheat and shatter.
—
—y
y
('y
y

Remove the electrical connector
f rom the bulb by squeezing the
connector to unlock the tab, then
slide the connector of f the bulb.Remove the bulb by turning it
approximately one-quarter turn
counterclockwise.
Install the new bulb and turn it
one-quarter turn clockwise to lock
it in place.Push the electrical connector onto
the bulb.
Turn on the headlights to test the
new bulb.
Open the hood. To change a bulb
on the driver’s side, undo the two
f asteners and remove the air
intake cover. Reinstall the air intake cover.
Reinstall the two fasteners and
secure them by pushing on the
heads until they lock.
1. 3.
2. 4.5.
6.
7.
High Beam Headlight
Lights
Maint enance
211
AIR INTAKE
COVER
FASTENERS TABBULB
—
—
yy
('y
y

To change the passenger’s side
bulb, start the engine, turn the
steering wheel all the way to the
lef t, and turn of f the engine. To
change the driver’s side bulb, turn
the steering wheel to the right.
Use a f lat-tipped screwdriver to
remove the two holding clips f rom
the inner f ender.Pull the inner f ender cover away
f rom the f ender and bumper.
Remove the bulb by turning it
approximately one-quarter turn
counterclockwise.
Remove the electrical connector
f rom the bulb by squeezing the
connector to unlock the tab, then
slide the connector of f the bulb.Install the new bulb and turn it
one-quarter turn clockwise to lock
it in place.
Push the electrical connector onto
the bulb.
Turn on the headlights to test the
new bulb.
Put the inner f ender cover in place.
Install the two holding clips. Lock
each one in place by pushing on
the center.
3.
4.
5.
1.
2. 6.
7.
8.
9.
L ow Beam Headlight
Lights
212
HOLDING CLIPS
BULB
—
—
y
y
('y
y

To change the passenger’s side
bulb, start the engine, turn the
steering wheel all the way to the
lef t, and turn of f the engine. To
change the driver’s side bulb, turn
the steering wheel to the right.
Use a f lat-tipped screwdriver to
remove the two holding clips f rom
the inner f ender.To remove the burned out bulb,
push it in and turn it
counterclockwise until it unlocks.
Install the new bulb and turn it
clockwise to lock it in place.
Insert the socket into the
headlight assembly. Turn it
clockwise to lock it in place.
Test the new bulb to make sure it
works.
Put the inner f ender cover in place.
Install and lock each holding clip
bypushingonthecenter.
Pull the inner f ender cover away
f rom the f ender and bumper.
Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
1. 3.
2. 4.
8. 7. 6.
9. 5.
Replacing the Front Side Marker/
Turn Signal and Parking L ight
Bulb
Lights
Maint enance
213
HOLDING CLIPS
BULB
—
—
yy
('y
y

Open the trunk.
Remove the light assembly cover
by pulling its outside edge.
Remove the socket by turning it
one-quarter turn counterclockwise,
and pull the bulb straight out of its
socket.Push a new bulb straight into the
socket until it bottoms, and
reinstall the socket into the light
assembly by turning it clockwise
until it locks.
Testthenewbulbtomakesureit
works.
Reinstall the light assembly cover.
Open the trunk.
Remove the trim clips f rom the
right or lef t corner of the trunk lid
trim by caref ully prying them
using a small, f lat-tip screwdriver
wrapped with tape.
3. 2. 1. 4.
5.
6.
2. 1.
Replacing Rear Bulbs
(in Fenders)
Replacing Rear Bulbs
(in T runk L id)
Lights
214
BULBS
SOCKETS
COVER TRIM CLIP
—
—
yy
('y
y

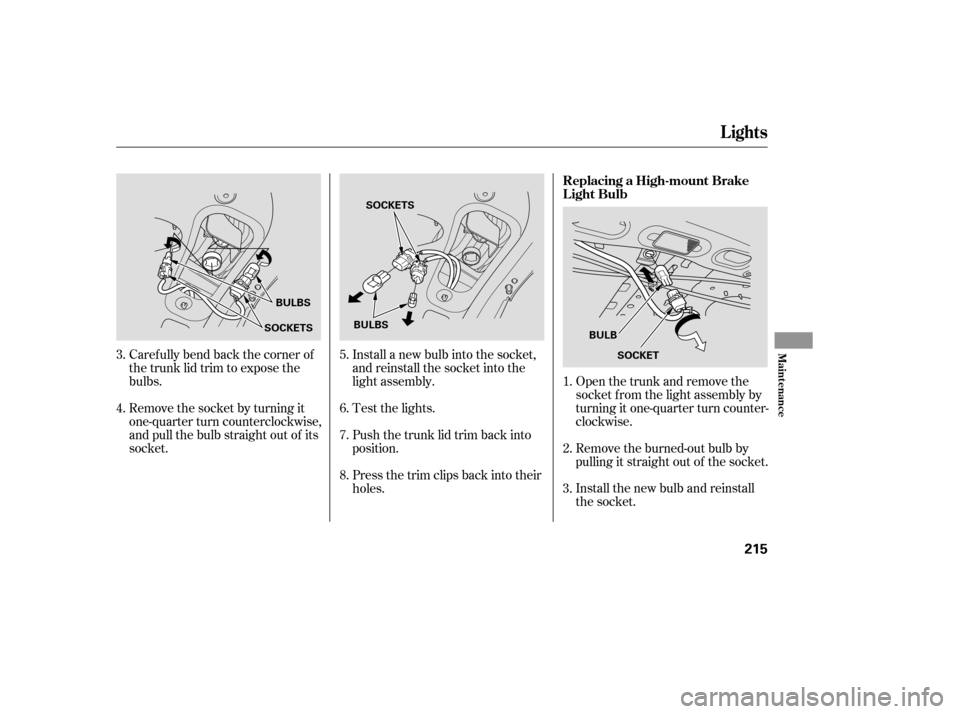

Open the trunk and remove the
socket f rom the light assembly by
turning it one-quarter turn counter-
clockwise.
Remove the burned-out bulb by
pulling it straight out of the socket.
Install the new bulb and reinstall
the socket.
Caref ully bend back the corner of
the trunk lid trim to expose the
bulbs.
Remove the socket by turning it
one-quarter turn counterclockwise,
and pull the bulb straight out of its
socket.
Install a new bulb into the socket,
and reinstall the socket into the
light assembly.
Test the lights.
Push the trunk lid trim back into
position.
Press the trim clips back into their
holes.1.
3.
2.
4. 5.
6.
7.
8.
3. Replacing a High-mount Brake
Light Bulb
Lights
Maint enance
215
BULBSSOCKETS
BULBS
SOCKETS
SOCKET
BULB
—
—
yy
('y
y

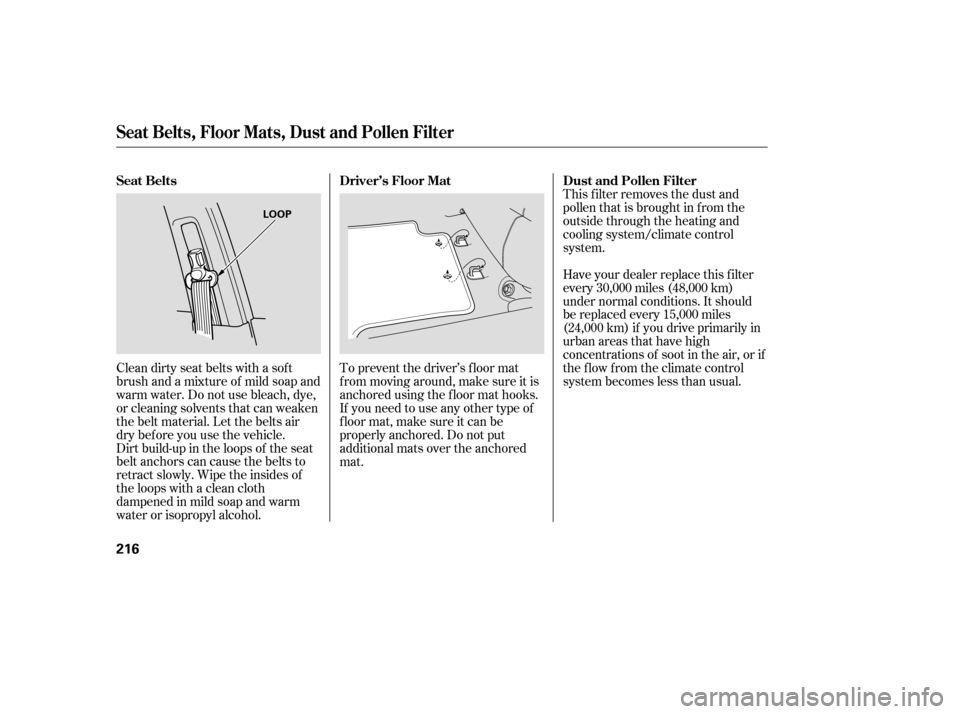

Dirt build-up in the loops of the seat
belt anchors can cause the belts to
retract slowly. Wipe the insides of
the loops with a clean cloth
dampened in mild soap and warm
water or isopropyl alcohol. Clean dirty seat belts with a sof t
brush and a mixture of mild soap and
warm water. Do not use bleach, dye,
or cleaning solvents that can weaken
the belt material. Let the belts air
drybeforeyouusethevehicle.To prevent the driver’s f loor mat
f rom moving around, make sure it is
anchored using the f loor mat hooks.
If you need to use any other type of
f loor mat, make sure it can be
properly anchored. Do not put
additional mats over the anchored
mat.This f ilter removes the dust and
pollenthatisbroughtinfromthe
outside through the heating and
cooling system/climate control
system.
Have your dealer replace this filter
every 30,000 miles (48,000 km)
under normal conditions. It should
be replaced every 15,000 miles
(24,000 km) if you drive primarily in
urban areas that have high
concentrations of soot in the air, or if
the f low f rom the climate control
system becomes less than usual.
Seat Belts
Driver’s Floor Mat Dust and Pollen Filter
Seat Belts, Floor Mats, Dust and Pollen Filter
216
LOOP
—
—
yy
('y
y

Check the condition of the wiper
blades at least every six months.
Look f or signs of cracking in the
rubber, or areas that are getting
hard. Replace the blades if you f ind
these signs, or if they leave streaks

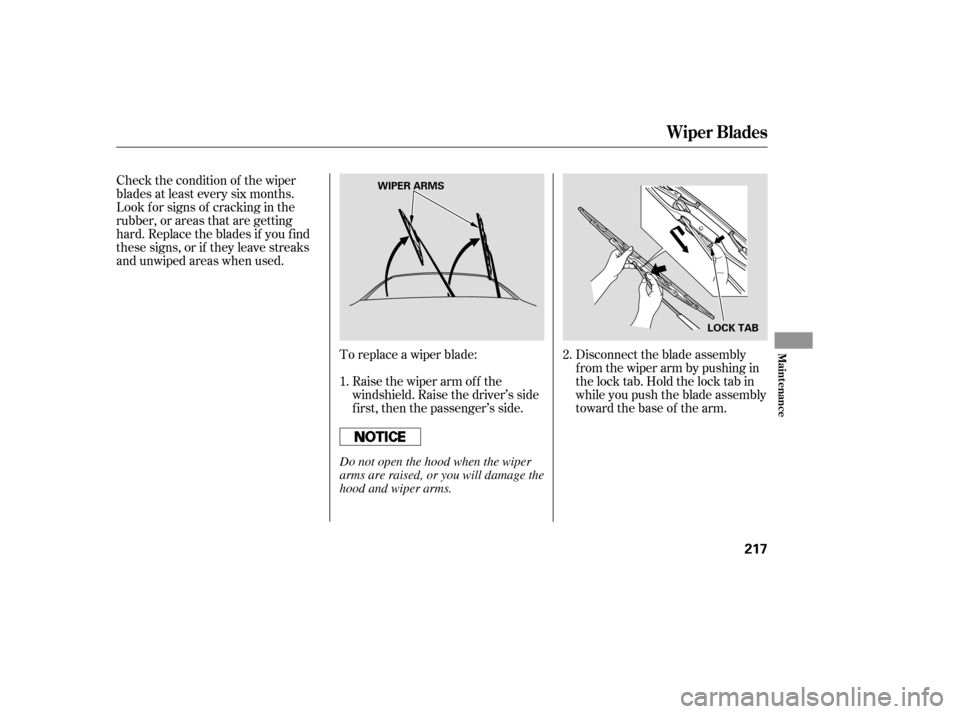

and unwiped areas when used.To replace a wiper blade:Raise the wiper arm of f the
windshield. Raise the driver’s side
first, then the passenger’s side. Disconnect the blade assembly
fromthewiperarmbypushingin
the lock tab. Hold the lock tab in
while you push the blade assembly
toward the base of the arm.
2.
1.
Wiper Blades
Maint enance
217
WIPER ARMS
LOCK TAB
Do not open the hood when the wiper
arms are raised, or you will damage the
hood and wiper arms.
—
—
y
y
('yy

Remove the blade f rom its holder
by grasping the tabbed end of the
blade. Pull f irmly until the tabs
come out of the holder.Examine the new wiper blades. If
they have no plastic or metal
reinf orcement along the back
edge, remove the metal
reinf orcement strips f rom the old
wiper blade, and install them in
the slots along the edge of the new
blade.Slide the new wiper blade into the
holder until the tabs lock.
Slide the wiper blade assembly
onto the wiper arm. Make sure it
locks in place.
Lower the wiper arm down against
the windshield. Lower the
passenger’s side f irst, then the
driver’s side.
3. 4. 5.
6.
7.
Wiper Blades
218
BLADE BLADE
REINFORCEMENT
—
—
yy
('y
y

Keeping the tires properly inf lated
provides the best combination of
handling, tread lif e, and riding
comf ort.Underinf lated tires wear unevenly,
adversely affect handling and fuel
economy, and are more likely to
fail from being overheated.
Overinf lated tires can make your
vehicleridemoreharshly,are
more prone to damage f rom road
hazards, and wear unevenly.
We recommend that you visually
check your tires every day. If you
think a tire might be low, check it
immediately with a tire gauge.
To saf ely operate your vehicle, your
tires must be the proper type and
size, in good condition with adequate
tread, and correctly inf lated.
The f ollowing pages give more
detailed inf ormation on how to take
care of your tires and what to do
when they need to be replaced.
Check the air pressures when the
tires are cold. This means the
vehicle has been parked f or at least
three hours, or driven less than 1
mile (1.6 km). Add or release air, if
needed, to match the recommended
cold tire pressures on the next page. Use a gauge to measure the air
pressure in each tire at least once a
month. Even tires that are in good
condition may lose 1 to 2 psi (10 to
20 kPa, 0.1 to 0.2 kgf /cm ) per
month. Remember to check the
sparetireatthesametime.
Inf lation Guidelines
Tires
Maint enance
219
Using tires that are excessively
worn or improperly inflated can
cause a crash in which you can
be seriously hurt or killed.
Follow all instructions in this
owner’s manual regarding tire
inflation and maintenance.
—
—
y
y
('yy
