This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations .52
............................
Instrument Panel .53
................
Instrument Panel Lights .54
.............................................
Gauges .63
Controls Near the Steering
.......................................
Wheel .70
..................
Wipers and Washers .71
.......
Turn Signal and Headlights .72
Automatic Lighting Off
.....................................
Feature .73
............
Daytime Running Lights .74
....
Instrument Panel Brightness .74
..........................
Hazard Warning .74
.............
Rear Window Def ogger .75
......
Steering Wheel Adjustment .76
...............................
Keys and Locks .77
........................
Immobilizer System .78
................................
Ignition Switch .79
......................................
Door Locks .80
..................
Childproof Door Locks .81
.......................
Remote Transmitter .81
................................................
Trunk .84
........
Emergency Trunk Opener .85
............................................
Armrest .85
....................................
Seat Heaters .86 ...................................................
Seat .86
.......
Adjusting the Driver’s Seat .86
...........
Driver’s Lumbar Support .87
Adjusting the Passenger’s
...........................................
Seat .87
..........................
Head Restraints .88
.............................................
Mirrors .89
....
Adjusting the Power Mirrors .89
................
Power Mirror Heaters .90
..............................
Power Windows .90
.................................
Parking Brake .93
..........................................
Sun Visor .94
..................................
Vanity Mirror .94
.................................
Interior Lights .95
...........
Interior Convenience Items .96
.......................
Beverage Holders .96
..........
Accessory Power Sockets .97
...............
Console Compartment .97
.......................
Center CD Pocket .97
......................
Sunglasses Holder .98
....................................
Glove Box .98
Instruments and Controls
Inst rument s and Cont rols
51
—
—y

y
('yy

If your f uel cap is loose or missing, a
‘‘CHECK FUEL CAP’’ message
appears as text in the odometer/
outside temperature display af ter
you start the engine. Turn the
engine of f and conf irm the f uel cap is
installed. If it is, loosen the cap, then
retighten it at least 3 clicks. When
you restart the engine, the message
appears again. To clear, press and
hold the Trip/Reset button until the
message is replaced by the
odometer/outside temperature
display.
This indicator normally comes on
when you turn the ignition to ON (II)
and goes off after the engine starts.
If it comes on at any other time,
there is a problem in the Electric
Power Steering system. If this
happens, stop the vehicle in a saf e
place and turn of f the engine. Reset
the system by restarting the engine.
The indicator will not turn of f
immediately. If it does not go of f
after driving a short distance, or
comes back on again while driving,
take the vehicle to your dealer to
have it checked. With the indicator
on, the EPS may be turned of f ,
making the vehicle harder to steer.
If the power steering system
overheats while driving, the assisting
power is reduced and steering may
f eel slightly harder.
If you drive with the system overheated continuously or
repeatedly, this can damage the
power steering system.
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to ON (II). If it comes
on at any other time, it indicates a
problem in the Integrated Motor
Assist (IMA) system. With the IMA
indicator on, the vehicle may not
accelerate as it normally does. Have
the vehicle checked by the dealer as
soon as possible.
See page .
174 Check Fuel Cap Display
Electric Power Steering
(EPS) Indicator
IMA System Indicator
A uto Idle Stop Indicator
Instrument Panel Indicators
60
—
—y

y
('yy

Gauges
Inst rument s and Cont rols
63
IMA BATTERY LEVEL GAUGESELECT/RESET KNOB
TRIP METER
U.S. model is shown. TEMPERATURE GAUGE
CHARGE/ASSIST GAUGE FUEL GAUGE
SPEEDOMETER
TACHOMETER
ODOMETER/OUTSIDE TEMPERATURE DISPLAY
—
—yy
('yy

The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial
regulations to disconnect, reset, or
alter the odometer with the intent to
change the number of miles or
kilometers indicated.This display shows the outside
temperature in Fahrenheit (U.S.
models) or Centigrade (Canadian
models). To see the outside
temperature, press and release the
Select/Reset knob until the
temperature is displayed.
The temperature sensor is in the
f ront bumper. Theref ore, the
temperature reading can be af f ected
by heat ref lection f rom the road
surf ace, engine heat, and the
exhaust f rom surrounding traf f ic.
This can cause an incorrect
temperature reading when your
speed is under 19 mph (30 km/h).
The sensor delays the display update
until it reaches the correct outside
temperature. This may take several
minutes.
Gauges
Odometer
Outside T emperature Display
64
—
—y

y
('yy

¶¶µµµµ
µ µµµ This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters: Trip A
and Trip B. Switch between these
displays and the odometer/outside
temperature display by pressing the
Select/Reset knob repeatedly. Each
trip meter works independently, so
you can keep track of two dif f erent
distances.
If the outside temperature is
incorrectly displayed, you can adjust
it up to 5°F ( 3°C) warmer or
cooler.
NOTE: The temperature must be
stabilized bef ore doing this
procedure.
Select the outside temperature
display, then press the Select/Reset
knob f or 10 seconds. The f ollowing
sequences appear, 1 second at a
time:0,1,2,3,4,5, 5, 4, 3, 2,
1, 0, 1 (0, 1, 2, 3, 3, 2, 1, 0, 1).
When the temperature reaches the
desired value, release the Select/
Reset knob. You should see the new
outside temperature displayed.
In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace. When you turn the ignition switch to
ON (II), what you last selected is
displayed.
To reset a trip meter, display it and
then press and hold the Select/Reset
knob until the number resets to ‘‘0.0.’’
Both trip meters will reset if the
vehicle’s battery goes dead or is
disconnected.
Trip Meter
Gauges
Inst rument s and Cont rols
65
—
—
yy
('yy

When a trip meter is displayed, the
average fuel mileage you have been
getting during that trip is shown in
the Fuel Mileage display. This
number is updated once every ten
seconds.
When you reset a trip meter, the
average fuel mileage for that trip
meter also resets.You can temporarily turn of f the Trip
Mileage display.
Turn the ignition switch to ON (II)
and make sure the transmission is
in Park and the parking brake is
set.
Use the Select/Reset button to
select the odometer display.
Press and hold the Select/Reset
button for about 5 to 10 seconds,
then release it. The Trip Mileage
display will turn of f . The display will turn back on when
you repeat the same procedure in
step 3.
It shows the number of mpg (U.S.)
or l/100 km (Canada).
1.
2.
3.
Inst rument s and Cont rols
Gauges
T rip Mileage T urning Of f the T rip Mileage
Display
66
TRIP METER
—
—yy
('yy

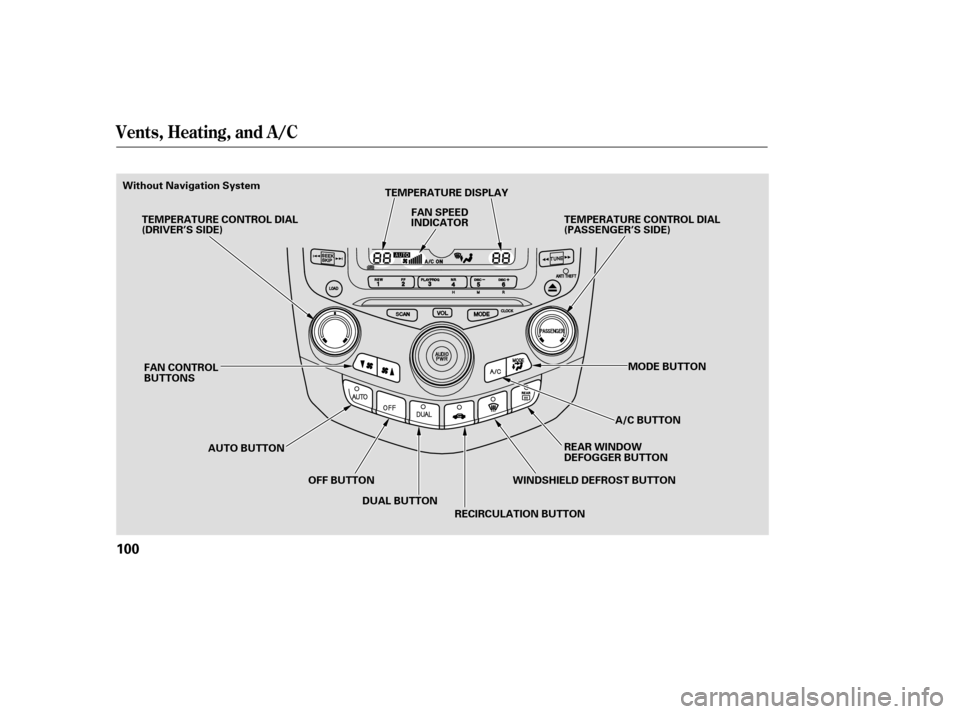

Vents, Heating, and A/C
100
REAR WINDOW
DEFOGGER BUTTON
FAN CONTROL
BUTTONS
AUTO BUTTON OFF BUTTONDUAL BUTTON A/C BUTTON
TEMPERATURE CONTROL DIAL
(DRIVER’S SIDE)
FAN SPEED
INDICATOR
TEMPERATURE DISPLAY
TEMPERATURE CONTROL DIAL
(PASSENGER’S SIDE)
Without Navigation System
MODE BUTTON
WINDSHIELD DEFROST BUTTON
RECIRCULATION BUTTON
—
—
yy
('y
y

Vents, Heating, and A/C
Features
101

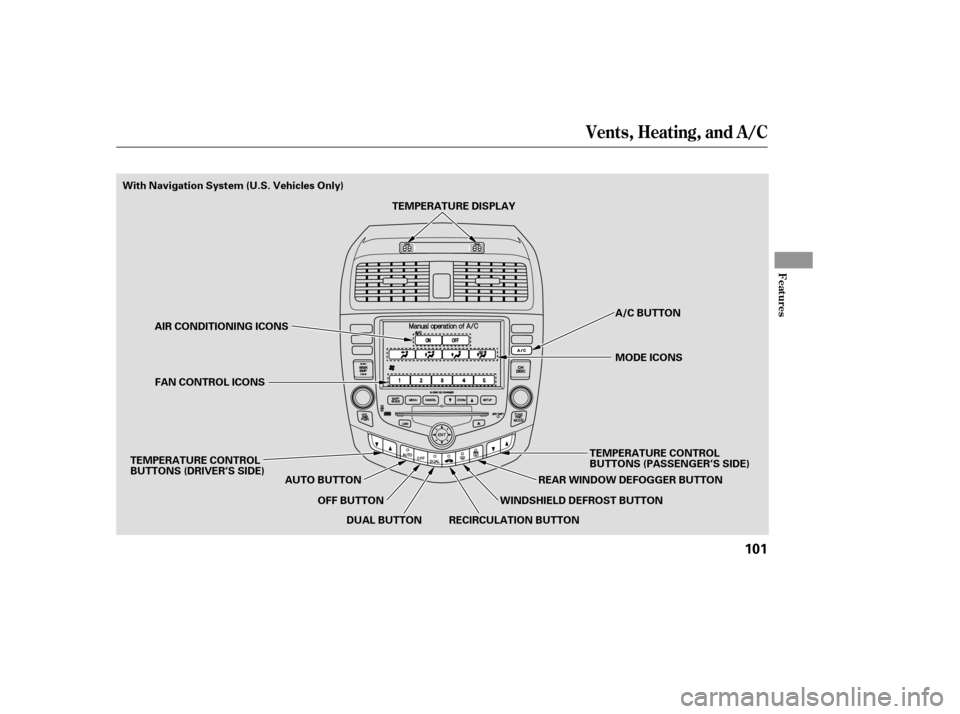

AUTO BUTTONMODE ICONS A/C BUTTON
AIR CONDITIONING ICONS
FAN CONTROL ICONS
DUAL BUTTON TEMPERATURE CONTROL
BUTTONS (PASSENGER’S SIDE)
RECIRCULATION BUTTON WINDSHIELD DEFROST BUTTONREAR WINDOW DEFOGGER BUTTON
TEMPERATURE CONTROL
BUTTONS (DRIVER’S SIDE)
OFF BUTTONTEMPERATURE DISPLAY
With Navigation System (U.S. Vehicles Only)
—
—
y
y
('y
y

ÛÝ
Without Navigation SystemWith Navigation System Without Navigation System
With Navigation System
You can manually select the f an
speed by pressing the f an control
buttons. The f an speed is
represented by vertical bars in the
display.
You can manually select the f an
speed by pressing the A/C button
next to the display and then,
pressing the f an control icons. Turn the temperature control dial on
the driver’s side to adjust the airf low
temperature on both the driver’s and
passenger’s sides at the same time.
When you press the DUAL button,
the indicator comes on. When it is on,
the airflow temperatures on the
driver’s and passenger’s sides can be
adjusted individually.
Press the temperature control
buttons and on the driver’s side
to adjust the airflow temperature on
both the driver’s and passenger’s
sides at the same time.
When you press the DUAL button,
the indicator comes on. When it is on,
the airflow temperatures on the
driver’s and passenger’s sides can be
adjusted individually.If temperature display flashes, there
is a problem with the Hybrid-A/C.
Have your vehicle checked by your
dealer as soon as possible.
Vents, Heating, and A/C
Fan Control
T emperature Control
102
—

—y
y
('y
y

When the recirculation indicator is
on, air f rom the vehicle’s interior is
sent throughout the system again.
When the indicator is off, air is
brought in f rom the outside of the
vehicle (Fresh Air mode).
The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
Thesystemshouldbeleftinfresh
air mode under almost all conditions.
Keeping the system in recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
Switch to recirculation mode when
driving through dusty or smoky
conditions, then return to fresh air
mode.
This button turns the rear window
def ogger of f and on (see page ).
Press the A/C button to turn the air
conditioning on and of f . The display
shows ‘‘A/C ON’’ when the air
conditioning is on. The display
shows ‘‘A/C OFF’’ when the air
conditioning is of f .
The display shows ‘‘ON’’ and ‘‘OFF’’
after you press the A/C button. The
display shows ‘‘A/C ON’’ af ter you
touch ‘‘ON’’ to turn the air
conditioning on. The display shows
‘‘A/C OFF’’ af ter you touch ‘‘OFF’’ to
turn the air conditioning off.
When the A/C is of f , the airf low
temperature does not f all below the
outside air temperature. When you
set the airf low temperature lower
than the outside air temperature,
make sure the A/C is on.
75Without Navigation SystemWith Navigation System
Air Conditioning (A/C) Button
Rear Window Def ogger Button Recirculation Button
Vents, Heating, and A/C
Features
103
—
—
